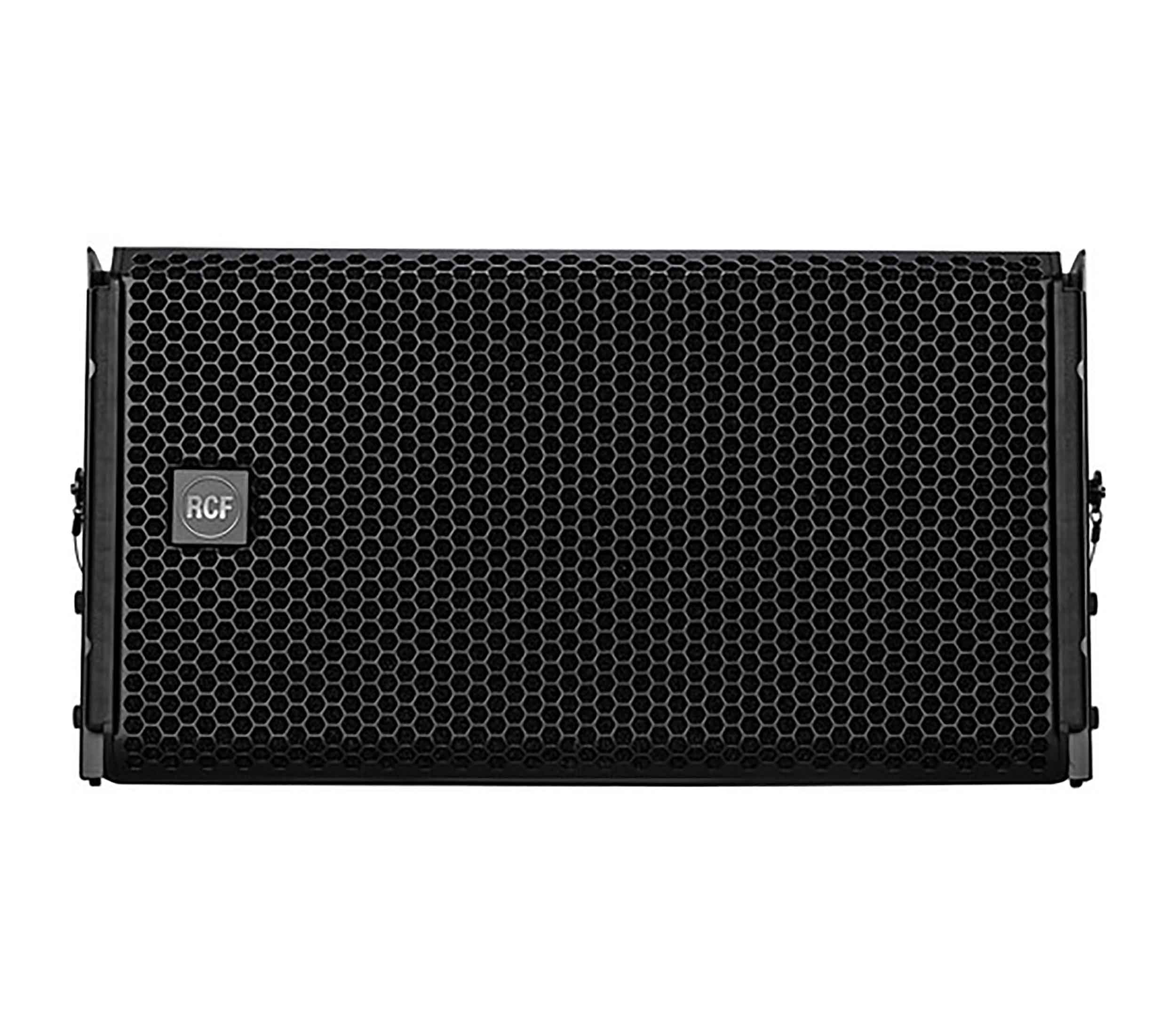

RCF HDL28-A, 2-Way 2200-Watt Active Line Array Speaker - Black

The RCF HDL28-A, 2-Way 2200-Watt Active Line Array Speaker - Black is an active speaker module designed to be used as part of a long-throw concert line-array sound system for touring sound reinforcement for small to medium venues, concert halls, and outdoor events. The speaker provides ultra-linear amplitude response, while also being easy to stack and fly. It is well suited to withstand the rigors of live sound reinforcement or rentals applications in performance venues, clubs, corporate spaces, houses of worship, mobile DJ setups, and more.

The HDL 28-A is equipped with a 2200W peak, Class-D digital amplifier, which drives 1600W into the dual 8" woofers and 600W into the 1.4" compression driver. The crossover is set at 750 Hz. The speaker delivers a frequency response of 50 Hz to 20 kHz with a peak SPL output of 135 dB, and 100°H x 15°V coverage. The integrated DSP offers low-latency loudspeaker processing, while phase and amplitude are corrected using proprietary FiRPHASE technology conceived for delivering a natural and transparent sound, with a balanced stereo image.

First-Class Transducers

The RCF HDL 28-A features state-of-the-art RCF transducers with neodymium magnets.

RCF’s experienced engineering teams have specially developed and matched each component—starting from the power supply through the input board, to the amplifiers and transducers, right up to the complete HDL 28-A system.

High-Frequency Compression Driver

1.4" diaphragm titanium compression driver with 3" voice coil

750 Hz crossover point

Low-Frequency Drivers

Two 8” woofers with 2.5” voice coil and neodymium magnets

Low frequencies handling down to 50 Hz

Cone finished in water-resistant fiber

Surrounding polycotton M-roll

Hyper-vented magnetic structure

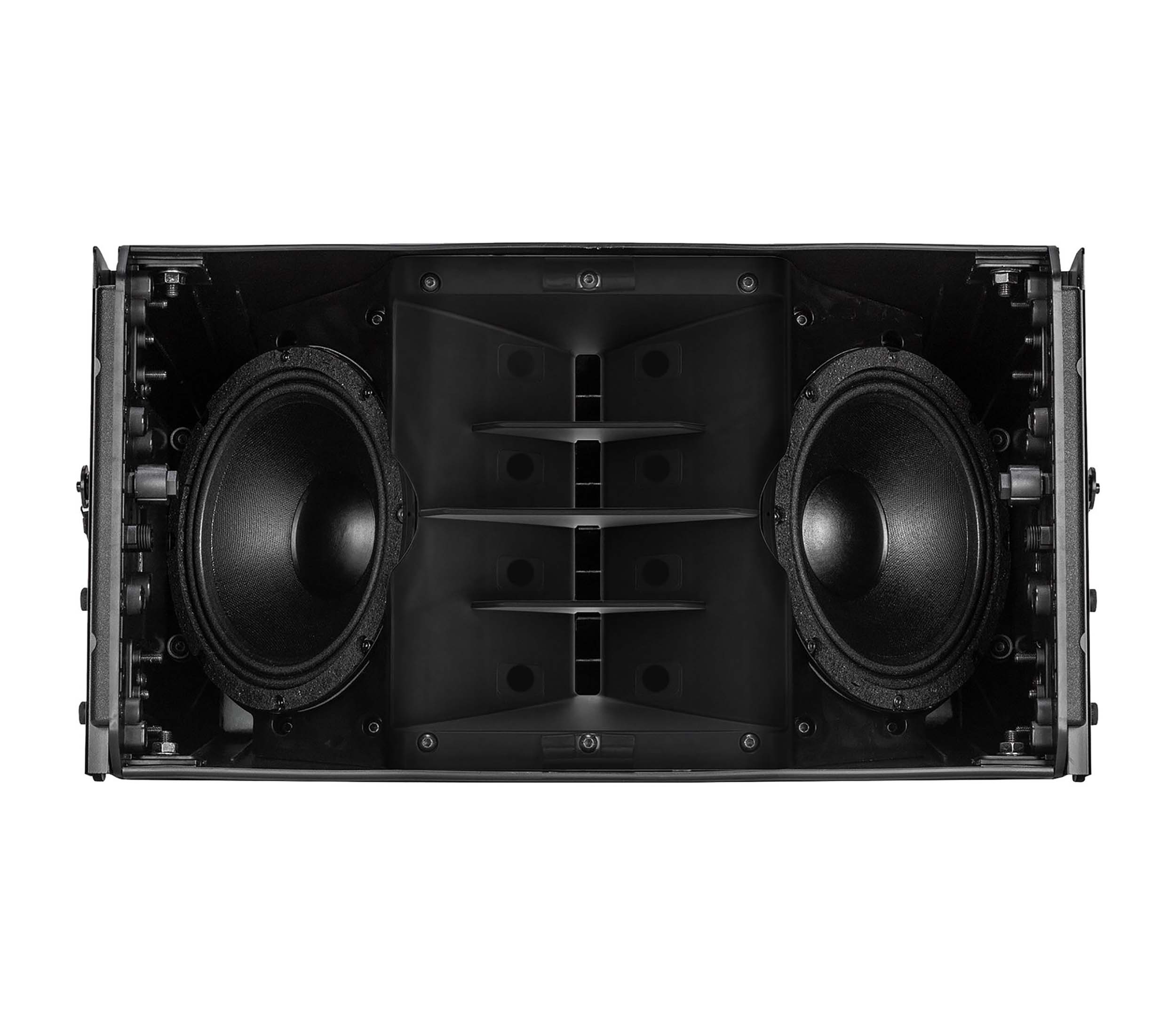

4-Path Waveguide

The custom-designed 4 PATH waveguide allows a precise coverage of 100 x 15 degrees, while also delivering an excellent linear high-frequency response.

The unique shape of the four ducts forming the guide creates an ideal isophase load from 750 Hz up to the highest audible frequencies.

DSP

The low-latency, 32-bit DSP section deploys a remarkable amount of processing power for live performances with straight-forward control and monitoring of single parts of the module, including rigging angles and transducer performance via RDNet.

Thermal and RMS protections preserves the speaker's performance and helps to ensure reliability.

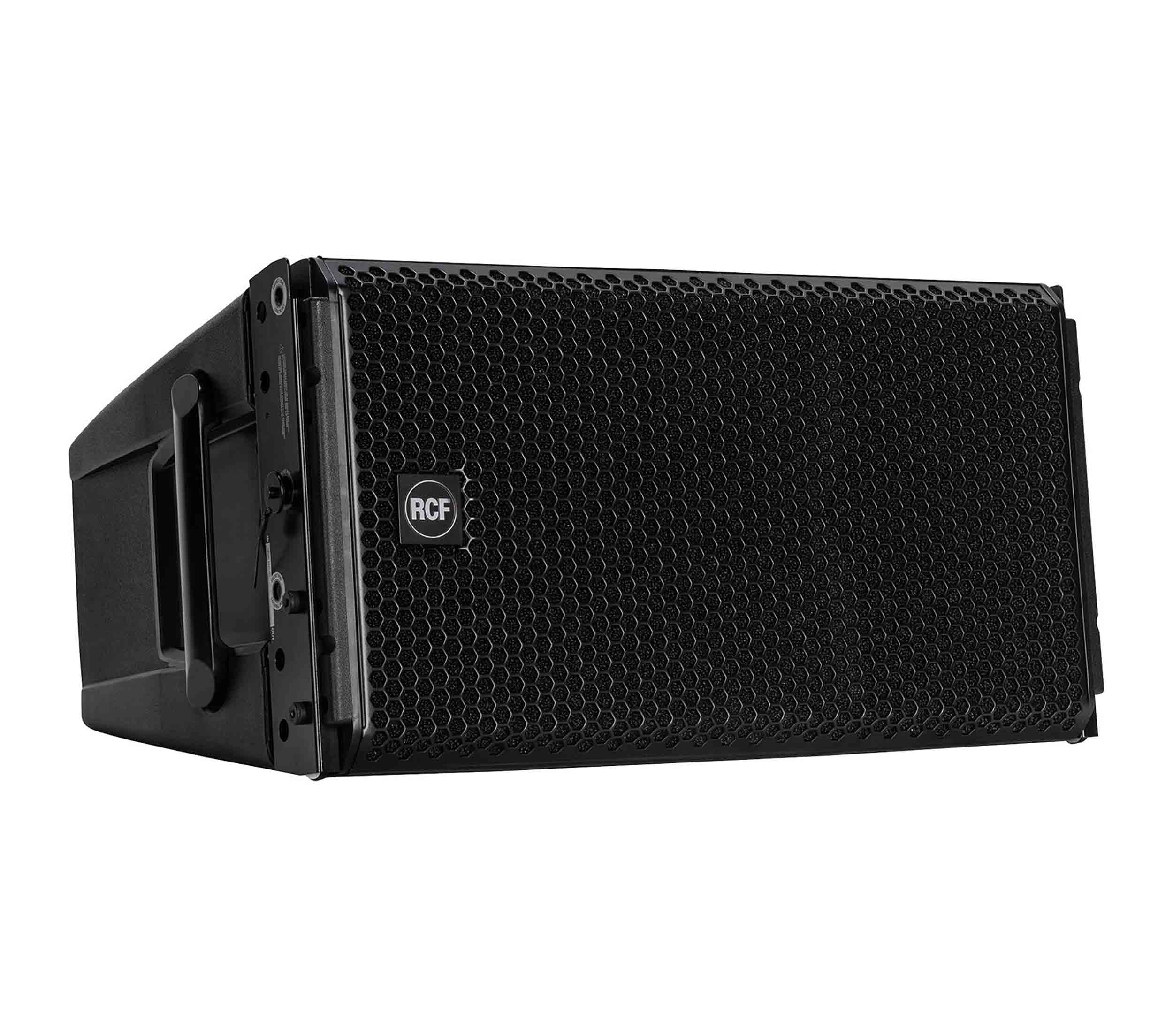

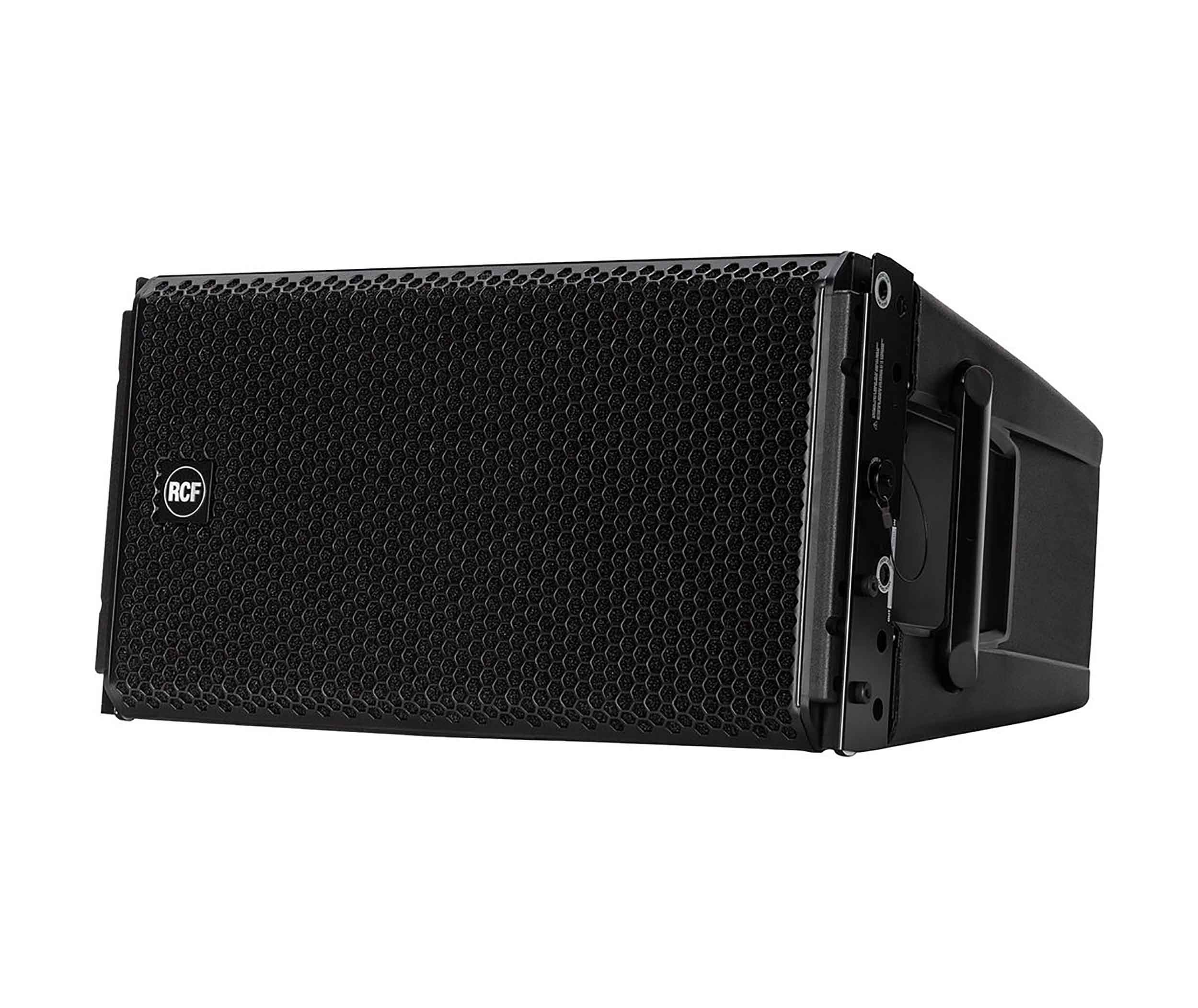

The Acoustic Beauty of Symmetry

The symmetrical design of the cabinet produces identical left and right coverage of 100 x 15°.

The component positioning and special DSP crossover filtering of the HDL 28-A take care of the constant directivity without spots of break up or attenuation.

The front baffle provides coplanar woofers, controlled low-frequency dispersion, and the high-frequency waveguide.

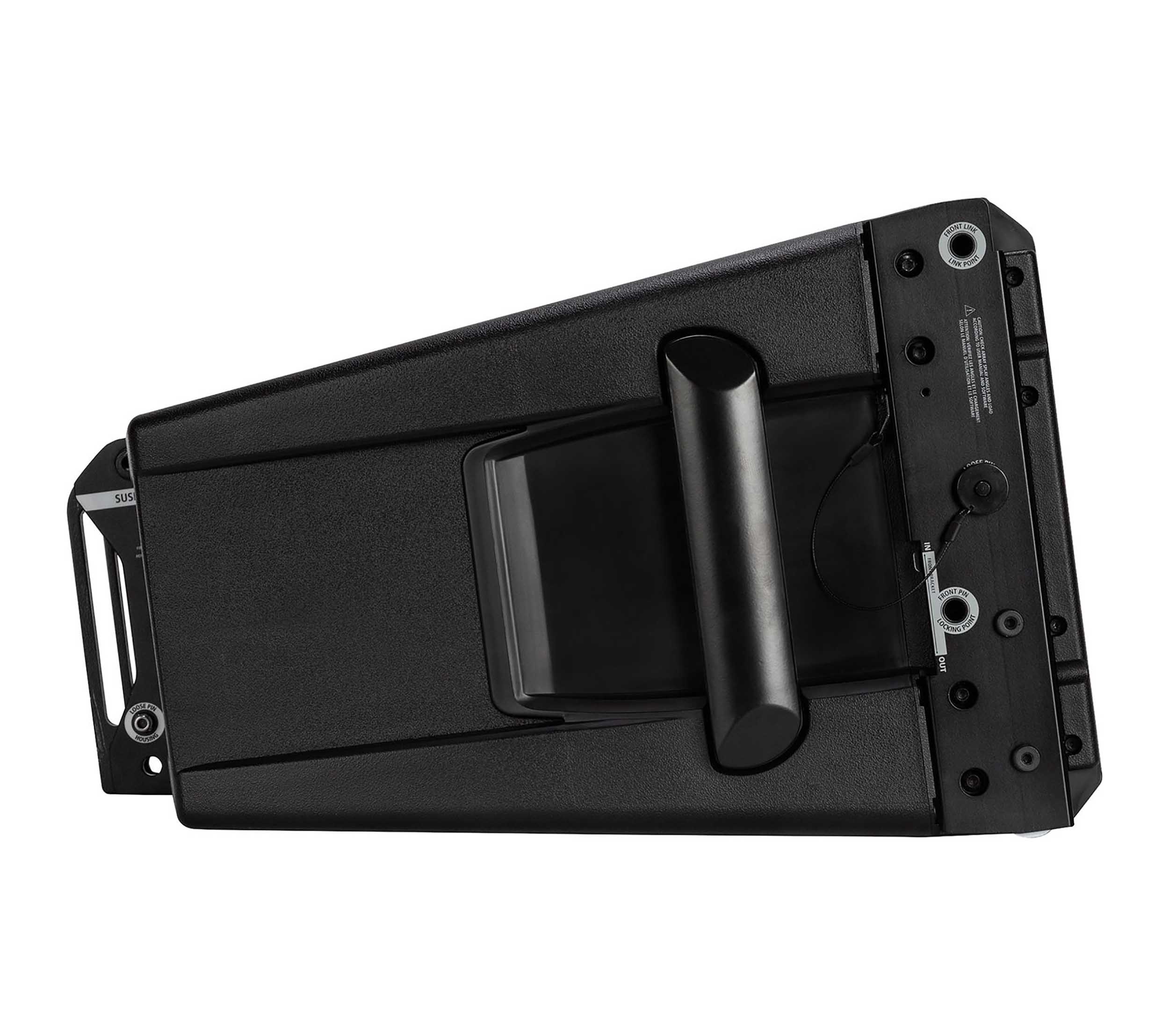

Flying Attitude

The advanced rigging concept derives directly from its big brothers: the RCF HDL 30-A and HDL 50-A.

The integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays.

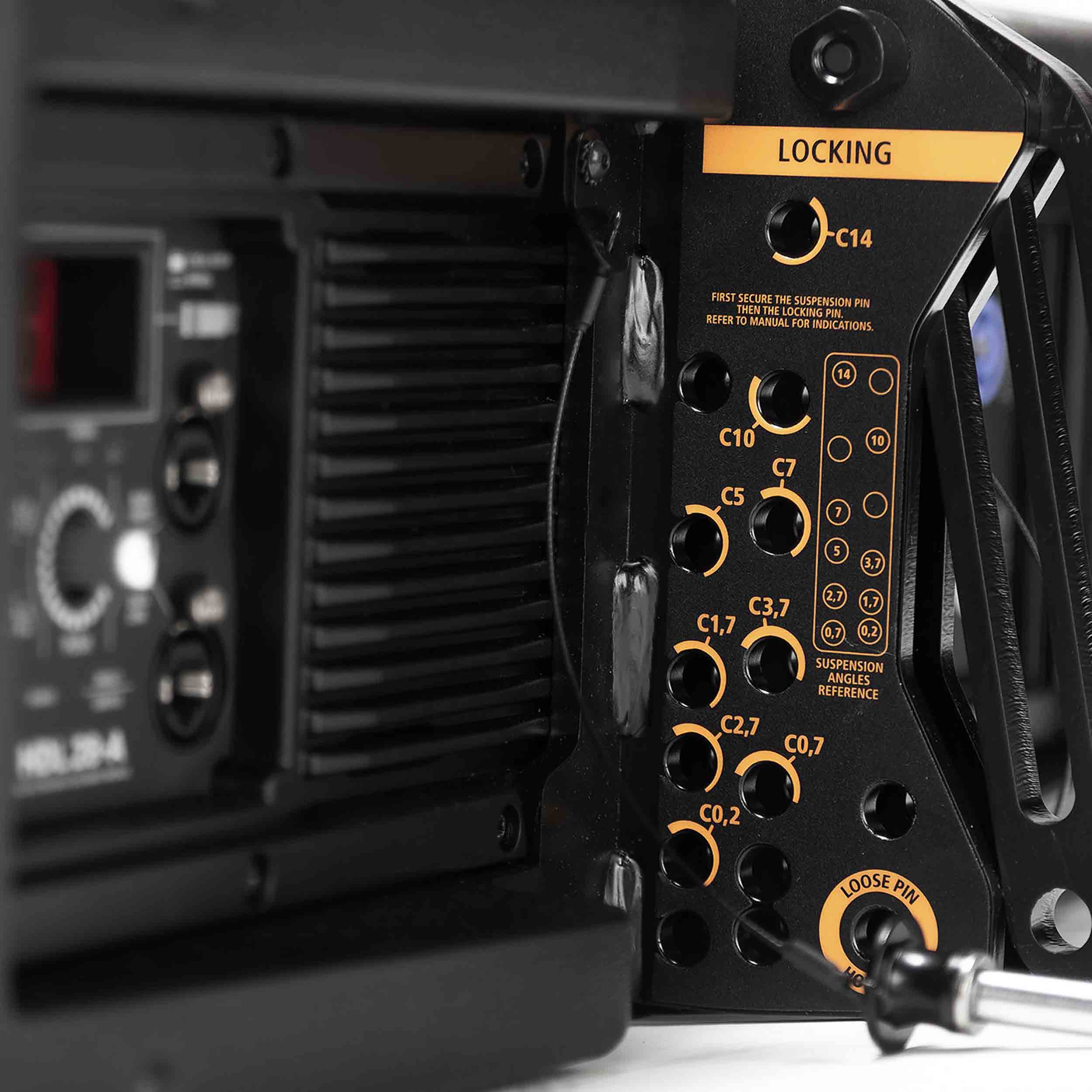

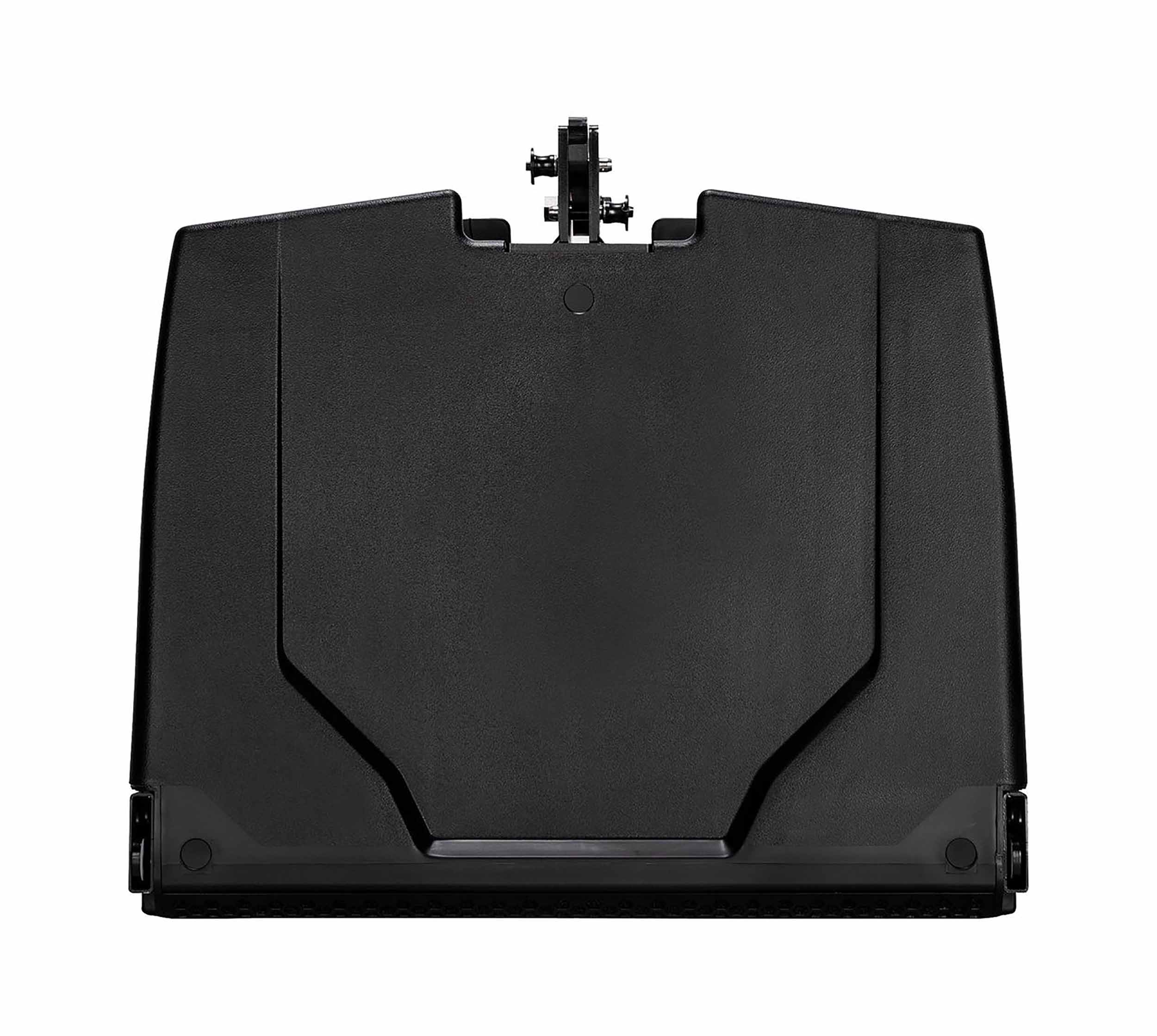

The hardware is designed for easy and fast setup. The angle can be adjusted on the ground before the system is hung and slipped automatically into the correct position as the array is pulled up.

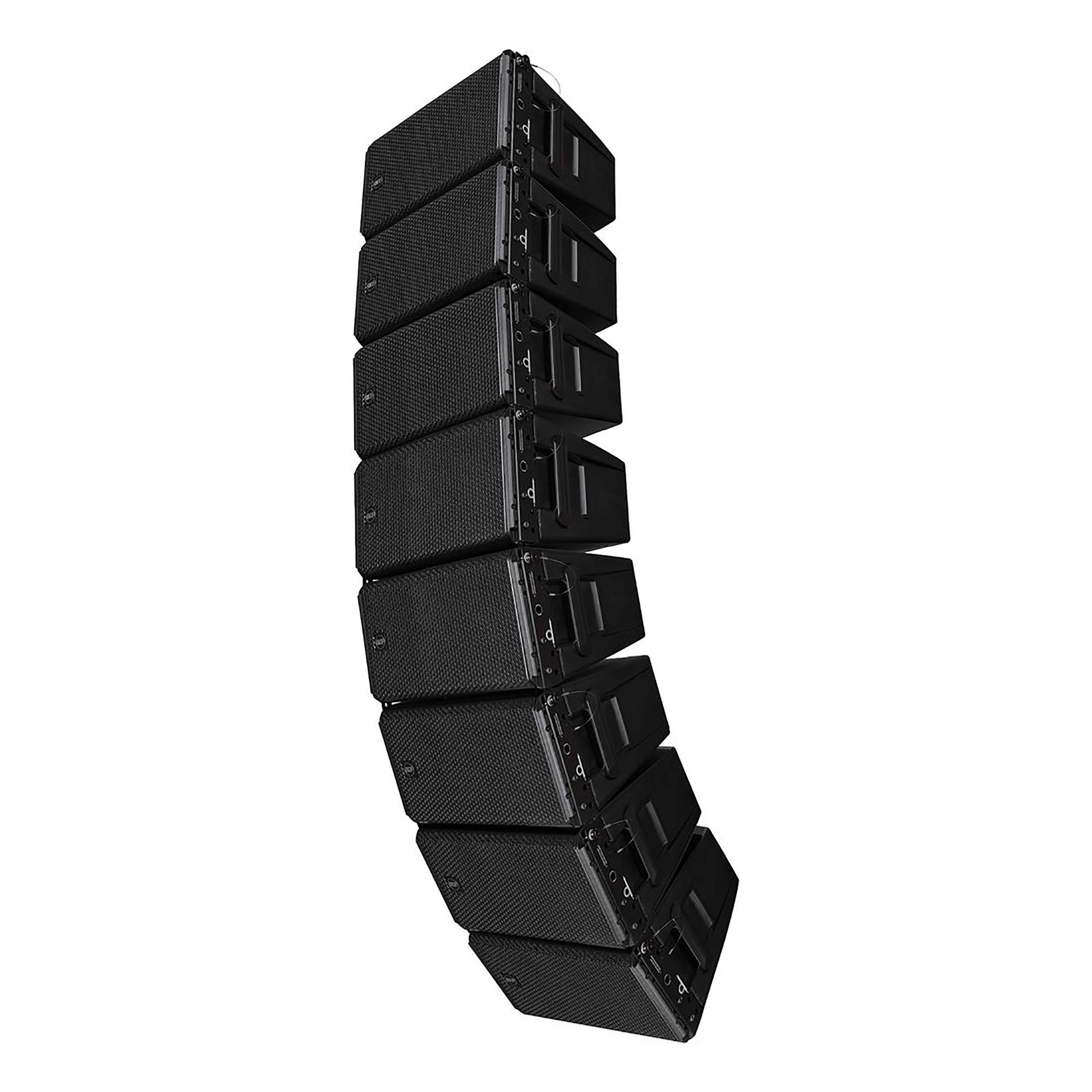

Up to 20 HDL 28-A modules can be fastened on a single flybar.

RDNet Connections for Networked Control

RDNet is a robust management network and control platform for small, medium, and large arena-sized sound systems as well as complex and extended installations. Based on a proprietary network protocol, the software provides intuitive control and monitoring of every connected device/object in the RCF audio system.

Array and Zones Grouping with multiple-type EQ, Bass Shaper, and FiRPHASE EQ

Auto scan and complete monitoring

Shape Designer Array Calculator with subwoofer configuration helper

Adjust hi-pass, EQ, gain, and delay on individual components

Complete real time monitoring

Automatic cluster size shaping and air compensation

Product Specifications:

Total Power Capacity:

2200 W Peak

1100 W RMS

Amplifier Power Rating:

HF:

600 W Peak

300 W RMS

LF:

1400 W Peak

700 W RMS

Amplifier Class: Class-D

HF Driver: 1 x 1.4" / 35.6 mm Compression Driver

HF Voice Coil: 3" / 7.6 cm

LF Driver: 2x 8" / 203.2 mm Woofer

LF Voice Coil: 2.5" / 6.3 cm

Magnet:

HF:

Neodymium

LF:

Neodymium

Frequency Response: 50 Hz to 20 kHz -3 dB

Maximum SPL: 135 dB (Peak)

Coverage Angle: 100° H x 15° V

Input Sensitivity:

Line Input:

+4 dBu to -2 dBu

Protections: Output Limiter, RMS, Thermal

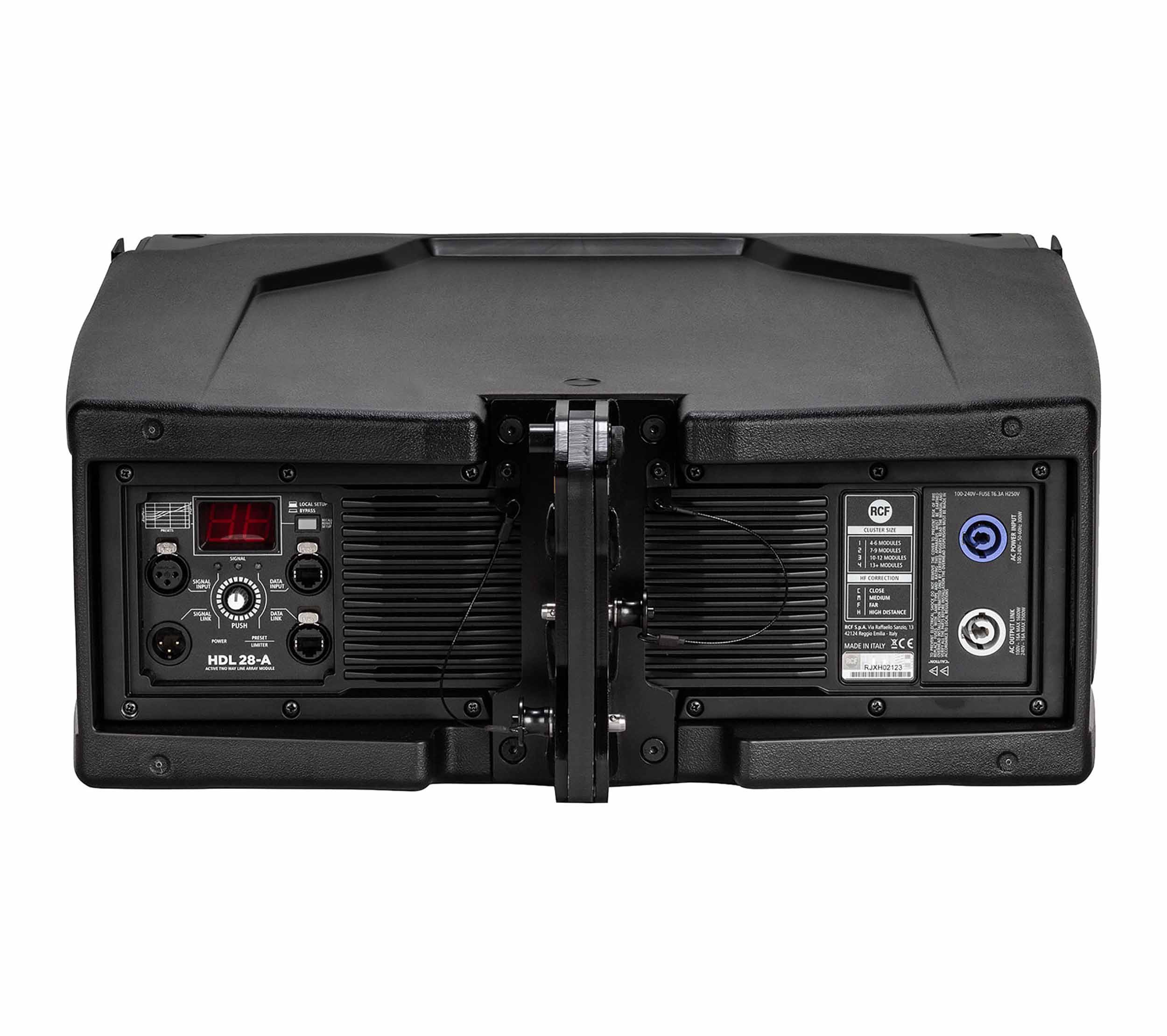

Audio I/O:

1x XLR 3-Pin Balanced/Unbalanced Line Input

1x XLR 3-Pin Balanced Line Thru

Network I/O:

1x etherCON (RDNet) Input

1x etherCON (RDNet) Output

Crossover: 750 Hz

Dynamic Processing: Soft Limiter

Alignment Delay: Yes

Phase Adjustment: Yes

Digital Signal Processing:

32-Bit DSP: Delay, FIR Filter, Venue Settings (Adjustable via Optional Software)

Maximum Sampling Rate: 48 kHz / 32-Bit

AC Input Power:

Factory Selectable:

100 to 240 VAC, 50 / 60 Hz (T 6.3 A H 250 V)

AC Power I/O:

1x powerCON Input

1x powerCON Output

Power Consumption: 300 W

Mounting: Integrated Rigging

Handles: 1x Each Side

Cooling: Convection

Construction Material: Composite, Metal Grille, Polypropylene, Steel

Weight: 40.8 lb. / 18.5 kg

Dimensions: 11.6 to 9.3 x 22.4 x 19.3" / 294 x 569 x 491 mm
