Description

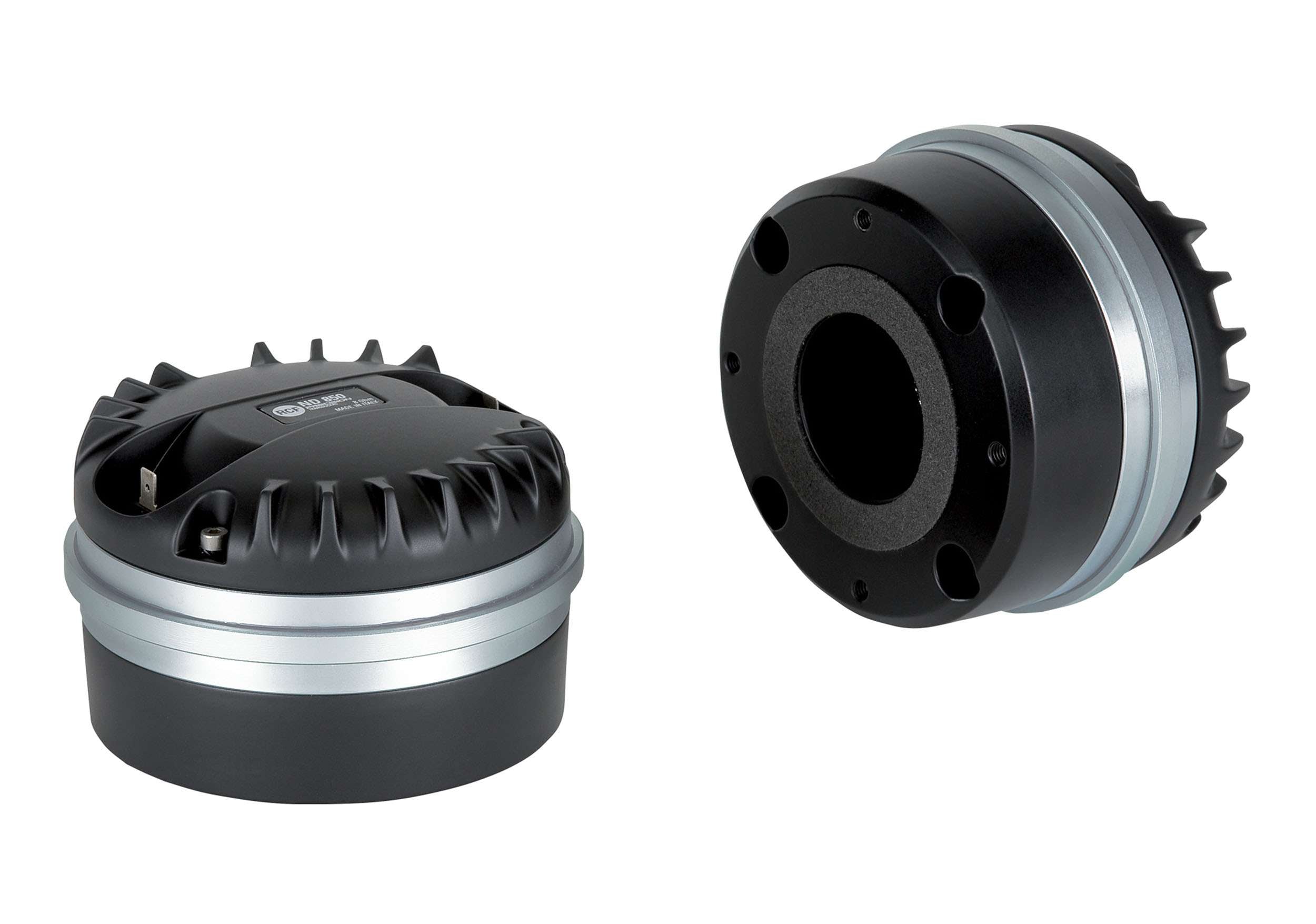

The RCF ND850 2.0 is a high-performance 3-inch diaphragm compression driver with a 2-inch exit throat, designed for professional sound reinforcement systems. Featuring a pure titanium diaphragm, 3-slot phase plug, and copper inductance ring, it ensures low distortion, extended response, and high efficiency. The vented and damped suspension system enhances clarity, while the neodymium magnet assembly provides powerful output. With 220W continuous power handling and 109 dB sensitivity, the ND850 2.0 is ideal for high-powered two-way and multi-way systems.
Product Specifications:
Exit Throat Diameter: 2.0 inch (51 mm)
Impedance: 8Ω
Program Power: 220W
Power Handling: 110W
Sensitivity: 109 dB
Frequency Range: 500 Hz - 20 kHz
Diaphragm Material: Pure Titanium
Suspension Material: Polyester
Suspension Design: Flat
Minimum Impedance: 8.50Ω
Voice Coil Diameter: 3.0 inch (76 mm)
Voice Coil Winding Material: Edgewound Aluminum
Voice Coil Former: Straight Kapton
Layers: Outside, single layer
Flux Density: 2.0 T
Phase Plug: 3-slot aluminum
Magnet Type: Neodymium
Demodulation Ring: Copper
Mounting & Dimensions
Overall Diameter: 131 mm (5.16 inches)
Overall, Height: 88 mm (3.46 inches)
Mounting: 4 × 6 mm threaded holes at 90°
Package Dimensions: 150 × 152 × 102 mm (5.91 × 5.98 × 4.02 inches)
Weight: 2.74 kg (6.04 lbs)
Shipping Weight: 2.95 kg (6.5 lbs)
