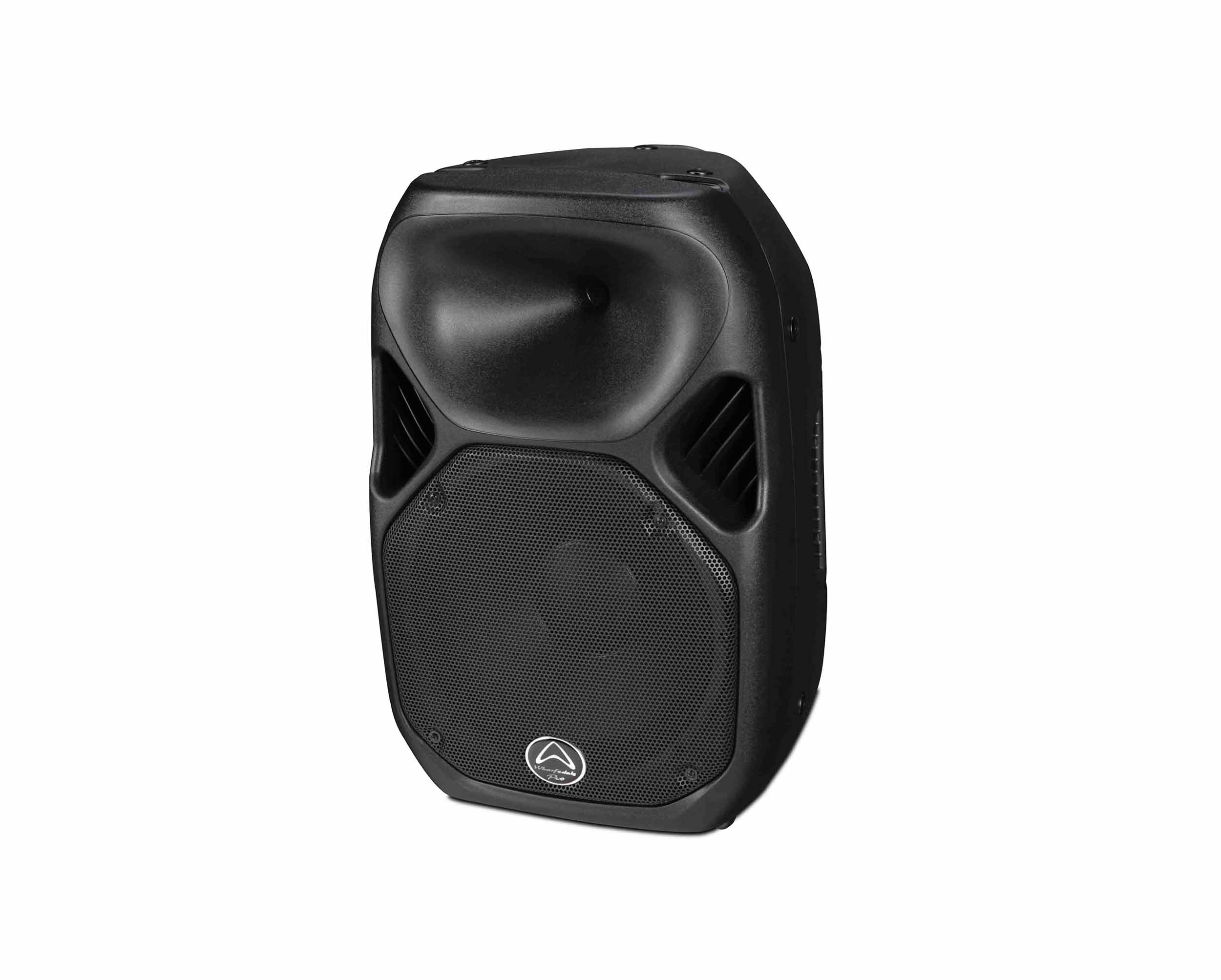

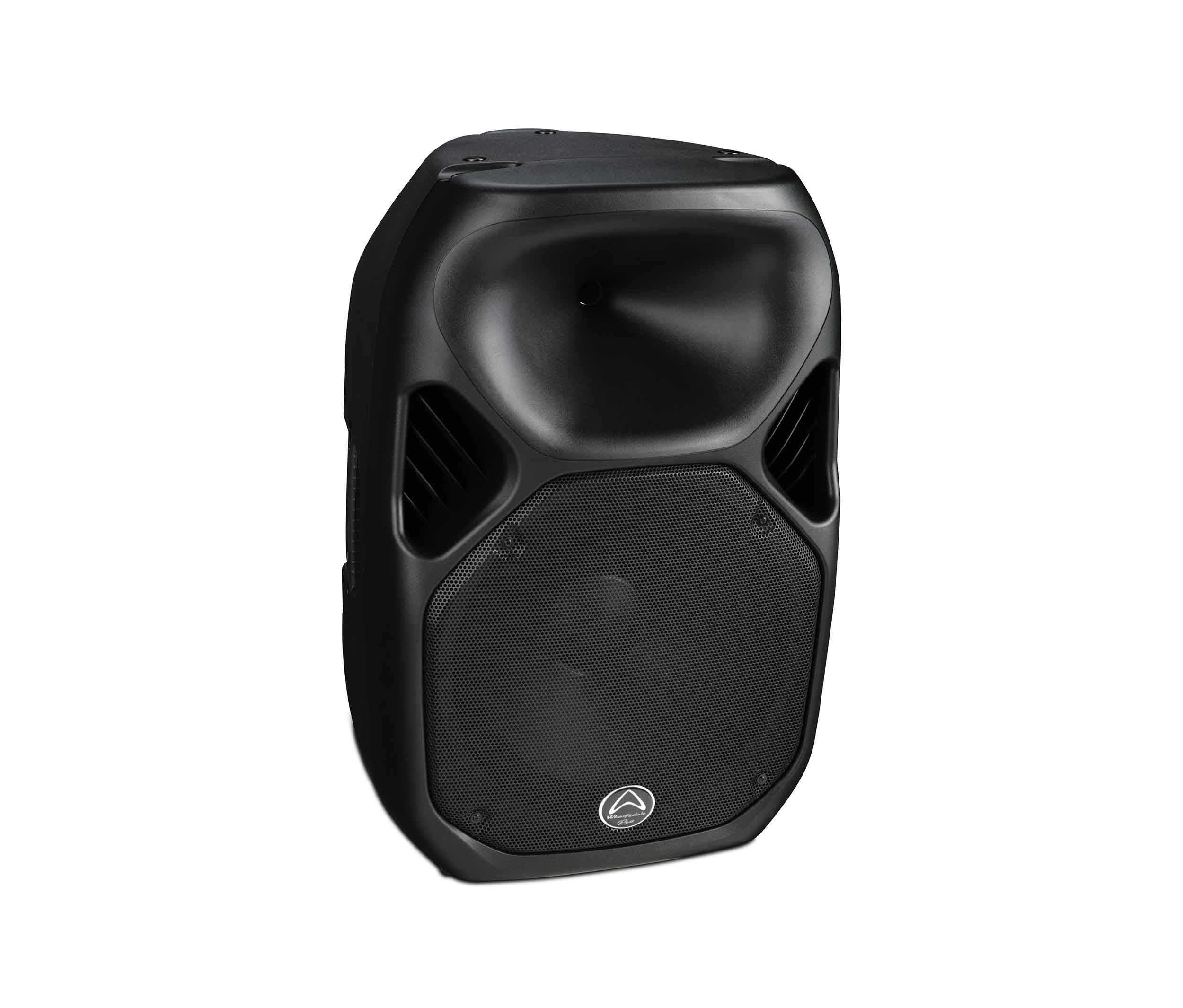

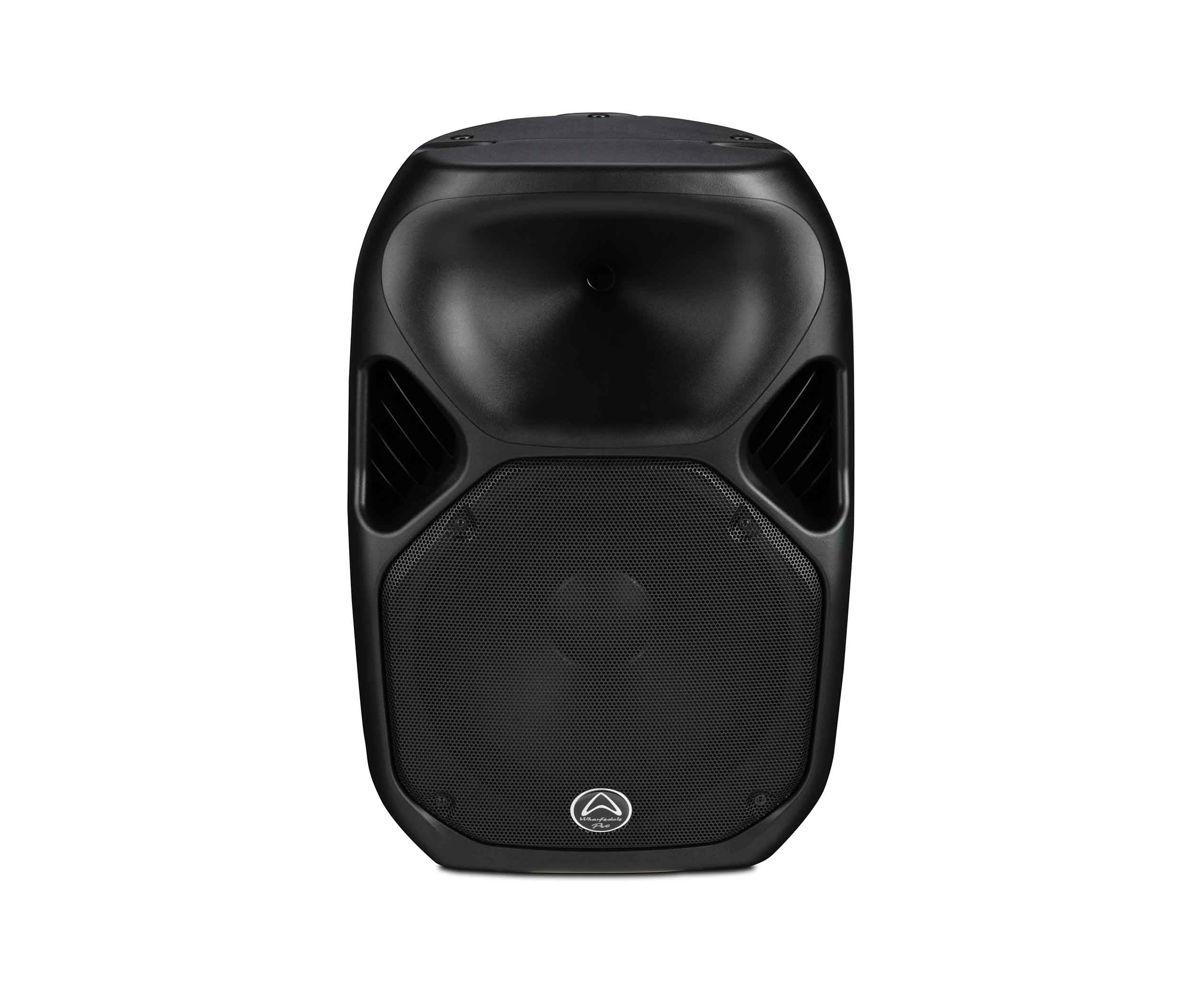

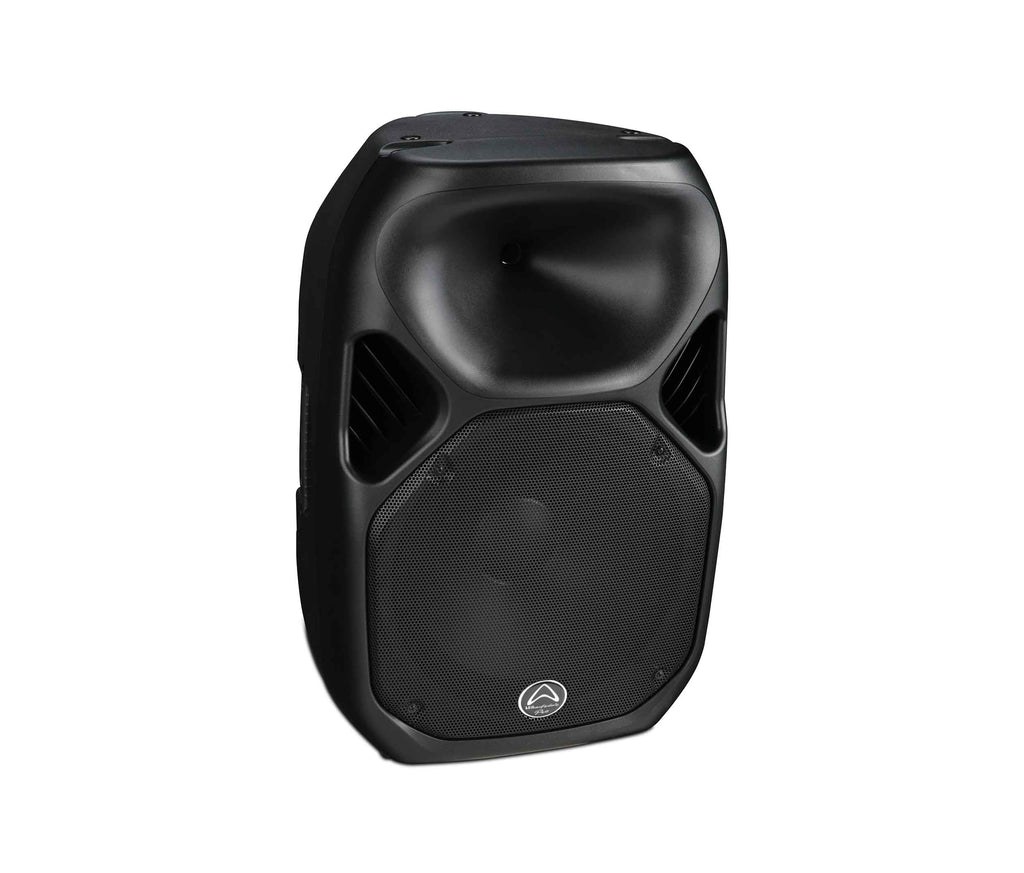

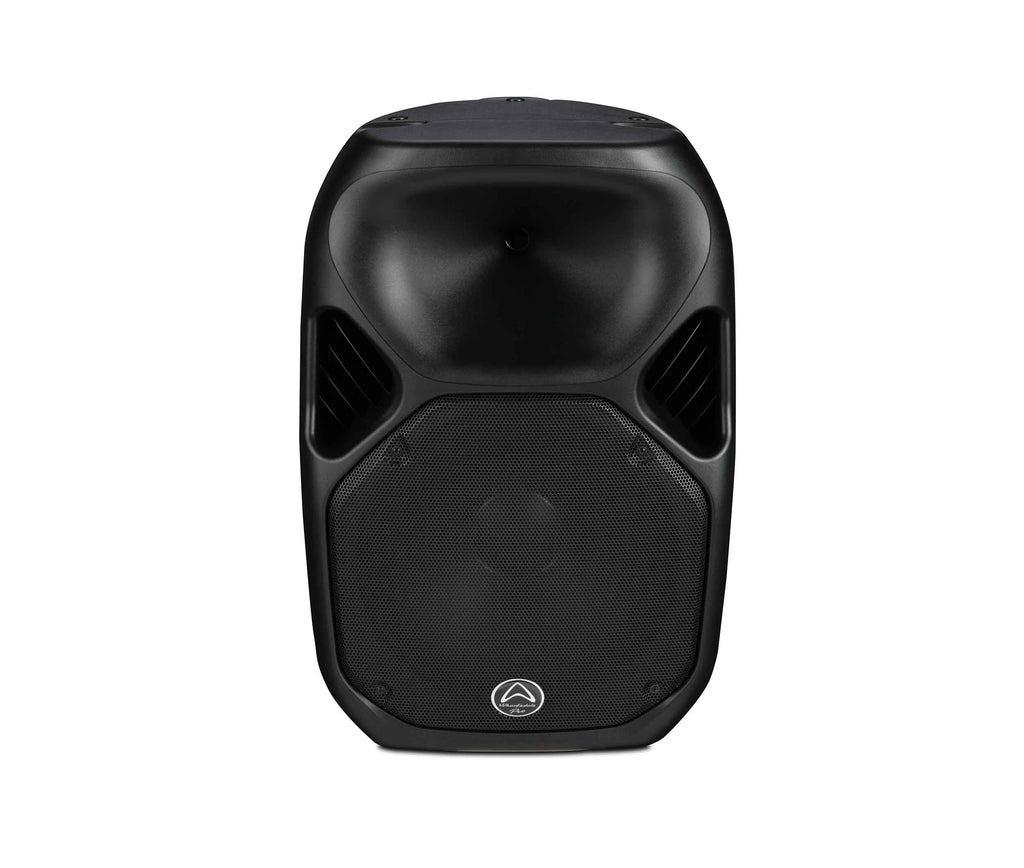

Wharfedale Titan-AX12-BK Bi-Amplified Active Loudspeaker - 12 Inches

The Wharfedale Titan-AX12-BK Two Way Bi-Amplified Active Loudspeaker features our cutting edge 6-position DSP engine and all-new HF and LF drivers.  No other competitive model features such powerful and effective DSP or such advanced transducers. Rated at 600 watts peak and with 128dB Max SPL, it’s an ideal solution for small to medium sized venues. We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN AX12 raises the bar for portable PA and is built to last.

IRIS X Driver Technologies

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance.  Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity.  The radius of the coil ensures smooth heat dissipation during prolonged high-volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

A hot transducer wastes energy, risks damage and distorts.  IRIS X reduces this through improved heat dissipation and improved efficiency.

In real-world terms, IRIS X transducers deliver higher SPL with less distortion.  They lead the market with specifications and are designed and built entirely within Wharfedale Pro.

Increased Radius Increased Sensitivity

The DSP

The new DSP engine provides sophisticated internal loudspeaker management functions. These include limiting, compression, signal delay, dynamic boost, dynamic cut, crossover control and parametric EQ. Micro adjustments within each parameter ensure sonic clarity over the full frequency range.

We’ve optimized these DSP parameters to create 6 user-friendly settings including Monitor, Speech, Bass, Punch and an exclusive mode called “Live”. This Live mode applies different DSP settings to each of the 2 inputs - perfect for solo entertainers using a mic and a line level source.

Convenient Mixer Control

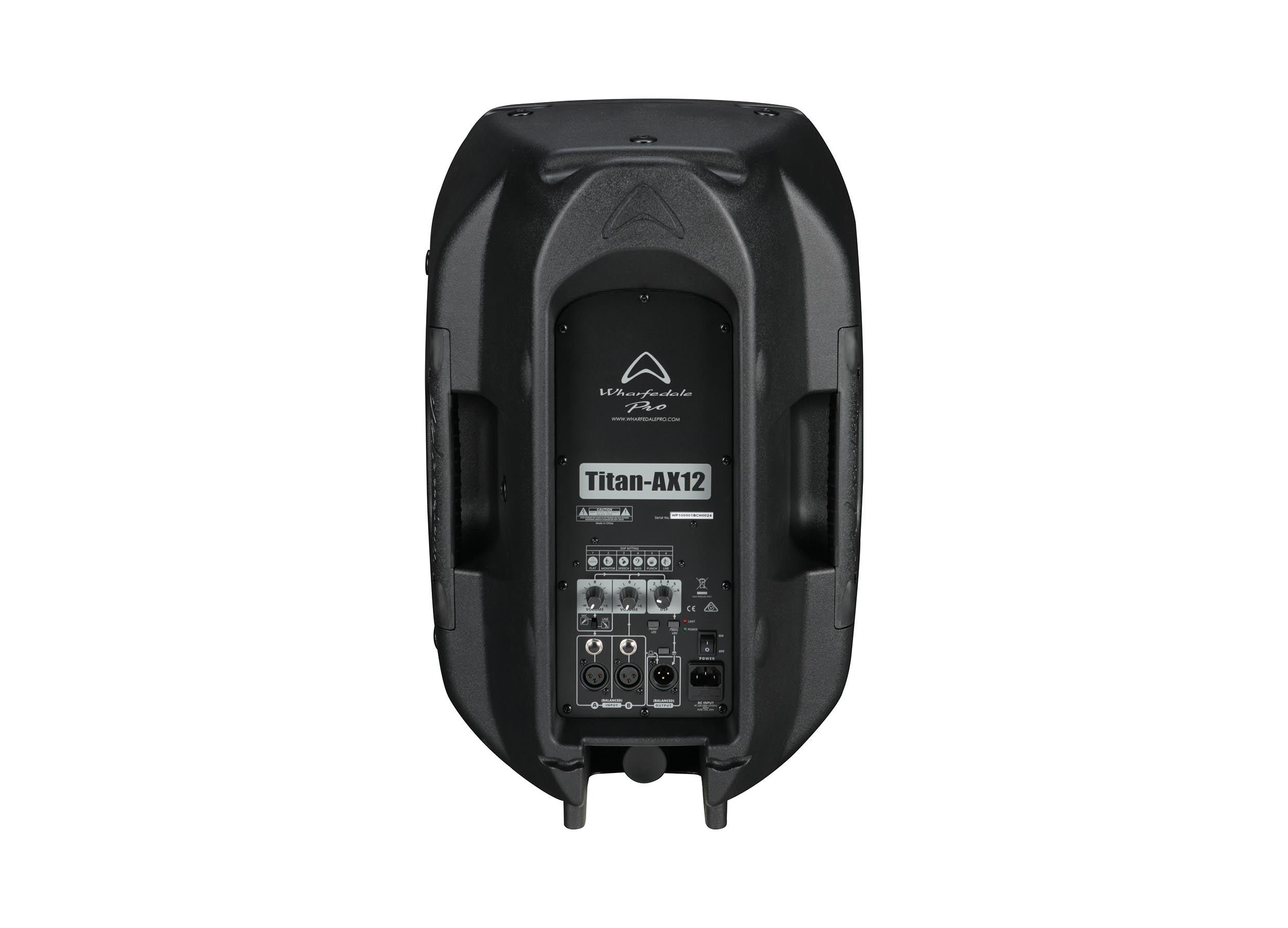

For convenience TITAN AX12 features a versatile two channel mixer on the rear panel. The first channel of this mixer allows users to toggle between microphone and line level inputs.  A balanced XLR output provides an option to send the mix back to additional mixers, monitors or speakers.

The Hardware

The HF has been completely re-evaluated for both coverage and sound quality ensuring a much smoother sound, especially at high output. The all-new 12" LF driver has improved moisture rejection characteristics which allows for installations into hostile environments.

The laminar rib cabinet structure has also been tweaked to improve structural strength for durability and acoustic performance.

A new proprietary 100° x 80° Hybrid Symmetry Horn has been designed to deliver improved coverage and smoother dispersion. TITAN AX12 raises the bar for portable PA and is built to last.

The Power

AX12 is a bi-amplified loudspeaker.  Wharfedale Pro engineers have painstakingly created two discrete power amplifiers which are perfectly matched for the HF and LF transducers.

Using Class D topology these amplifiers not only deliver the continuous power to please the crowd but they also handle the transients which ensures an impressive dynamic range.

The Fittings

On the bottom of the TITAN AX12 is a convenient built-in pole mount socket that is used for easy mounting on a standard 35mm diameter speaker stand pole.

Cord wrap and cable anchor features are also moulded into the enclosure. M6/M8 threaded rigging points are provided for a variety of safe flying configurations with four of these inserts available, bottom-mounted, in an Omni Mount bracket footprint.

Product Specifications:

System Type: Active 12″ 2-way Bi-amplified

Frequency Response (+/-3dB): 55Hz-20kHz

Frequency Range (-10dB): 50Hz-20kHz

Calculated Max SPL @ 1m: 128dB

Transducers:

Low Frequency Transducer:

Size (mm / inches): 305mm / 12″

Coil Size (mm / inches): 64.26mm / 2.5″

High Frequency Transducer:

Type: Compression Driver

Coil size (mm / inches): 44mm / 1.75″

Exit size (mm / inches): 25mm / 1″

Diaphragm Material: Titanium

Nominal coverage (H * V): Hybrid Symmetry Horn 100° * 80°

Amplifiers:

Power amp LF RMS/Peak Watts: 250 / 500w (Class D)

Power amp HF RMS/Peak Watts: 50 / 100w (Class D)

Controls - EQ: Note – EQ changed by DSP knob

DSP: Advanced user selectable presets.

1: FLAT 2: MONITOR 3: SPEECH 4: BASS 5: PUNCH 6: LIVE

Hi Pass switch: 90Hz

Amplifier Protection: Yes

Thermal Protection: Yes

Low line voltage shut down: 60% Nominal line voltage

Driver Protection: Independent LF and HF limiters

DC Protection: Yes

Short Protection: Yes

Clip Limiter: Turns on ~250w output

Limiter indicator: Red LED

Power indicator: Green LED

Input type: Switchable balanced mic or line level (Chan 1)

Input connector: 2 * XLR & 2 * 1/4″ jack (Chan 1 Line/MIC)

Line Output:

Line output connector: Switchable LOOP/MIX Balanced Female XLR

AC Power:

Power Supply: SMPS

AC Power options: AC100-120V/220-240V~ 50/60Hz

Power on indicator: Rear LED

Hardware:

Rigging / Bracket / Mounting Options:

10 M8 threaded inserts including 4 M8 threaded inserts on bottom in Omni Mount 30.0-type footprint

35mm receptacle with lock screw

2 carry handles (one on each side)

Optional wall-mount bracket

LED Horn lighting (On/Off switch): Yes

Enclosure:

Enclosure Material and finish: Injection Moulded Polypropylene

Color: Black

Grille Material & Finish: 1.2mm steel

Product Weight (kg / lbs.): 12.4kg / 27.28lbs.

Product Dimensions (L x W x H): 12.5 x 15.1 x 22.9

Shipping Weight (kg / lbs.): 15.5kg / 34.1lbs.

Shipping Dimensions (L x W x H): 16.1 x 17.1 x 26.1
