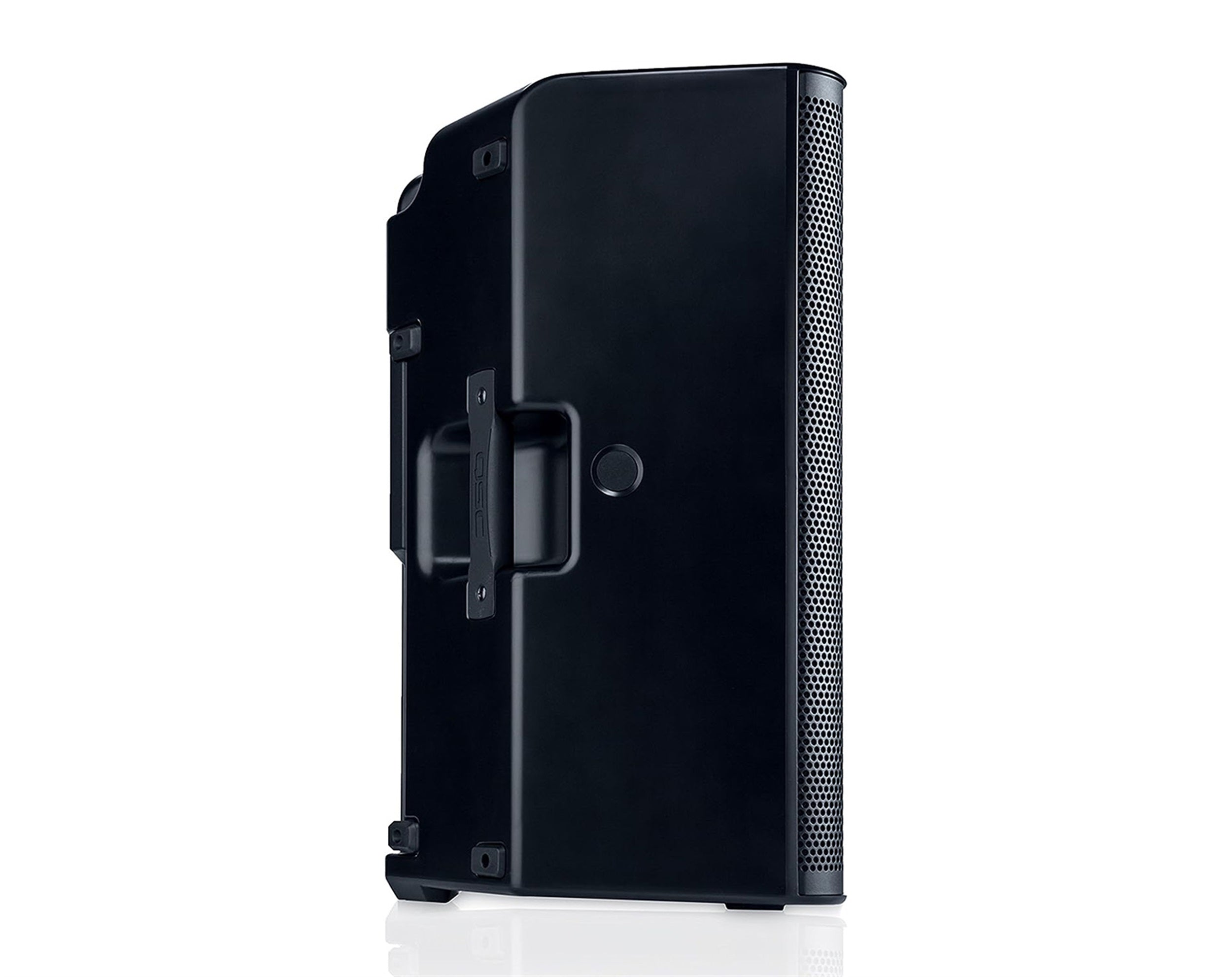

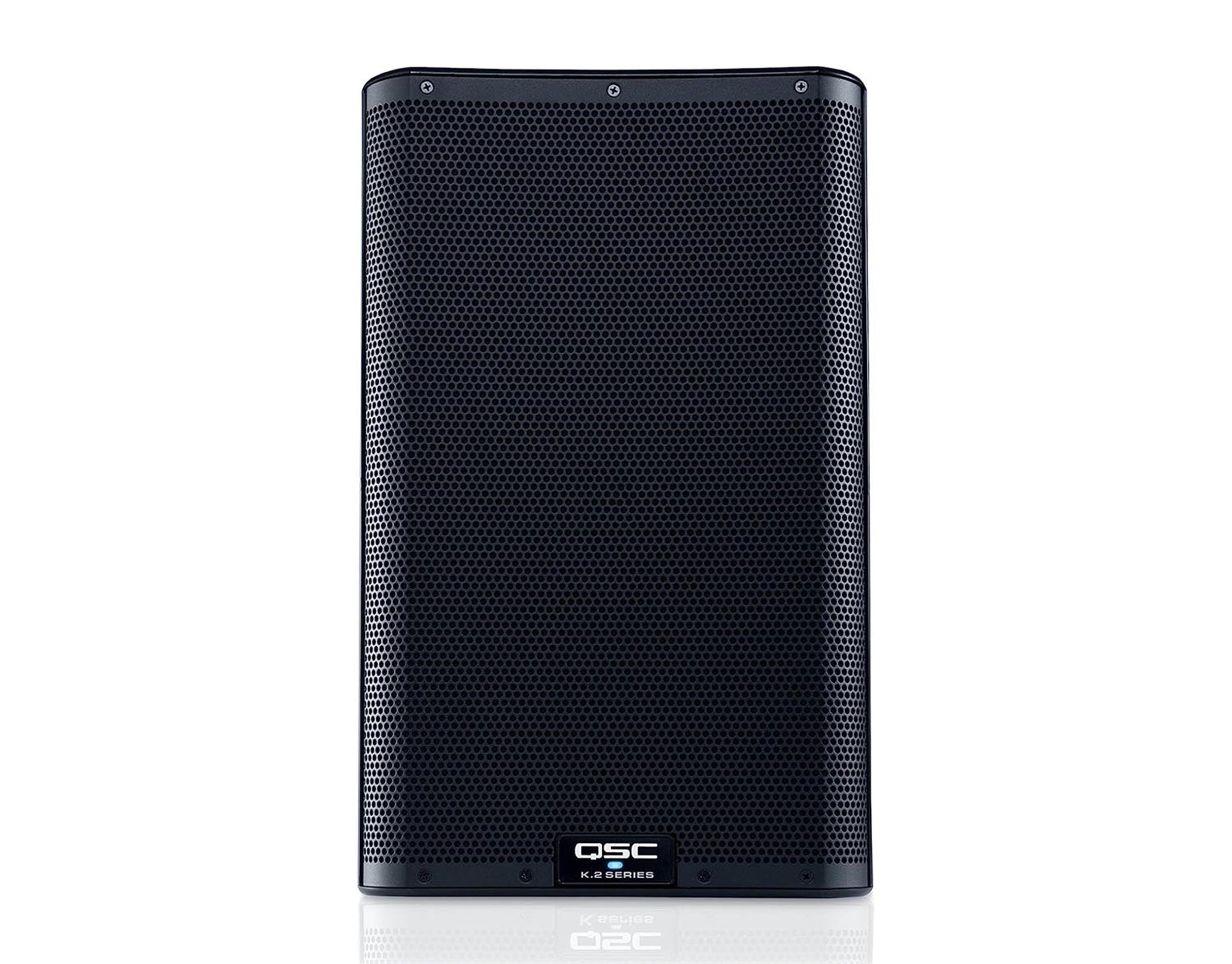

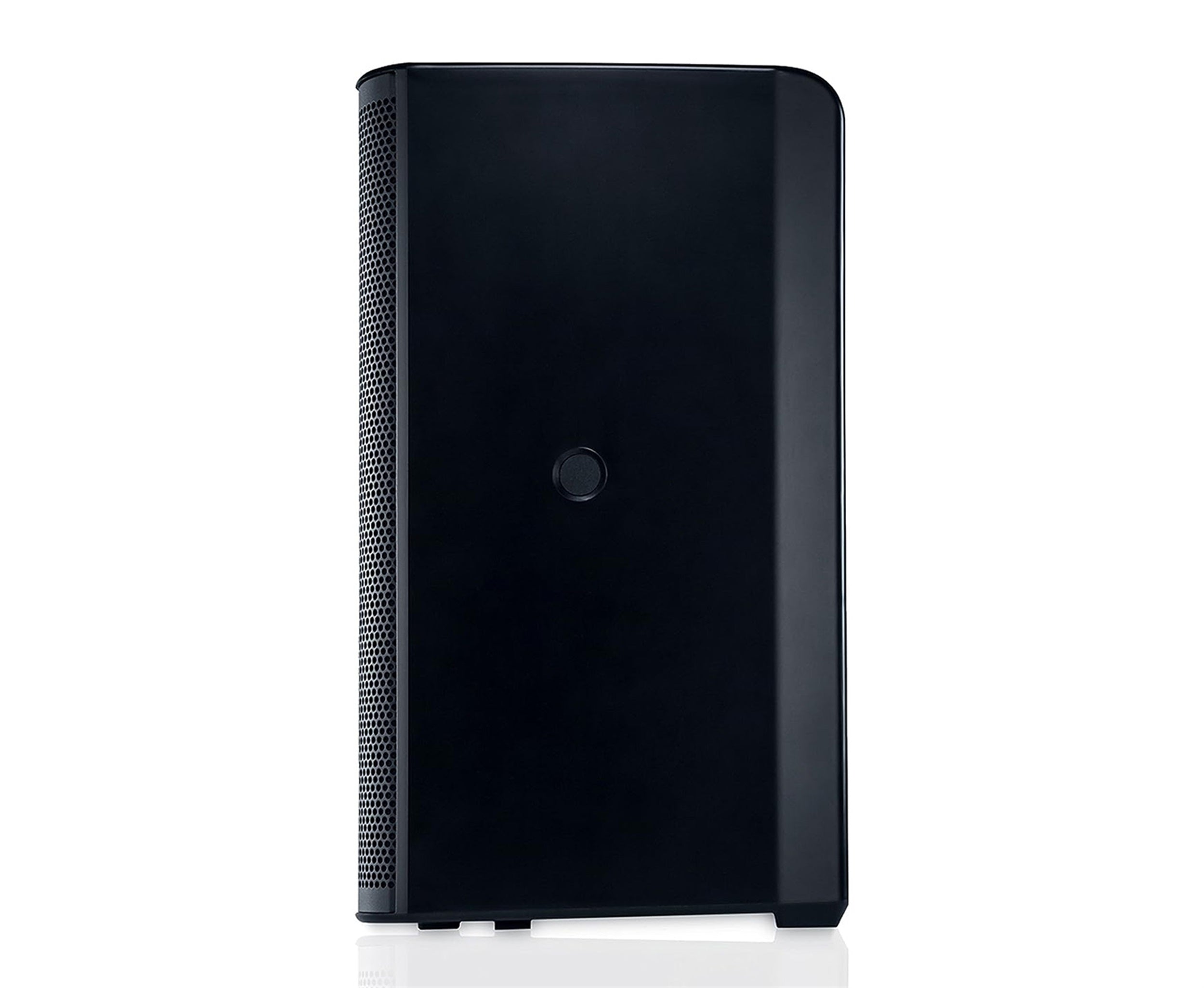

QSC K10.2, 10-inch 2000W Powered Portable PA Speaker with Integrated Speaker Processor

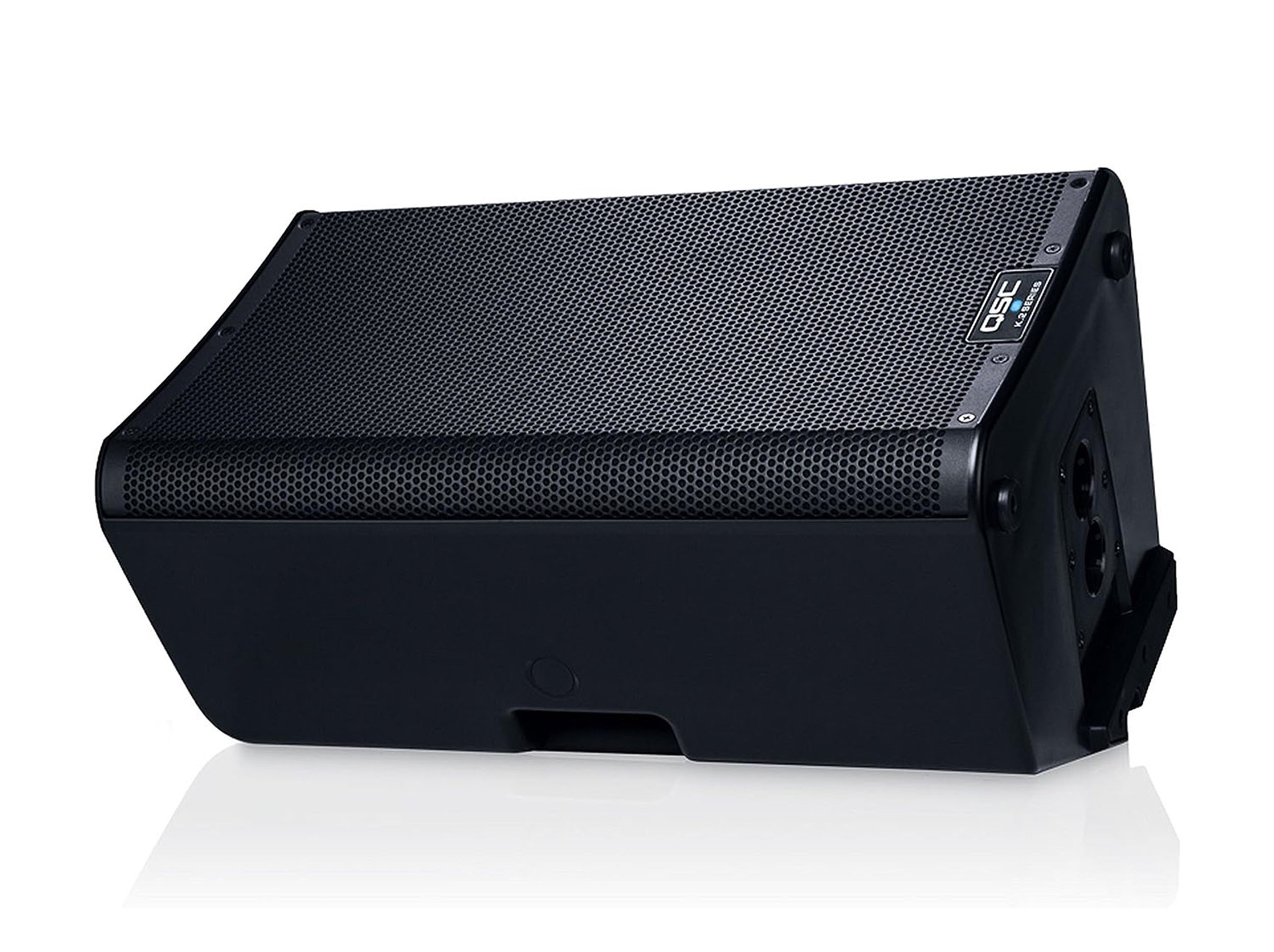

The QSC K10.2, 10-inch 2000W Powered Portable PA Speaker with Integrated Speaker Processor is a highly flexible, easy to use, 2000W powered portable PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers. The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of K10.2s is well equipped to cover an audience of up to 300

A push button on the back of the speaker allows you to physically switch between eleven preset modes and four subwoofer preset modes for incorporating a dedicated subwoofer to extended low-end performance. The built-in DSP provides user control over mic/line and mic/inst selections, factory presets, an alignment delay for rear fills, and a 2-band parametric EQ with high- and low-shelf filters. All settings can be saved into one of five user scenes for easy recall.

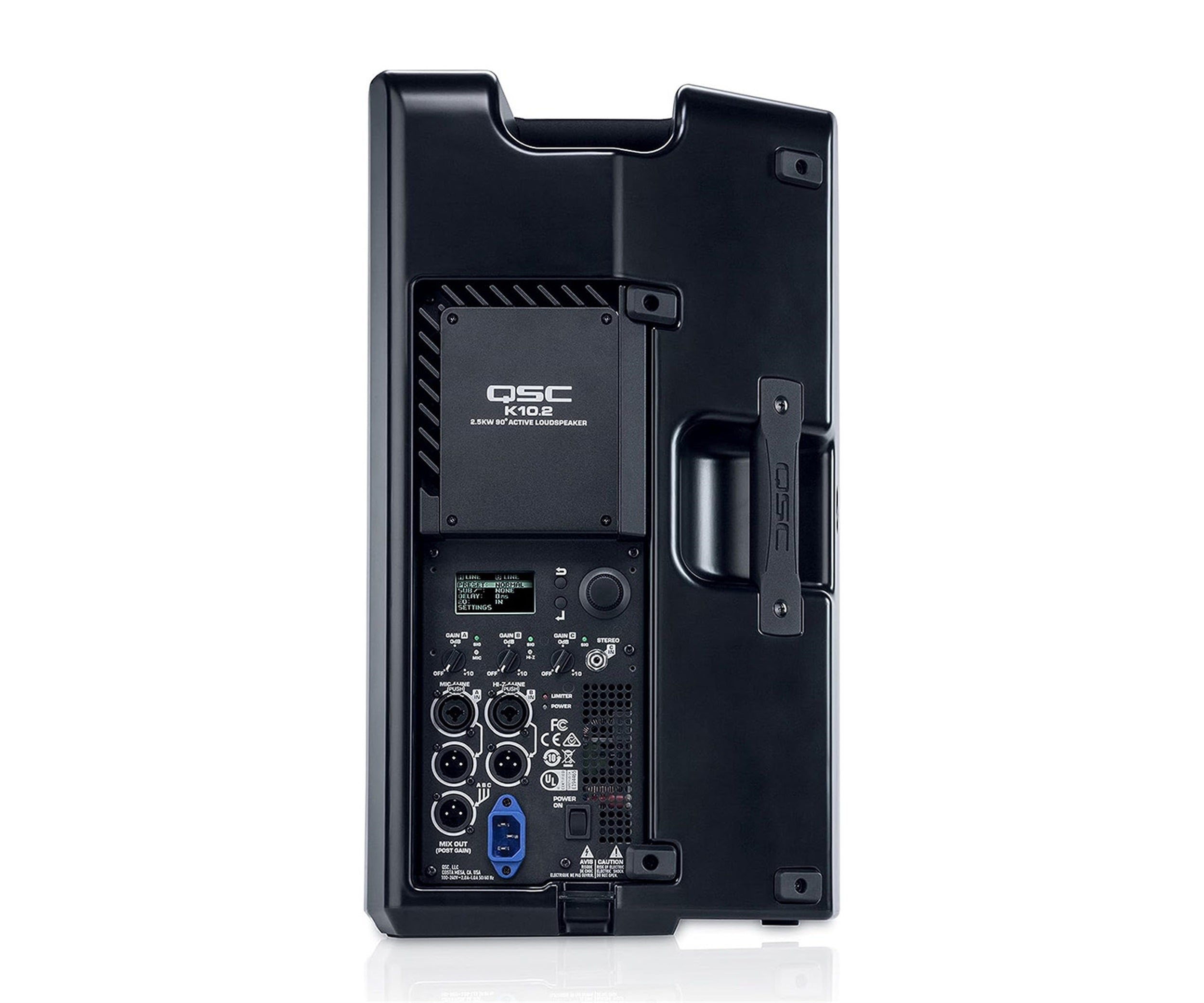

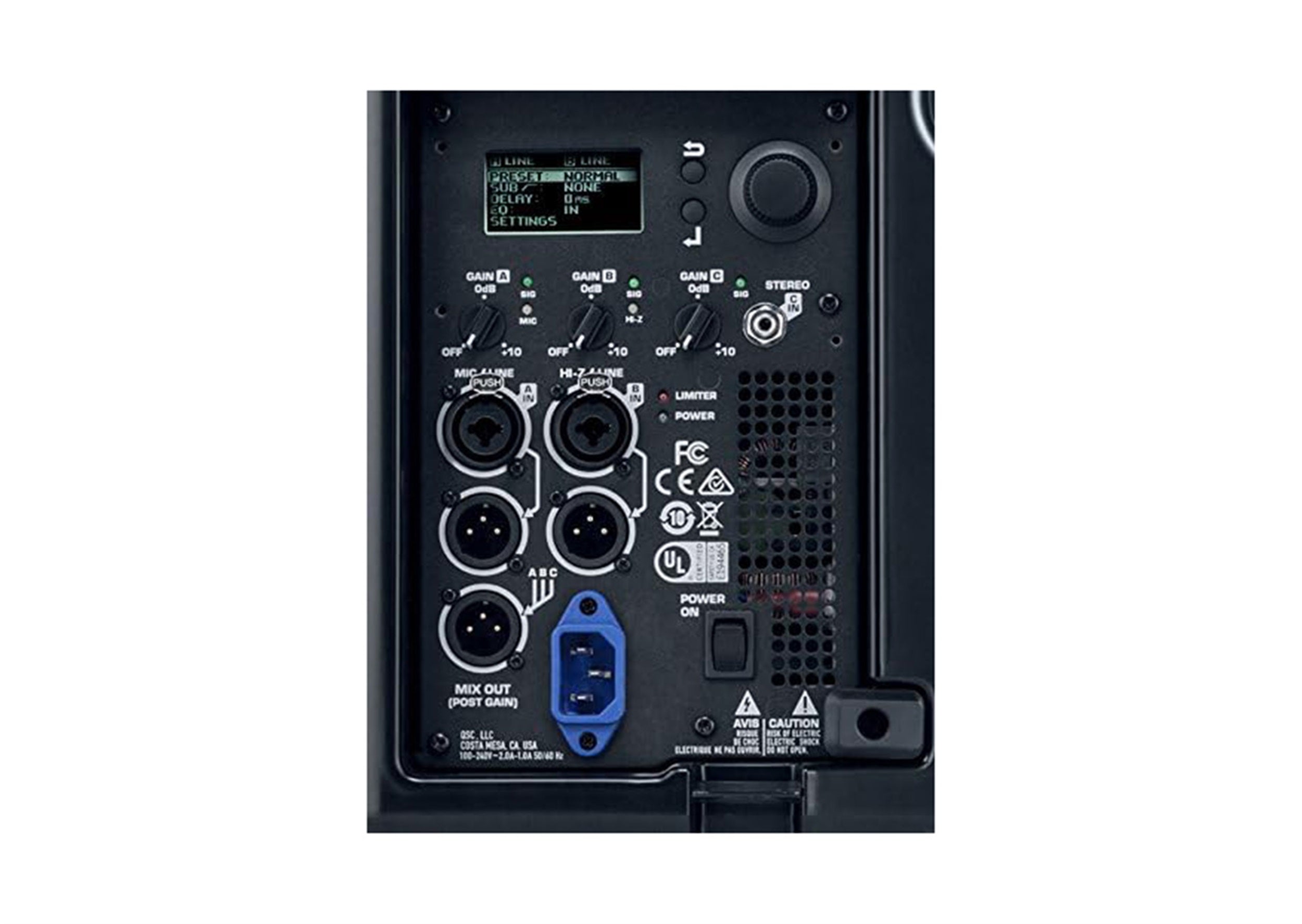

Two inputs (A and B) feature combo XLR-1/4" connectors with input A offering a Mic/Line selection and input B offering Mic/Hi-Z selection, which is designed for connecting high-impedance signals such as guitars and other instruments. Additionally, channel 3 provides a 3.5mm TRS auxiliary input for connecting portable audio devices.

With independent mic and line inputs, the K10.2 is a great choice for any singer/songwriter or solo performer with an instrument. You have independent control over mic and instrument levels, while the aux input provides backing tracks or incidental music between sets.

Inputs A and B also feature XLR Thru-Outputs for daisy-chaining to additional speakers or other audio equipment. All three mono inputs are mixed to a mono signal internally and are passed-thru the Mix Out XLR connector. For a true stereo L/R operation, two K10.2s are needed with each to receive independent the left and right signals respectively.

The highly efficient 2000W Class-D amplifier powers the 10" woofer and 1.4" titanium compression driver, which provide full-range audio (56 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. QSC's Directivity Matched Transition (DMT) matches the coverage angle of the woofer at the crossover frequency with the horn pattern to ensure a uniform response across the coverage area (90° axisymmetric). The Intrinsic Correction techniques ensure a smooth power response resulting in accurate performance in a wide range of acoustic spaces with little or no EQ. The K10.2 includes a power cord.

Product Specifications:

Powered: Yes

Power Configuration: Bi-amped

Channels: 3

LF Driver Size: 10" woofer

HF Driver Size: 1.4" titanium compression driver

LF Driver Power Amp: 1800W

HF Driver Power Amp: 225W

Total Power: 2000W

Inputs: 1 x XLR-1/4" combo (mic/line), 1 x XLR-1/4" combo (Hi-Z/line), 1 x 1/8" (aux stereo in)

Outputs: 2 x XLR (thru), 1 x XLR (mix out)

Frequency Range: 50Hz-20kHz

Frequency Response: 56Hz-20kHz

Maximum Peak SPL: 130 dB SPL @ 1m

Horizontal Coverage Angle: 90 Degrees

Signal Processing: EQ, Delay, Dynamics, User Scene Presets, Crossover

Enclosure Material: ABS plastic enclosure with 18 AWG steel grille

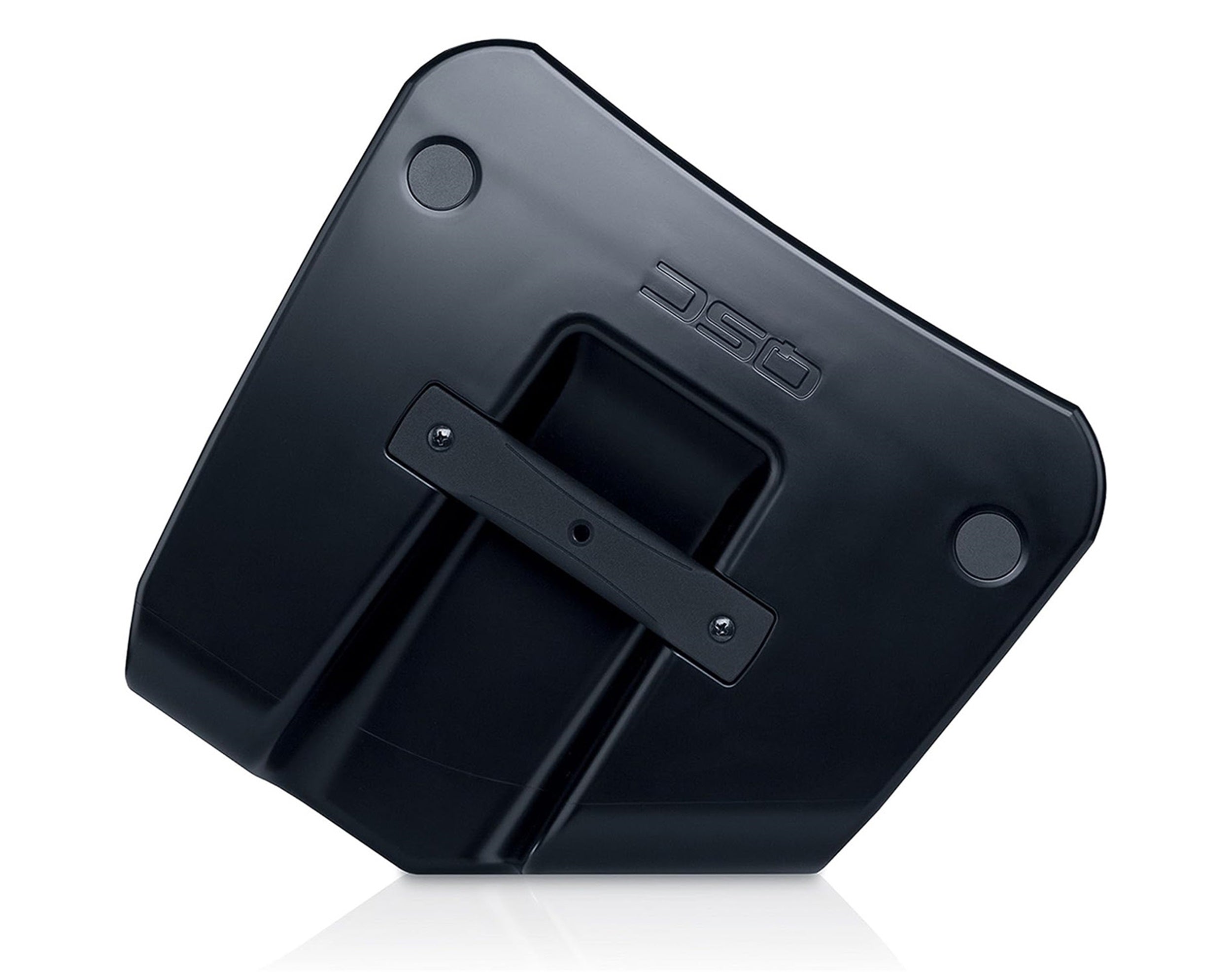

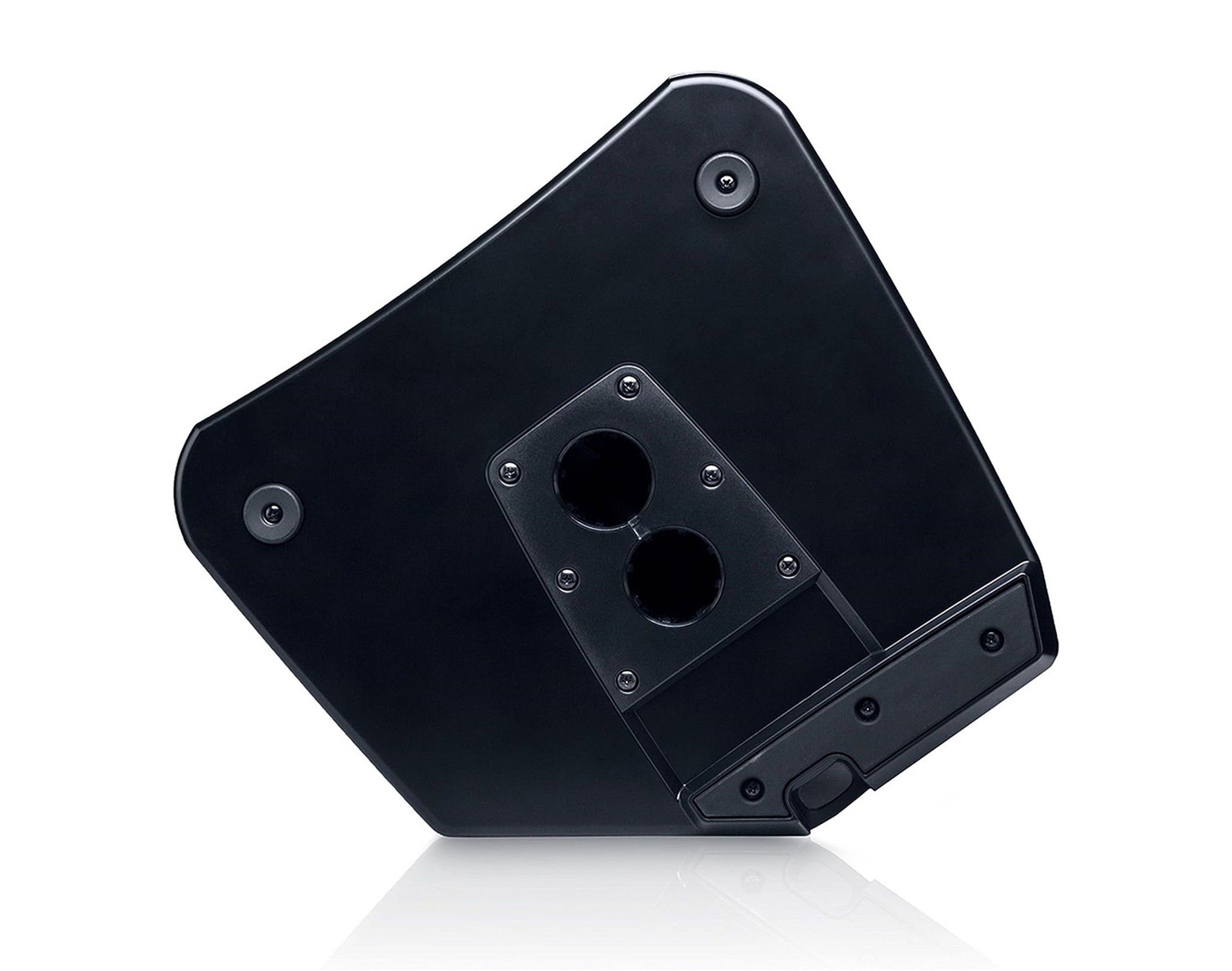

Mounting Options: Pole Mount with 1.37" socket, Floor Wedge, 2 x M10 Fly Points

Power Source: Standard IEC AC cable

Package Weight: 38.8 lb

Box Dimensions (LxWxH): 22 x 17.5 x 16.5"
