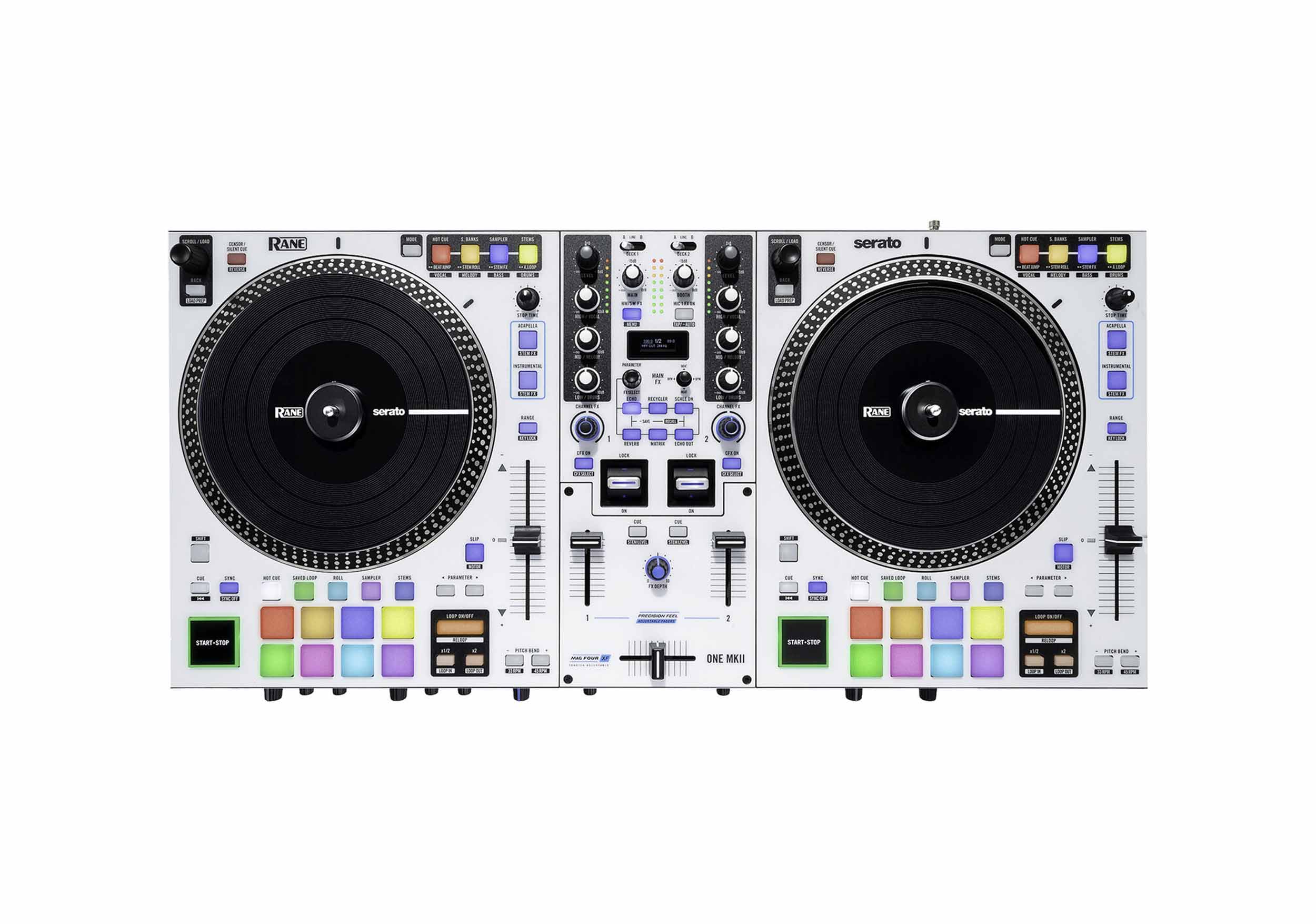

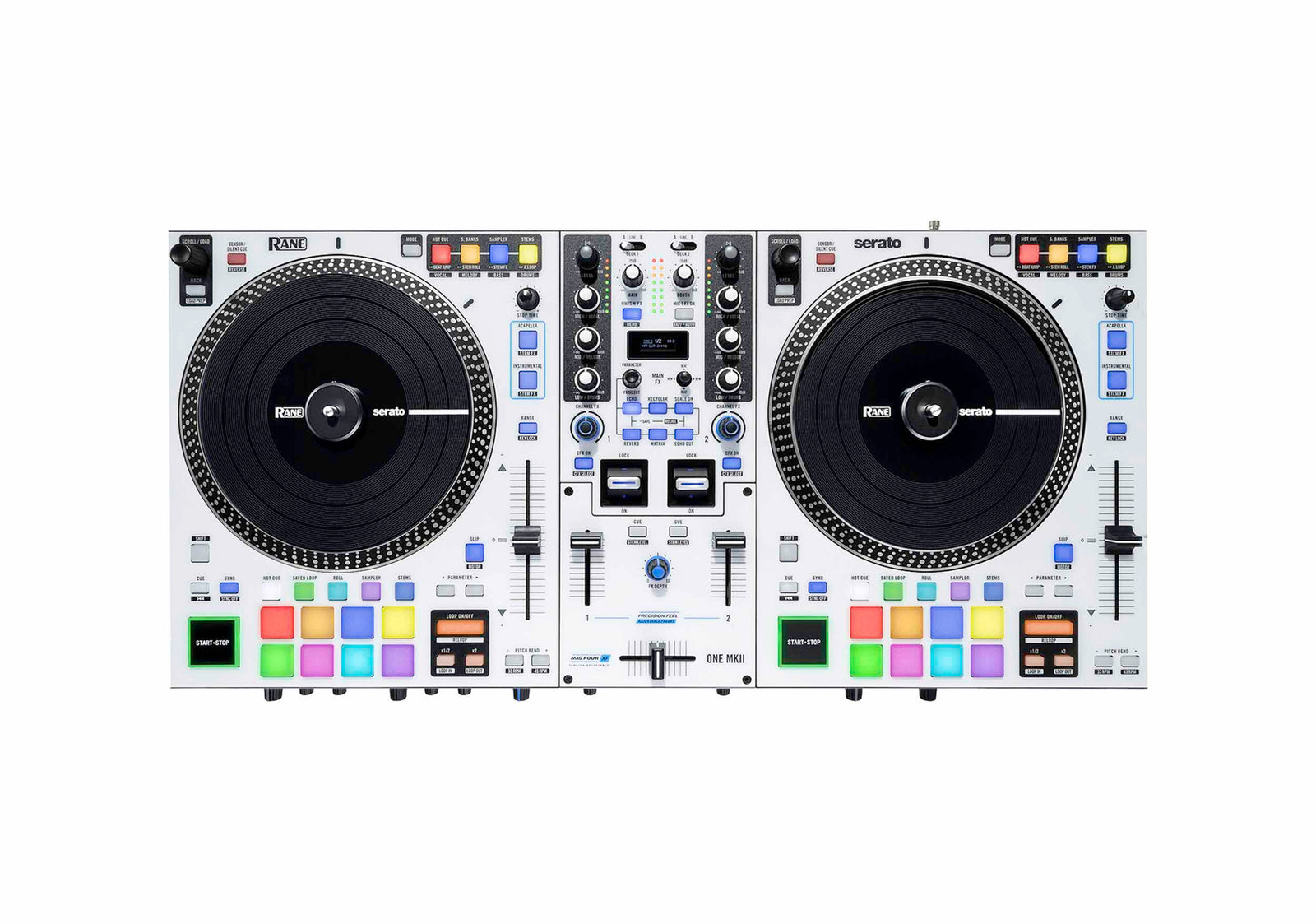

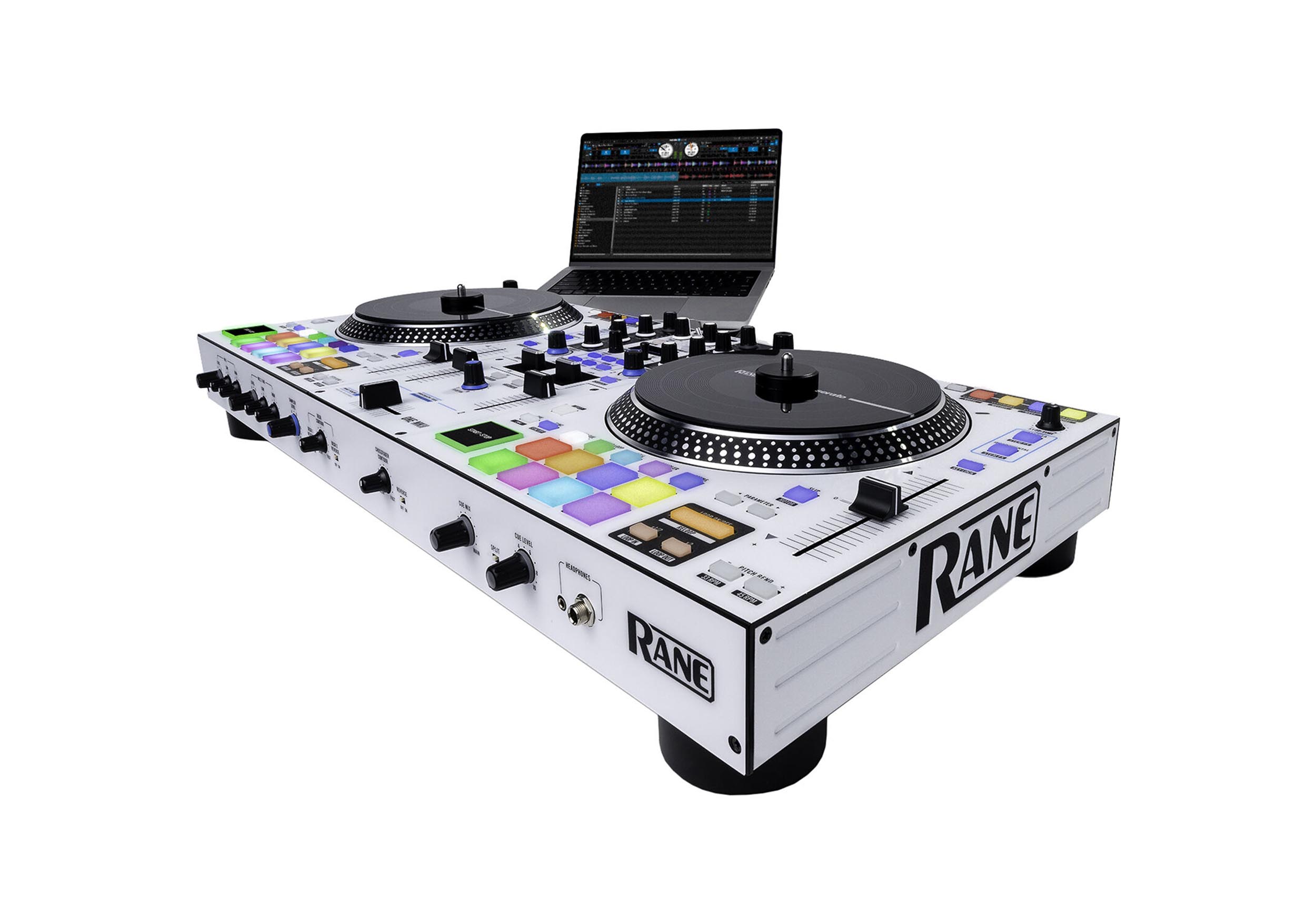

RANE ONE MKII Professional Motorized DJ Controller with Stem Controls

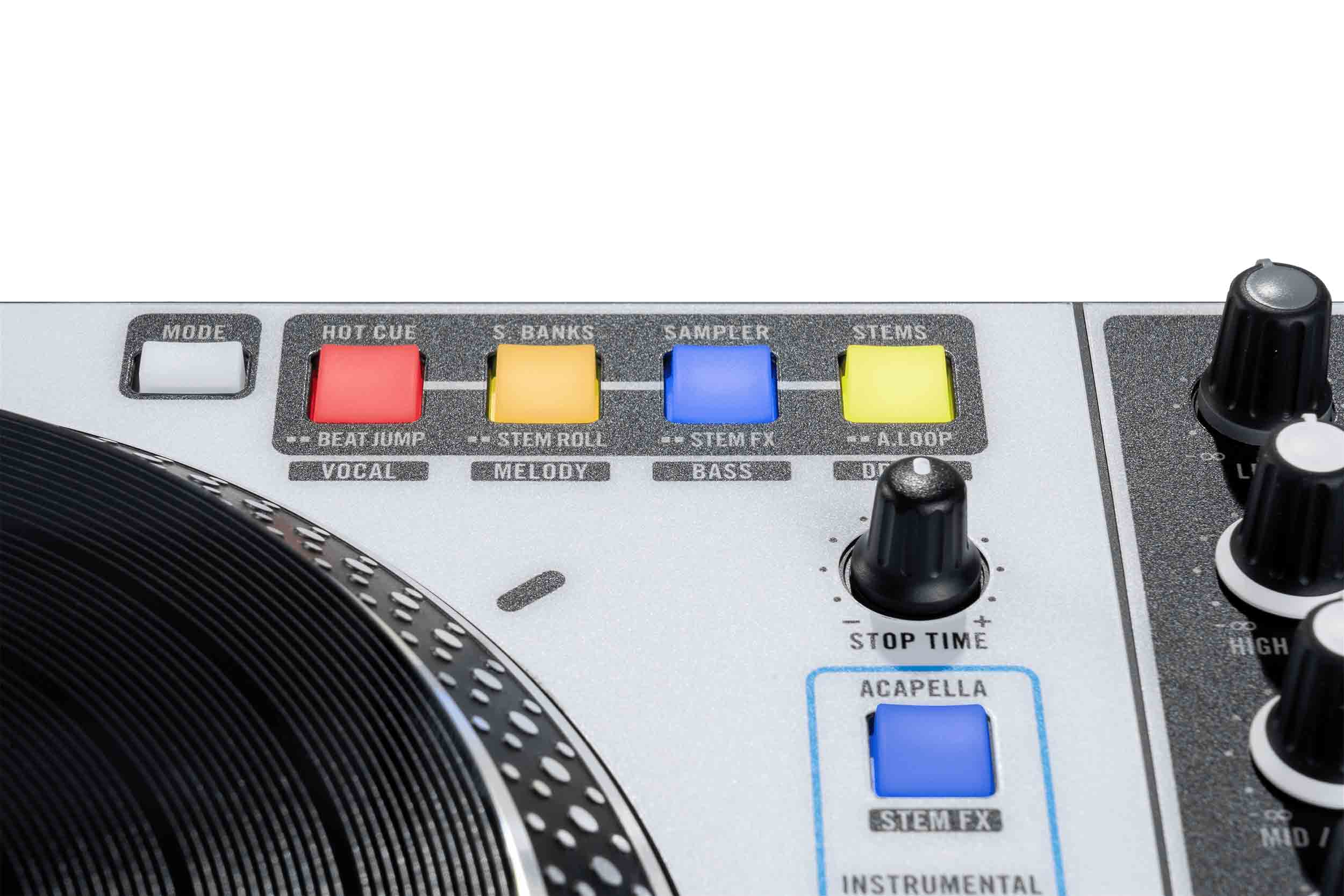

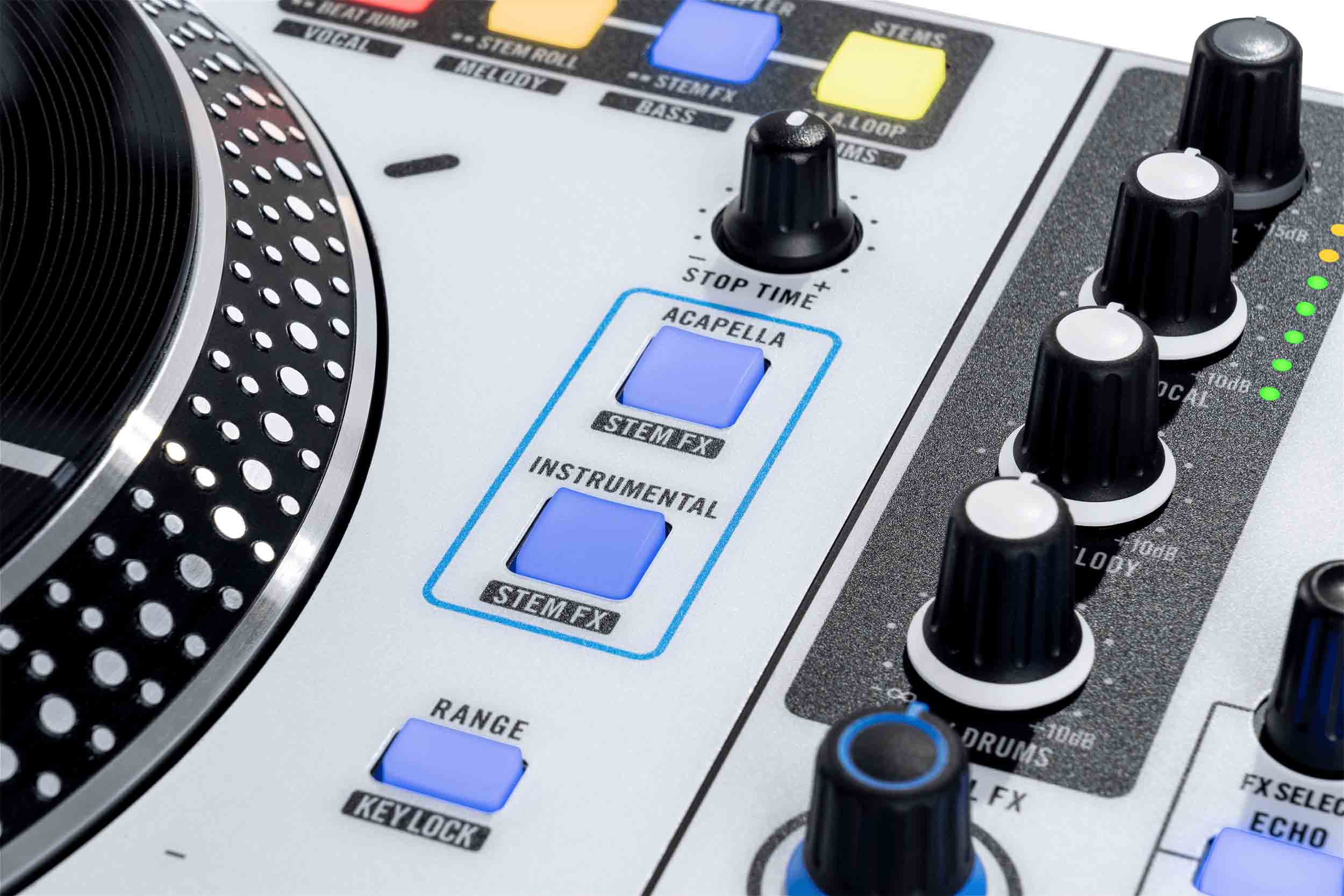

The RANE ONEMKII Professional Motorized DJ Controller with Stem Controls is a complete DJ solution based around RANE's intuitive performance layout with full integration with the included Serato DJ Pro. The MKII offers numerous enhancements, including a dynamic internal FX suite with 29 meticulously crafted internal effects and stem controls for creative flexibility with acapella and instrument buttons, level controls, a Stems Pad mode, a Stems Roll Pad mode, and a Stems FX Pad mode. Additionally, the ONE MKII includes channel FX on each deck, precision-feel channel faders and secondary pad buttons for streamlining performance workflows and unlocking greater creative freedom without sacrificing simplicity.

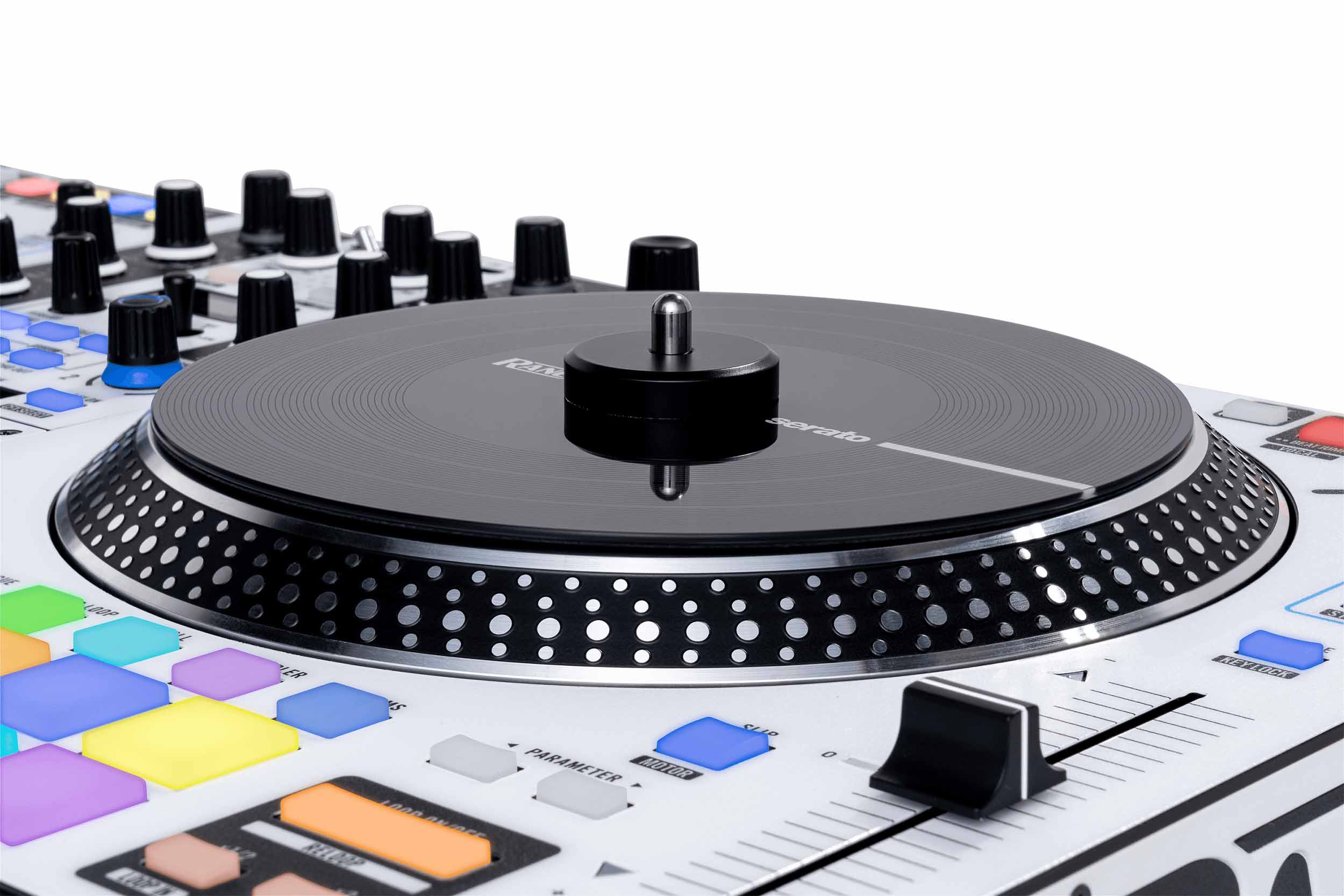

The ONE MKII incorporates two 7.2" motorized turntable platters for a traditional vinyl feeling, complete with customizable (low/high) torque settings. The unit provides an authentic, tactile control over your music and performance with the foundation art of DJing at its very core, including a traditional turntable plunger style start/stop button.

Other notable features include 8 multicolor velocity-sensitive performance pads per deck, each assignable to Hot Cues, Saved Loops, Roll, Sampler, Slicer, and Serato's Scratch Bank feature. There are six radio-style FX buttons, which can be activated in any combination. Each channel offers a 3-band dynamic EQ and high/low pass filters as well as dedicated loop controls.

Control and Effects

Craft your sound with RANE ONE's multifunction, independent performance pads, giving you access to Hot Cues, Saved Loops, Roll, Sampler, Slicer, and Serato's Scratch Bank feature. With six radio-style FX buttons, instantly activate any combination of software FX with a single press, fine tune with depth and beat parameter controls, then activate with the independent aluminum paddle controls. Finally, take full control of your sound with the 3-band dynamic EQs and high-/low-pass filters on each deck along with dedicated loop controls.

Connections

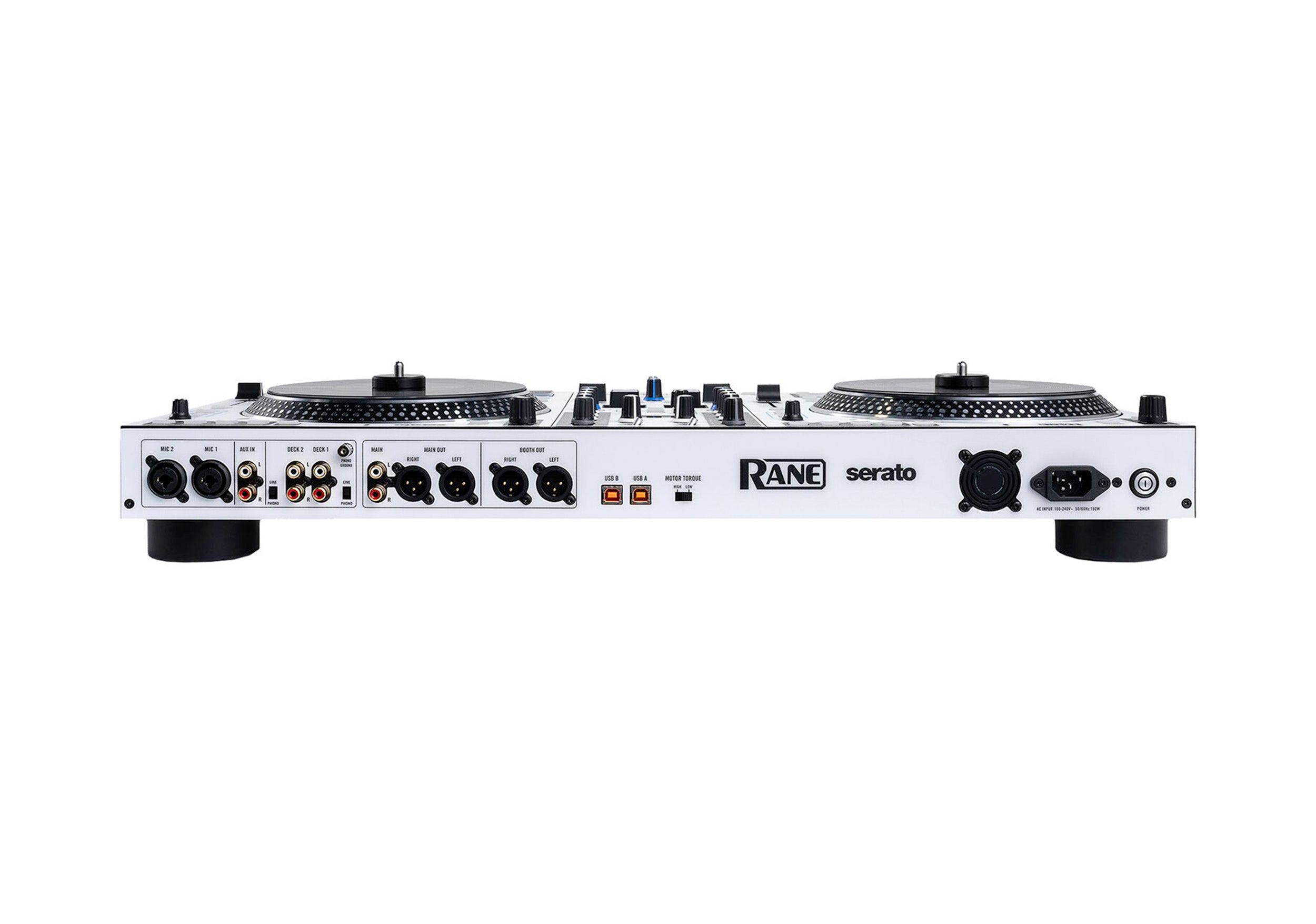

Each deck is switchable between 2 USB laptop connections as well as a line input that's switchable to phono for traditional turntables. Amplify your music through RANE's pro audio circuitry to the balanced main & booth XLR outputs, and additional RCA main out. There are two combo XLR-1/4" microphone inputs alongside an auxiliary input, giving you up to 5 sources of audio to mix.

Precision Cuts

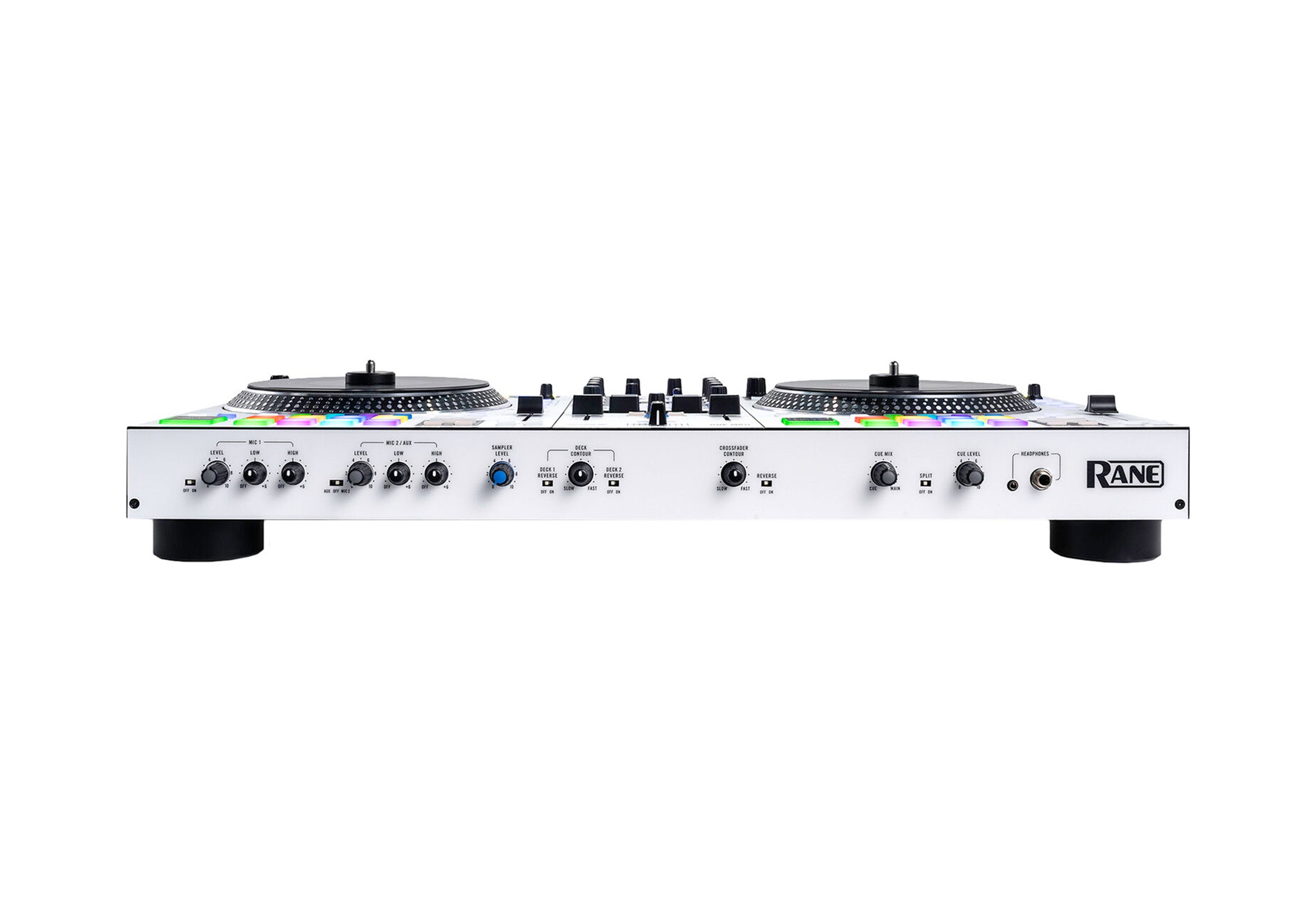

The ONE MKII's crossfader features the latest MAG FOUR fader, RANE's lightest and smoothest fader, ever. With front-panel controls for fast/slow contour adjustment, internal tension adjusts, reverse switch, and a new to Serato software cut-in adjustment control, DJs will be able to get just the right feel they need for maximum performance.

Dedicated Loop

Featuring a dedicated loop section, the ONE MKII allows DJs to loop section of a track at the touch of a button with double and half controls instantly accessible. Relooping and manual in/out controls are also available to ensure complete freedom in track and mix control.

Product Specifications:

Number of Channels: 2x Stereo

Platter/Jog Wheel: 2x 7.2" / 18.3 cm Touch-Sensitive

Motorized Platters: Yes

Faders:

2x Channel Level

2x Tempo/Pitch

1x Crossfader

Display: No

Sample Pads: 8x Assignable per Deck (Velocity-Sensitive)

EQ: 2x Channel

EQ:

Hi

Mid

Low

Performance Controls: Beat Sync, Brake, Cues, EQ, Echo, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Master Tempo, Pitch Bend, Pitch Control, Reverse, Sampler, Scratch, Search, Transport Controls, Vinyl Mode

Built-In Effects: No

Sample Rates: 48 kHz (AD/DA Conversion)

Bit Depths: 24-Bit (AD/DA Conversion)

Stems Processing:

Via Dedicated Controls: Vocals/Acapella, Instrumental, Drums/Percussion, Bass, Other

Connectivity:

Audio Inputs:

2x Combo XLR-1/4"" 3-Pin Balanced Mic Input

2x Stereo 2RCA Coaxial Unbalanced Line/Phono Input

1x Stereo 2RCA Coaxial Unbalanced Aux Input

Audio Outputs:

4x XLR 3-Pin Balanced Booth/Master Output

1x Stereo 2RCA Coaxial Unbalanced Master Output

1x 1/4"" TRS Headphone Output

1x 1/8"" / 3.5 mm TRS Headphone Output

USB: 2x USB-B 2.0 (Host Connection)

Wireless: No

Media Card Slots: No

Internal Drive Bays: No

Performance:

Input Level:

XLR Mic: 110 mV

Stereo RCA Aux/CD: 4 Vrms

Stereo RCA Phono: 106 mV (RIAA)

Output Level:

XLR Booth/Master: 8 Vrms

Stereo RCA Master: 4 Vrms

Headphone: 4 Vrms

Headphone Output Power:

 1/4"": 50 mW per Channel into 50 Ohms

1/8"" / 3.5 mm: 50 mW per Channel into 50 Ohms

Dynamic Range:

AD/DA Conversion: 113 dBA

Stereo RCA Line: 110 dBA

System: 113 dBA

Stereo RCA Phono: 102 dBA

THD+N:

Stereo RCA Aux/CD/Line/Master: 0.004%"

Compatibility:

Included Software: Serato DJ Pro Hardware Unlock

Compatible Software (Not Included):

Serato DJ DVS

Algoriddim djay Pro

OS Compatibility:

Computer: Windows / macOS

Mobile: Android/iOS via Optional Adapter

Mobile Device Compatibility:

iPhone

iPad

Required Hardware: USB 2.0 Port

Internet Connection: Required for Registration, Software/Driver Download

Power:

Power Requirements: AC Input

AC Input Power: 100 to 240 VAC, 50/60 Hz

AC Power I/O: 1x IEC Input

Power Consumption: 50 W

Physical:

Dimensions (W x D x H): 26.5 x 13.6 x 4.9" / 673.1 x 345.4 x 124.5 mm

Weight: 23.55 lbs. / 10.68 kg

Shipping Weight: 31.5 lbs.

Shipping Dimensions: 31 x 18 x 10"
