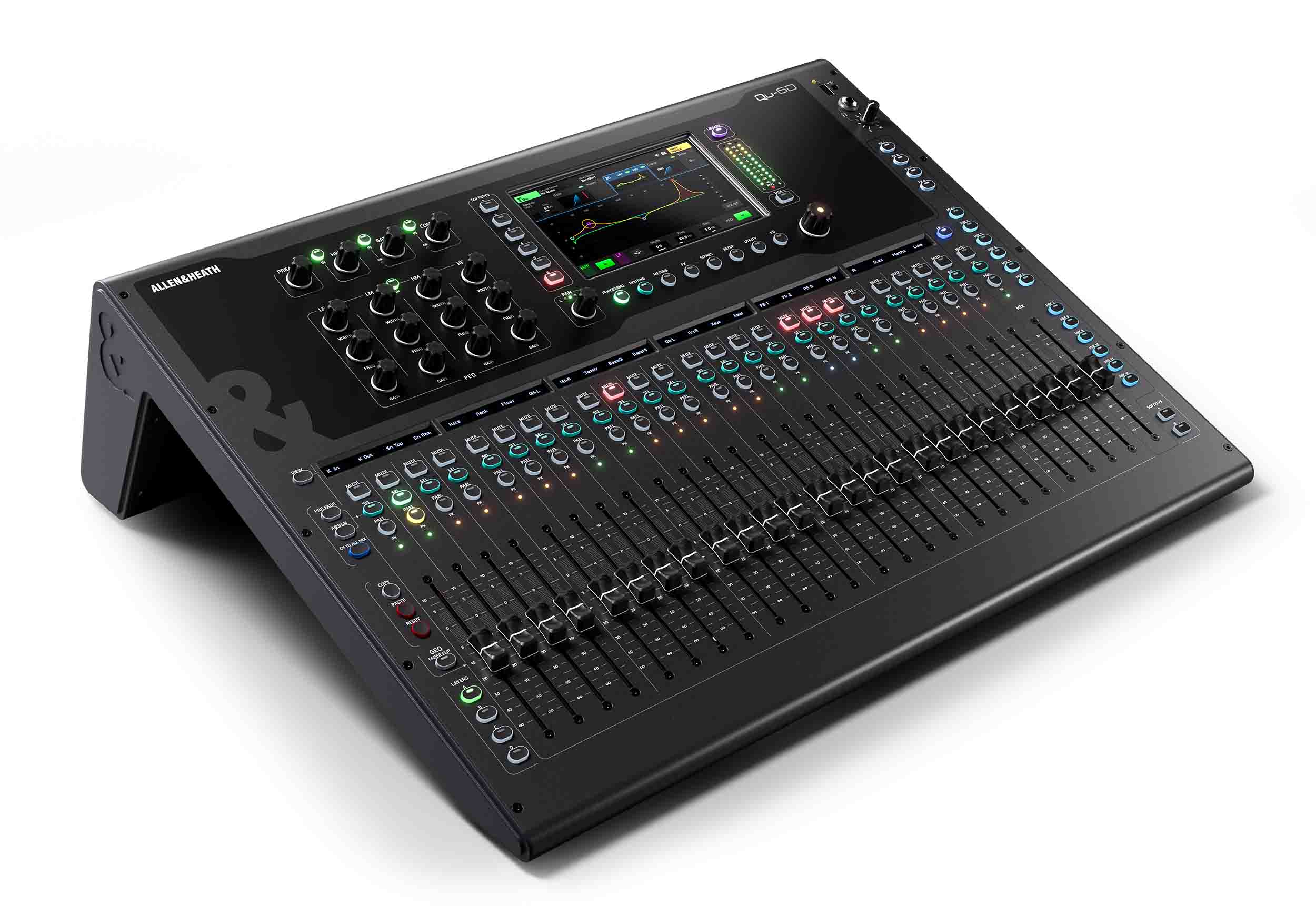

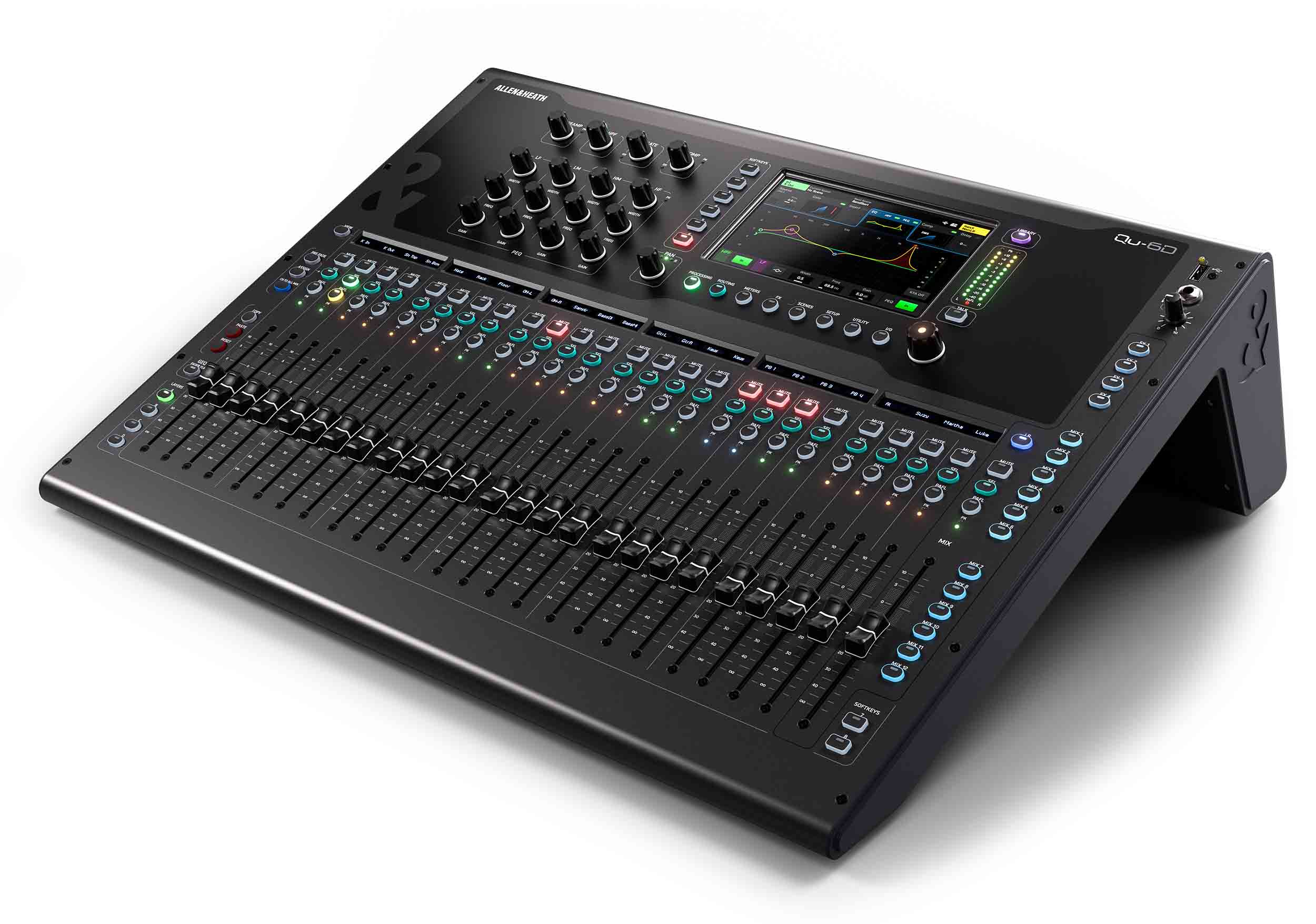

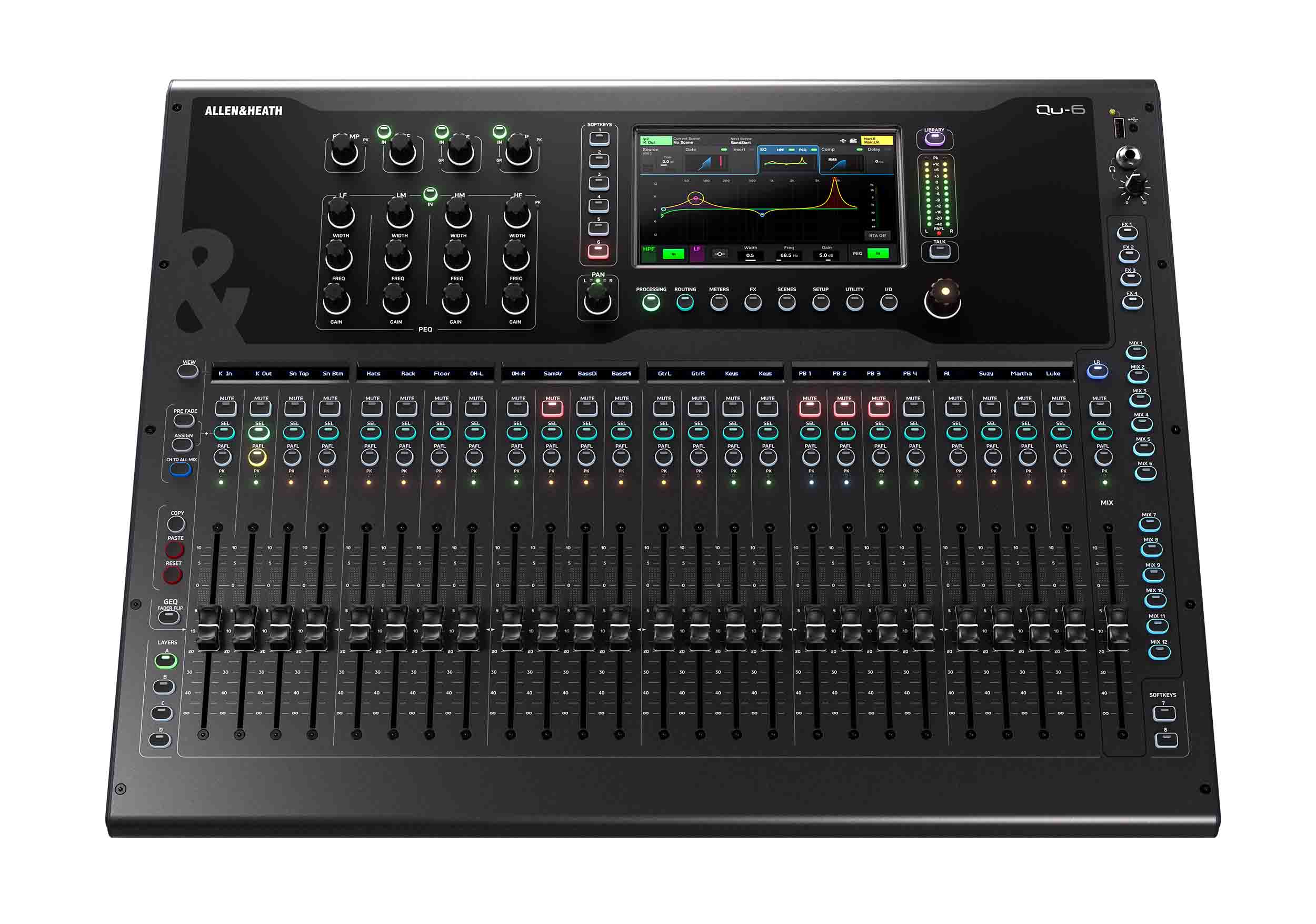

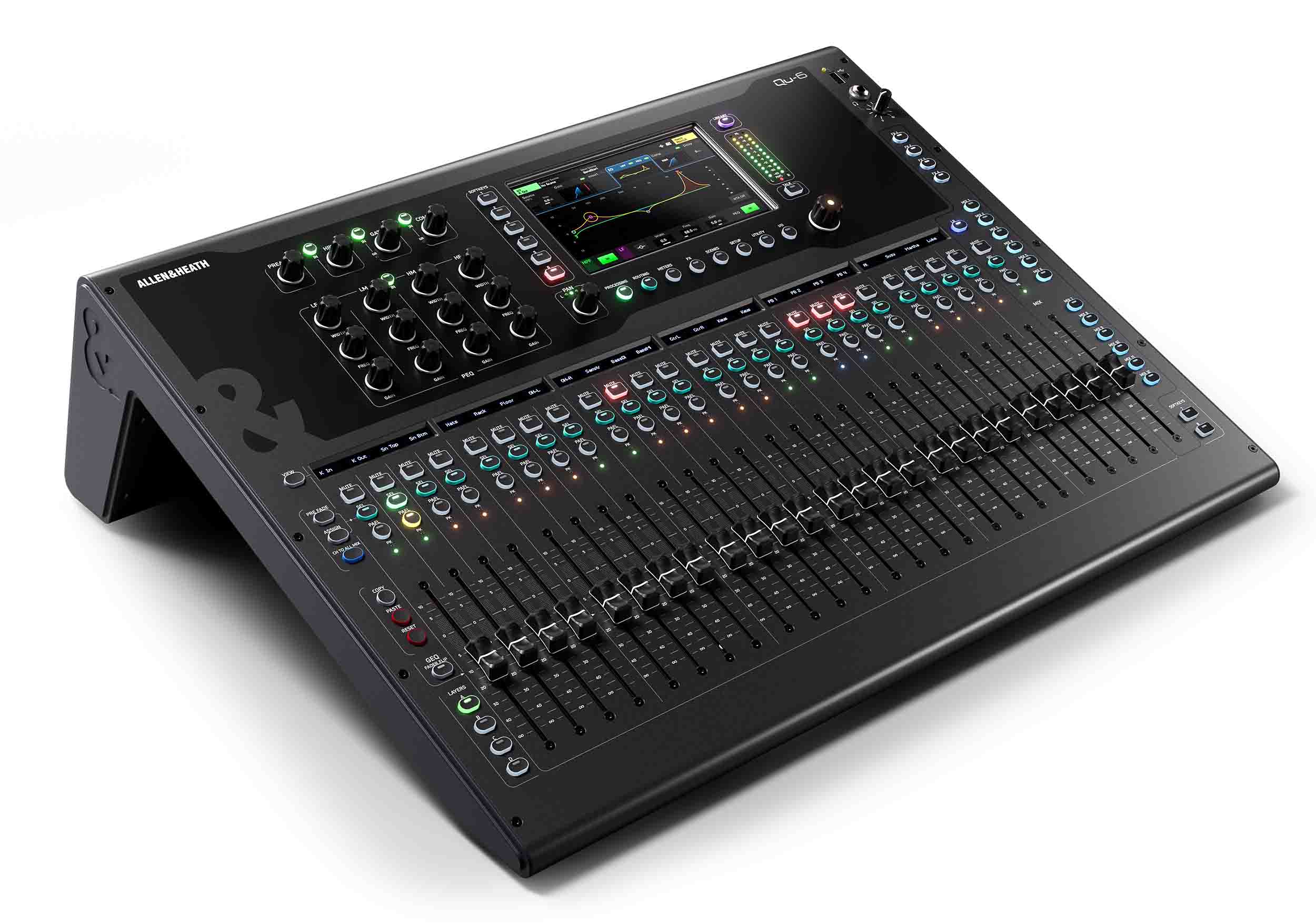

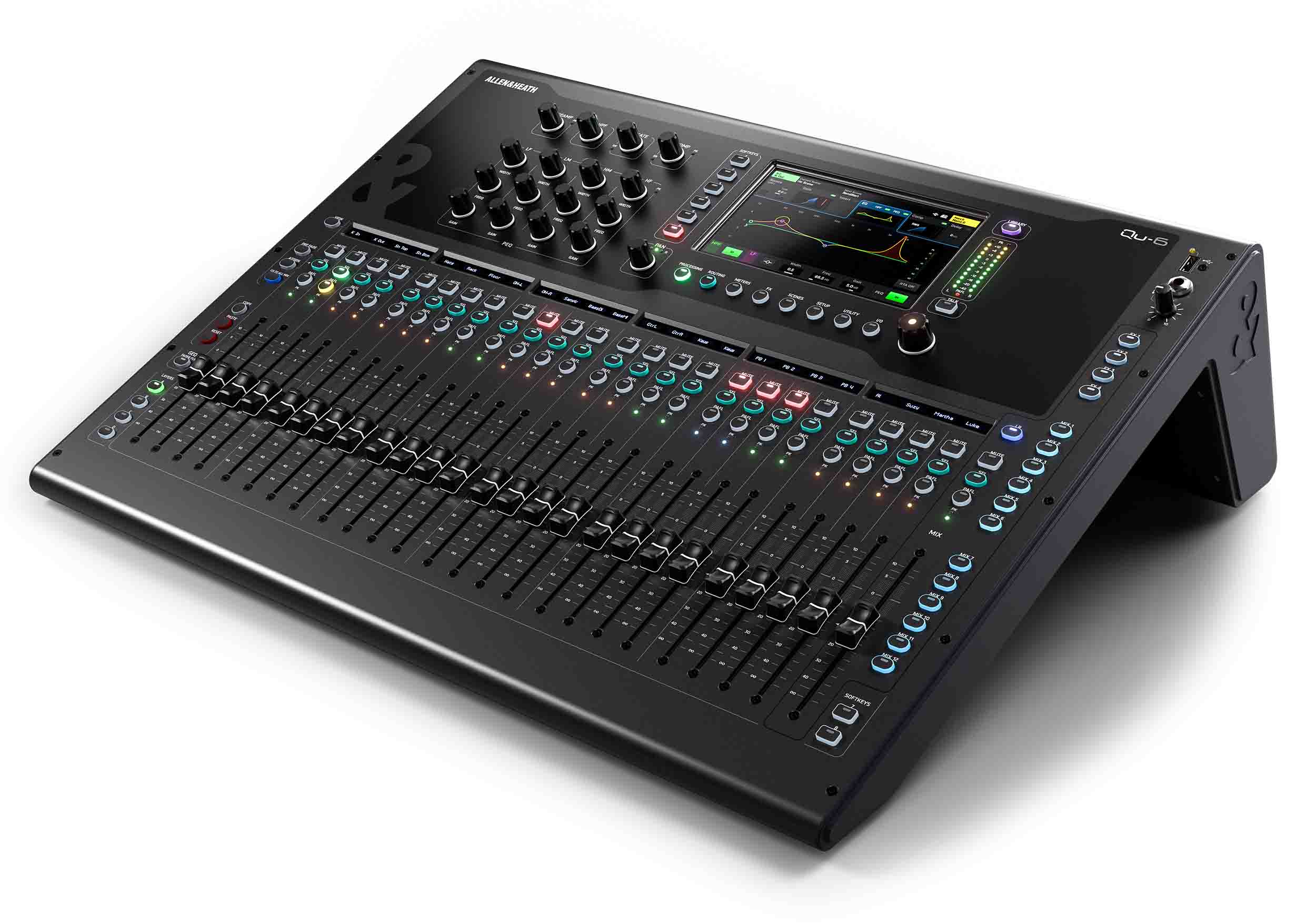

Allen & Heath Qu-6/Qu-6D Digital Mixer 38 input / 24 output - 96kHz XCVI Core

Allen & Heath’s legendary digital mixer returns in a supercharged form. The Qu-6 and Qu-6D are compact 96kHz digital mixers designed for professionals who need pristine audio, intuitive control, and advanced functionality. Powered by a 96kHz XCVI core, these mixers support DEEP Processing, offer an increased channel count, and allow fully flexible patching across four customizable layers. With an entirely redesigned interface and improved hardware, Qu-6 and Qu-6D set a new benchmark for digital mixing.

All New Hardware

The new Qu mixers maintain the iconic form factor of the original Qu series while delivering significant performance upgrades. The refreshed design includes improved preamps and high-performance 96kHz AD/DA converters to ensure crystal-clear audio throughout the signal path.

Audio Excellence

Enhanced microphone preamps and state-of-the-art converters ensure that every sonic detail is faithfully captured and reproduced. The pristine signal path ensures professional-grade audio quality for studio, stage, and broadcast applications.

Advanced Control Features

Each channel features a dedicated display for showing channel name, type, or socket number, plus a chromatic meter for quick visual feedback. The 7” capacitive touchscreen delivers a newly developed interface that’s both fast and intuitive, designed to make mixing easier than ever.

Dante Enabled (Qu-6D)

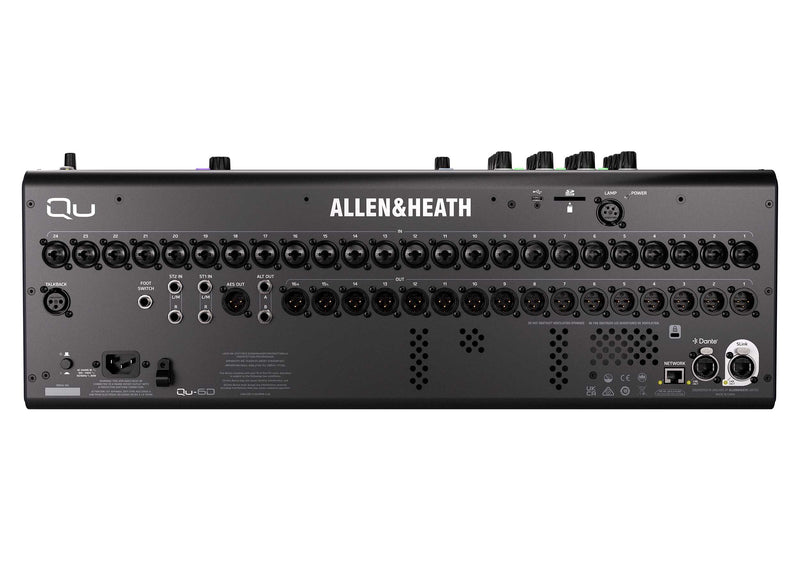

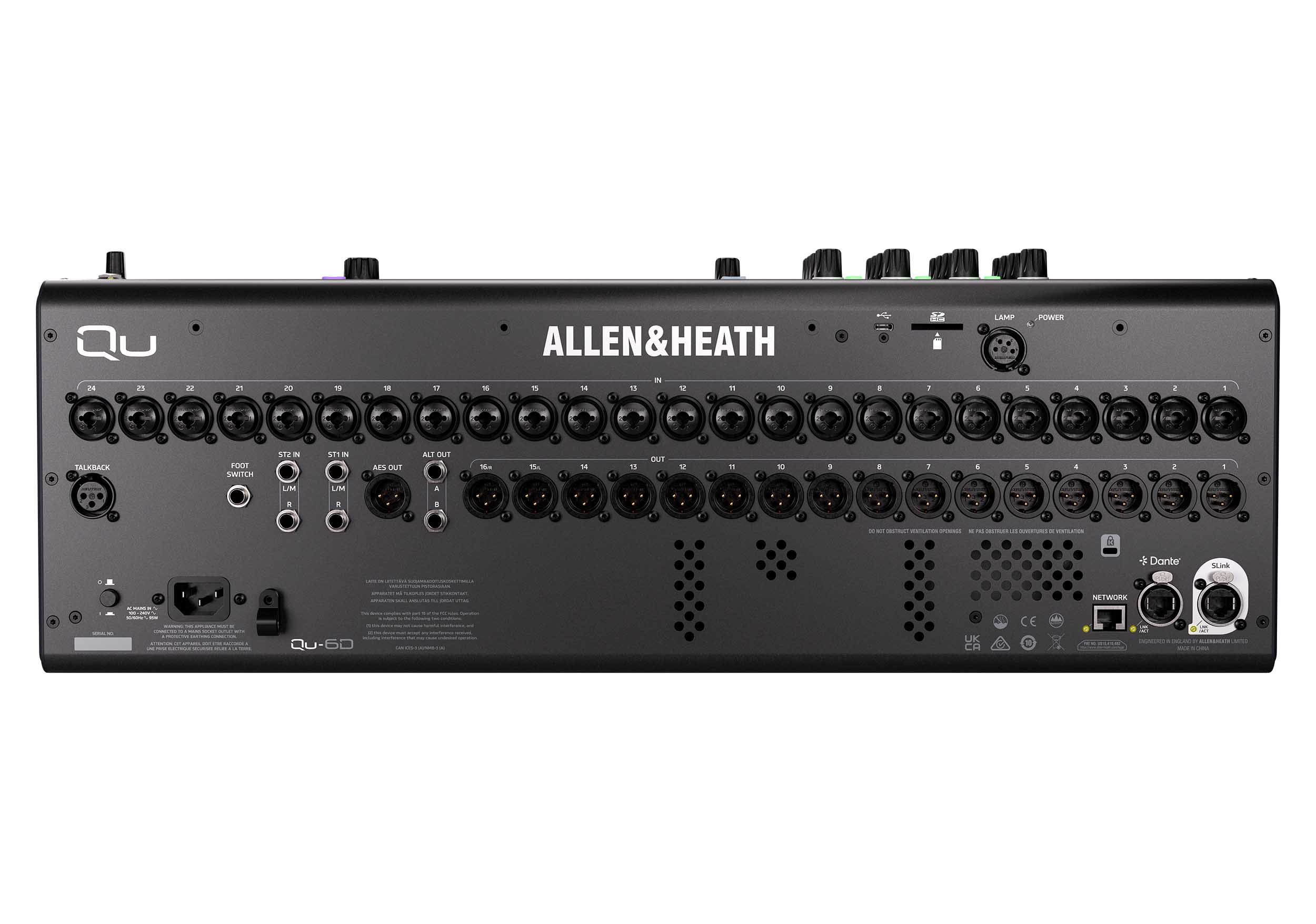

The Qu-6D model includes a built-in 16×16 Dante interface with a dedicated locking EtherCon port, enabling seamless integration with Dante-enabled systems operating at either 96kHz or 48kHz.

Updated Workflow

Building on the original Qu series’ ease of use, the new Qu enhances the “walk up and mix” experience. Four customizable layers, more assignable SoftKeys, and flexible routing options provide an efficient workflow accessible through the redesigned UI.

Capture & Playback

Every Qu model offers robust recording and playback capabilities. A built-in 32×32 USB-C audio interface, 32-channel SD card multitrack support, and simple stereo recording/playback via USB-A ensure you can capture or playback your audio wherever you are.

DEEP Processing & Assistive Tools

With DEEP Processing capabilities, the Qu series inherits studio-grade processing from the flagship dLive system. It also includes helpful tools like Feedback Assistant and Gain Assistant—designed to make setup faster and eliminate troublesome frequencies with ease.

Automatic Mic Mixer (AMM)

The 32-channel Automatic Mic Mixer (AMM) is fully integrated, making the Qu-6 and Qu-6D perfect for speech applications like panel discussions and broadcast, with no additional latency or external DSP required.

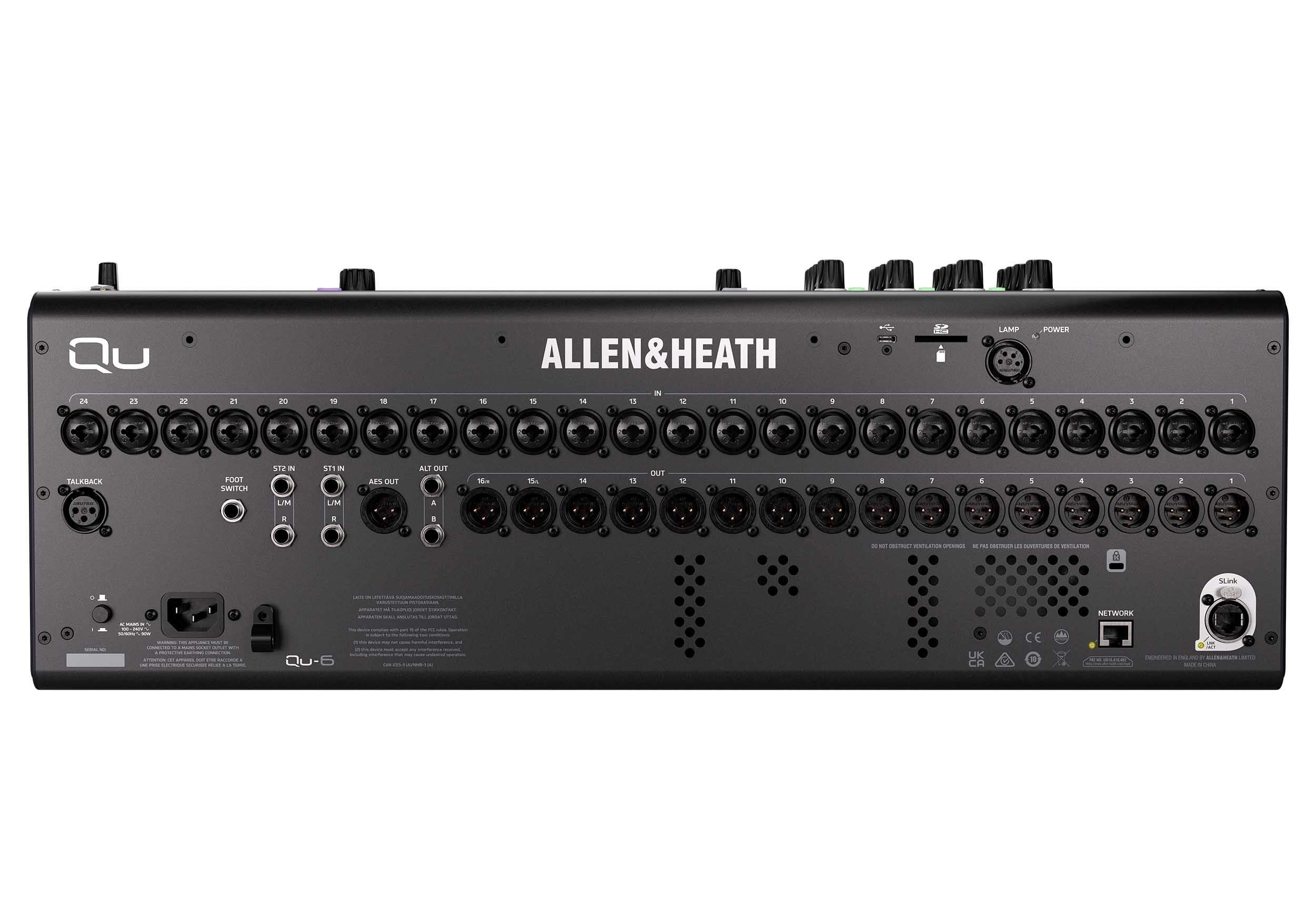

Product Specifications:

Mixer Type: 96kHz Digital Mixer

Processing Core: XCVI Core

Motorised Faders: 25 x 100mm

Mic/Line Inputs: 24 x XLR/Jack ‘Combi’ sockets

Stereo Line Inputs: 2 (each 2x TRS)

Outputs: 16 x XLR, 2 x TRS, 1 x AES3 Stereo Digital Out, Stereo Headphone Out

Talkback Input: 1 x XLR

Matrix Outputs: 4 Mono/Linkable

Mix Outputs: 12 total (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)

Main Output: Stereo LR

Display: 7” Capacitive Touchscreen

Fader Layers: 4 Channel Strip Layers

SoftKeys: 8 Assignable

Footswitch: Configurable Single/Dual Connection

Metering: Chromatic Channel Meter LEDs

Audio Interface: USB-C, 32×32 multichannel

USB-A Port: Stereo recording/playback, data transfer

SD Card Slot: Multitrack recording/playback (16×16 @96kHz or 32×32 @48kHz)

Remote Control Apps: Available for Windows, MacOS, iOS, and Android

Lamp Port: 12V Lamp Socket

I/O Expansion: 128×128 Intelligent SLink Port

Qu-6D:

Includes integrated 16×16 Dante interface (48/96kHz)

Dedicated locking EtherCon port
