Shure BLX14/CVL, Wireless Presenter System with CVL Lavalier Microphone

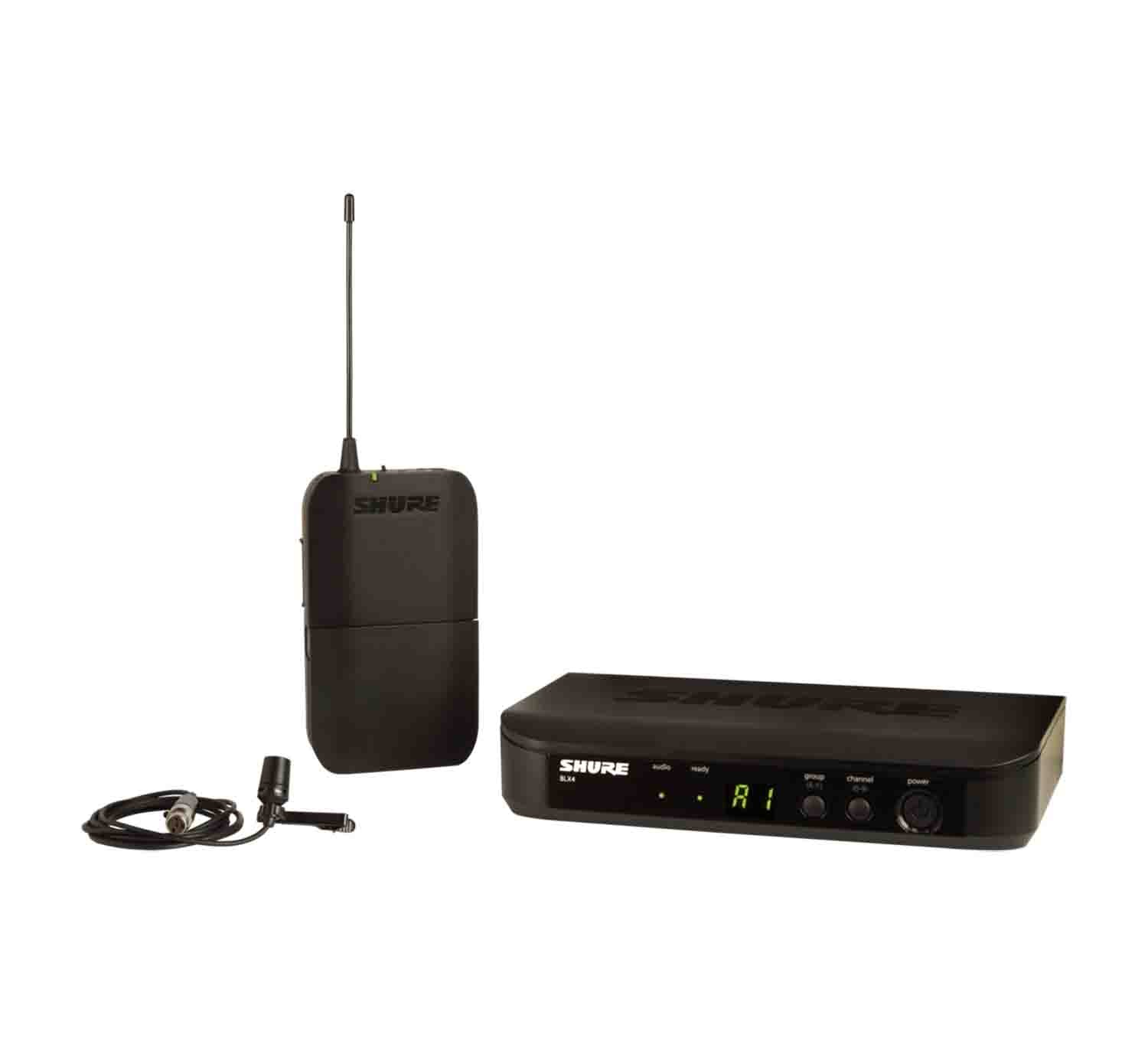

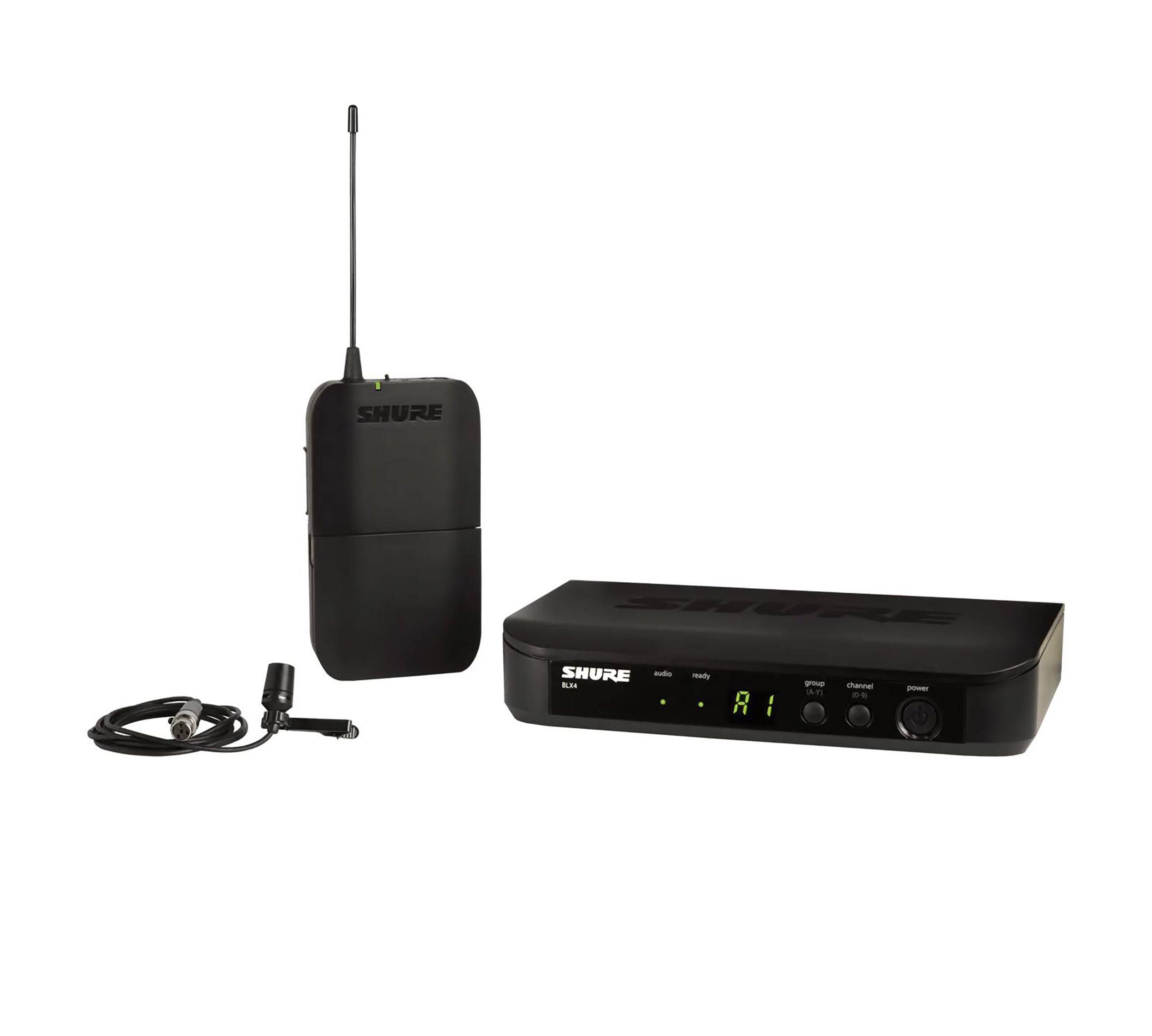

The BLX14/CVL Lavalier Wireless System is part of the BLX wireless systems family. Shure BLX Wireless Systems combine professional-quality sound with a simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage. Includes BLX4 wireless receiver, BLX1 bodypack transmitter, CVL lavalier microphone, power supply, lavalier clip, windscreens, and user guide.

Convenient and Easy to Use

Providing up to 14 hours of use with two AA batteries, Shure's BLX Series transmitters let you perform with confidence. And when it comes to frequency selection, the live sound gurus here at Sweetwater swear by the fast, convenient frequency matching afforded by the Shure BLX's group and channel selection buttons.

Ready To Rock, Right Out of The Box

If you're ready to go wireless, Shure's BLX wireless systems are a smart, affordable choice. Take the stage confidently, backed up by Shure's legendary microphones, decades of wireless design experience, and tour-tested build quality. Available in a broad selection of bodypack and handheld configurations, BLX vocal, guitar, headset, and presenter systems are ready to rock, right out of the box.

Versatile and Expandable

A choice of single-channel, single-channel half-rack, and dual-channel receivers, as well as vocal, guitar, headset, and lavalier options, makes Shure's BLX wireless systems quite versatile. And the ability to run up to 12 compatible systems per band protects your investment, letting you start out modestly and expand as necessary.

Product Specifications:

Wireless Technology: Analog UHF

Number of RF Channel Frequencies: 123

Included Transmitters: 1x Bodypack

Diversity: Antenna Diversity

RF Bandwidth: 24 MHz

RF Channel Scanning: Auto-Scan

RF Channel Scanning: Auto-Scan

Max Operating Range: 300' / 91.4 m (Line of Sight)

Max Transmitters per Band: 12

Built-In Recorder: No

Timecode Support: No

Mobile App Compatible: No

Dynamic Range: 100 dBA

Encryption: No

Receiver:

Receiver Type: Tabletop

Mounting Options: Tabletop (with Included Hardware)

Antenna: 2x Internal, Fixed

Number of Audio Channels: 1

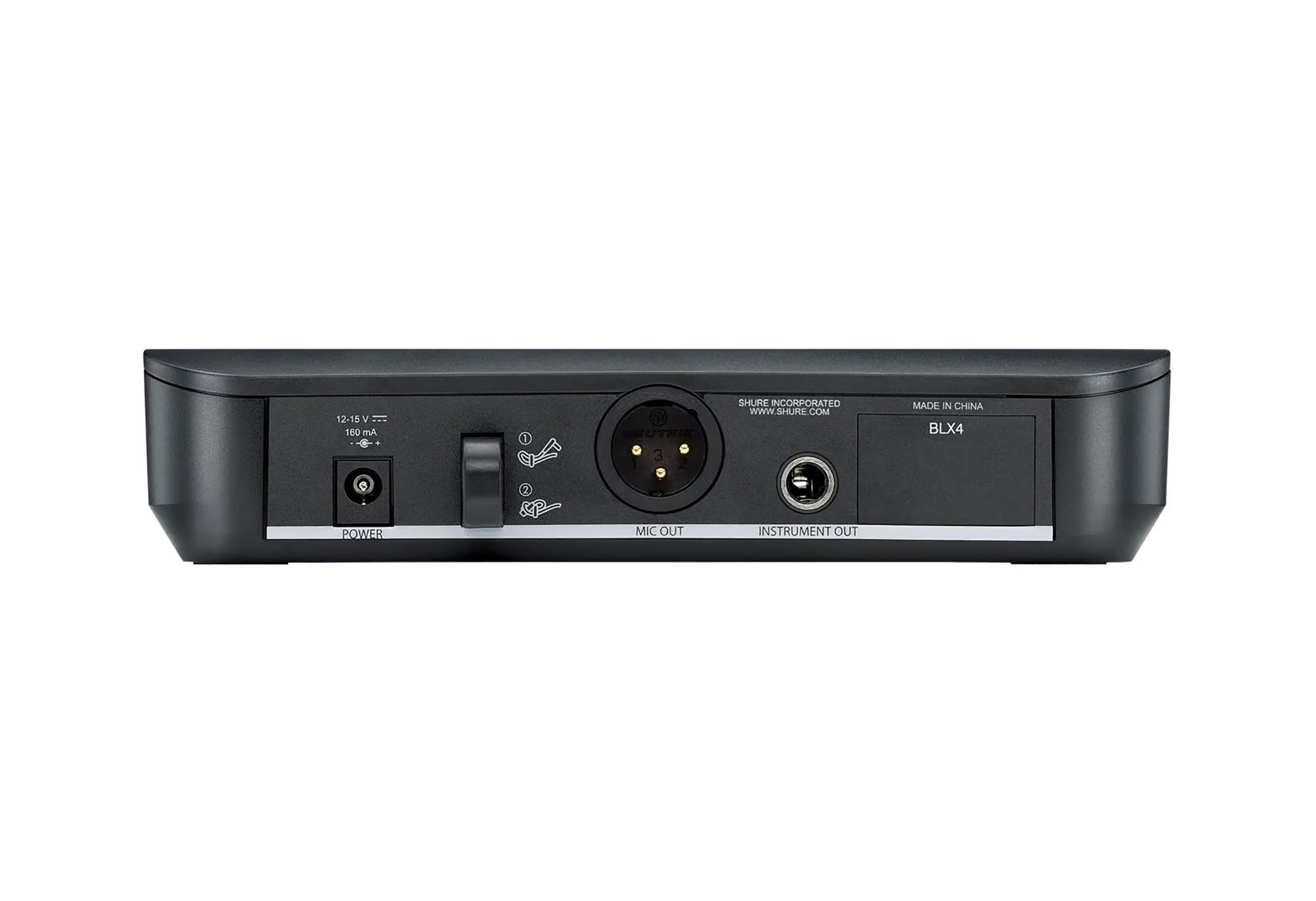

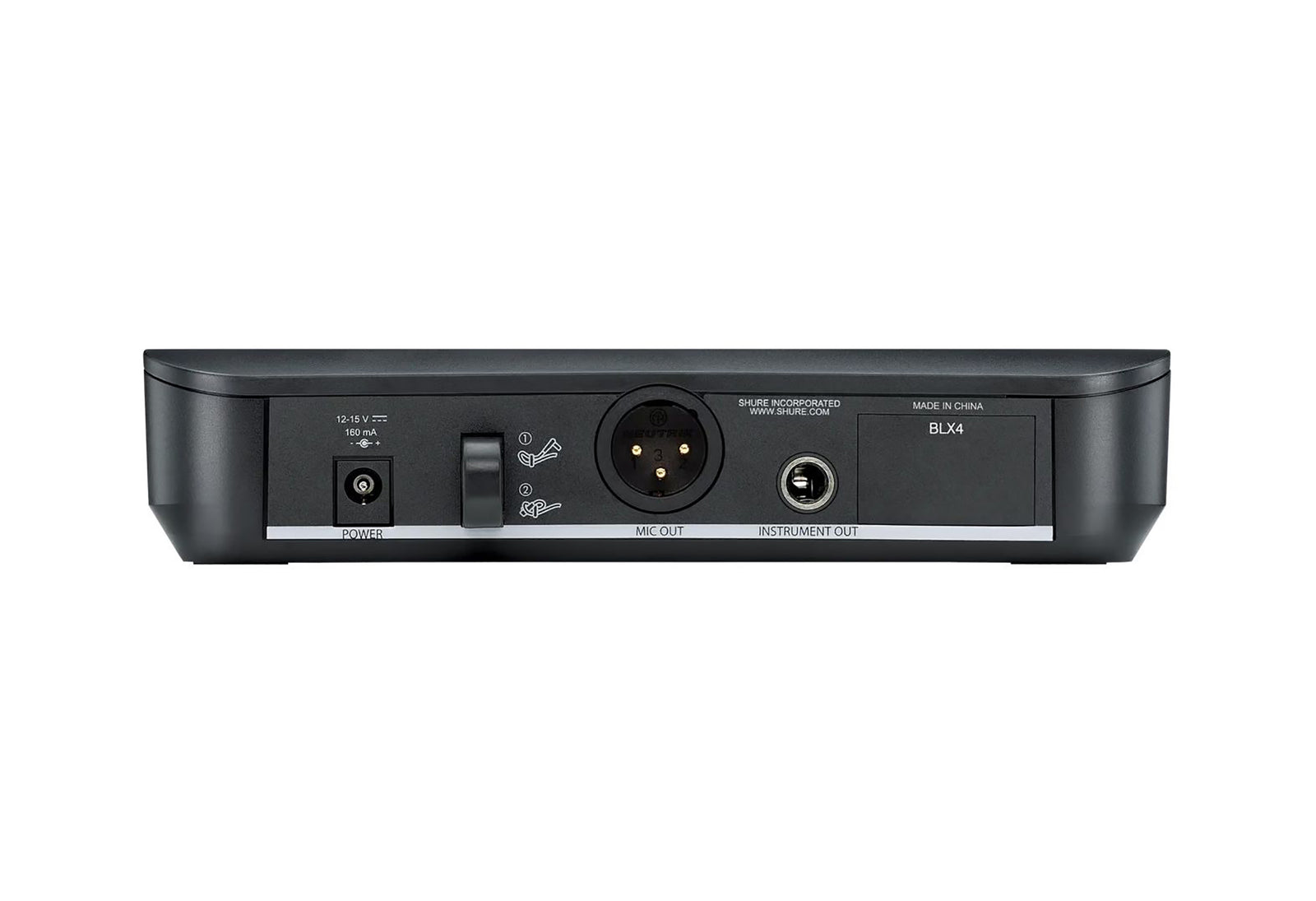

Audio I/O:

1x XLR 3-Pin Male Balanced Output

1x 1/4" TS Female Unbalanced Output

Audio Output Level:

XLR Output: -27 dBV (Mic Level)

1/4" Output: -13 dBV (Instrument Level)

Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)

Impedance:

XLR Output: 200 Ohms

1/4" Output: 50 Ohms

Power Requirements: AC/DC Power Adapter

AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)

DC Input Power: 12 to 15 VDC at 160mA

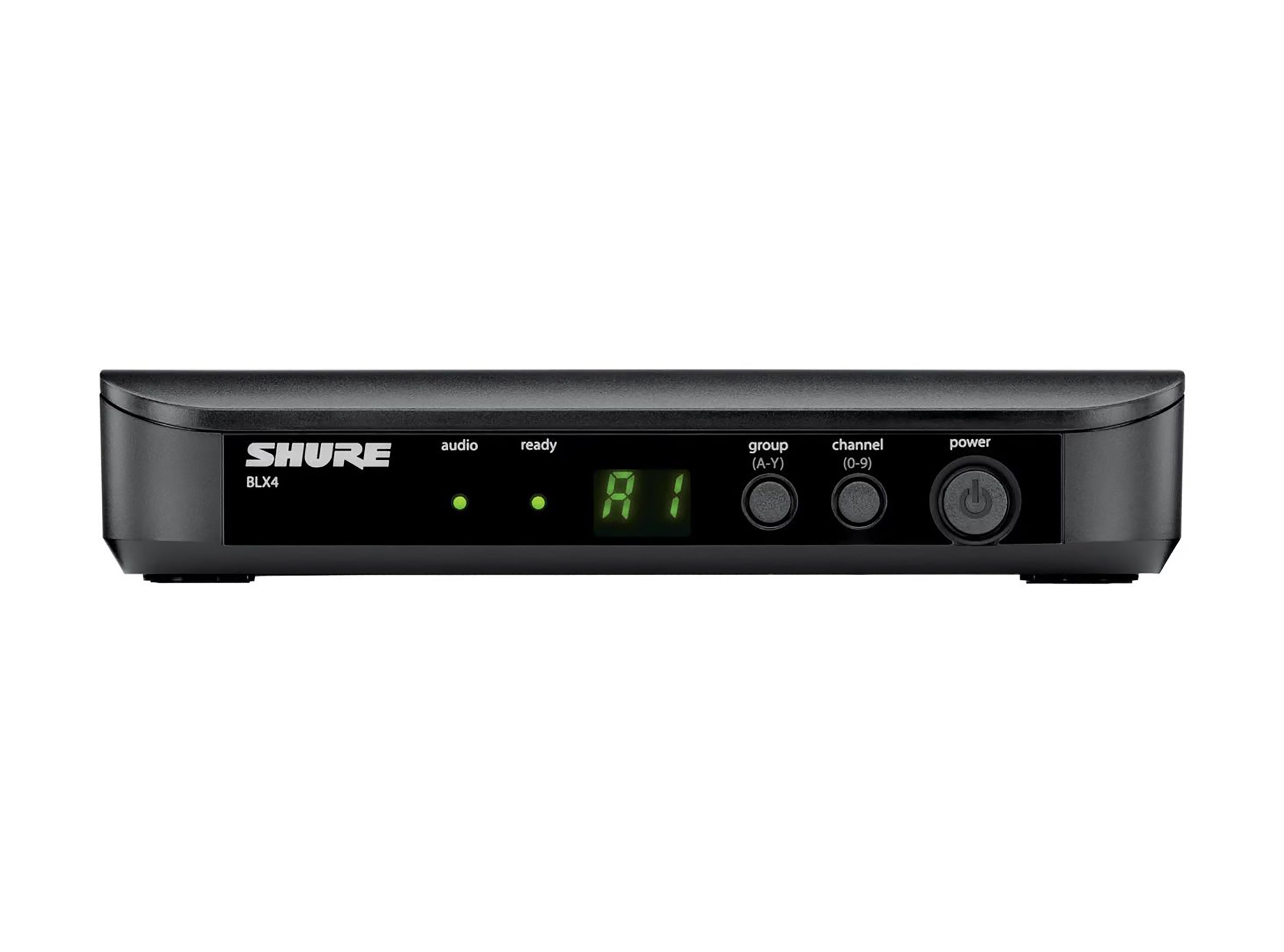

Display & Indicators:

1x Multi-Segment LED (Channel, Group)

2x LED (AF Level, Sync)

Housing: ABS

Dimensions: 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm

Weight: 8.5 oz / 241 g

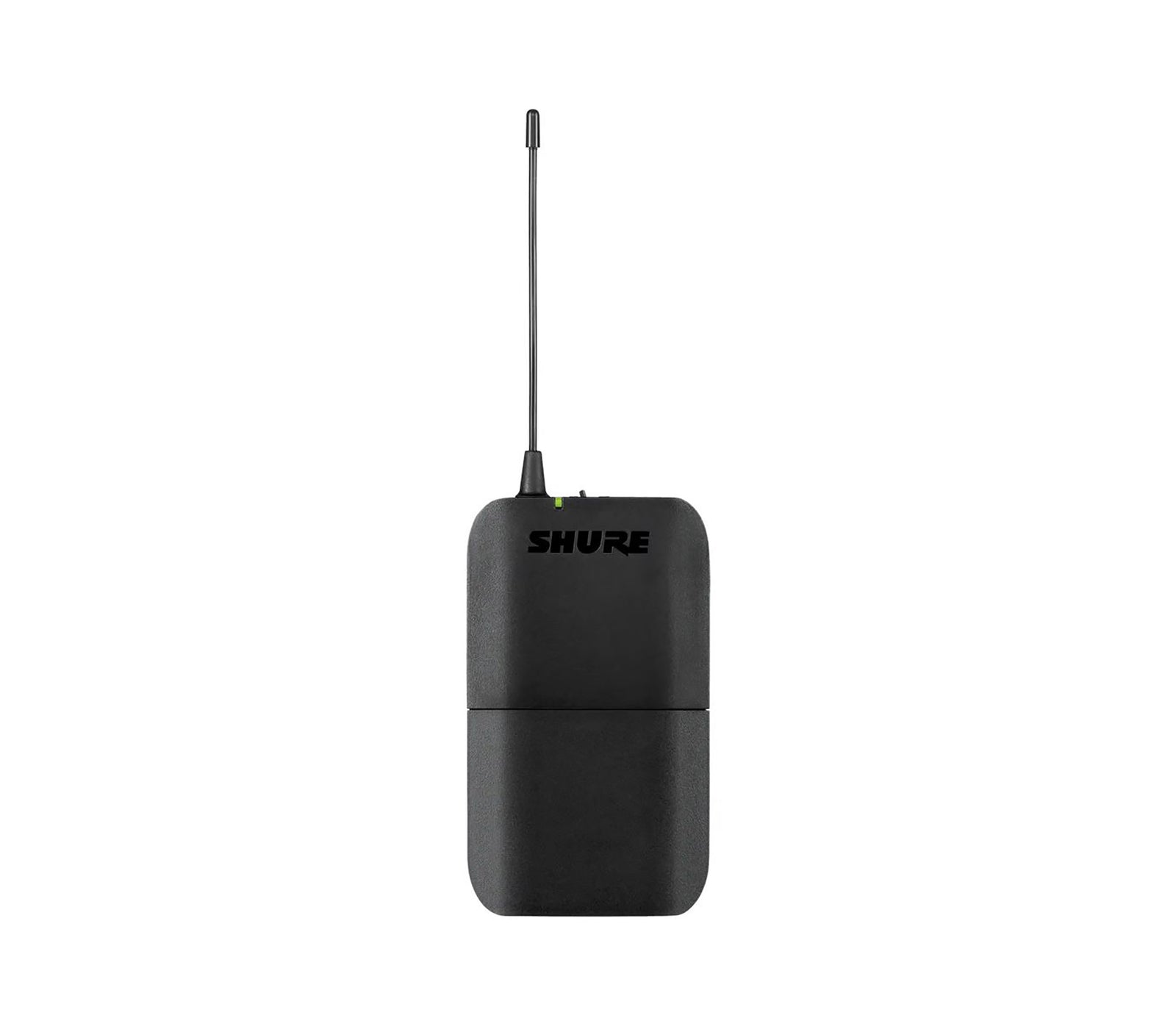

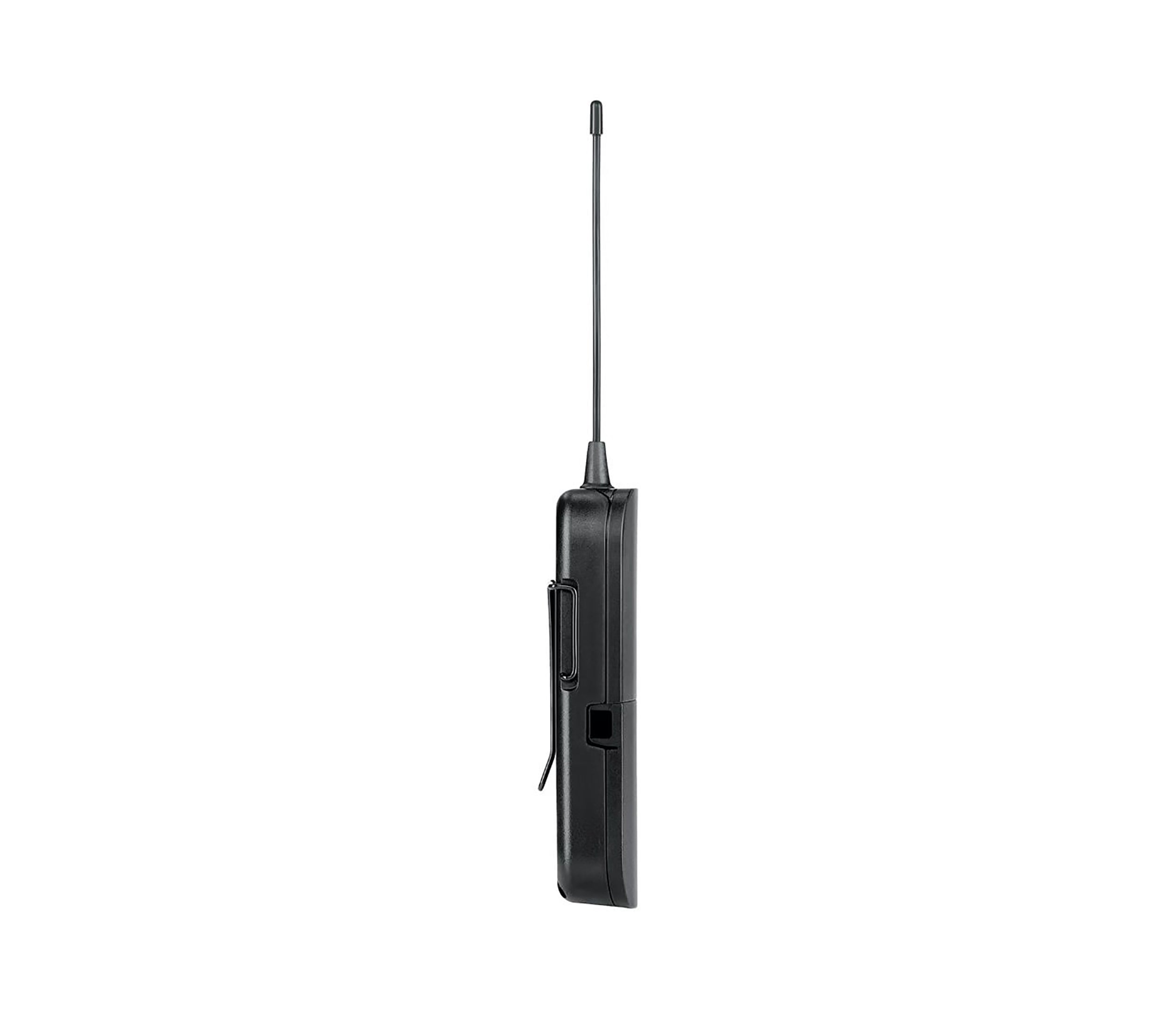

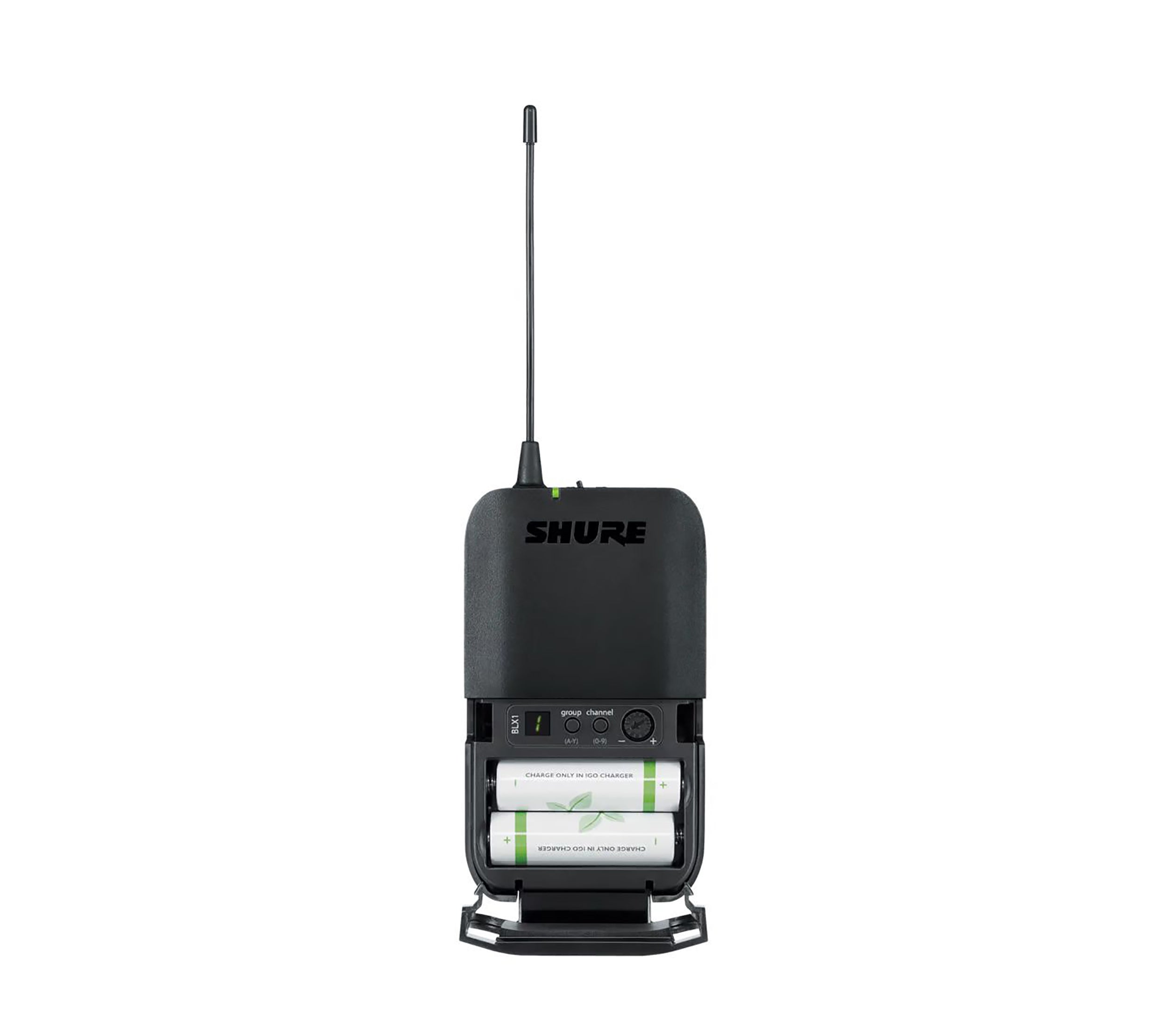

Transmitter:

Transmitter Type: Bodypack

RF Output Power: 10 mW

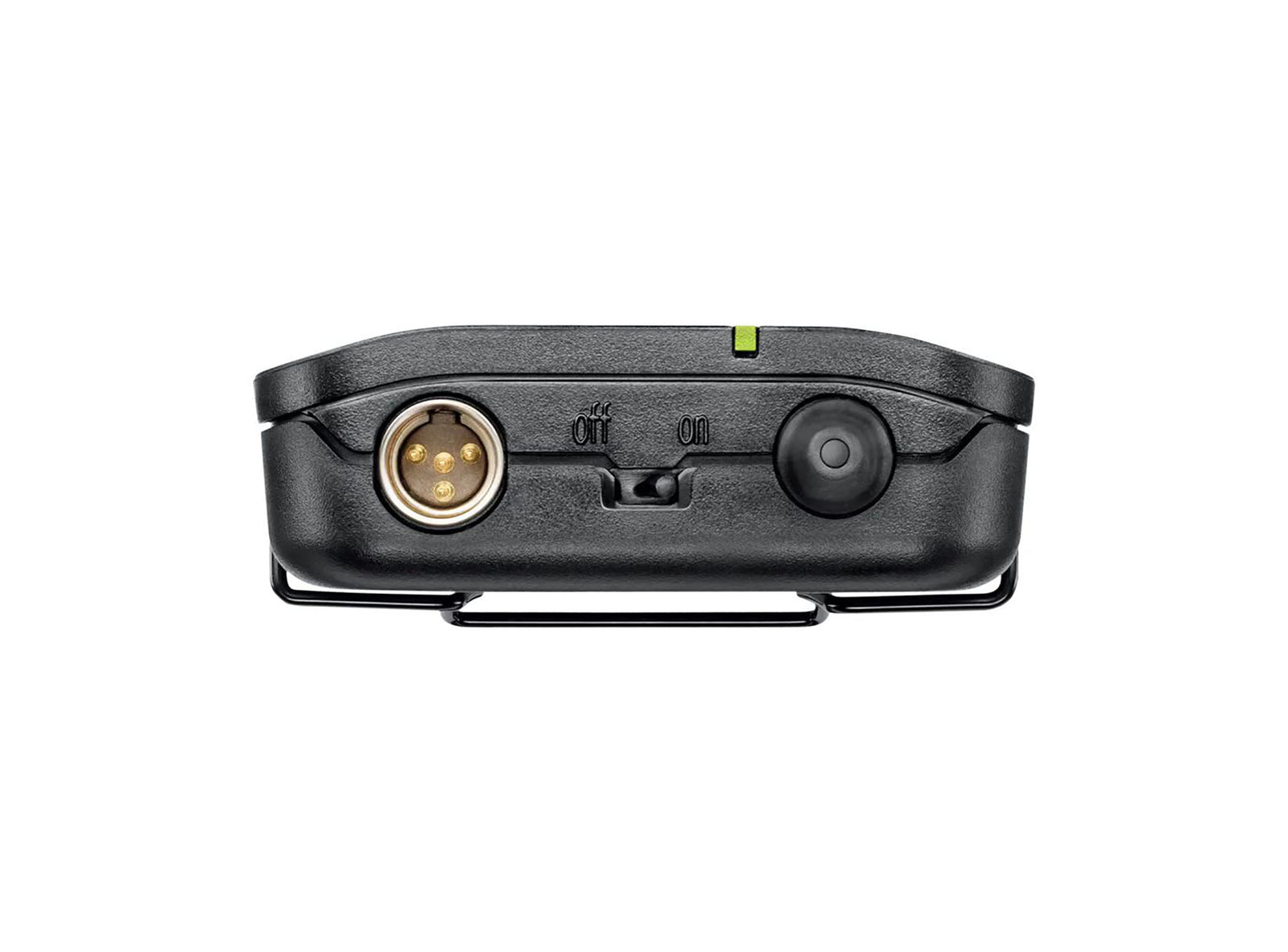

Audio I/O: 1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

Muting: Off/On Switch

Auto-Level Control: No

Gain Range: -16 to +10 dB

Sync Method: Manual

Antenna: 1x Flexible Whip, Fixed (Belt pack)

Power Requirements: Battery

Battery Type: 2x AA (Included)

Approx. Battery Life: 14 Hours (Alkaline)

Display & Indicators:

1x Multi-Segment LED (Channel, Group)

1x LED (Battery Status, Power)

Housing: ABS

Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm

Weight: 2.6 oz / 75 g (without Batteries)

Microphone:

Microphone Type: Lavalier

Sound Field: Mono

Capsule: Electret Condenser

Polar Pattern: Cardioid

Frequency Range: 50 Hz to 20 kHz

SNR: 72 dB

Equivalent Noise Level: 22 dB

Maximum SPL: 139 dB SPL

Dynamic Range: 117 dB

Output Connector: 1x TA4F/Mini-XLR 4-Pin Female (Locking)

Cable Length: 4.27' / 1.3 m

Operating Voltage: 5 V

Weight: 0.88 oz / 25 g
