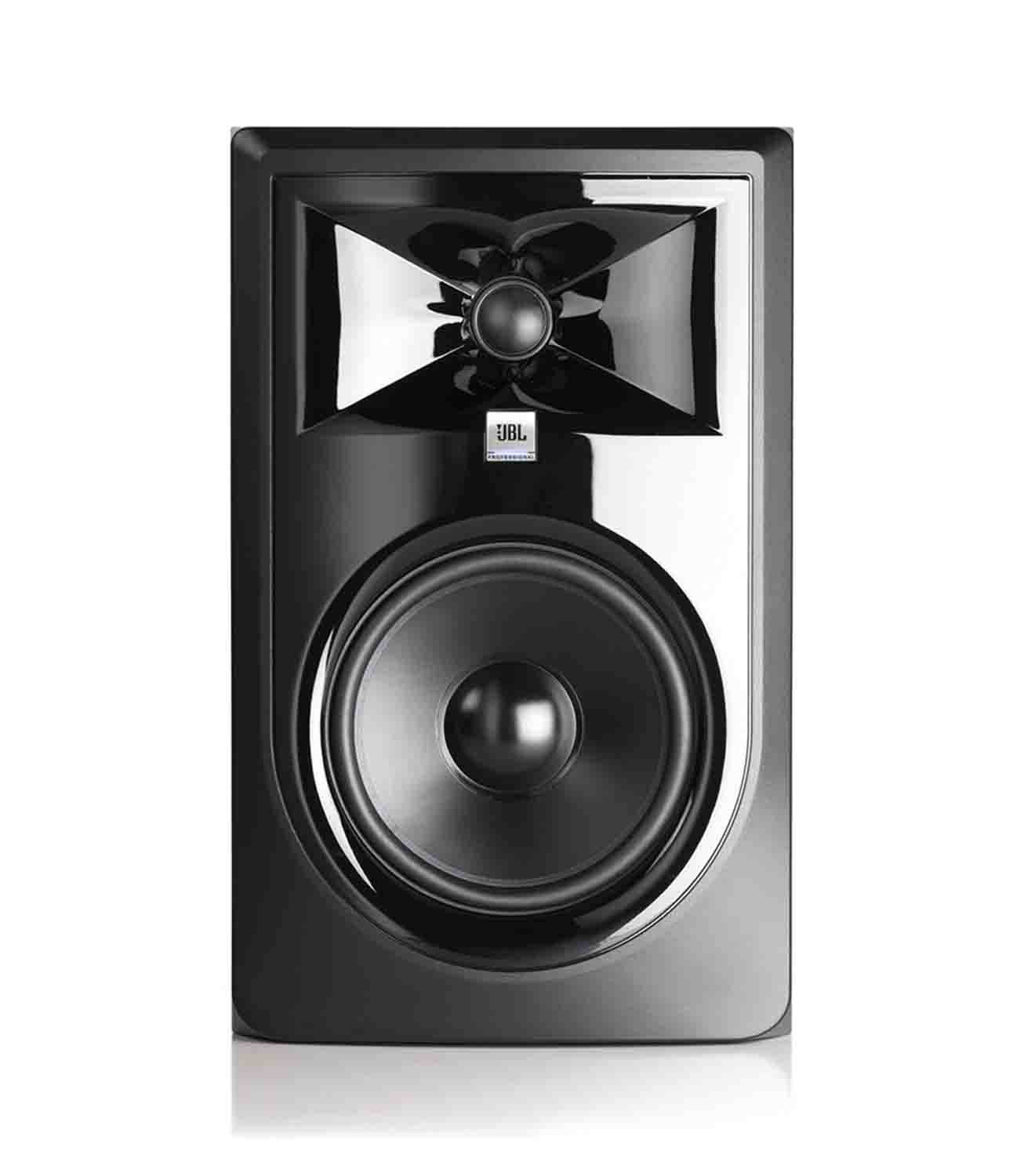

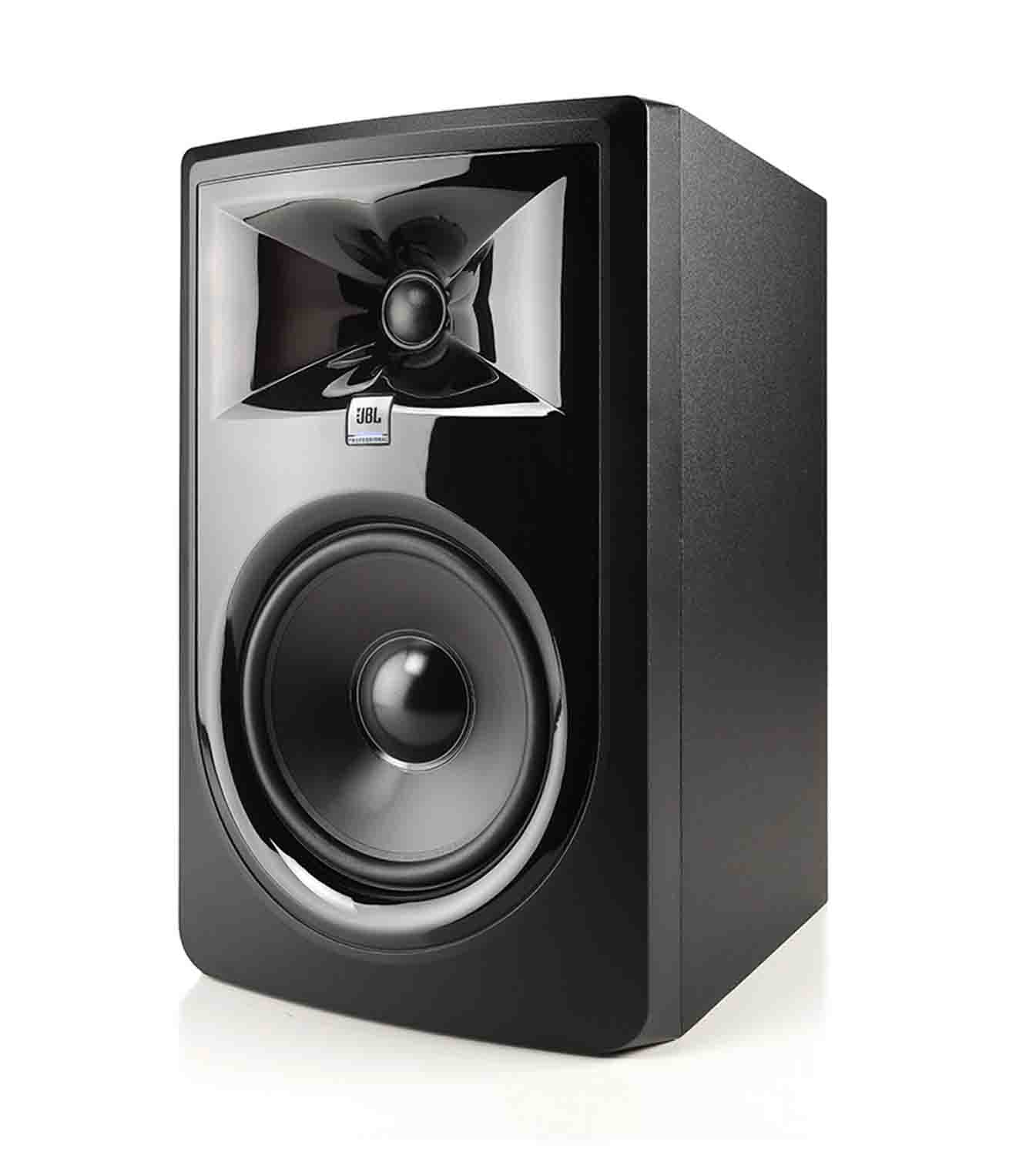

JBL 306P MkII, Powered Two-Way Studio Monitor - 6"

The JBL 306P MkII is a Powered Two-Way Studio Monitor 6". The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot, and an impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

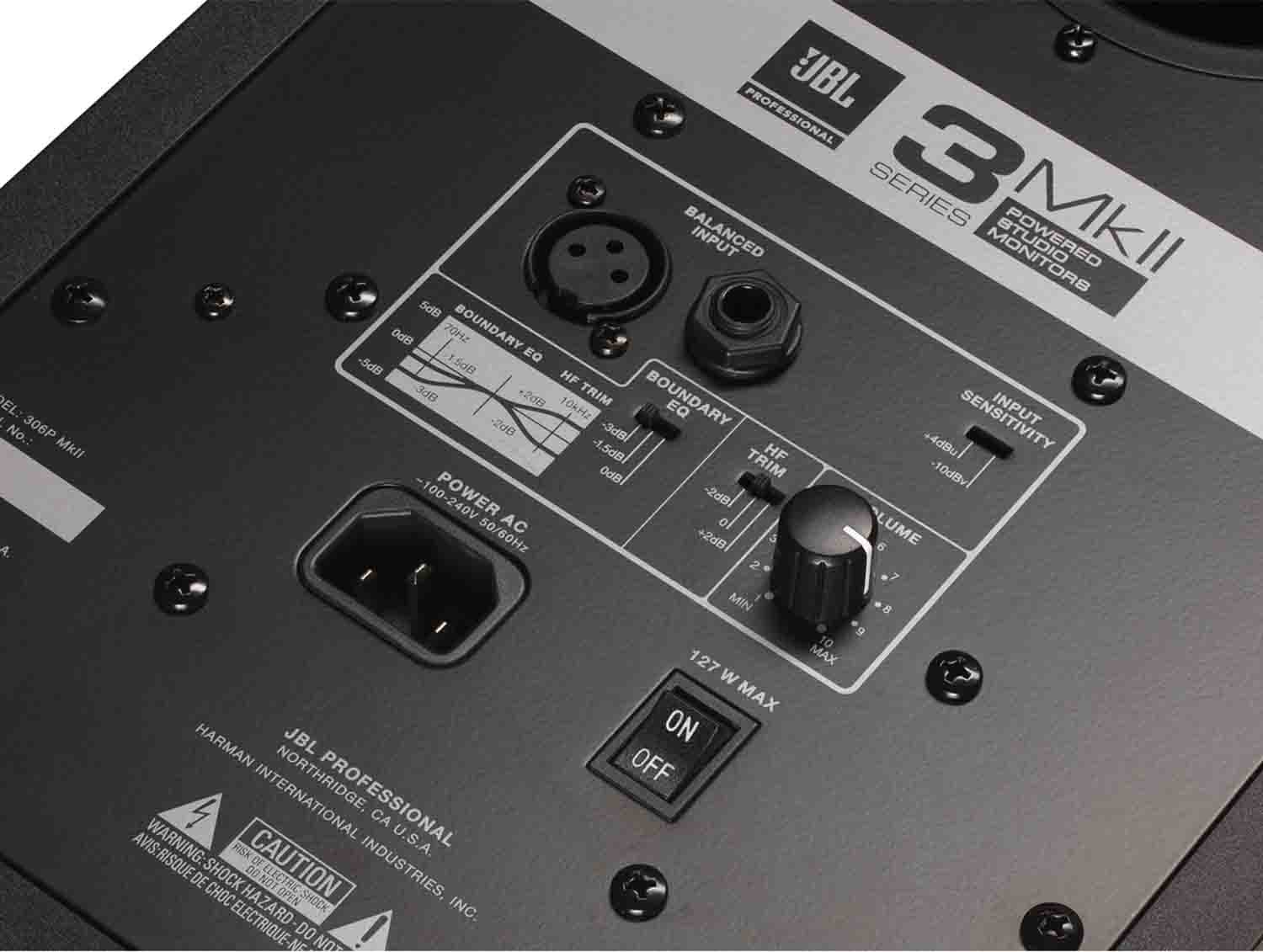

Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control. Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space. Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels. Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range. New Boundary EQ settings compensate for low-frequency variants introduced by the environment.

Product Specifications:

LF Driver: 165mm (6.5")

HF Driver Size: 25mm (1")

HF Driver Type: Soft dome

Crossover: 1425Hz 4th order acoustic Linkwitz-Riley

Input Sensitivity (-10dBV INPUT): 92dB / 1m

Power Configuration: Bi-amplified

HF Driver Power AMP: 56W, Class-D

LF Driver Power Handling: 56W, Class D

Frequency Response (±3 dB): 47Hz – 20kHz

Frequency Range (-10dB): 39Hz – 24kHz

Low Frequency Extension (-10dB): 39Hz

Maximum Continuous SPL: 92dB

Maximum Peak SPL: 110dB

Coverage Angle: 120° x 90°

Input Connectors: 1 x XLR female, 1 x TRS female, balanced

HF Trim Control: -2dB, 0dB, +2dB

Boundary EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB

AC Input Voltage: 100 - 240VAC (±10%), 50 / 60Hz

Enclosure: Ported

Weight: 13.42 lbs
