Description

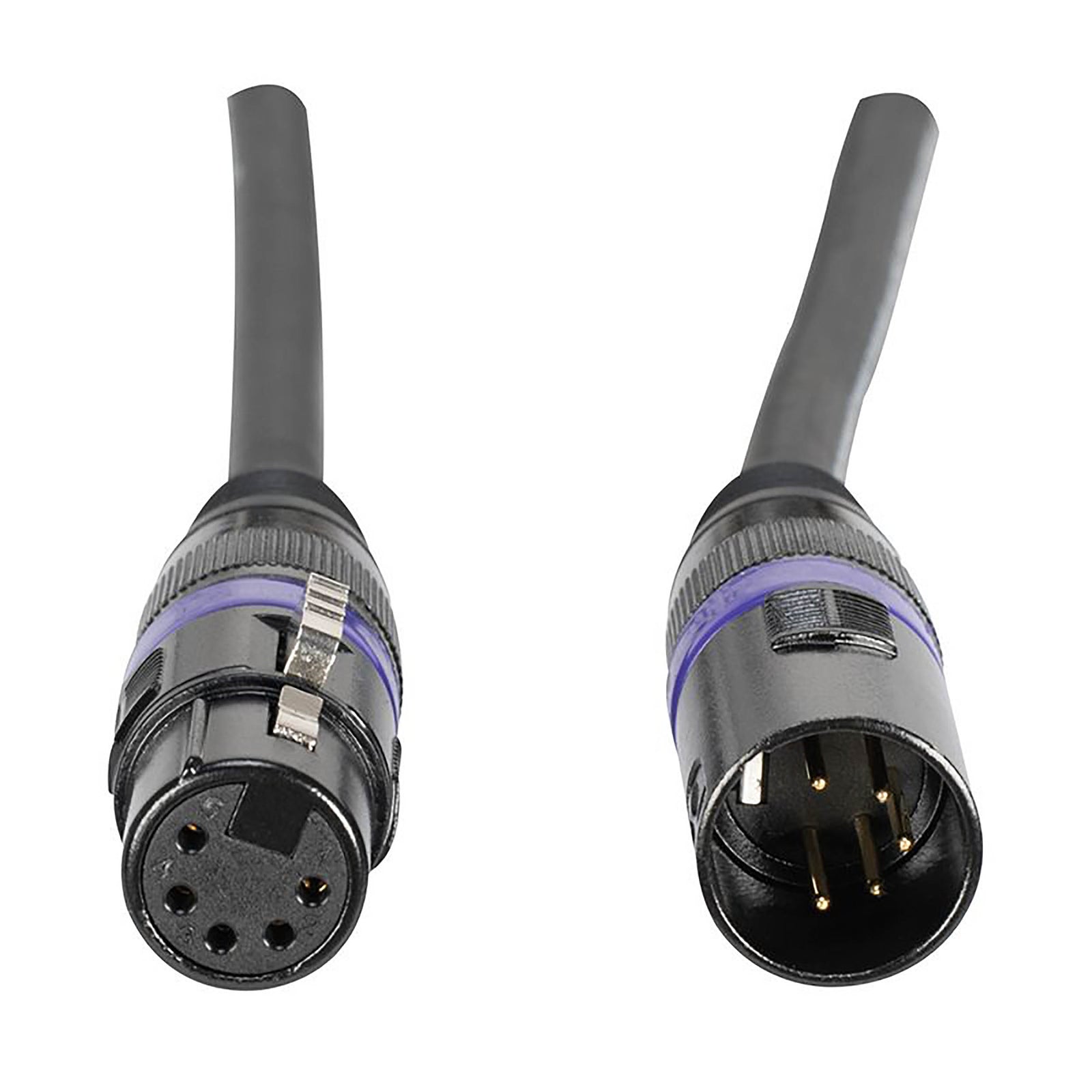

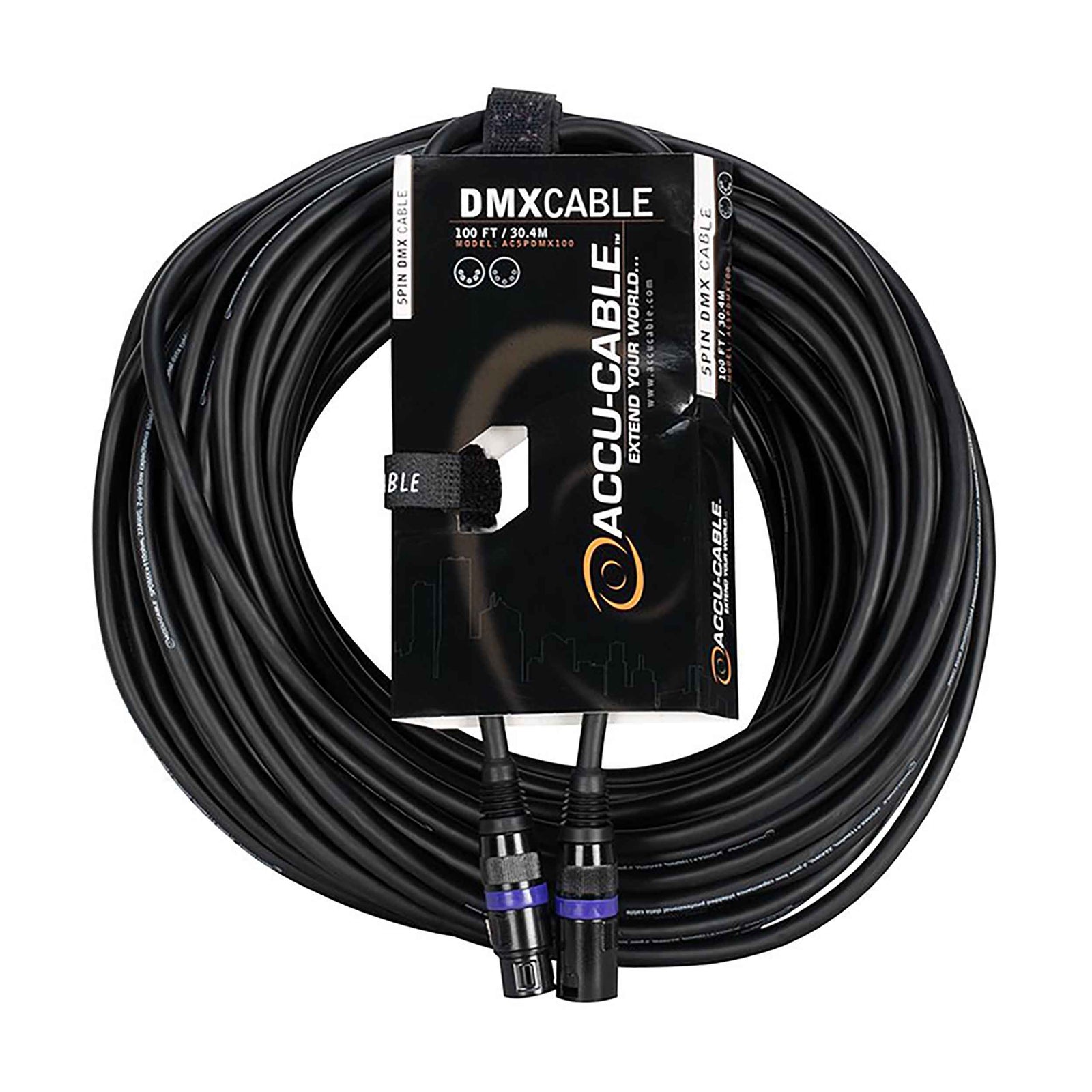

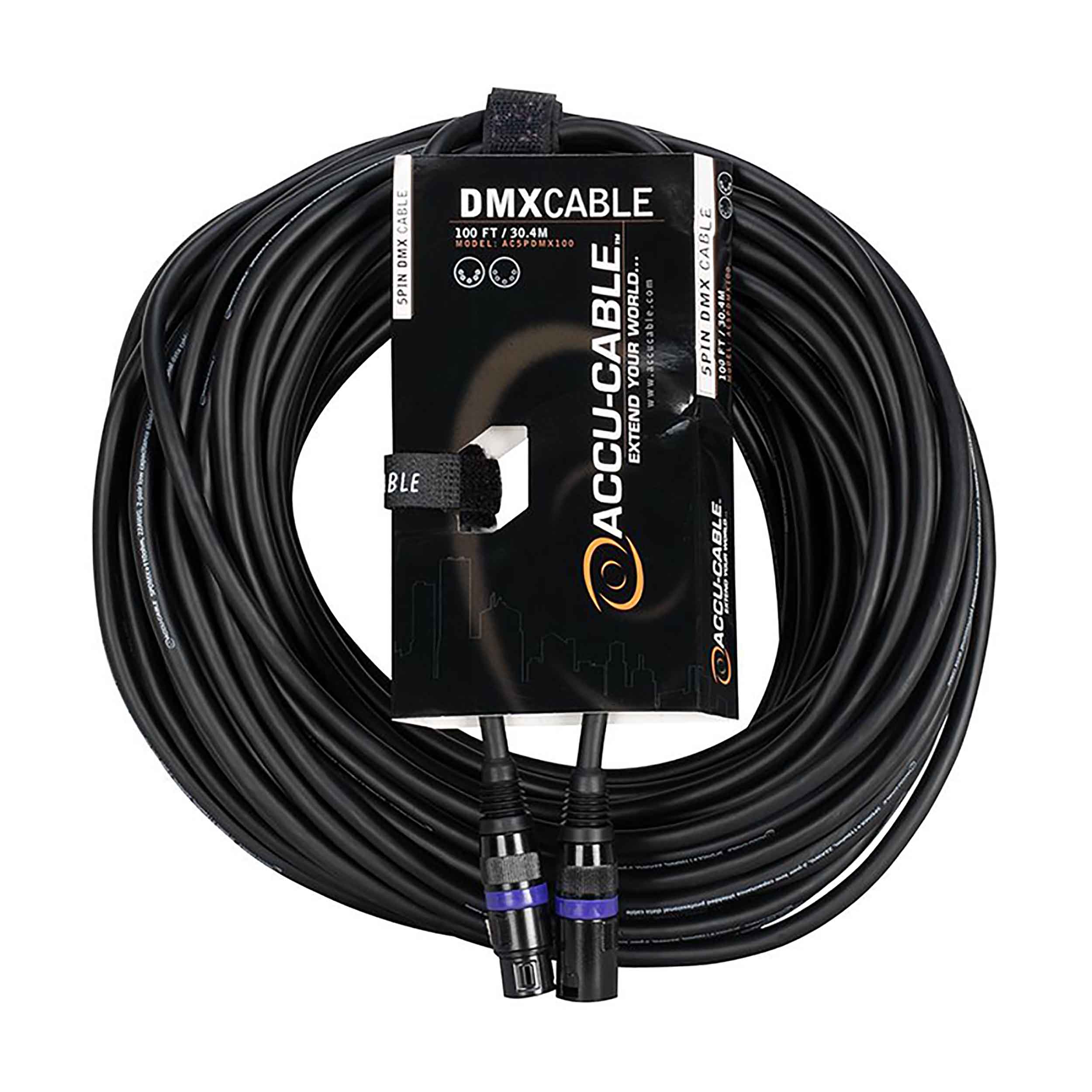

The 100-foot DMX Cable - 5-pin male to 5-pin female connection. No memory rugged cable: 22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket to prevent from kinking.
Product Specifications:
Connector 1: XLR 5-Pin Male
Connector 2: XLR 5-Pin Female
Number of Conductors: 4
Conductor Material: Tinned Copper
Shielding: 85% Tinned Copper Braid
Jacket Type: Polyvinyl Chloride (PVC)
Insulation Type: Polyethylene
Outer Diameter: 0.09" / 2.29 mm
Bend Radius: 3.5" / 8.9 cm
Maximum Pull Tension: 22 lb. / 10 kg
Operating Temperature: -22 to 167°F / -30 to 75°C
Cable Length: 100' / 30.48 m
Weight: 5 lb. / 2.3 kg
Wire Gauge: 22 AWG
Conductor Capacitance: 12.5 pF/ft at 1 kHz
Conductor DC Resistance: 24 Ohms/ft (Up to 1000' / 304.80 m)
Nominal Impedance: 110 Ohms
Attenuation: 0.6 dB @ 1 MHz
Shipping Weight: 4.515 lb.
Shipping Dimensions (LxWxH): 10.75 x 10.6 x 3.55"
