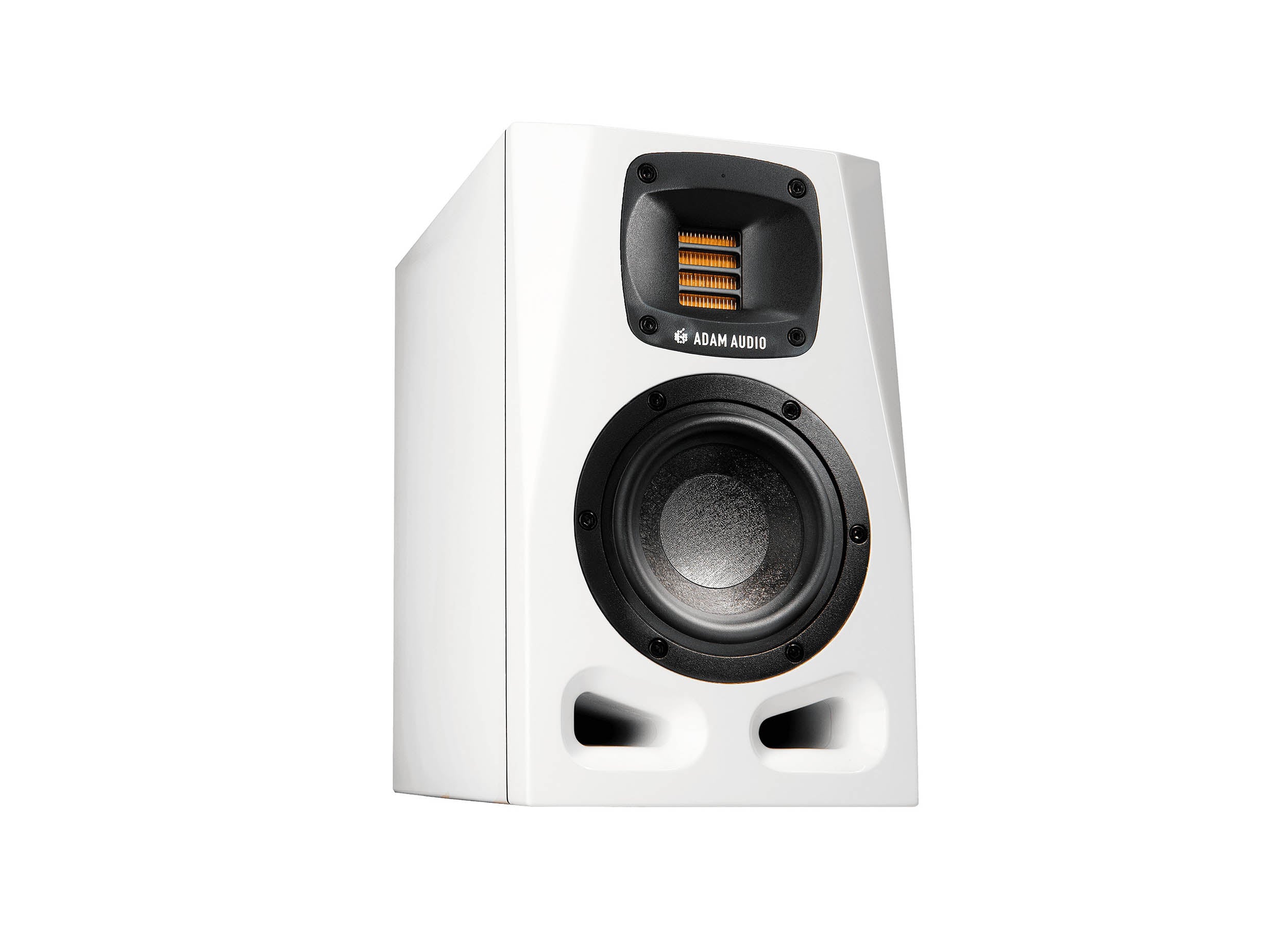

ADAM Audio A4V-WHITE 4-inch Powered Studio Monitor - White

The ADAM Audio A4V 4-inch Powered Studio Monitor - White is Designed for small studio spaces, short listening distances and immersive multi-speaker configurations, the A4V delivers accurate, full-bodied sound in a compact form factor. This two-way speaker incorporates a 4-inch long-throw woofer made from the same Multi-Layer Mineral (MLM) fibres as other A Series speaker plus the classic X-ART tweeter. Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space. With a frequency range of 53 Hz to 42 kHz, the A4V can accommodate a broad spectrum of audio applications from producing podcasts to mixing string quartets and will fit well within immersive and 3D setups.

Rotatable HPS Waveguide and X-ART Tweeter

ADAM Audio HPS (high-frequency propagation system) waveguide technology enables tweeters to disperse sound with controlled consistency, broad in the horizontal axis but tightly focused on the vertical plane. The A Series introduces a rotatable HPS waveguide design. You can shift A Series tweeter in 90-degree steps to continue to benefit from HPS waveguide technology, whether you position the speakers horizontally or vertically.

The A Series HPS Waveguide is made from a new glass-fiber polymer compound that helps create a clear sound, free of unwanted resonance. The ADAM Audio X-ART tweeter is at the heart of the rotatable HPS waveguide. Handmade in Germany, the X-ART tweeter provides a precise transient response and reproduces the finest sonic details. This X-ART tweeter is used in every A Series speaker, providing a detailed and consistent sound across the product line.

Multilayer Mineral Woofer

A Series woofers are constructed with a unique blend of mineral stone fibers that have been baked together to create a lightweight but highly stable material. The mineral composition, layering, and geometry of each cone is specific to the driver used in each model. By combining this material with a new magnet system, A Series woofers produce high output with low distortion, delivering a clean low end.

Hybrid Amplification

The A Series combines the best of both digital and analog worlds. The woofer is driven by a Class-D amplifier that help produce linear performance while reducing distortion. The amplifier was chosen specifically for its power and efficiency, in terms of both energy consumption and sound reproduction. Low thermal dissipation allows for a smaller heat sink, which facilitated additional investment in the exceptional power and performance of the A Series.

The tweeter is powered by a Class-AB amplifier, which offer a smooth, natural reproduction of high frequencies. The amplifier is optimized for its working range, resulting in a fine-tuned, properly aligned speaker. To reach this point, ADAM Audio carried out extensive measurements and listening sessions, trialing countless amplifiers and amplifier components.

DSP-Based Electronics

The A Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision and better predictability than analogue-only speakers. With firmware that can be updated through an Ethernet connection, over time you can expect to integrate the latest DSP-based capabilities from ADAM Audio—including new filter types and features, plus alternative voicings.

Room Adaptation

On the back panel of A Series speakers, you will find four bands of room-adaptation equalization: Bass, Desk, Presence, and Treble. Each band is adjustable in predefined steps, offering more than 100 tuning options to help compensate for the typical acoustic problems that arise from speaker placement.

Voicings

A Voicing is a predefined sound profile of the A Series monitors. On the back panel, you will find two different selections, UNR and Pure. Here you will also find the Ext option, which is dedicated to the extended functionality that comes with A Control via the Ethernet connection.

UNR or Uniform Natural Response is a dynamic and natural-sounding response curve of ADAM Audio’s own design, which stems from a variety of iconic ADAM Audio legacy products including the preceding AX Series. It lends itself to production, composition, and song writing, as its engaging and present sound can give you more room for creativity and flow. It is also a great option whenever you want to use your speakers simply to enjoy some good music.

Pure is a highly accurate and neutral sounding option. This is the flat setting, ideal for mixing and mastering, where you must be aware of all the details and rely on an honest representation from your speakers.

The Ext option is dedicated to the extended functionality that comes with A Control via the Ethernet connection. Using A Control’s six-band EQ, a custom voicing and be created and pushed to the monitor.

A Control (Real-Time Remote Control)

The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over Ethernet using the free-to-download A Control software. A Control is available to download for Windows and MacOS in the My ADAM area of www.adam-audio.com for customers who have registered their A Series monitors.

Once downloaded and installed, you can control multiple speakers at once, precisely adjusting equalization and delay settings from various listening positions in your studio space. While you work, you can remotely control monitor levels if you’re far from a fader or physical interface. Remote-control capabilities are particularly useful in multipurpose rooms, allowing you to make sure that voicing, EQ, and other settings are all exactly how you want them.

Room Correction and Sonarworks Integration

A Series speakers are designed to be adaptable to changing requirements, preferences, and environments. Using the A Control software, you can push advanced filters directly to an embedded platform onboard the monitors to help compensate for imperfect room acoustics. This embedded platform supports filters from industry leading third-party Sonarworks. Using Sonarworks software and a measurement mic, you can calibrate your speakers for a new room or shifting taste.

Bass-Reflex System, Cabinets, and Mounting

The new A Series cabinets build on the heritage of ADAM Audio and the AX Series in particular. In an evolutionary design, A Series cabinets have deeper bevelled to further reduce diffraction. Thicker baffle walls strengthen the cabinets and reduce internal vibrations, while a flared port design optimizes airflow and reduces port noise. All A Series speakers include an underside mounting interface, giving you the flexibility to mount them wherever you need them.

Product Specifications:

Monitor Type & Configuration: Active 2-Way

Number of Included Monitors: Single Monitor

Enclosure: Bass-Reflex/Ported, Shielded

Total Power Output: 130 W RMS

Drivers per Monitor:

Tweeter: 1x 2.2" / 56 mm Ribbon

Woofer: 1x 4"" / 10.2 cm Composite Cone

Voice Coil: 1"" / 2.54 cm"

Amplifiers:

LF: 90 W RMS / 110 W Peak Class-D

HF: 15 W RMS / 20 W Peak Class-AB"

Performance:

Frequency Response: 58 Hz to 41 kHz ± 3 dB

Maximum Sound Pressure Level (SPL): 100 dB (Peak)

Signal Processing:

EQ:

1x HF Shelf

1x HF Notch/Peak

1x Low-Mid Notch/Peak

1x LF Shelf

Filters: No

Crossover Frequency: 3 kHz

Phase Adjustment: No

Maximum Sampling Rate: 96 kHz / 24-Bit

Connectivity:

Audio I/O:

1x XLR 3-Pin Balanced Line Input

1x RCA Unbalanced Line Input

Digital Audio I/O: No

Network I/O: 1x RJ45 Ethernet

USB: No

Wireless: No

Mobile App Compatible: No

Power:

AC Input Power: 100 to 240 VAC, 50/60 Hz

Power Consumption: 300 W (Maximum)

Physical:

Color: White

Monitor Orientation: Vertical

Mounting Points: No

Dimensions (W x H x D): 6.2 x 10.6 x 8.7" / 15.8 x 26.8 x 22 cm

Weight: 12.8 lbs.

Shipping Weight: 17.475 lbs.

Shipping Dimensions: 16.4 x 14.4 x 12.3"
