Adam Audio A4V, 4-inch Powered Studio Monitor

The Adam Audio A4V, 4-inch Powered Studio Monitor is a high-quality, compact two-way studio monitor designed for nearfield use in both stereo and multichannel audio environments. Featuring a 4-inch long-throw woofer constructed from Multi-Layer Mineral (MLM) fibers and the renowned German Handmade X-ART tweeter, the A4V delivers clarity, precision, and deep detail across a wide frequency range. The monitor’s onboard DSP-based tuning allows for precise room adaptation, while its compact size makes it ideal for smaller control rooms, desktop workstations, or immersive setups. Whether you're mixing orchestral music, editing audio for video, or producing podcasts, the A4V provides unmatched accuracy in a small footprint.

Explore the Technology

ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the A4V.

A Control Remote Software

The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using A Control.

Rotatable HPS Waveguide & X-ART Tweeter

Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.

Bass Reflex System, Cabinets and Mounting

The new A Series cabinet build on the heritage of ADAM Audio and the AX Series in particular.

Automated Room Correction with Sonarworks

ADAM Audio is proud to partner with Sonarworks on an automated room correction solution that runs directly on the DSP of A Series monitors.

Hybrid Amplification

The A Series combines the best of both digital and analog worlds.

adam-audio-a-series-multi-layer-mineral-woofer-technology-teaser

Multi-Layer Mineral Woofer [MLM]

The latest materials and advanced analysis and design processes have led to the development of our new long-throw woofers.

Midrange Driver

A Series midrange driver deliver clean sound in the critical part of the frequency range where humans are especially sensitive to coloration of sound.

adam-audio-a-series-voicings-technology-teaser

Voicings

A “Voicing” is a pre-defined sound profile of an A Series monitor. On the back panel, you will find two different selections, “UNR” and “Pure”.

Room Adaptation

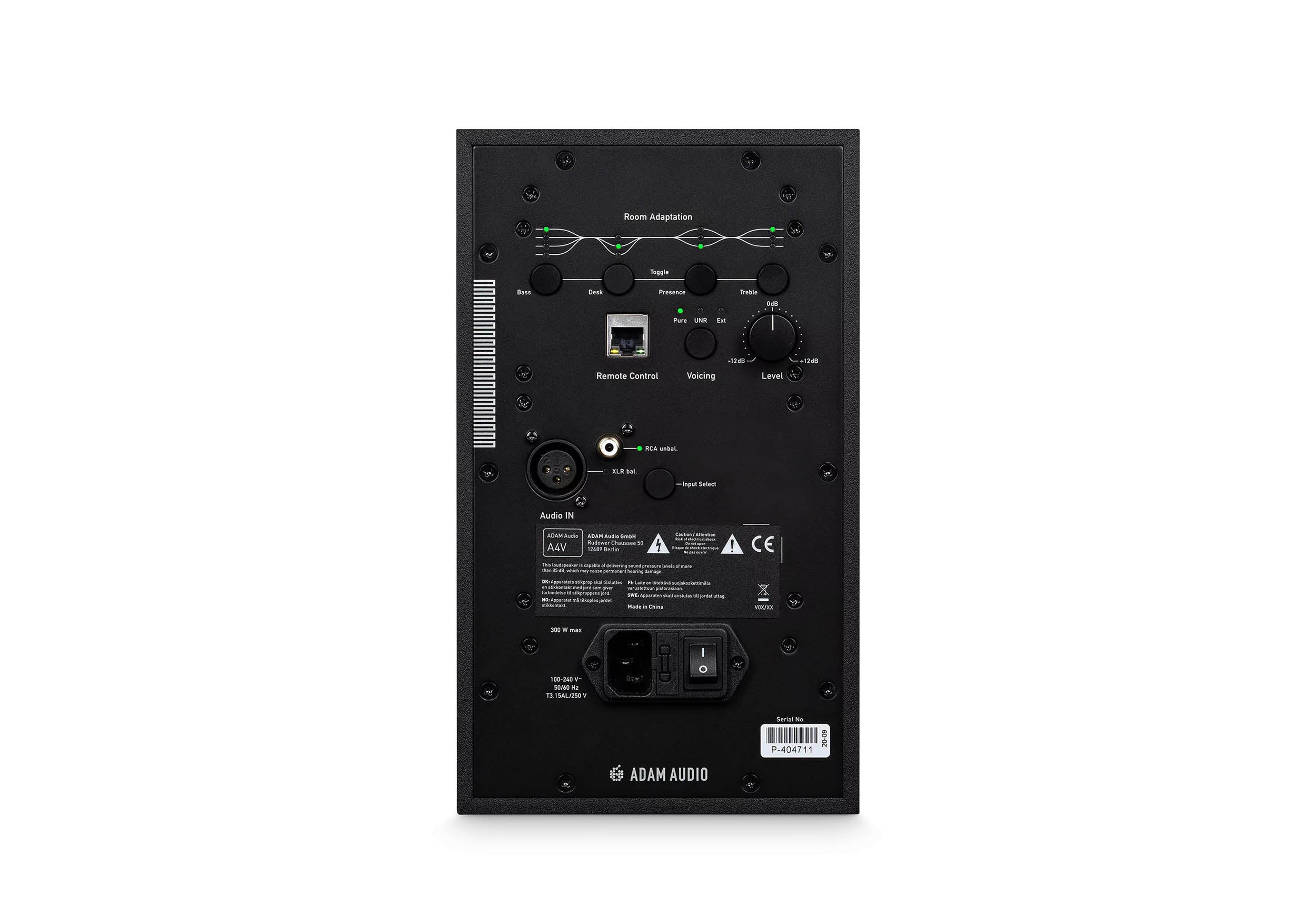

On the back panel of A Series speakers, you will find four bands of room adaptation equalization Bass, Desk, Presence and Treble.

Digital Signal Processing

The A Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision than analog-only speakers.

Product Specifications:

General Data:

Display: Front panel multi-color LED

Cabinet Design: Dual front ported

Cabinet Material: Vinyl wrapped MDF and painted MDF front panel

Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)

Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W

AC Input Voltage: 100 – 240 V, 50/60 Hz

Power Rating: 300 W max.

Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing

Delivery Contents: A4V loudspeaker, power cable, Quick Start Guide.

Audio Input Connectors:

Analog: XLR, RCA

Input Impedance: 9 kOhm / 3.3 kOhm

Max. Input Level: +19 dBu

Amplification:

Woofer:

Amplifier Type: PWM

Peak (10% THD, limiter deactivated): 110 W

RMS (1% THD, limiter deactivated): 90 W

Tweeter:

Amplifier Type: Class A/B

Peak (10% THD, limiter deactivated): 20 W

RMS (1% THD, limiter deactivated): 15 W

Control Options:

Networking Connector: RJ45

Connection Type: Ethernet

Communication Protocol: OCA using standard IP data

Control Software: A Control (Windows and MacOS available)

Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration

Advanced Room Adaptation: 6 x PEQ, Level, Delay

Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference.

Acoustics:

Frequency Response @ -3 dB: 58 Hz – 41 kHz

Frequency Response @ -6 dB: 52 Hz – 45 kHz

Crossover Frequencies: 3.0 kHz

Max SPL per speaker at 1 m (sine bursts): 100 dB SPL

Max SPL per speaker at 1 m (IEC-weighted noise): 109 dB SPL

Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS):101 dB SPL

Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 104 dB SPL

Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 88 dB SPL

Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 91 dB SPL

Dolby DARDT max SPL in full space: 112 dB SPL

Dolby DARDT max SPL in full space (bass managed): 117 dB SPL

Drivers:

Woofer:

Basket Diameter: 4″

Voice Coil Diameter: 1″ (25 mm)

Cone Material: MLM

Tweeter:

Type: X-ART

Diaphragm Area: 4 inch² (2420 mm²)

Equivalent Diaphragm Diameter: 2″ (56 mm)

Velocity Transform Ratio: 4 to 1

Diaphragm Weight: 0.17 g

Waveguide: HPS (rotatable)

Waveguide Dispersion: 120° horizontal, 70° vertical

Signal Processing:

AD converter: 24-bit

Internal sample rate: 96 kHz

Delay range, resolution: 0 – 10 ms, 0.1 ms

Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters

Control Options:

Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting

Level: -12 dB to +12 dB

Input Selection: Balanced, unbalanced

Voicings: Pure, UNR

Room Adaption:

Bass: +2, 0, -2, -4 dB

Desk: 0, -2, -4 dB

Presence: +1, 0, -1 dB

Treble: +1.5, 0, -1.5 dB

Height: 9.25"

Width: 20.87"

Depth: 13.75"

Weight: 5.8 kg (12 lbs 13 oz)

Dimensions (H x W x D): 268 mm x 158 mm x 220 mm (10 1/2″ x 6 1/4″ x 8 5/8“)

Shipping Weight: 14 lbs.

Shipping Dimensions (inches): 16 x 12 x 11 inches
