Description

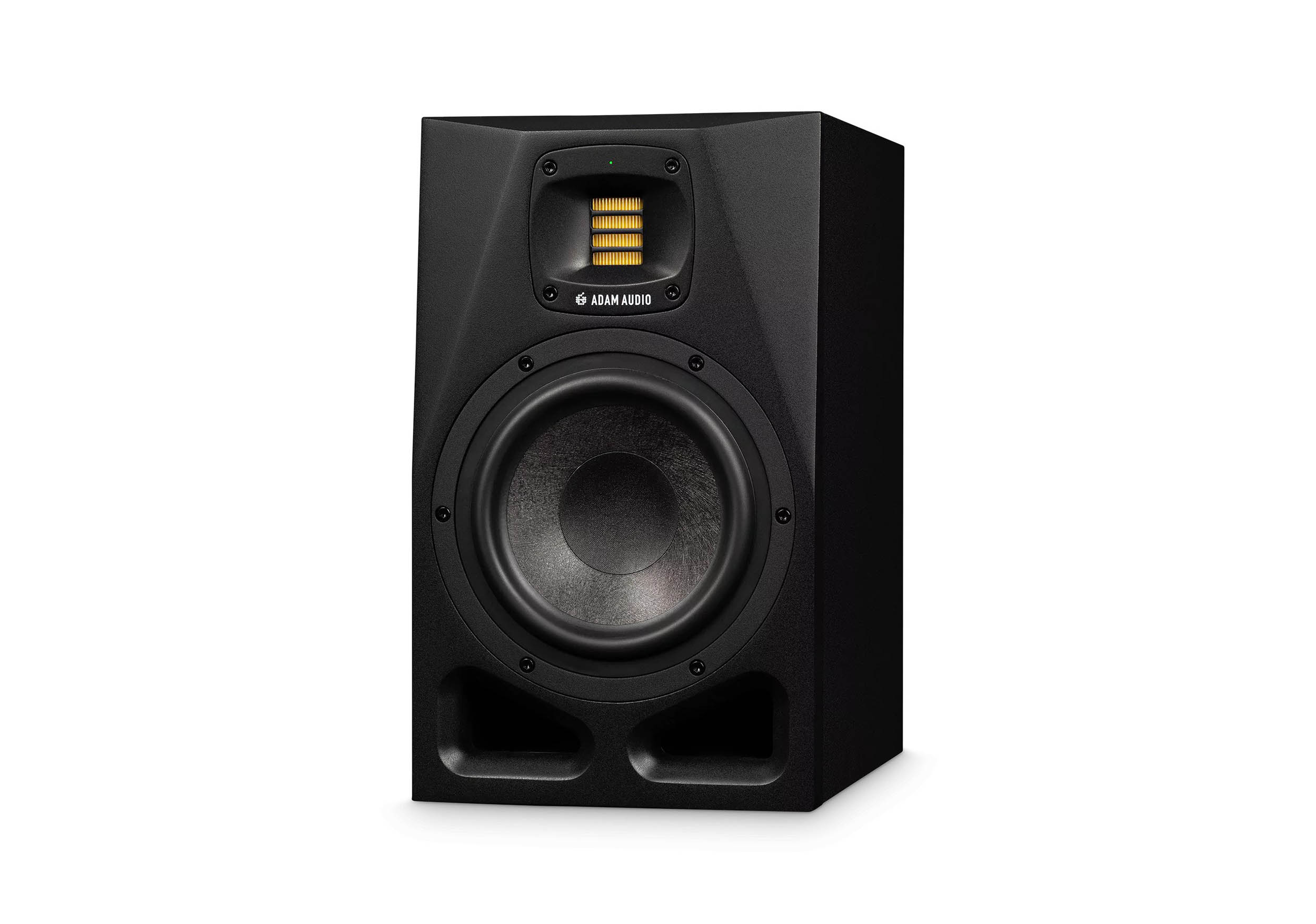

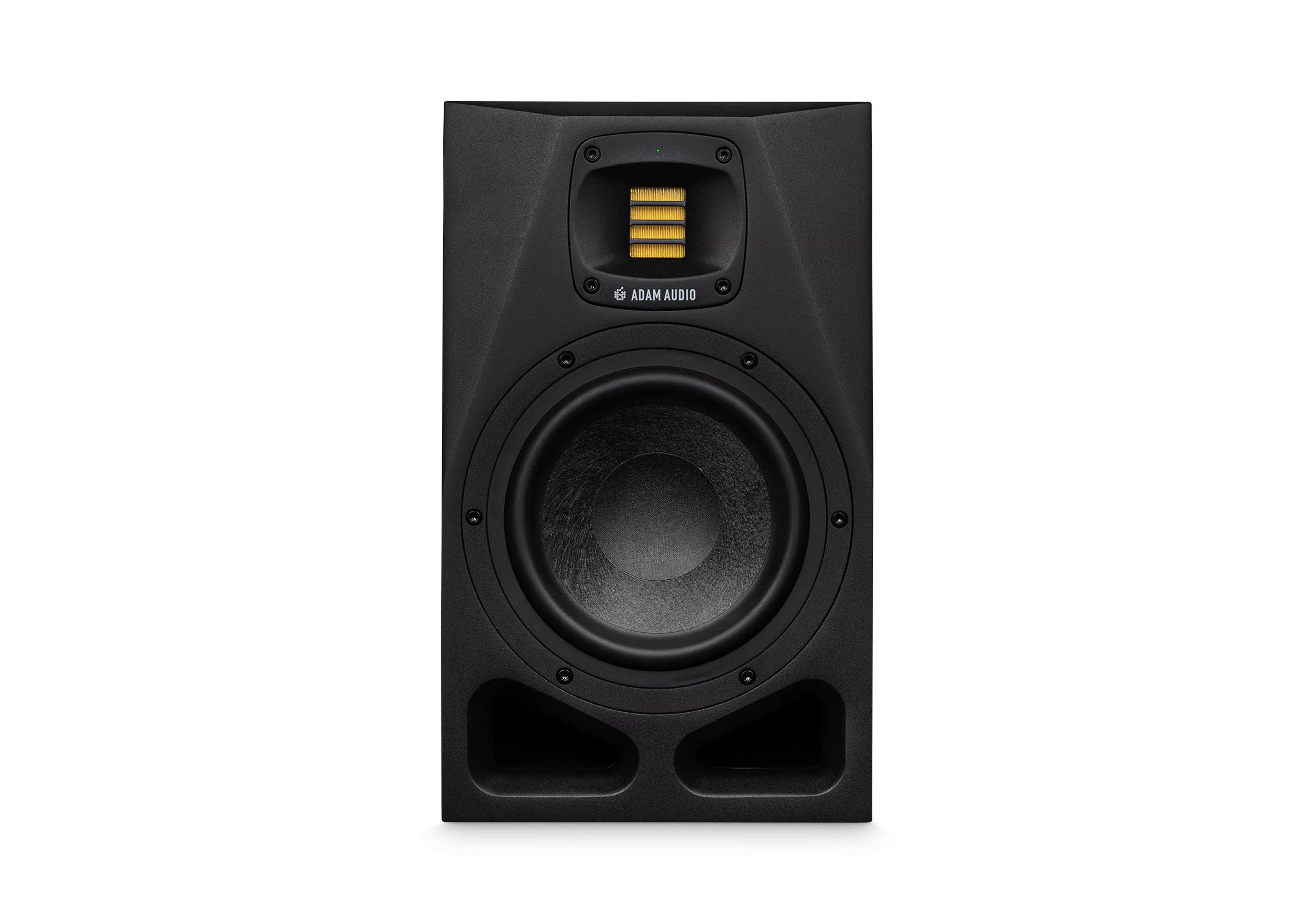

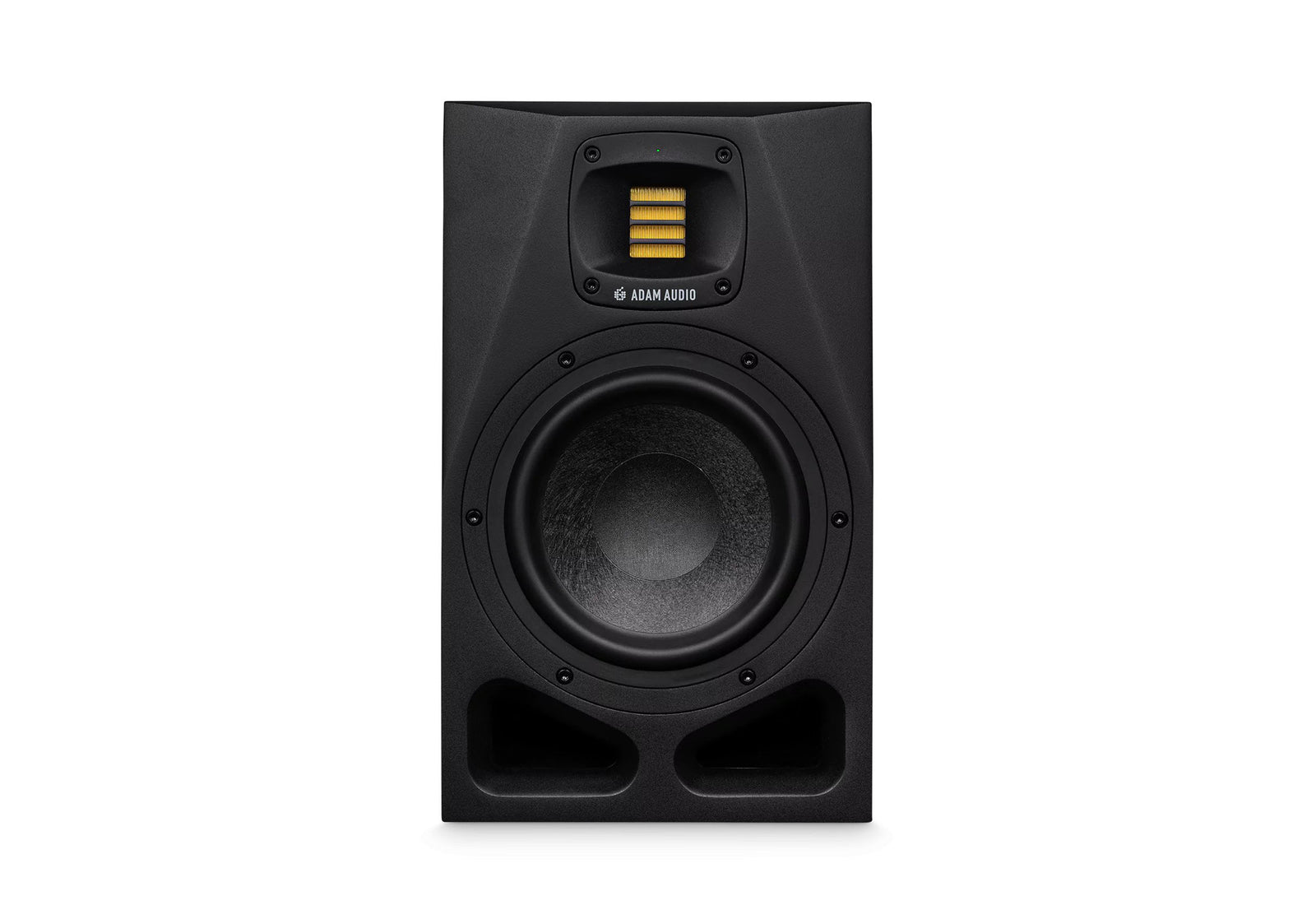

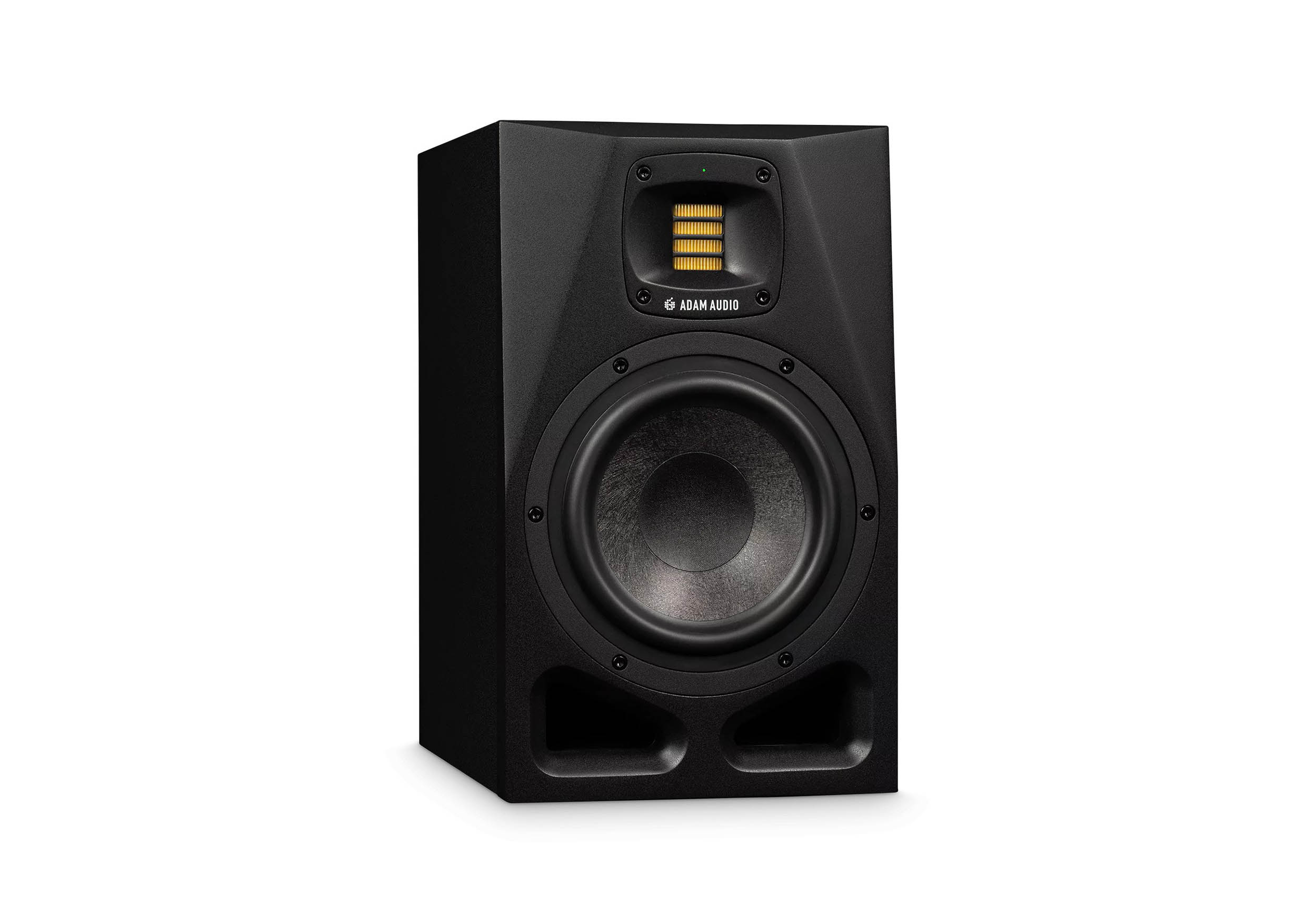

The Adam Audio A7V, 7-inch Powered Studio Monitor is a next-generation two-way studio monitor that builds upon the legacy of ADAM Audio’s award-winning A7X. Featuring a powerful 7-inch Multi-Layer Mineral (MLM) woofer and the iconic handmade X-ART tweeter, the A7V delivers exceptional clarity, deep low-end, and extended high-frequency response. The tweeter is mounted on a rotatable HPS waveguide to ensure precise dispersion whether positioned vertically or horizontally.
Explore the Technology
ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the A7V.
A Control Remote Software
The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using A Control.
Rotatable HPS Waveguide & X-ART Tweeter
Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.
Bass Reflex System, Cabinets and Mounting
The new A Series cabinet build on the heritage of ADAM Audio and the AX Series in particular.
Automated Room Correction with Sonarworks
ADAM Audio is proud to partner with Sonarworks on an automated room correction solution that runs directly on the DSP of A Series monitors.
Hybrid Amplification
The A Series combines the best of both digital and analog worlds.
adam-audio-a-series-multi-layer-mineral-woofer-technology-teaser
Multi-Layer Mineral Woofer [MLM]
The latest materials and advanced analysis and design processes have led to the development of our new long-throw woofers.
Midrange Driver
A Series midrange driver deliver clean sound in the critical part of the frequency range where humans are especially sensitive to coloration of sound.
adam-audio-a-series-voicings-technology-teaser
Voicings
A “Voicing” is a pre-defined sound profile of an A Series monitor. On the back panel, you will find two different selections, “UNR” and “Pure”.
Room Adaptation

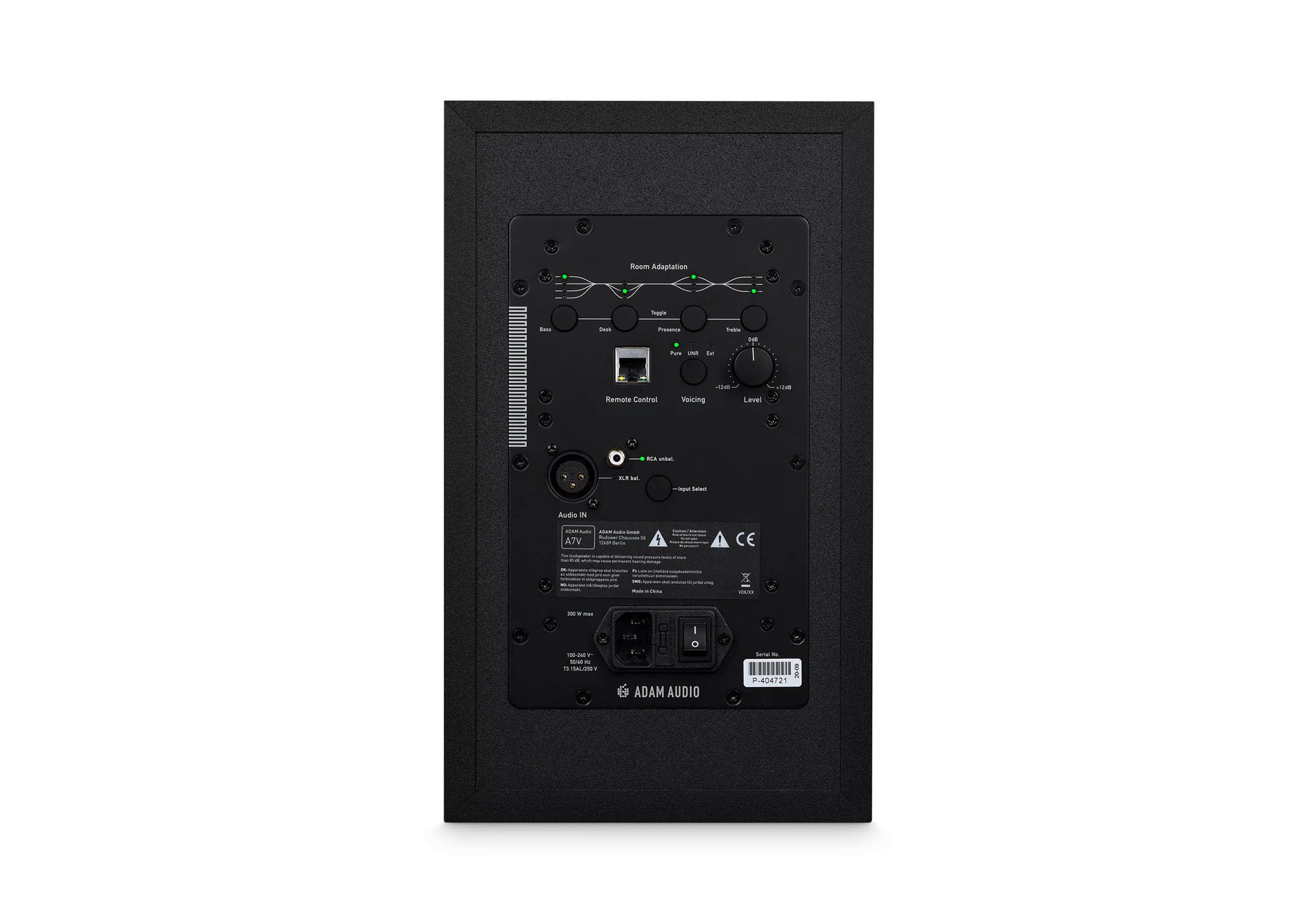

On the back panel of A Series speakers, you will find four bands of room adaptation equalization Bass, Desk, Presence and Treble.
Digital Signal Processing
The A Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision than analog-only speakers.
Product Specifications:
General Data:
Display: Front panel multi-color LED
Cabinet Design: Dual front ported
Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
AC Input Voltage: 100 – 240 V, 50/60 Hz
Power Rating: 300 W max.
Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
Delivery Contents: A7V loudspeaker, power cable, Quick Start Guide.
Audio Input Connectors:
Analog: XLR, RCA
Input Impedance: 9 kOhm / 3.3 kOhm
Max. Input Level: +19 dBu
Amplification:
Woofer:
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 110 W
RMS (1% THD, limiter deactivated): 90 W
Tweeter:
Amplifier Type: Class A/B
Peak (10% THD, limiter deactivated): 20 W
RMS (1% THD, limiter deactivated): 15 W
Control Options:
Networking Connector: RJ45
Connection Type: Ethernet
Communication Protocol: OCA using standard IP data
Control Software: A Control (Windows and MacOS available)
Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
Advanced Room Adaptation: 6 x PEQ, Level, Delay
Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference.
Acoustics:
Frequency Response @ -3 dB: 44 Hz – 41 kHz
Frequency Response @ -6 dB: 40 Hz – 45 kHz
Crossover Frequencies: 2.8 kHz
Max. peak SPL per speaker at 1 m (sine bursts): 105 dB SPL
Max. peak SPL per speaker at 1 m (IEC-weighted noise): 113 dB SPL
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 105 dB SPL
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak):108 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 95 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 98 dB SPL
Dolby DARDT max SPL in full space: 115 dB SPL
Dolby DARDT max SPL in full space (bass managed): 119 dB SPL
Drivers:
Woofer:
Basket Diameter: 7″
Voice Coil Diameter: 1.3″ (33 mm)
Cone Material: MLM
Tweeter:
Type: X-ART
Diaphragm Area: 4 inch² (2420 mm²)
Equivalent Diaphragm Diameter: 2″ (56 mm)
Velocity Transform Ratio: 4 to 1
Diaphragm Weight: 0.17 g
Waveguide: HPS (rotatable)
Waveguide Dispersion: 120° horizontal, 70° vertical
Signal Processing:
AD converter: 24-bit
Internal sample rate: 96 kHz
Delay range, resolution: 0 – 10 ms, 0.1 ms
Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
Control Options:
Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
Level: -12 dB to +12 dB
Input Selection: Balanced, unbalanced
Voicings: Pure, UNR
Room Adaption:
Bass: +2, 0, -2, -4 dB
Desk: 0, -2, -4 dB
Presence: +1, 0, -1 dB
Treble: +1.5, 0, -1.5 dB
Height: 9.25"
Width: 20.87"
Depth: 13.75"
Weight: 8.7 kg (19 lb 3 oz)
Dimensions (H x W x D): 337 mm x 200 mm x 280 mm (13 1/4″ x 7 7/8″ x 11″)
Shipping Weight: 22 lbs.
Shipping Dimensions (inches): 25 x 17 x 15 inches
