Description

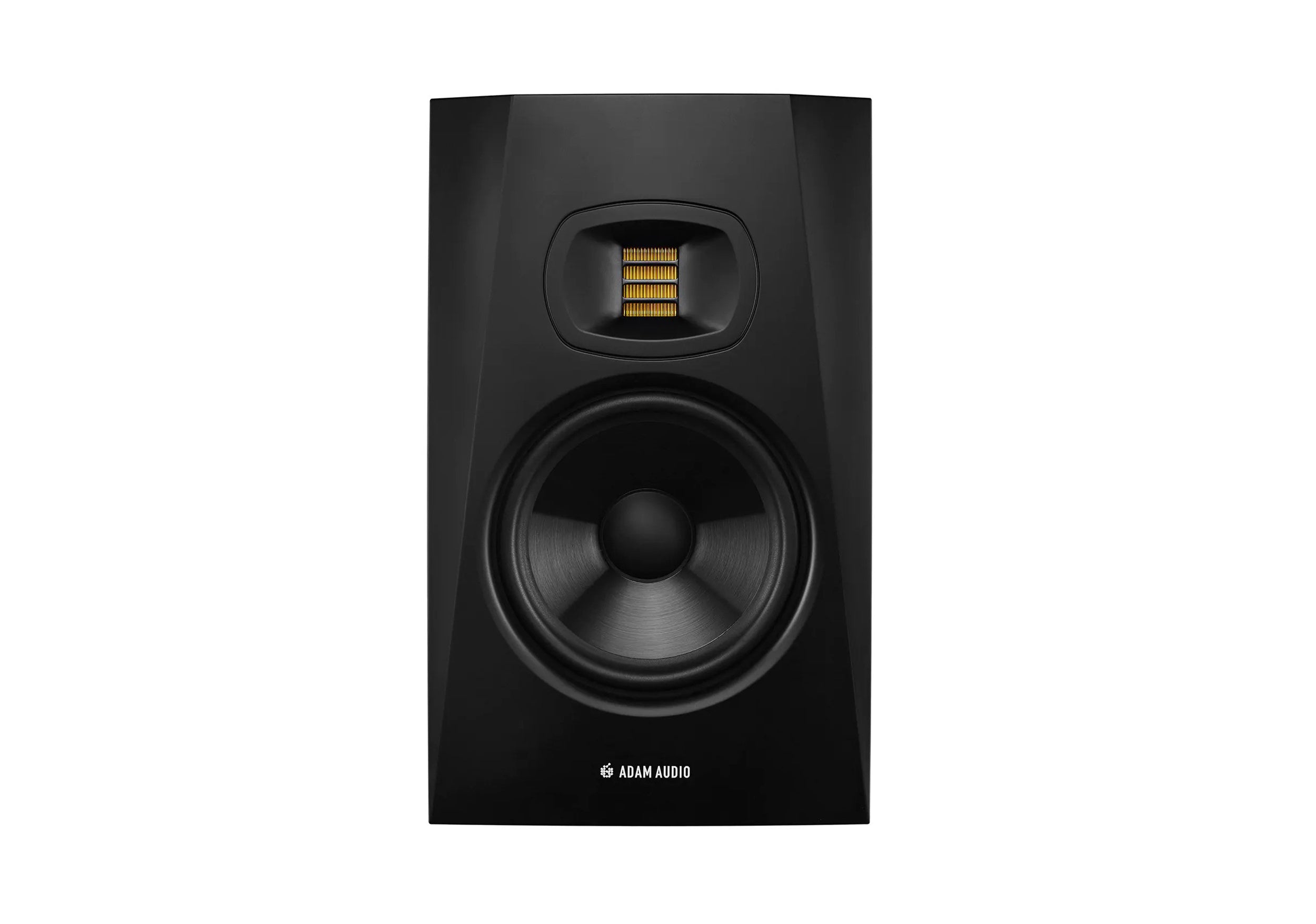

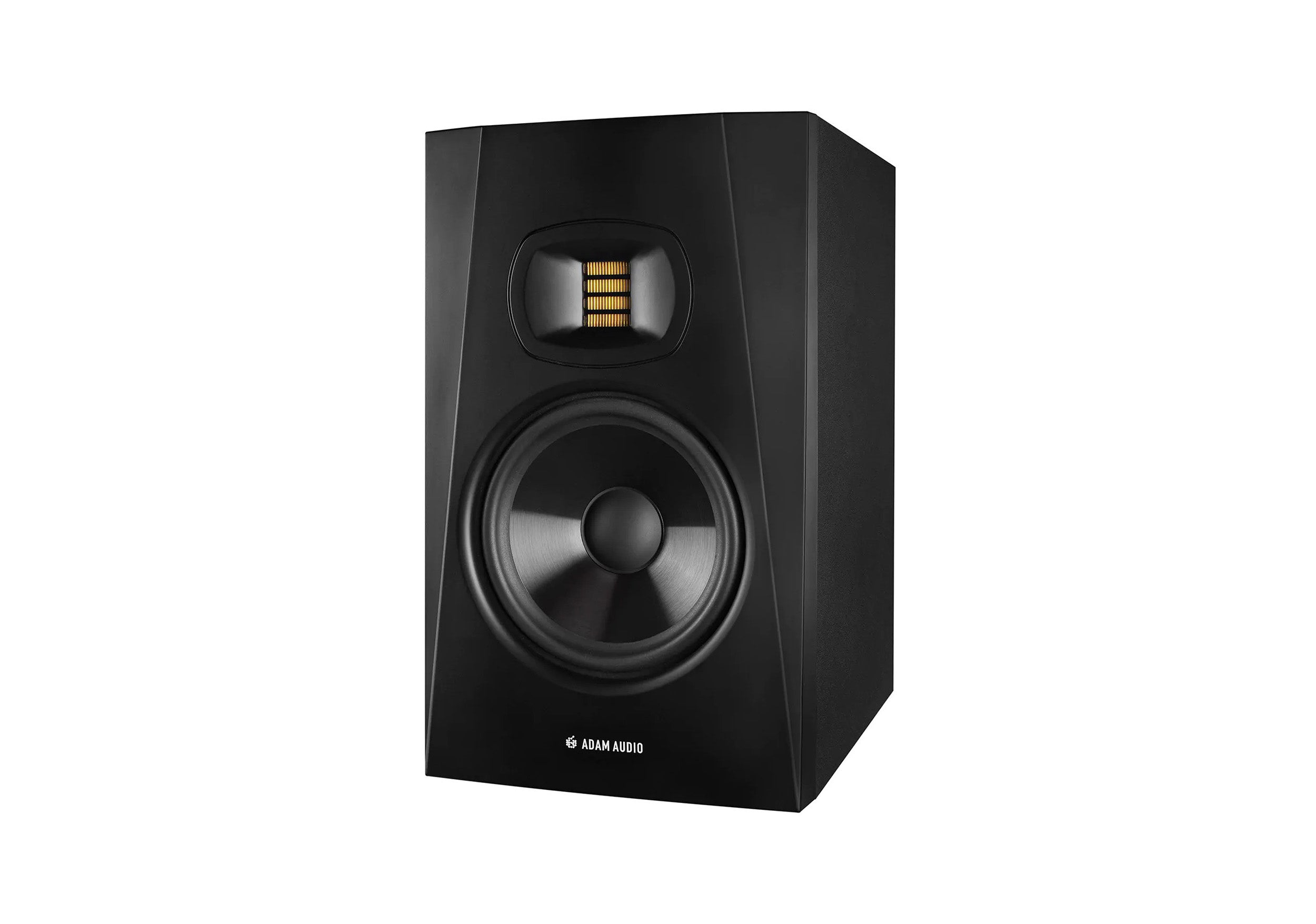

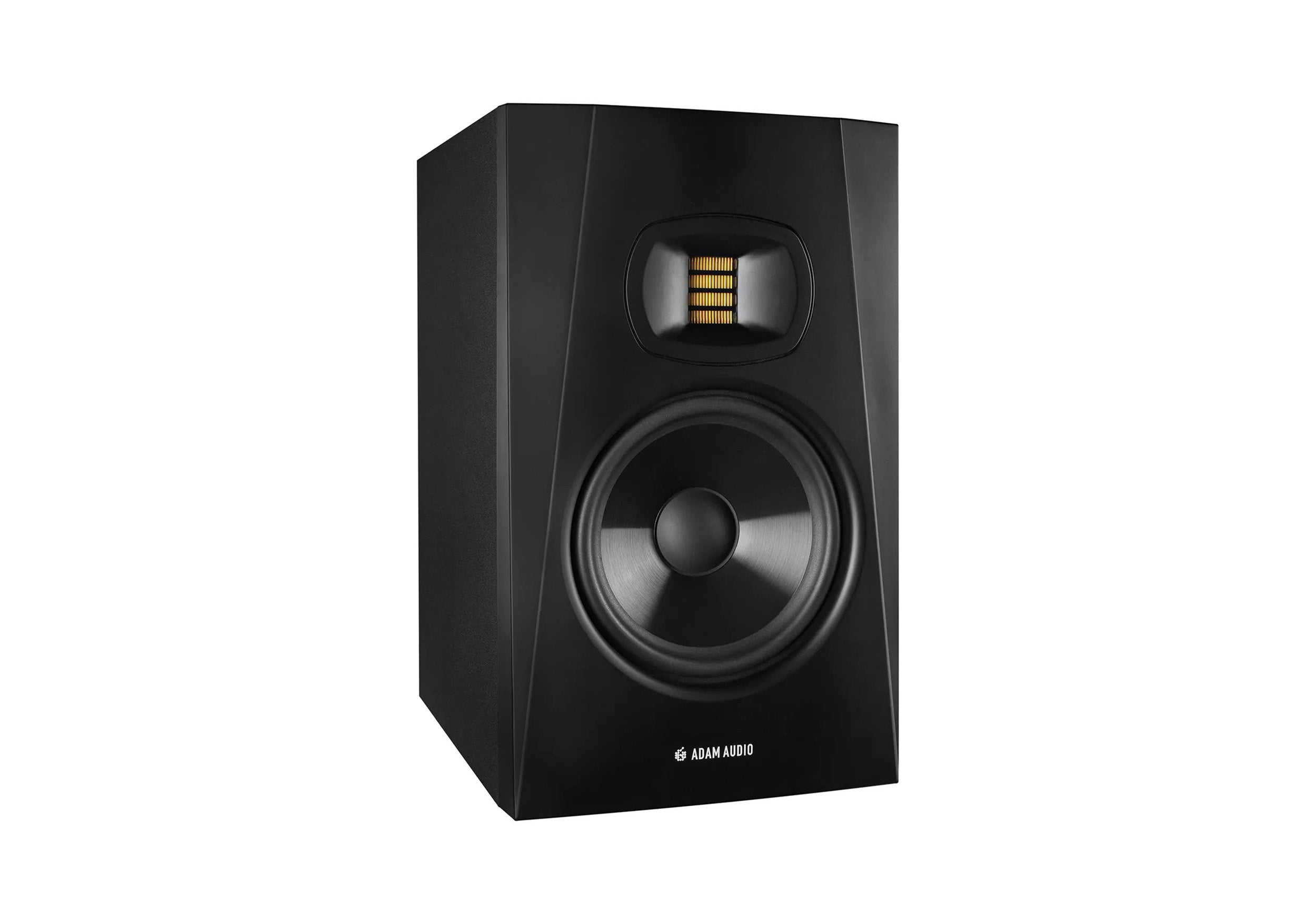

The ADAM Audio T7V, part of the T-Series of active nearfield monitors, features a 7” woofer that delivers extended bass response down to 39 Hz, making it a strong choice for producers and engineers needing deeper low-end in compact studio setups. The U-ART tweeter, with its unique folded-ribbon diaphragm, offers an exceptionally clean and extended high-frequency response up to 25 kHz a performance level rarely found in monitors within this price range.

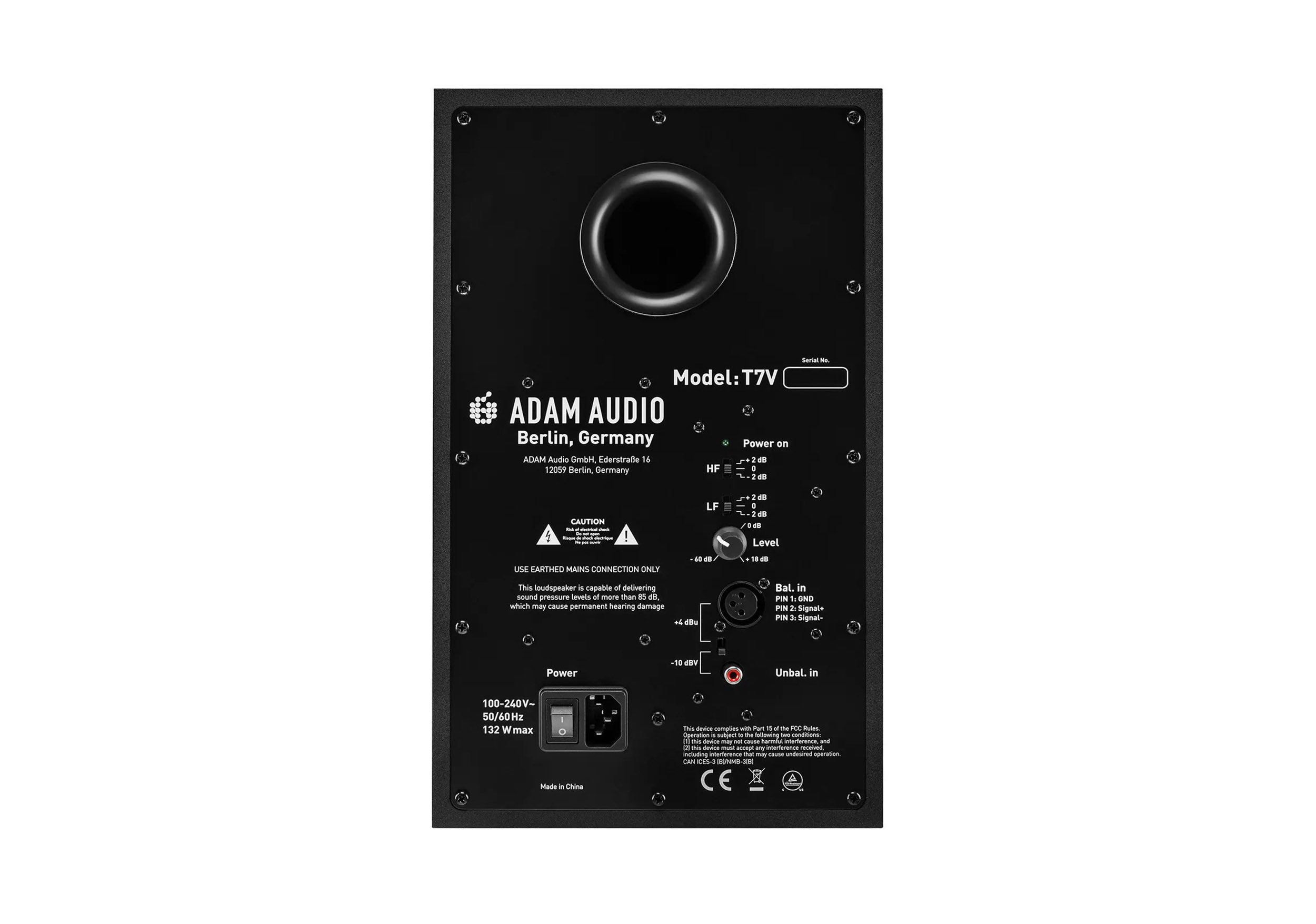

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.
The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with.
State of The Art Technology
ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.
U-ART Tweeter:
The U-ART 1.9” tweeter design is based on that used in the X-ART and S-ART tweeters employed respectively in the AX Series and S Series monitors.
HPS Waveguide:
The S-ART tweeter comprises the latest iteration of ADAM’s respected folded accelerated ribbon design, produced to tighter tolerances than ever before, and…
PW/M:
ADAM units use the new technology for both the amp and the power supply section (i.e., no more transformers) combined with state of the art input and filter s...
Product Specifications:
General data:
Panel:Rear
Max. Power Consumption:132 W
Delivery Contents:Power cord, Quick Start Guide
Audio Input Connectors:
Analog:XLR / RCA
Input Impedance:10 kOhm / 20 kOhm
Amplification:
Woofer:
Amplifier Type:PWM
Amp. Power RMS:50 W
Tweeter:
Amplifier Type:PWM
Amp. Power RMS:20 W
Acoustics:
Frequency Response:39 Hz – 25 kHz (-6 dB)
THD > 80 Hz:0.5 %
Max. SPL per pair at 1 m:≥110 dB
Crossover Frequency:2.6 kHz
Drivers:
Woofer:
Basket Diameter:7″
Voice Coil Diameter:1″
Cone Material:Polypropylene
Tweeter:
Type:U-ART
Diaphragm Area:4-inch² (2420 mm²)
Equiv. Diaphragm Diameter:1.9″ (48 mm)
Velocity Transform Ratio:4 to 1
Diaphragm Weight:0.17 g
Waveguide:HPS
Control Options:
Input Sensitivity-10 to +4 dB
Gain:Yes
High Shelf EQ > 5 kHz:– 2 dB, 0 dB, +2 dB
Low Shelf EQ < 300 Hz:– 2 dB, 0 dB, +2 dB
Weight:15.7 lbs. (7.1 kg)
Dimensions (H x W x D): 3.7″ x 8.3″ x 11.5” (347 mm x 210 mm x 293 mm)
Shipping Weight: 19 lbs.
Shipping Dimensions:13 x 10 x 5 Inches
