Description

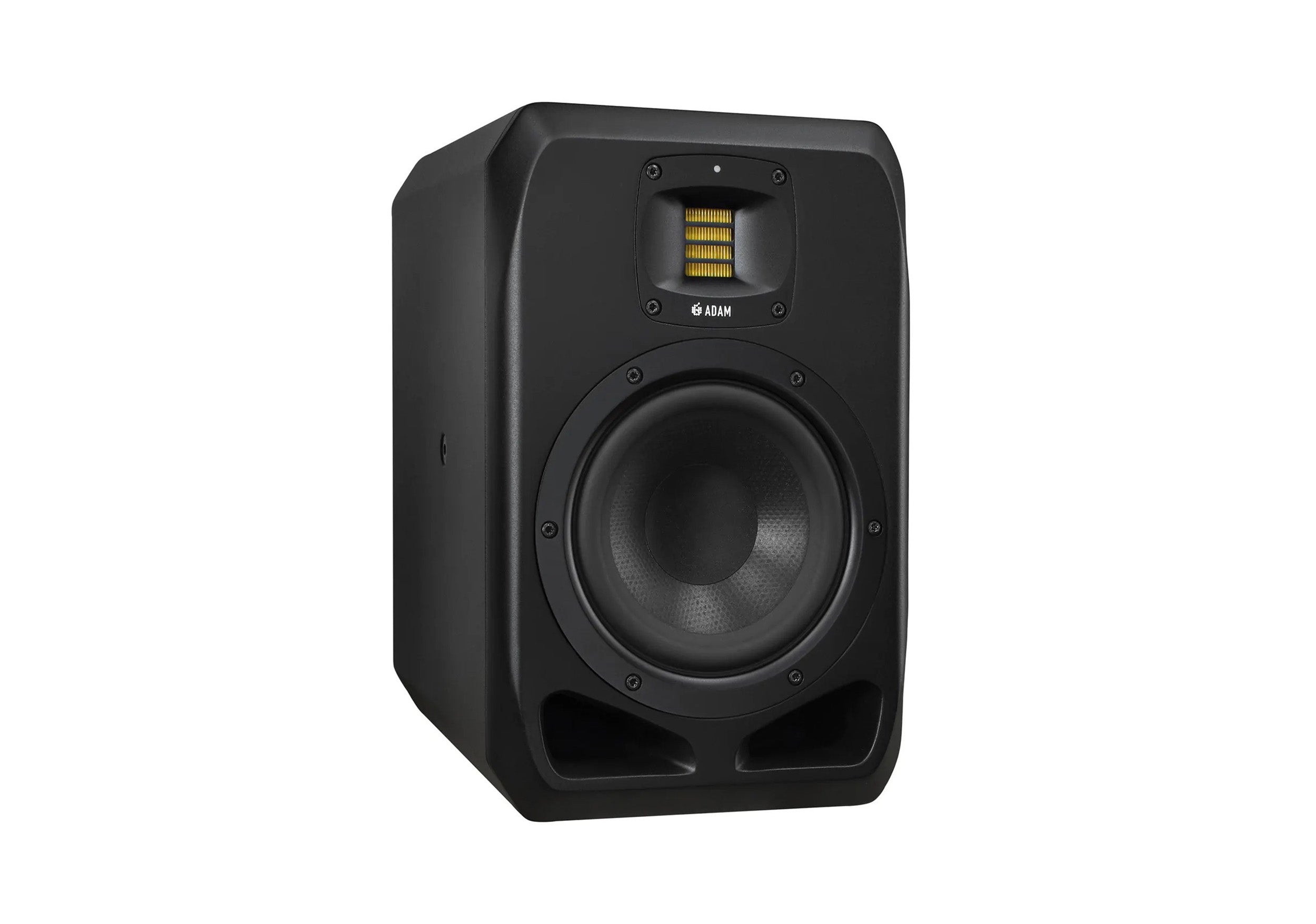

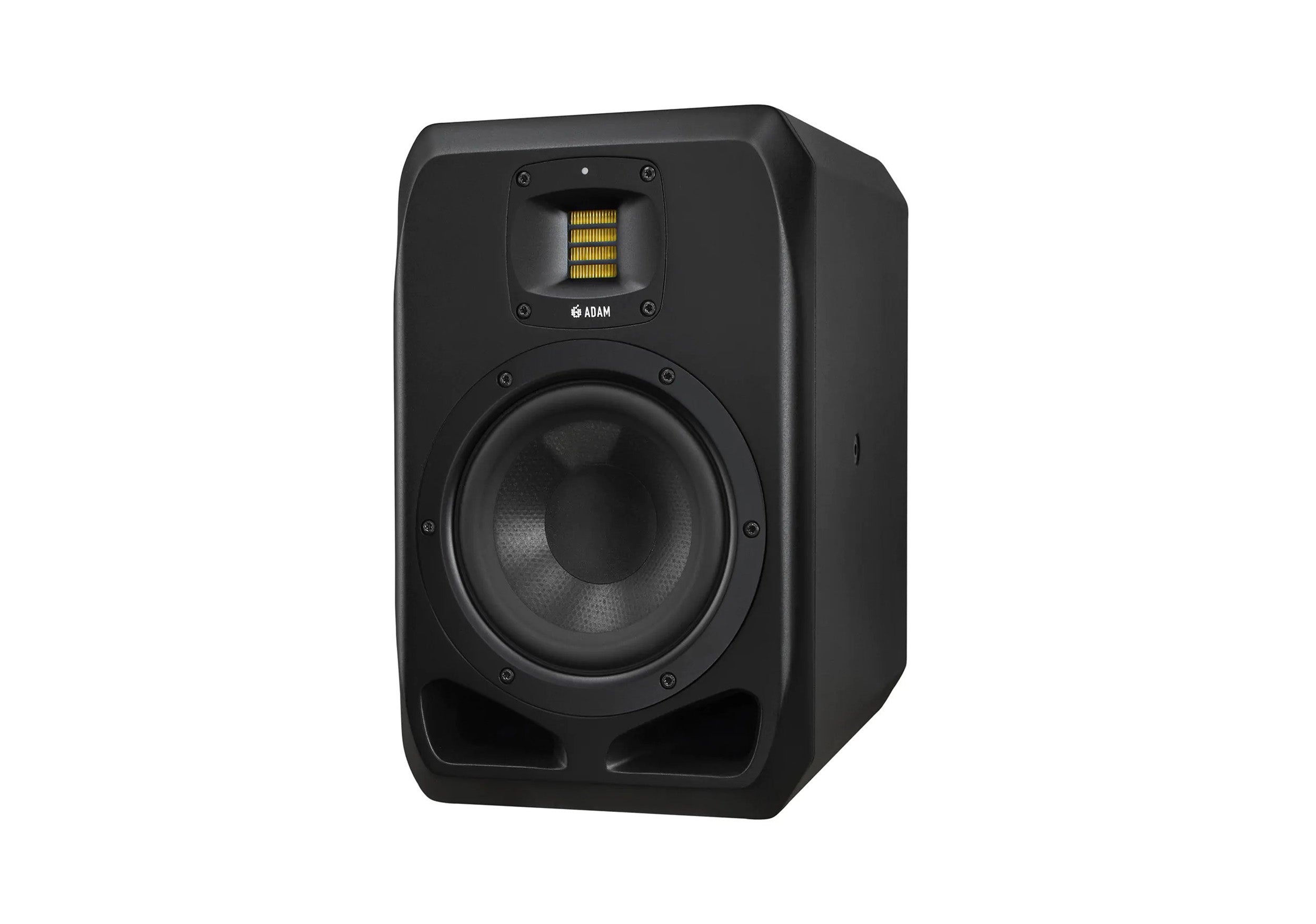

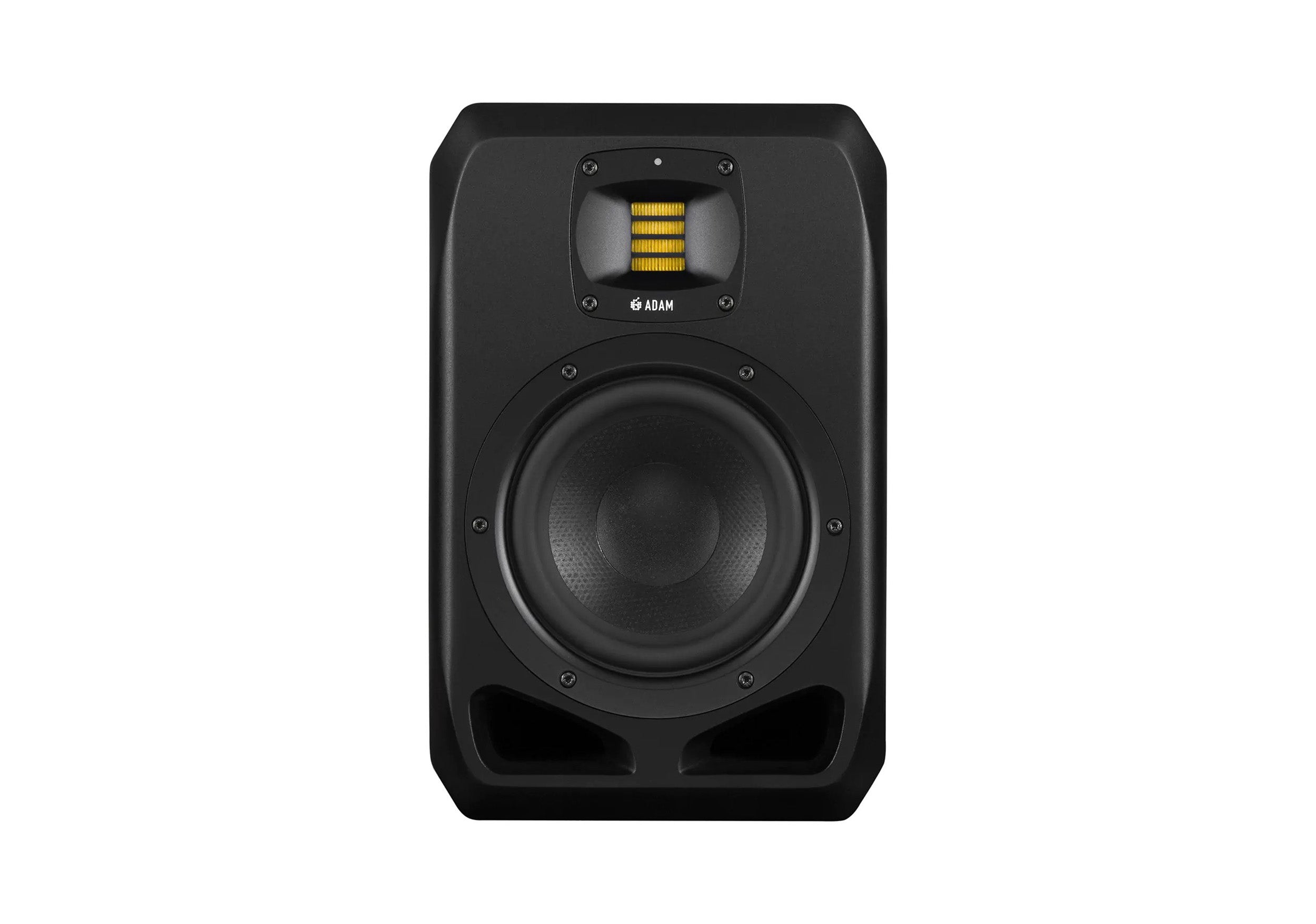

The Adam Audio S2V features a newly developed 7-inch bass driver, specifically engineered for the S Series, delivering an extended frequency response from 35 Hz to 3 kHz. This driver ensures powerful, distortion-free low-end reproduction with outstanding dynamic range.
Enhancing the high-frequency performance is the refined S-ART tweeter meticulously handcrafted at ADAM Audio’s Berlin factory and paired with a newly designed HPS (High-frequency Propagation System) waveguide. This combination provides exceptionally accurate imaging and a wide, stable sweet spot, making the S2V an ideal choice for professional mixing, mastering, and other critical listening applications.
The S2V’s compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.
The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.
With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.
State of The Art Technology
ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.
Ele Bass Driver
Custom-built bass driver created specifically for the S Series, using ADAM Audio's engineering design experience and the latest computer modeling techniques.
Hps Waveguide
The S-ART tweeter comprises the latest iteration of ADAM’s respected folded accelerated ribbon design, produced to tighter tolerances than ever before, and...
High Performance DSP Module
Custom DSP engine implements perfect crossovers for optimal frequency response and maximum dynamic range, in addition to EQ options and presets for in-room o...
SMA
Custom-designed magnet assembly which allows the voice coil a maximum excursion three times greater than that offered by previous designs, with an extended, ...
S Series Amplifiers
The S Series low- and mid-range drivers are powered by Class-D ICE power amps, specially developed low-noise 50W Class A/B amp powers the S-ART on S2 & S3.
S Series Bass Reflex System
S Series Bass Reflex tubes and ports have been redesigned to reduce friction- and turbulence-related coloration and incorporate additional anti-resonance tec...
S Series Cabinets
S Series cabinets are weightily constructed from thick, heavy material to reduce susceptibility to vibrations, while their rounded edges help to minimize unw...
S-ART Tweeter
All the models in the S Series employ the latest iteration of ADAM's world-famous X-ART tweeter, each handmade in Berlin, Germany.
Product Specifications:
General Information

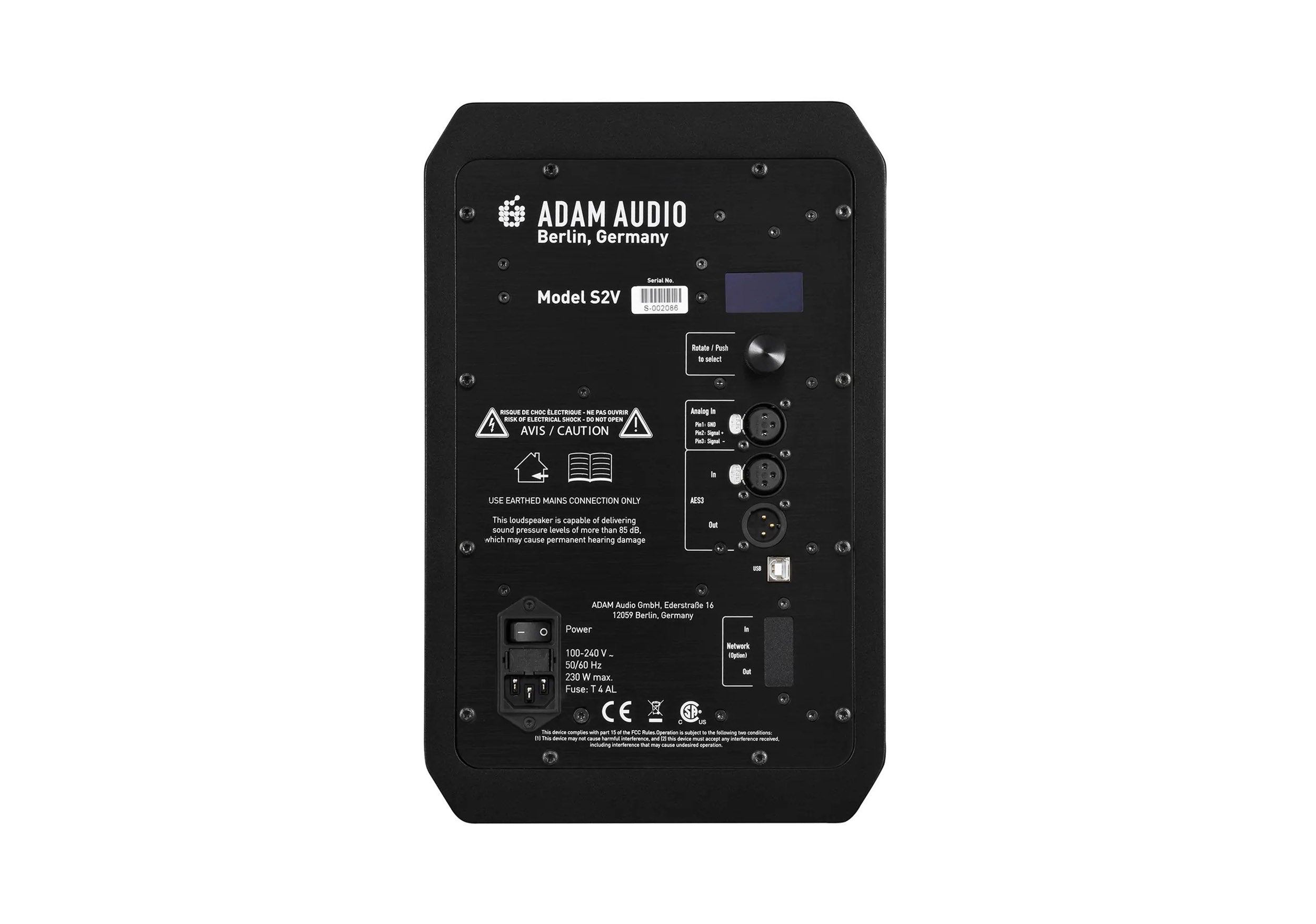

Panel:Rear
Max. Power Consumption:230 W
Delivery Contents:Power cord, user manual
Audio Input Connectors
Analog:XLR
Input Impedance:48 kOhm
Max. Input Level:+24 dBu
Digital:AES3
Amplification:
Woofer:
Amplifier Type:PWM
Amp. Power RMS:300 W
Tweeter:
Amplifier Type:Class A/B
Amp. Power RMS:50 W
Acoustics:
Frequency Response:35 Hz – 50 kHz (-20 dB)
THD > 100 Hz:≤0.4 %
Max. SPL per pair at 1 m:≥120 dB
Crossover Frequency:3 kHz
Drivers:
Woofer:
Basket Diameter:7″
Voice Coil Diameter:1.5″ (39 mm)
Cone Material:HexaCone
Tweeter:
Type:S-ART
Diaphragm Area:4-inch² (2420 mm²)
Equivalent Diaphragm Diameter:2″ (56 mm)
Velocity Transform Ratio:4 to 1
Diaphragm Weight:0.17 g
Waveguide:HPS
Control Options:
Input Sensitivity:Adjustable
Parametric EQs:6
Room Compensation High-Shelf EQ:1
Room Compensation Low-Shelf EQ:1
Preset Memories:5
Delay:0 ms to 5 ms
Weight: 24.2 lbs. (11.0 kg)
Dimensions (H x W x D): 13,6″ (346 mm) x 8,7″ (222 mm) x 13,3“(338 mm)
Shipping Weight: 27 lbs.
Shipping Dimensions:15 x 15 x 10 Inches
