Description

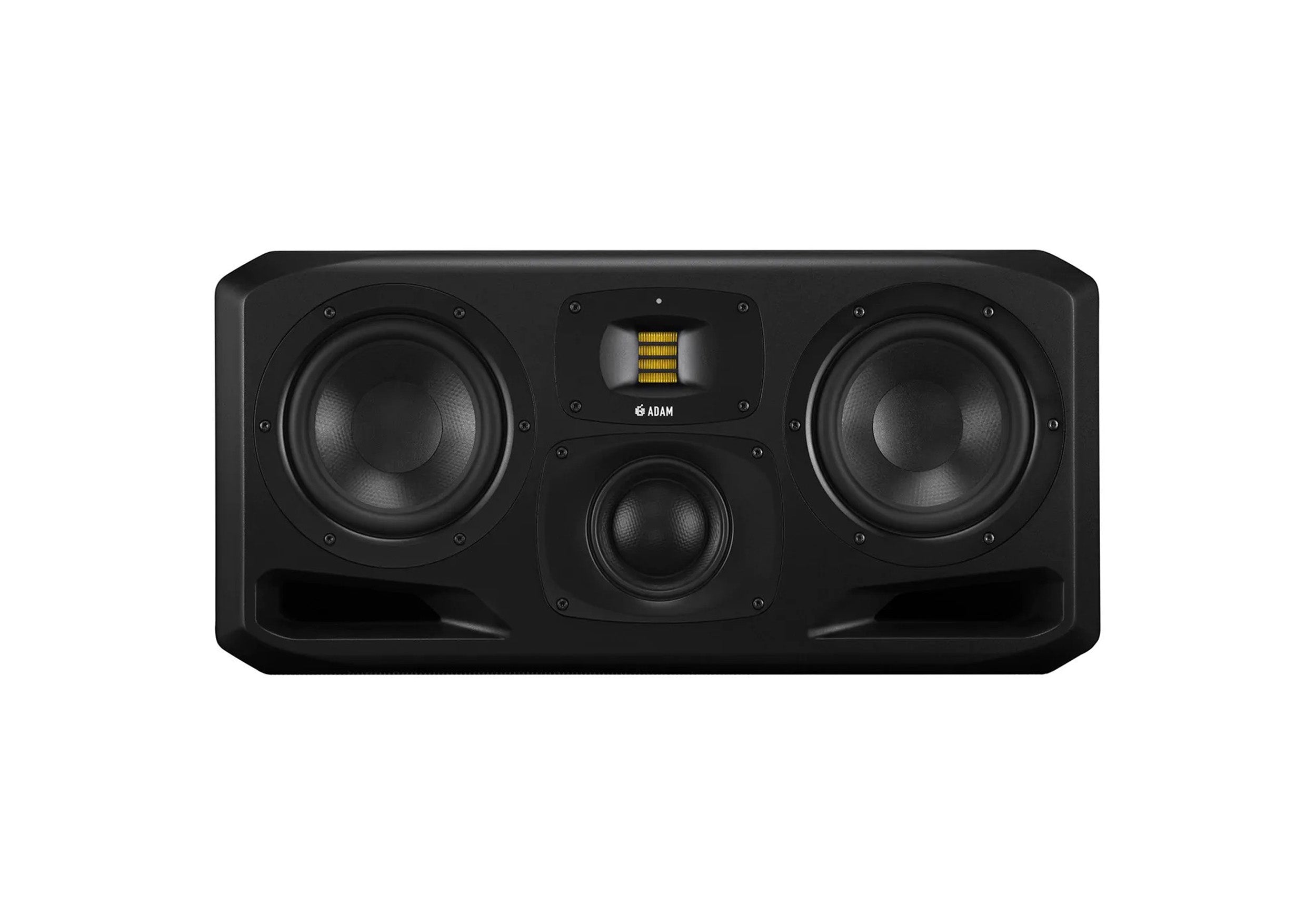

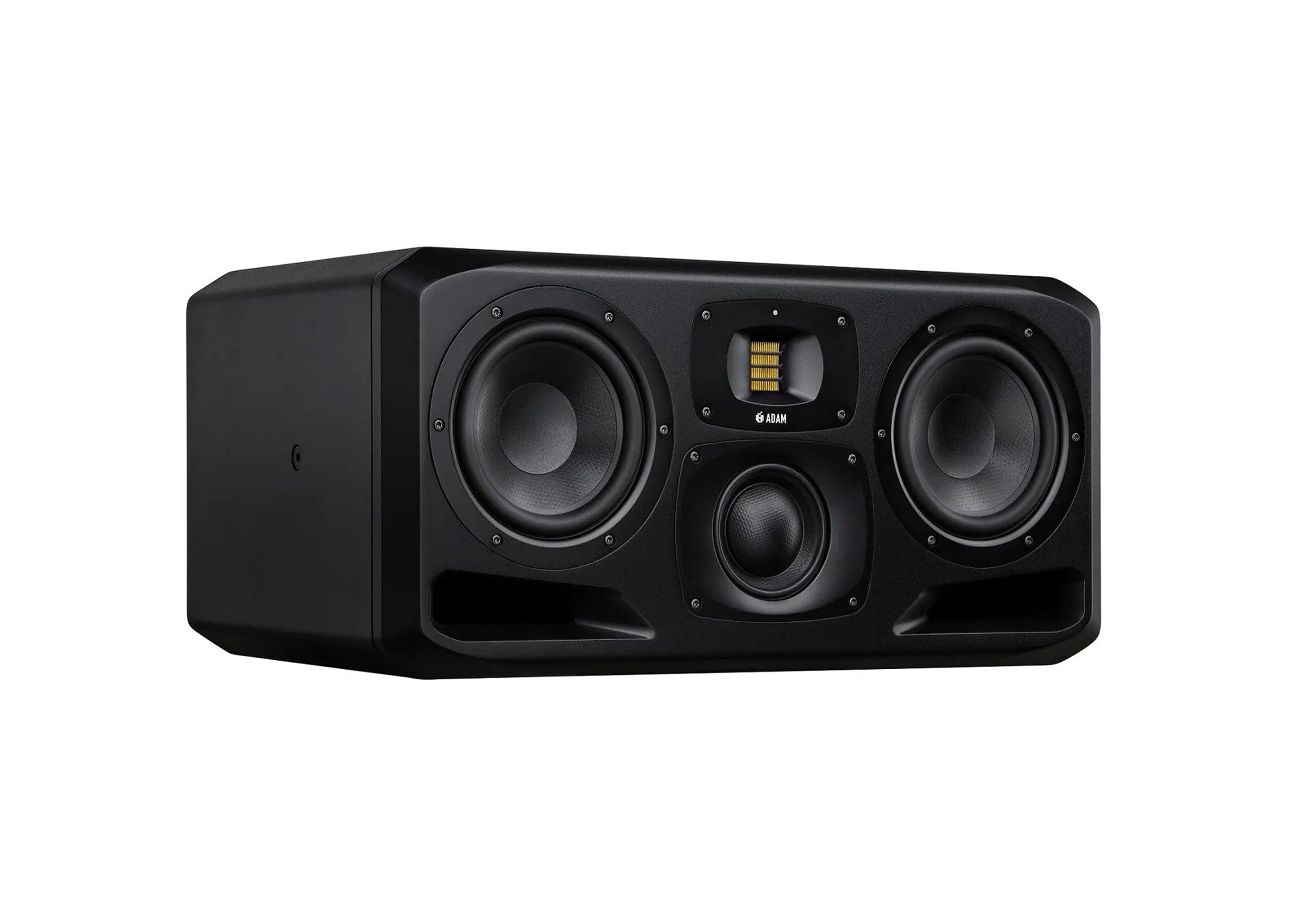

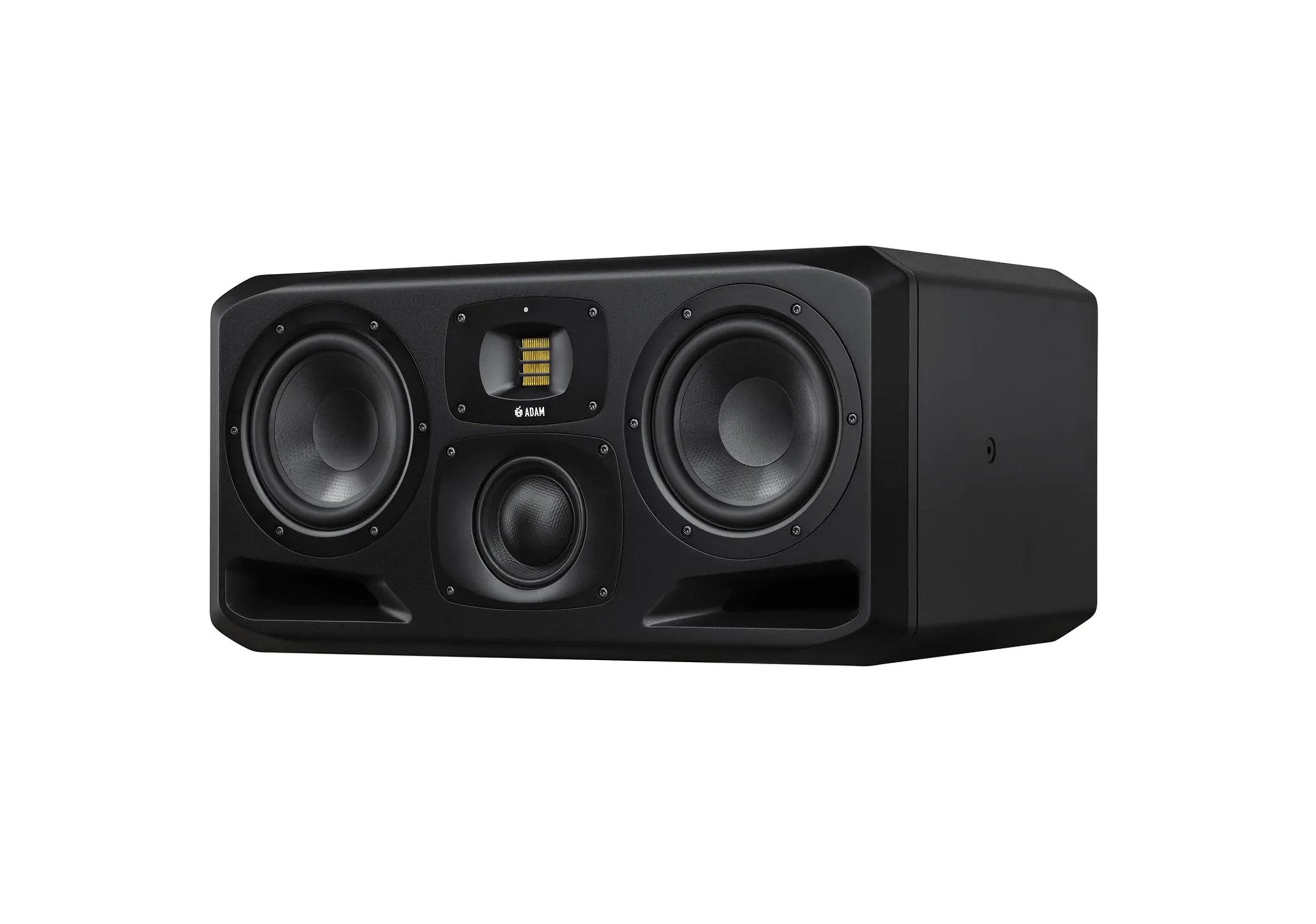

The ADAM Audio S3H is a high-performance 3-way active midfield studio monitor designed for precise and powerful sound reproduction. It features dual 7-inch bass drivers powered by a 500 W Class D amplifier, delivering flawless low-end response down to 30 Hz. The newly developed 4-inch DCH (Dome/Cone Hybrid) midrange driver, also powered by a 300 W Class D amplifier, covers the 250 Hz to 3 kHz range with exceptional clarity, combining the benefits of cone and soft-dome designs in a single unit. High frequencies above 3 kHz are reproduced by the handcrafted S-ART tweeter, paired with a precision HPS waveguide and a 50 W Class A/B amplifier. Together, these elements create a transparent, three-dimensional soundstage with an expansive sweet spot, making the S3H an ideal choice for professional mixing, mastering, and critical listening applications.
The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. A unique feature of the S3H’s DSP options is a built-in factory EQ preset that emulates the response of ADAM Audio’s legendary S3A monitor. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.
With its massively powerful amplification and three-way design (optimally configured for use horizontally), the S3H was conceived as a midfield monitor, but can be employed equally well in more compact listening environments. As with all ADAM Audio designs, the sound is punchy but musical, with crystal-clear reproduction of the all-important mid-range.
The S3H’s wide-ranging frequency response, its power amps’ instantly available, plentiful headroom, and the lack of need for additional subwoofers should appeal to any audio professional looking for a stand-alone, full-frequency active solution for their recording studio, one which provides equally detailed audio information at any volume setting, loud or quiet. Whatever your preferred output level, the S3H’s vibrant authenticity is a spur to creativity for producers, engineers and musicians everywhere, and its sound remains remarkably unfatiguing, even when working uninterrupted for extended periods
State of The Art Technology
ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.
Ele Bass Driver
Custom-built bass driver created specifically for the S Series, using ADAM Audio's engineering design experience and the latest computer modeling techniques.
Hps Waveguide
The S-ART tweeter comprises the latest iteration of ADAM’s respected folded accelerated ribbon design, produced to tighter tolerances than ever before, and...
High Performance DSP Module
Custom DSP engine implements perfect crossovers for optimal frequency response and maximum dynamic range, in addition to EQ options and presets for in-room o...
SMA
Custom-designed magnet assembly which allows the voice coil a maximum excursion three times greater than that offered by previous designs, with an extended, ...
S Series Amplifiers
The S Series low- and mid-range drivers are powered by Class-D ICE power amps, specially developed low-noise 50W Class A/B amp powers the S-ART on S2 & S3.
S Series Bass Reflex System
S Series Bass Reflex tubes and ports have been redesigned to reduce friction- and turbulence-related coloration and incorporate additional anti-resonance tec...
S Series Cabinets
S Series cabinets are weightily constructed from thick, heavy material to reduce susceptibility to vibrations, while their rounded edges help to minimize unw...
S-ART Tweeter
All the models in the S Series employ the latest iteration of ADAM's world-famous X-ART tweeter, each handmade in Berlin, Germany.
Product Specifications:
General Data:

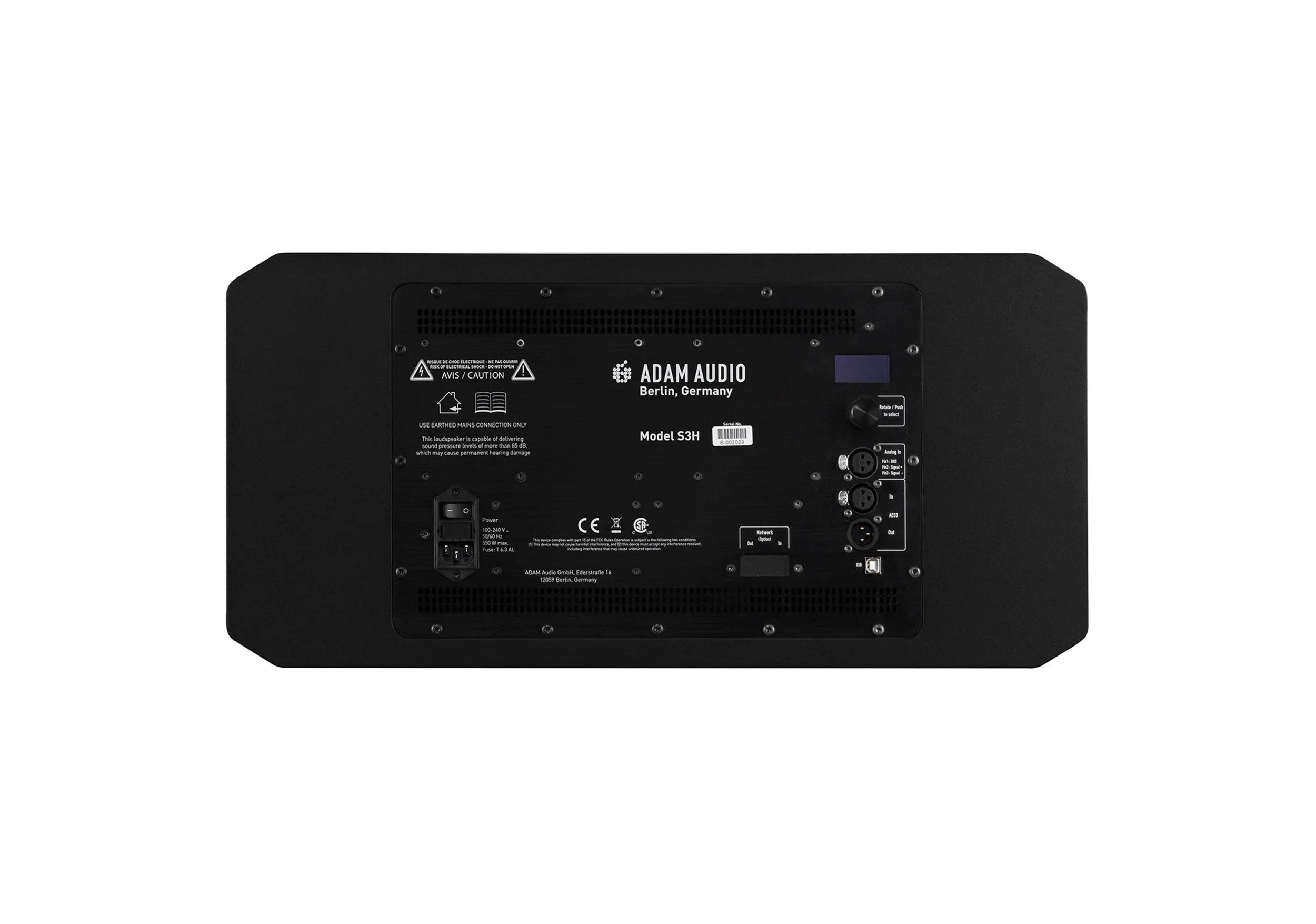

Panel:Rear
Max. Power Consumption:550 W
Weight:58.6 lbs. (26.6 kg)
Height x Width x Depth:11.0″ (280 mm) x 23.0″ (585 mm) x 15.0“(380 mm)
Delivery Contents:Power cord, manual
Audio Input Connectors:
Analog:XLR
Input Impedance:48 kOhm
Max. Input Level:+24 dBu
Digital:AES3
Amplification:
Woofer:
Amplifier Type:2 x PWM
Amp. Power RMS:2 x 500 W
Midrange:
Amplifier Type:PWM
Amp. Power RMS:300 W
Tweeter:
Amplifier Type:Class A/B
Amp. Power RMS:50 W
Acoustics:
Frequency Response:30 Hz – 50 kHz (-20 dB)
THD > 100 Hz:≤0.4 %
Max. SPL per pair at 1 m:≥126 dB
Crossover Frequencies:250 Hz, 3 kHz
Drivers:
Woofer:
Basket Diameter:2 x 7″
Voice Coil Diameter:1.5″ (39 mm)
Cone Material:HexaCone
Midrange:
Type:Dome/Cone Hybrid
Basket Diameter:4″
Voice Coil Diameter:2.4″ (60 mm)
Cone Material:Carbon Composite
Tweeter:
Type:S-ART
Diaphragm Area:4-inch² (2420 mm²)
Equivalent Diaphragm Diameter:2″ (56 mm)
Velocity Transform Ratio:4 to 1
Diaphragm Weight:0.17 g
Waveguide:HPS
Control Options:
Input Sensitivity:Adjustable
Parametric EQs:6
Room Compensation High-Shelf EQ:1
Room Compensation Low-Shelf EQ:1
Preset Memories:5
Delay:0 ms to 5 ms
Shipping Weight:60 lbs.
Shipping Dimensions:28 x 26 x 20 Inches
