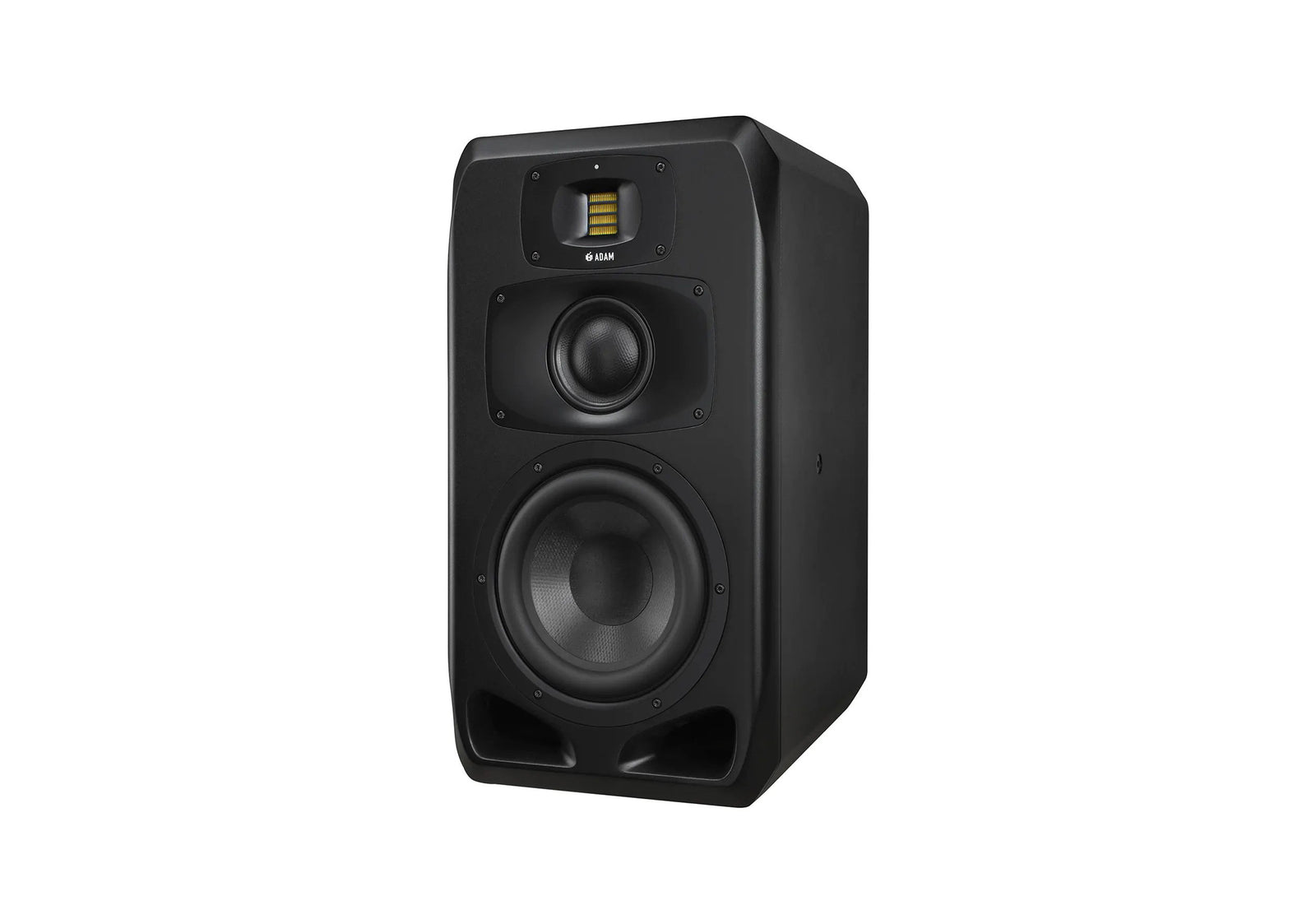

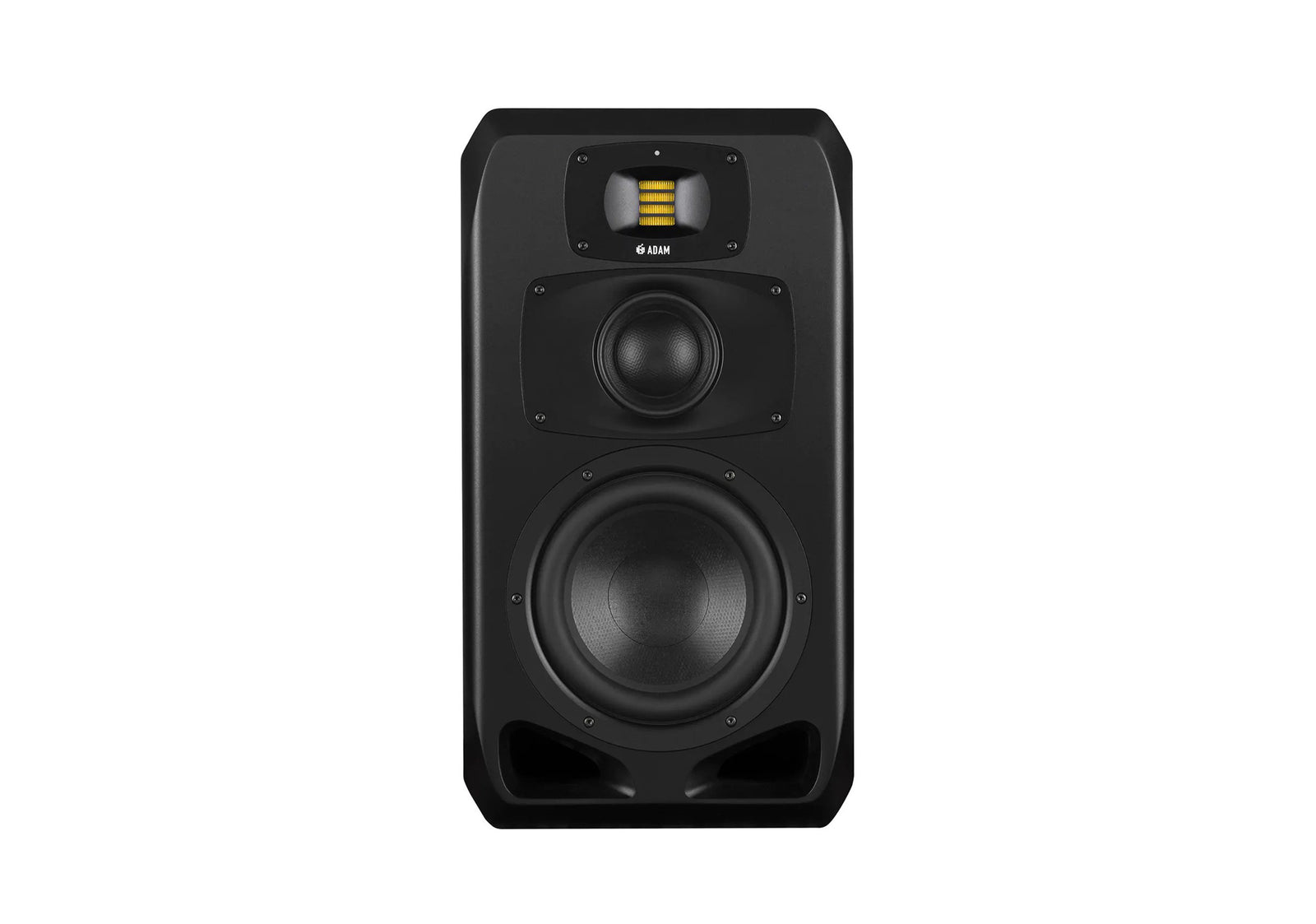

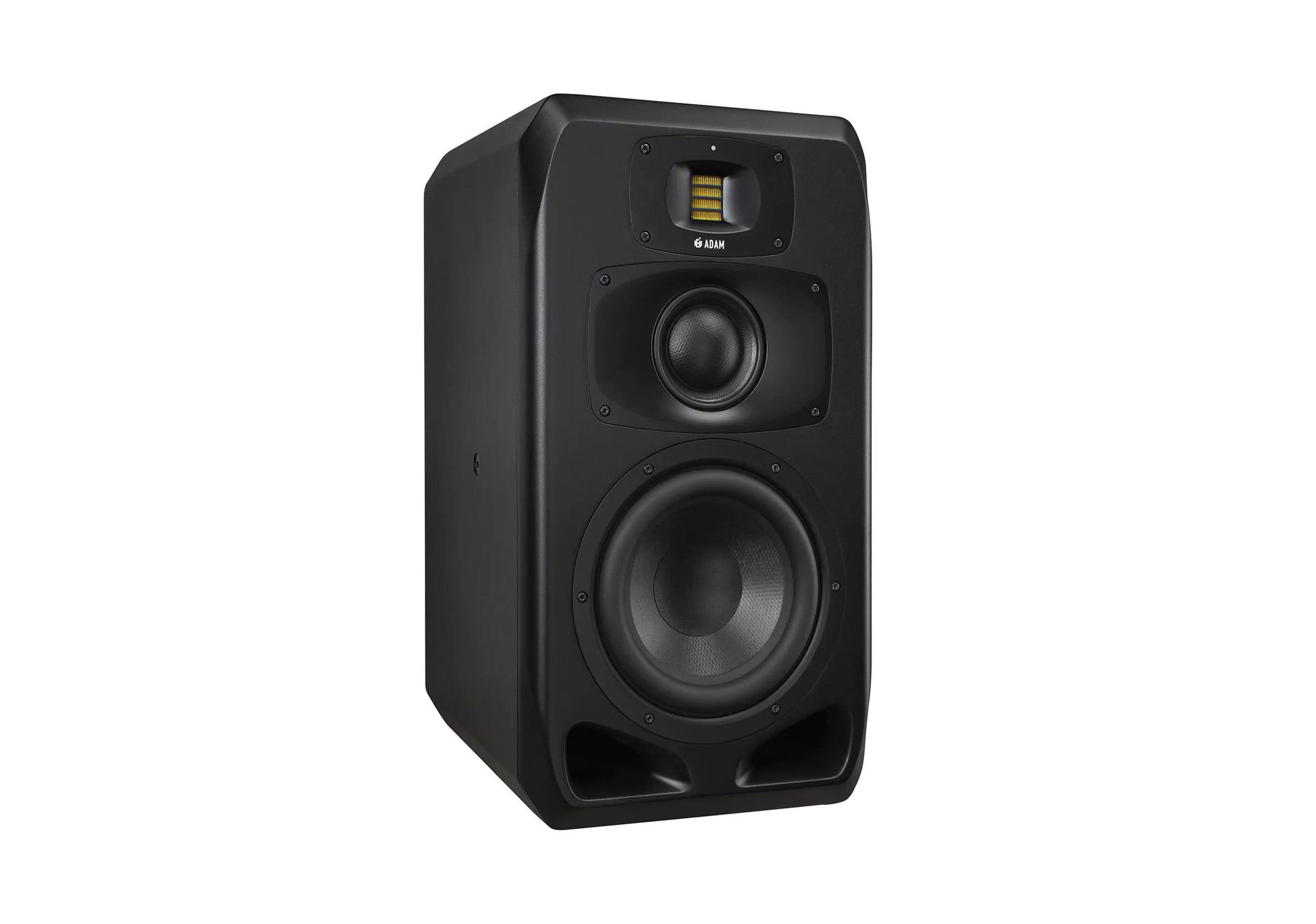

Adam Audio S3V Single Vertical 9" Active 3-Way Midfield Studio Monitor

The ADAM Audio S3V is a single vertical 3-way active midfield studio monitor engineered for exceptional accuracy and power. At its core is a newly designed 9-inch Extended Linear Excursion (ELE) low-frequency driver, featuring ADAM Audio’s advanced Symmetrical Magnet Assembly (SMA), which delivers deep, precise low-end performance extending into the sub-bass range. The midrange is handled by a newly developed 4-inch Dome/Cone Hybrid (DCH) driver, while high frequencies are reproduced with stunning clarity by the handcrafted S-ART folded-ribbon tweeter. Paired with the precision-engineered HPS waveguide, the S3V offers a wide sweet spot, detailed imaging, and a natural sense of depth making it ideal for critical mixing, mastering, and high-end studio monitoring.

The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.

The S3V’s built-in amplification is generously specified, comprising Class D units for the bass and mid-range drivers (500 W and 300W RMS respectively) and a 50 W Class A/B amplifier for the S-ART tweeter.

Offering flawless reproduction of audio frequencies between 32 Hz and 50 kHz, the S3V is a standout offering for anyone demanding highly accurate imaging and localization from their reference monitors.

State of The Art Technology

ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.

Ele Bass Driver

Custom-built bass driver created specifically for the S Series, using ADAM Audio's engineering design experience and the latest computer modeling techniques.

Hps Waveguide

The S-ART tweeter comprises the latest iteration of ADAM’s respected folded accelerated ribbon design, produced to tighter tolerances than ever before, and...

High Performance DSP Module

Custom DSP engine implements perfect crossovers for optimal frequency response and maximum dynamic range, in addition to EQ options and presets for in-room o...

SMA

Custom-designed magnet assembly which allows the voice coil a maximum excursion three times greater than that offered by previous designs, with an extended, ...

S Series Amplifiers

The S Series low- and mid-range drivers are powered by Class-D ICE power amps, specially developed low-noise 50W Class A/B amp powers the S-ART on S2 & S3.

S Series Bass Reflex System

S Series Bass Reflex tubes and ports have been redesigned to reduce friction- and turbulence-related coloration and incorporate additional anti-resonance tec...

S Series Cabinets

S Series cabinets are weightily constructed from thick, heavy material to reduce susceptibility to vibrations, while their rounded edges help to minimize unw...

S-ART Tweeter

All the models in the S Series employ the latest iteration of ADAM's world-famous X-ART tweeter, each handmade in Berlin, Germany.

Product Specifications:

General Data:

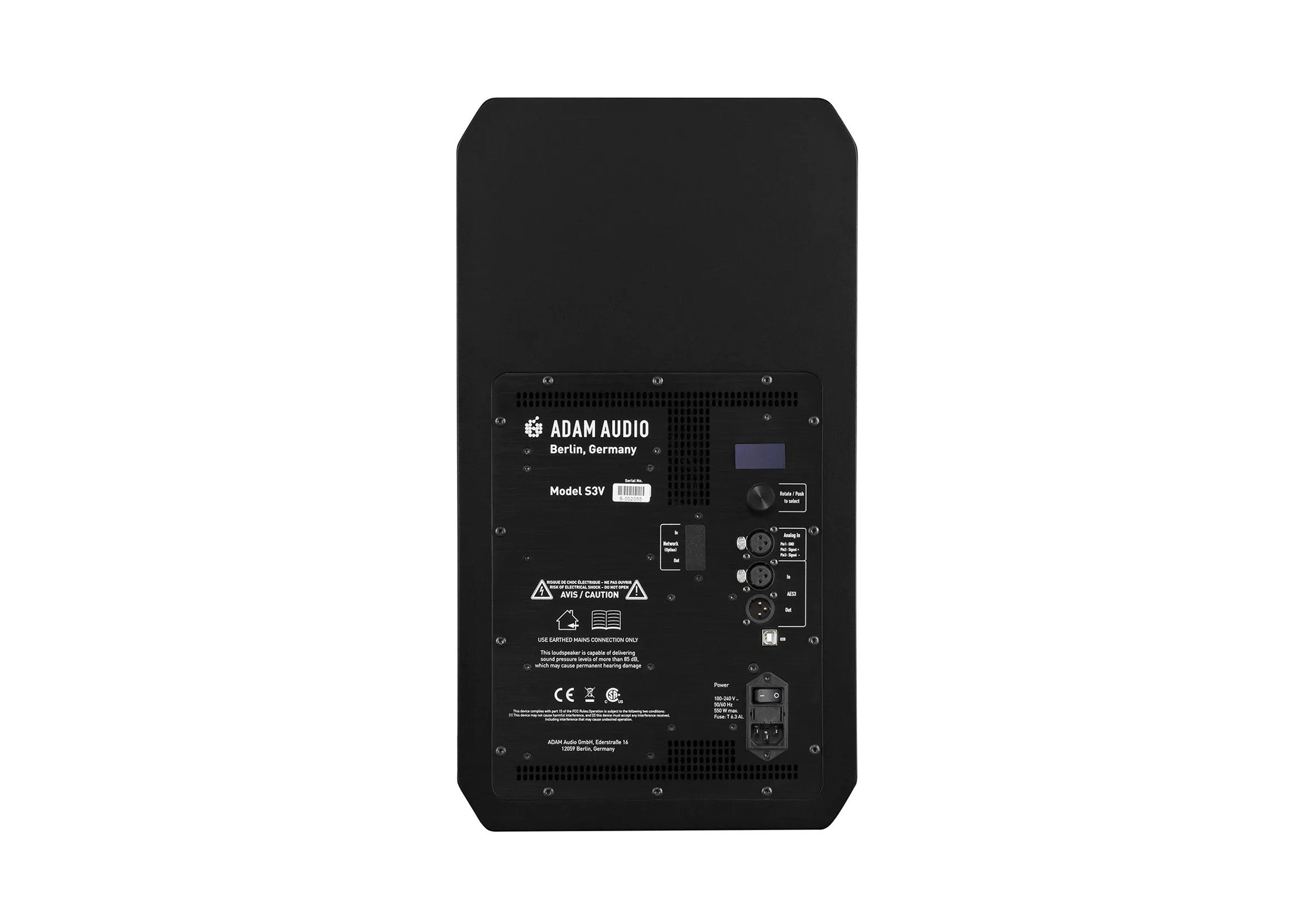

Panel:Rear

Max. Power Consumption:550 W

Weight:55 lbs. (25 kg)

Height x Width x Depth:21.1″ (536 mm) x 11.5″ (293 mm) x 15.0“(380 mm)

Delivery Contents:Power cord, manual

Audio Input Connectors:

Analog:XLR

Input Impedance:48 kOhm

Max. Input Level:+24 dBu

Digital:AES3

Amplification:

Woofer:

Amplifier Type:PWM

Amp. Power RMS:500 W

Midrange:

Amplifier Type:PWM

Amp. Power RMS:300 W

Tweeter:

Amplifier Type:Class A/B

Amp. Power RMS:50 W

Acoustics:

Frequency Response:32 Hz – 50 kHz (-20 dB)

THD > 100 Hz:≤0.4 %

Max. SPL per pair at 1 m:≥124 dB

Crossover Frequencies:250 Hz, 3 kHz

Drivers:

Woofer:

Basket Diameter:9″

Voice Coil Diameter:2″ (50 mm)

Cone Material:HexaCone

Midrange:

Type:Dome/Cone Hybrid

Basket Diameter:4″

Voice Coil Diameter:2.4″ (60 mm)

Cone Material:Carbon Composite

Tweeter:

Type:S-ART

Diaphragm Area:4-inch² (2420 mm²)

Equivalent Diaphragm Diameter:2″ (56 mm)

Velocity Transform Ratio:4 to 1

Diaphragm Weight:0.17 g

Waveguide:HPS

Control Options:

Input Sensitivity:Adjustable

Parametric EQs:6

Room Compensation High-Shelf EQ:1

Room Compensation Low-Shelf EQ:1

Preset Memories:5

Delay:0 ms to 5 ms

Shipping Weight:60 lbs.

Shipping Dimensions:26 x 17 x 21 Inches
