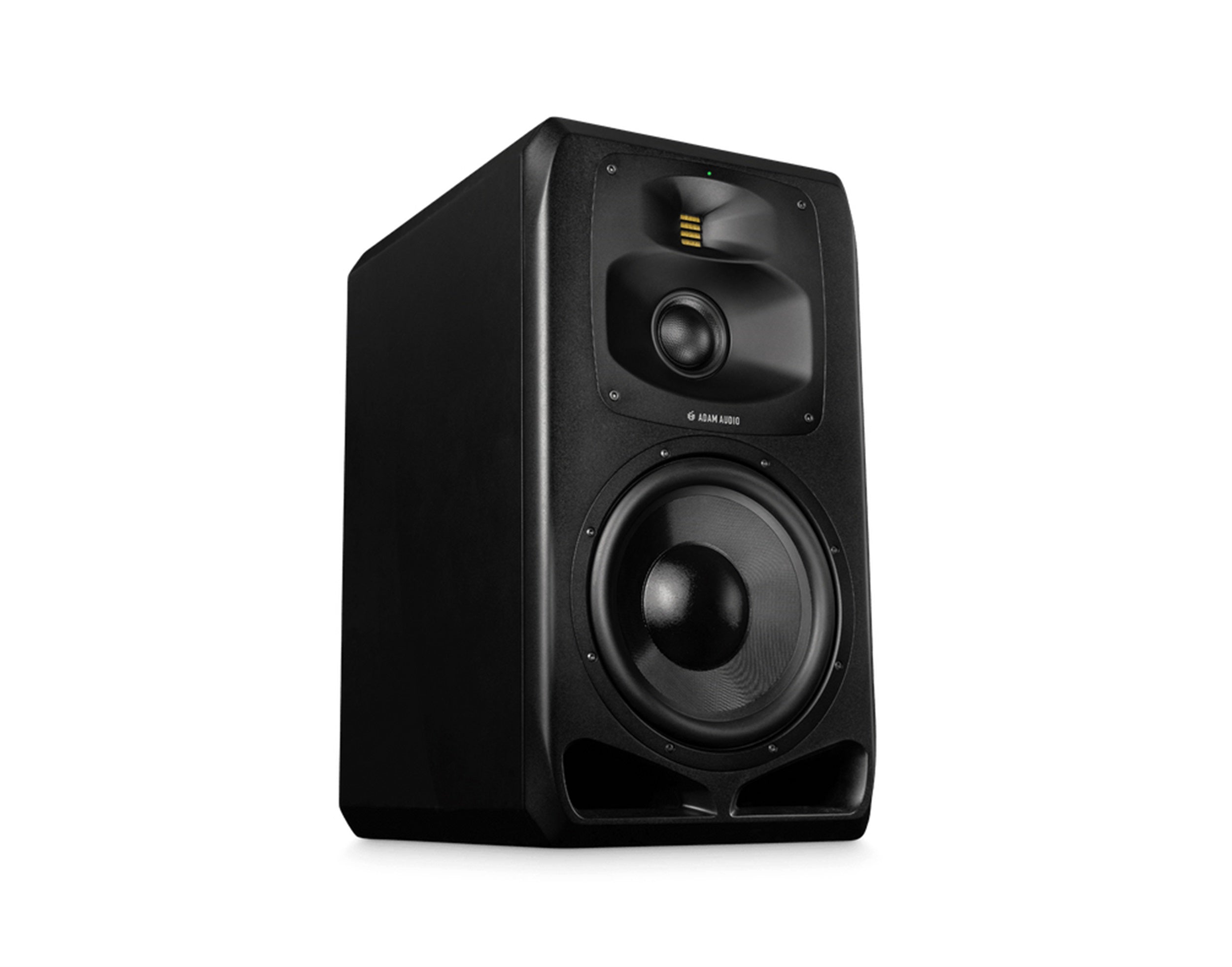

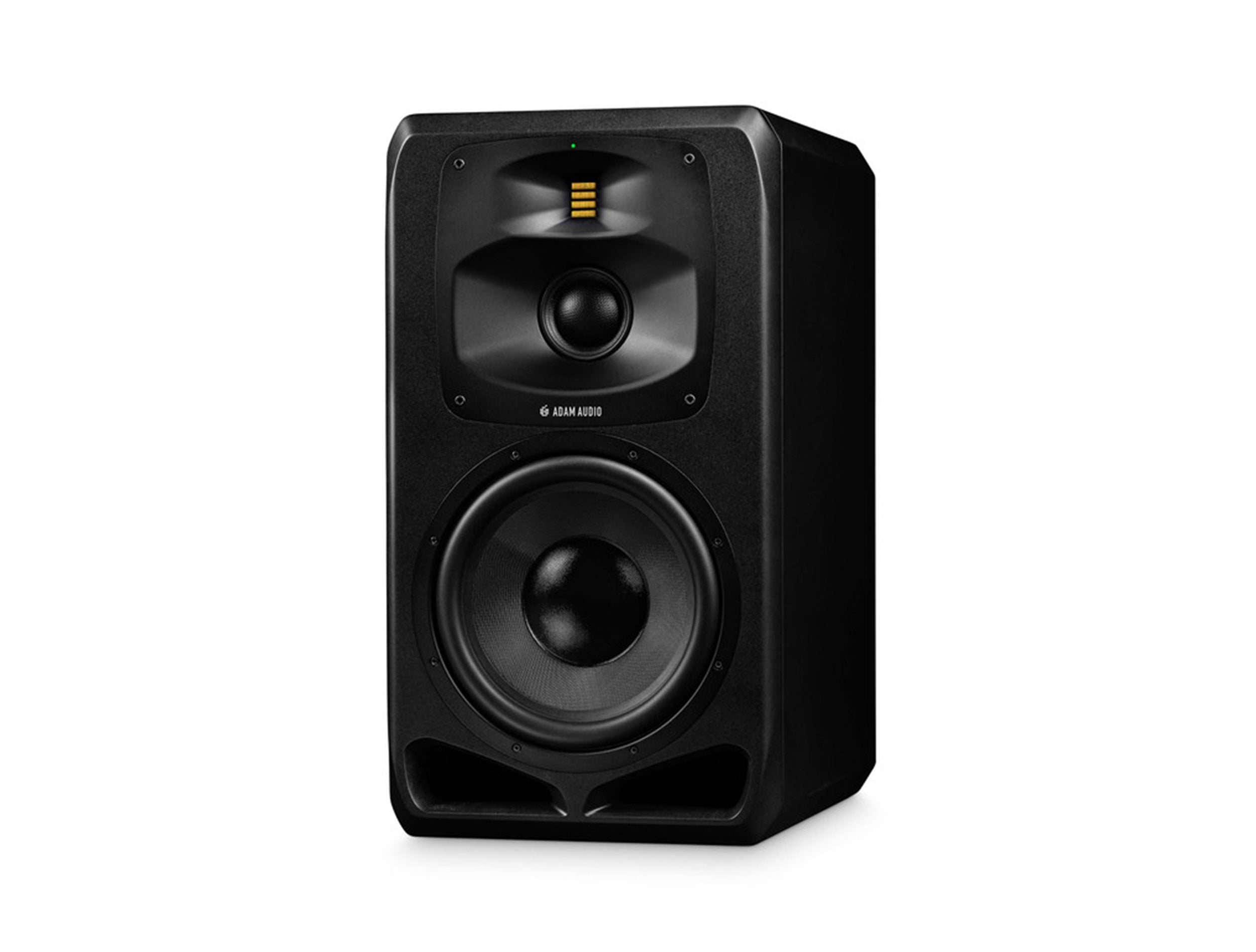

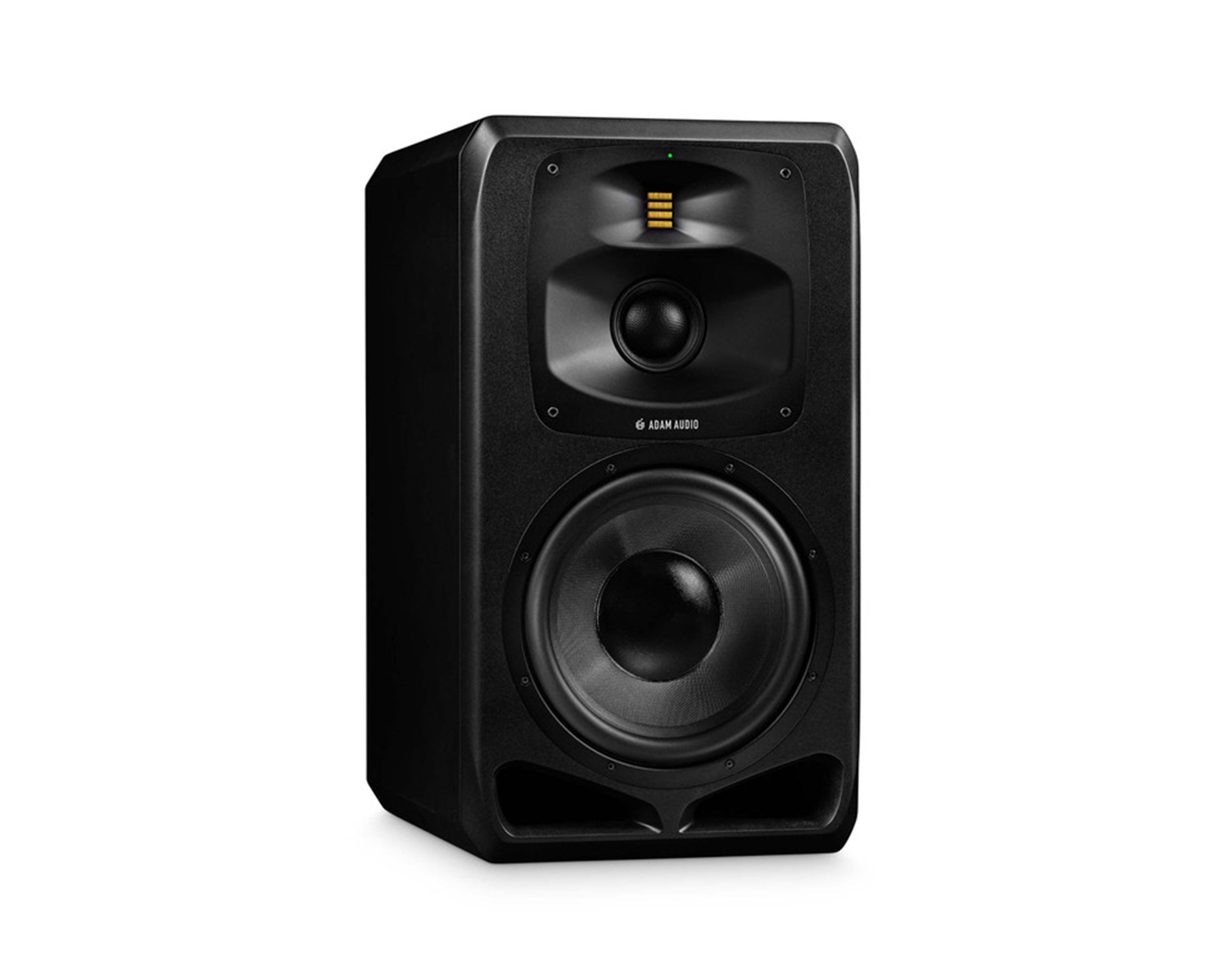

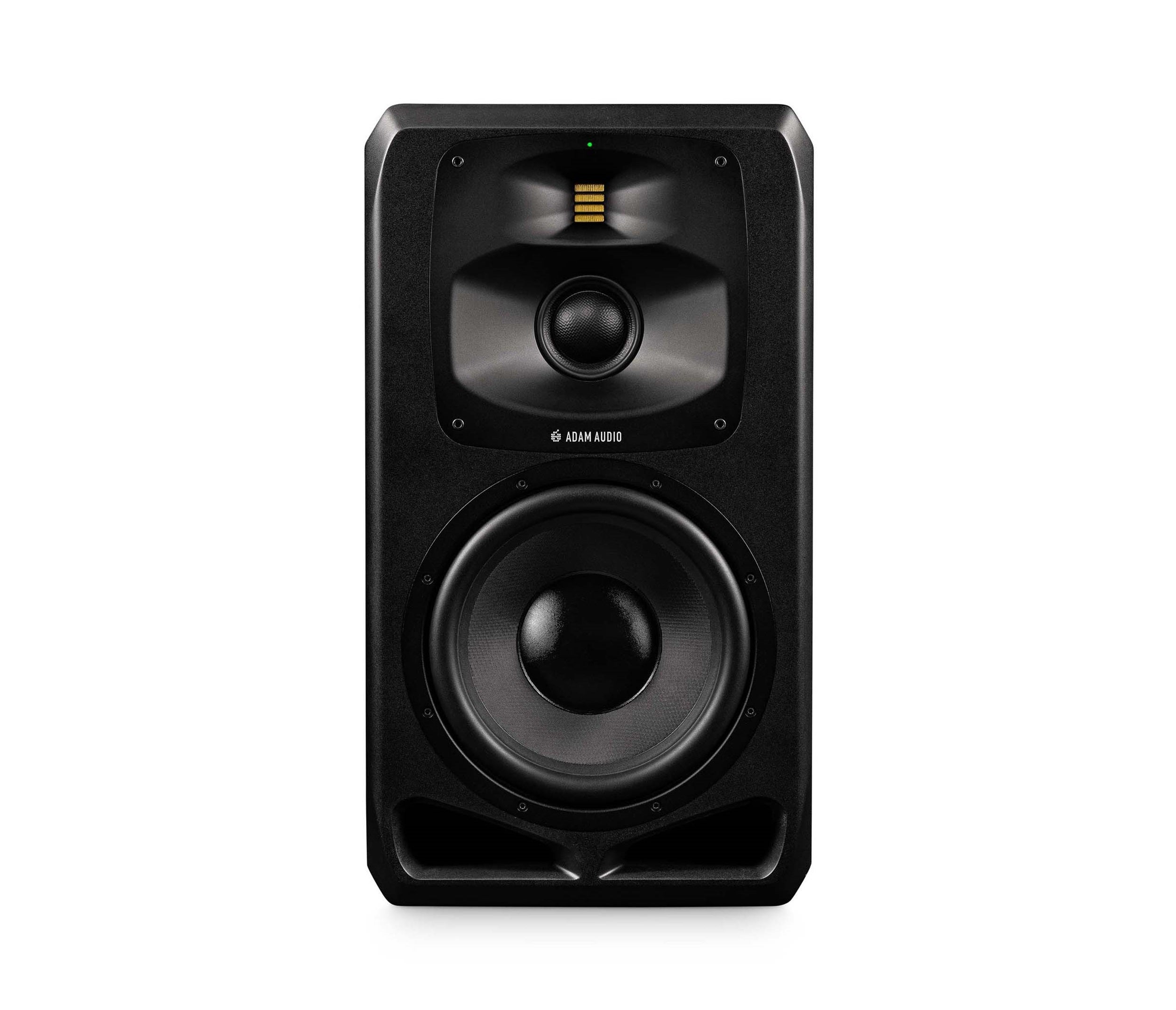

Adam Audio S5V Single Vertical 12" Active 3-Way Midfield Studio Monitor

The Adam Audio S5V Single Vertical 12" Active 3-Way Midfield Studio Monitor is designed for medium to large control rooms, the S5V features ADAM Audio’s precision, proprietary drivers, and amplifier technology, which makes this three-way speaker an all-around reliable and professional monitoring tool to meet the highest of demands.

The vertically designed S5V's 12” woofer utilizes ADAM Audio's new ELE and SMA technologies, ensuring a dynamic and uncompromising, quality of bass reproduction free from coloration, that goes down to 25 Hz.

The 4” DCH Midrange Driver is responsible for the reproduction of the mid-range information with extreme precision. Its unique hybrid dome/cone construction originates from ADAM Audio's development department, and works in tandem with the S-ART folded-ribbon tweeter, providing unprecedented transparency and detailed stereo resolution.

The wide-ranging dispersion of the treble and mid drivers is optimized by ADAM Audio’s MPS and HPS (mid-range and high-frequency propagation system) waveguides, such that multiple people can be accommodated in the same sweet spot; a common necessity for larger control rooms. Newly designed by the ADAM Audio team, the MPS and HPS waveguides have been intricately constructed out of solid aluminum.

A trio of extremely powerful PWM power amplifiers delivers 700 watts to the woofer, 300 watts to the DCH mid, and 100 watts to the S-ART treble drivers. The result of which means that a pair of S5V speakers produces up to 128 dB of maximum sound pressure.

The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range. Two parametric shelving filters (for bass and treble) and six fully parametric EQs can be individually adapted to the given room conditions, or to your own listening tastes. In addition, the DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs and various future expansion options. The S Control Remote software can be used to adjust parameters and control functions, as can the installation of software updates via USB port.

Product Specifications:

General Data:

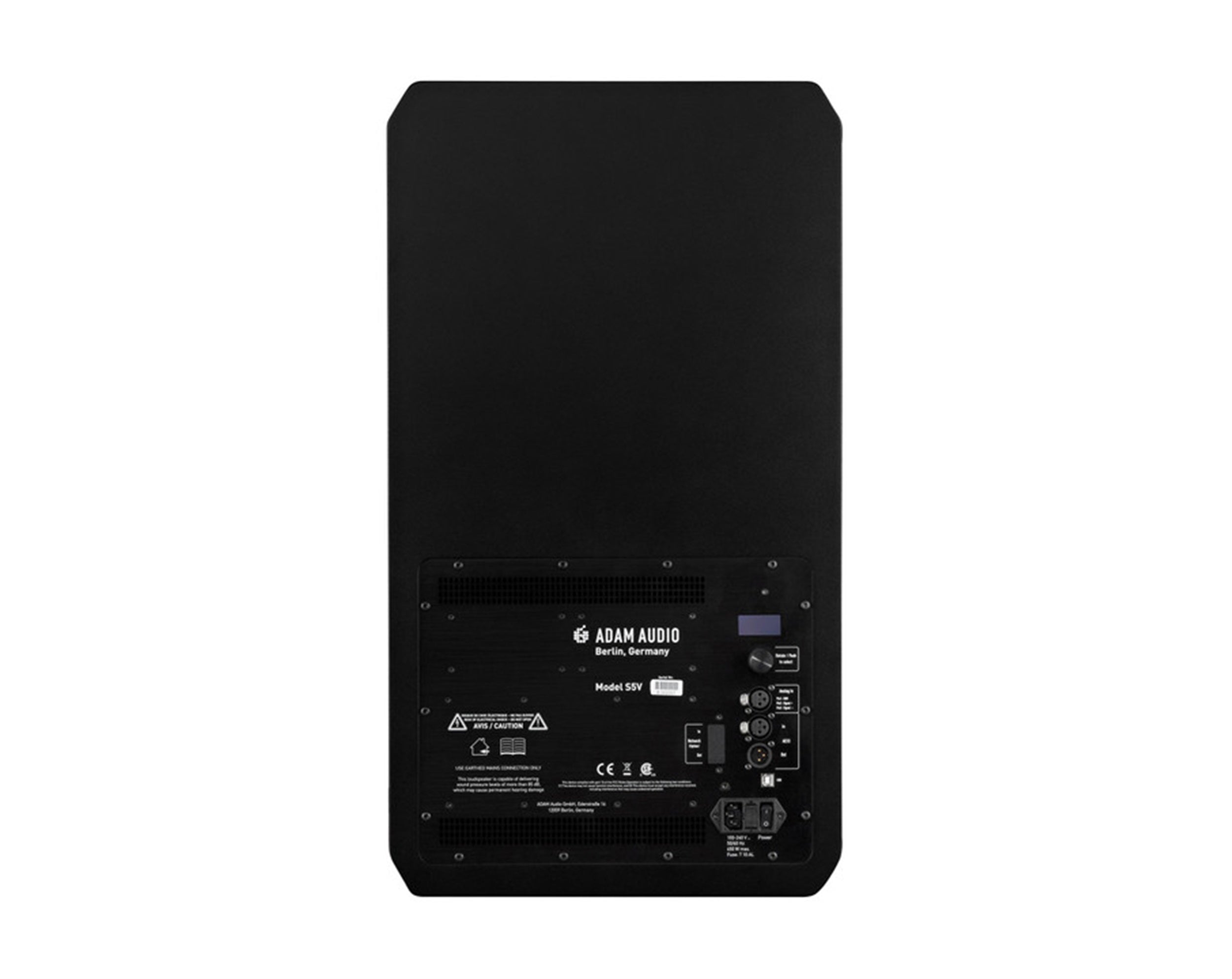

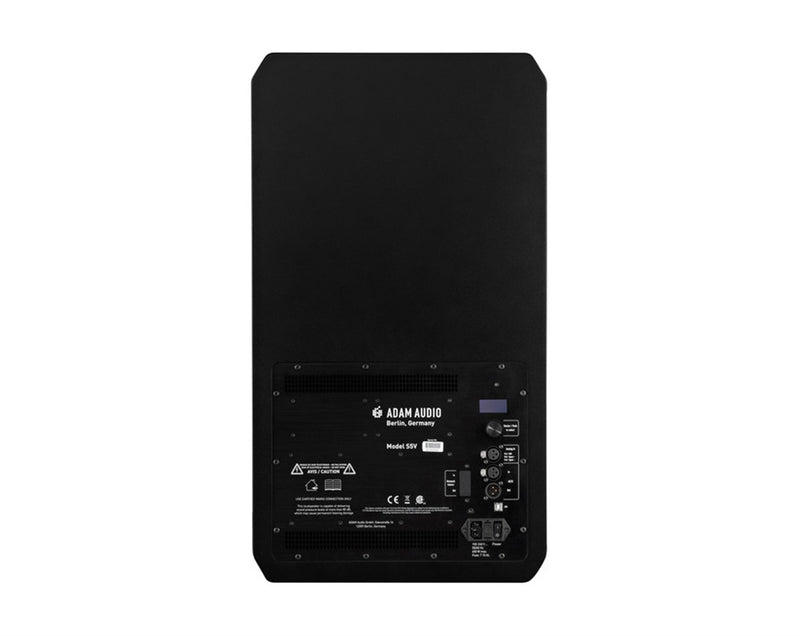

Panel:Rear

Max. Power Consumption:650 W

Weight:114.5 lb (52 kg)

Height x Width x Depth:27.5″ (698 mm) x 15.4″ (390 mm) x 20.5″ (520 mm)

Warranty:5 years (2 years warranty plus 3 years optional with product registration)

Delivery Contents:Power cord, manual

Audio Input Connectors:

Analog:XLR

Input Impedance:48 kOhm

Max. Input Level:+24 dBu

Digital:AES3

Amplification:

Woofer:

Amplifier Type:PWM

Amp. Power RMS:700 W

Midrange:

Amplifier Type:PWM

Amp. Power RMS:300 W

Tweeter:

Amplifier Type:PWM

Amp. Power RMS:100 W

Acoustics:

Frequency Response:25 Hz – 50 kHz (-20 dB)

THD > 100 Hz:≤0.3 %

Max. SPL per pair at 1 m:≥128 dB

Crossover Frequencies:250 Hz, 3 kHz

Drivers:

Woofer:

Basket Diameter:12″

Voice Coil Diameter:3″ (76 mm)

Cone Material:Hexa Cone

Midrange:

Type:Dome/Cone Hybrid

Basket Diameter:4″

Voice Coil Diameter:2.4″ (60 mm)

Cone Material:Carbon Composite

Waveguide:MPS

Tweeter:

Type:S-ART

Diaphragm Area:4 inch² (2420 mm²)

Equivalent Diaphragm Diameter:2″ (56 mm)

Velocity Transform Ratio:4 to 1

Diaphragm Weight:0.17 g

Waveguide:HPS

Control Options:

Input Sensitivity:Adjustable

Parametric EQs:6

Room Compensation High-Shelf EQ:1

Room Compensation Low-Shelf EQ:1

Preset Memories:5

Delay:0 ms to 5 ms
