Description

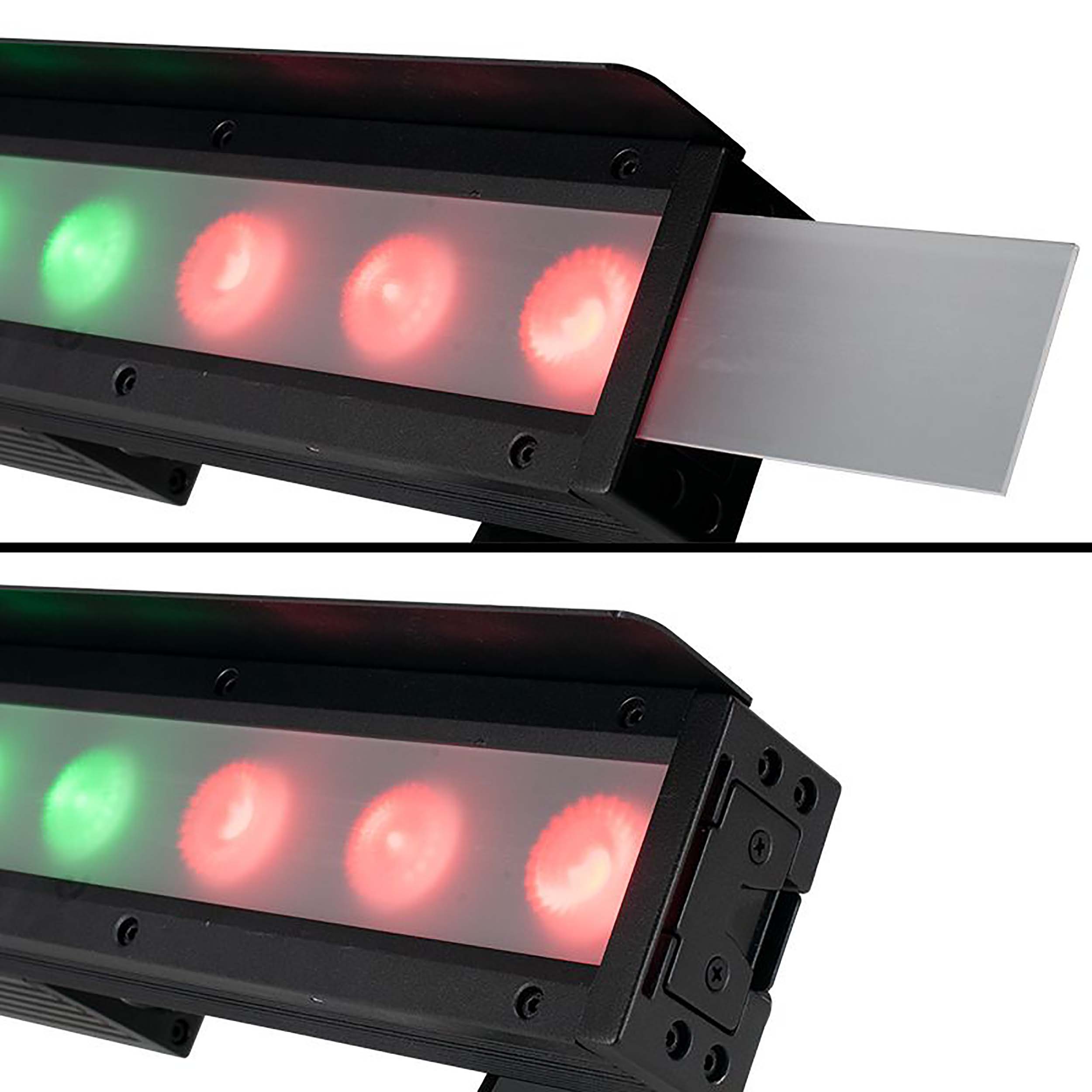

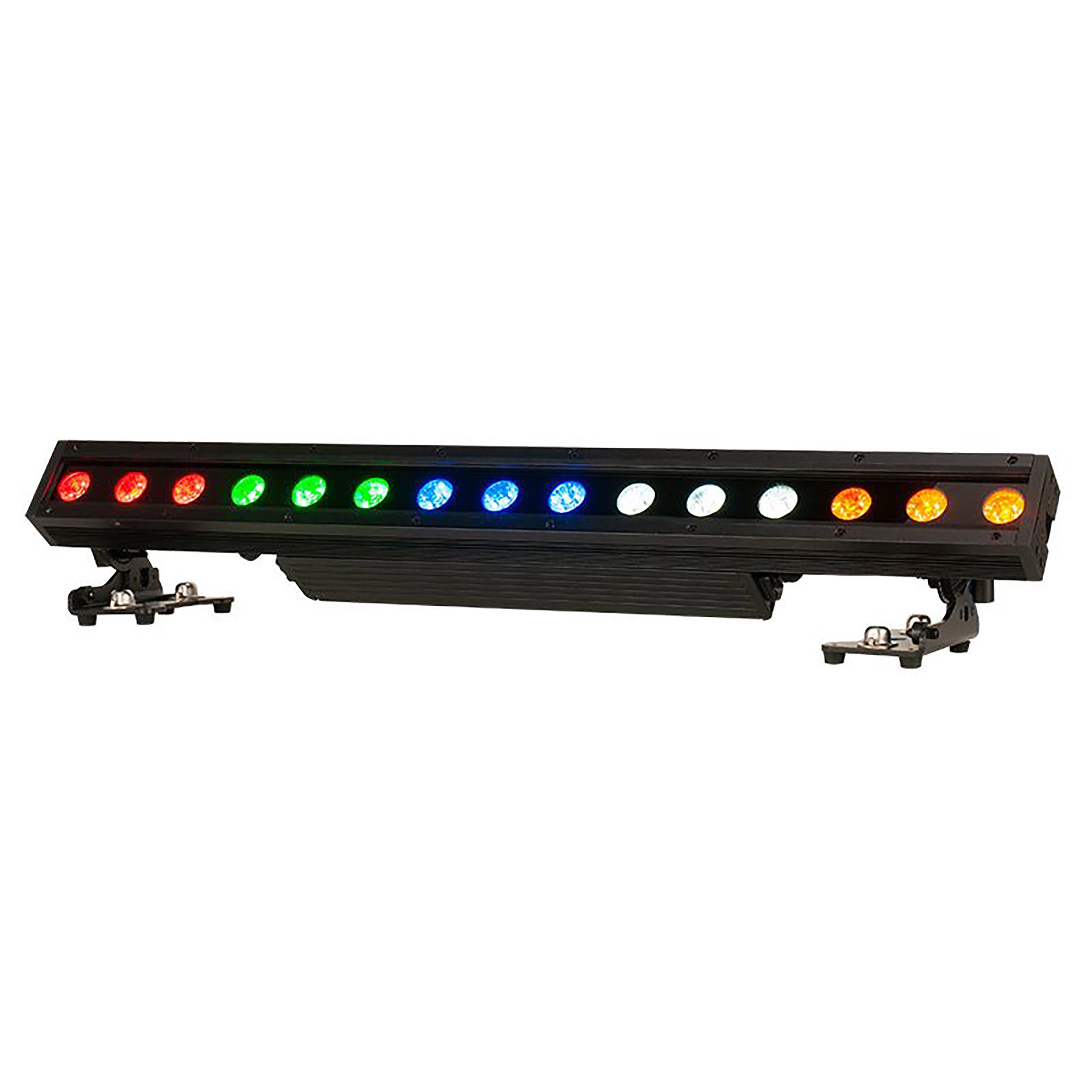

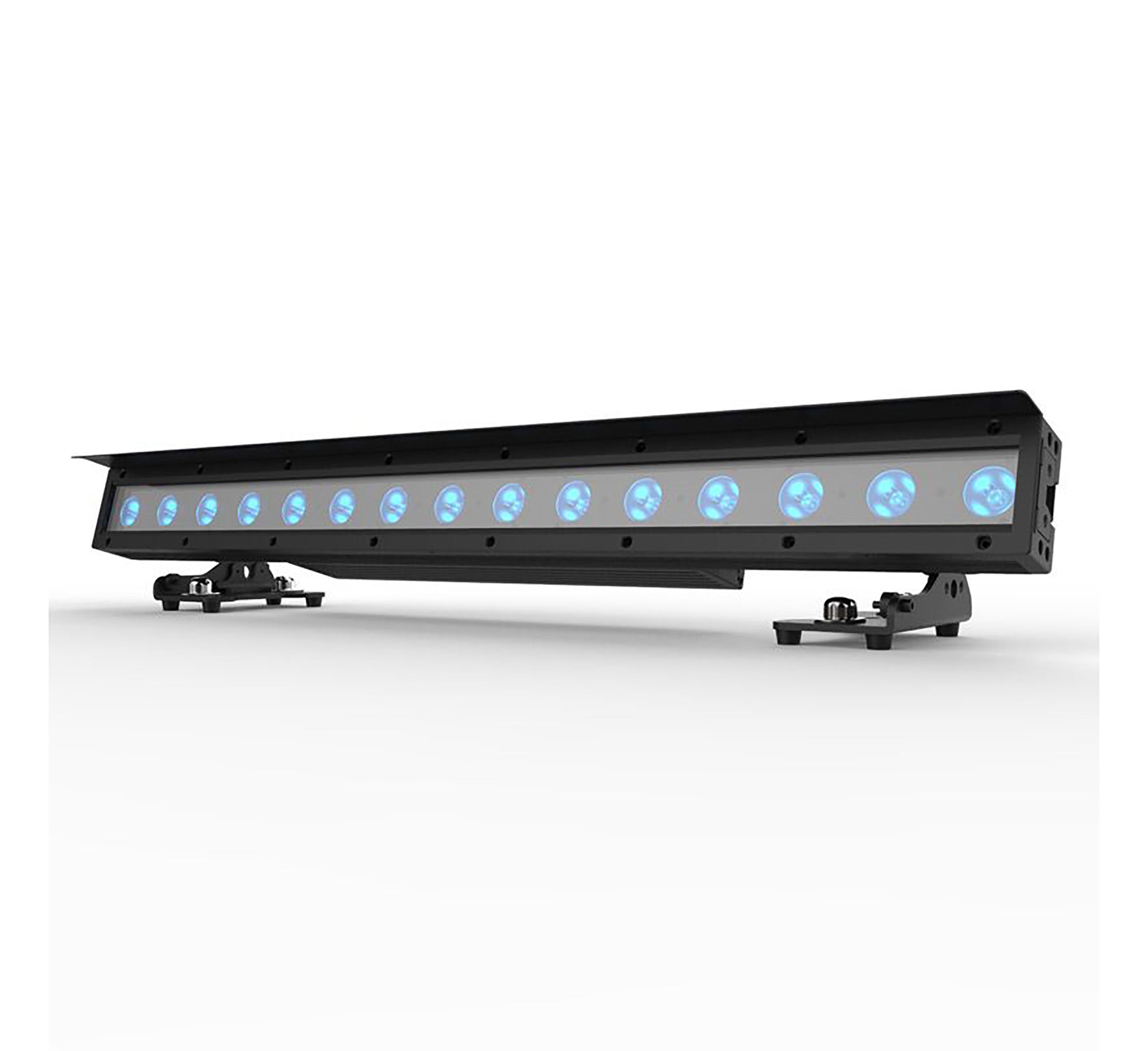

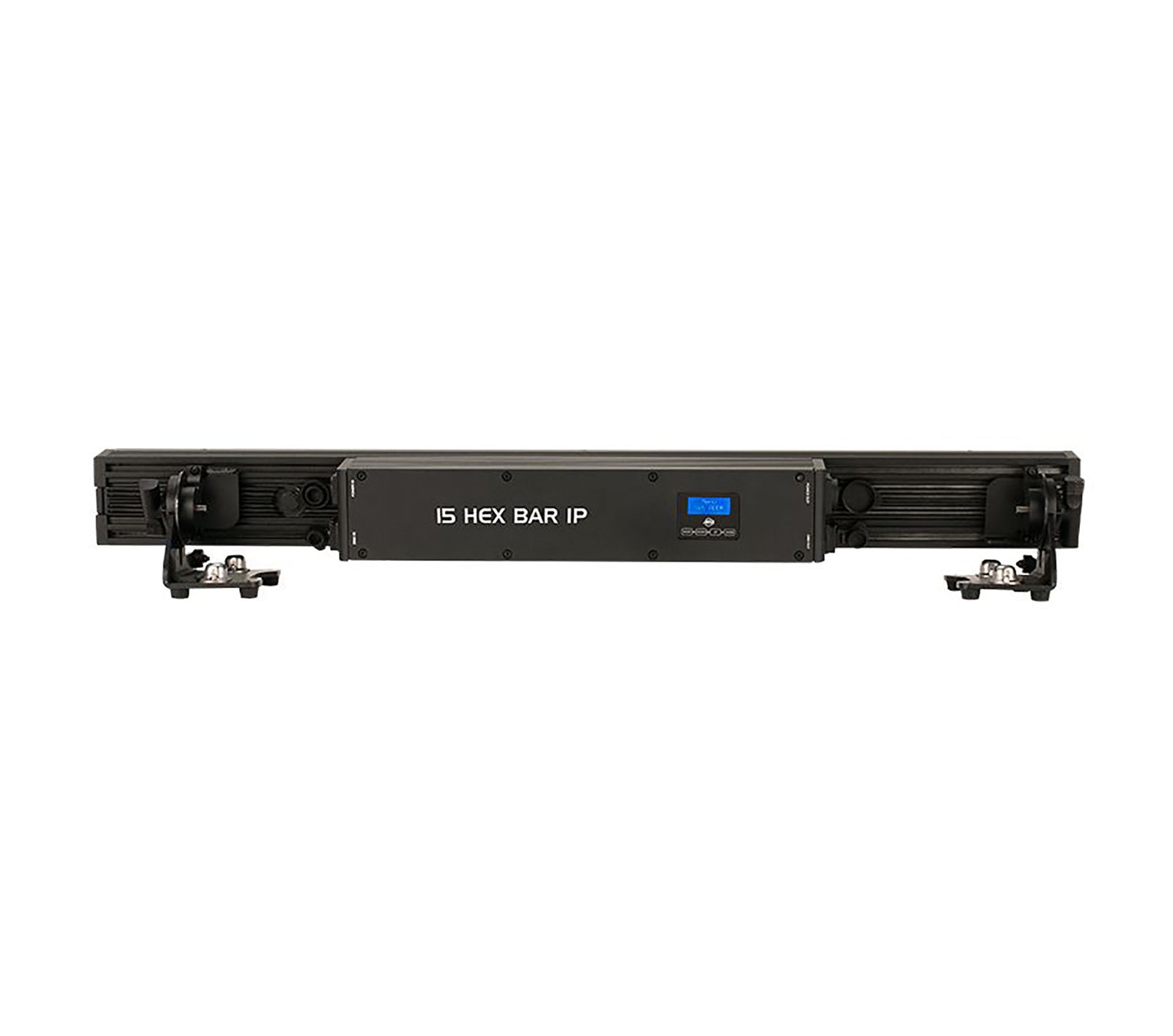

The ADJ 15 Hex Bar IP, IP65 Rated multi-functional linear wash fixture (RGBWA+UV) for indoor or outdoor use. It features 15x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 5 individually controlled sections with Zone Control and a 25-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a removable diffusion filter to change the beam angle.

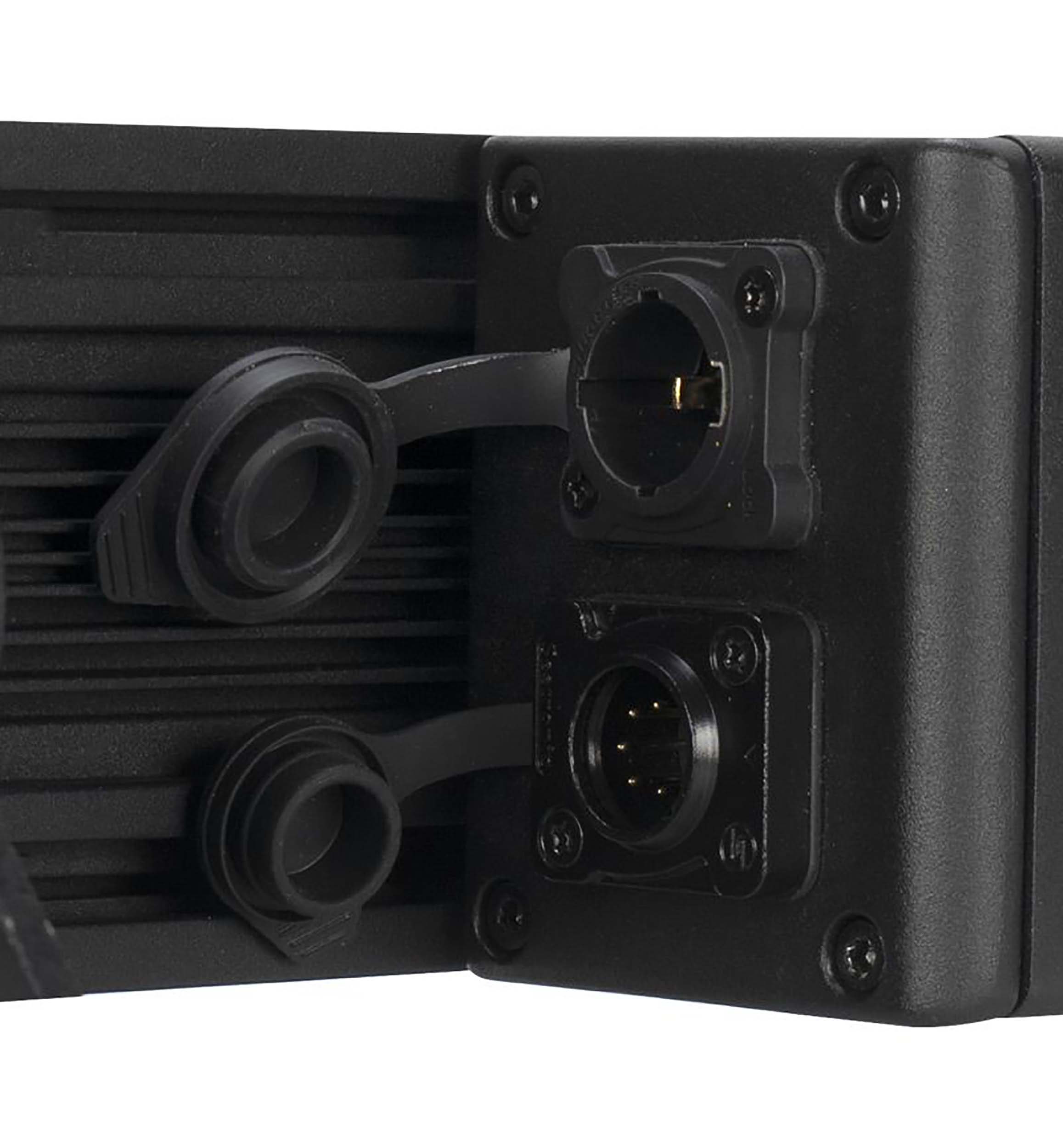

On the rear panel it features, IP65 rated, 5-pin XLR, DMX In/Out connections, and Seetronic IP65 rated, power locking In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.
The 15 HEX BAR IP is flicker free for film and broadcast, and has multiple DMX control modes and dimming modes.
Product Specifications:
Light Source:
Approvals / Rating: CE Certified / IP65 (Temporary outdoor use only)
LED: 15x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
Beam Angle: 25-degrees
LUX: 14541 @ 1M, 582 @ 5M (Full on No UV); 14517 @ 1M, 581 @ 5M (Full On)
Display: OLED display with function buttons
Data In/Out: Seetronic IP65 rated, 5-pin DMX In/Out (with rubber protective covers over connections)
Power In/Out: Seetronic IP65 rated Power locking in/Out (with rubber protective covers over connections)
All Metal Heavy-Duty Housing: Built to Last in Outdoor or Touring Applications.
Daisy chain up to 6 fixtures @ 120V; 15 fixtures @ 240V
Control:
Multiple DMX channel modes
Built-in internal programs
5 individually controlled sections with Zone Control
0-100% Dimming + smooth 16-bit Dimming
Control Mode: DMX512, RDM (Remote Device Management)
With Wired Digital Communication Network
6 Dimming Curve Modes
Electrical:
Power voltage: AC100-240V, 50/60Hz (multi-voltage)
Power consumption: 130W max
Dimensions & Weight:
Weight: 20 lbs. / 8.9 kg.
Dimension (LxWxH): 36” x 8” x 7.75” / 915x203x200mm
What's In the Box:
1x Seetronic IP65 locking power cord
1x Frost/Diffusion Filter
1x Glare Shield

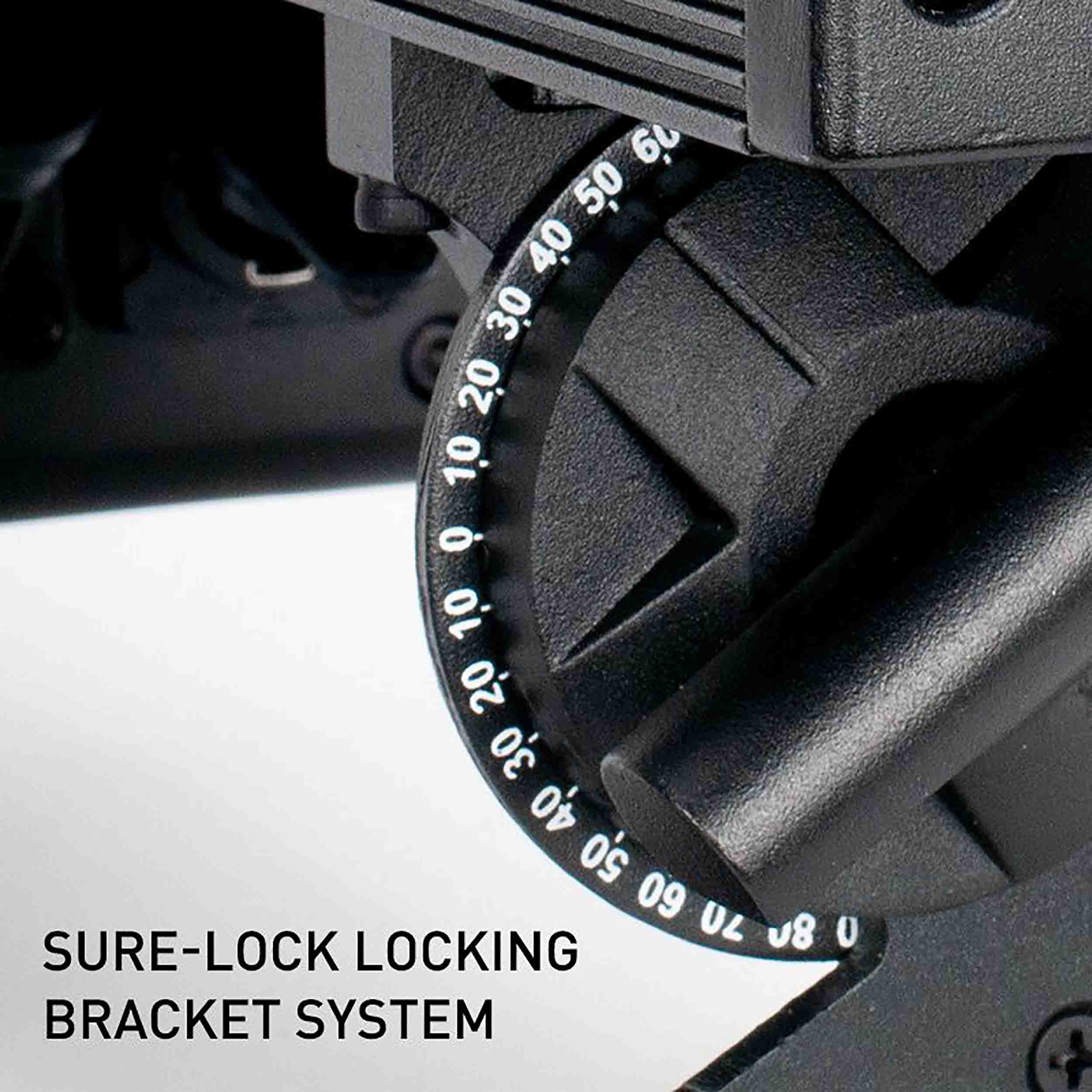

2x Omega Brackets
Optional Accessories:
ELB15L20 - 20-degree frost filter (sold separately)
ELB15L60 - 60-degree frost filter (sold separately)
ELB15L2100 - 100-degree frost filter (sold separately)
