Description

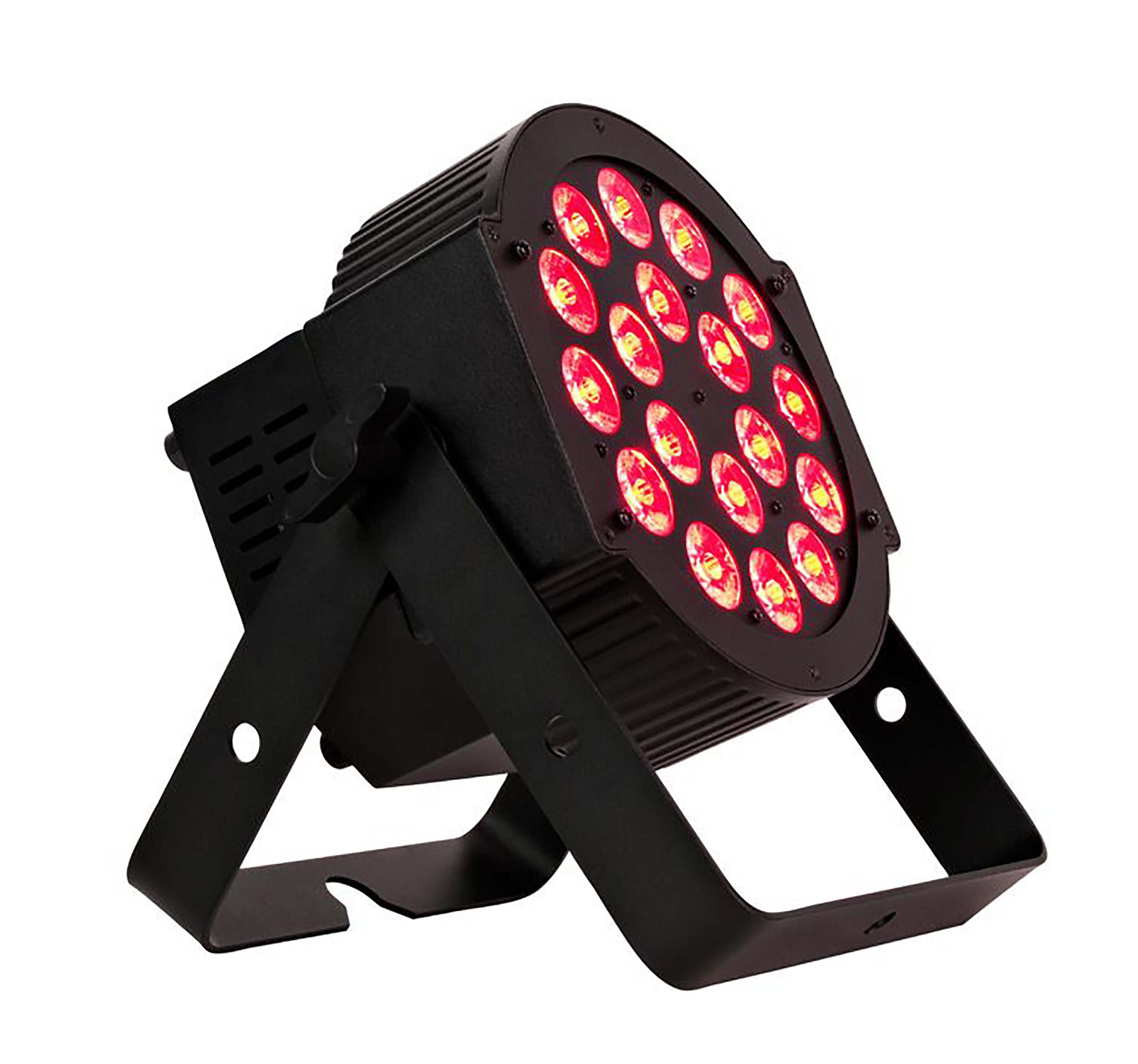

The ADJ 18P HEX, Wash light with RGBAW+UV LED, 18x 12-Watt, 6-IN-1 HEX LEDs produces wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for up lighting large venue.
18P HEX professional features include: 4 DMX modes (6, 7, 8 and 12), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 4 units (110V) or 8 units (240V) together via the fixtures built-in locking power in and out connections.

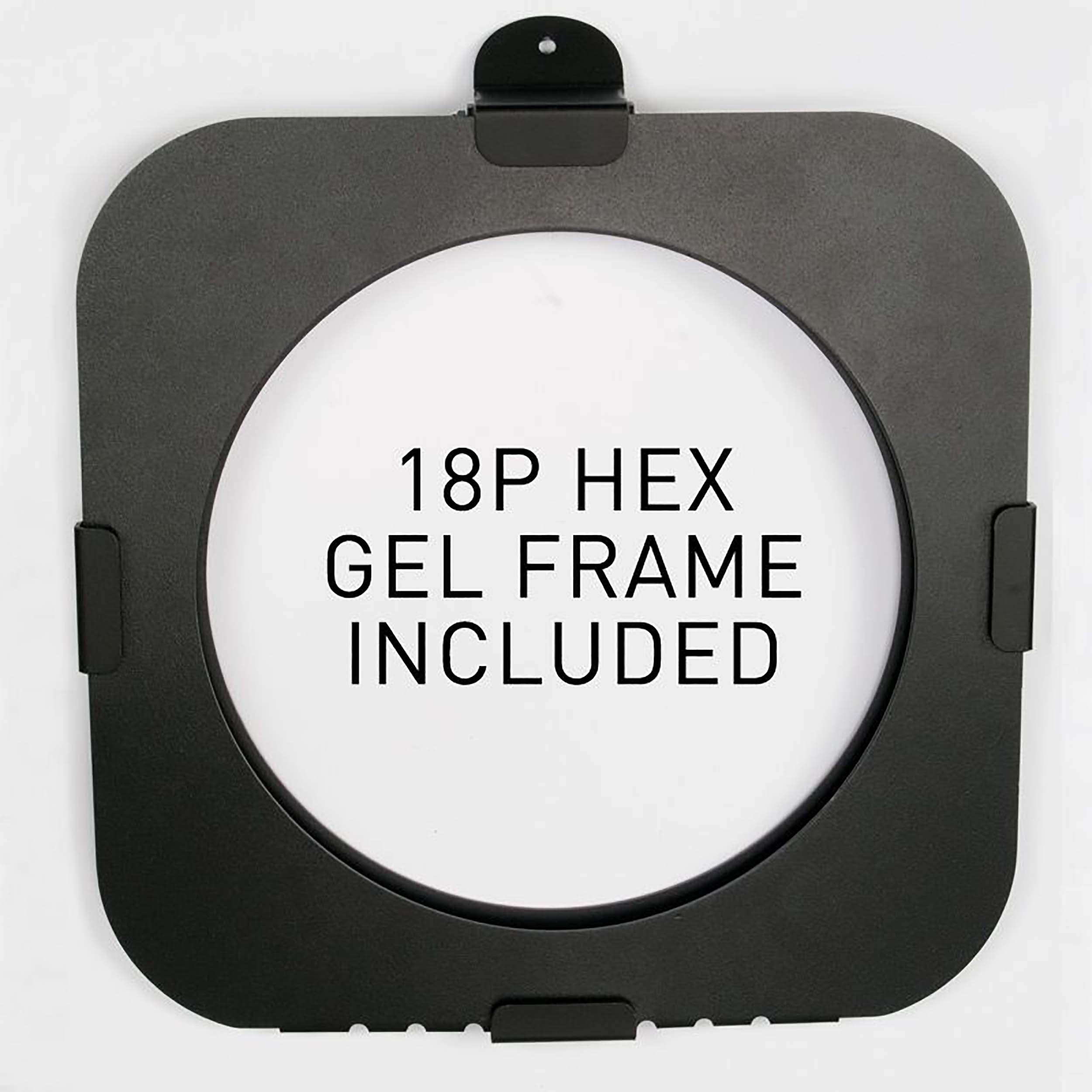

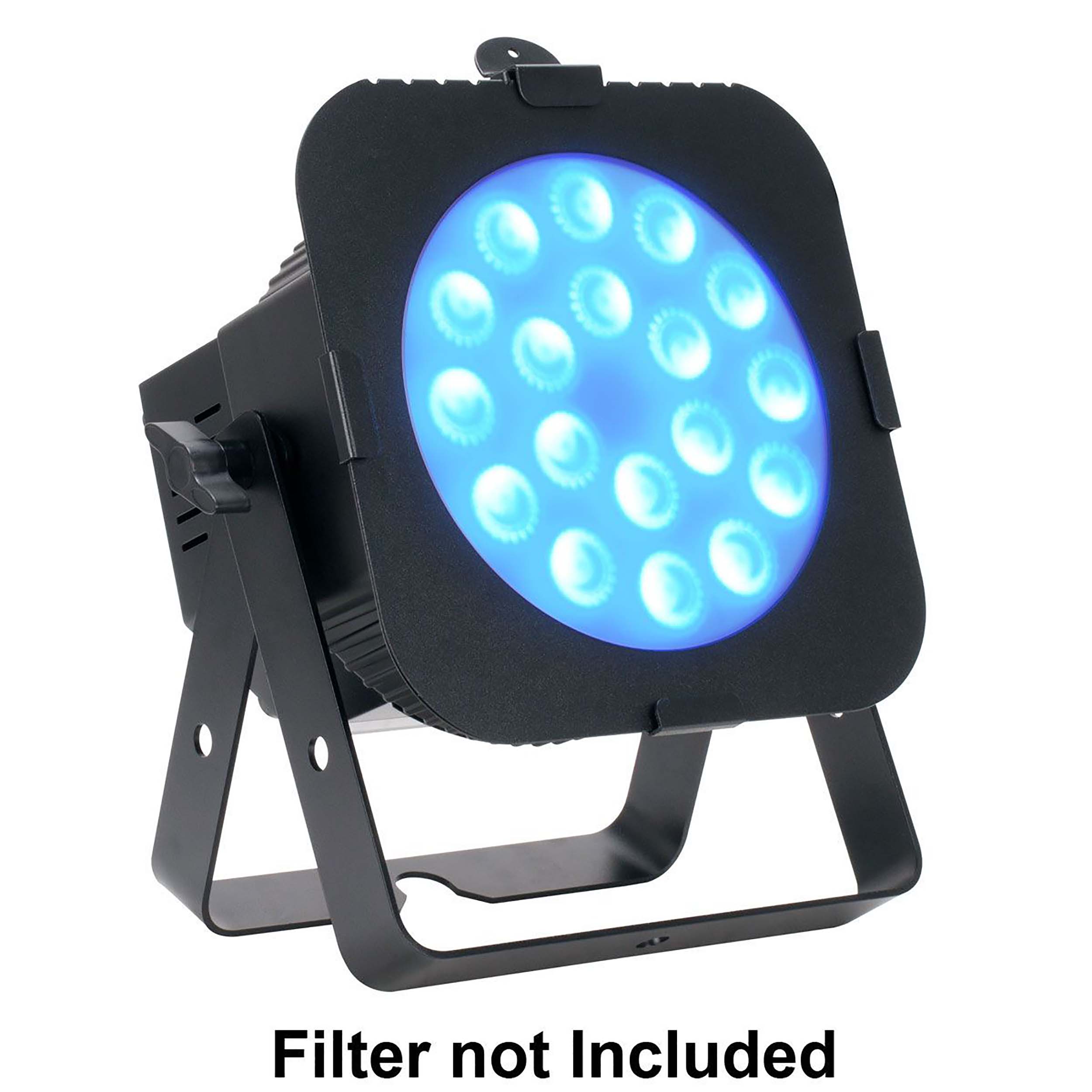

The 18P HEX is compatible with the Dotz Par RF easy-to-use wireless RF remote (Sold Separately). Alternatively, the fixture may be operated via a DMX controller or the units’ built-in programs. It comes with a metal gel frame in which a beam diffuser (sold separately) may be used to soften the beam.
Product Specifications:
Fixture Type: PAR
Light Source: 18x Color/UV LED - 12 W
Expected Lamp Life: 50,000 Hours
Colors: Red, Green, Blue, Amber, White, Ultraviolet
Beam Angle: 25°
Shutter / Strobe: Electronic
Iris: No
Focus: Manual
Zoom Adjustment: No
Dimming: Electronic, 0 to 100% with 5 Dimmer Modes
Operating Modes: Color Dimmer, DMX, Program, Sound-Active, Static Color
Macros / Programs: 63x Color Macro
Effects:
Pulse
Strobe
Gobos: No
Refresh Rate: 3.6 kHz
Control Protocols: DMX512, RDM
DMX Channel Modes:
4 Mode(s):
6 / 7+ / 8 / 12-Channel

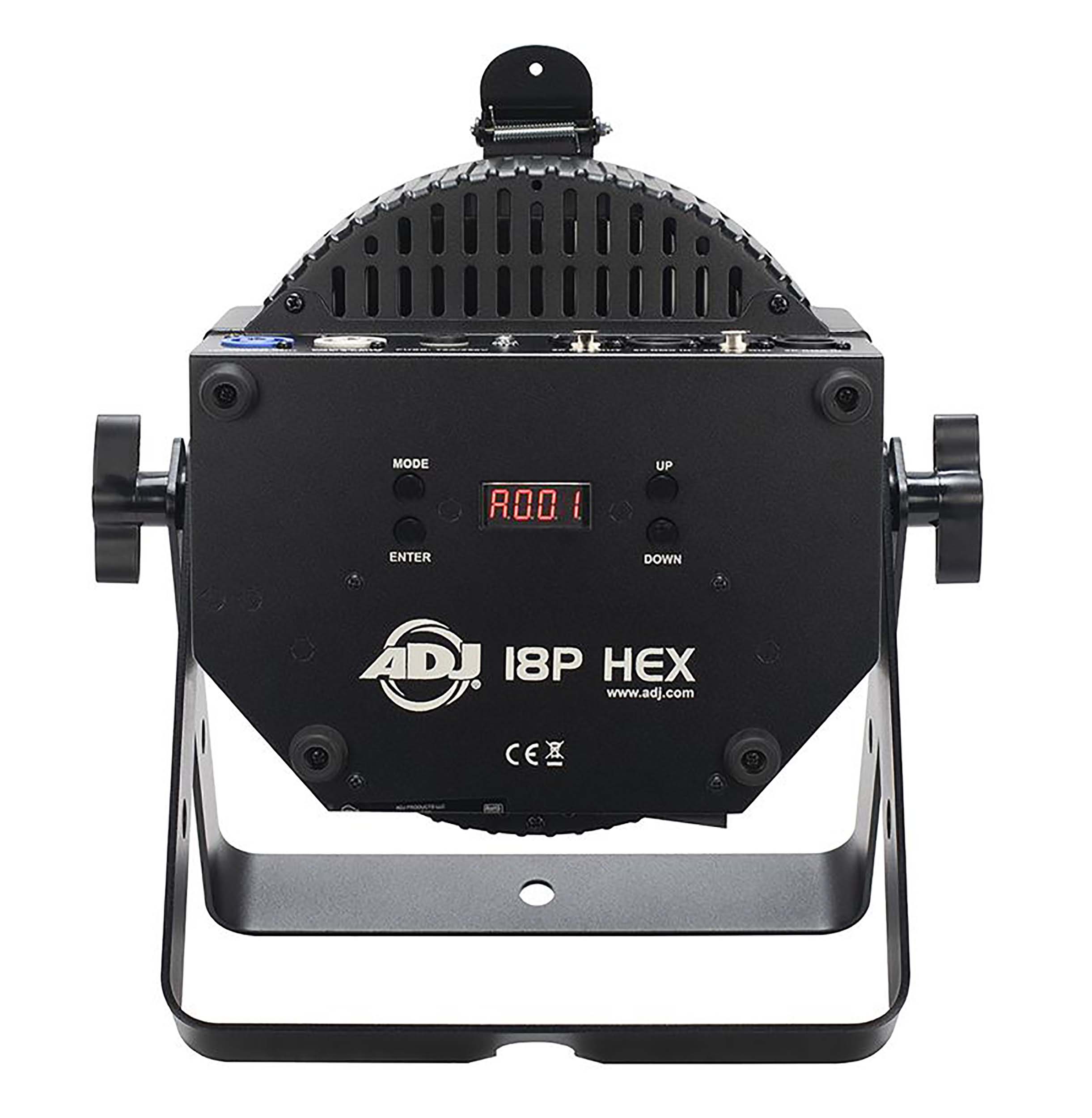

Display / Controls: LED / 4-Button
Remote Control: No

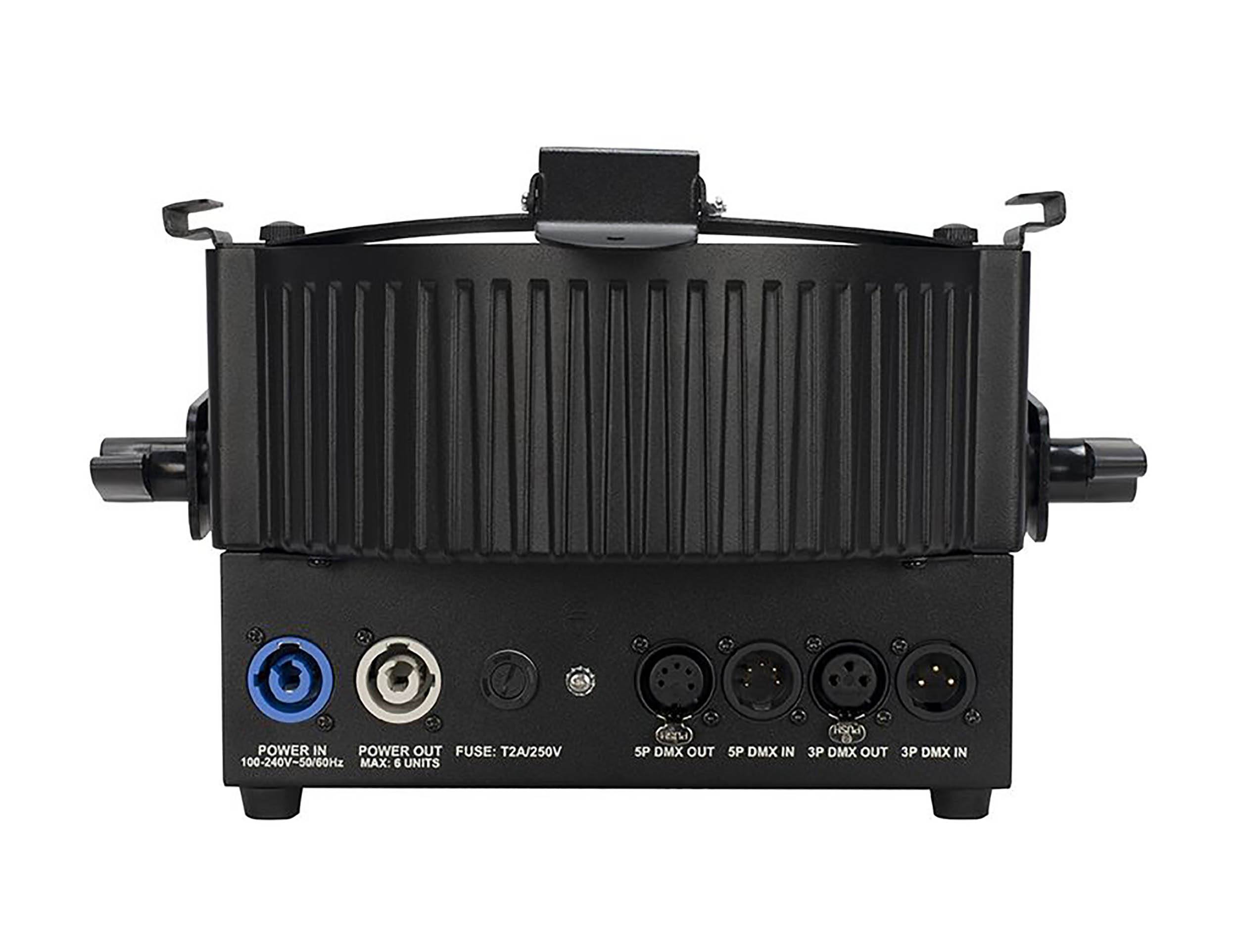

Inputs/Outputs:
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
AC Input Power: 100 to 240 VAC, 50/60 Hz
AC Power Connector:
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1
Plug Type: NEMA 5-15
Fuse: No
Power Linking:
7 Units at 120 VAC
16 Units at 240 VAC
Environmental Protection: Dust-Resistant (IP30)
Mounting: Dual/Scissor Yoke
Included Accessories: No
Duty Cycle: No
Exterior Color: Black
Product Weight: 12.9 lb. / 5.9 kg
Product Dimensions: 13 x 12 x 6.9" / 33 x 30.5 x 17.5 cm
Shipping Weight: 15.17 lb.
Shipping Dimensions (LxWxH): 15.5 x 14.2 x 9.2"
