Description

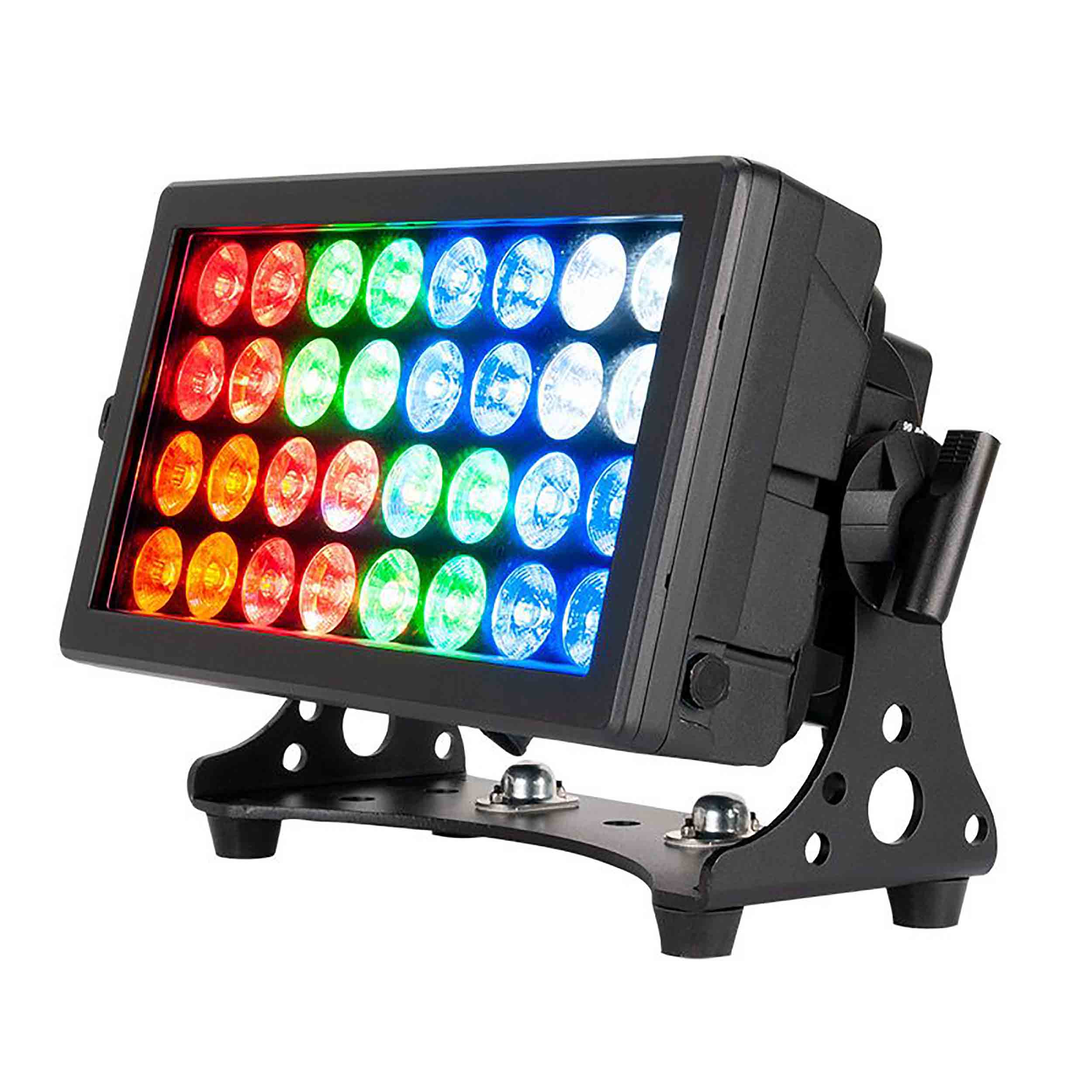

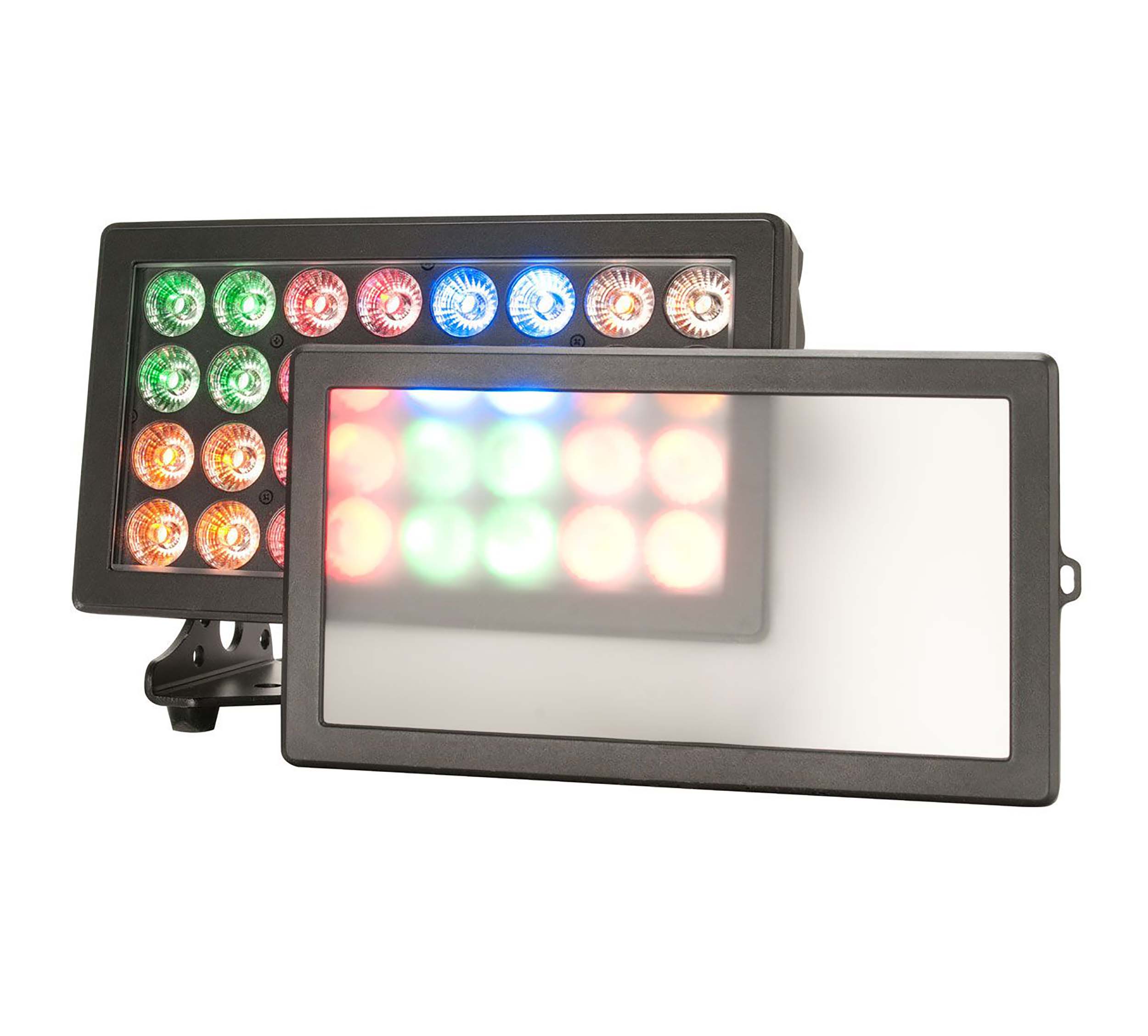

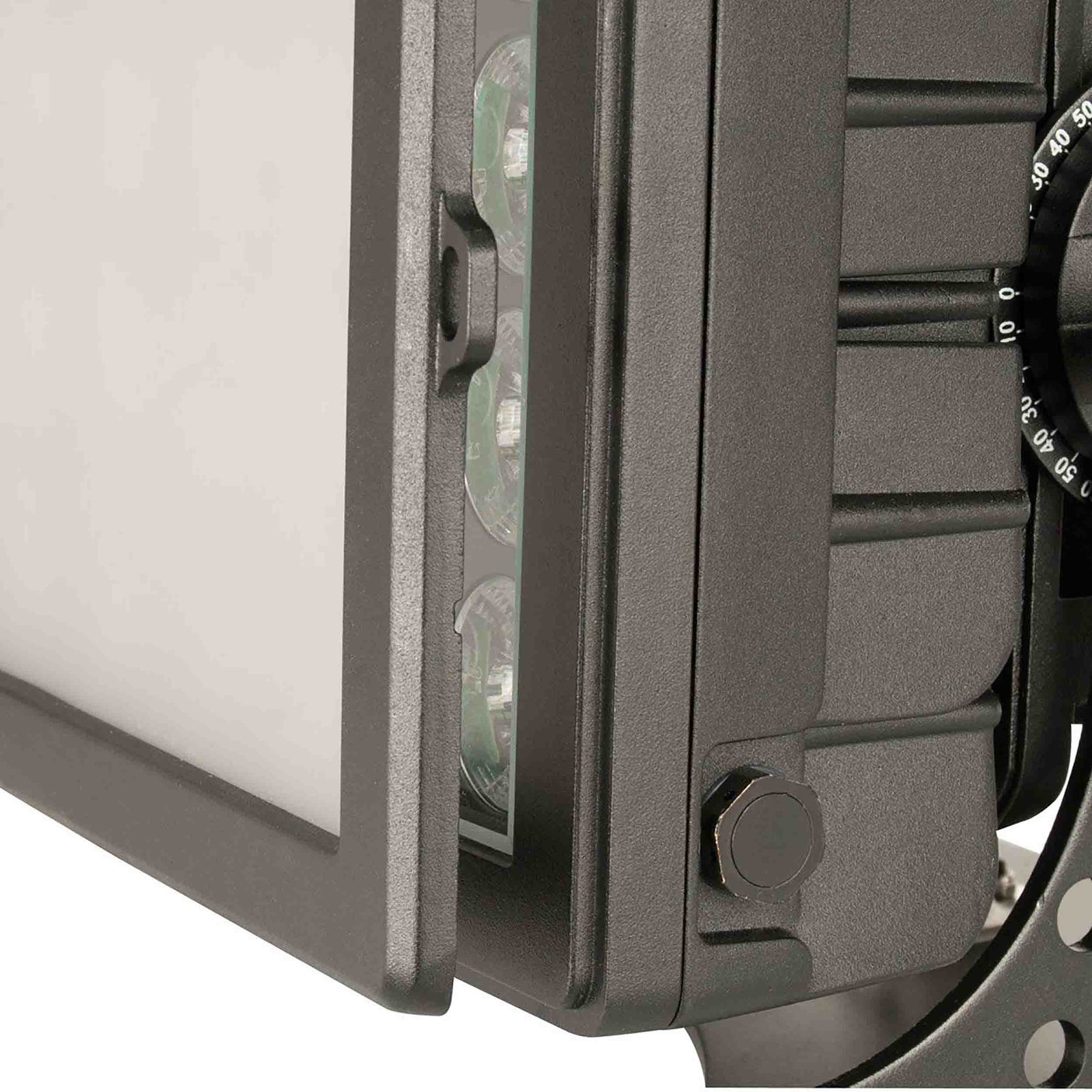

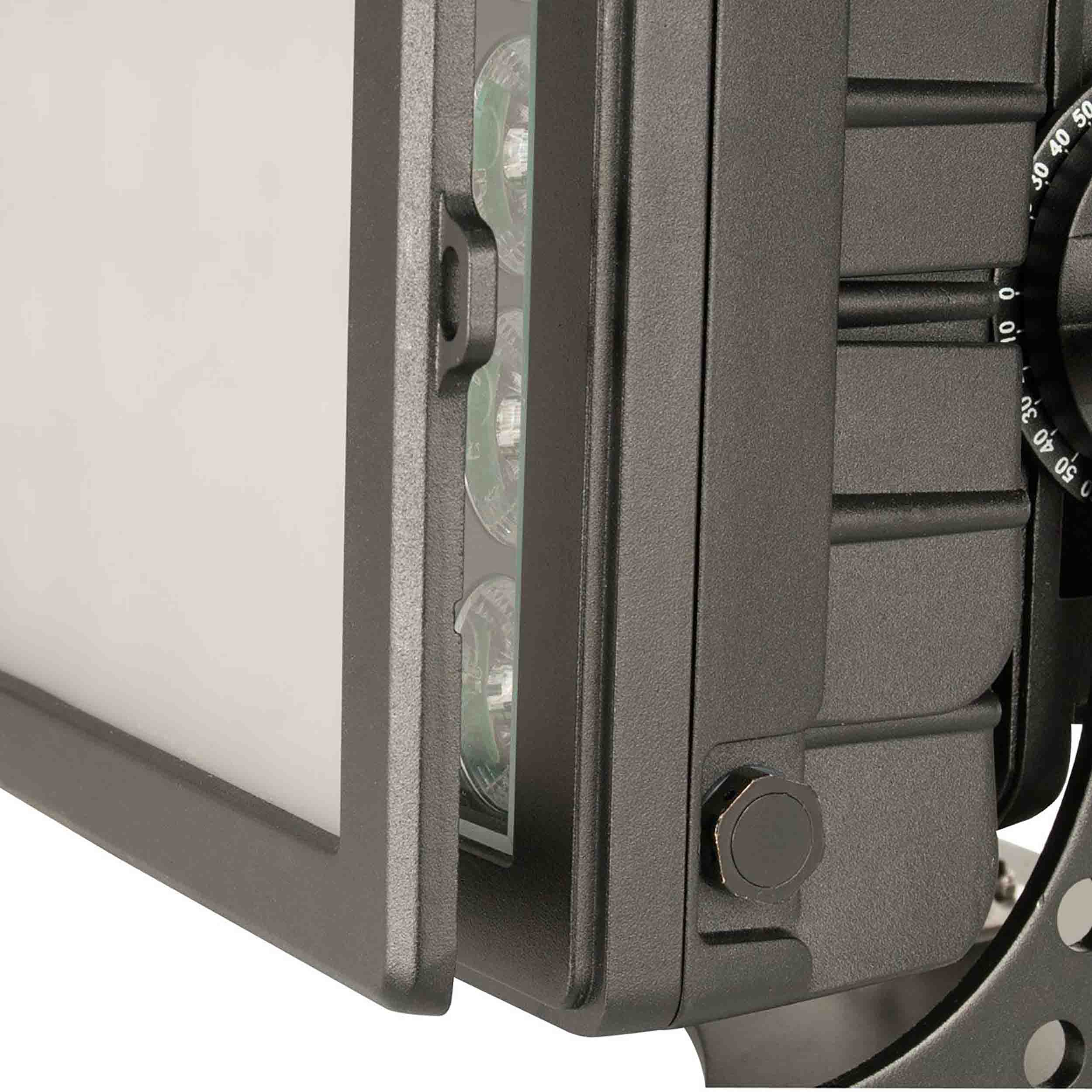

The ADJ 32 HEX Panel IP, IP65 rated wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a magnetic removable filter frame to add a diffusion filter to change the beam angle.

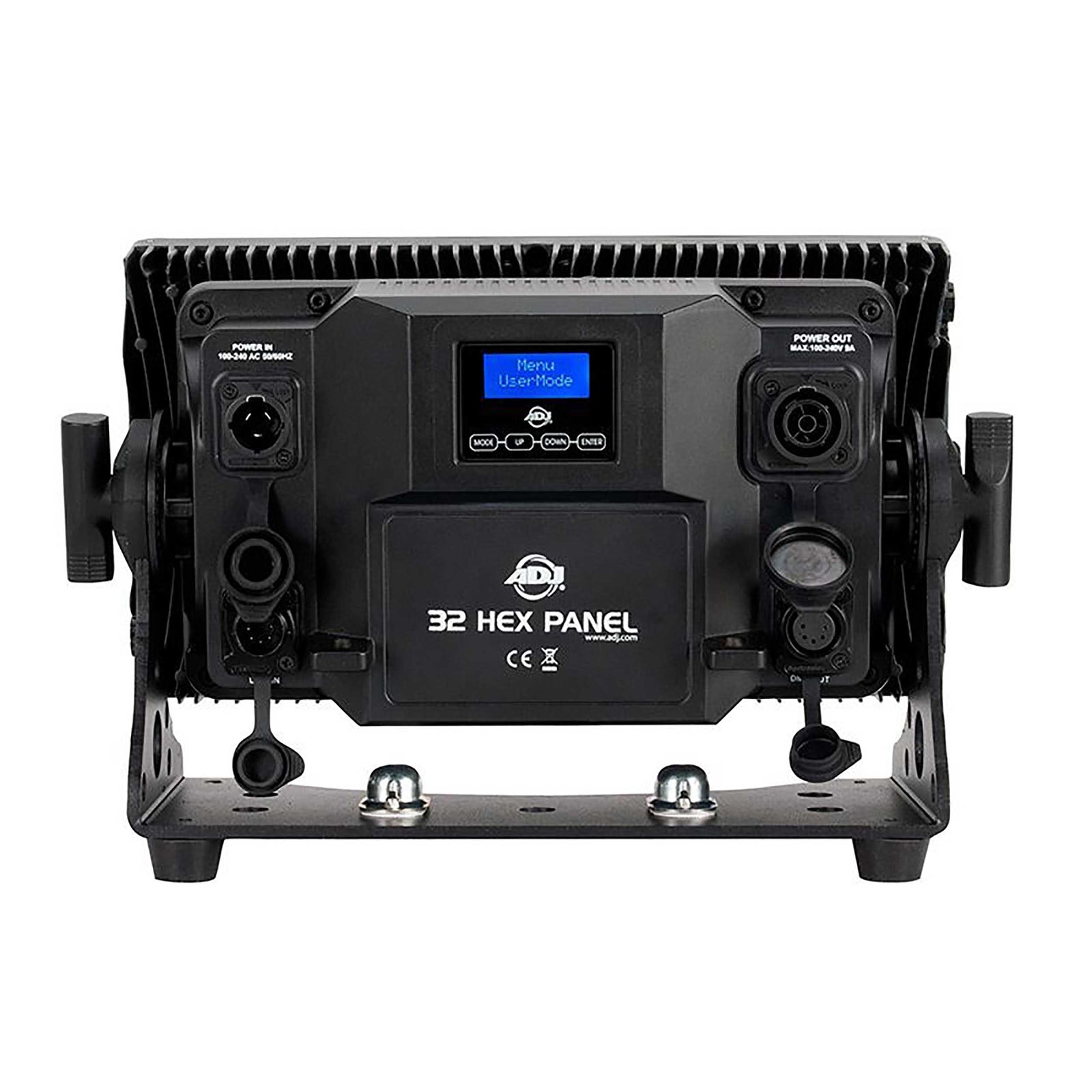

On the rear panel it features IP65 Locking 5-pin XLR, DMX In/Out connections, and IP65 Locking Power In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture. The 32 HEX Panel IP is flicker free for film and broadcast, and has multiple DMX control modes, dim modes, and selectable gamma and LED refresh rate settings.
Product Specifications:
Approvals / Rating:
cETLus Approved (Control #4010765)
CE Certified
Light Source:
LED: 32x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
Beam Angle: 24-degrees
LUX: 33040 @ 1M, 1322 @ 5M (Full On No UV); 20659 @ 1M, 826 @ 5M (Full On)
Construction:
Display: OLED display with function buttons
Data In/Out: IP65 Locking 5-pin XLR, DMX In/Out (with rubber protective covers over connections)
Power In/Out: IP65 Locking Power In/Out (with rubber protective covers over connections)
All Metal Heavy-Duty Housing: Built to Last In Outdoor or Touring Applications
Control:
Multiple DMX channel modes
8 individually controlled sections with Pixel Zone Control
0-100% Dimming + smooth 16-bit Dimming
5 Dimming Curve Modes
Control Mode: DMX512, RDM (Remote Device Management)
Gamma Brightness: Multiple settings
LED Refresh Rate: Multiple settings
With Wired Digital Communication Network
Electrical:
Power voltage: AC100-240V, 50/60Hz (multi-voltage)
Daisy chain up to 3 fixtures max (@ 120V); 6 fixtures max (@ 230V)
Power consumption: 220W Max
Dimensions & Weight:
Dimension: 13.75”x 9” x 6.75” / 350x230x170mm
Weight: 24.25 lbs. / 11kg.

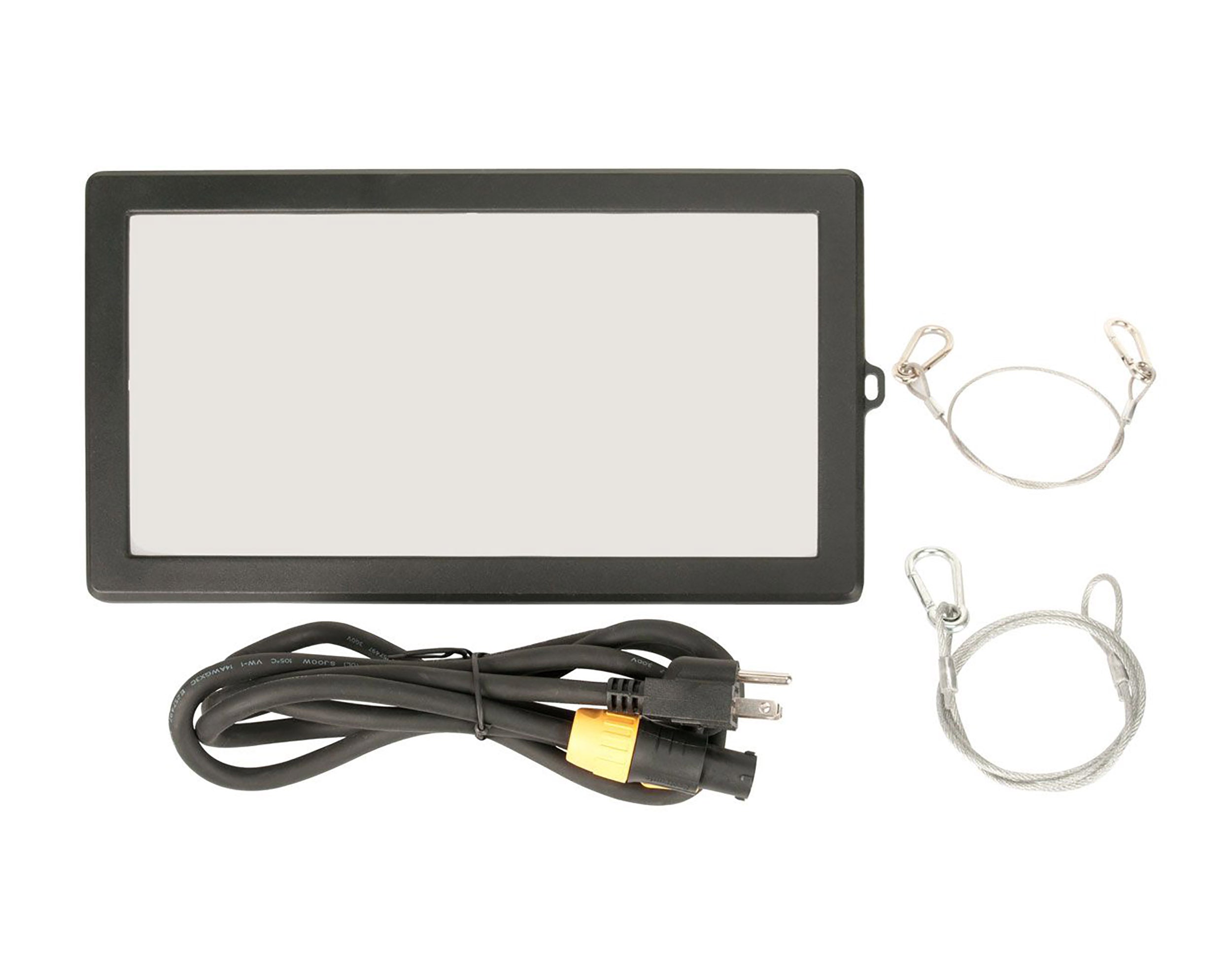

What's Included:
Removable frost filter with metal frame
IP65 locking power cable
Two Safety cables
