ADJ 3D Vision Plus, Hexagonal RGB LED Panel

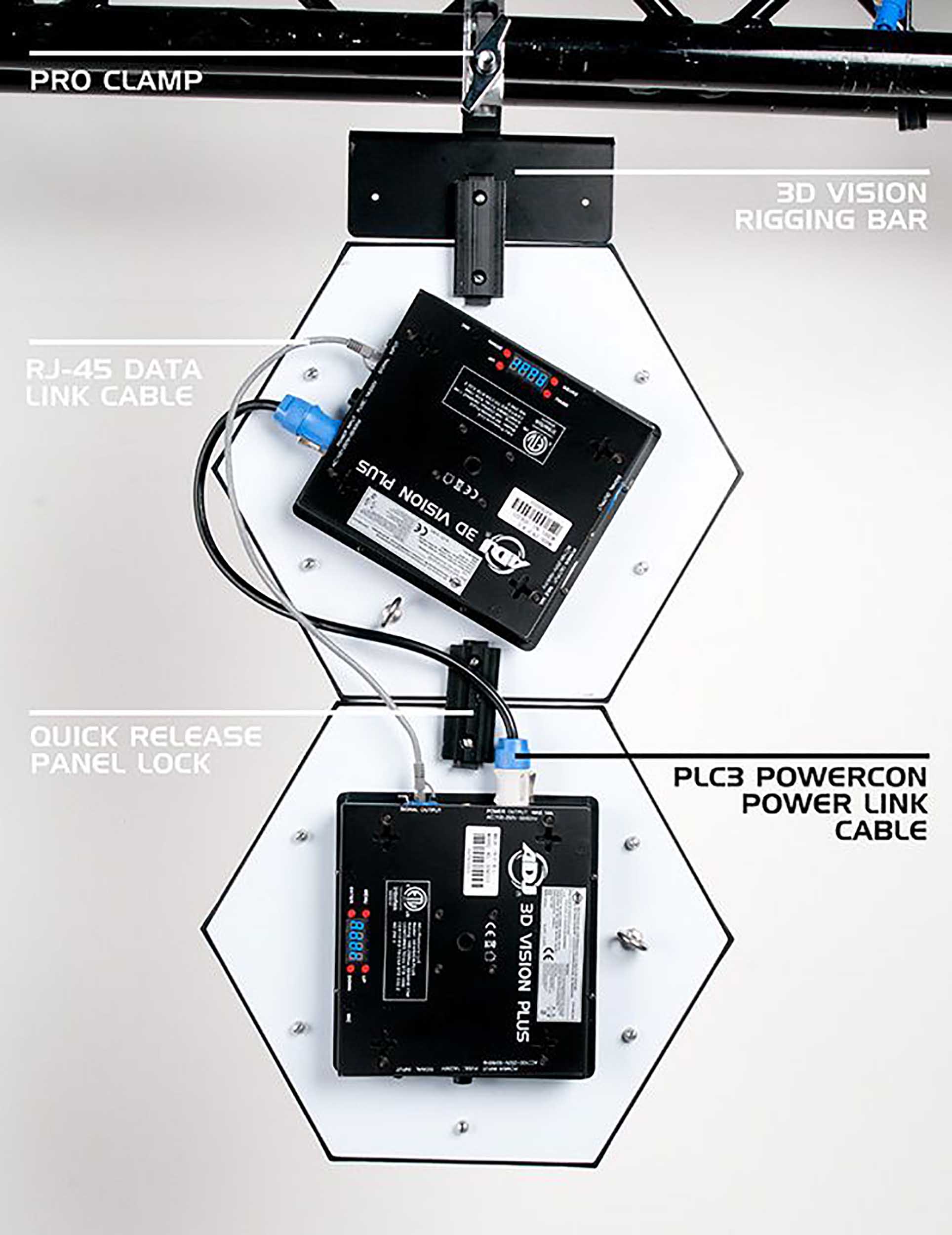

The ADJ 3D Vision Plus Hexagonal RGB LED Panel has stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. The 3D Vision Plus has a 4-Button menu system with a digital display. It may be controllable via DMX using a DMX to RJ45 adapter. It can also be used with EZ Kling interface for Artnet and KlingNet, LED Master control. Link multiple panels together via locking power input/output for power and with RJ45 ports for data linking. Panels lock together with an easy-to-use quick release panel lock. Rigging bars are also available for dead hang installation (M10 thread on the rear for a Pro Clamp so units can easily be fastened to truss or 2-inch pipe).

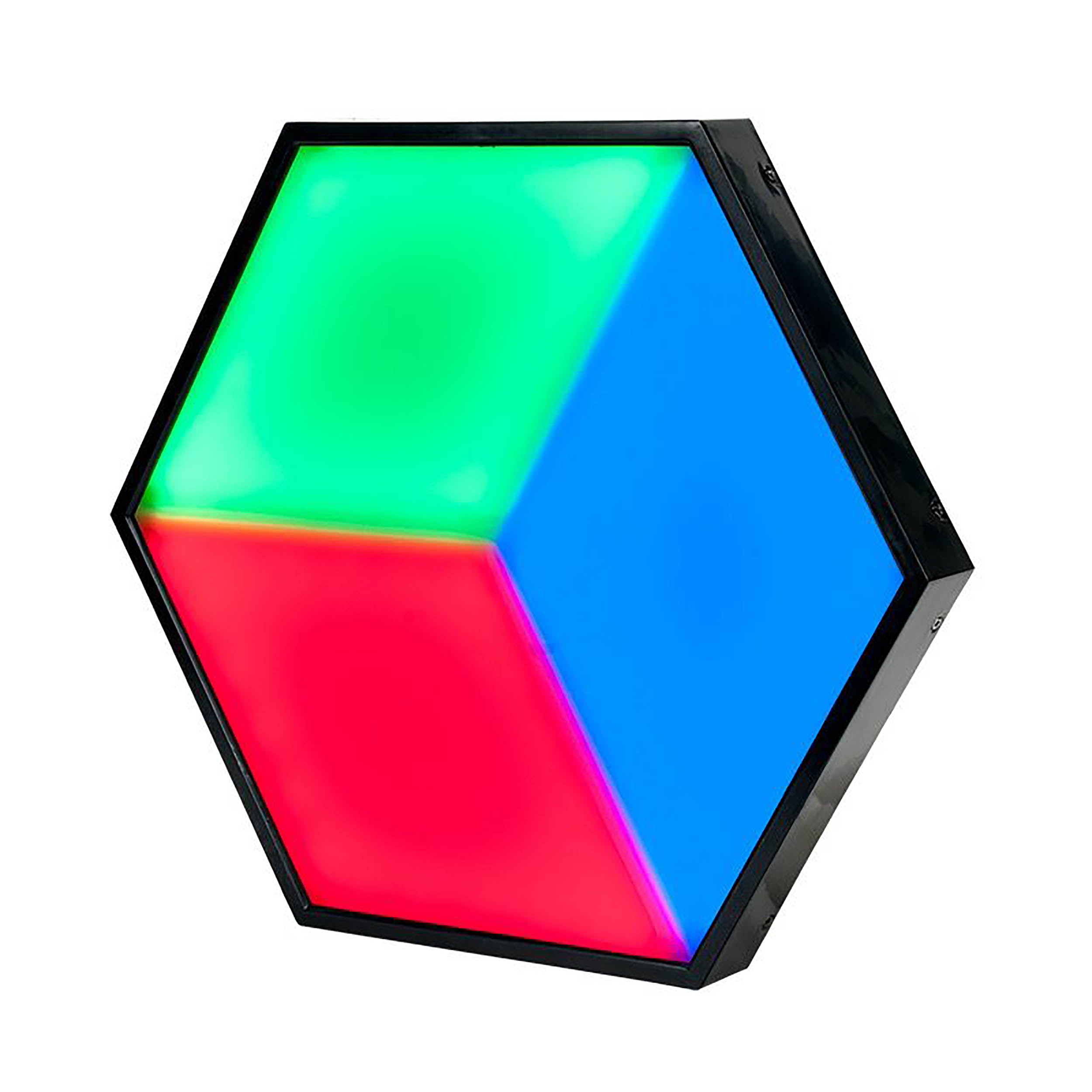

Measuring 15.8” x 15.8” (400mm x 400mm), the face of each 3D Vision Plus panel is covered with a frosted white acrylic panel which diffuses the light from the 72 3-in-1 RGB LEDs beneath. This creates an even spread of light within each of the three sections and gives the 3D vision a wide 180-degree viewing angle.

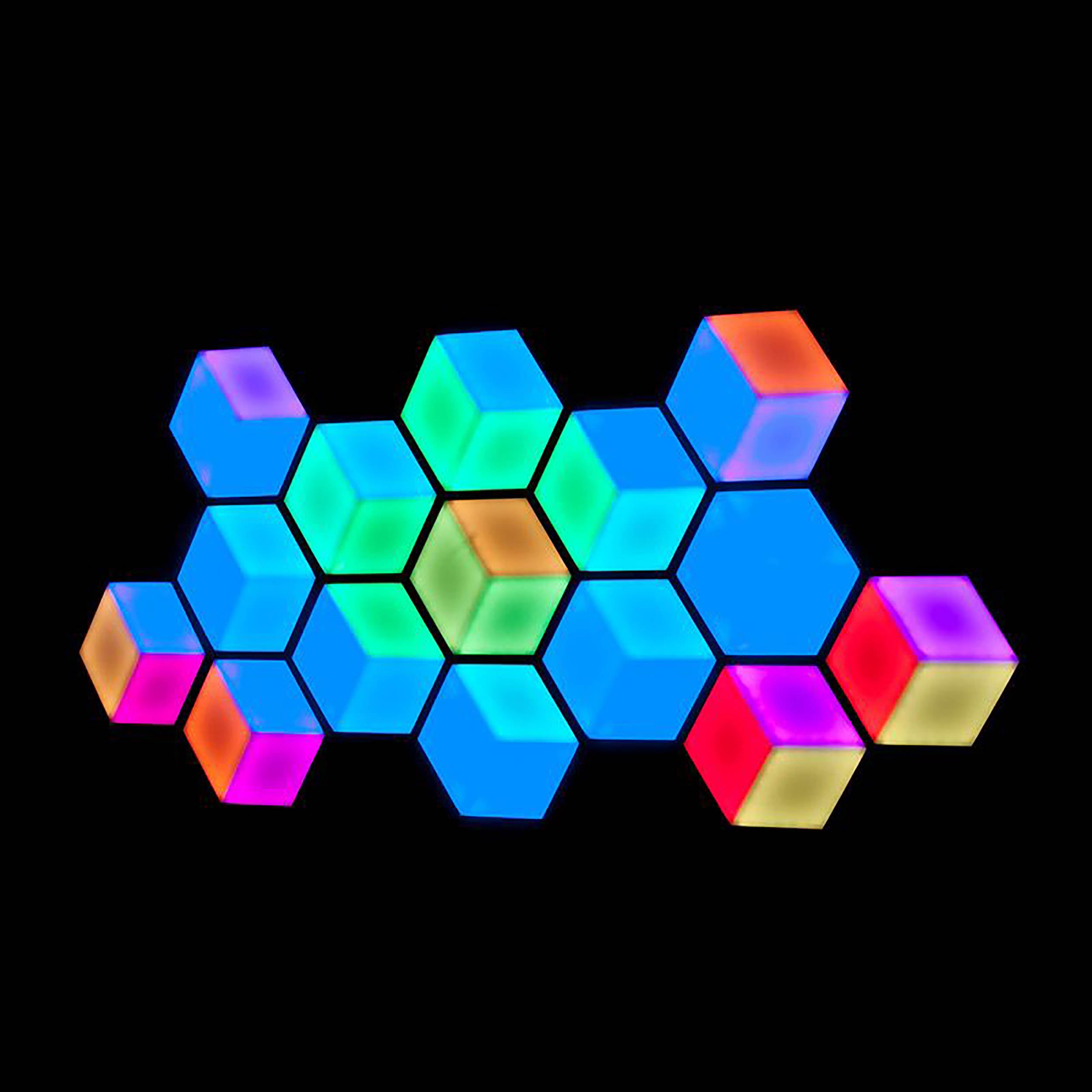

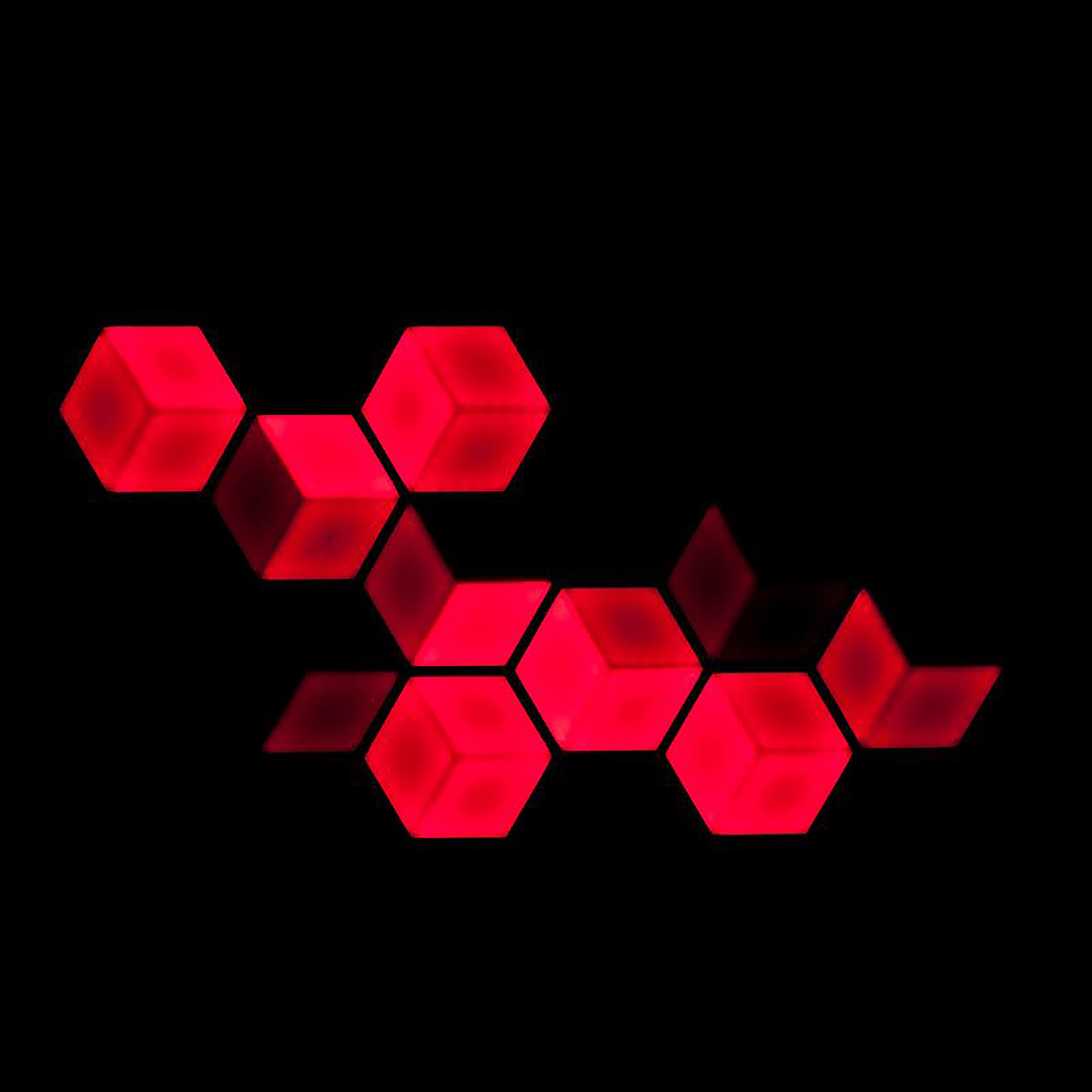

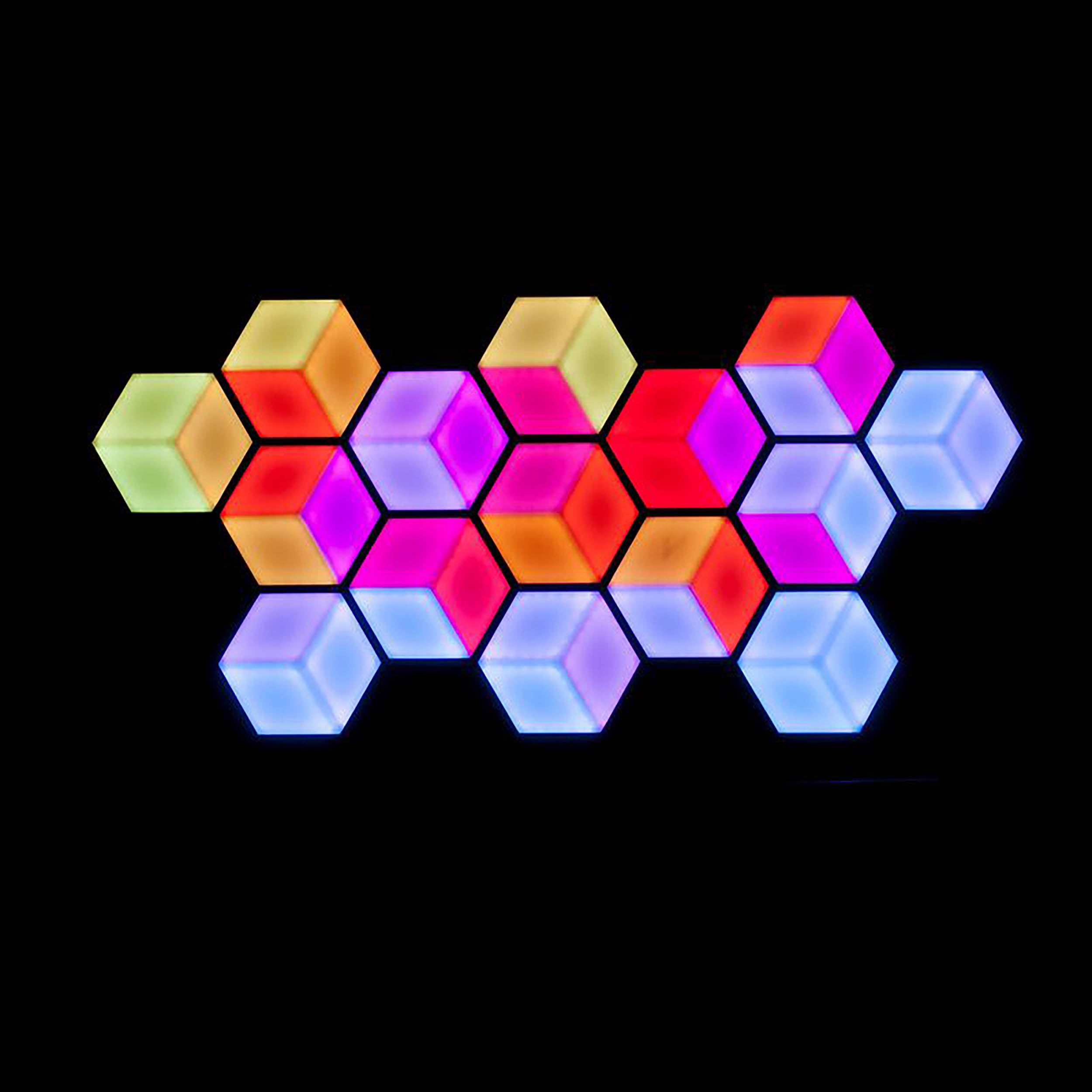

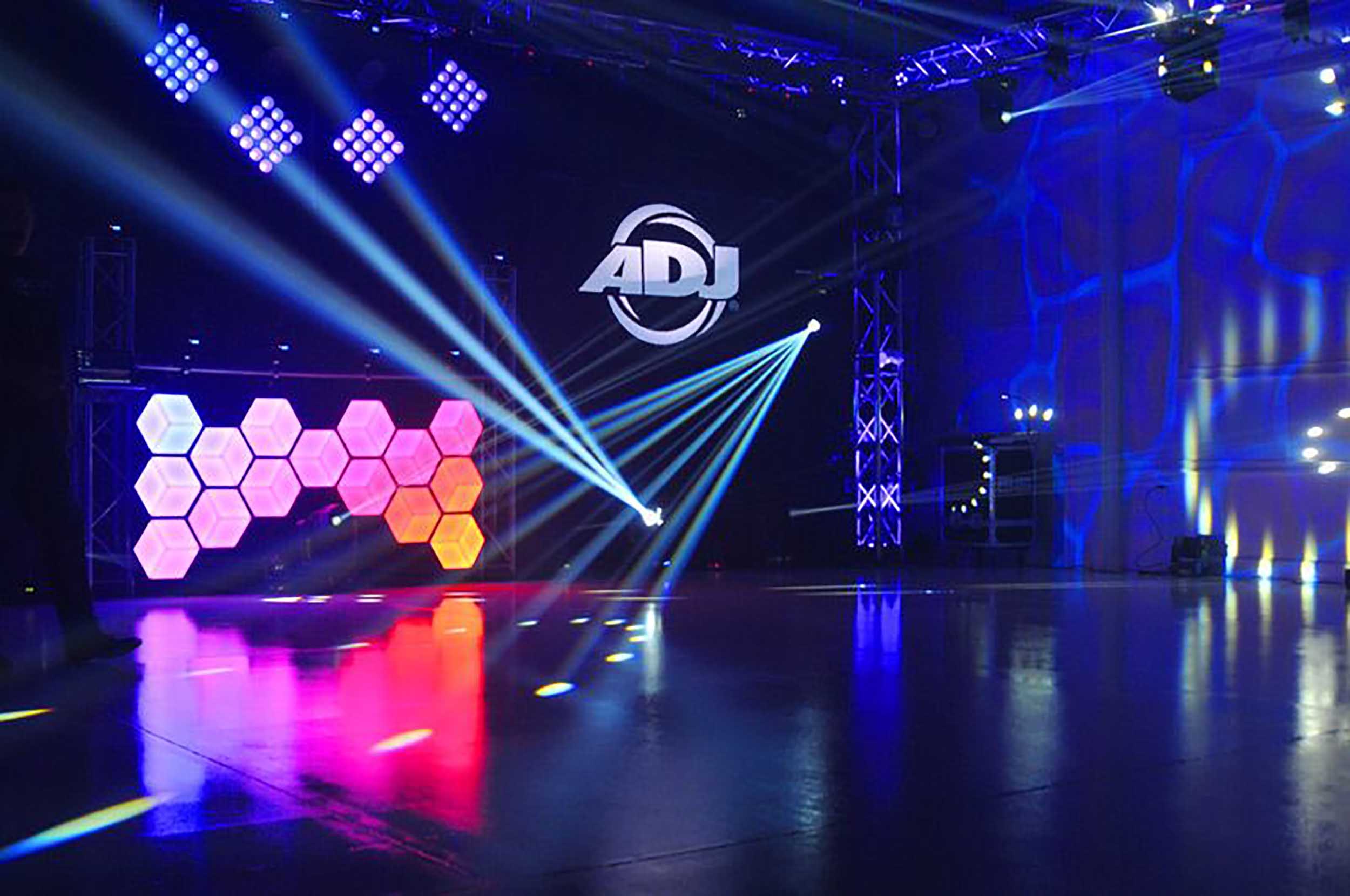

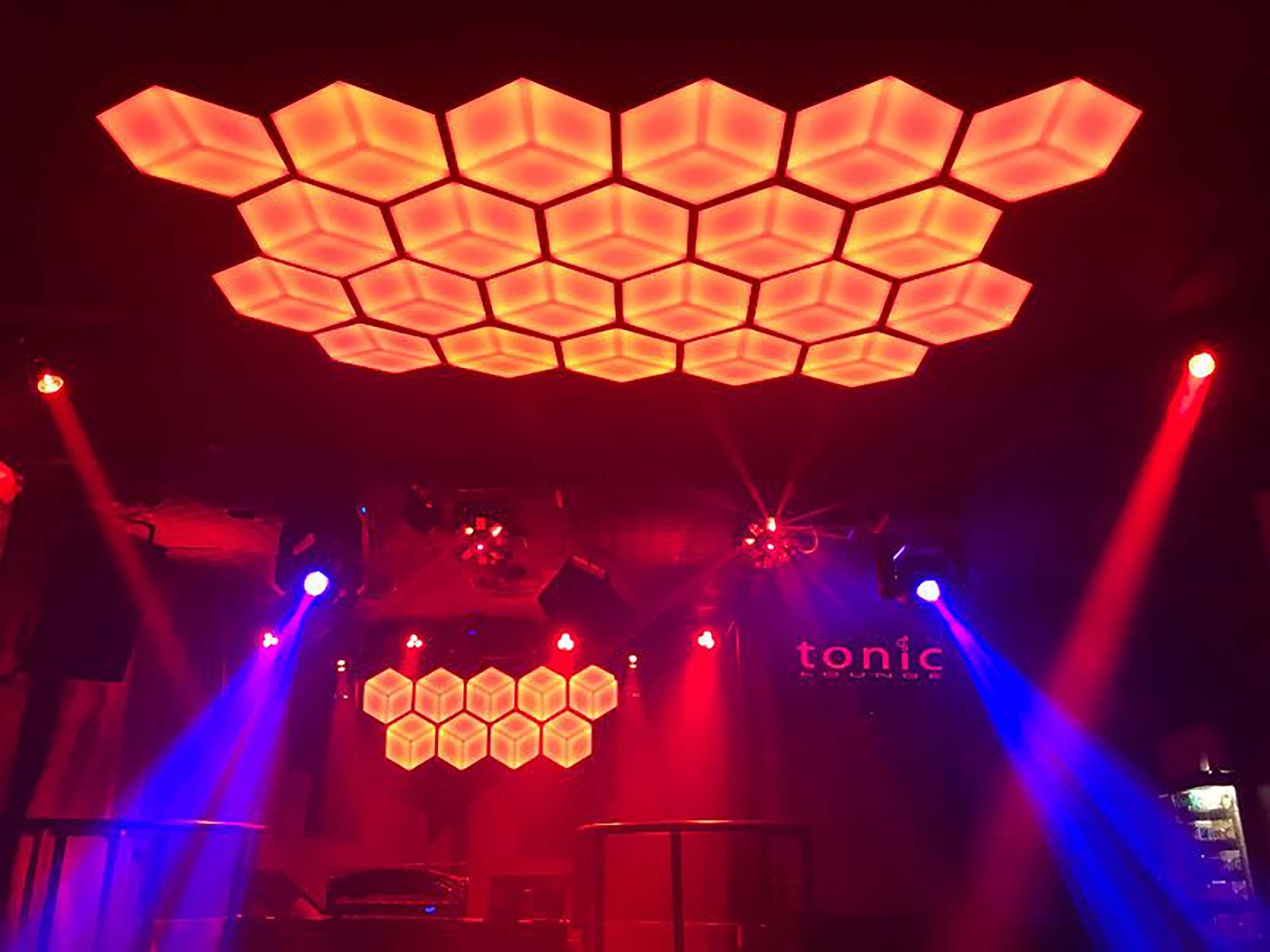

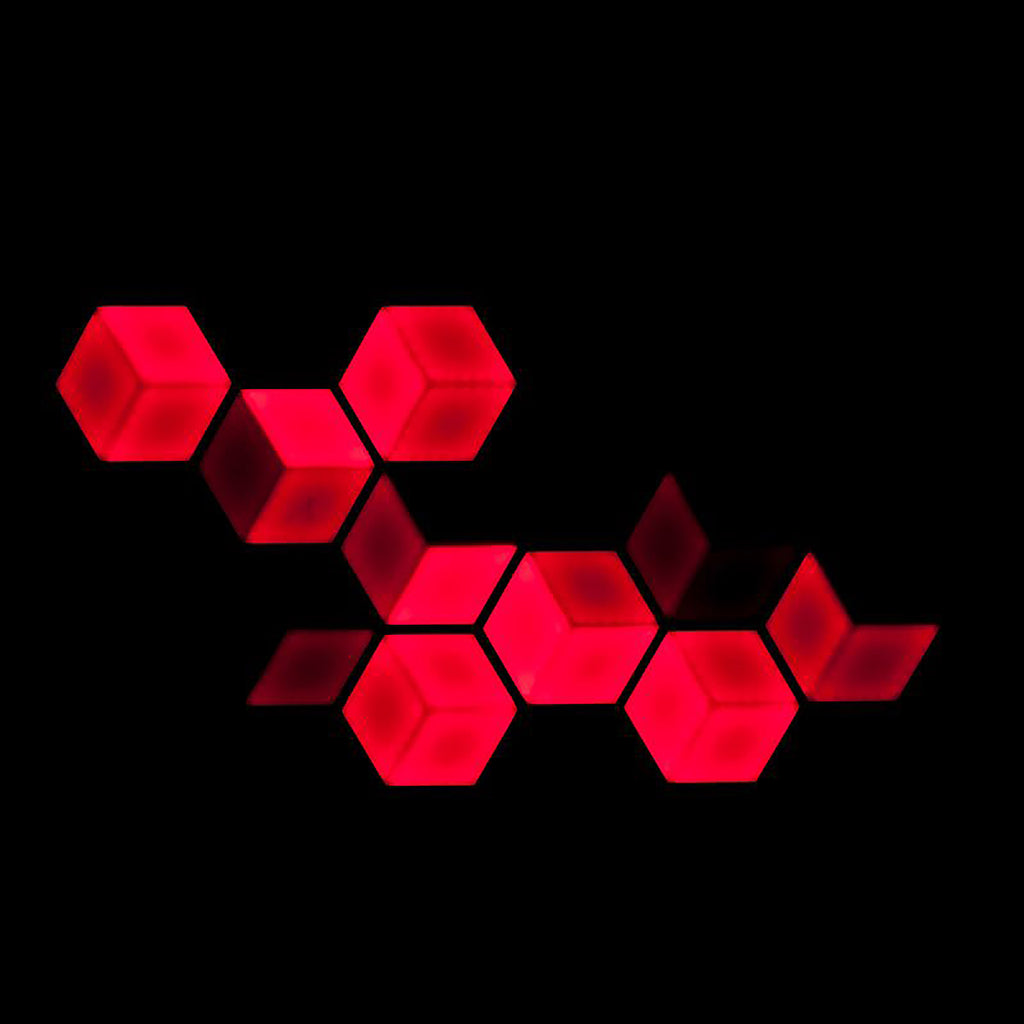

Thanks to the 3D Vision Plus’ modular design, panels can be used in isolation or linked together at any of their six sides. This means that large 3D-effect LED surfaces can be created in unlimited shapes and configurations. For example, you could use a single line of panels attached to the front of a truss pillar to spice up a stage set, while a matrix of panels could be used to create an impressive backdrop.

Product Specifications:

Light Source:

72 Pieces 3-in-1 RGB LEDs

Beam Angle: 180 Degrees

Control:

3 Operating Modes: Sound Active Mode (with Sound Sensitivity Adjustment), Auto Run Mode (16 Programs with Speed Adjustment), DMX Control

3 DMX Channel Modes: 3, 9, and 13 Channel Mode

Stand Alone or Primary/Secondary Configuration

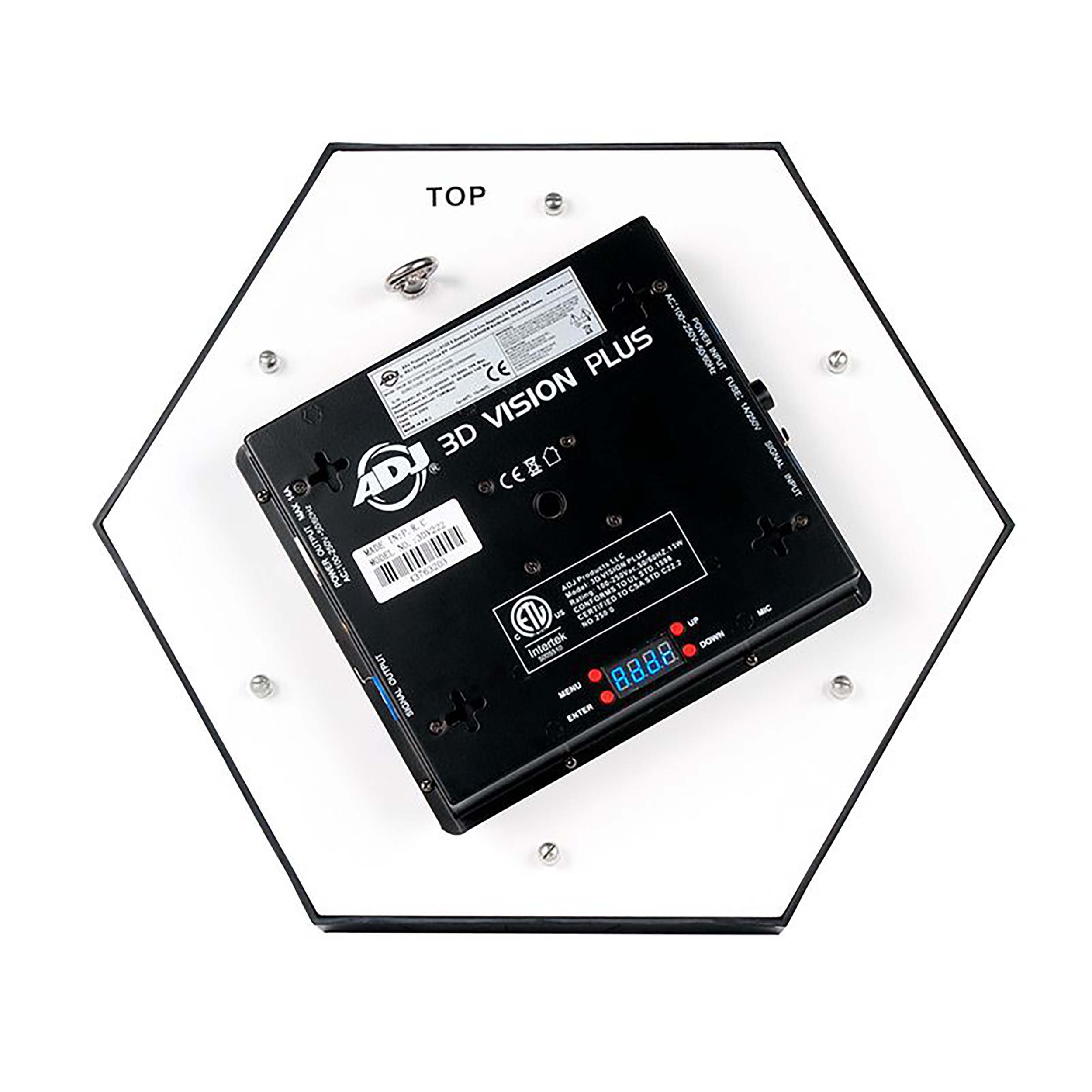

4-Button Menu with Digital Display

With Wired Digital Communication Network

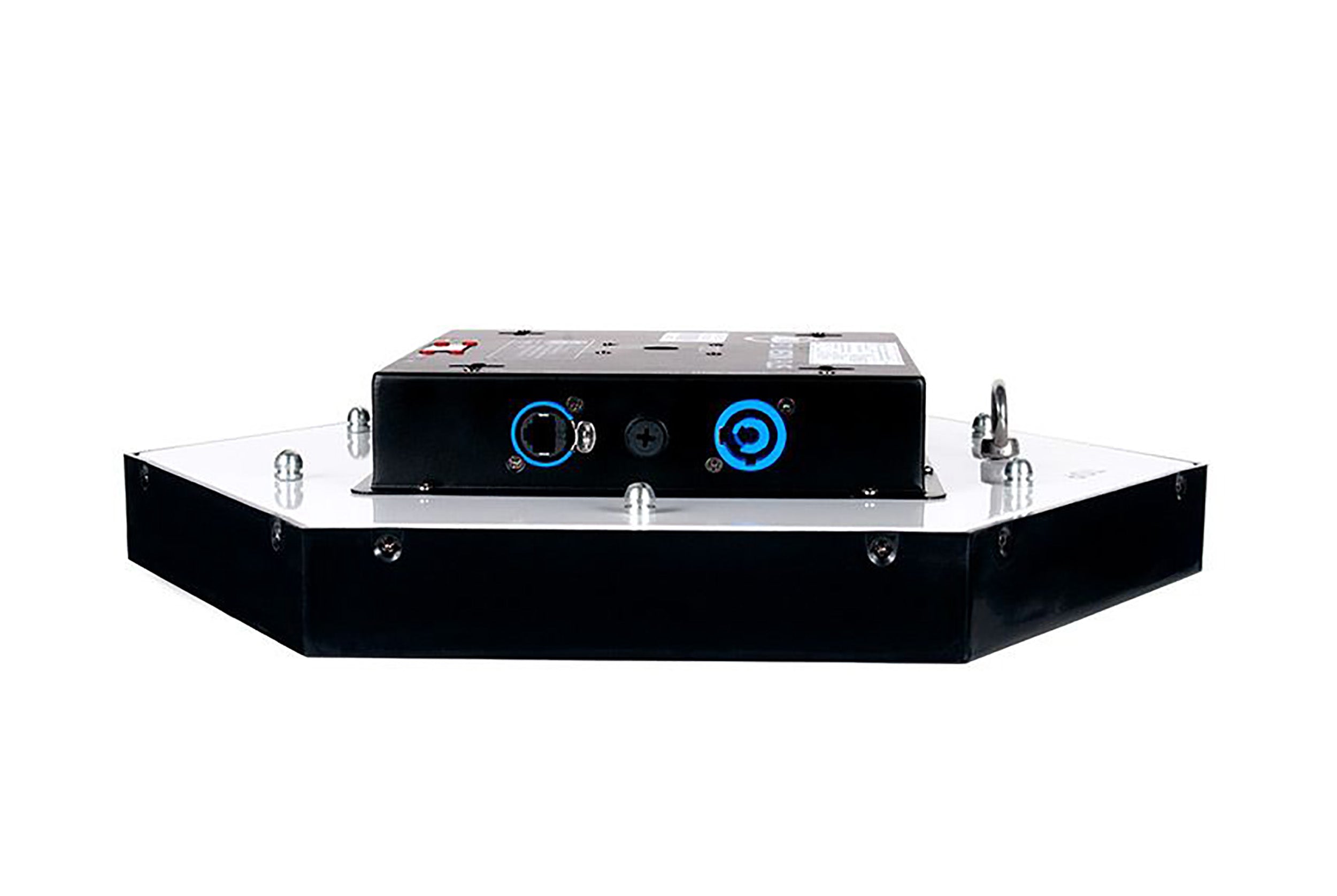

Connections:

Locking power input/output to daisy chain power

RJ45 In/Out to link DMX data

Electrical:

Input Voltage: AC 100-250V, 50/60Hz

Approvals:

cETLus (Control #5005510), CE

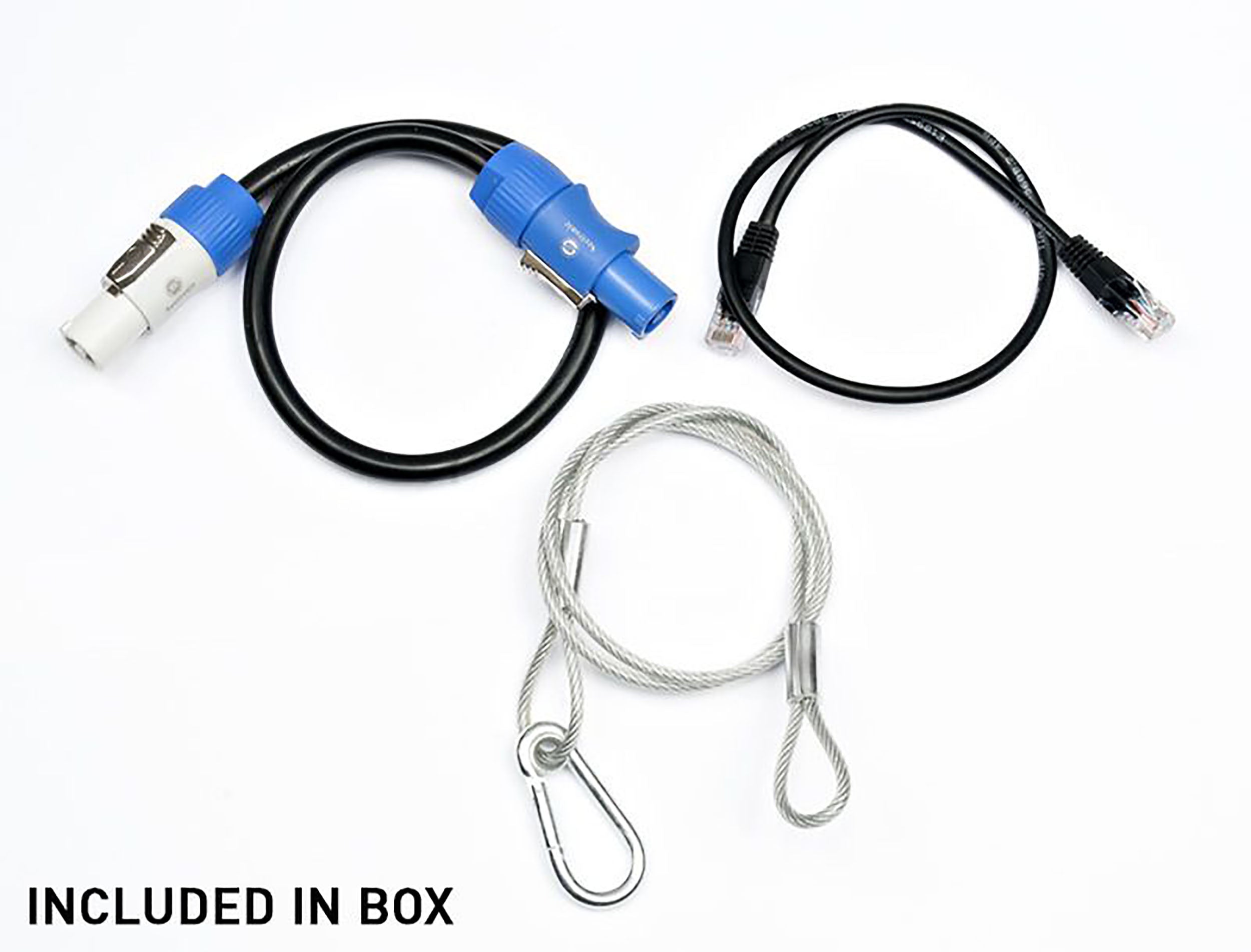

What’s in the box:

2 ft. power linking cable

2 ft. CAT6 data linking cable

Safety cable

Accessories (sold separately):

3D Vision PL: Metal panel brackets used to lock 3D Vision Plus panels together

3D Vision RB1: Metal rigging bar

PLC3: 3-foot locking power link cables

MPC10: locking main power cable

myDMX 3.0: DMX control software

ACRJ453PFM: RJ45 to 3-pin male DMX adapter

Main power cable sold separately

Weight:  6 lbs./ 2.74Kgs.

Dimensions (LxWxH):  3.16” x 15.93” x 13.80” / 80.5 x 404.7 x 350.7 mm
