Description

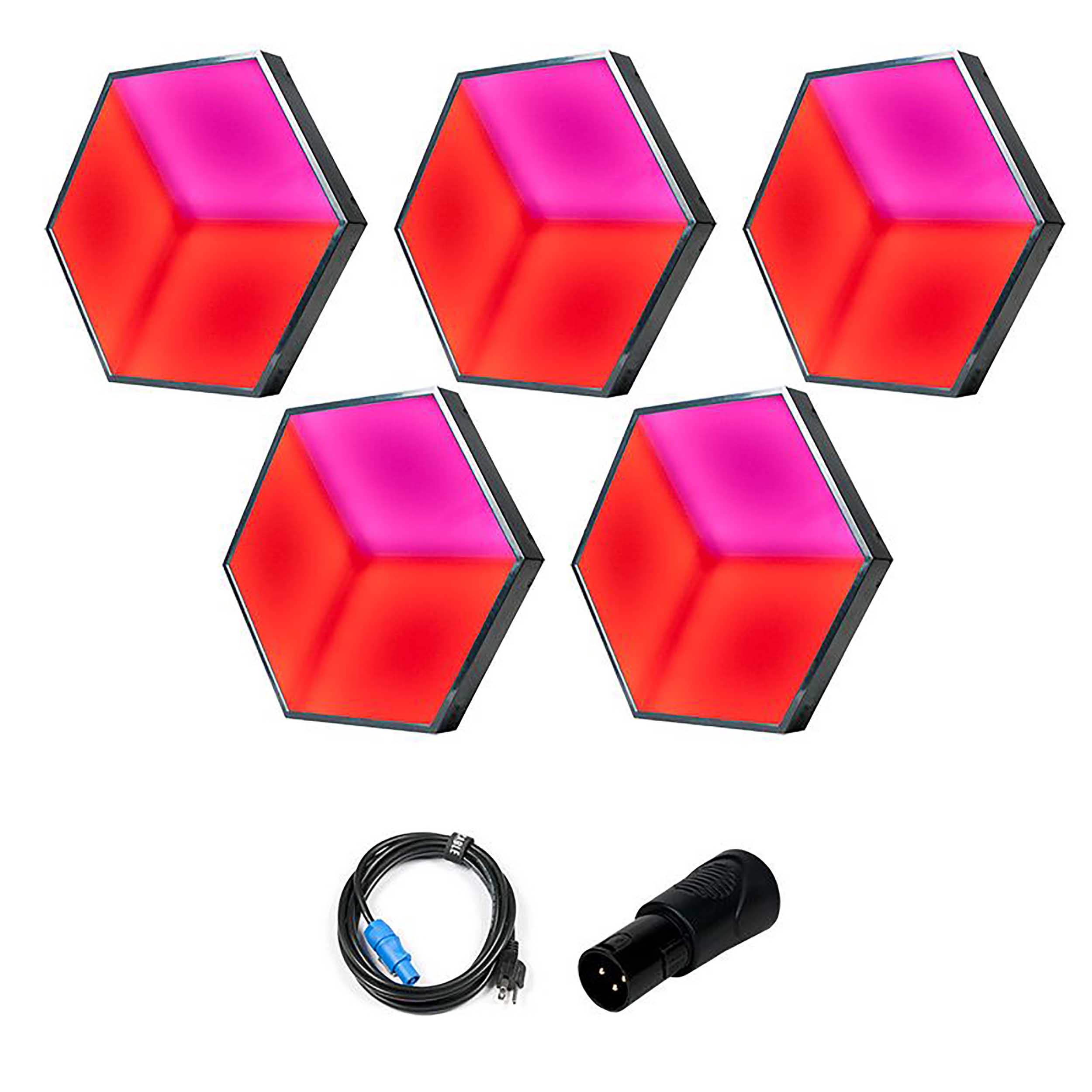

The ADJ 3D Vision Plus Sys 1, System of Five (5) 3d Vision Plus Panels and All Cables Needed includes everything you need to create stunning visual effects with five (5) 3D Vision panels. This system comes with all necessary cables to connect and power your panels, ensuring seamless integration and setup. Note that additional accessories such as the 3D Vision PL, 3D Vision RB1, and 3D Vision Encoder are sold separately to expand your system's capabilities.
System Includes:
5x 3D Vision Plus Panels (includes power linking cable & RJ45 linking cable)
1x MPC10 Locking Power Cable
1x ACRJ453PM XLR to RJ45 adapter (connects myDMX 2.1 to 3D Vision Plus)
Product Specifications:
Light Source:
72 Pieces 3-in-1 RGB LEDs
Beam Angle: 180 Degrees
Control:
3 Operating Modes: Sound Active Mode (with Sound Sensitivity Adjustment), Auto Run Mode (16 Programs with Speed Adjustment), DMX Control
3 DMX Channel Modes: 3, 9, and 13 Channel Mode
Master/Slave Set Up
4-Button Menu with Digital Display
Connections:
powerCON In/Out to daisy chain power
RJ45 In/Out DMX protocol
Electrical:
Input Voltage: AC 100-250V, 50/60Hz
Dimensions / Weight:
Dimensions (LxWxH): 3.16” x 15.93” x 13.80” / 80.5 x 404.7 x 350.7 mm
Weight: 6 lbs./ 2.74Kgs.
Approvals:
ETL, ETLC, CE
Sold Separately:
3D Vision PL: Quick release panel lock to lock 3D Visions together
3D Vision RB1: single panel rigging bar
3D Vision Encoder: DMX Encoder for 3D Vision used to set DMX address for each panel
