Description

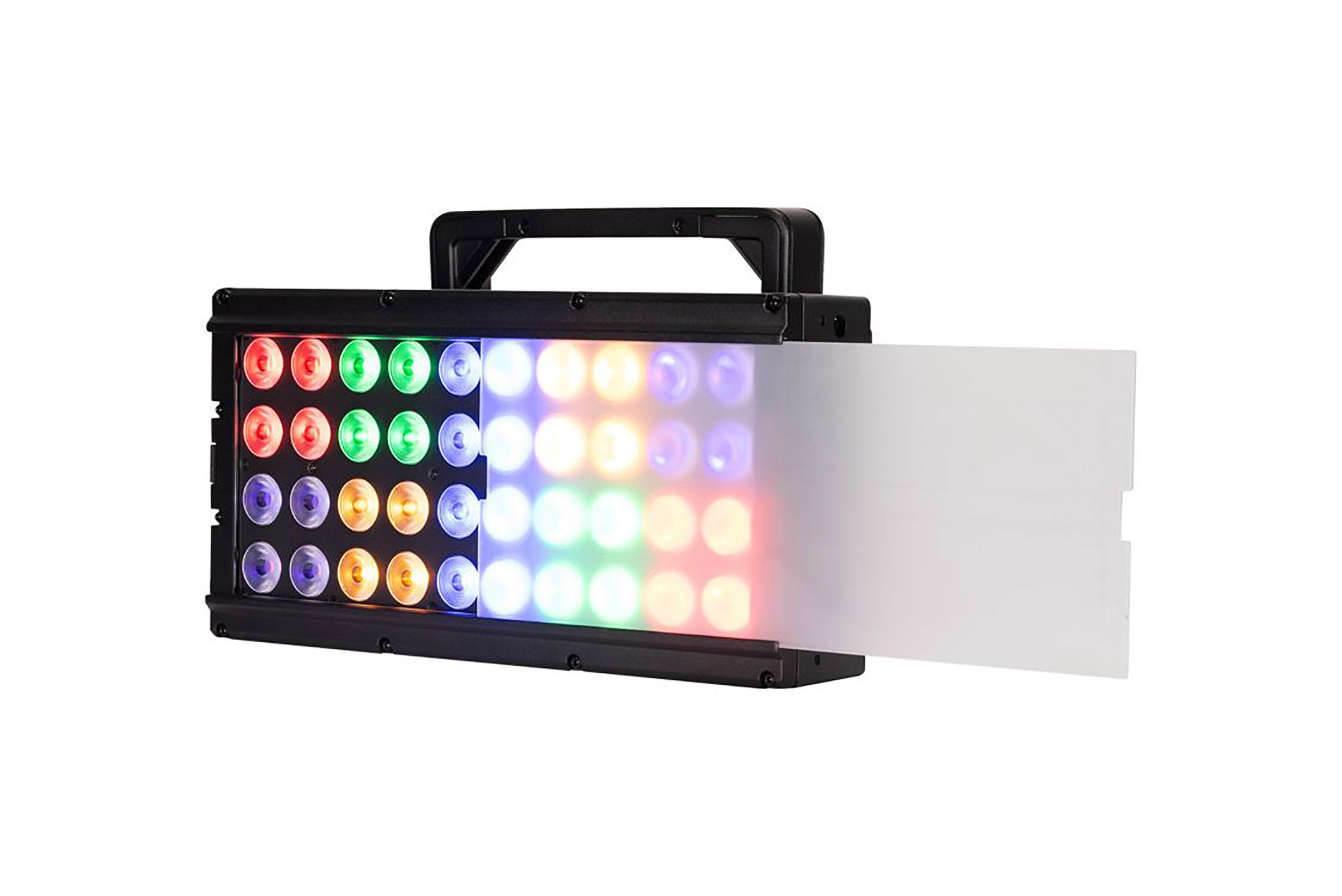

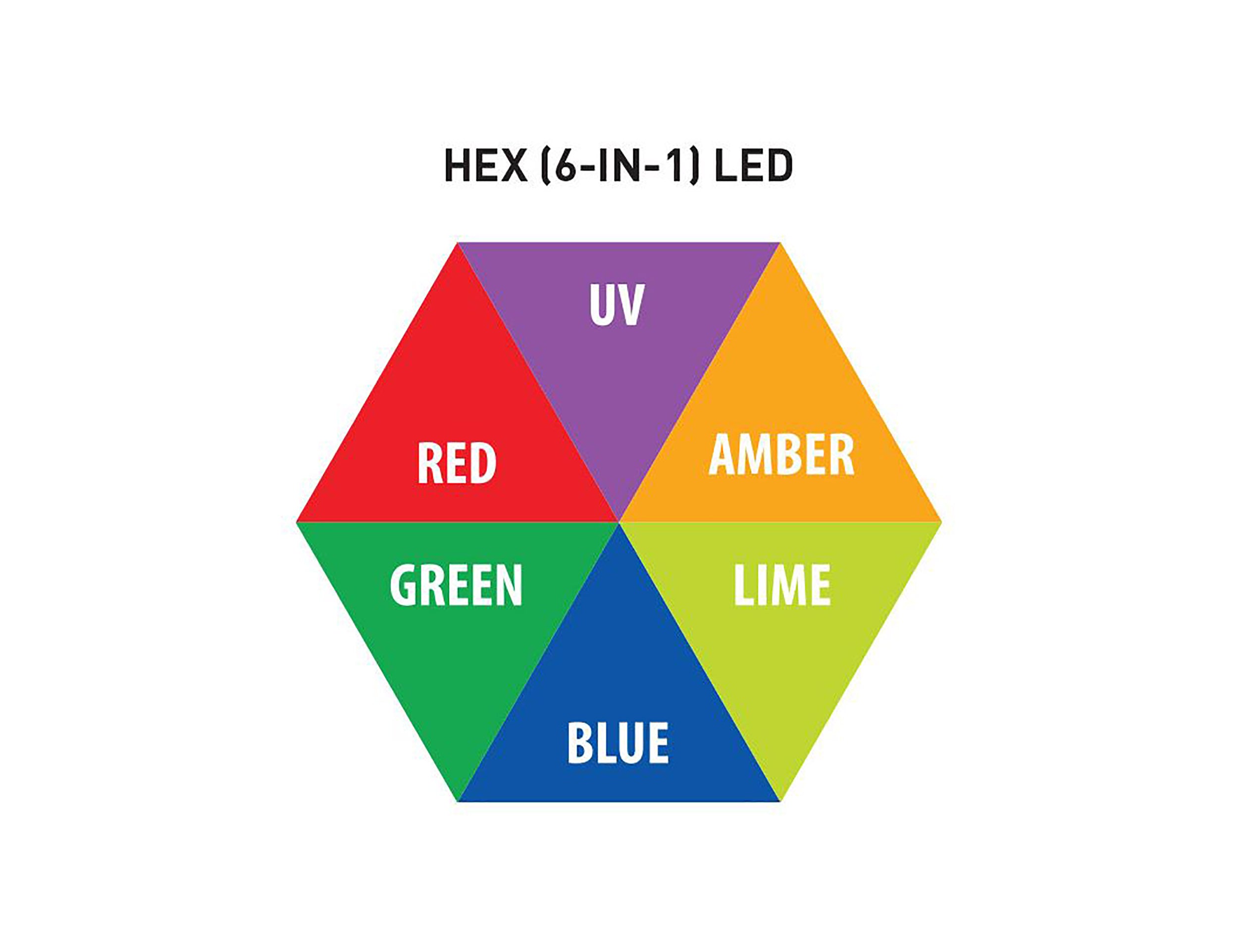

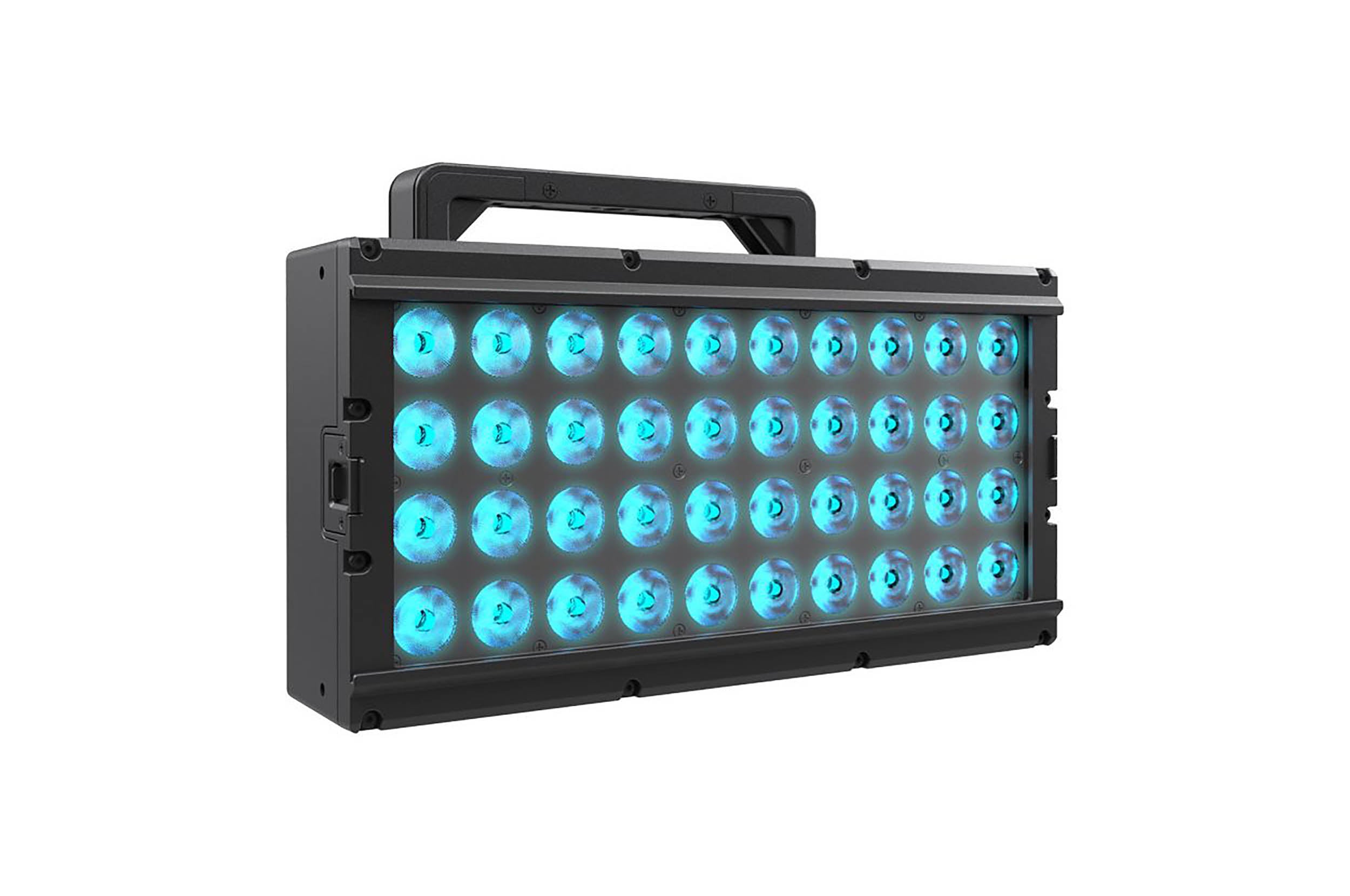

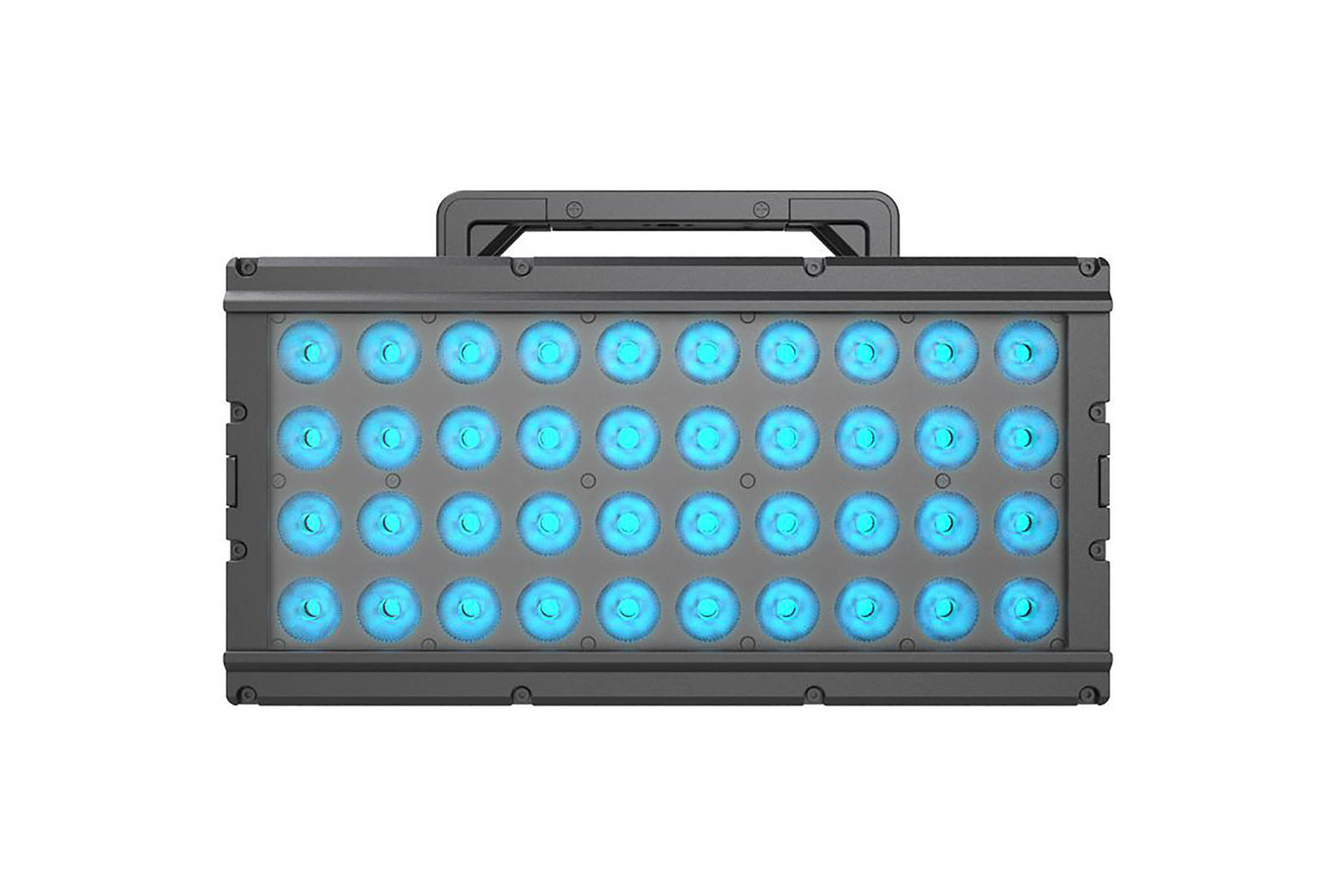

The ADJ 40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or color strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture.

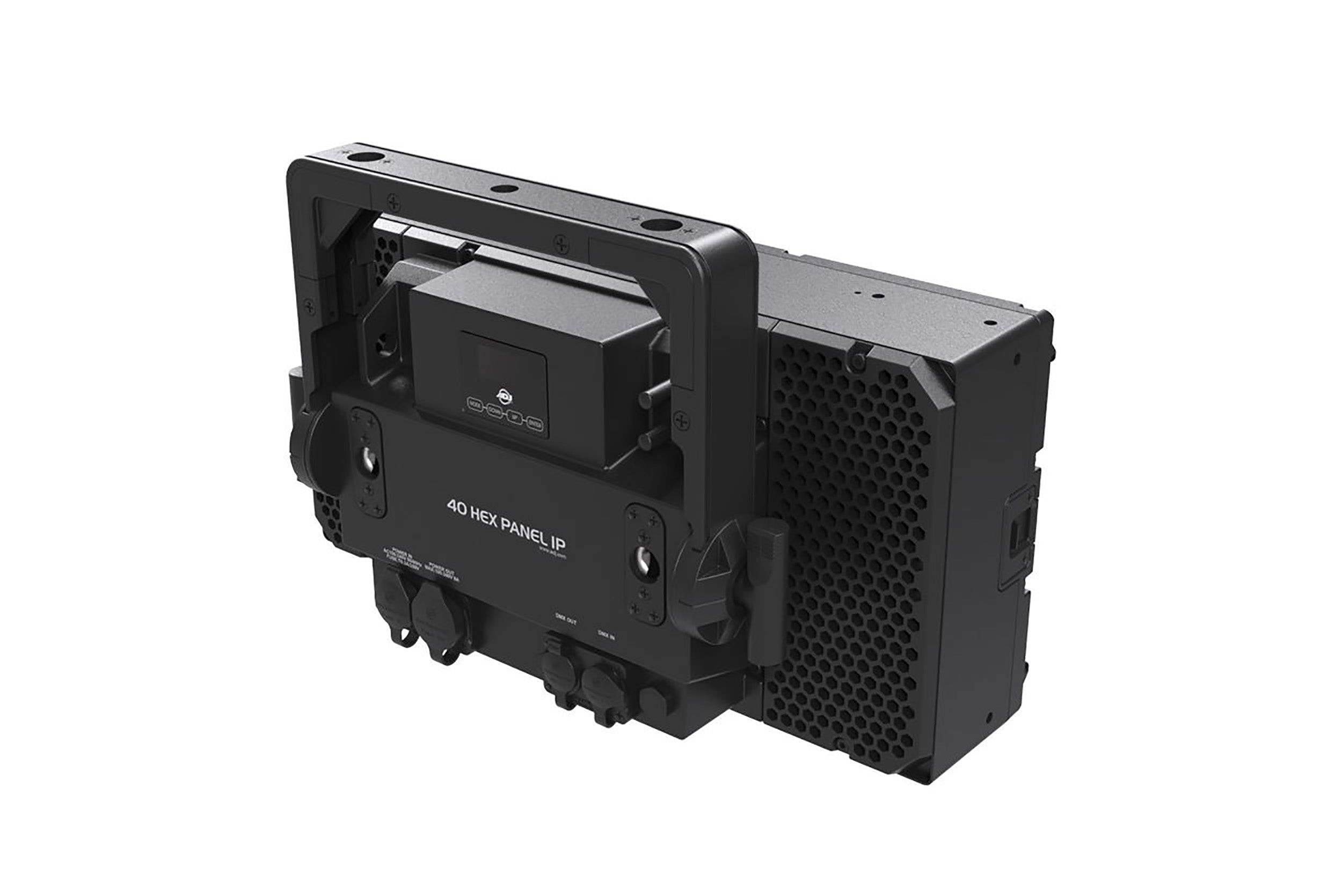

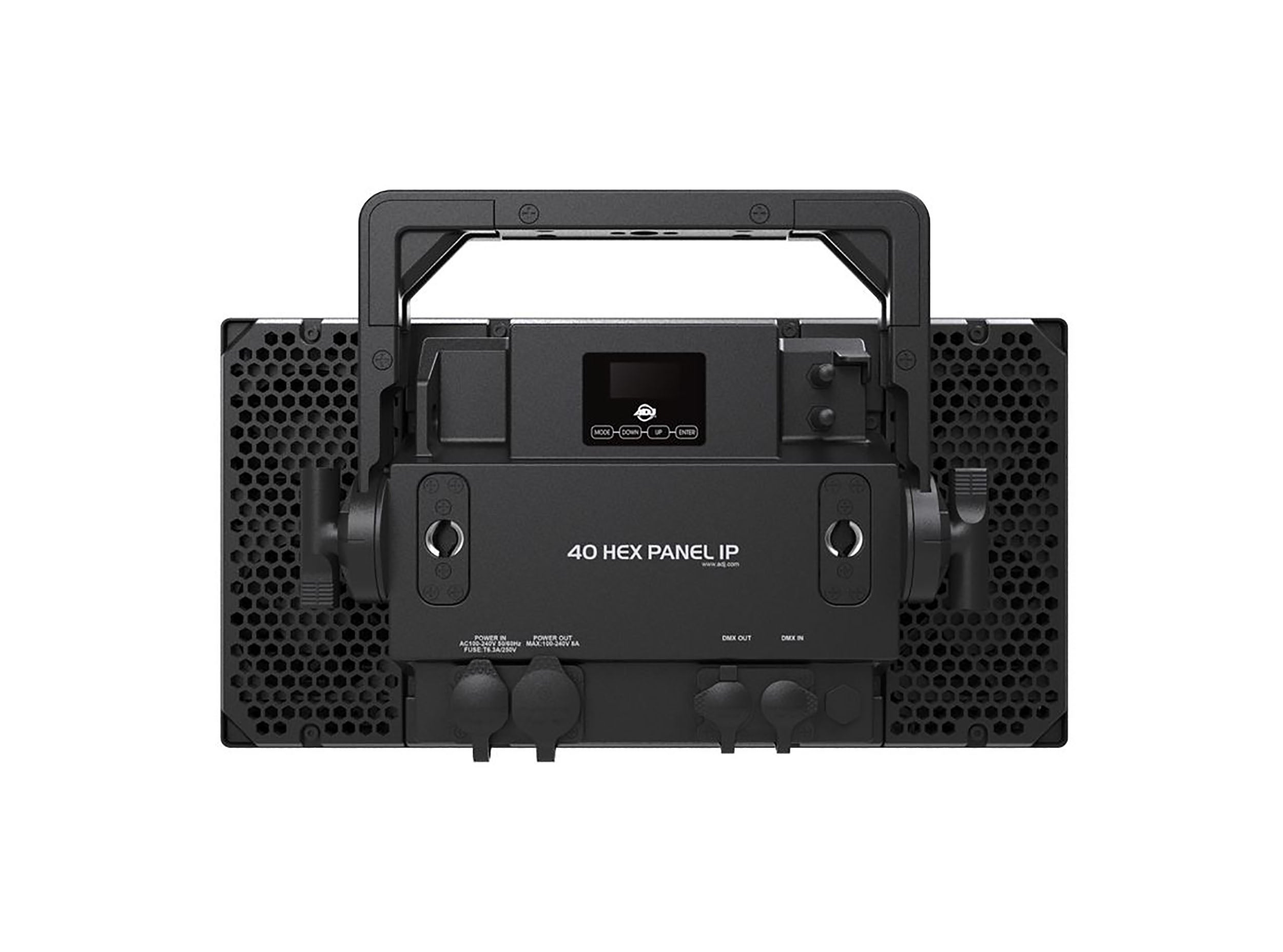

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.
Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.
Product Specifications:
LEDs:40 x 20W HEX (6-in-1) RGBAL+UV LEDs (50,000-hour lifespan)
Beam Angle:X = 28.61°, Y = 23.72°
Field Angle:X = 50.82°, Y = 44.95°
Lumens:19,590
Construction
Display:OLED display with function buttons
Housing:All-metal, heavy-duty construction for outdoor or touring applications
DMX Control Modes:
24 modes: 6ch 1G, 12Ch 1G, 15Ch 1G, 16Ch 1G, 20Ch 1G, 24Ch 1G, 12Ch 2G, 20Ch 2G, 24Ch 2G, 27Ch 2G, 29Ch 2G, 36Ch 2G, 30Ch 5G, 40Ch 5G, 60Ch 5G, 63Ch 5G, 68Ch 5G, 72Ch 5G, 60Ch 10G, 70Ch 10G, 120Ch 10G, 123Ch 10G, 128Ch 10G, 132Ch 10G
Control Groups:1 / 2 / 5 / 10 groups
Dimming:0-100% with smooth 16-bit dimming
Dimming Curves:5 selectable modes
Control Modes:DMX512, RDM (Remote Device Management)
LED Refresh Rate:Multiple settings available
Network:Wired digital communication
Connections:
Data:IP65 locking 5-pin DMX In/Out
Power:IP65 locking power in/Out
Electrical:
Voltage:100-240V, 50Hz/60Hz (Auto Sensing)
Max Power Consumption:513W @ 120V, 492W @ 220V
Max Power Linking:1 unit @ 120V, 4 units @ 230V
Fuse:T4A/250V Glass Fuse (5x20mm)
Included Items:
1 x IP65 Locking Power Cable
1 x Frost Filter
1 x Safety Cable
Approvals and Ratings:
CE Certified
cETLus Certified (Pending)
Ingress Protection:IP65
Shipping Weight: 26 lbs.
Shipping Dimensions (LxWxH): 18 x 13 x 10 inches
