Description

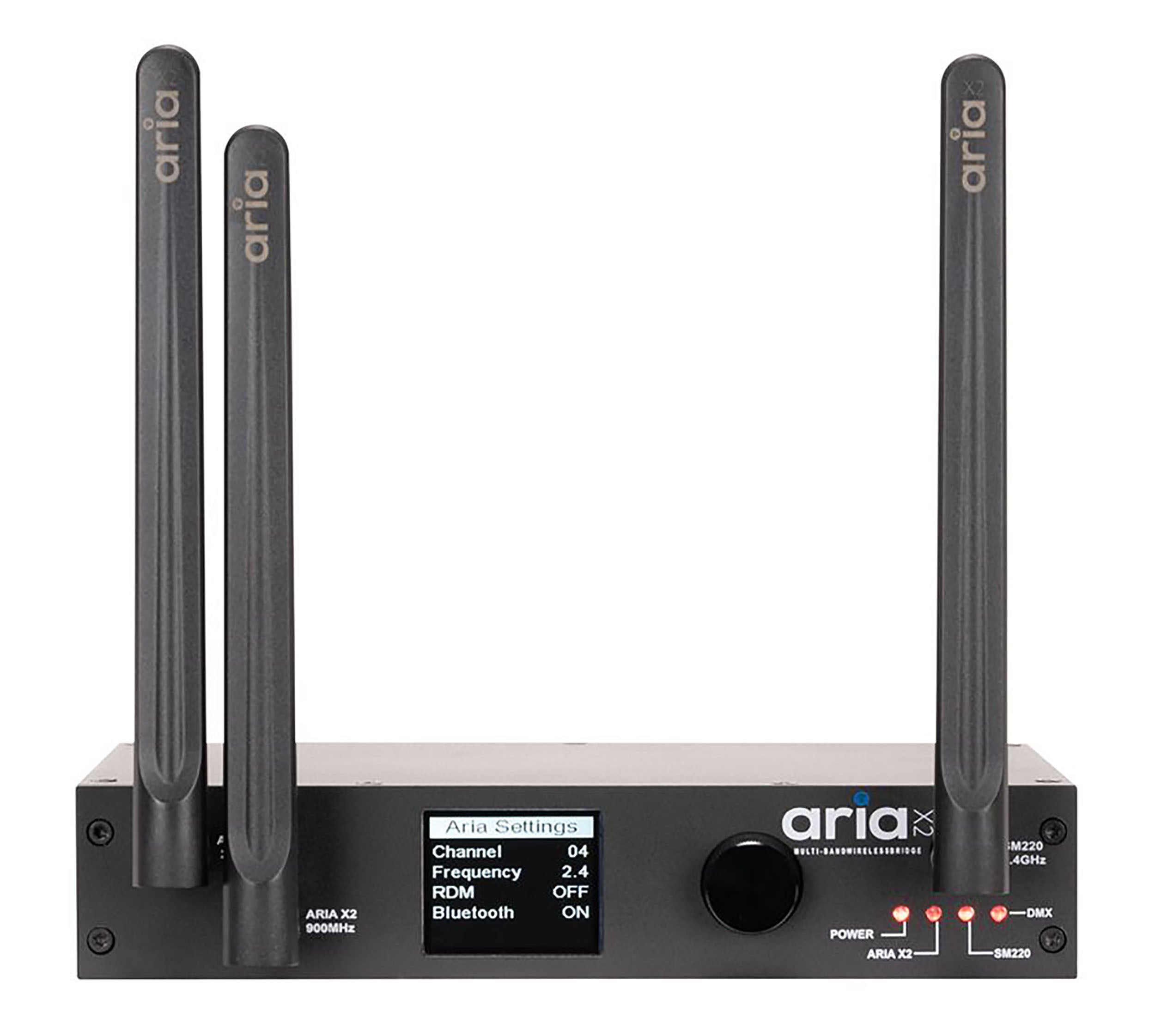

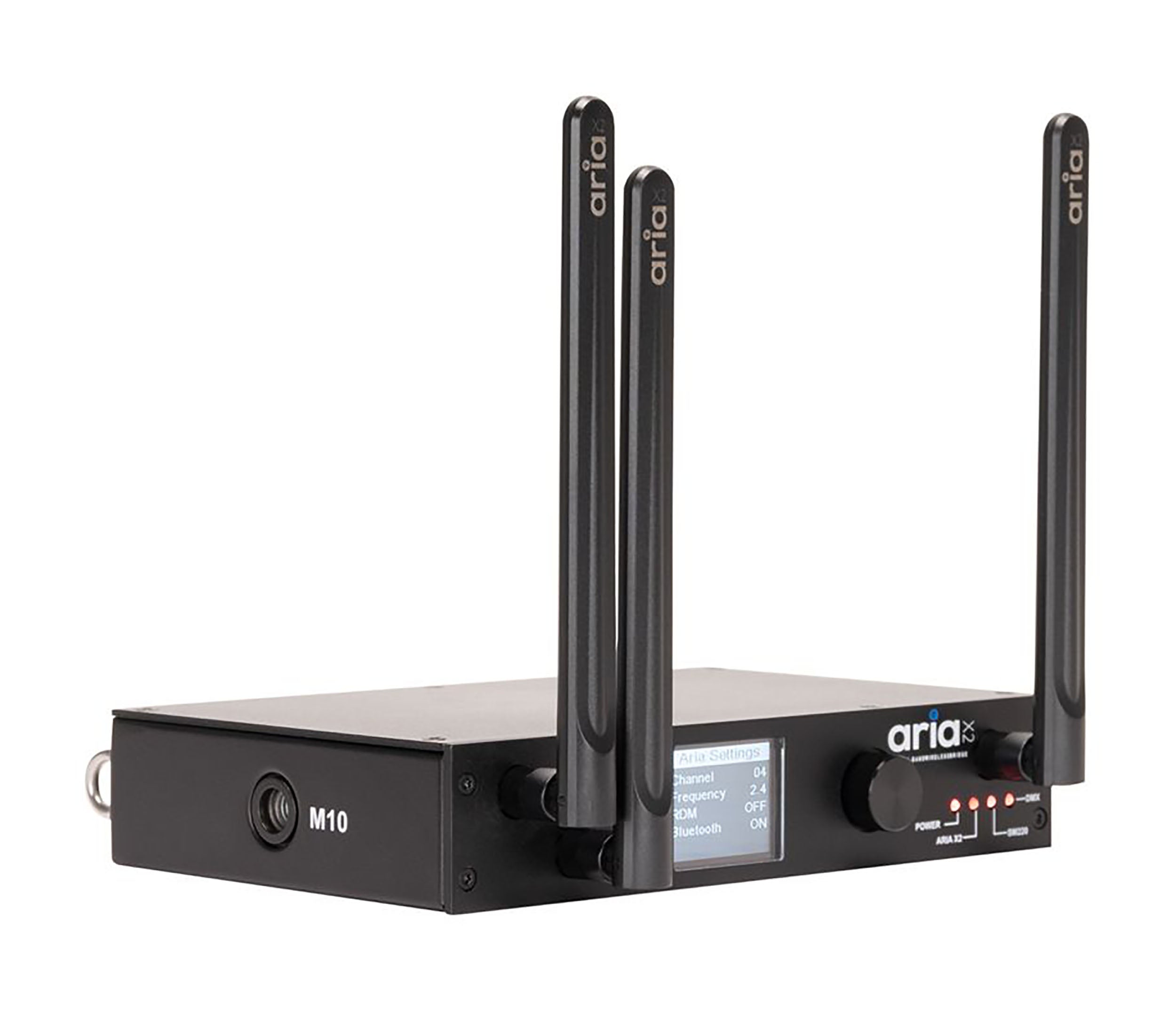

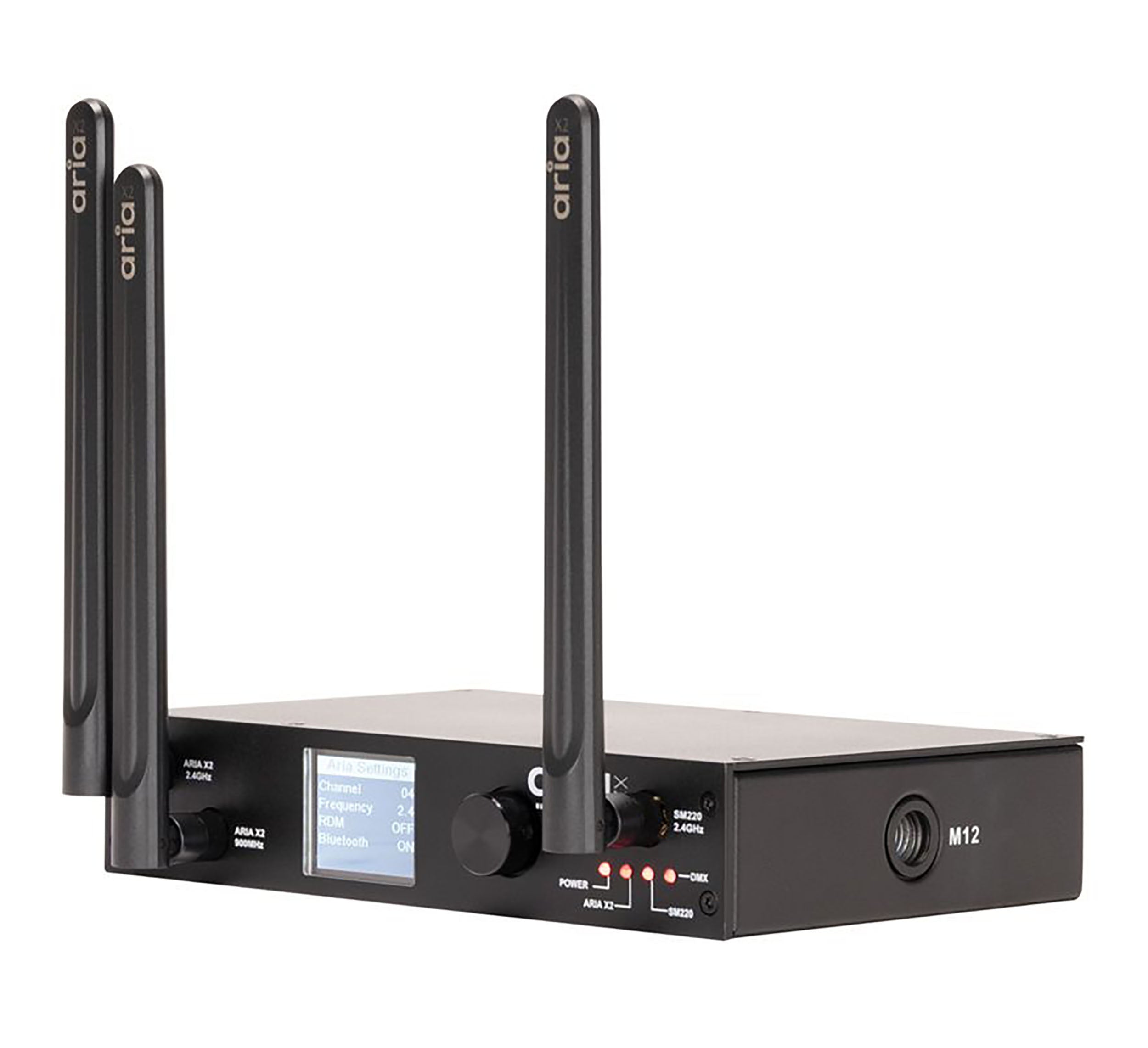

The ADJ Aria X2 Bridge SM220 single universe, indoor Aria X2 Bridge, the future of wireless lighting management, is here to transform your experience with unparalleled control, efficiency and ease. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop. In addition to transmitting the Aria X2 serial protocol, Aria X2 Bridge is also compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria.
Product Specifications
Supported Protocols:
DMX
RDM (Planned for future software release)
Proprietary 802.15.4
Aria X2 Mesh Protocol
Bluetooth: 5.2 (BLE)
Aria X2 Serial Protocol
This is our proprietary serial protocol for communicating with a variety of fixtures.
RF Characteristics:
Frequency Range: 2404-2480 MHz
863-870 MHz (EU)
902-928 MHz
Radio Module: Aria X2
Connectors:
Antenna: 5G JT SMA

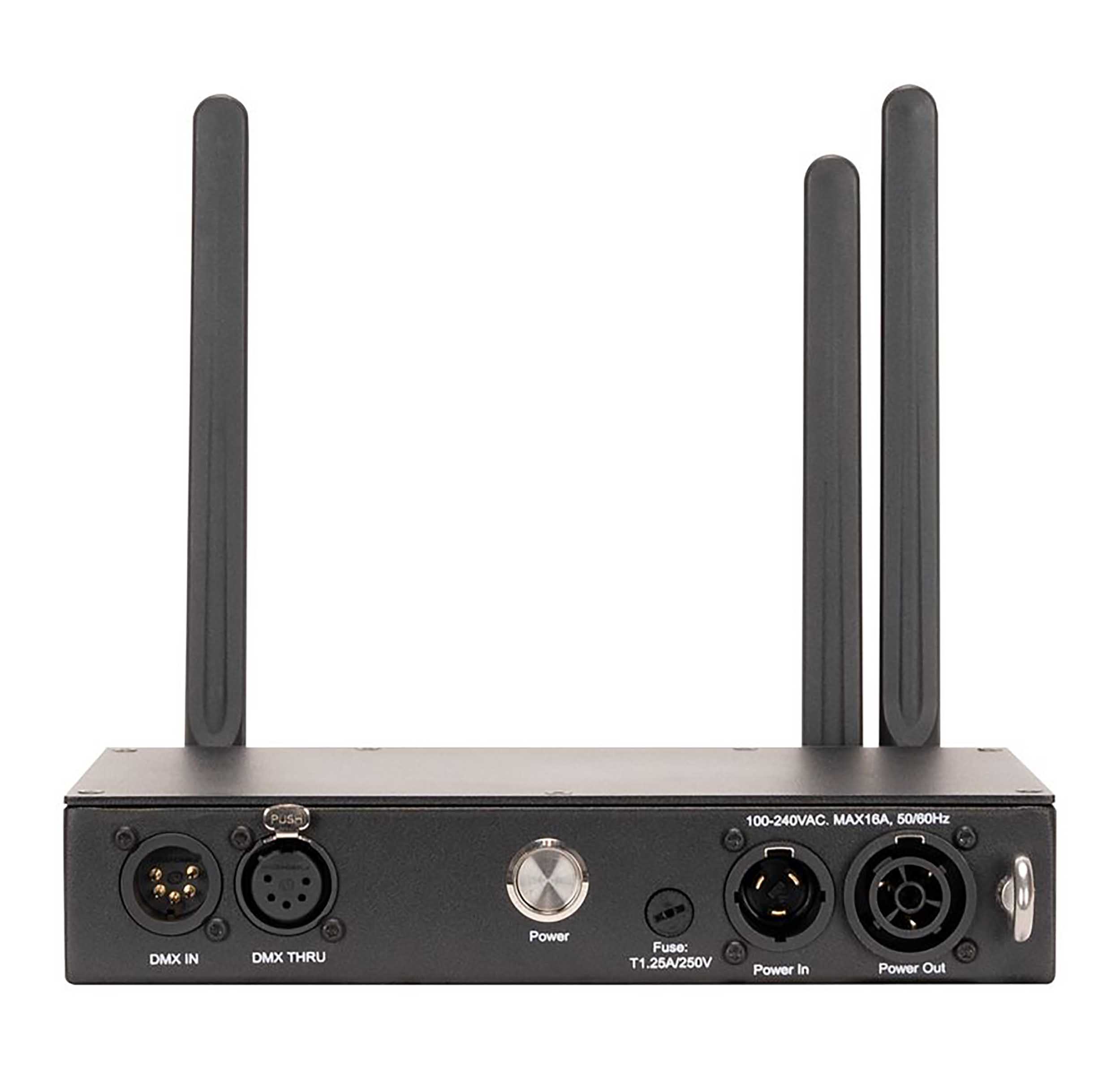

DMX: 5-pin XLR Input and Output
DC: 2.5mm/5.5mm Barrel connector
Outdoor Locking Power Input and Output
Power: AC100-240V 50/60Hz
Power Consumption: 2W
Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:
IP20 Aluminum / Metal enclosure

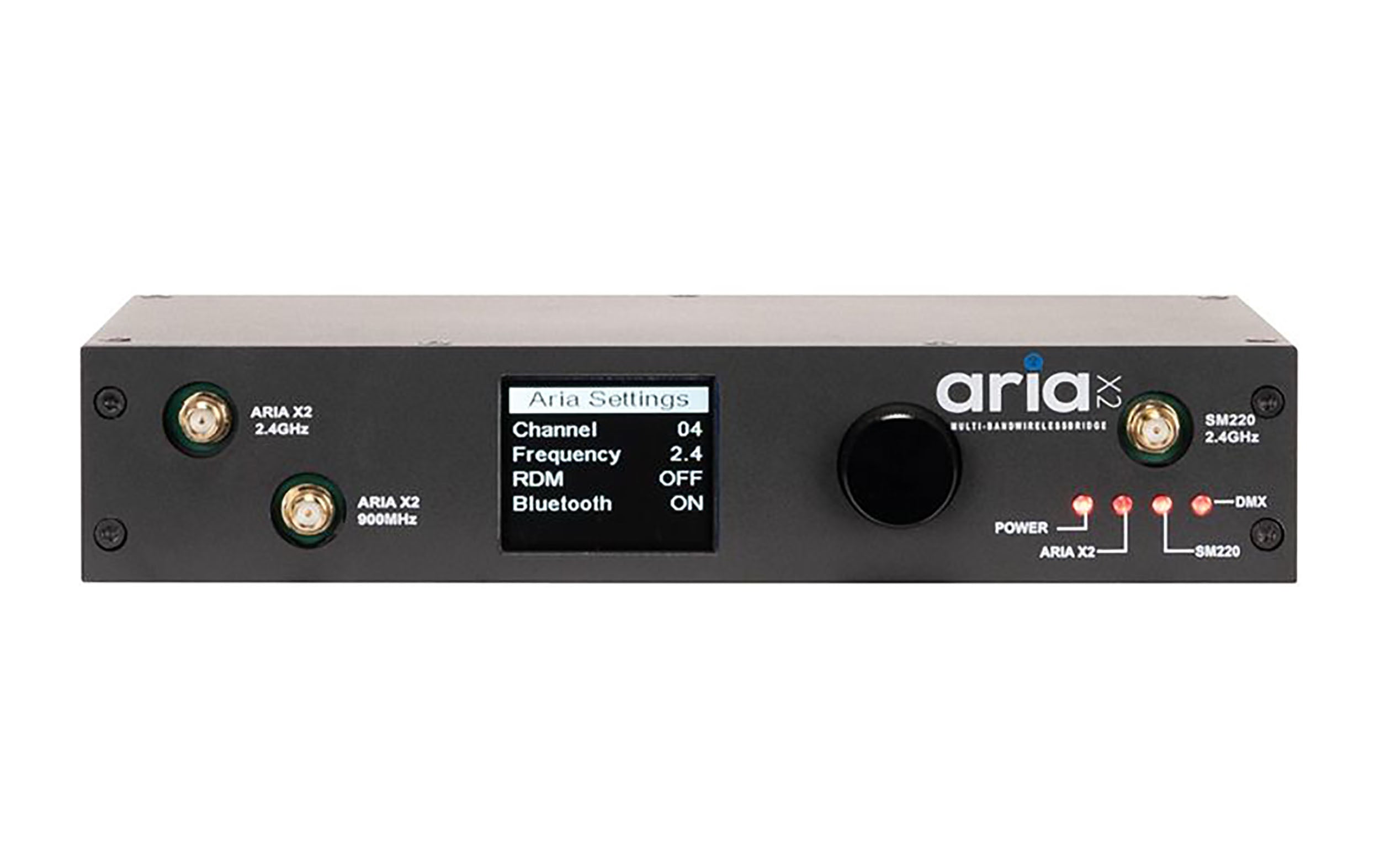

Front panel digital screen and rotary knob

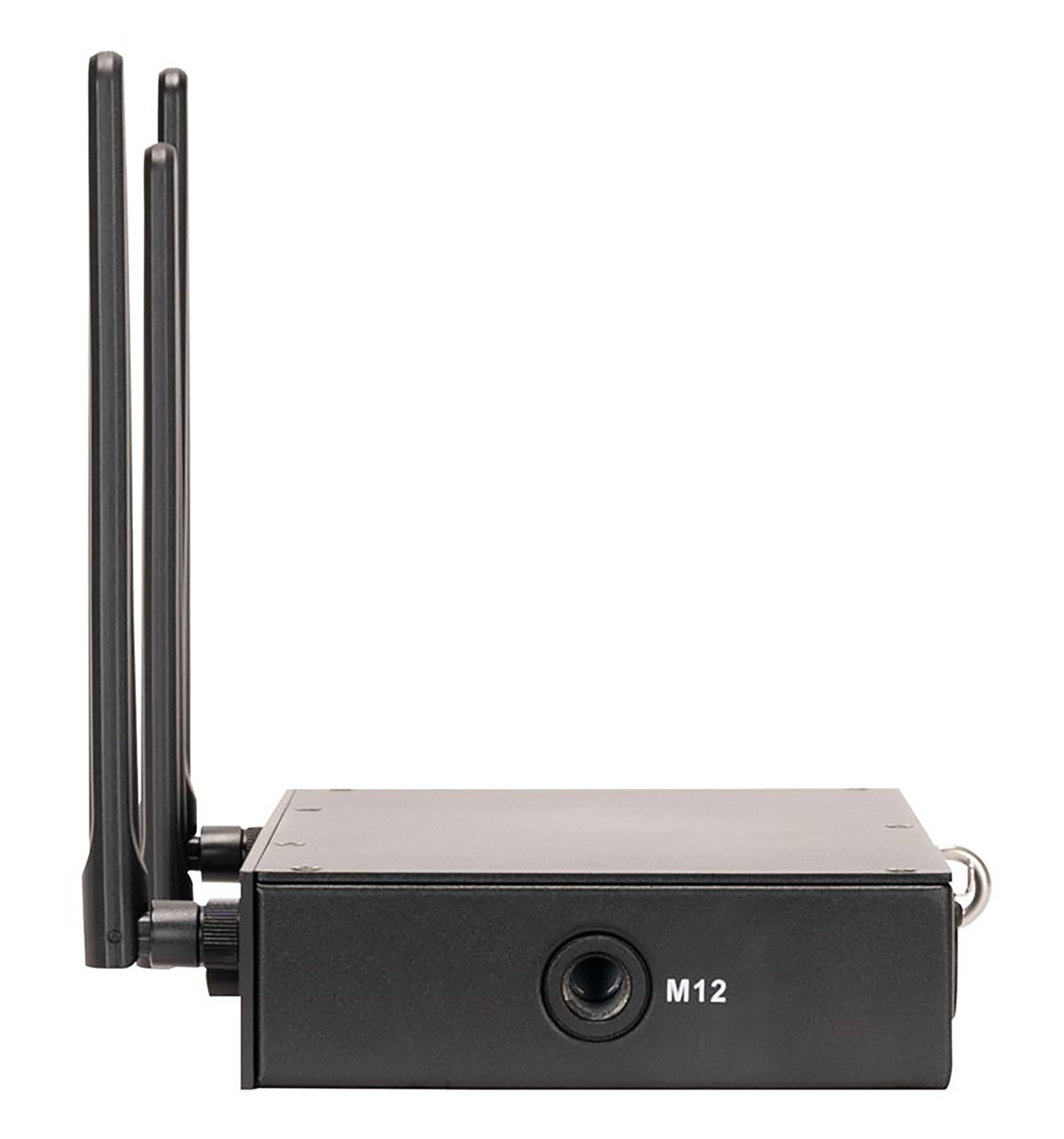

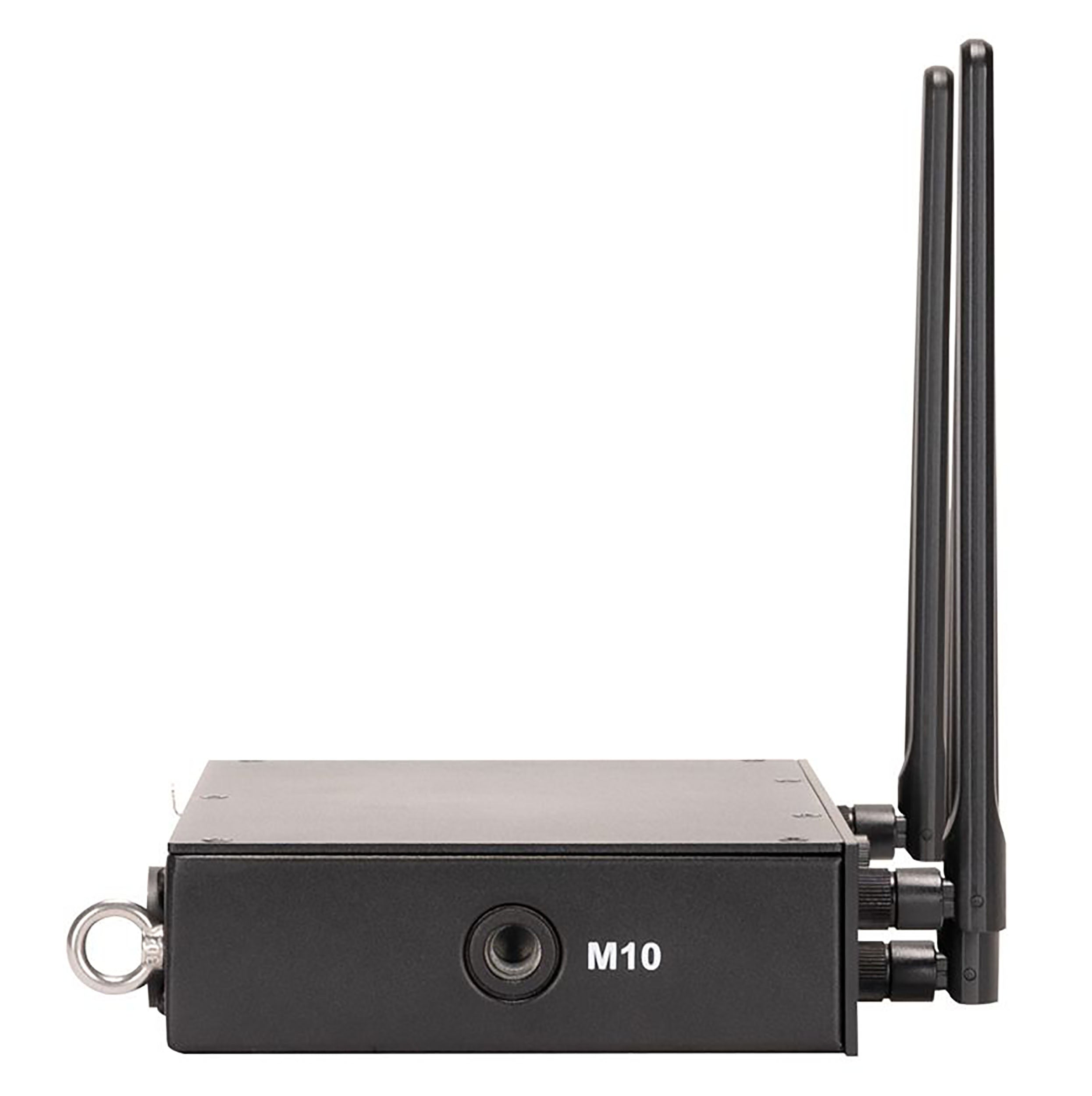

M10 and M12 Threads
Max Ambient Operating Temp: 113°F (45°C)
Max Operating Humidity: <75%
Storage Temperature: 77°F (25°C)
Dimensions:
Length: 6.46" (163.95mm)
Width: 8.48" (215.30mm)
Height: 1.66" (42mm)
Weight: 2.7lbs (1.23kgs.)
