Description

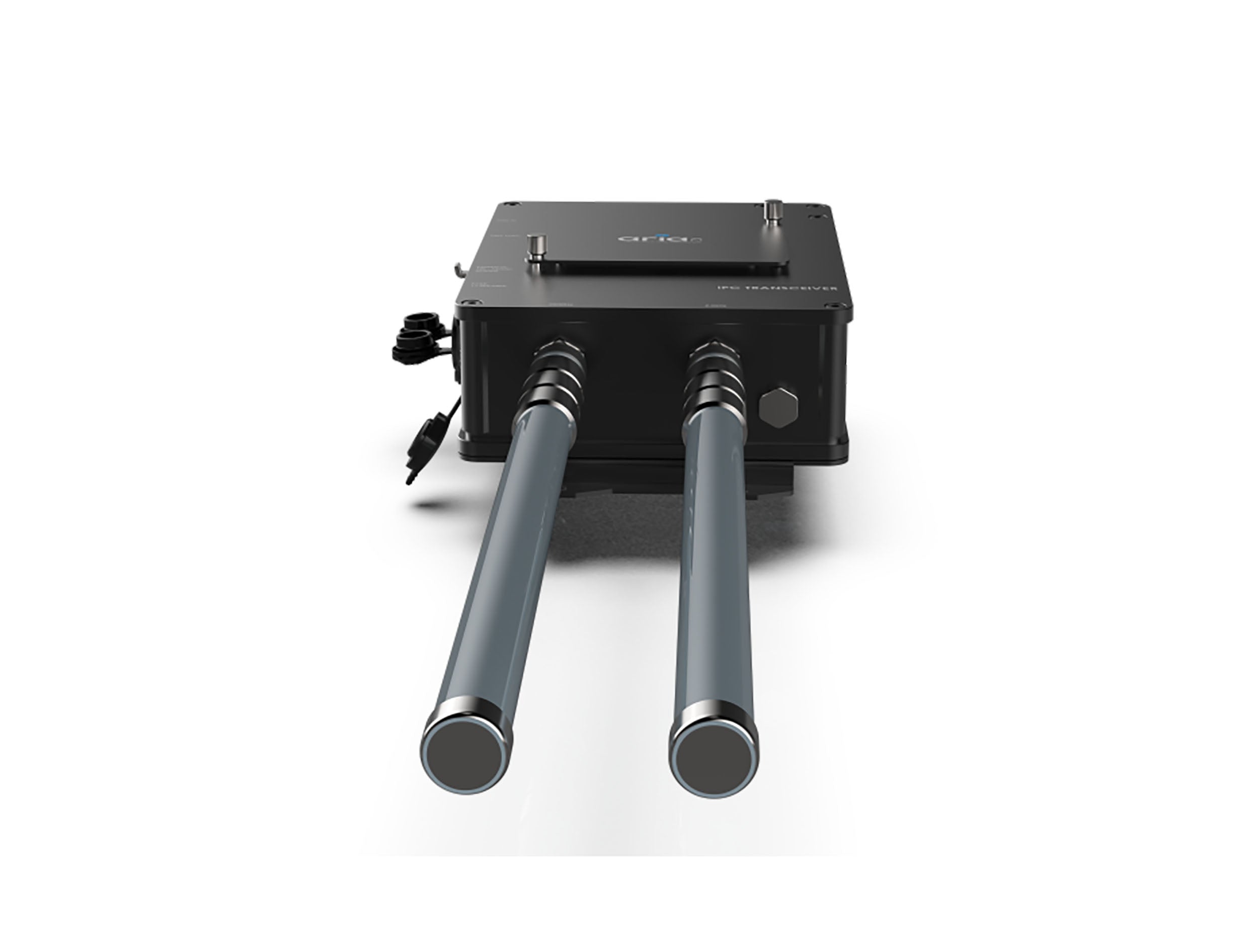

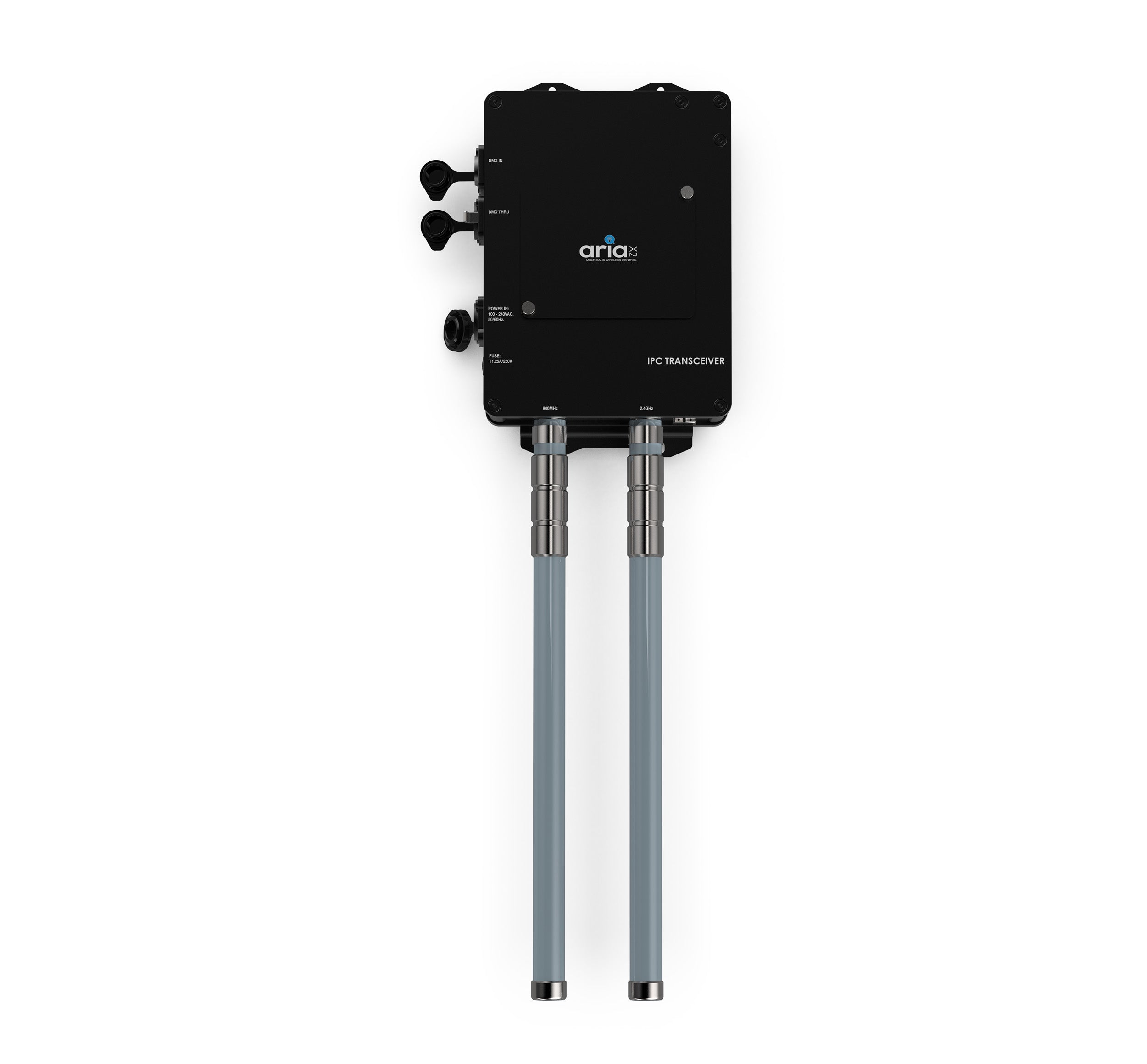

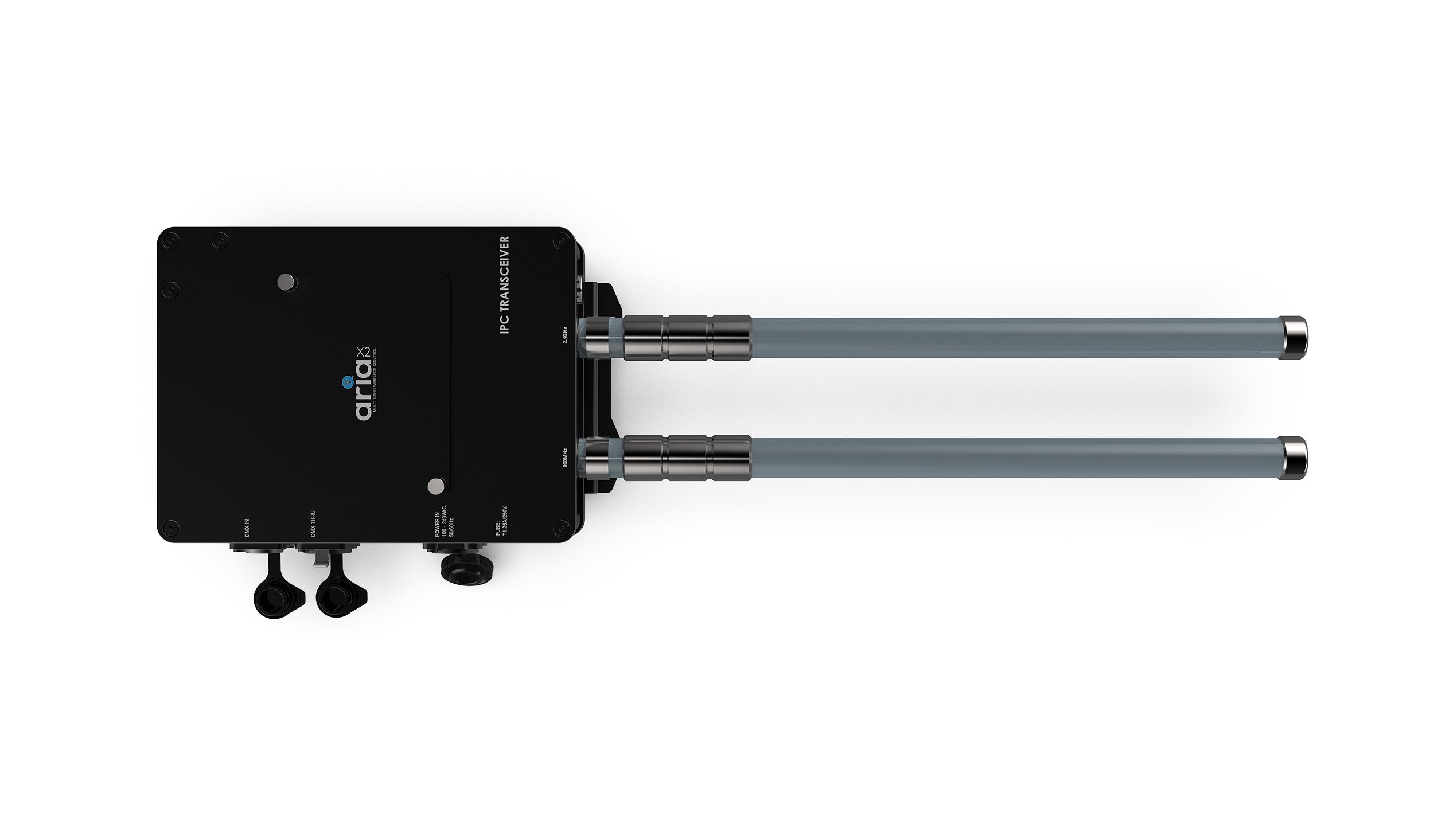

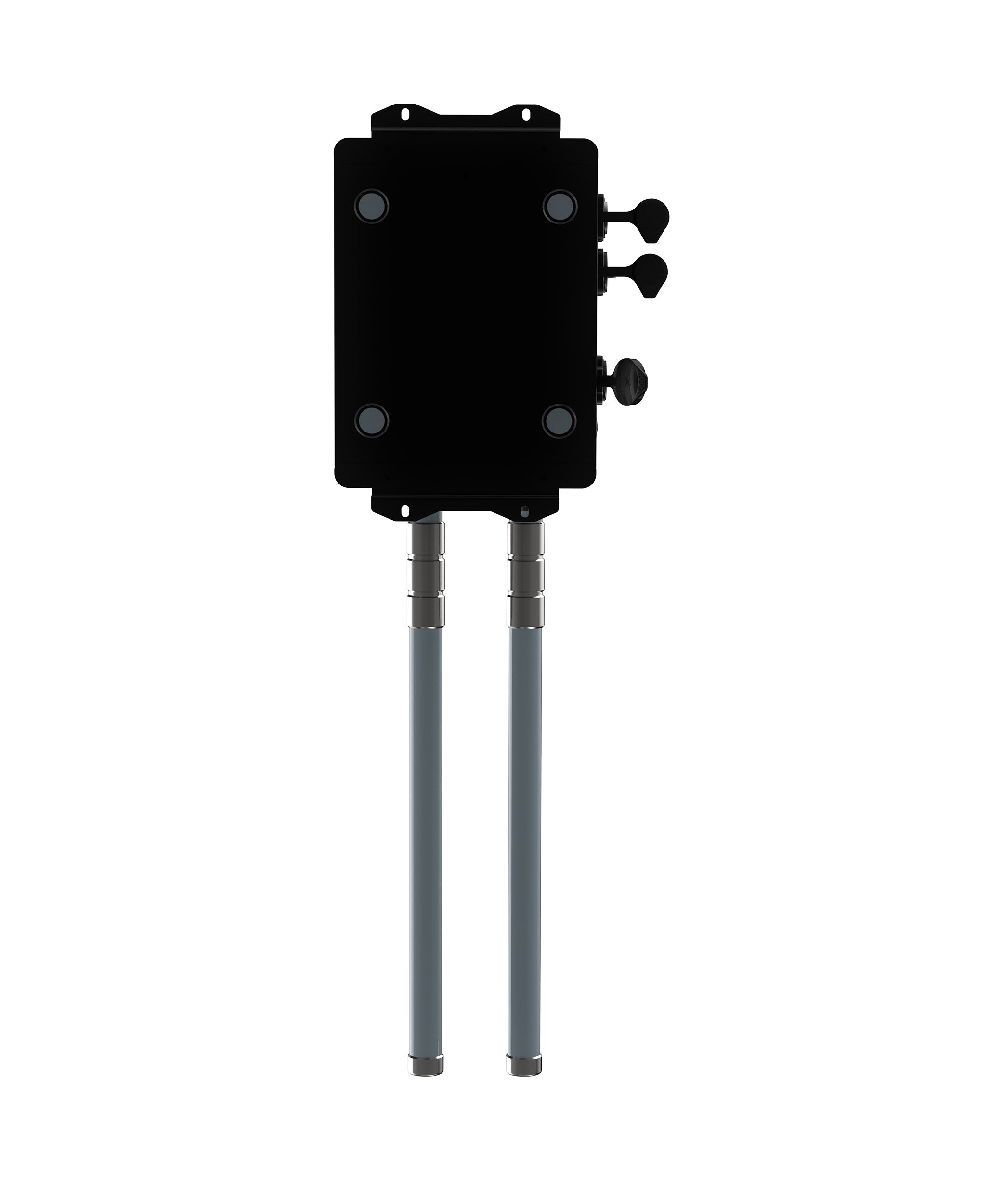

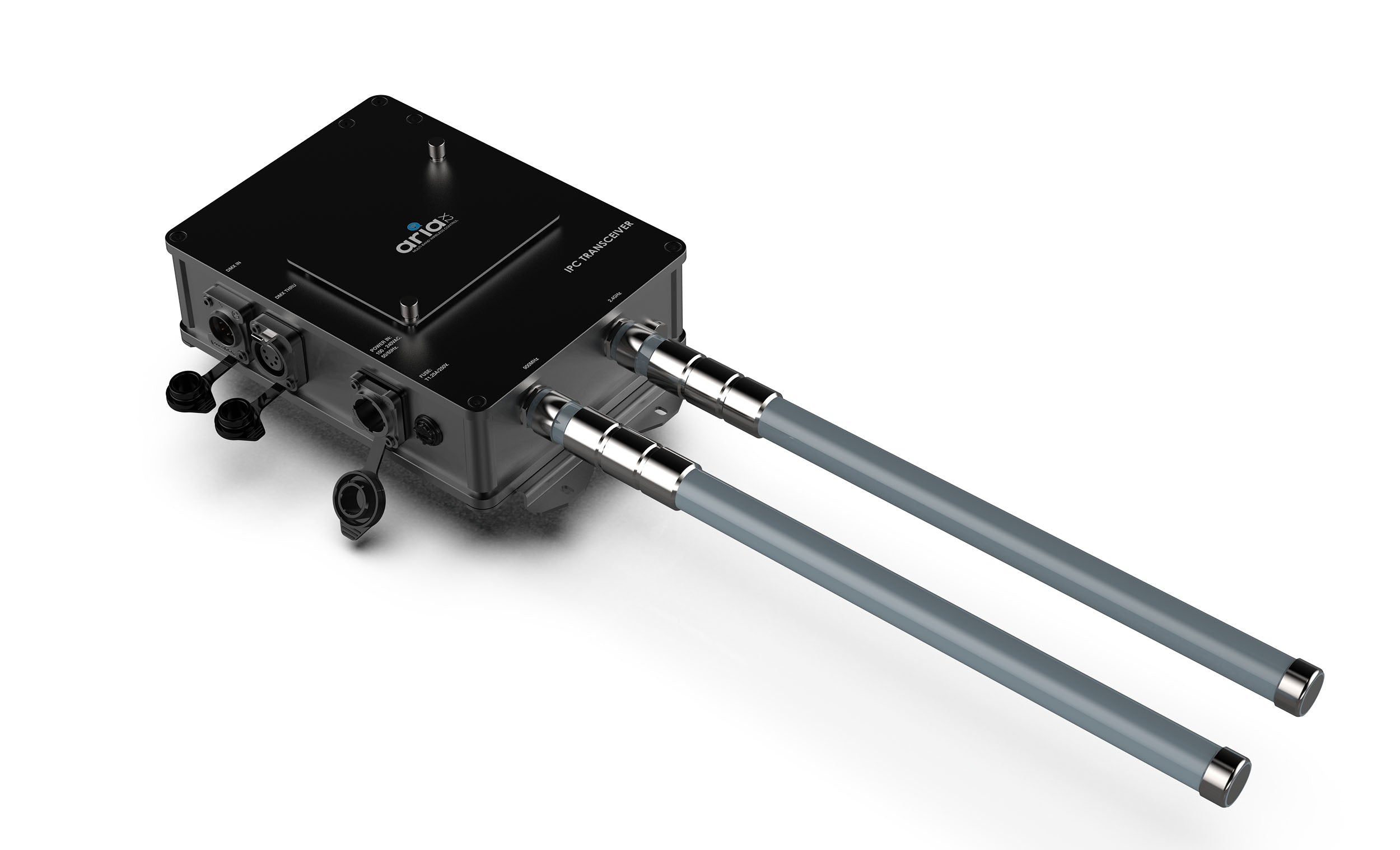

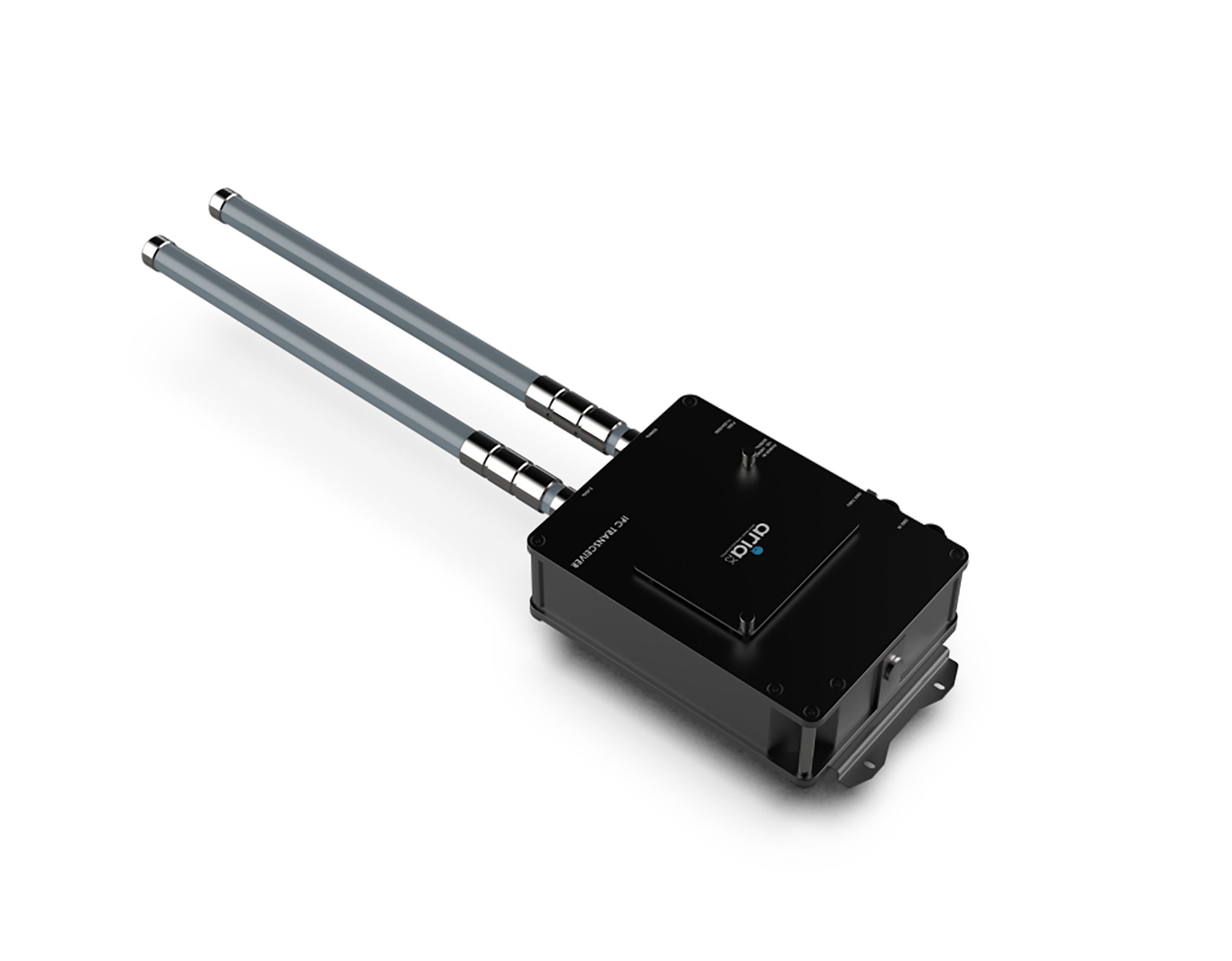

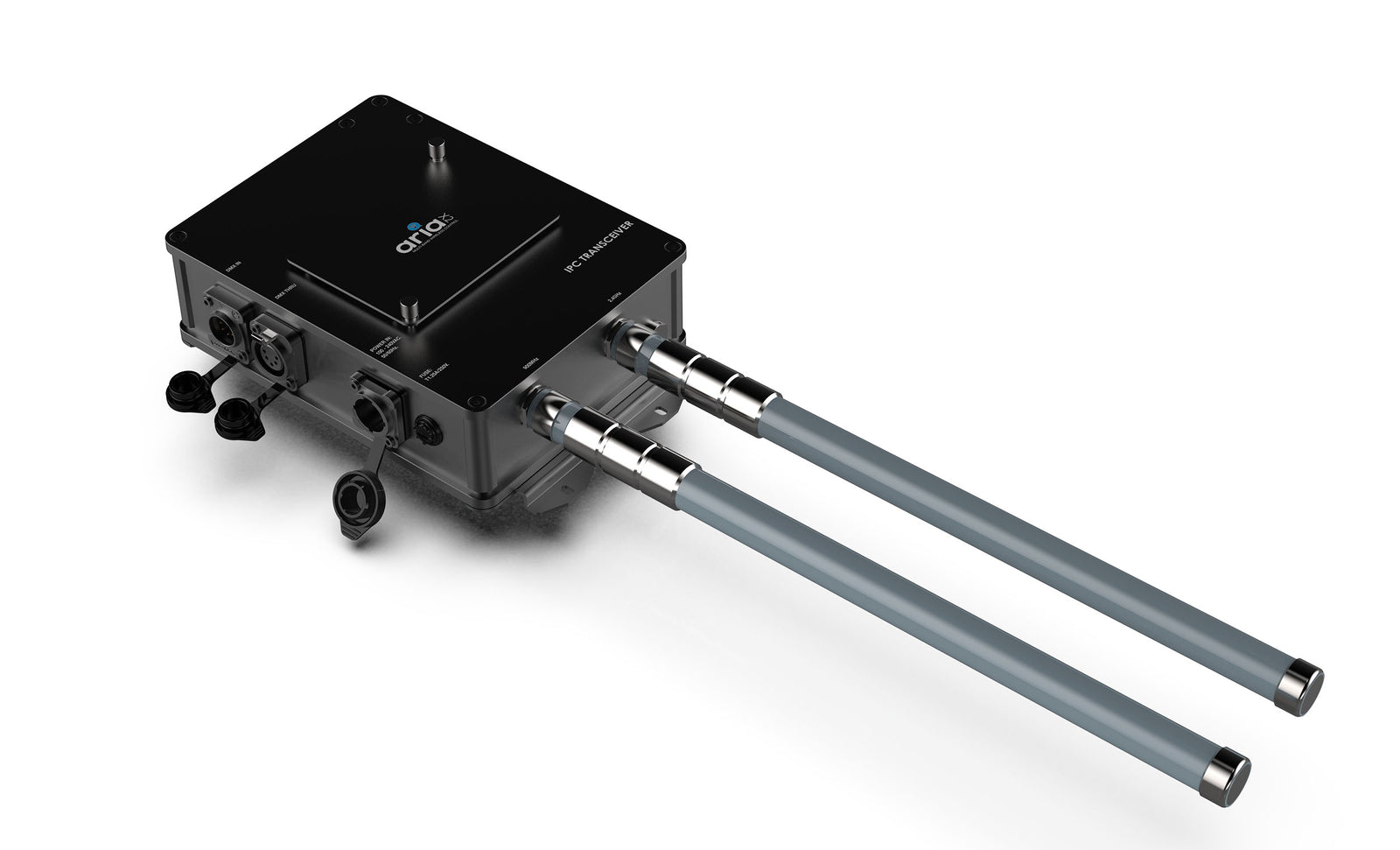

The ADJ Aria X2 IPC wireless DMX / fixture management controller. Featuring a single DMX universe, this device operates seamlessly with 900MHz, 2.4 GHz WiFi, and Bluetooth connectivity. Its IP65 housing ensures durability, making it suitable for both indoor and outdoor applications. With support for various protocols including DMX, Bluetooth 5.2, and our proprietary Aria X2 Mesh Protocol, this controller offers flexibility and ease of use. Complete with front panel configuration and future app compatibility, it's the perfect solution for lighting professionals.
Product Specifications
Supported Protocols:
DMX (RDM is planned for future software release)
Proprietary 802.15.4
Aria X2 Mesh Protocol
Bluetooth 5.2 (BLE)
Aria X2 Serial Protocol
RF Characteristics:
Frequency range
2404-2480 MHz
863-870 MHz (EU)
902-928 MHz
Radio module: Aria X2
Interference mitigation
CSMA
Adaptive frequency hopping (on the roadmap)
OTA updates

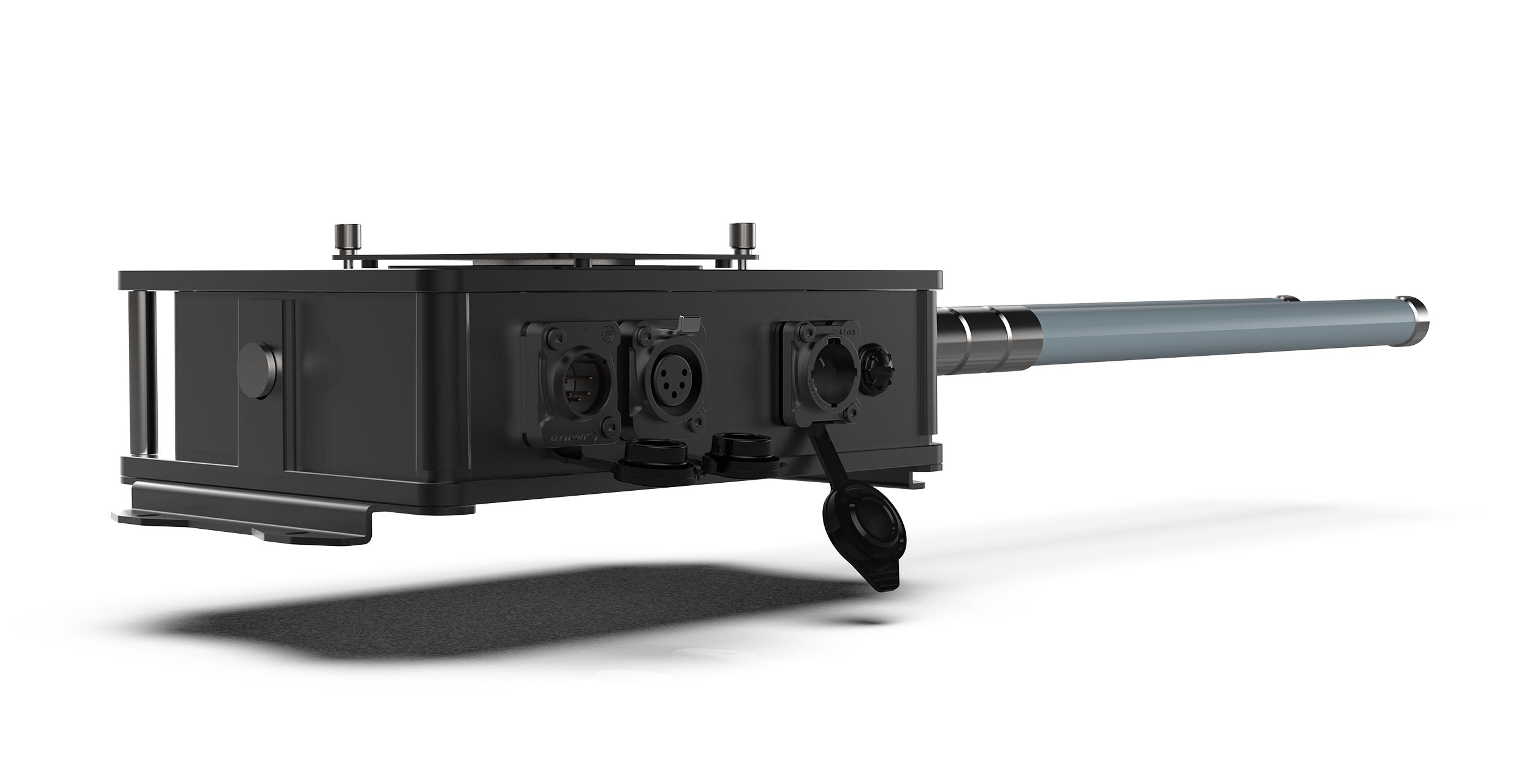

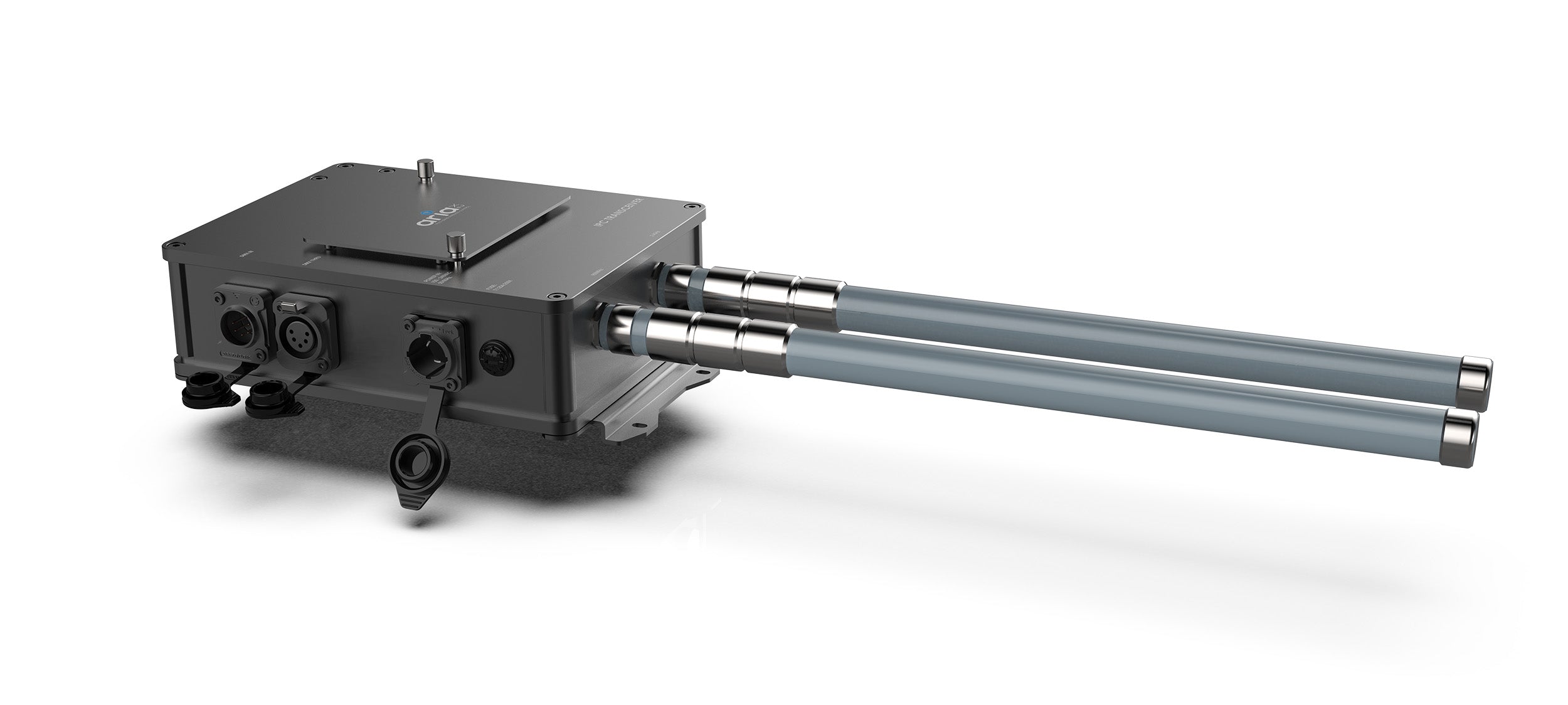

Connectors: 900MHz Antenna
2.4GHz Antenna
DMX: 5-pin XLR Input and Output
Outdoor Locking Power Input and Output
Power:
Power Input: AC100-240V 50/60Hz
Power Consumption: 2.2W (19mA) @ 120V/60Hz, 2.2W (10mA) @ 230V/50Hz
Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:
IP65 Enclosure
Front panel digital screen
M12 Threads
Max Ambient Operating Temp Range: -4°F to 113°F (-20°C to 45°C)
Max Operating Humidity: <75%
Storage Temperature: 77°F (25°C)
Dimensions:
Length: 6.46" (163.95mm)
Width: 8.48" (215.30mm)
Height: 1.66" (42mm)
Weight: 2.7lbs (1.23kgs.)
