Description
The ADJ Aria X2 TB Wireless DMX Transceiver with Wired Digital communication Network is designed for seamless operation in various environments. With dual power capabilities, it can be powered via AC for continuous use or an internal Lithium battery for enhanced mobility and flexibility.
Engineered for high-performance DMX signal transmission and reception, the Aria X2 TB ensures stable and clear connectivity, making it ideal for professional, industrial, and field applications. Whether in a fixed installation or on the go, its rugged build and efficient power management provide dependable operation without compromise.
The built-in rechargeable battery provides extended operating time, making it ideal for use in locations where AC power isn’t available. A full charge takes just 4 hours and delivers up to 20 hours of continuous operation. With its intuitive interface and advanced features, this wireless DMX transceiver offers a seamless, reliable, and versatile solution for users who demand performance and flexibility.
With the Aria X2 TB, you can count on exceptional performance, flexibility, and reliability- delivering stable communication wherever your setup requires it.
Product Specifications:
Supported Protocols:
DMX
RDM (planned for future software release)
Proprietary 802.15.4
Aria X2 Mesh Protocol (planned for future software release)
Bluetooth 4.2 (BLE)
Aria X2 Serial Protocol – proprietary serial protocol for communication with a variety of fixtures
RF Characteristics:
Radio module: Aria X2
Frequency range:
Bluetooth: 2402–2480 MHz
Zigbee (EU): 2405–2480 MHz
Sub-GHz (US): 906–924 MHz
Interference mitigation: CSMA
Adaptive frequency hopping: On roadmap
OTA updates: Supported
Standards & Compliance:
Health:
EN IEC 62311:2020
EN 50665:2017
BS EN IEC 62311:2020
BS EN 50665:2017
Safety:
EN IEC 62368-1:2020 + A11:2020
BS EN IEC 62368-1:2020 + A11:2020
EMC:
ETSI EN 301 489-1 V2.2.3 (2019-11)
ETSI EN 301 489-3 V2.3.2 (2023-01)
ETSI EN 301 489-17 V3.2.4 (2020-09)
EN 55032:2015/A1:2020
EN 55035:2017/A11:2020
EN 61000-3-3:2013/A2:2021
EN IEC 61000-3-2:2019/A1:2021
BS EN 55032:2015/A1:2020
BS EN 55035:2017/A11:2020
BS EN 61000-3-3:2013/A2:2021
BS EN IEC 61000-3-2:2019/A1:2021
Radio:
EN 300 220-1 V3.1.1 (2017-02)
EN 300 220-2 V3.2.1 (2018-06)
ETSI EN 300 328 V2.2.2 (2019-07)

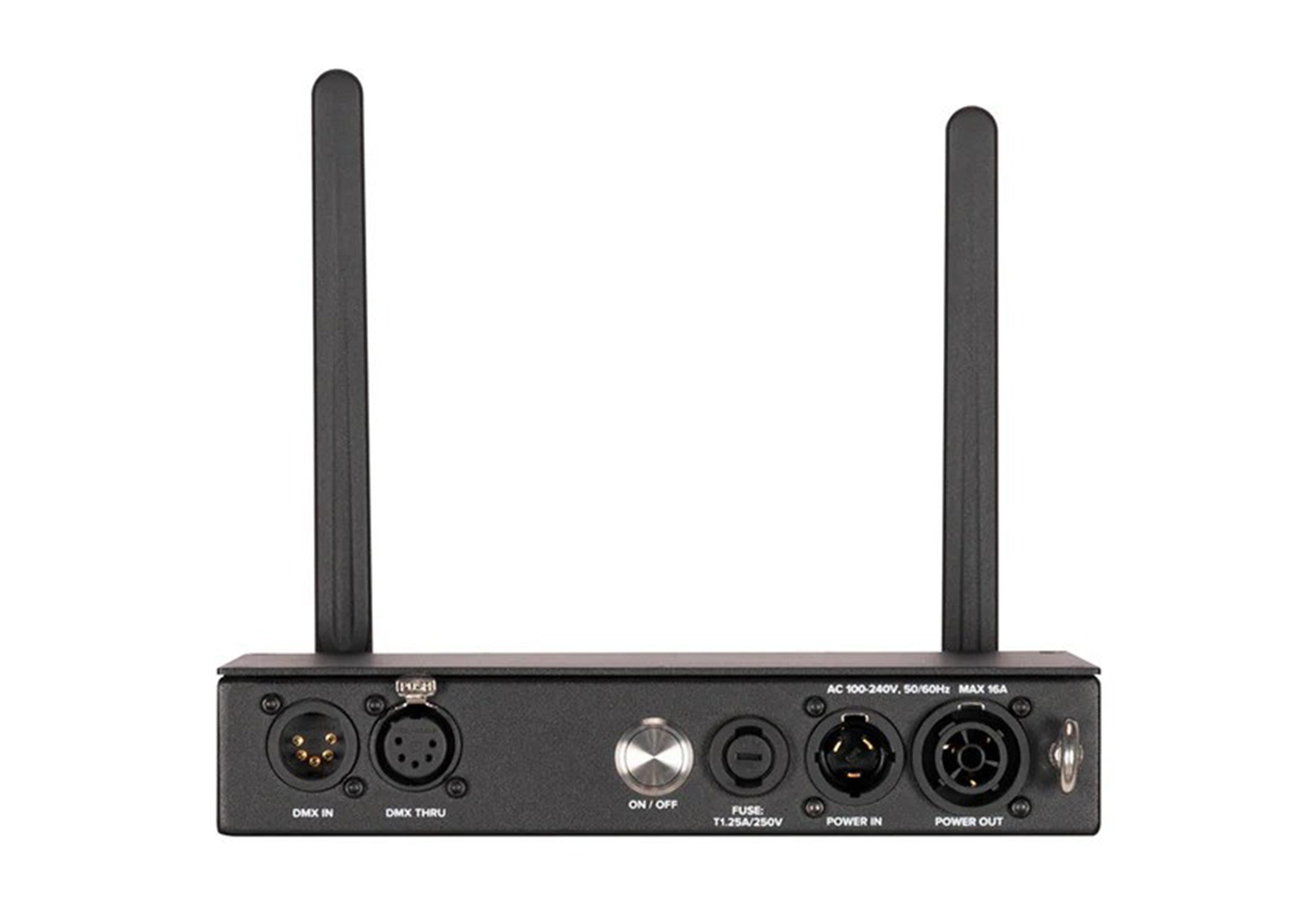

Connectors:
Antenna: 5G JT SMA
DMX: 5-pin XLR input and output
Power: IP65 locking power input and output
Power:
Input voltage: AC 100–240 V, 50/60 Hz
Battery: 2 × 18650 lithium batteries (3.6 V, 2600 mAh, 9.36 Wh)
Power consumption: 2 W
Fuse: T1.25 A / 250 V (5 × 20 mm)
Physical:
Enclosure: IP20 aluminum / metal

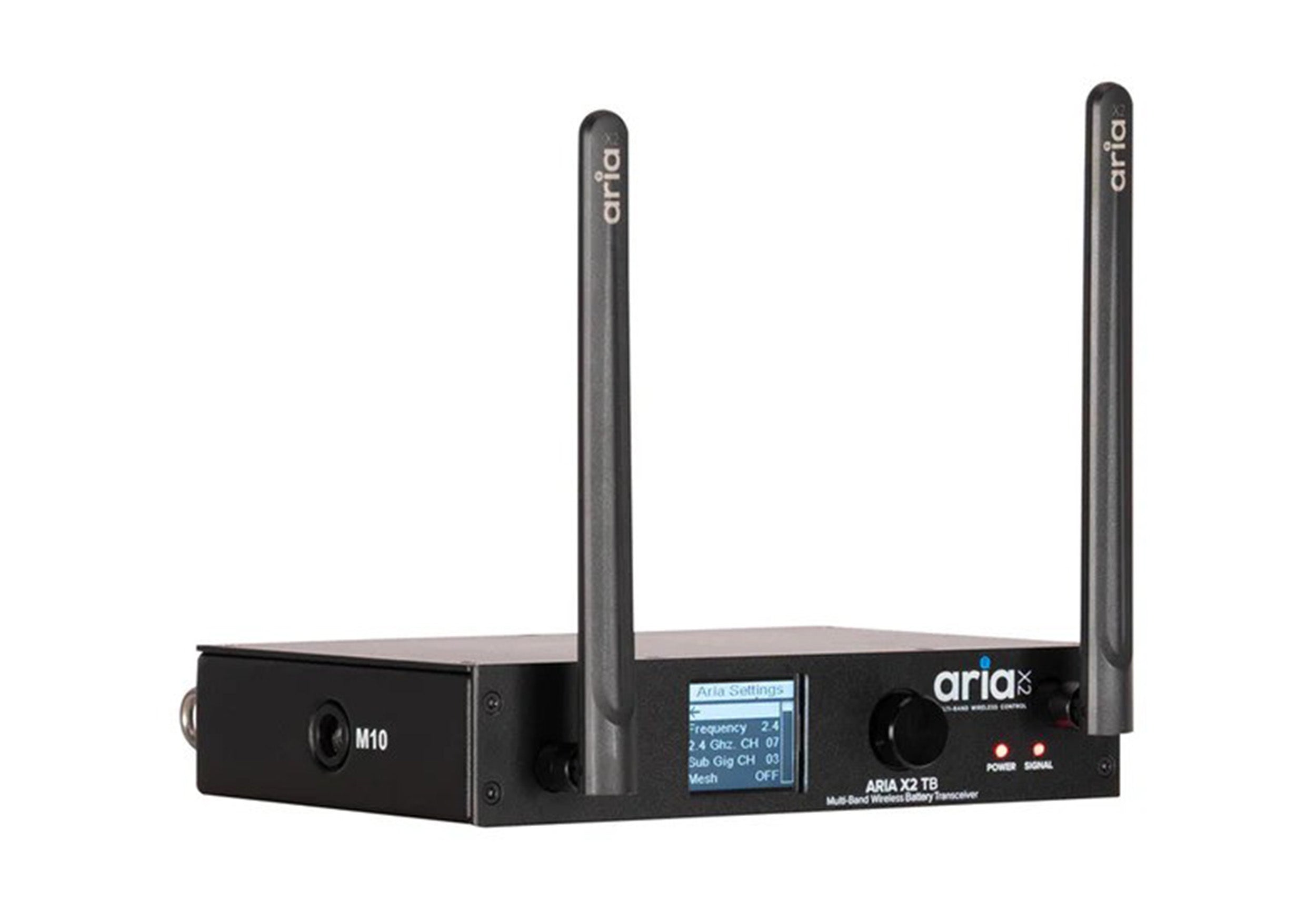

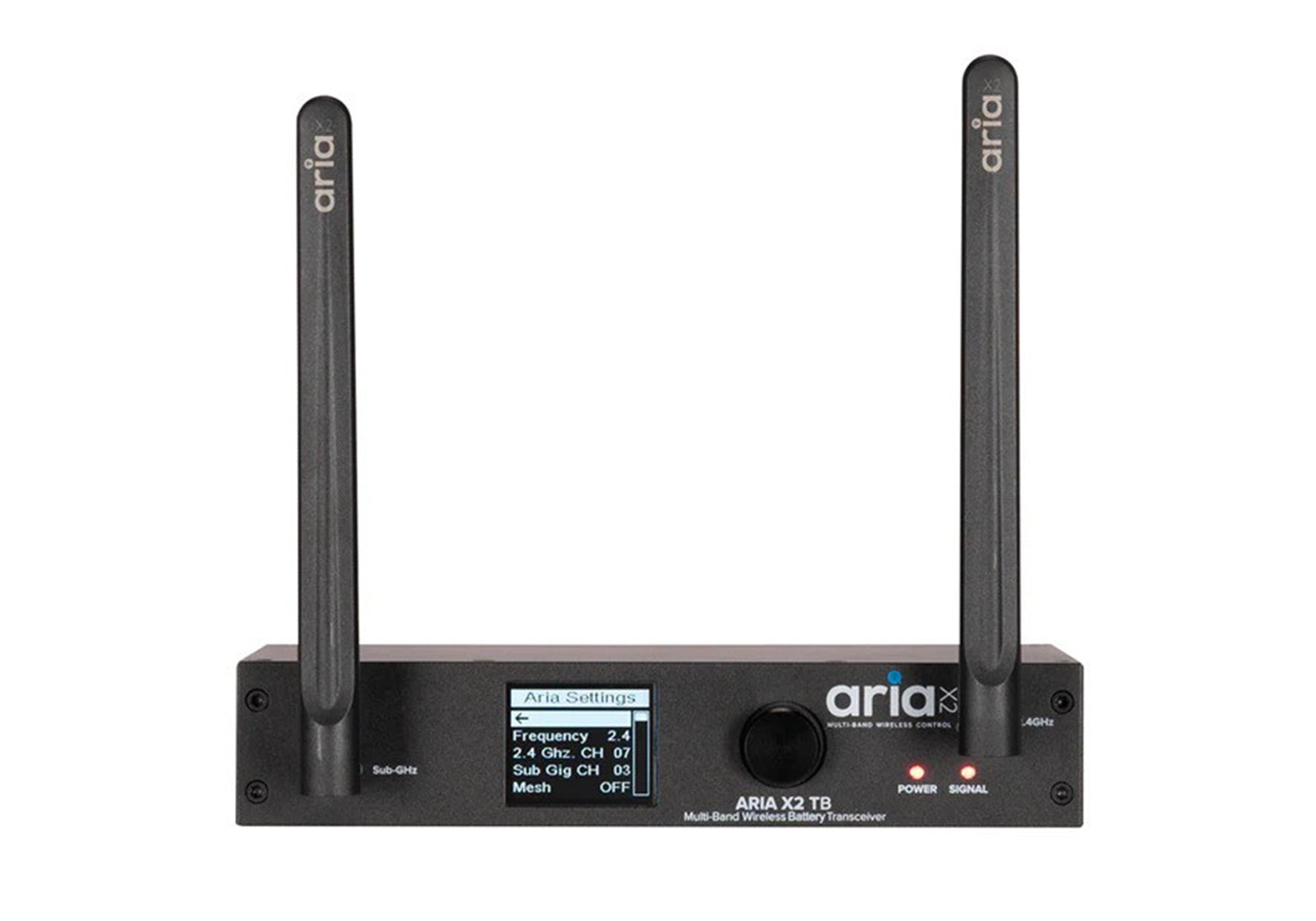

Interface: Front-panel digital screen with rotary knob

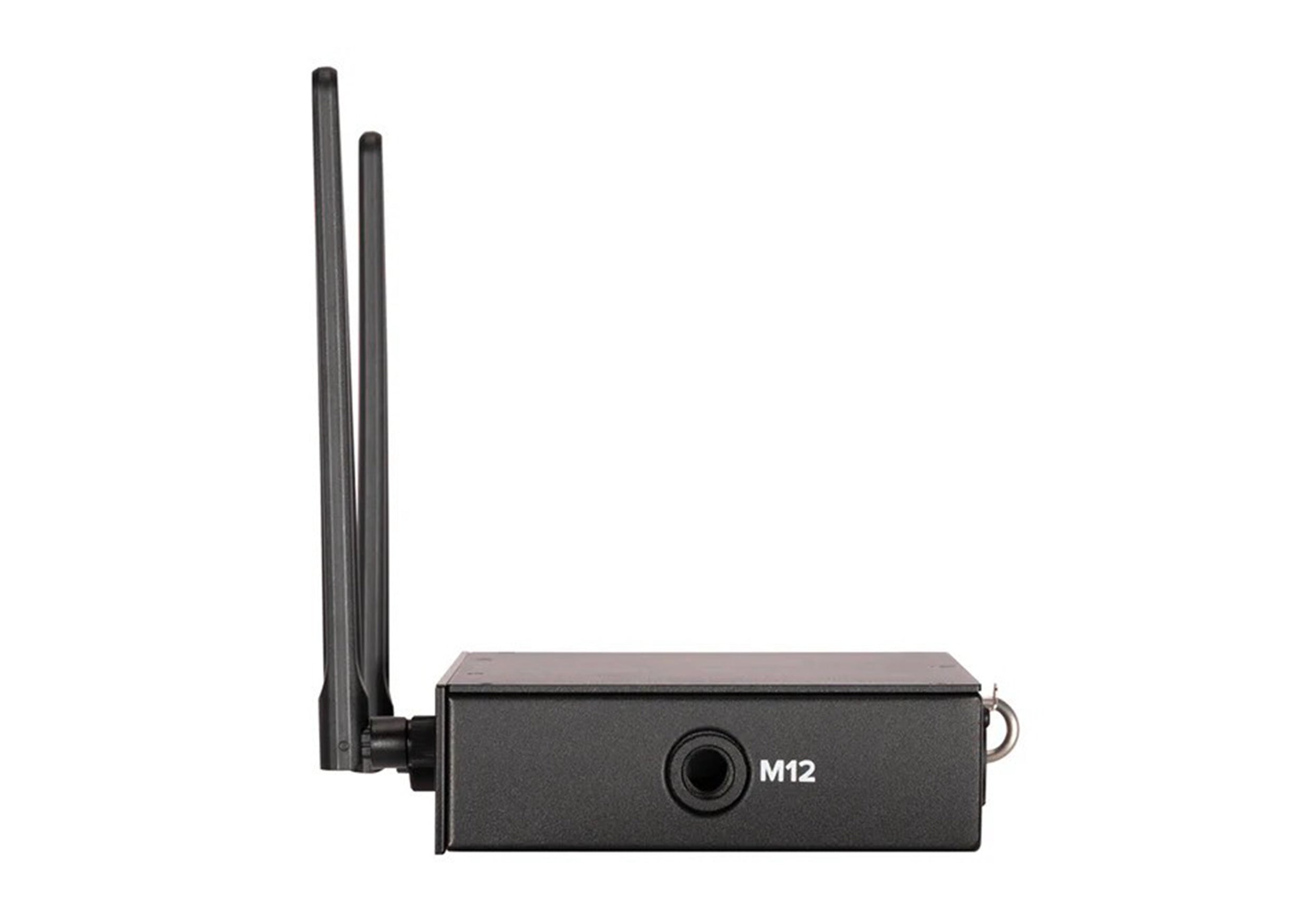

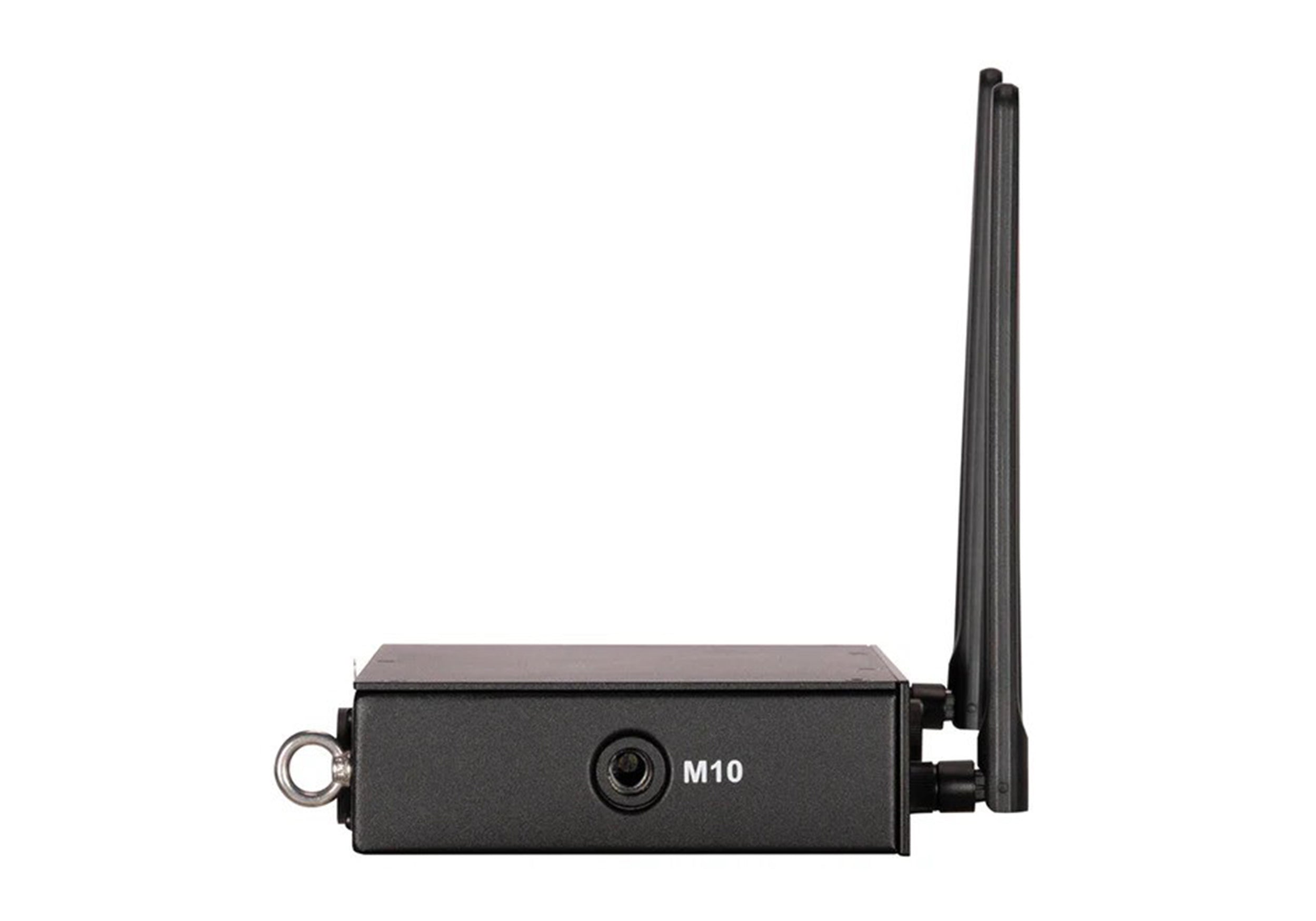

Mounting: M10 and M12 threads, safety eyelet
Max ambient operating temperature: 113 °F (45 °C)
Max operating humidity: < 75%
Storage temperature: 77 °F (25 °C)
Accessories: Rack and wall-mount options
Dimensions & Weight:
Length: 6.1 in (155 mm)
Width: 8.5 in (215 mm)
Height: 1.7 in (42 mm)
Weight: 2.7 lbs (1.23 kg)
