Description
The ADJ Aria X2 Transceiver SM220 to Aria X2 with wired digital communication network single universe, indoor Aria X2 Transcevier, the future of wireless lighting management, is here to transform your experience with unparalleled control, efficiency and ease. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop.
Product Specifications
Supported Protocols:
DMX
RDM (Planned for future software release)
Proprietary 802.15.4
Aria X2 Mesh Protocol
Bluetooth 5.2 (BLE)
Aria X2 Serial Protocol
RF Characteristics:
Frequency range
2404-2480 MHz
863-870 MHz (EU)
902-928 MHz
Radio module: Aria X2
Interference mitigation
CSMA
Adaptive frequency hopping (on the roadmap)
OTA updates

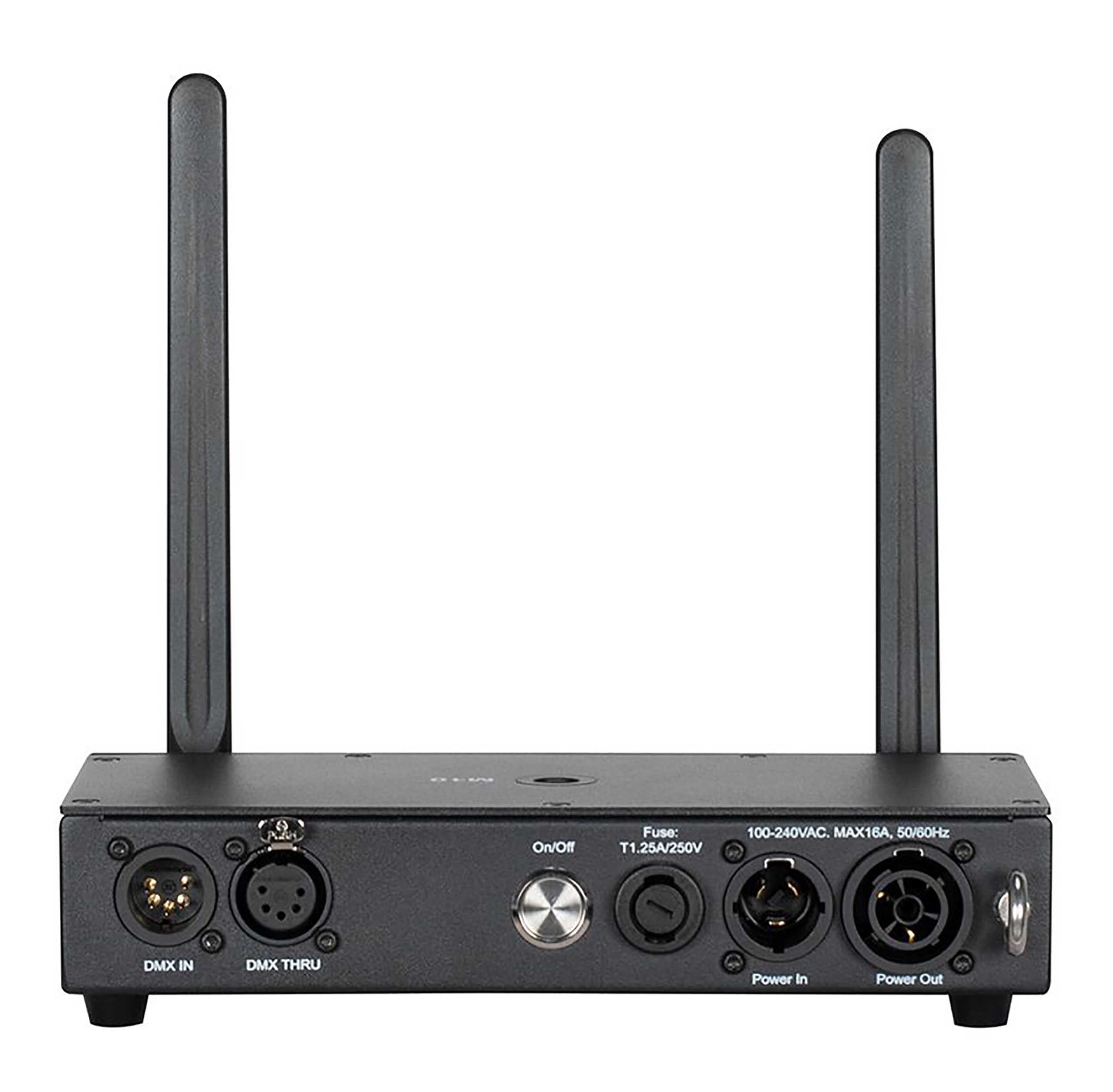

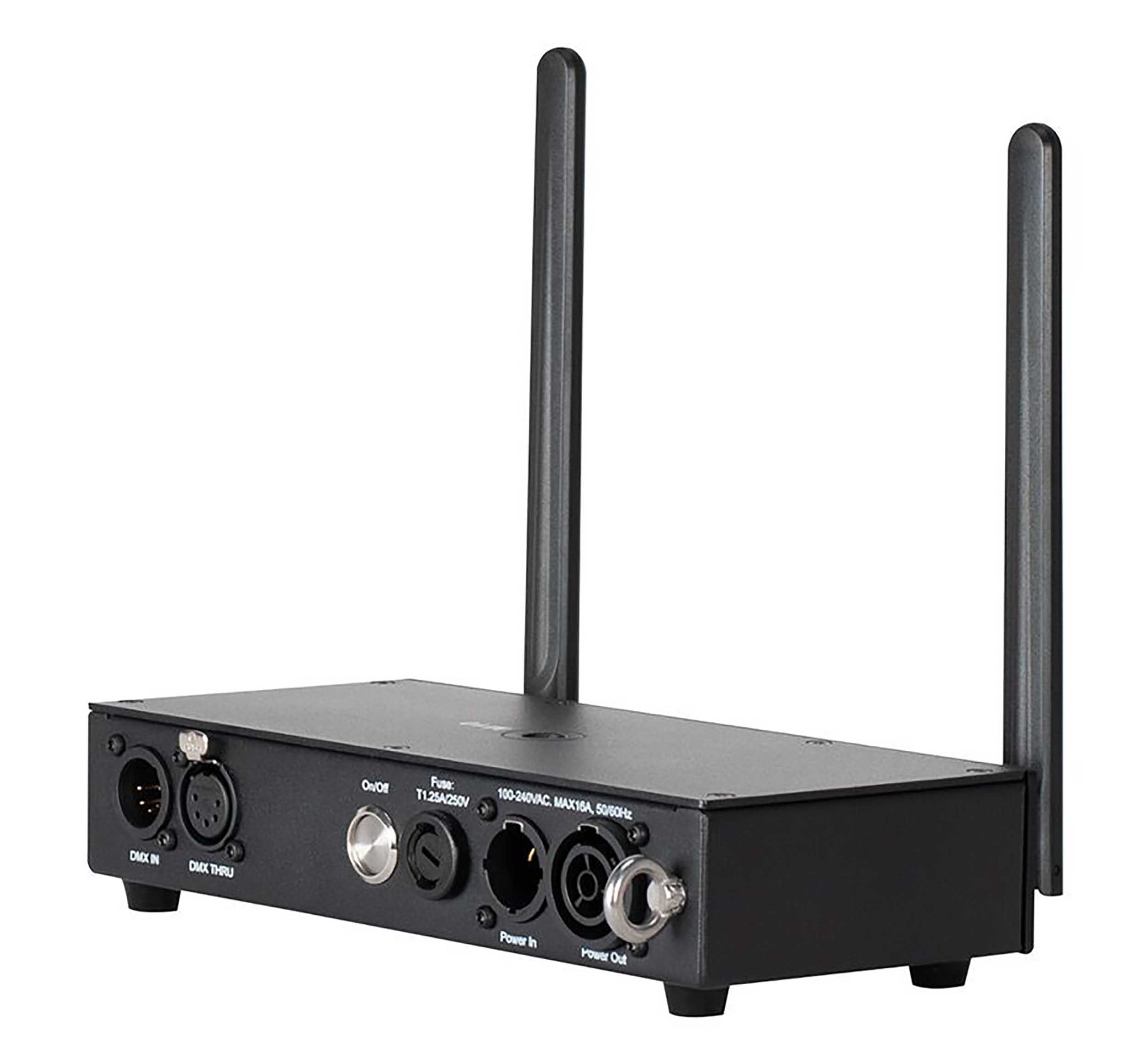

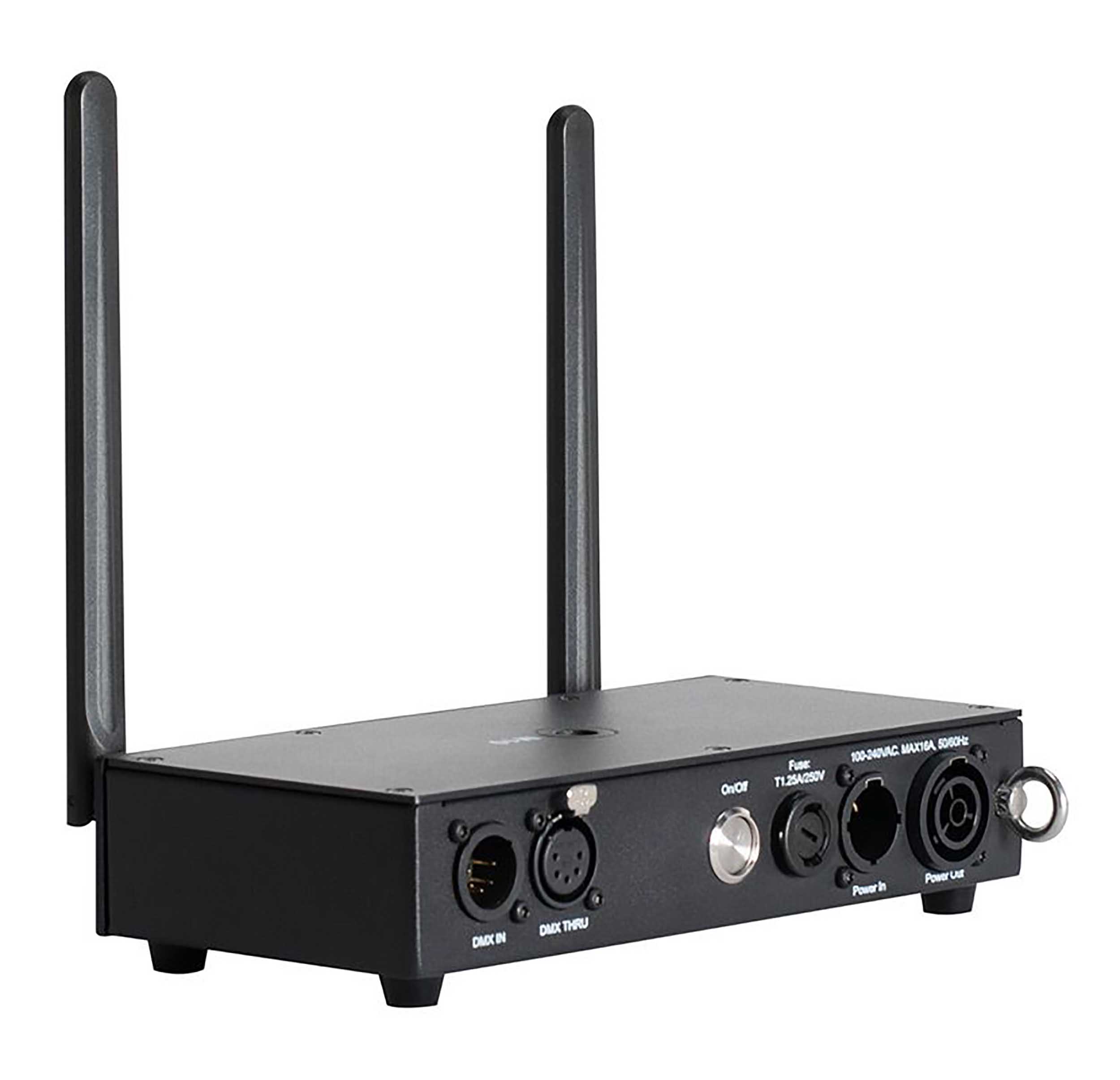

Connectors:
Antenna:5G JT SMA
DMX:5-pin XLR Input and Output
DC: 2.5mm/5.5mm Barrel connector
Outdoor Locking Power Input and Output
Power:
AC100-240V 50/60Hz
Power Consumption:2W
Power Fuse:T1.25A/250V. (5 x 20mm)
Physical:
IP20 Aluminum / Metal enclosure

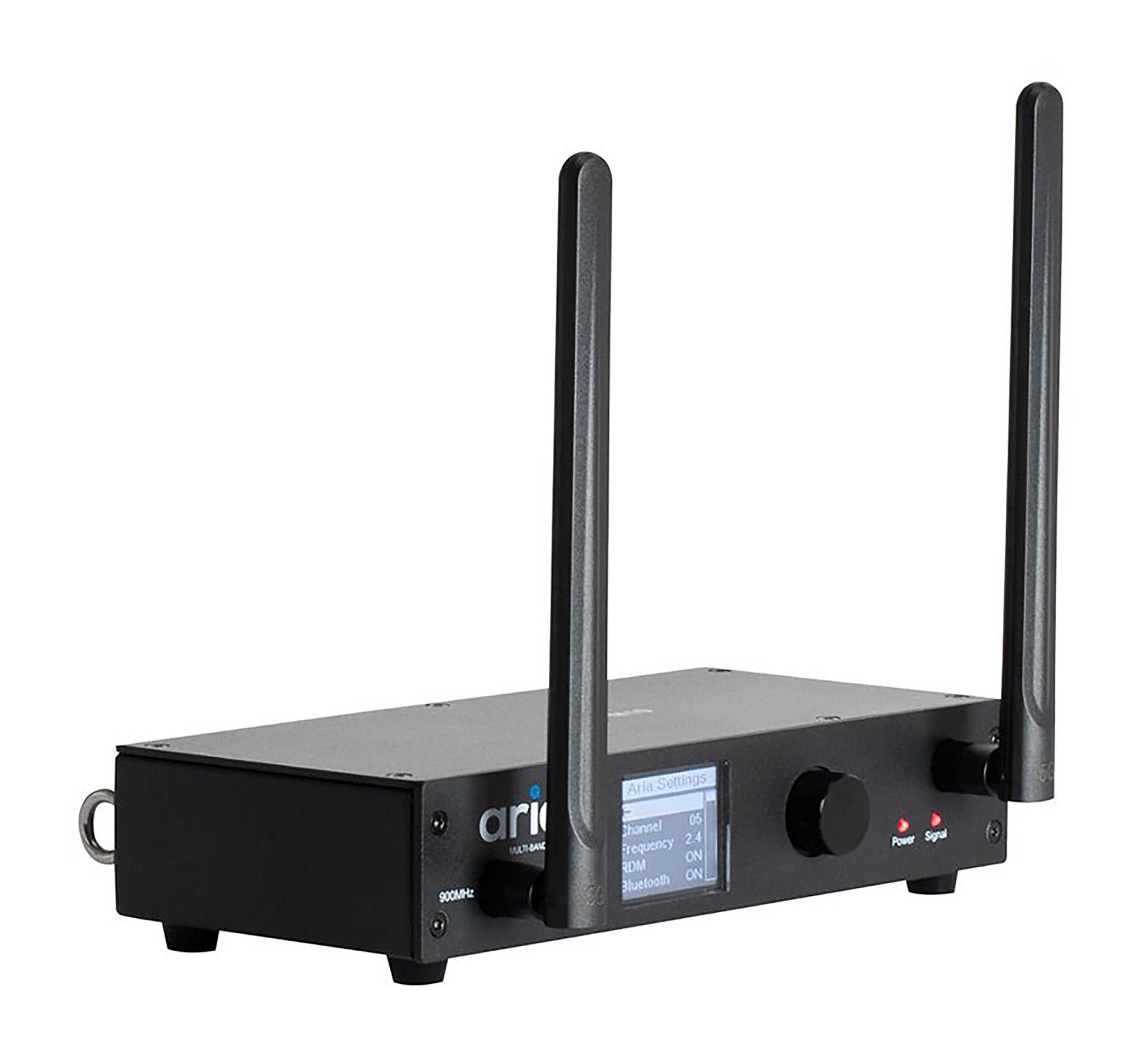

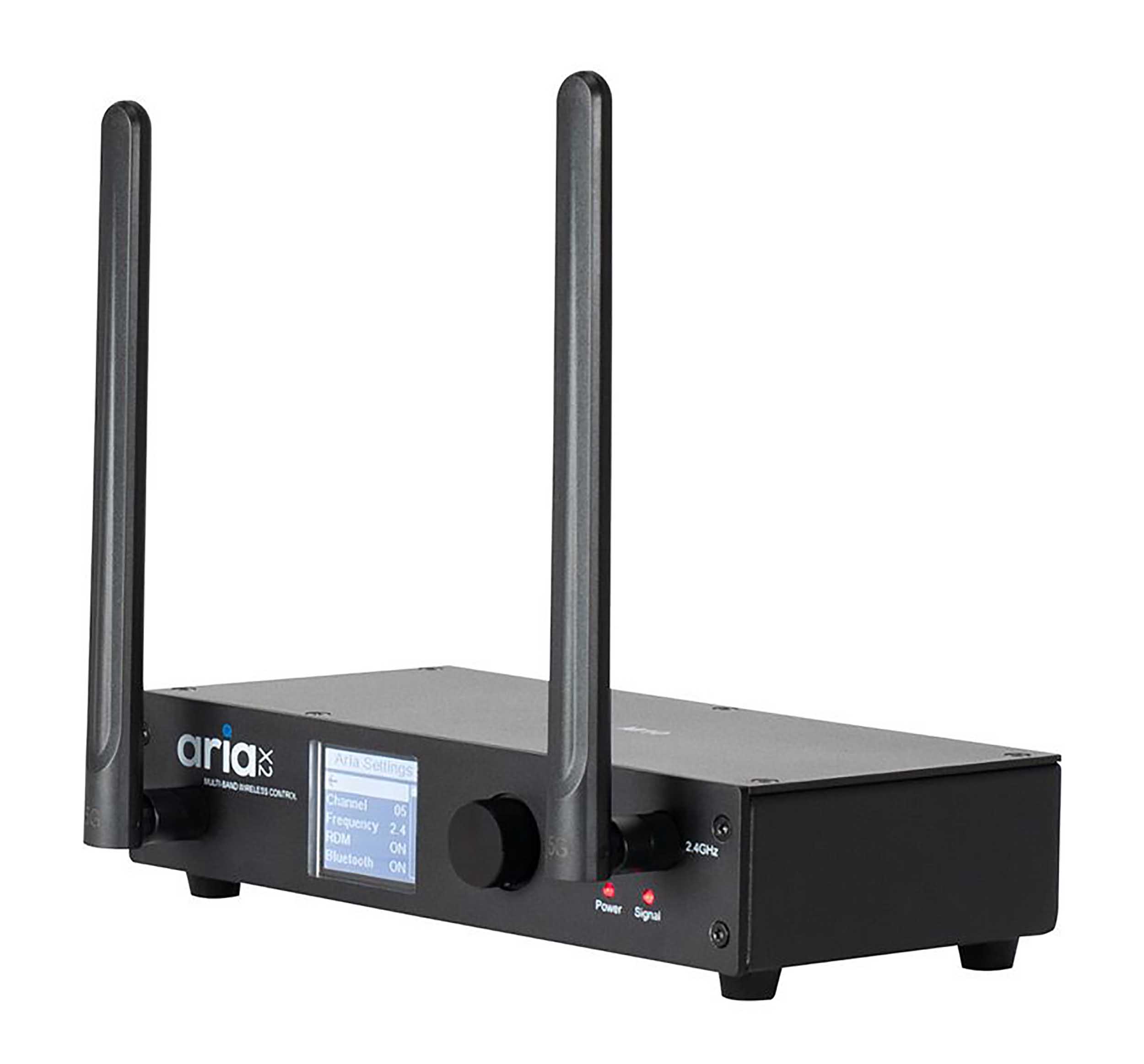

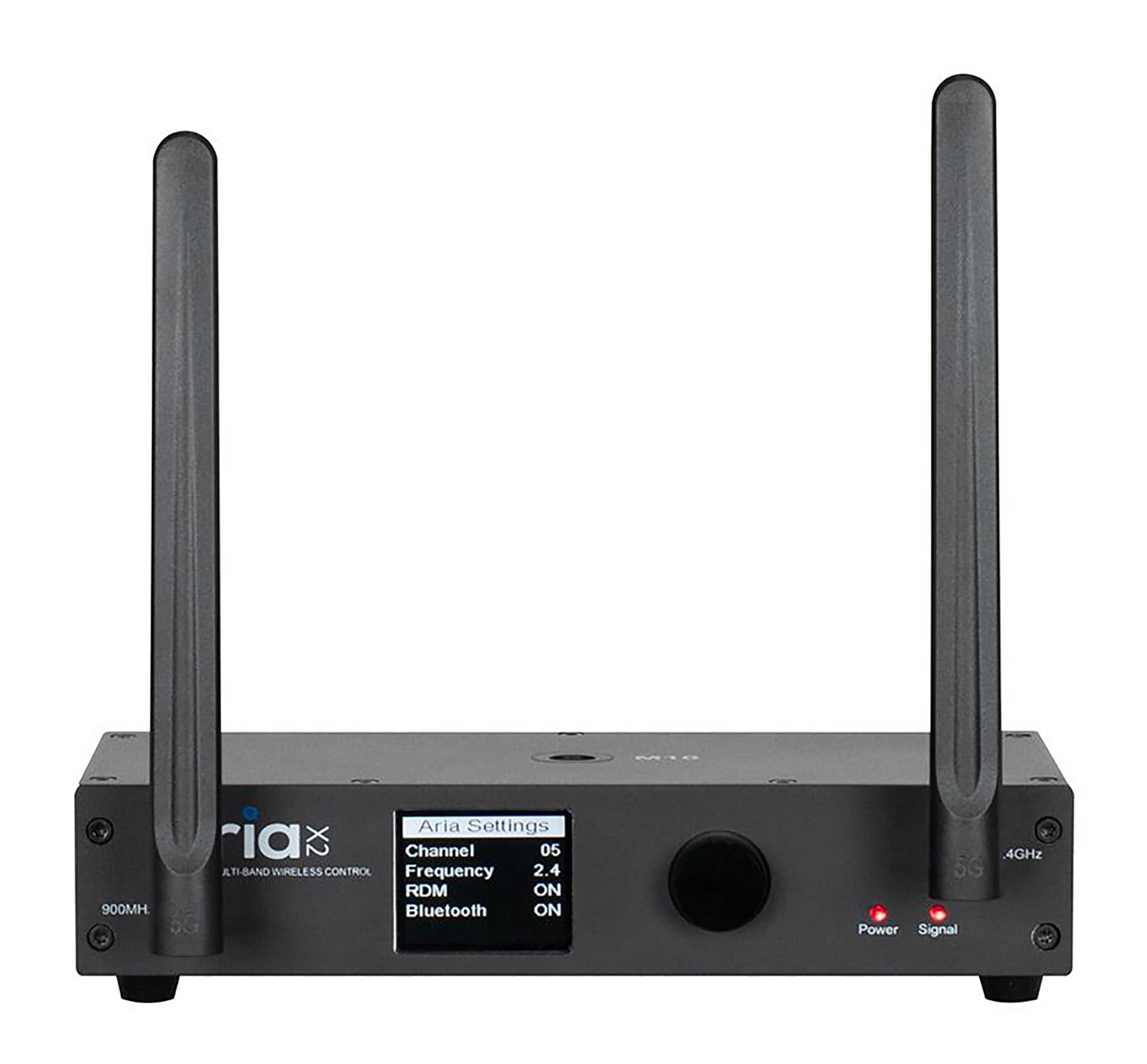

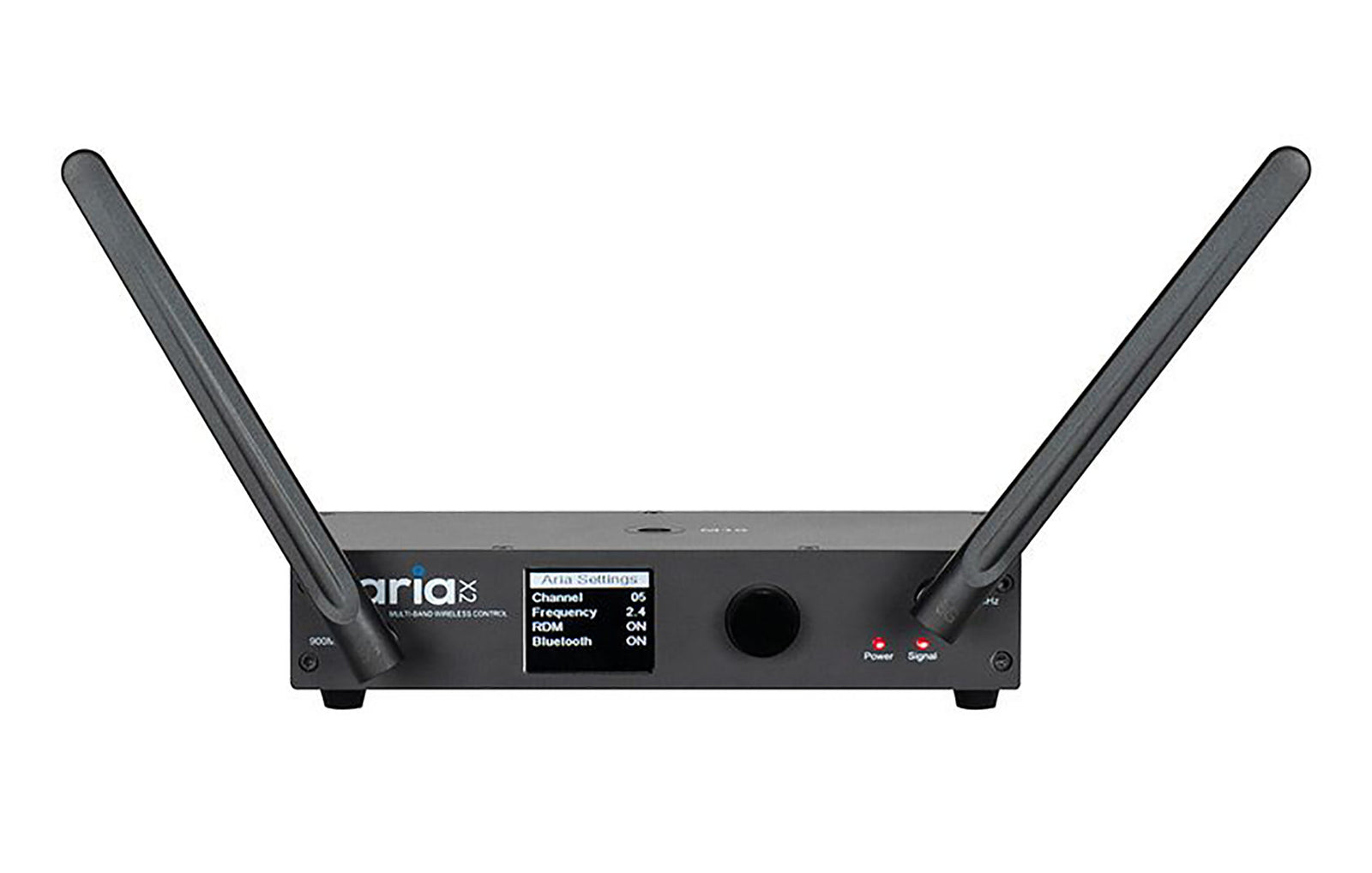

Front panel digital screen and rotary knob

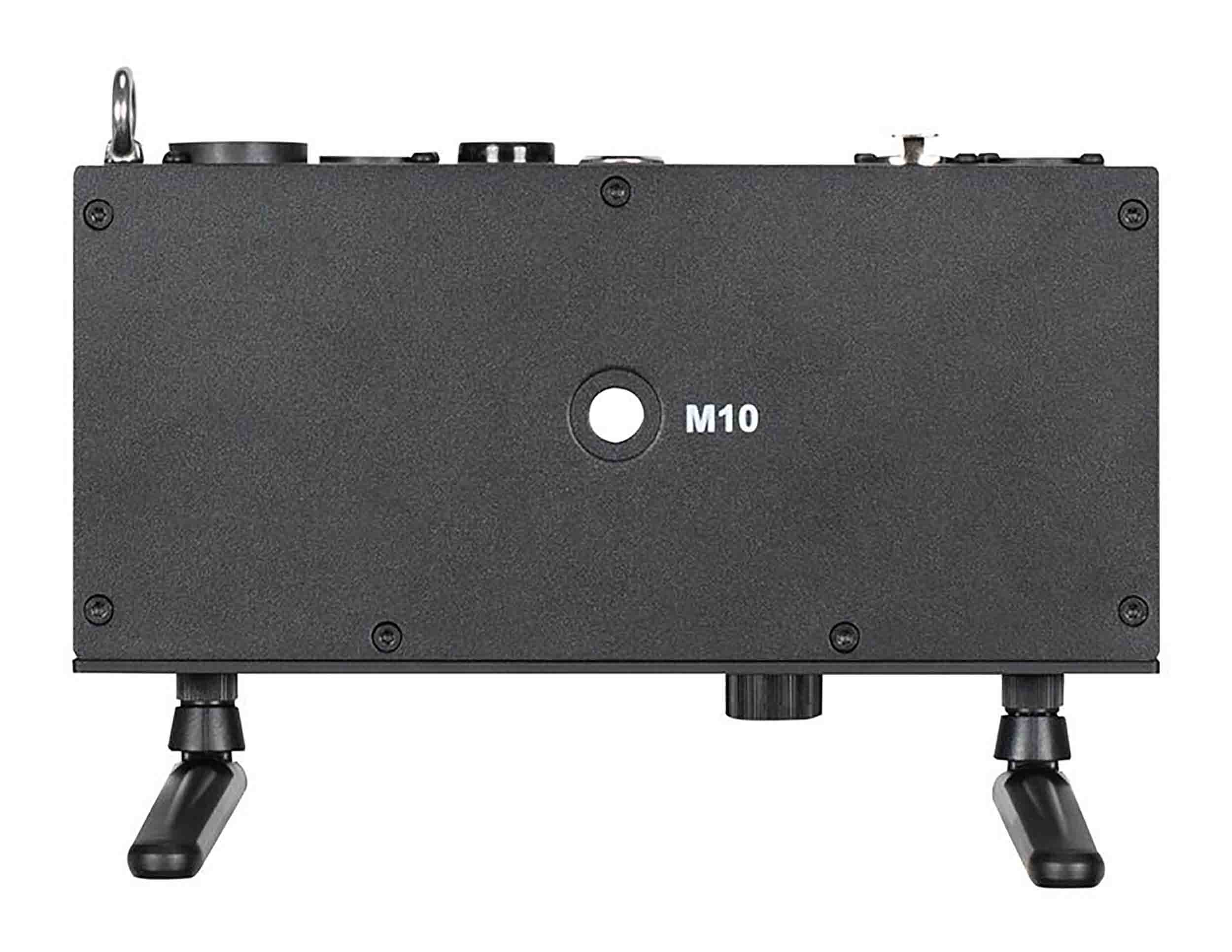

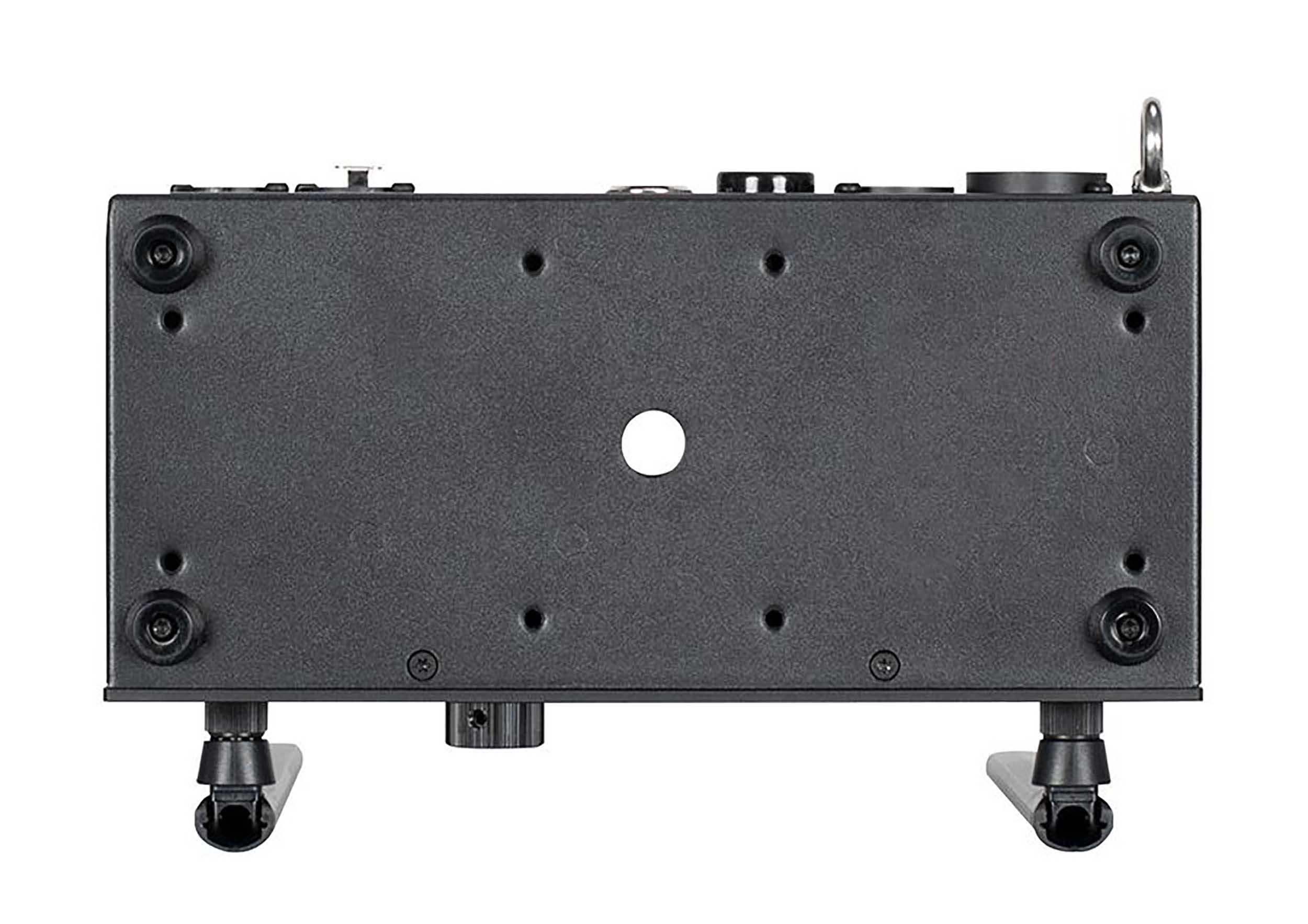

M10 and M12 Threads

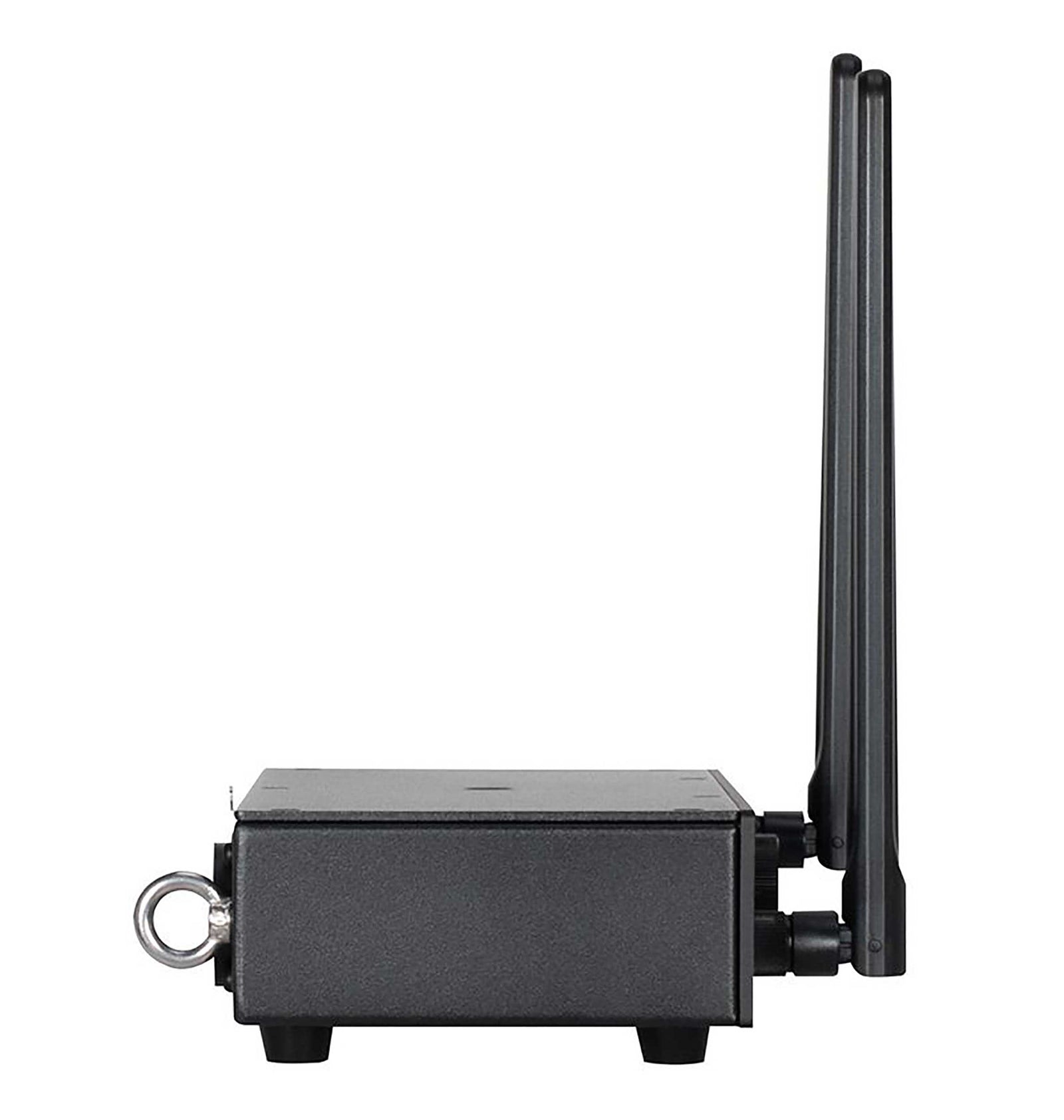

Safety Eyelet
Max Ambient Operating Temp:113°F (45°C)
Max Operating Humidity:<75%
Storage Temperature:77°F (25°C)
Dimensions:
Length:6.46" (163.95mm)
Width:8.48" (215.30mm)
Height:1.66" (42mm)
Weight:2.7lbs (1.23kgs.)
