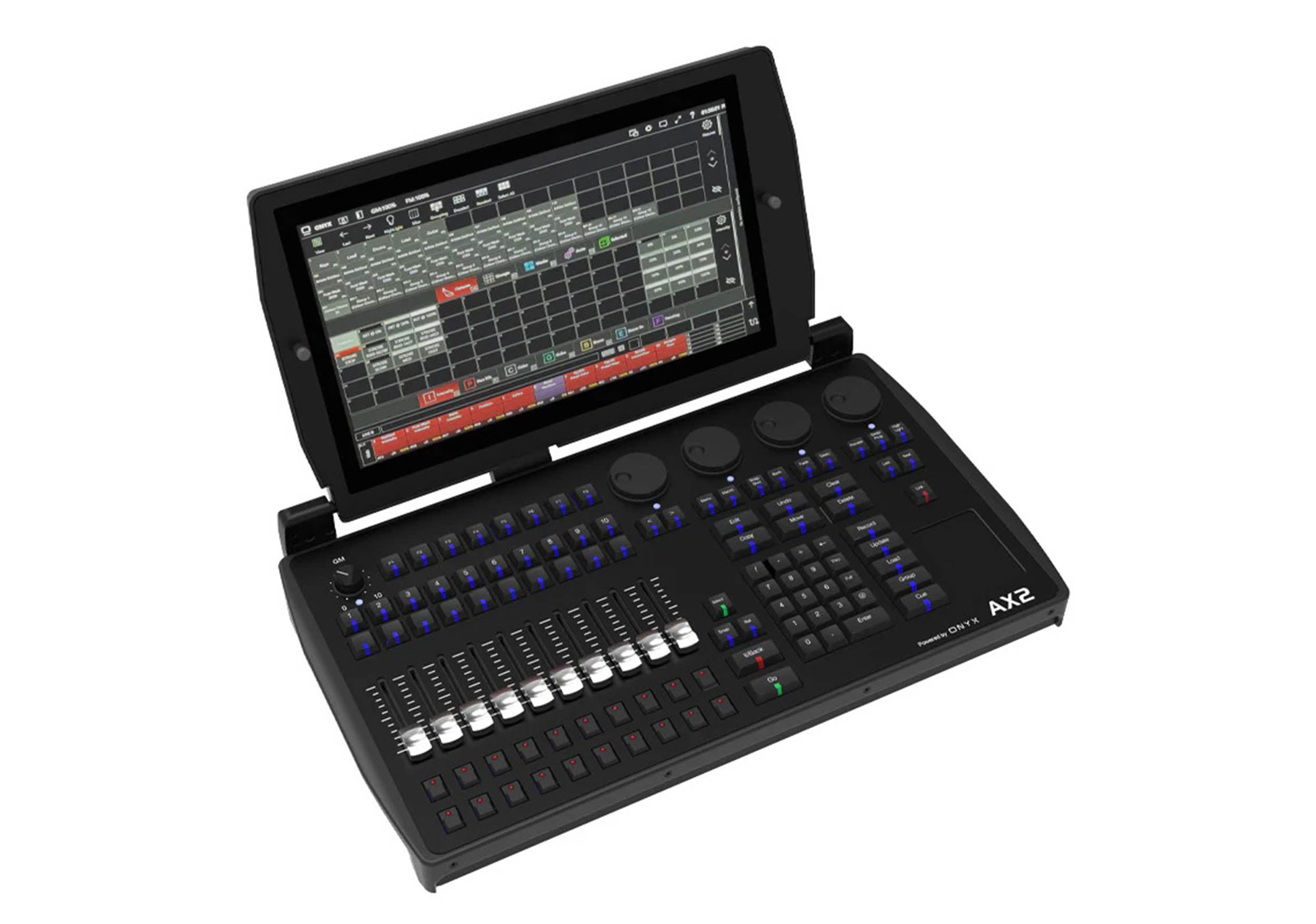

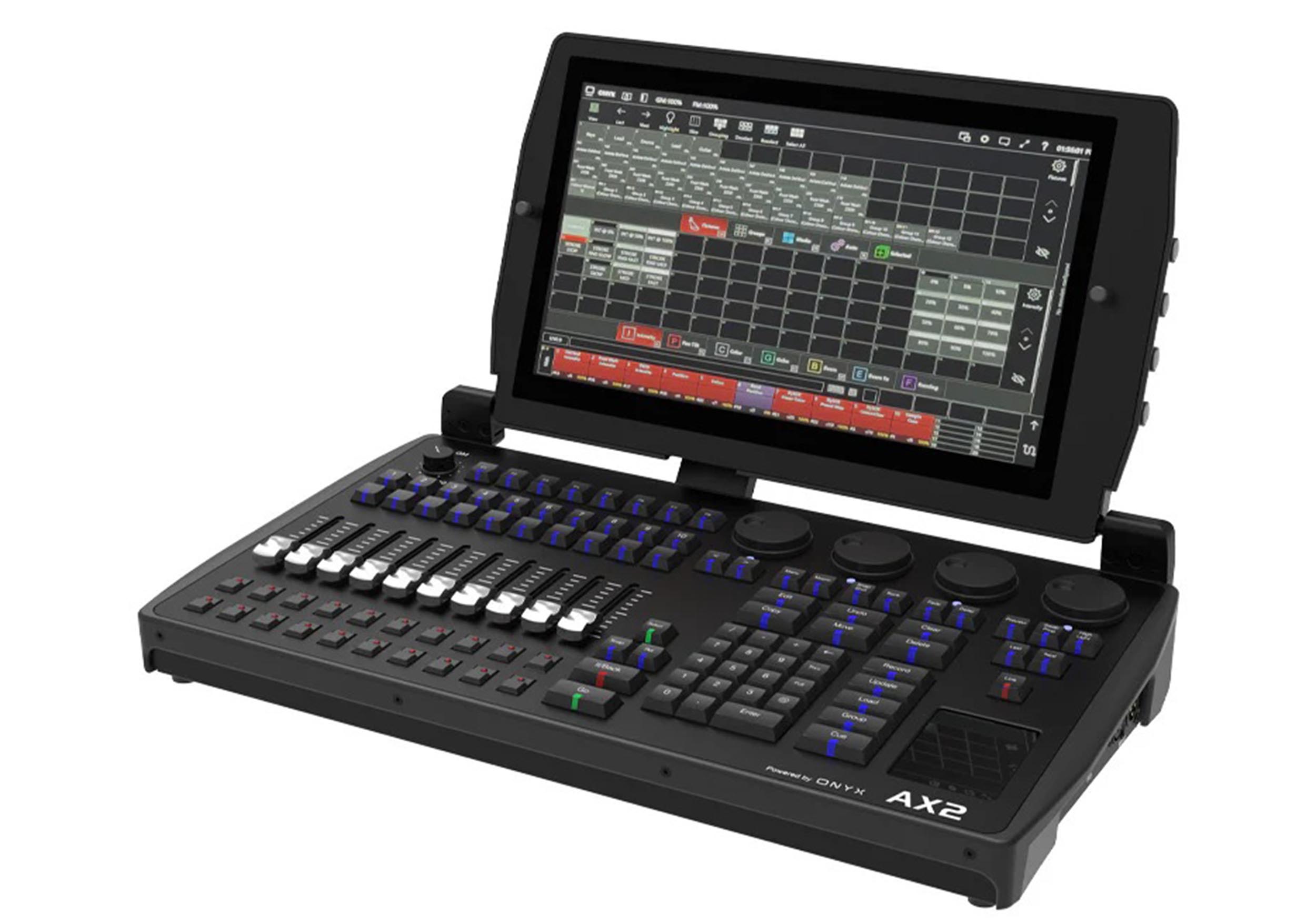

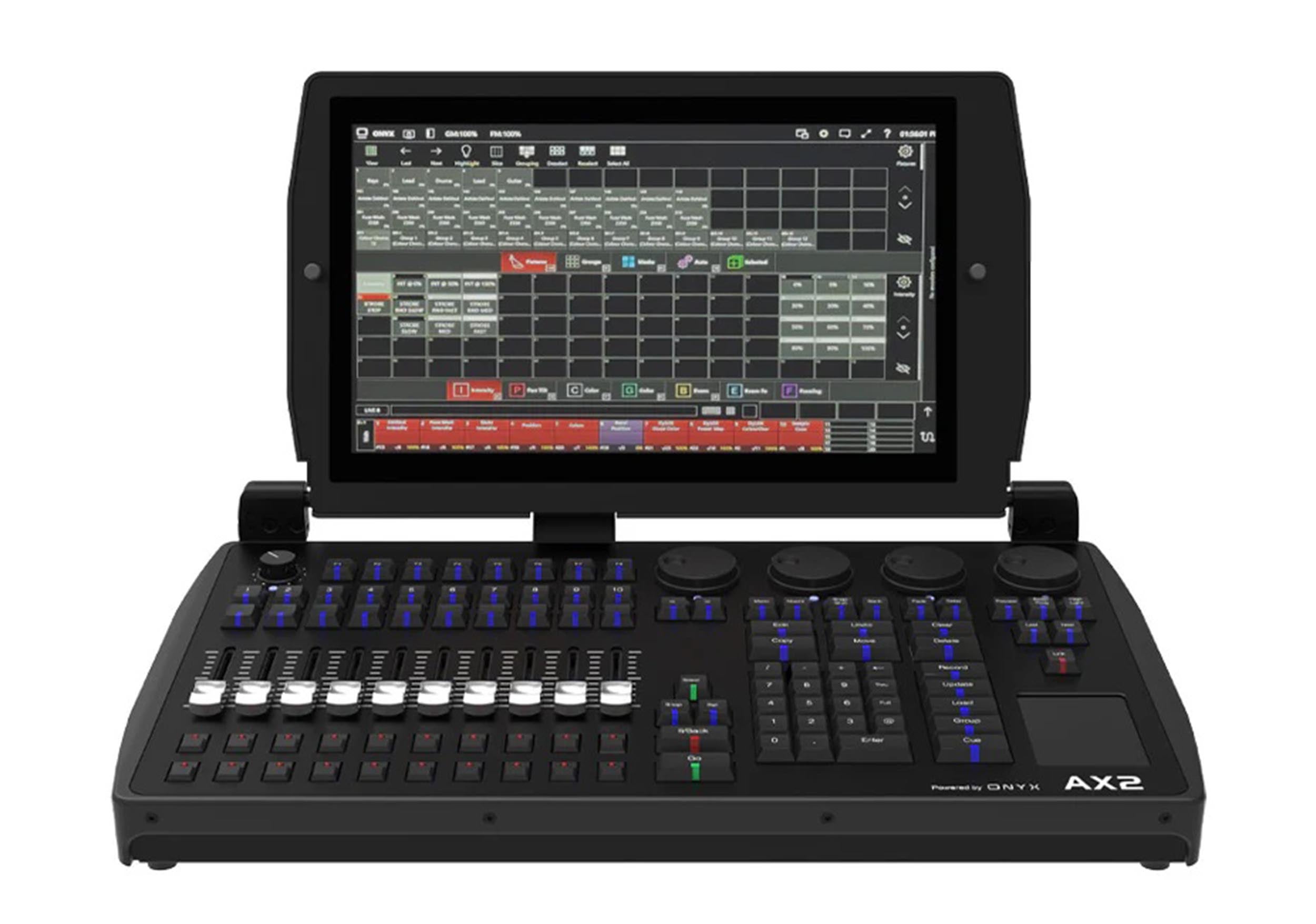

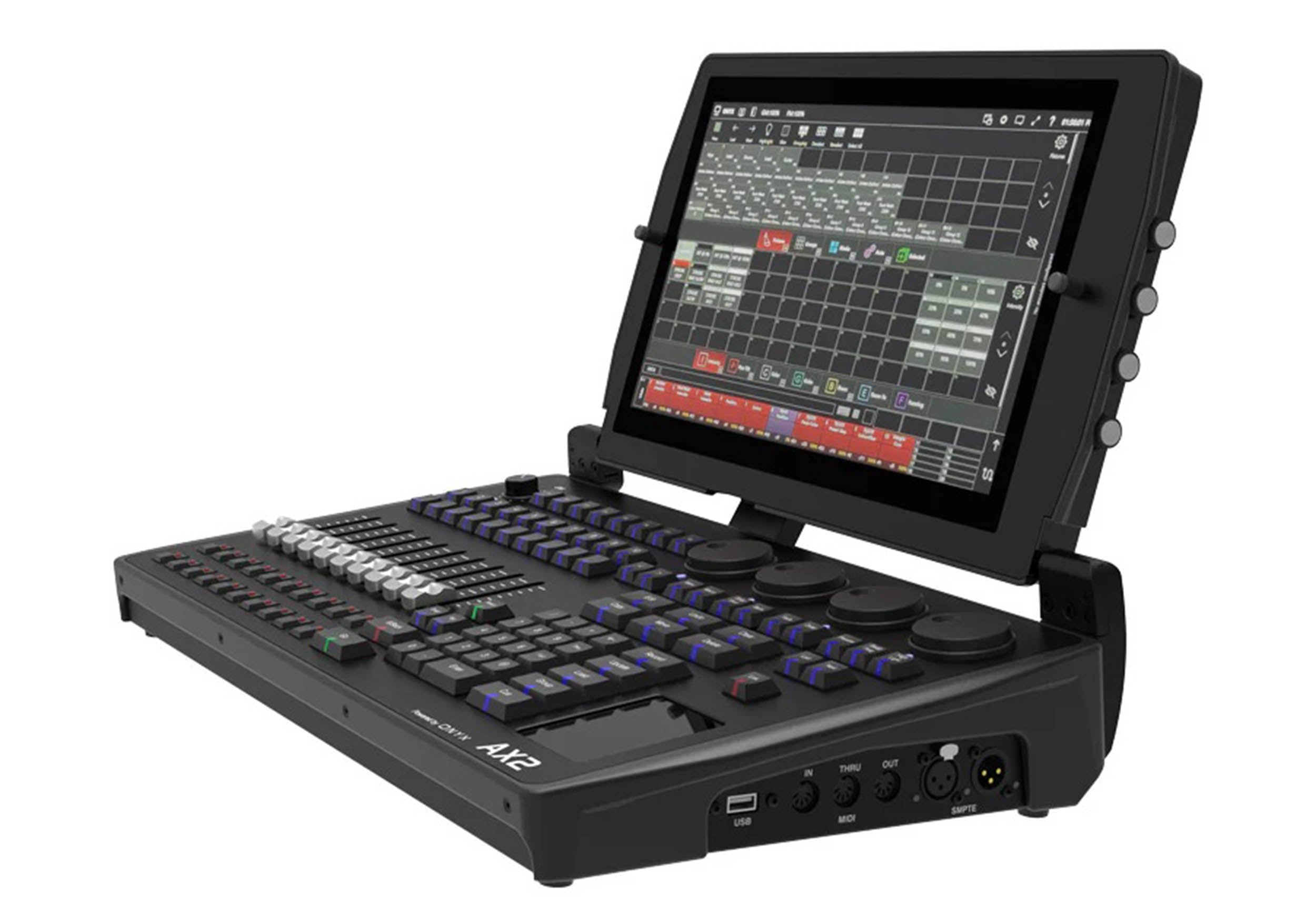

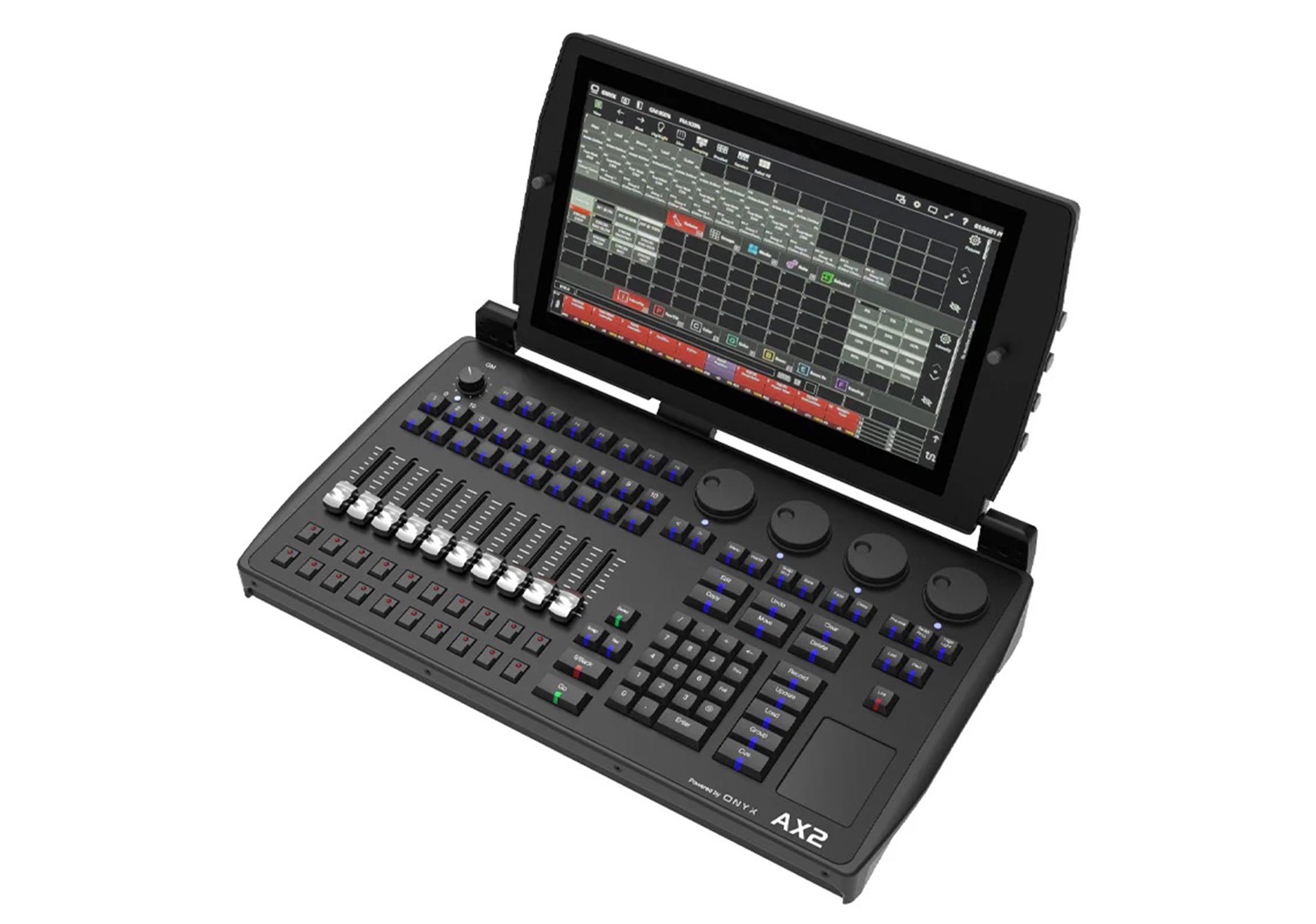

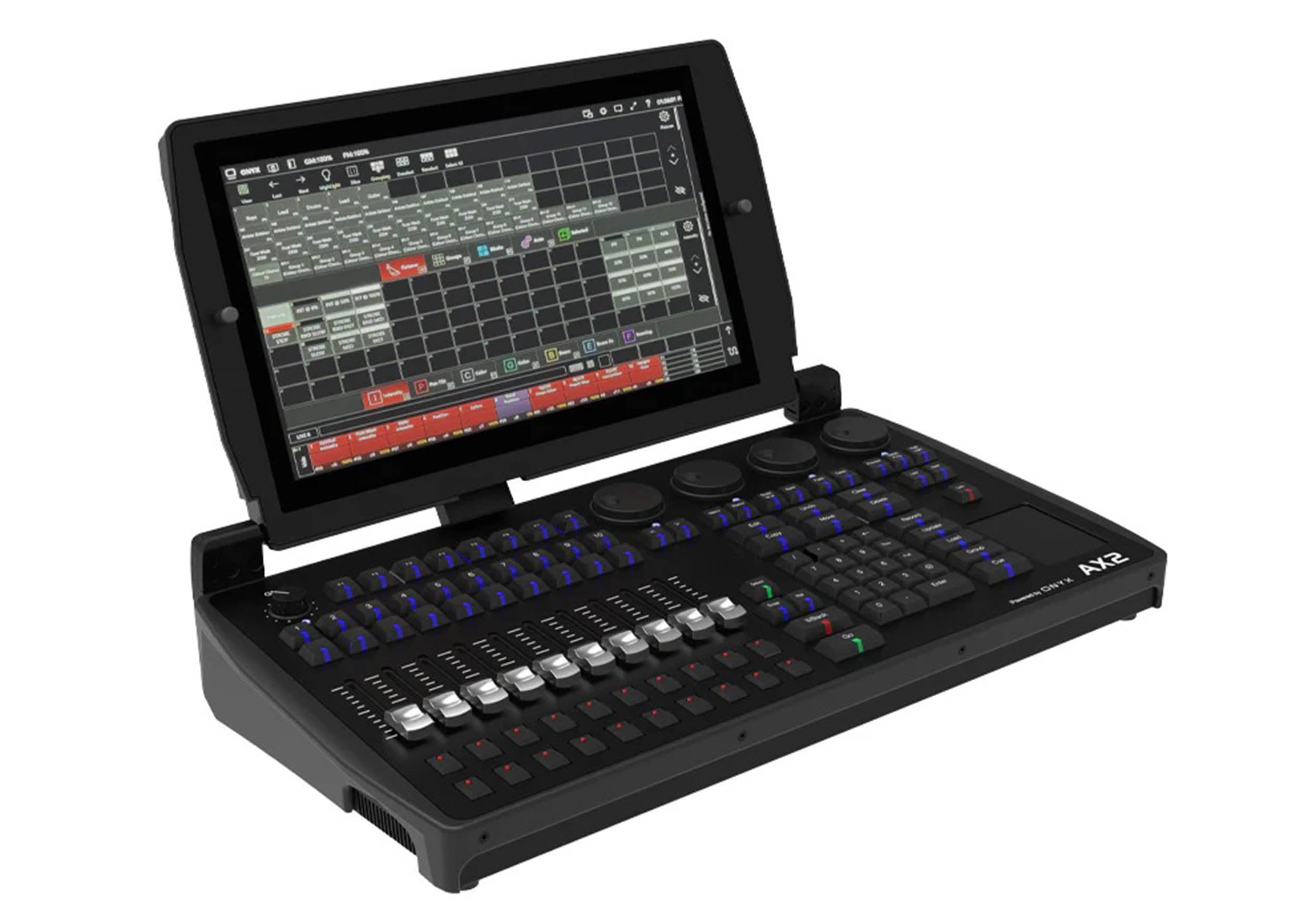

ADJ AX2 Lighting Controller with ONYX Platform, 32-Universe Processing

The ADJ AX2 is a compact yet powerful, fully integrated lighting controller powered by Obsidian Control Systems’ ONYX platform. Designed for demanding modern productions, it combines speed, reliability, and intuitive control in a streamlined footprint. The AX2 also includes the DYLOS Media Engine with five zones of pixel control, making it a versatile solution for both lighting and pixel-based shows.

Control Surface and Ergonomics

At the center of the AX2 is a bright, adjustable 15.6” Full HD multi-touch screen, supported by an assistive internal 3.5” touchscreen. The console features a full ONYX command and keypad section, a dedicated grand master, 8 assignable parameter encoders, and 10 full playbacks with four freely assignable buttons, delivering fast, hands-on operation in a highly ergonomic layout.

Performance and Processing

Built with industrial-grade components, the AX2 is powered by an Intel Hexa-Core processor, 16GB of DDR4 RAM, and a high-speed NVMe SSD. This hardware enables fast boot times, instant responsiveness, and integrated processing of up to 32 universes directly within the console-eliminating the need for external processing hardware.

Connectivity and Expandability

The AX2 is equipped with extensive connectivity to meet large-scale production demands, including four DMX ports, SMPTE timecode, MIDI, and dual Gigabit Ethernet ports supporting up to 32 universes of Art-Net, sACN, and ONYX X-Net. Support for two external 4K touch displays provide expanded control and visibility, ensuring the AX2 is always ready to run major shows and events at a moment’s notice.

Product Specifications:

CPU: Intel i5 Hexa-Core processor

Motherboard: Industrial-grade

Memory: 16 GB DDR4 RAM

Storage: 500 GB NVMe M.2 SSD

Graphics: Integrated graphics processor

Cooling: Quiet thermal design with copper heat pipe coolers

Operating System: Windows 11 IoT Embedded

Operating Platform: Powered by ONYX (Obsidian Control Systems)

Media Engine: DYLOS Media Engine with 5 zones of pixel control

Main Display: Adjustable 15.6 in Full HD multitouch screen (1920 × 1080)

Additional Displays: 2 × external 4K touch displays

Auxiliary Display: Internal 3.5 in RGB touchscreen

Integrated Controls: Keypad and command keys

Integrated Processing: 32 universes

Playbacks: 10

Encoders: 8

Supported Protocols: SMPTE, MIDI

Playback Faders: 10 × 60 mm motorized playback faders with 4 assignable function buttons each

Multi-Function Keys: 8 customizable keys

Playback Select: Playback Select button

Master Go Section: Go, Pause, Snap, Release

Encoders (Hardware): 4 × digital rotary encoders with push function and status LED

Encoders (Screen): 4 × screen-mounted digital rotary encoders with push

Touchscreen Functions: Parameter groups, effects, fanning, global timing

Grand Master: Rotary fader with button

Additional Controls: Blind, Highlight, Last, Next

Branding: “Powered by ONYX” text on front panel

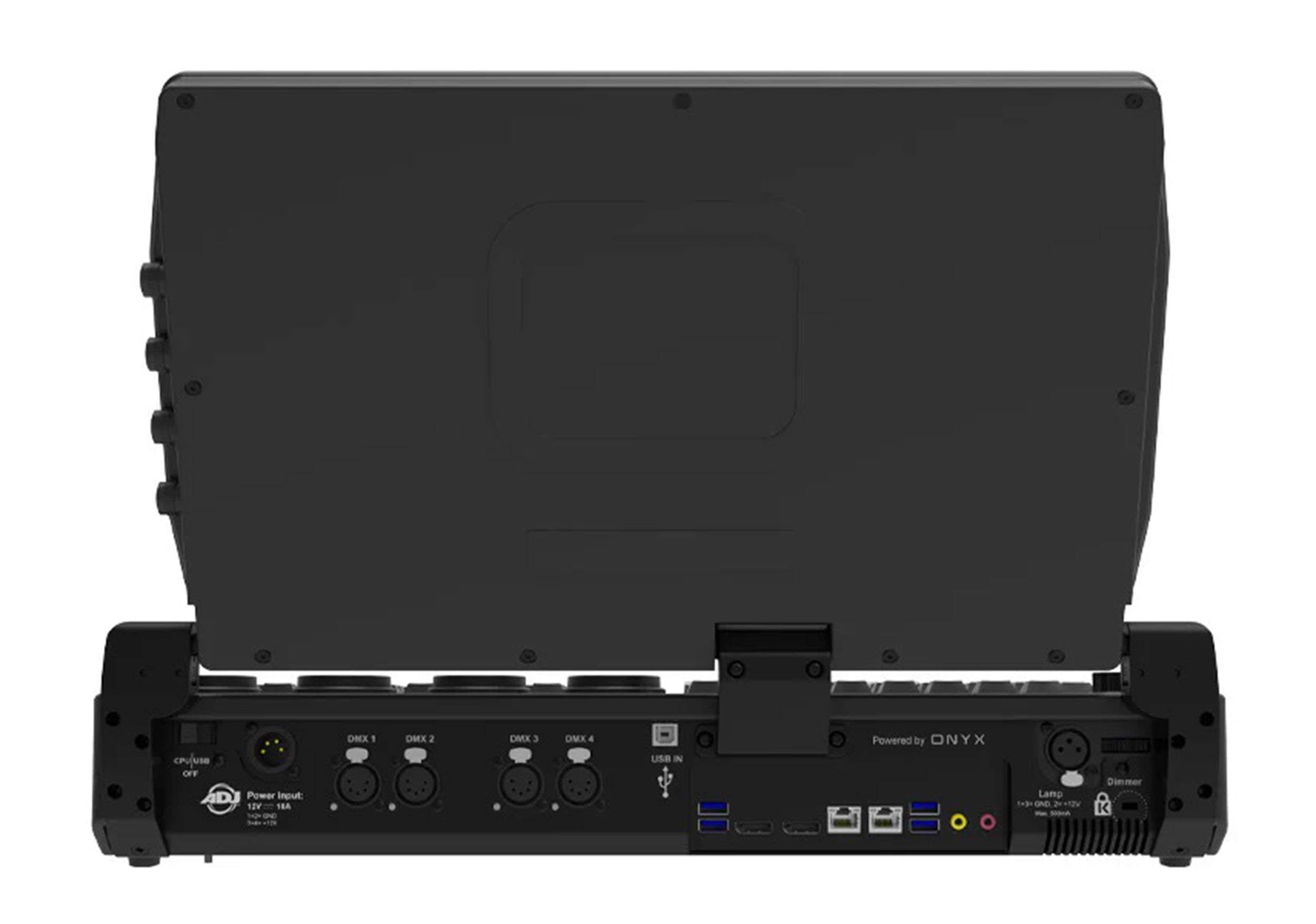

DMX / RDM: 4 × universe in/out (5-pin locking XLR)

Network: 2 × Gigabit Ethernet (Art-Net, sACN, ONYX X-Net)

External Displays: 2 × DisplayPort (up to 4K)

USB: 4 × USB 3.0, 1 × USB 2.0

Audio: 3.5 mm audio out, 3.5 mm mic in

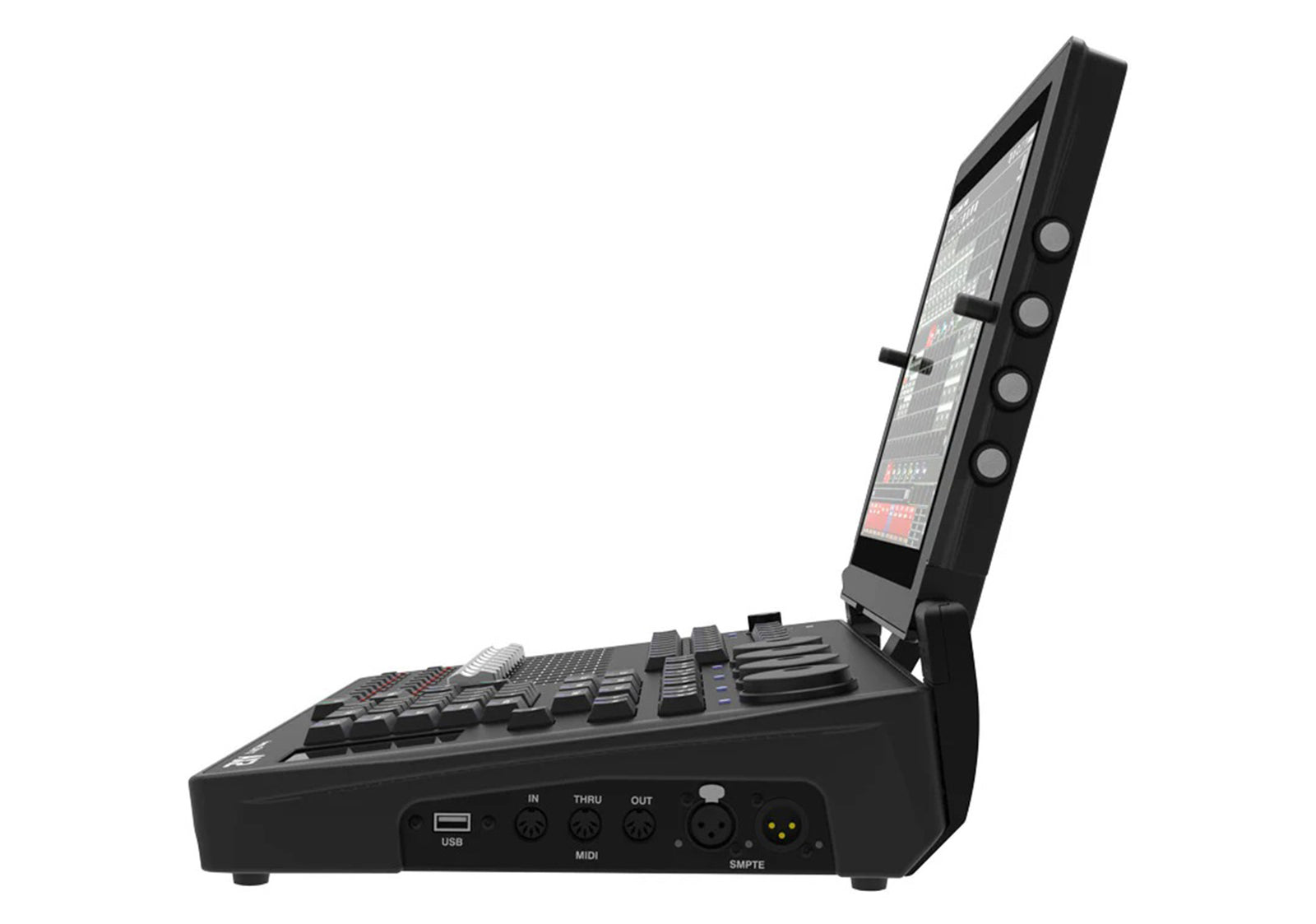

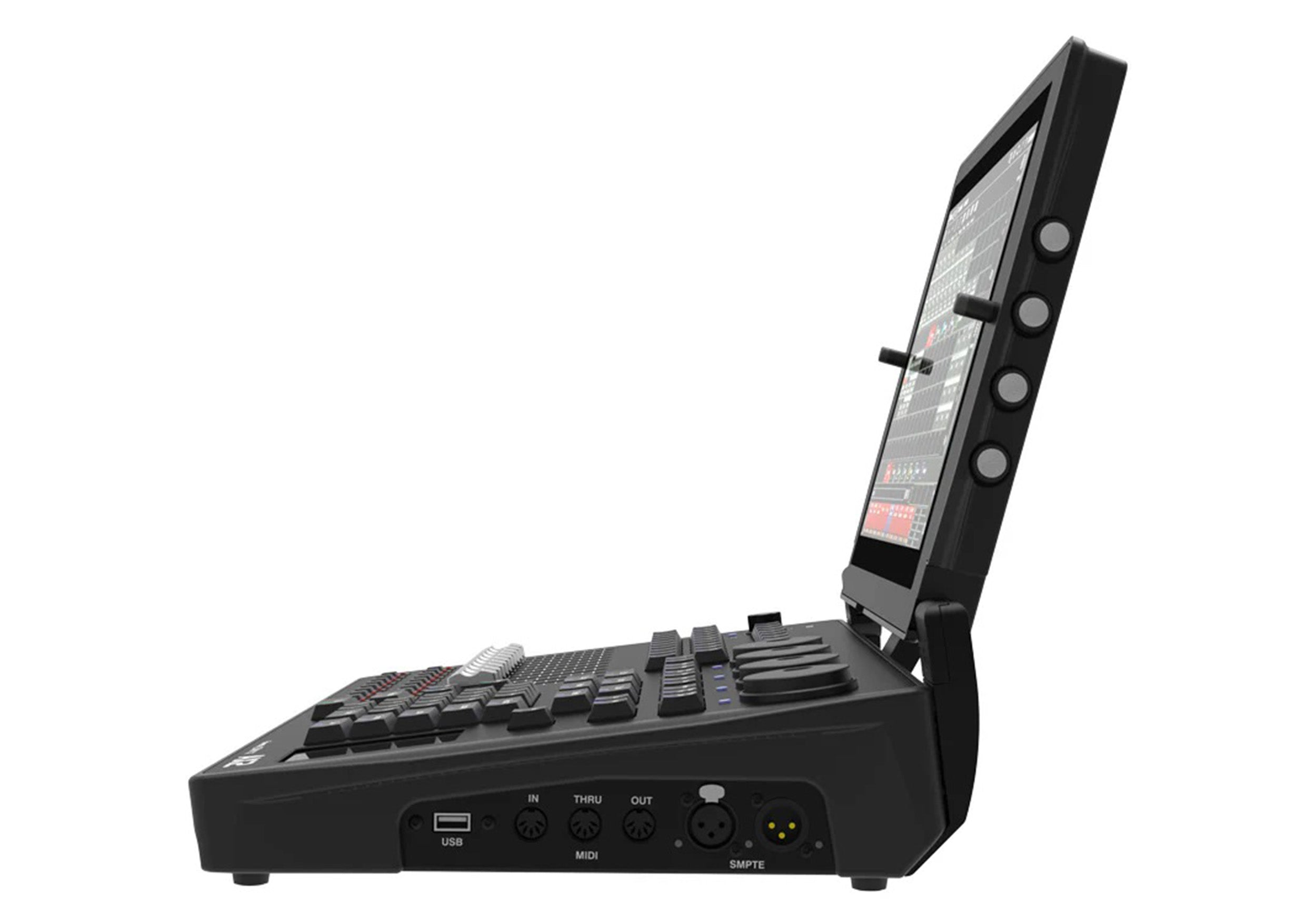

MIDI: MIDI in / out / thru (5-pin DIN)

Timecode: SMPTE in / out (3-pin XLR)

Power Input: 12 VDC via 4-pin XLR

Desk Lamp Output: 12 V XLR

AC Input (External PSU): 100–240 V, 50/60 Hz

Maximum Input Current: 3 A

DC Output: 12 VDC, 11 A (132 W max)

Product Weight: 19.8 lbs / 9 kg

Product Dimensions (L × W × H): 11.9" × 21.3" × 4.8"
