Description
The ADJ Lighting Data Distro 6 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch, it also features an indoor locking power socket for added security.
Product Specifications:
Protocols:
DMX512
RDM
Physical:

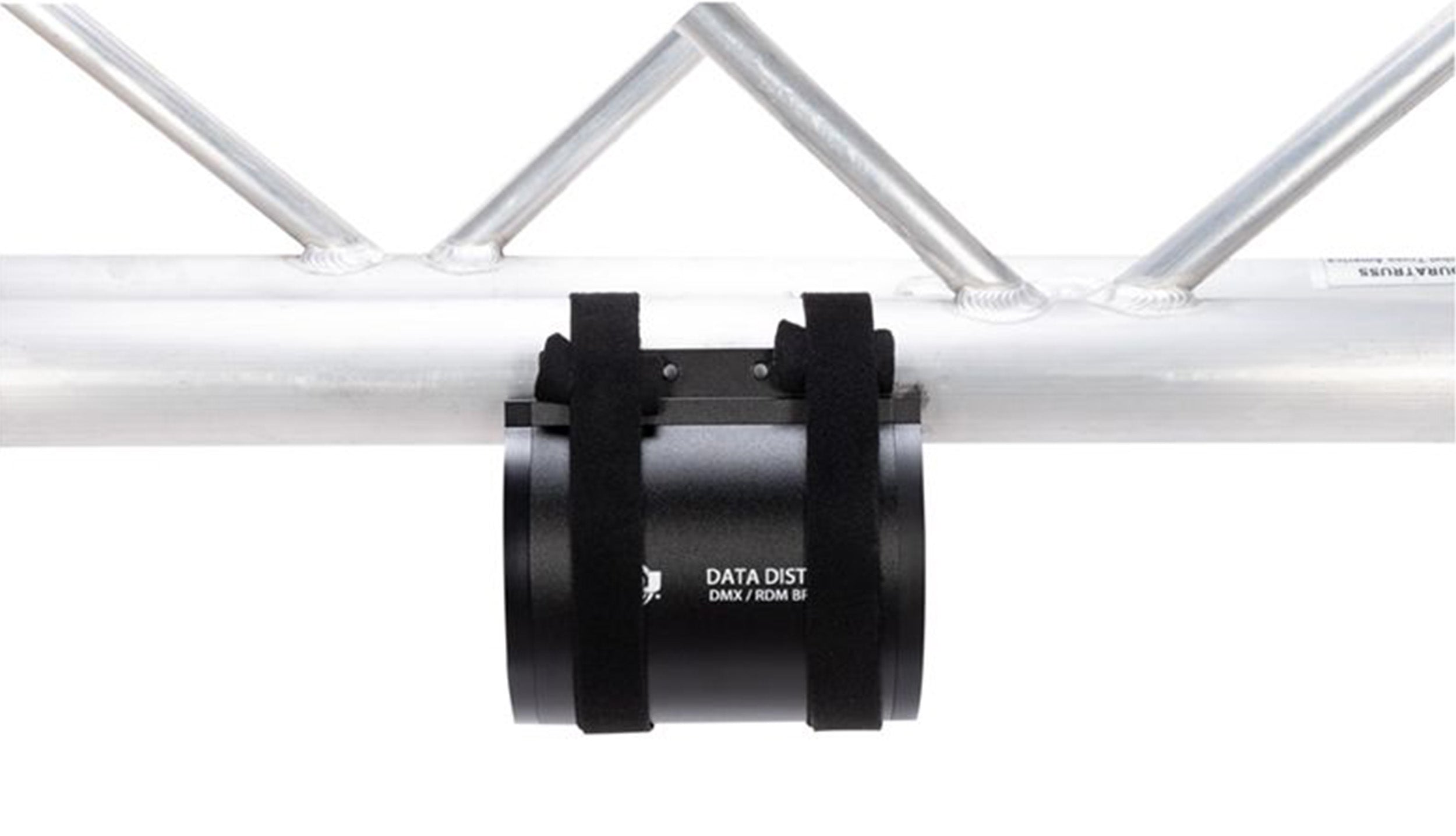

1 Truss Mount with Velcro Straps or M10 Screw Clamp (Clamp Not Included)

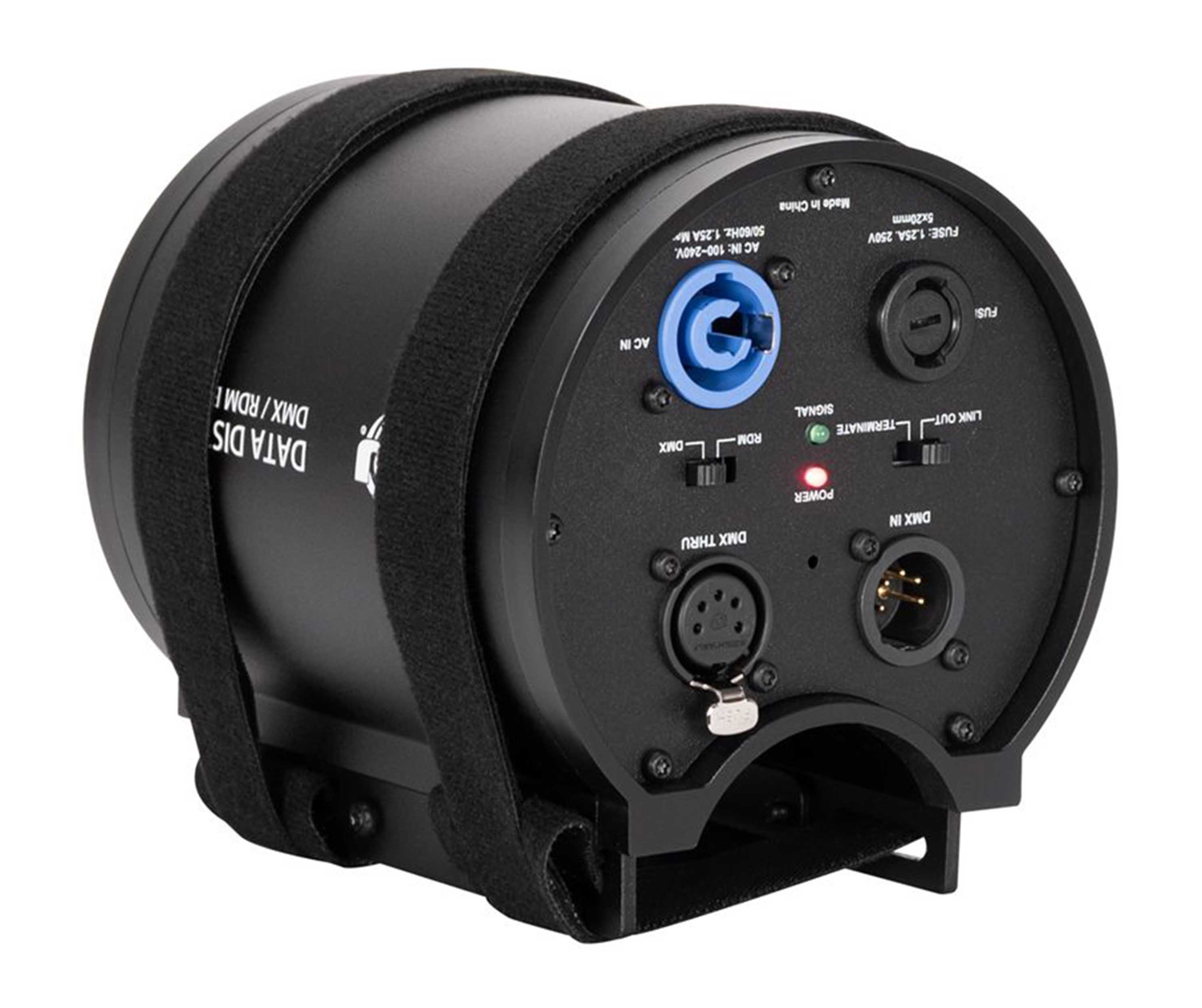

1x Indoor 5pin XLR Input
1x Indoor 5pin XLR Thru

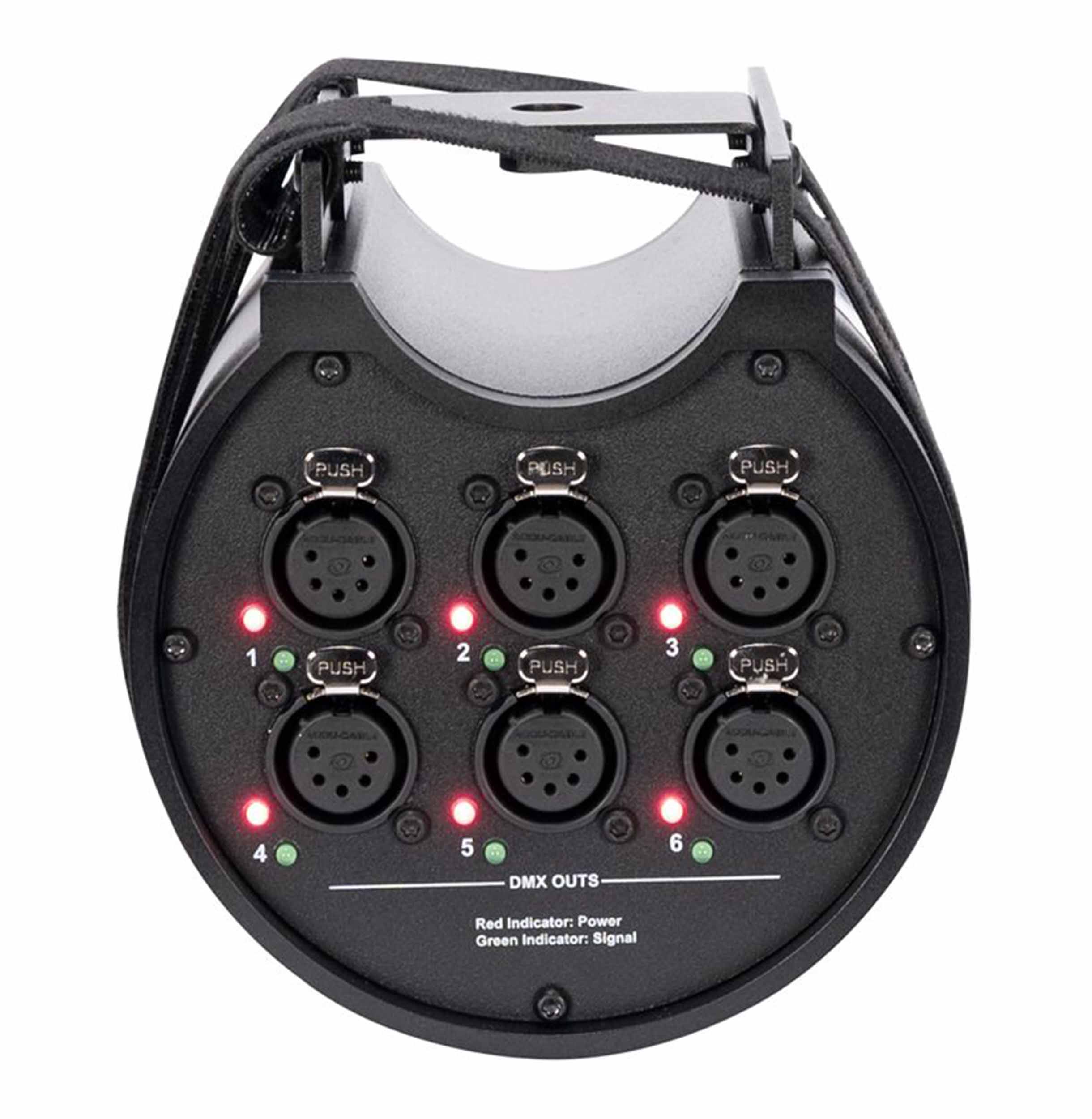

6x Indoor 5pin XLR Outputs
Link Out Termination Switch
DMX / RDM Protocol Switch
Indoor locking power socket
Dimensions & Weight:
Length: 4.73" (120mm)
Width: 5.43" (137.75mm)
Height: 5.10" (129.55mm)
Weight: 1.83lbs. (0.83kg)
Power:
AC Input: 100-230V 50/60Hz
Power Consumption: 2.7W @ 120V and 2.9W @ 230V
Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Humidity: <75%
Storage Temperature: 77°F (25°C)
Certifications & IP Rating:
CE
cETLus (Pending)
FCC
IP20
