ADJ DMX FX512, 19" Rack Mount DMX Controller for Moving Heads and LED Pars

The ADJ Lighting DMX FX512 is a cutting-edge 19-inch rack-mount DMX controller designed for professional lighting applications such as churches, nightclubs, stages, or for event production. With a compact 3-rack space design, this tactile, hands-on controller boasts powerful features, for both moving heads and RGB LED fixtures, that elevate the lighting experience for lighting designers and operators on the go or in a fixed installation.

Equipped with DMX-512 and RDM protocols, the DMX FX512 allows precise control of up to 512 DMX channels, managing up to 32 intelligent fixtures with 18 channels each. Create captivating light shows with 32 programmable scenes and 32 chases, each up to 100 steps, running up to 5 chases simultaneously. Soft-patchable faders and control wheels provide flexibility, while 16 built-in effect generators, 9 for moving lights and 7 for RGB LED fixtures, offer dynamic lighting possibilities. Using RDM, you can remotely access and configure DMX addresses and channel modes for your fixtures, eliminating the need for physically reaching each device. This not only saves you valuable time during setup but also ensures a hassle-free and error-free address assignment process.

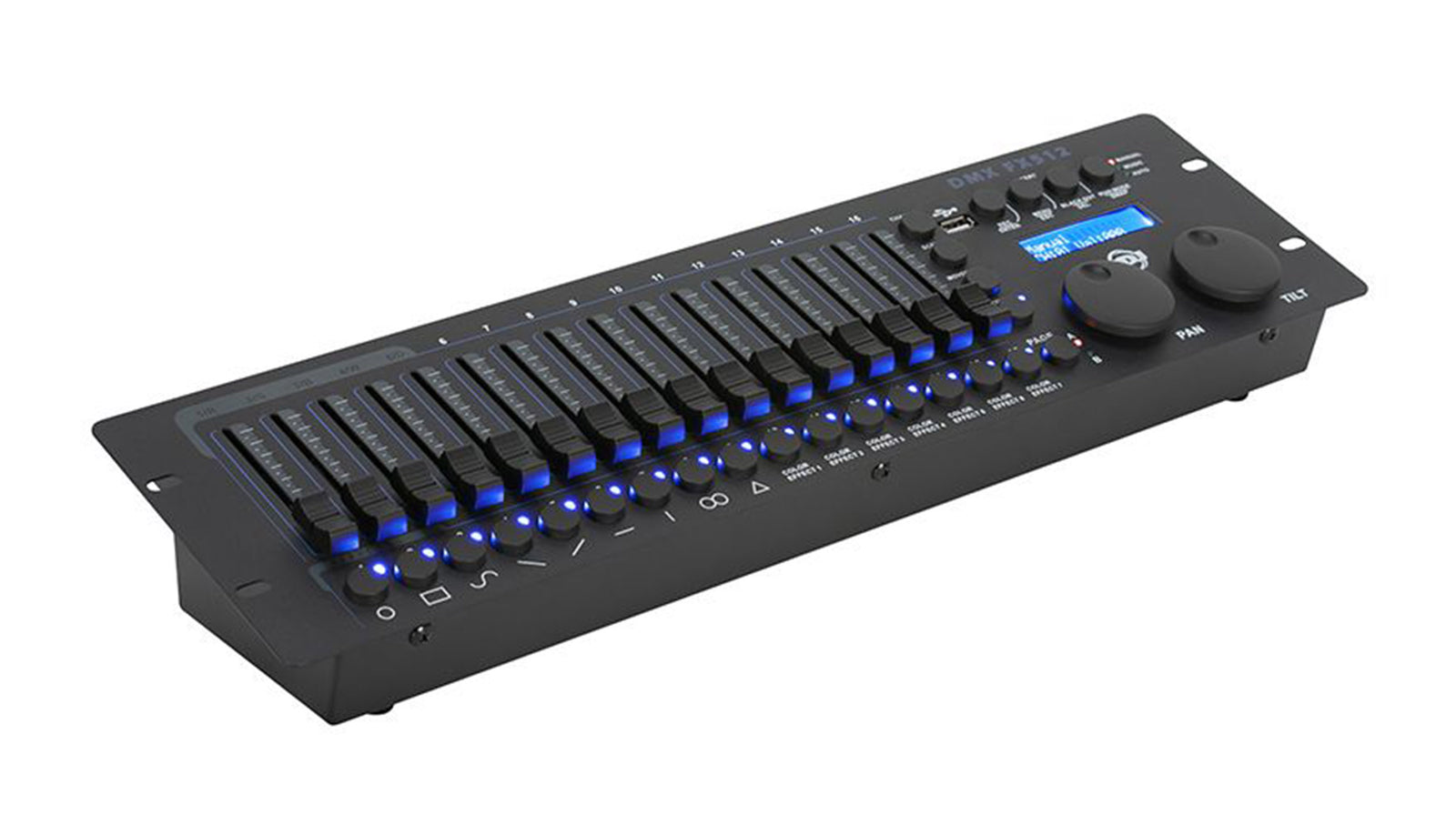

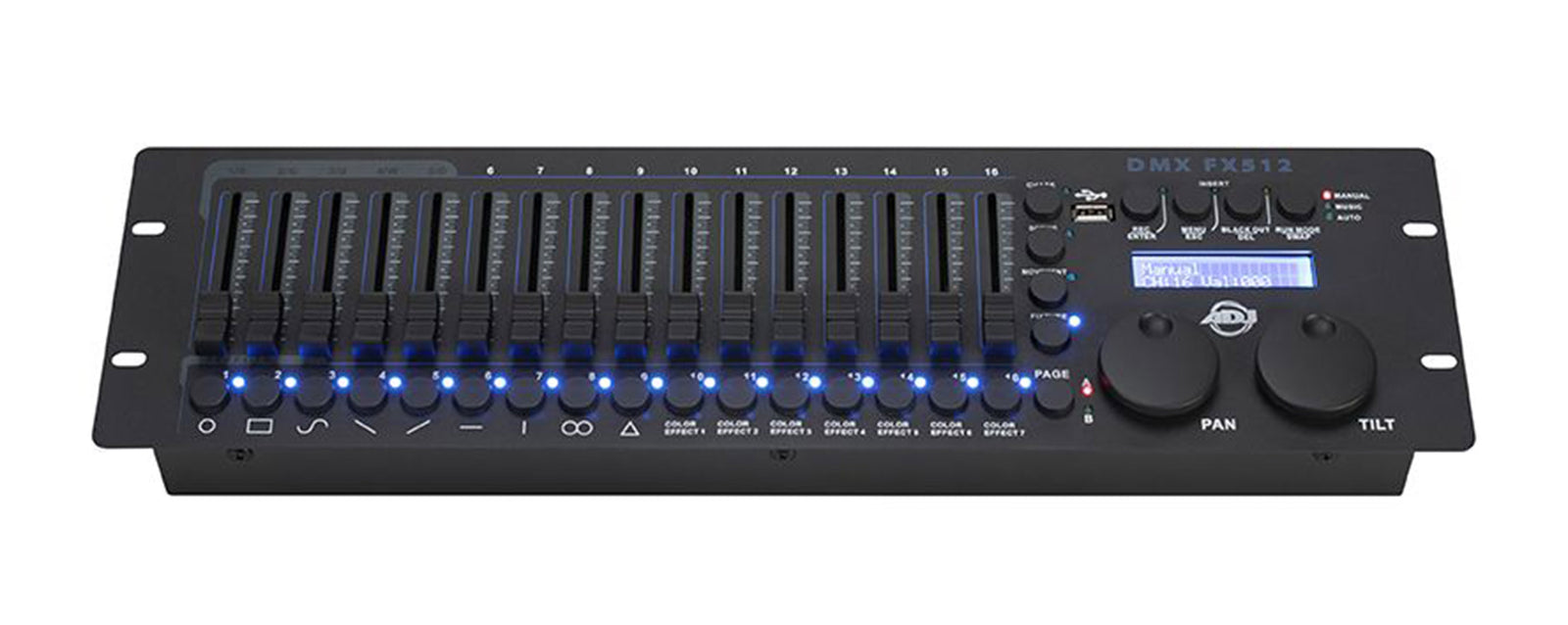

The control interface is intuitive, featuring a digital display, 16 channel control faders, dedicated Pan/Tilt wheels, and 16 Effects/Fixture select buttons. The built-in Mic with digitally adjustable sound sensitivity enhances the interactive experience. Connect effortlessly with 5-pin XLR DMX Output. A USB port is on the front panel designed for data backup and firmware updates.

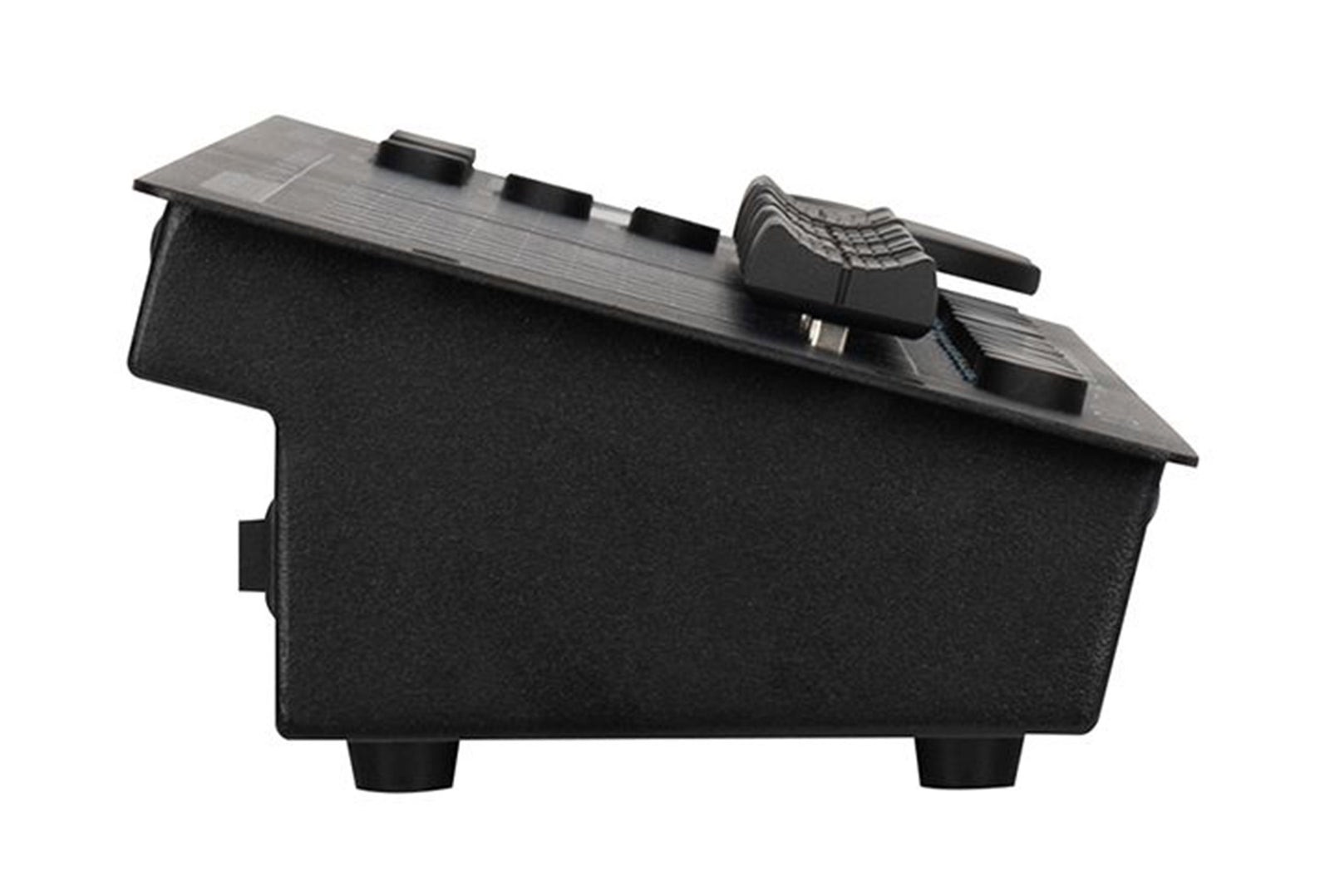

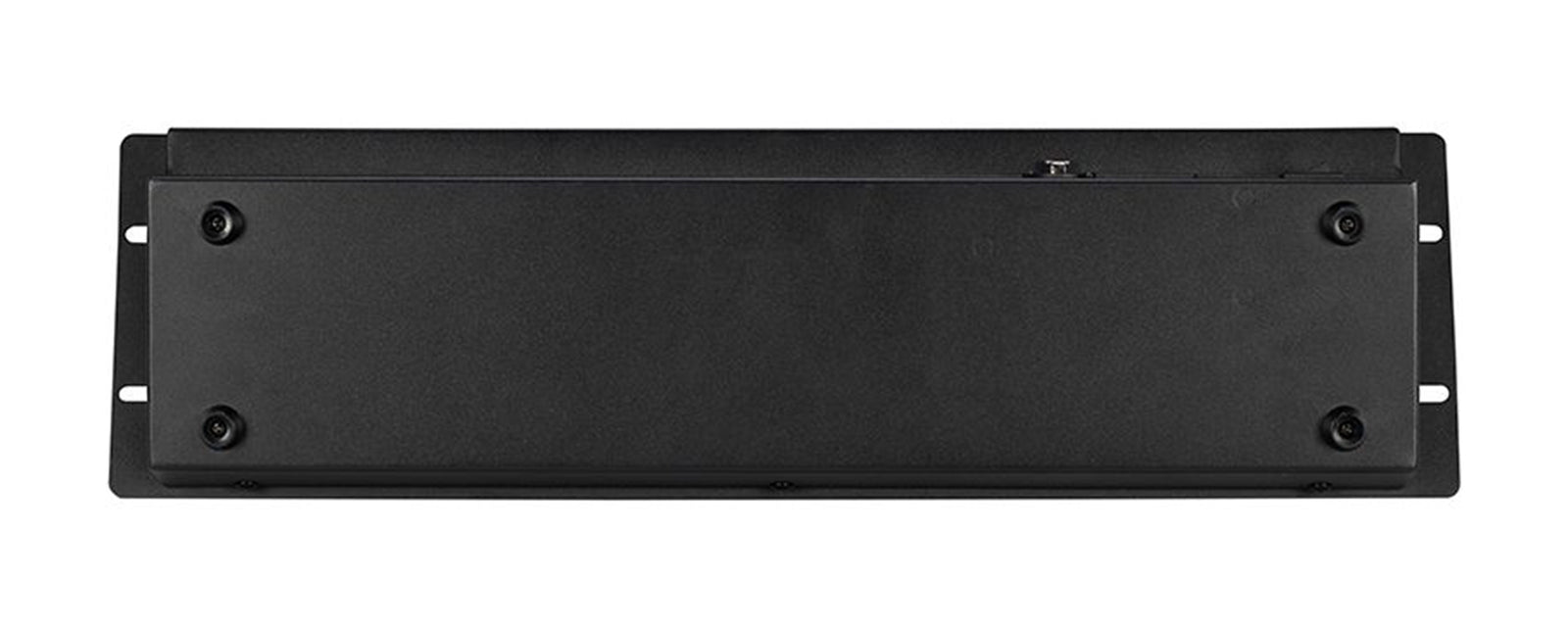

Compact and lightweight, the DMX FX512 measures 5.28" x 19" x 2.71" and weighs only 4.7lbs. It has rubber feet and can be used freely on a front of house design desk without being rack mounted.

Product Specifications:

Control:

DMX512 and RDM

RDM to set the DMX addresses and DMX channel mode of the fixtures from controller

16 channel control faders

Dedicated Pan/Tilt wheels (User Assignable)

16 Effects / Fixture select buttons

Sound sensitivity digitally adjustable (0%-100%), built-in Mic.

With Wired Digital Communication Network

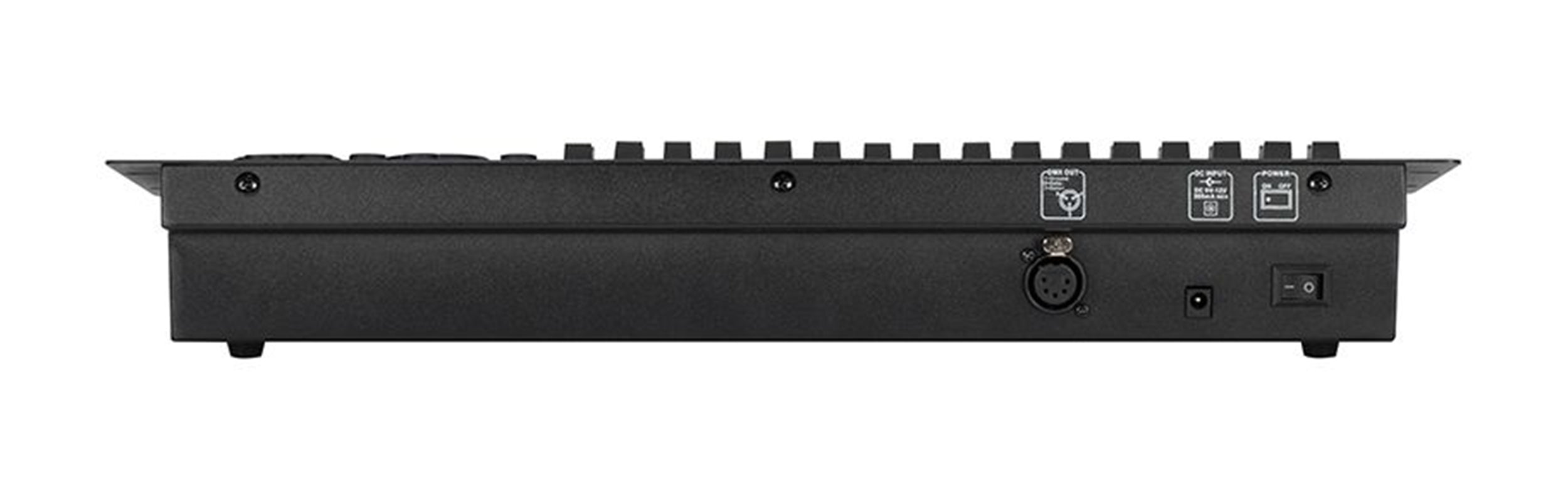

Connections:

5pin XLR DMX Output

Power Supply Input

USB A Port

Operational Conditions:

Use in dry location only

Min. ambient temperature: 32°F (0°C)

Max ambient temperature: 113°F (45°C)

Humidity: <75%

Allow 6" minimum between this controller and surrounding devices or wall

Storage Conditions:

Store in a dry location

Ambient storage temperature: 77°F (25°C)

Power:

Power Supply: DC9V`12V 300mA min. (DC9V 1A PSU Included)

Power Consumption: DC9V 165mA 1.5W, DC12V 16mA 2W

Dimensions & Weight:

Length: 5.28" (134mm.)

Width: 19" (482mm.)

Height: 2.71" (68.9 mm.)

Weight: 4.7lbs.(2.13kg.)

Certifications & Rating:

CE

cETLus (Pending)

IP20
