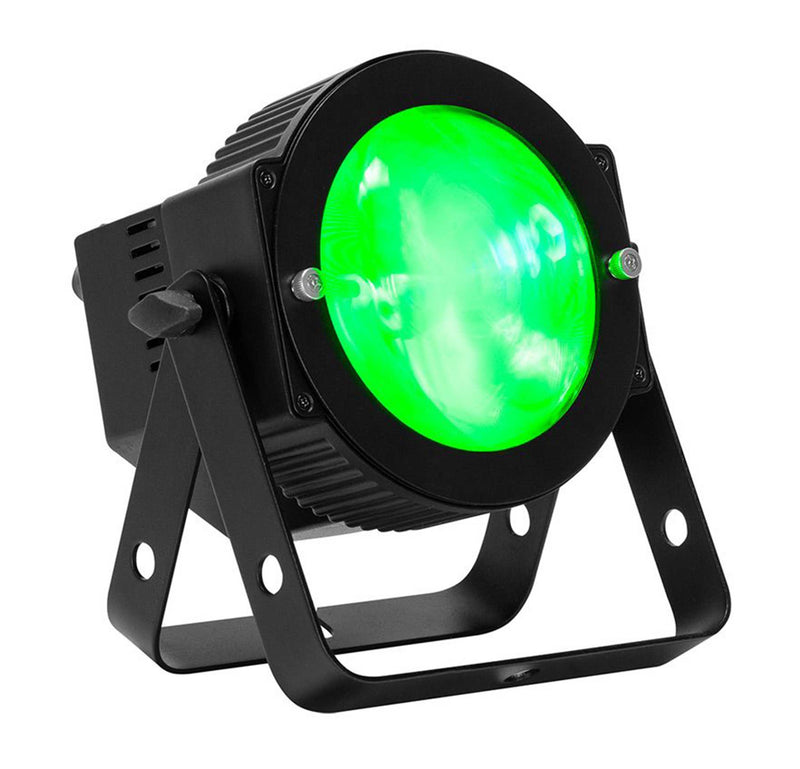

ADJ Dotz Par RGBL, LED Wash Light

The Dotz Par RBGL offers lighting designers a brilliant, even wash of light using the highly efficient Chip on Board (C.O.B.) with red, green, blue and lime LED chips. With the addition of lime, the Dotz Par RGBL offers a high CRI output, advanced color mixing, plus linear color temperature color 2700K to 6500K) with built-in preset color temperatures. Additionally, the fixture has 16-Bit fine color control with 64 built-in color macros and a beam output of 35-degrees.

The Dotz Par RGBL has a small footprint and is light in weight making it idea for temporary event production or installation into small stages, churches nightclubs or anywhere entertainment lighting is required. The 4-button, DMX display allows for easy navigating into the fixture’s flexible functions. There are 6 operational modes, 6 dimmer curve modes, 4 selectable dim curves and supports DMX and RDM protocols.

The fixture has IEC power in and out sockets to daisy chain power, plus 5-pin DMX in/out sockets. The supplied scissor yoke allows for flexible use allowing the fixture to be hung in the air or set on the ground.

Product Specifications:

Source:

Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue & 4x Lime)

20,000 Hours Rated Life

Photometric Data:

CRI: TBA

CRI R9: TBA

Lumens: 1250

Effects:

35° Beam Angle

Linear Color Temperature Control (2700K to 6500K)

Preset Color Temperatures

16-Bit Fine Color Control (Red, Green, Blue & Lime)

64 built-in Color Macros

Control:

4-button, DMX digital display on rear panel

6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled

Supports RDM (Remote Device Management)

With Wired Digital Communication Network

6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)

1200Hz LED Refresh Rate

LED pulse and strobe effect

Electronic Dimming: 0 - 100%

Construction / Connections:

Plastic construction

IEC Locking, In/Out Power connectors

Indoor 5-pin, XLR DMX, In/Out sockets

Scissor Yoke

Electrical / Thermal:

Multi-voltage operation: AC 100-240V, 50/60Hz

Max Power Link: 30 @120V., 57 @230V.

Max power consumption: 36W

Fuse protected: T1A/250V (5*20mm)

Dimensions / Weight:

Length: 5.19" (131.8mm)

Width: 8.23" (209mm)

Height: 8.72" (221.44mm)

Weight: 4.41lbs. / 2kg.

Approvals / Ratings:

CE

ETL

CSA

IP20

Included Accessories:

(1) Power Cord

(1) Lens Kit
