Description

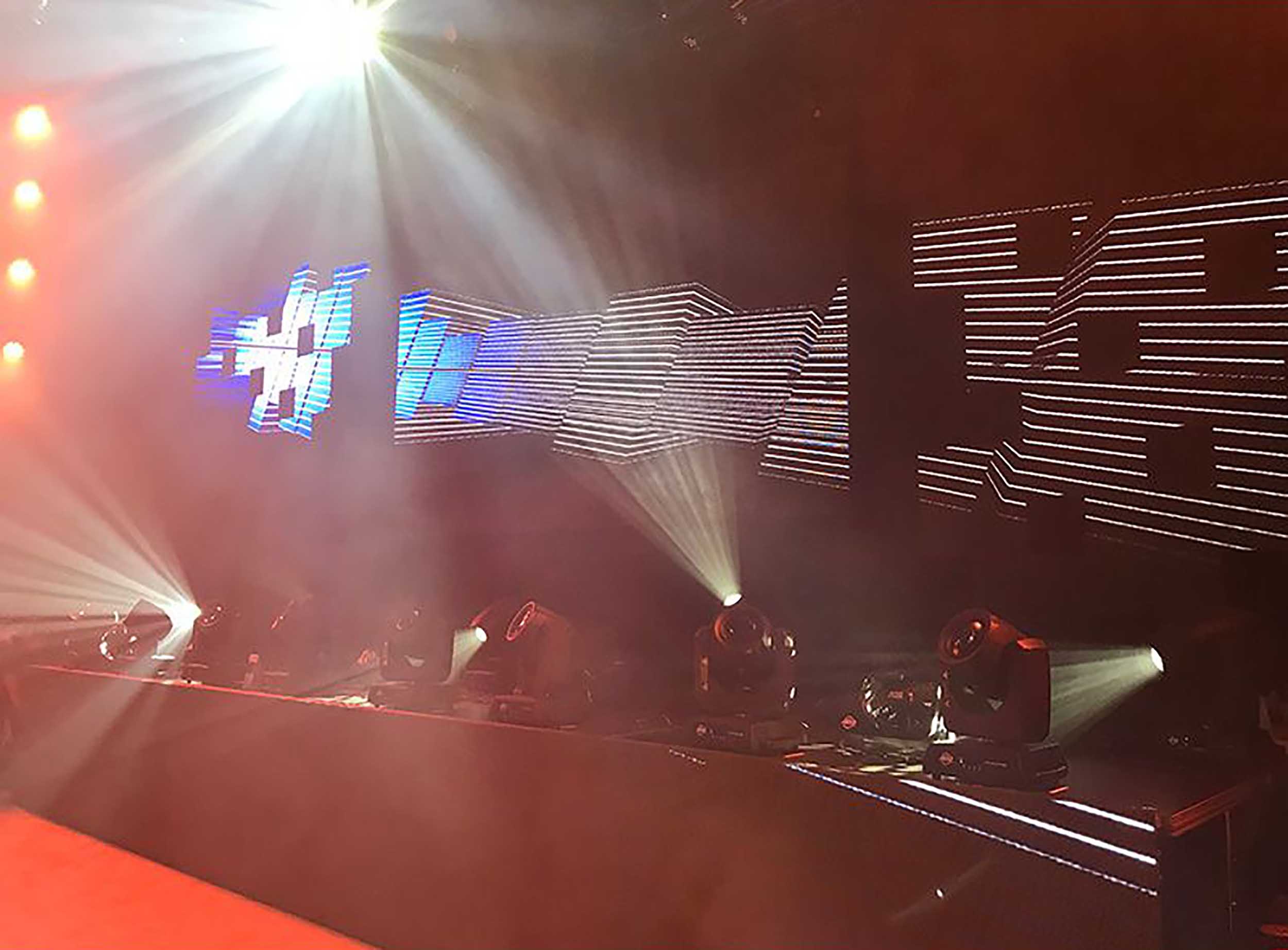

The ADJ DS4T4, Design Series Top Left (TL) 4.8mm Triangular LED Video Panel comprises of four modular panels of different shapes that can be combined together to create video screens of almost any conceivable shape. The DS4 (square), DS4T (triangle), DS4QC (quarter circle) and DS4HC (rectangle) can be easily linked together, rigged and transported using an expansive collection of accessories, allowing unique and eye-catching screen configurations of any size to be created for fixed installations and touring productions. Each panel is lighter in weight than most panels currently on the market, offers a 4.8mm (0.19") pixel pitch and brightness of 1200 NITS as well as a wide viewing angle of 160-degrees (horizontal) and 120-degrees (vertical), making them ideal for a wide variety of applications.
Product Specifications:

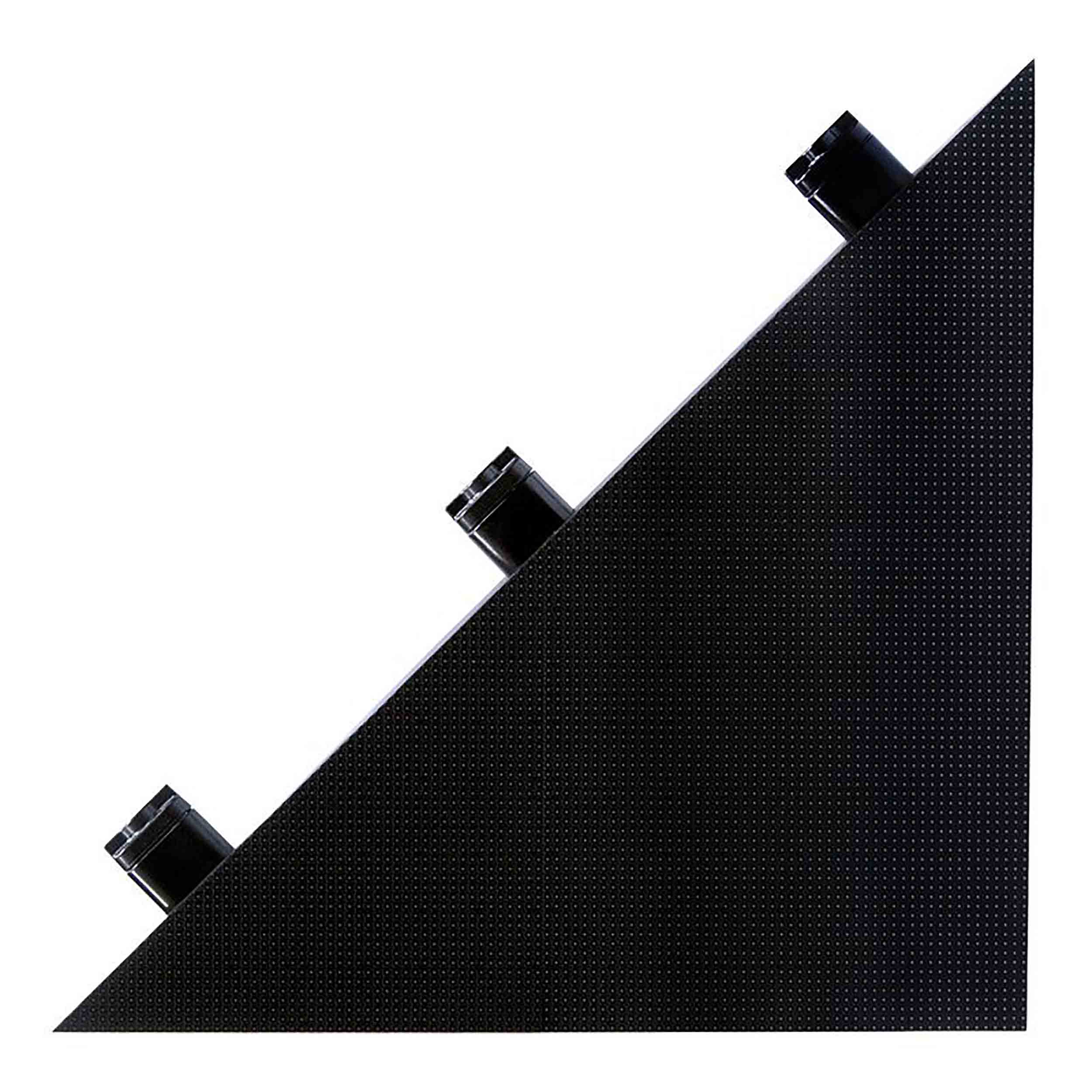

Triangular shaped LED video panel (TL - Top Left)
Pixel Pitch: 4.8mm (0.19”)
LED Configuration: 3-in-1 SMD2020 LED
Pixel Density: 103x104; 42,848 per square meter
Dimensions (LxWxH): 19.5” x 20” x 3” / 495x508x76mm
Weight: 14 lbs. / 6.35 kg.
Mechanical Ratings:
Surface Flatness: Gaps±0.3mm
Optical Ratings:
Brightness: 1200 NITS
View Angle: Horizontal 160°/Vertical 120°
Distance: 12.5ft. (3.8m)
Gray Scale / Display Color: 14Bit
Brightness Adjustment: 0~100% 100 Levels
Processing: 14-bit
Power Supply:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 157.5W/per panel
Average Power Consumption: 52.5W/per panel

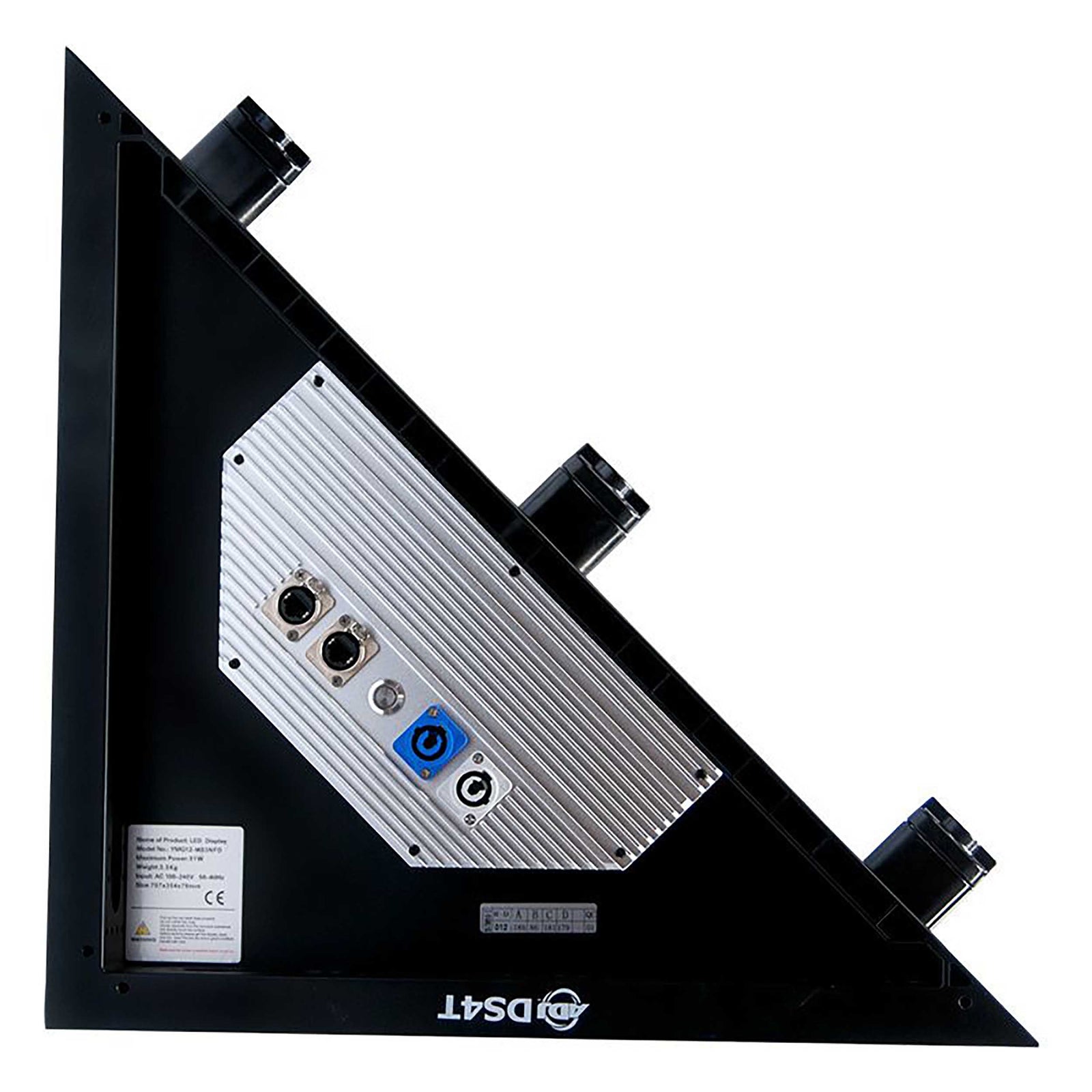

Connections Power/Data: Power-PowerCON In/Out; Data EtherCON In/Out
Control System:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/13 Duty
Refresh Rate: 1920Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <100m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet
With Wired Digital Communication Network
Environmental:
Operating Temp / Humidity: Fahrenheit: -20° + 45° / Celsius: 10-90% (No Condensation)
Operating Life / MTBF: 80,000 Hours / 10,000 Hours
Out of Control Rate: <0.003%
Listings: CE, FCC, ETL
