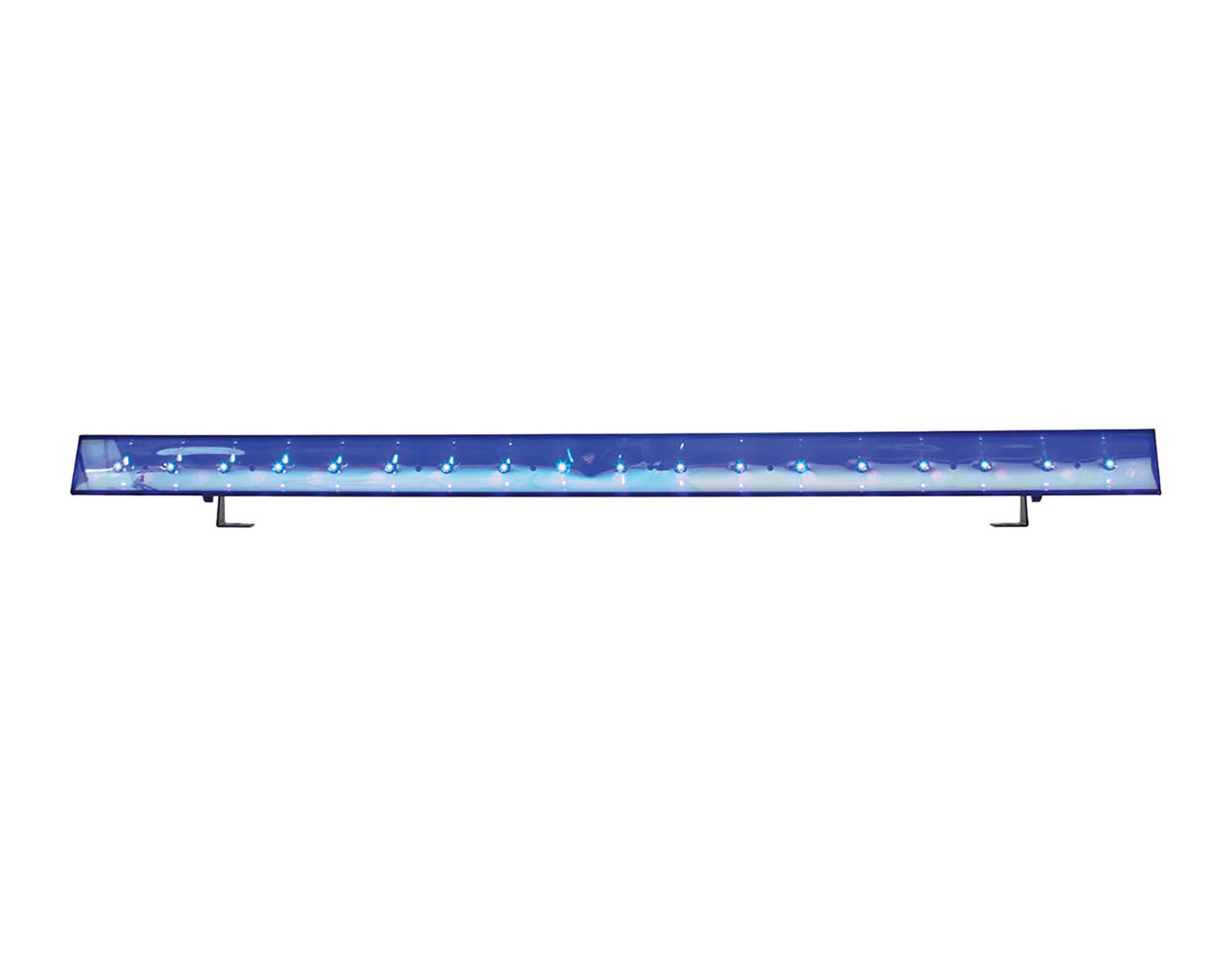

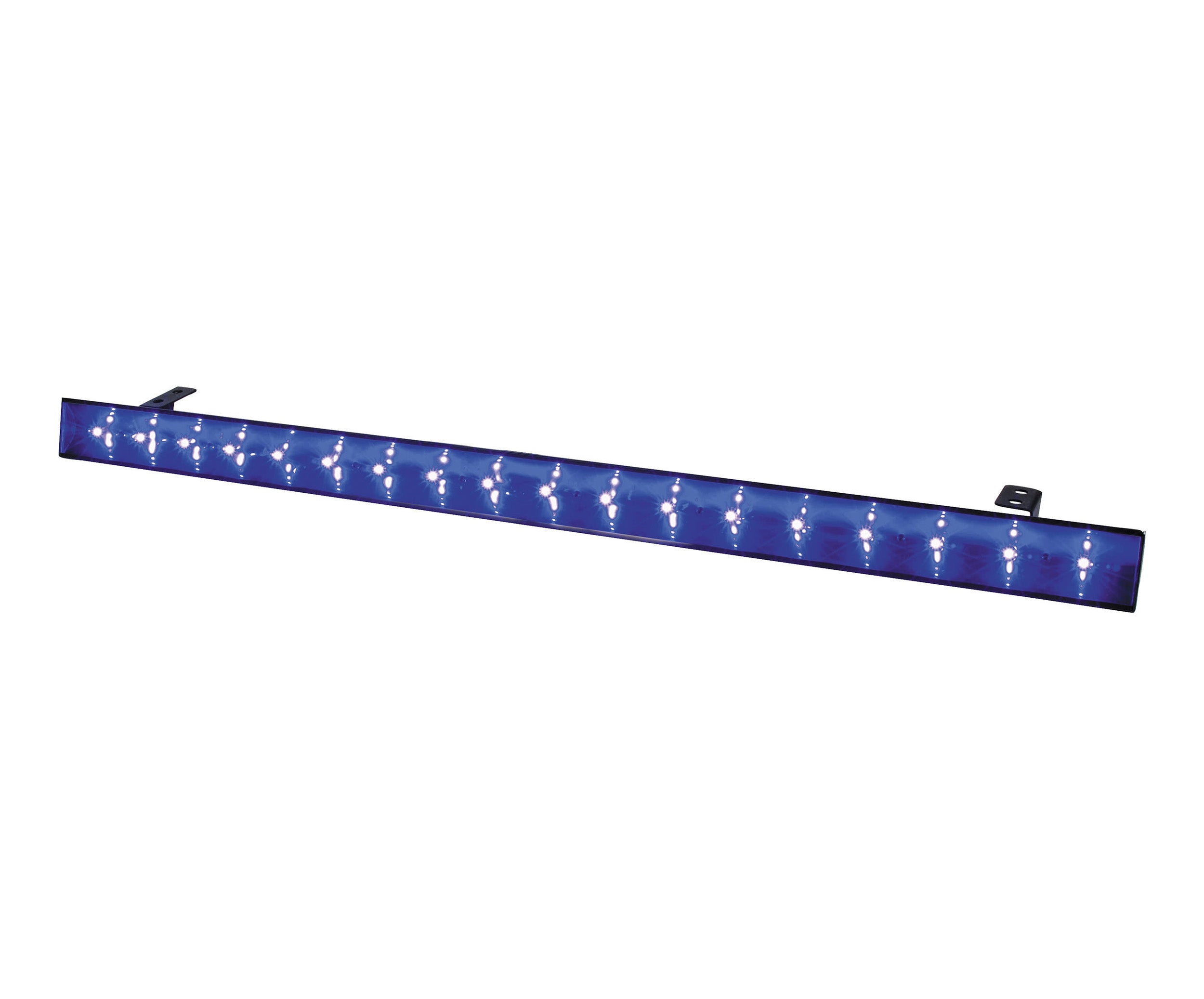

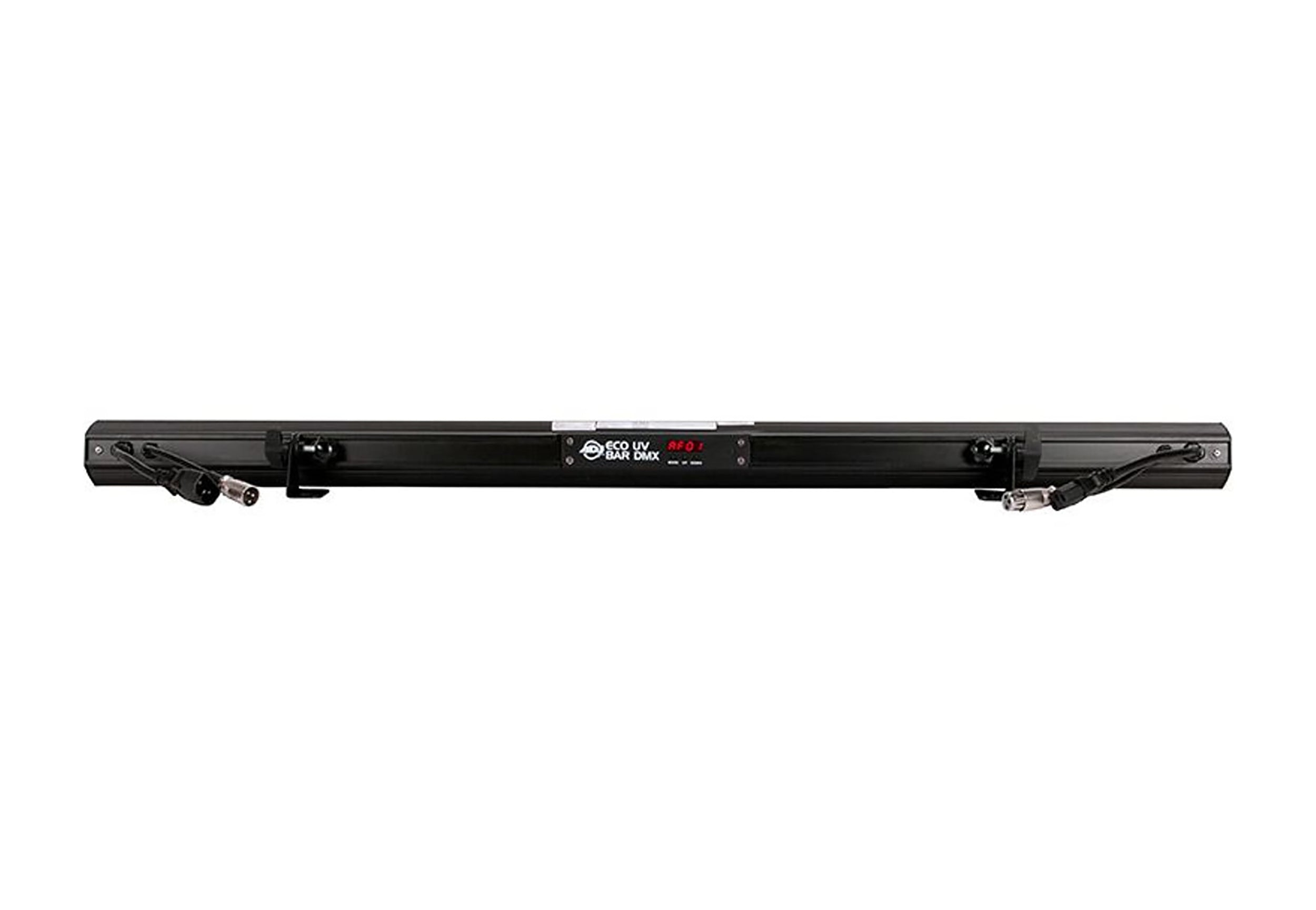

The ADJ ECO UV Bar DMX is a high-output ultraviolet LED bar designed to add striking blacklight effects to performance stages, theatrical productions, special effects installations, and mobile light shows. Featuring 18x 3W UV LEDs and a wide 120-degree beam angle, it delivers powerful UV illumination with the convenience and efficiency of LED technology. Its durable, low-maintenance design makes it an excellent choice for creating eye-catching effects in a wide range of environments.

The ECO UV Bar DMX offers flexible control with Manual and 3-channel DMX-512 modes, a 3-button display, and an included UC IR wireless remote. Its LEDs are rated for up to 50,000 hours, providing reliable, low-maintenance performance.

Ideal for stages, theaters, installations, and mobile shows, the ECO UV Bar DMX combines powerful UV output with easy setup. DMX In/Out and IEC In/Out connections allow up to 10 fixtures to be daisy-chained for larger lighting setups.

Key Features

• High-output ultraviolet light bar with 18 × 3W UV LEDs.
• DMX-512 control with 3 DMX channels.
• Two operating modes: Manual and DMX-512.
• 120° beam angle provides broad UV coverage.

Ideal For

• Stage and theatrical productions
• Concerts and live performances
• Nightclubs and DJ setups
• Special effects and blacklight applications

What's in the Box

• ADJ ECO UV Bar DMX - Ultraviolet LED Fixture
• UC IR Wireless Remote
• Mounting Brackets

Designed to Transform Any Space

• Striking Blacklight Effects: Create vibrant, attention-grabbing ultraviolet effects that make colors, costumes, décor, and special effects pop dramatically.
• Built for Versatile Shows: A sleek, durable design with flexible mounting options makes it easy to integrate into stages, theaters, installations, mobile productions, and entertainment spaces.

Full Technical Specifications

Light Source

Light Source	18 × 3W UV LEDs
Wavelength	395–405nm
Beam Angle	120°
Refresh Rate	1KHz
LED Lifespan	Approximately 50,000 Hours

Control & Operation

Operating Modes	Manual Operation, DMX-512 Mode
DMX Channels	3 Channels
DMX Control	DMX-512

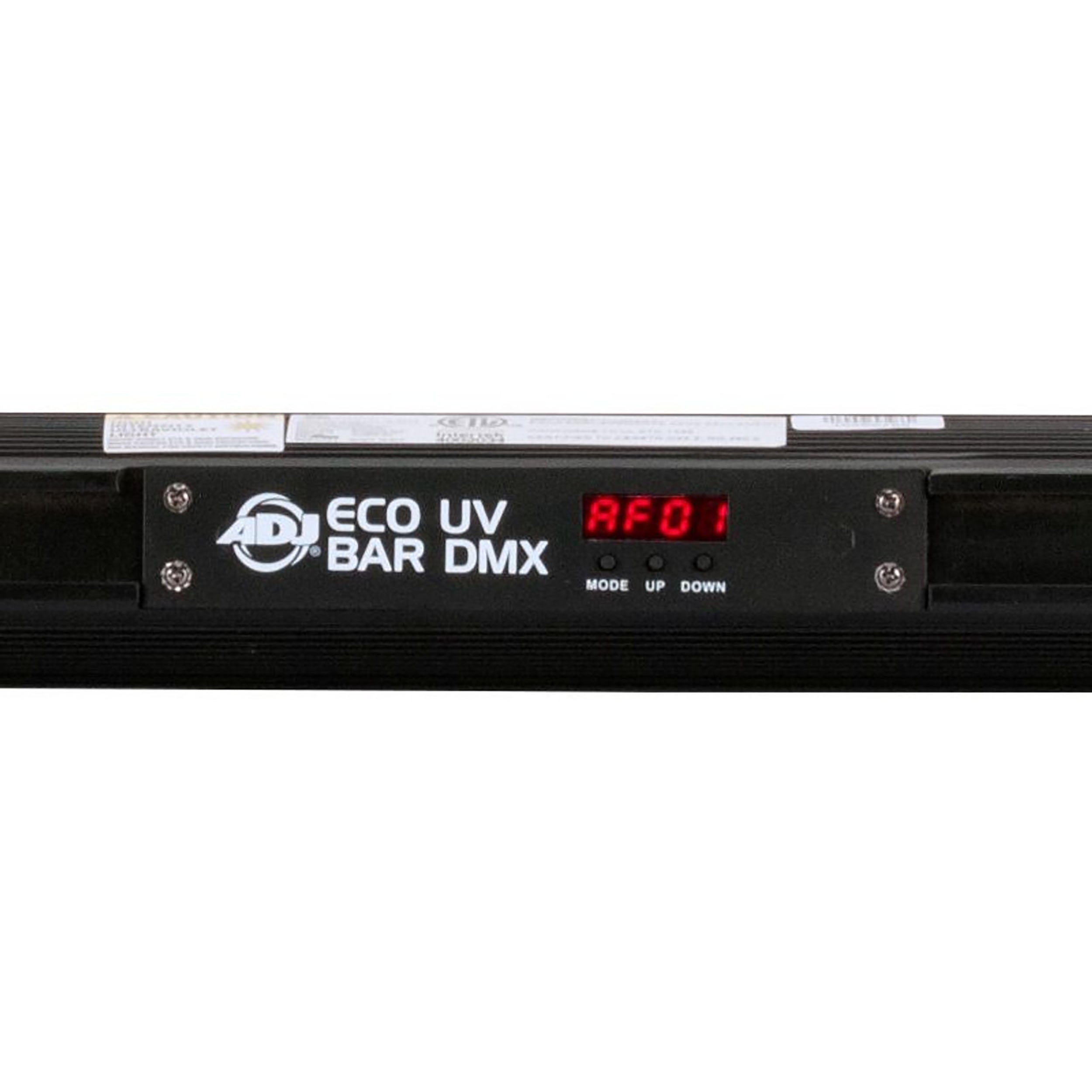

Display	3-Button LCD Display

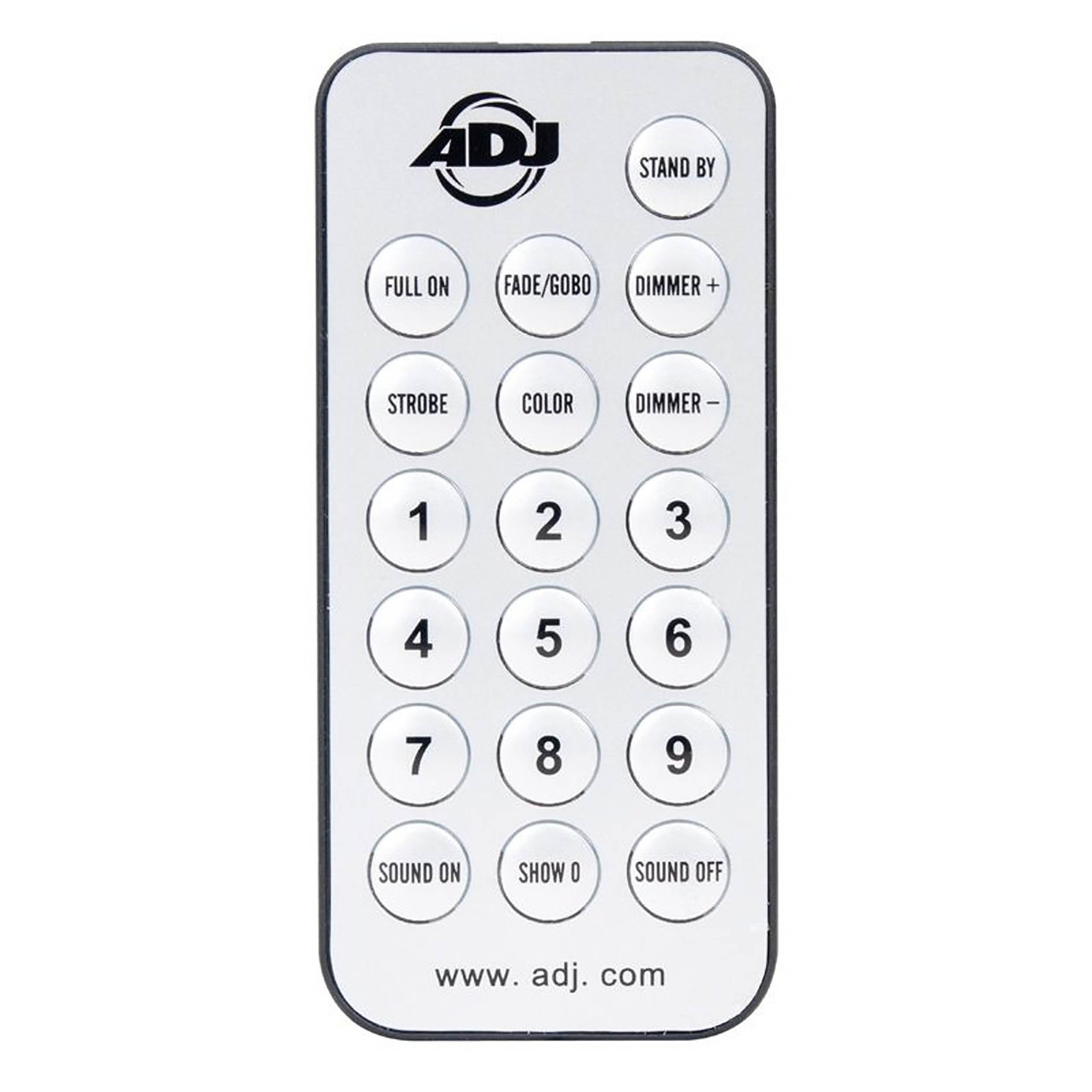

Wireless Control	UC IR Wireless Remote
Strobe Effect	Yes
Dimming	On/Off via Wireless Remote or DMX

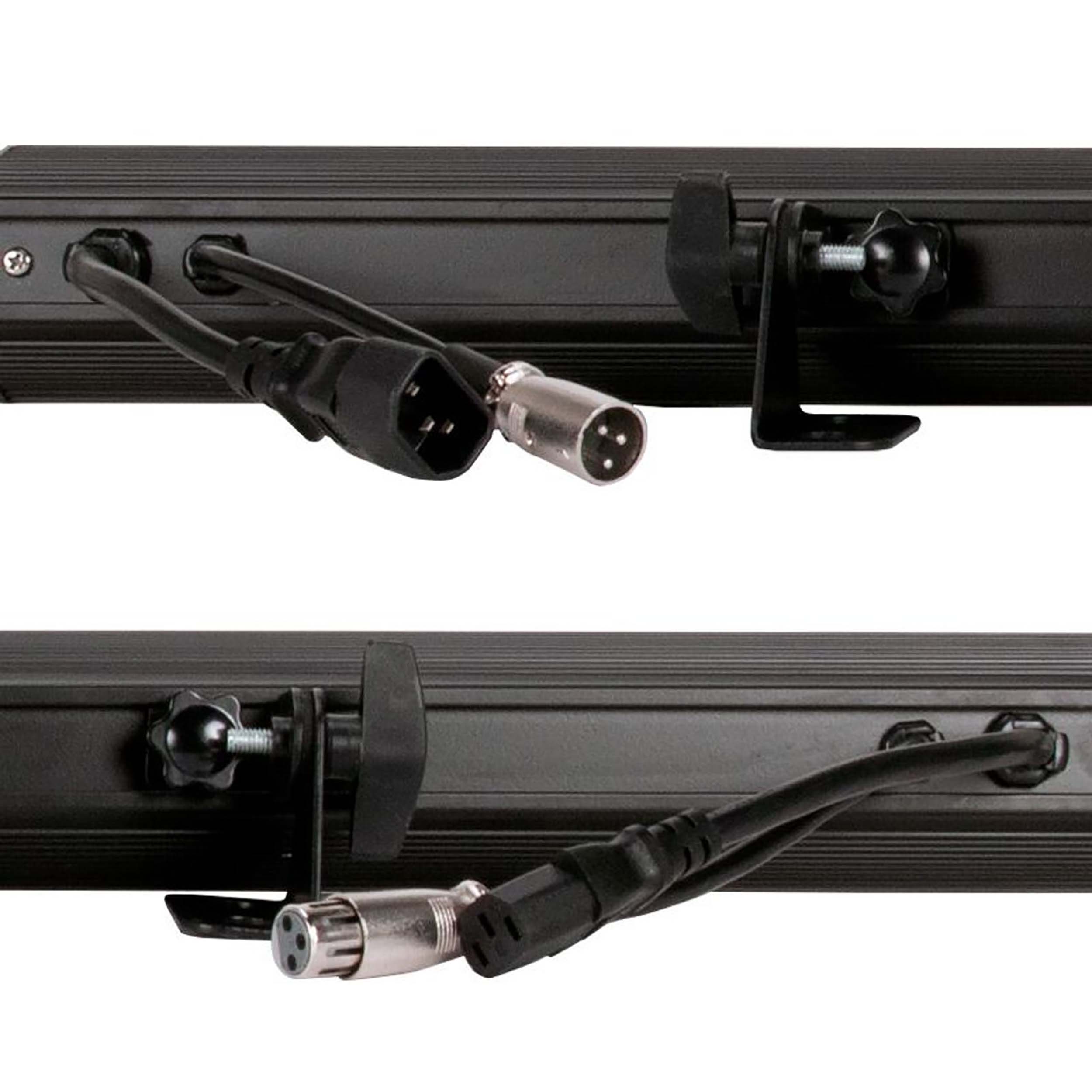

Connections

DMX Connections	3-Pin DMX In/Out

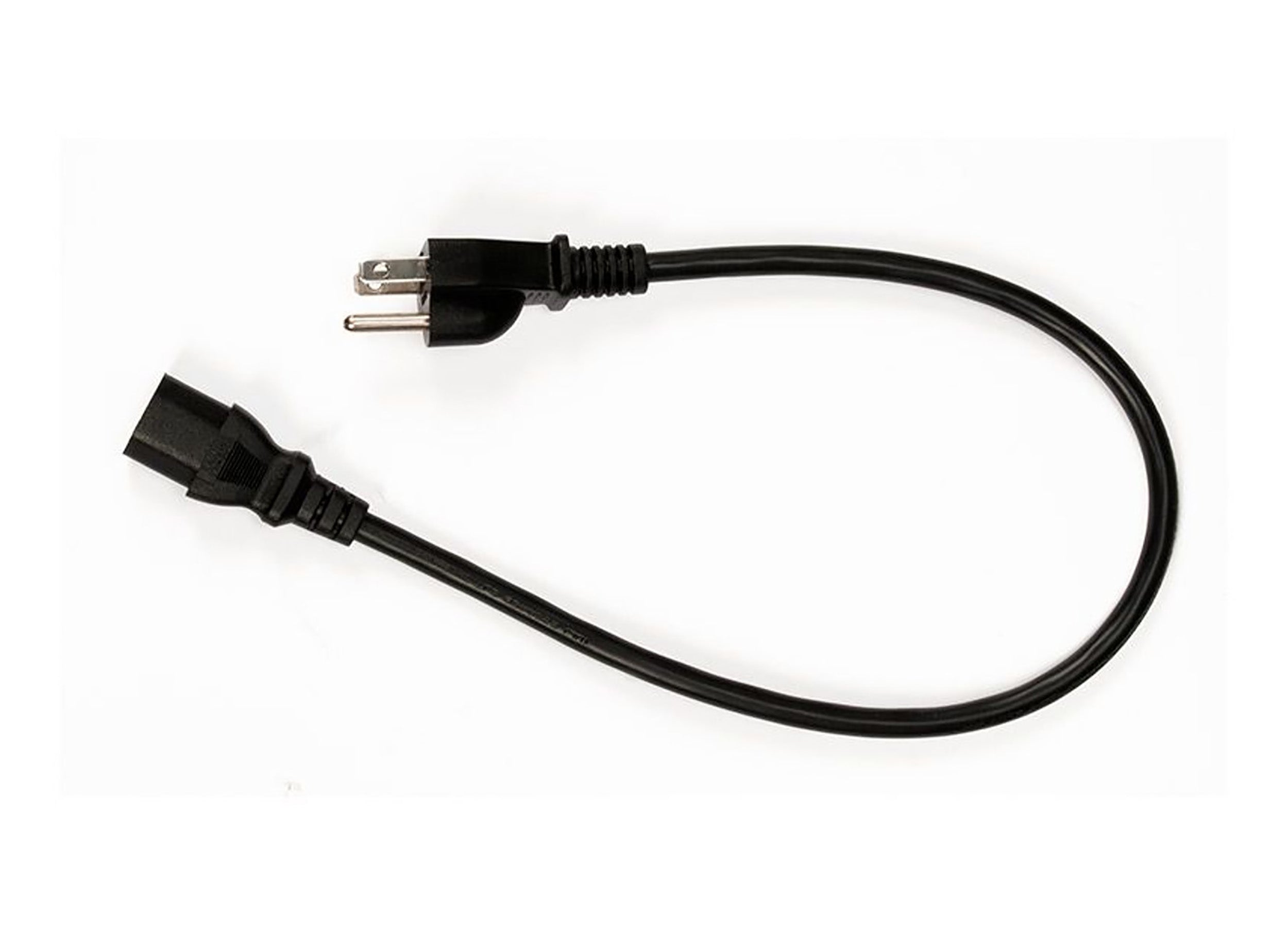

Power Connections	IEC AC Input/Output
Power Daisy Chain	Up to 10 Fixtures
Communication	Wired Digital Communication Network

Power

Power Draw	60W
Operating Voltage	AC 100–240V
Frequency	50/60Hz
Operation	Multi-Voltage

Physical Specifications

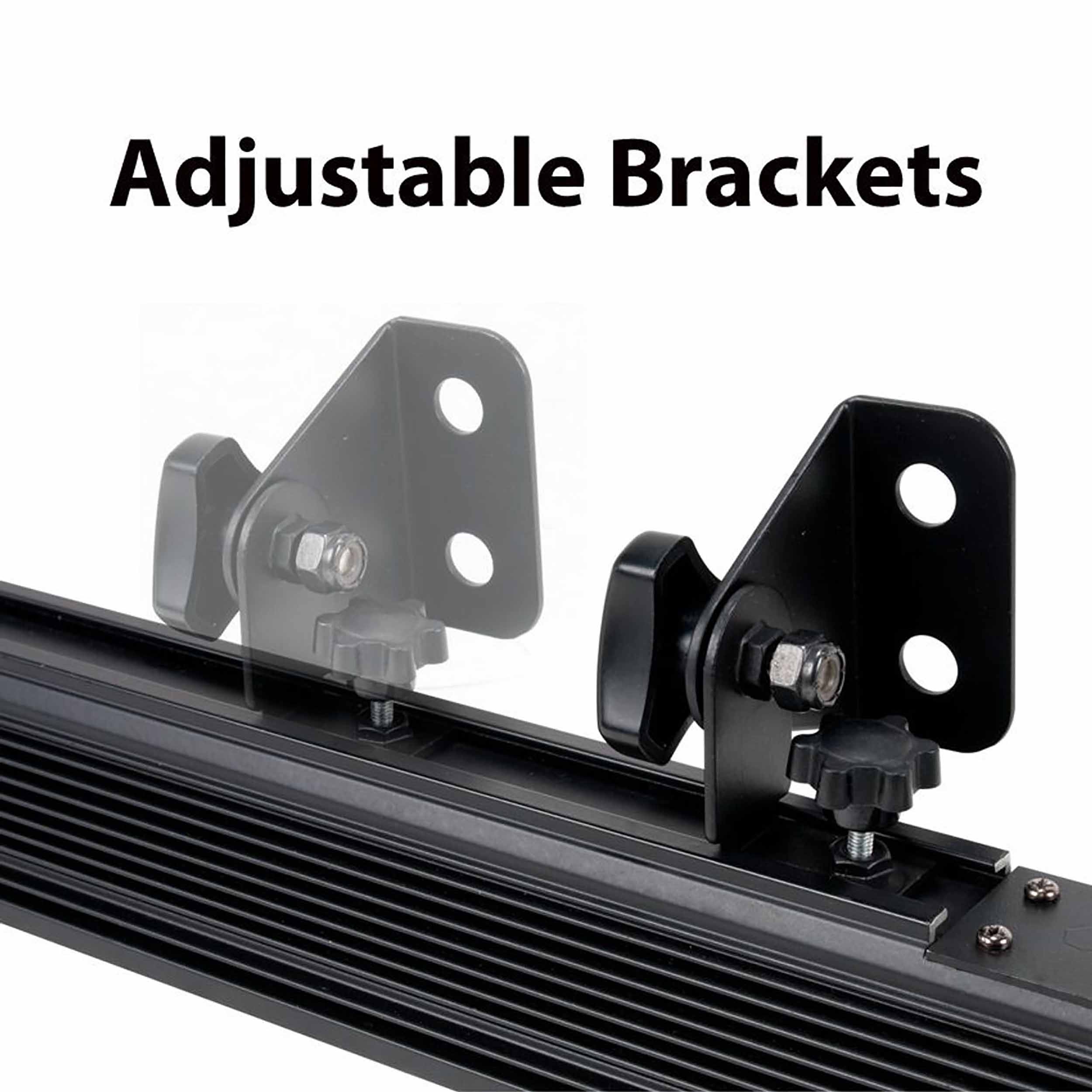

Mounting	Adjustable Brackets for Wall/Ceiling Mount or Floor Placement
Dimensions	39.5 × 2.5 × 4.75" (1000 × 60 × 115mm)
Weight	6 lbs. (2.4kg)

Certifications

Certification	cETLus Approved
Control Number	4002034
