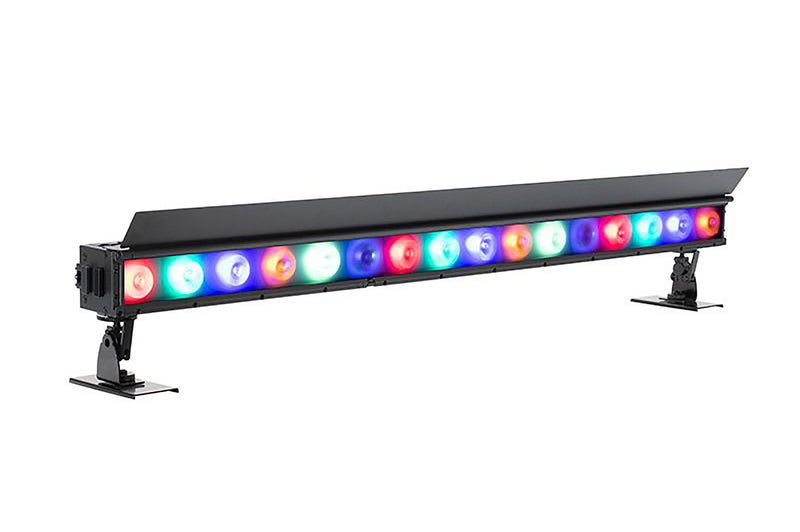

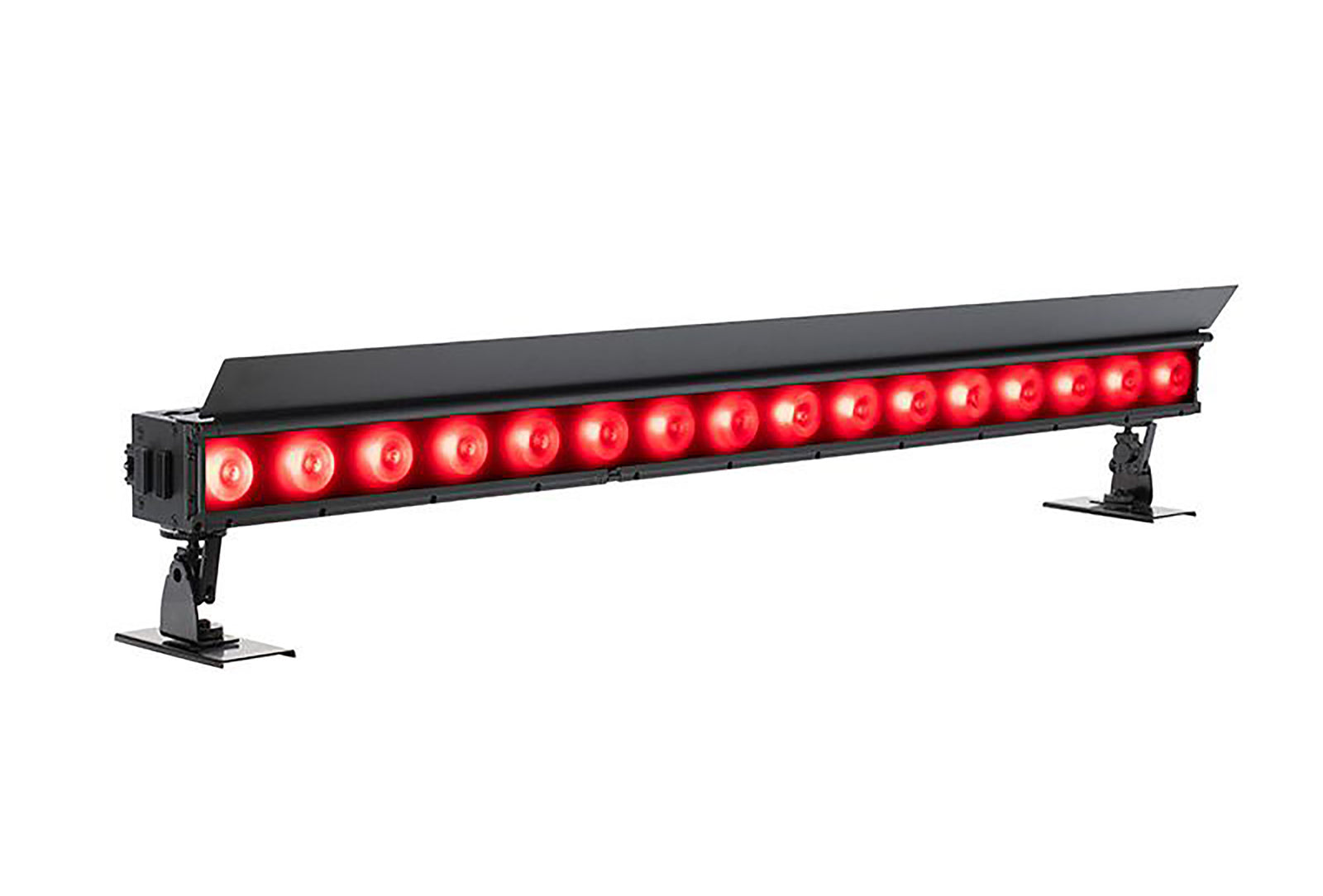

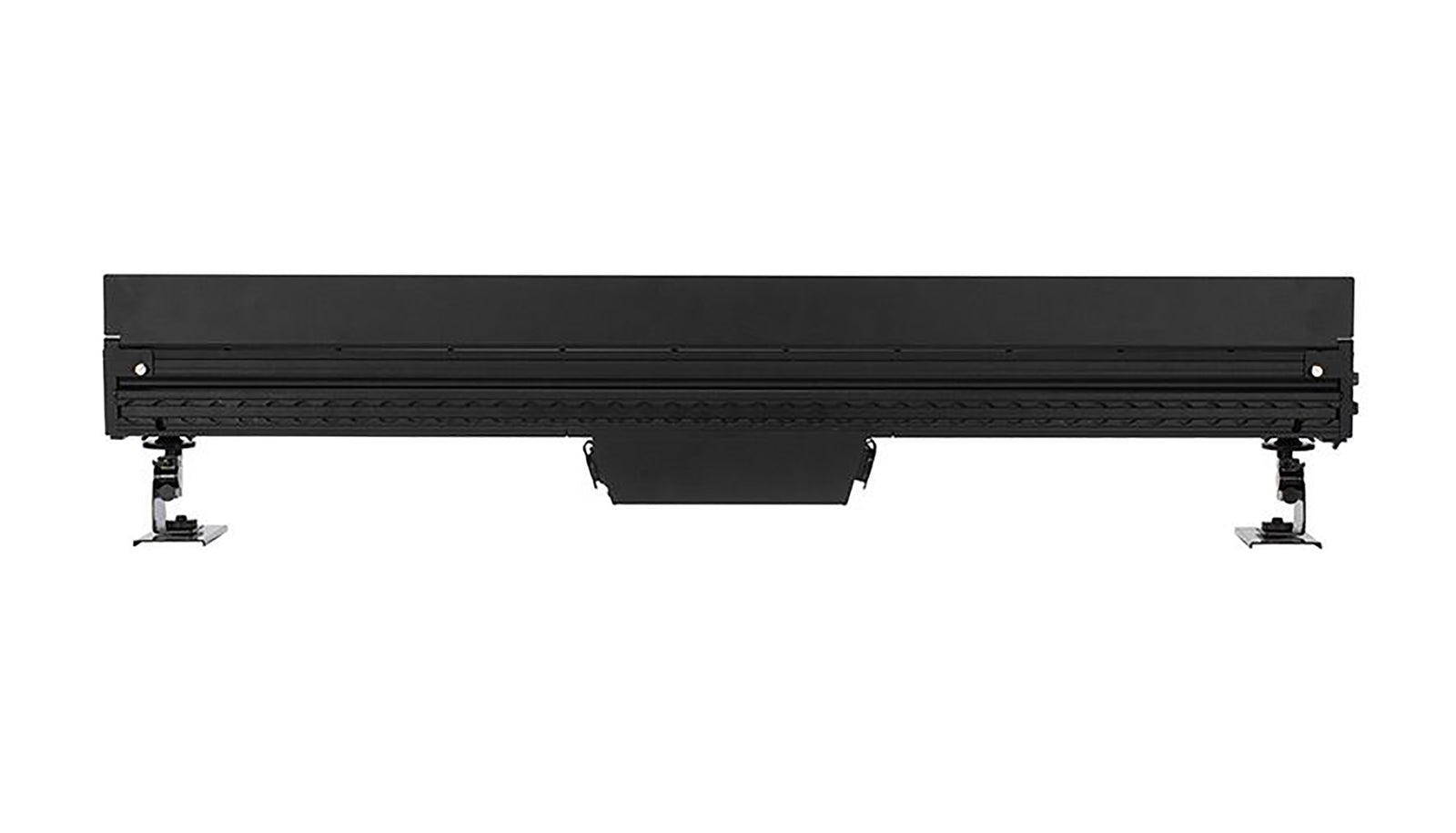

ADJ ElectraPix Bar 16, IP65 Rated Battery-Powered Linear LED Bar - RGBAL+UV

The ADJ ElectraPix Bar 16, IP65 Rated Battery-Powered Linear LED Bar - RGBAL+UV is a cutting-edge, 1-Meter battery powered, wireless DMX lighting solution. Packed with advanced features, this fixture boasts sixteen 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers 5 hours of standard battery operation or an extended 10-hour saver mode.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Bar 16 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. Additional, up to two ElectraPix Bar 16 fixtures may be mounted vertically to the VFB1 floor base (sold separately). The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Bar 16 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Bar 16, where innovation meets performance.

Product Specifications:

Source:

(16) 20W Hex Color RGBAL+UV Foreground LEDs

(66) 0.2W RGB Background LED's

50,000 Hour Average Life*

May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

2,300K ~ 9,900K White Color Temperature Range

17° Beam Angle

45mm Lens Diameter x16

Physical:

IP65 Housing

OLED Digital display

L Track system for locking accessories / rigging

Glare Shield

Diffusion Filter slot

Angle adjustable feet

Horizontal slide lock to attach additional ElectraPix Bar 16 or ElectraPix Bar 8

Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM and RDM Net Compatible

IR (Includes UCIR24 wireless remote)

(9) DMX Channel Modes (5, 6, 9,13, 22, 24, 96, 99 & 114 Channel modes)

On-board Manual Control Mode

Primary / Secondary Mode

Connections:

5pin XLR Outdoor DMX In/Out Sockets (Must be used with STR, 5pin DMX cables to create IP65 seal)

Outdoor Locking Power Sockets

Battery Charging Socket

Dimensions & Weight:

Length: 3.38” (85.7mm) Width: 45.82” (1163.6mm) Height: 7.53” (191.2mm)

Weight: 24 lbs. (10.9 kg)

Power:

AC100-240V/50Hz-60Hz Input

90W Power Consumption

Link 10 pieces @120VAC or 18 pieces @ 230VAC

Battery:

Rechargeable Lithium ion

Battery Capacity: 14,000mAh

Battery Voltage: 22.2V

Charge Time: 7 Hours (To Full)

5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu

Battery Cycles: 500

Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

CE

cETLus (Pending)

FCC

IP65

Included Accessories:

(1) Outdoor Locking Power Cable

(1) UCIR24 Remote

(1) 20° Diffusion Filter

Optional Accessories:

Accu Stand VFB1 (Floor Base)

LTrack A2 (LTrack Adapter Only)

LTrack CA2 (LTrack Adapter with Narrow Clamp)

EPIX B816 IPCB: replacement charging base and power supply
