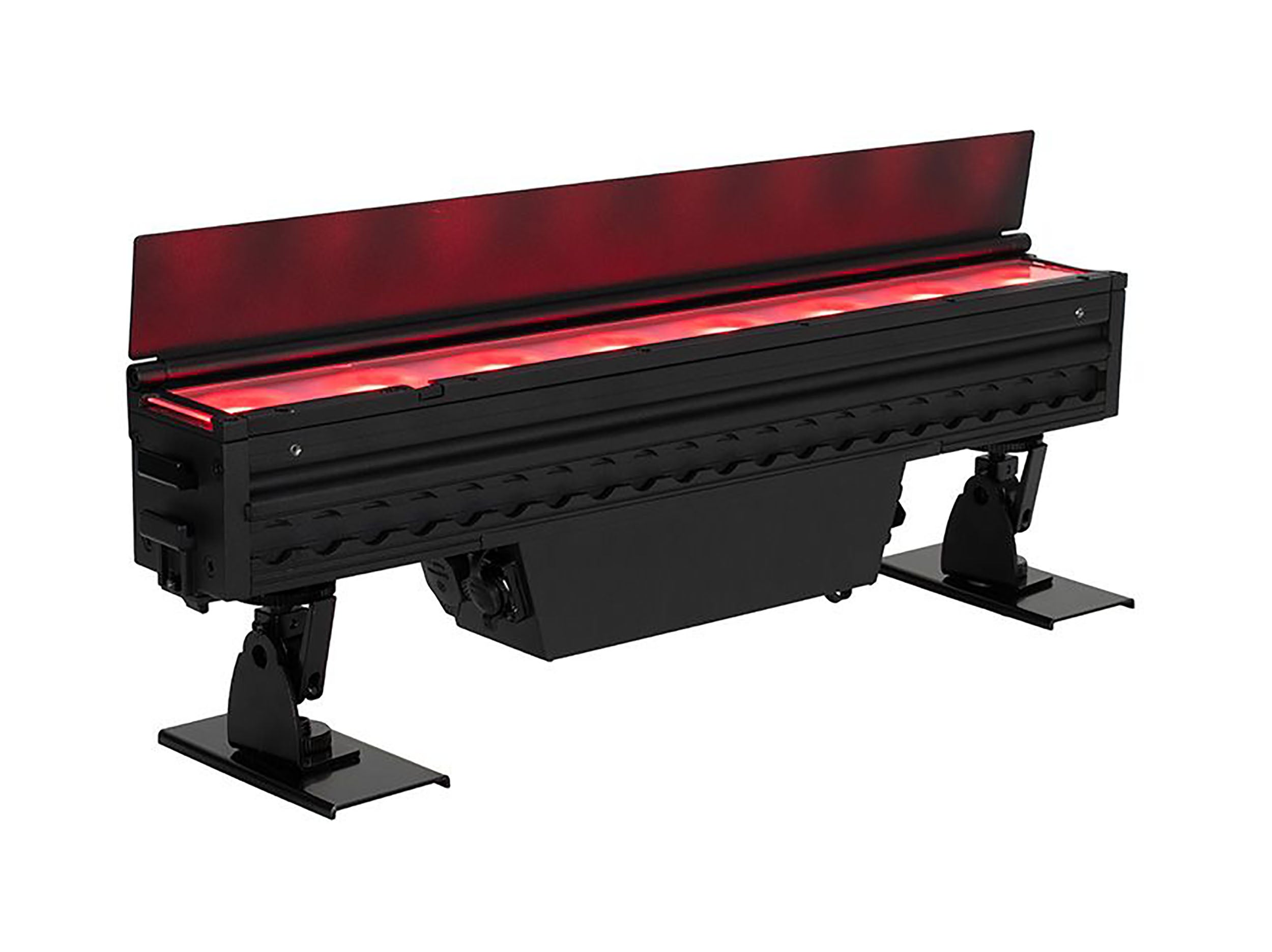

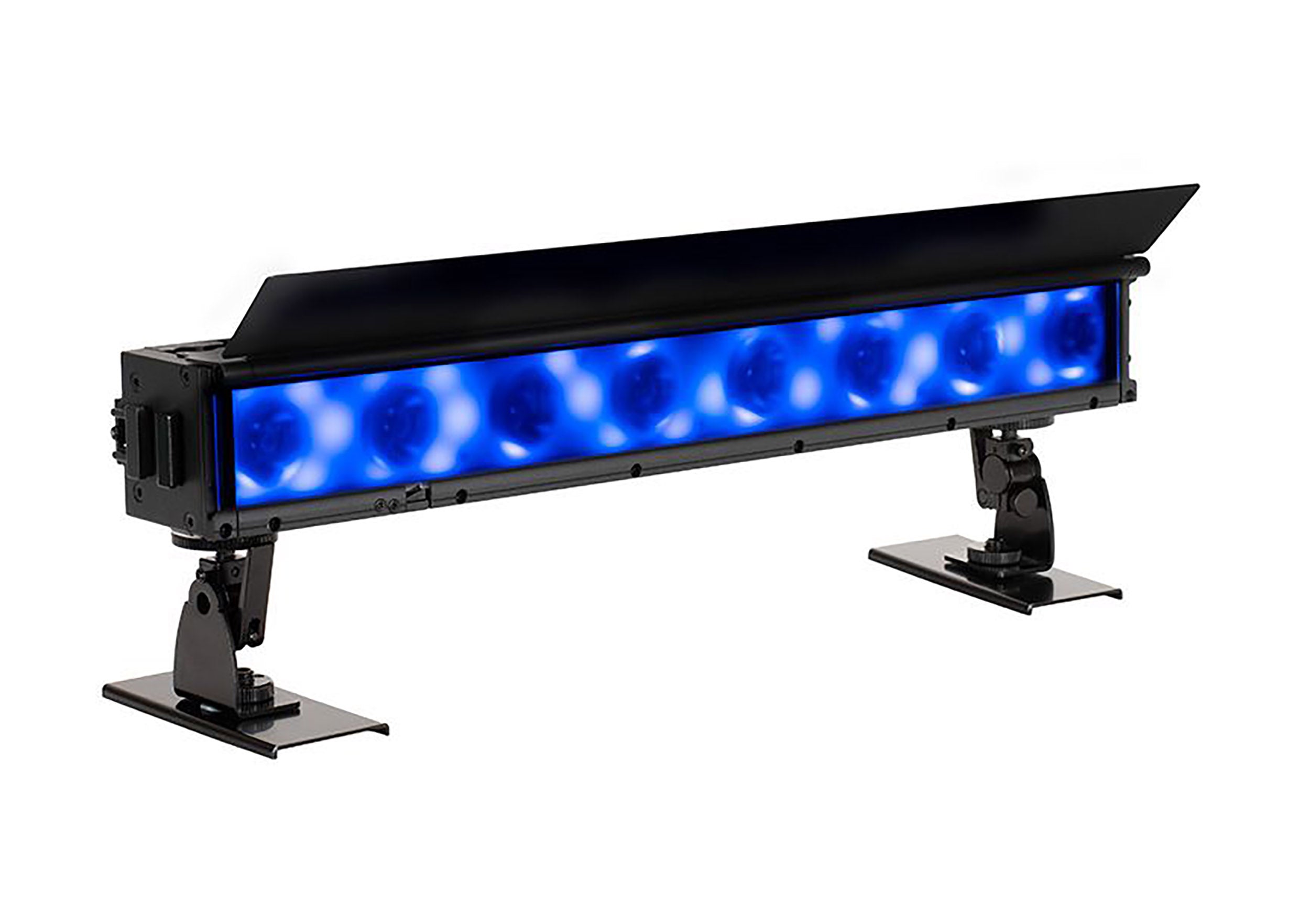

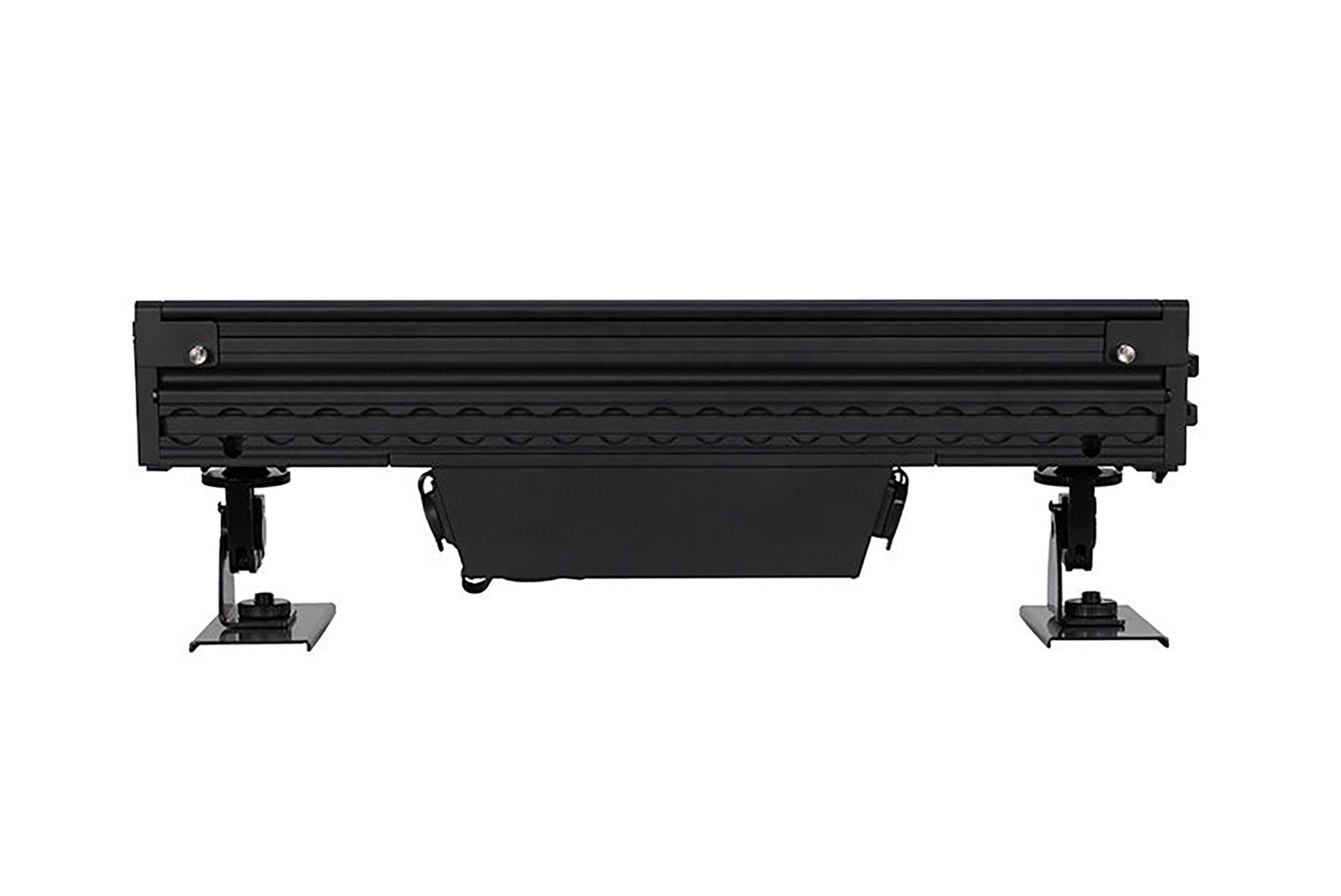

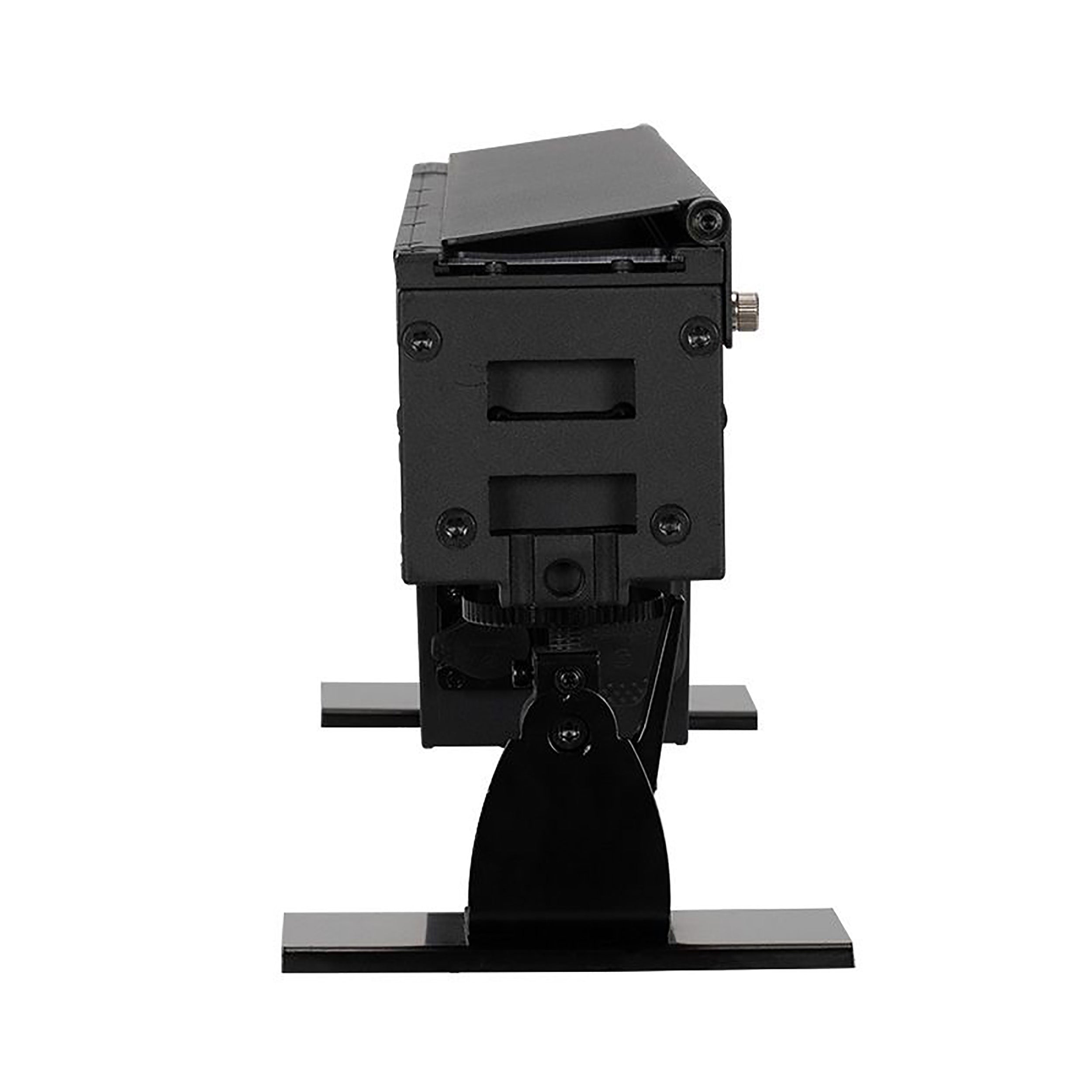

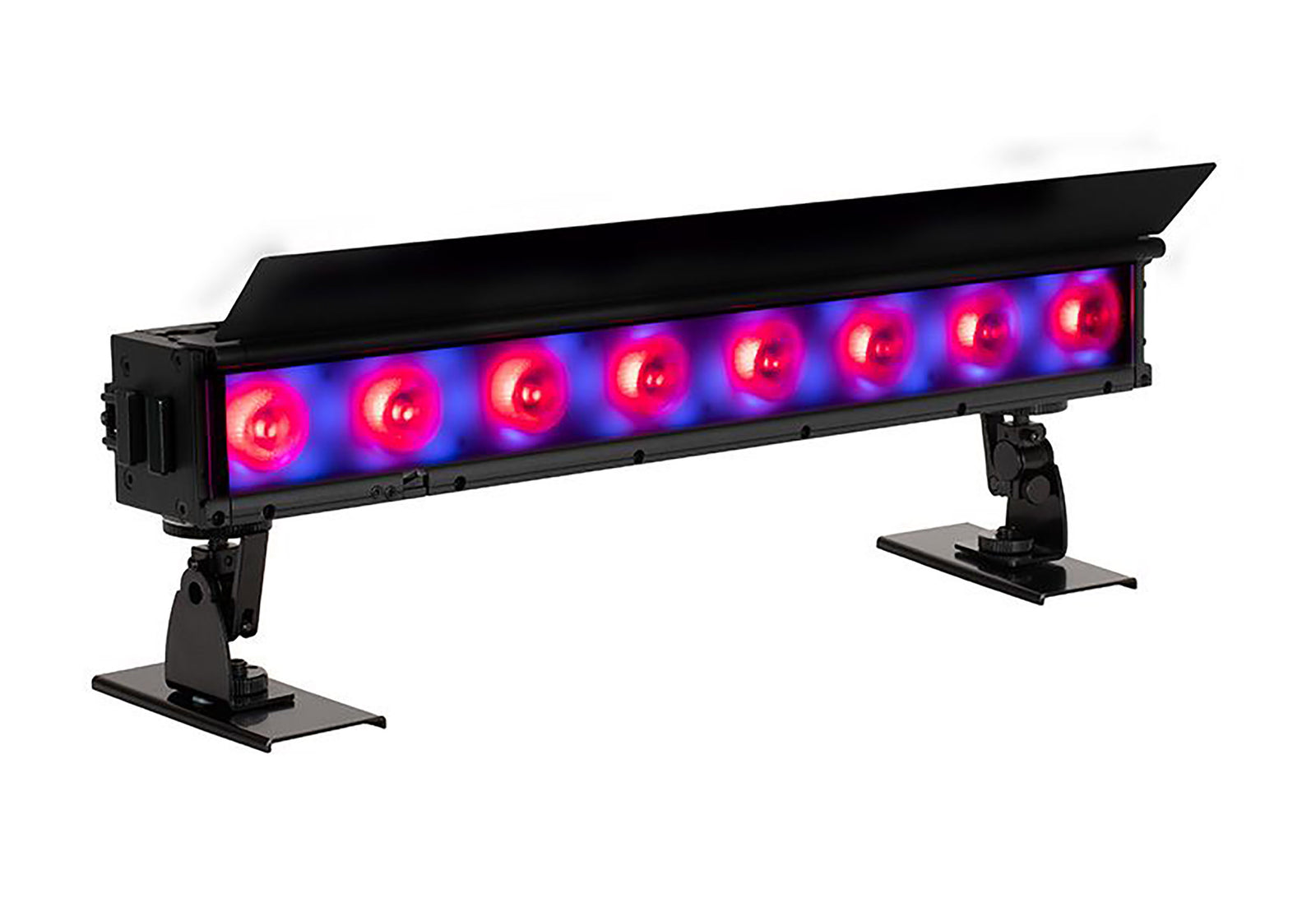

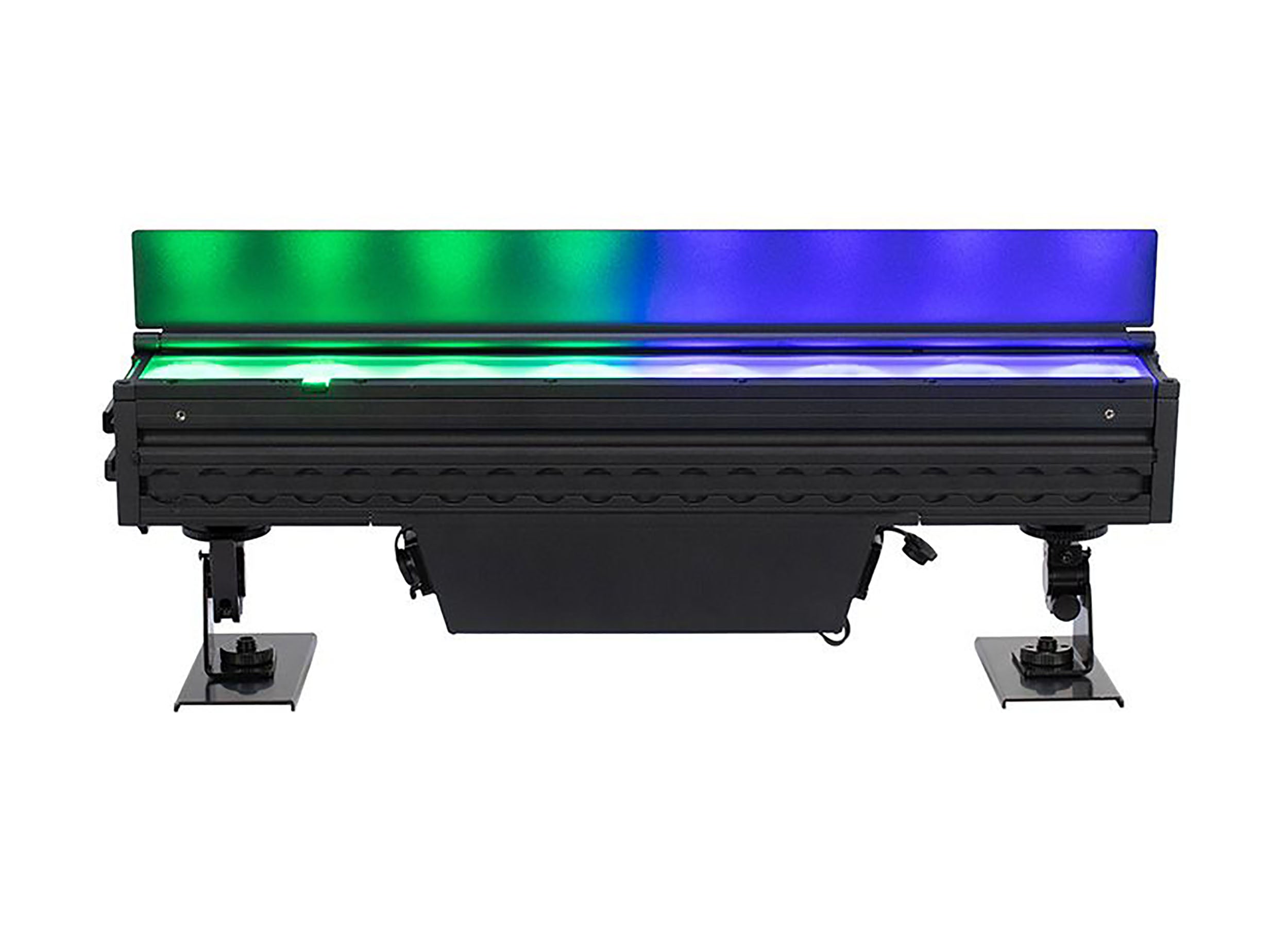

ADJ ElectraPix Bar 8, IP65 Rated Battery-Powered Linear LED Bar - RGBAL+UV LED

The ADJ ElectraPix Bar 8, IP65 Rated Battery-Powered Linear LED Bar - RGBAL+UV LED is a cutting-edge, .5-Meter battery powered, wireless DMX lighting solution. Packed with advanced features, this fixture boasts eight 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers up to 20 hours of battery operation.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Bar 8 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. Additional, up to four ElectraPix Bar 8 fixtures may be mounted vertically to the VFB1 floor base (sold separately). The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Bar 8 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Bar 8, where innovation meets performance.

Product Specifications:

Source:

(8) 20W Hex Color RGBAL+UV Foreground LED's

(32) 0.2W RGB Background LED's

50,000 Hour Average Life*

May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

2,300K ~ 9,900K White Color Temperature Range

17° Beam Angle

45mm Lens Diameter x8

Physical:

IP65 Housing

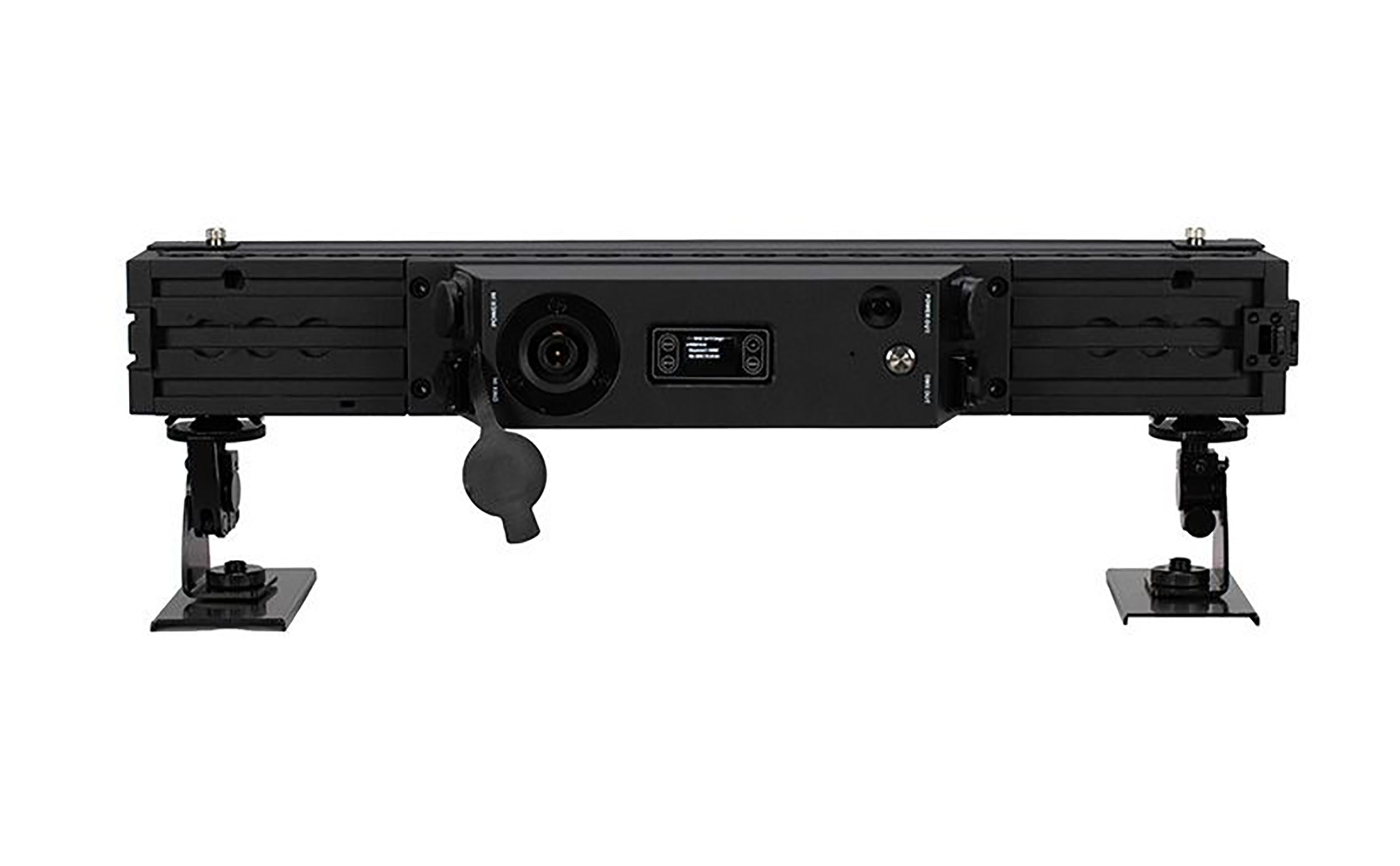

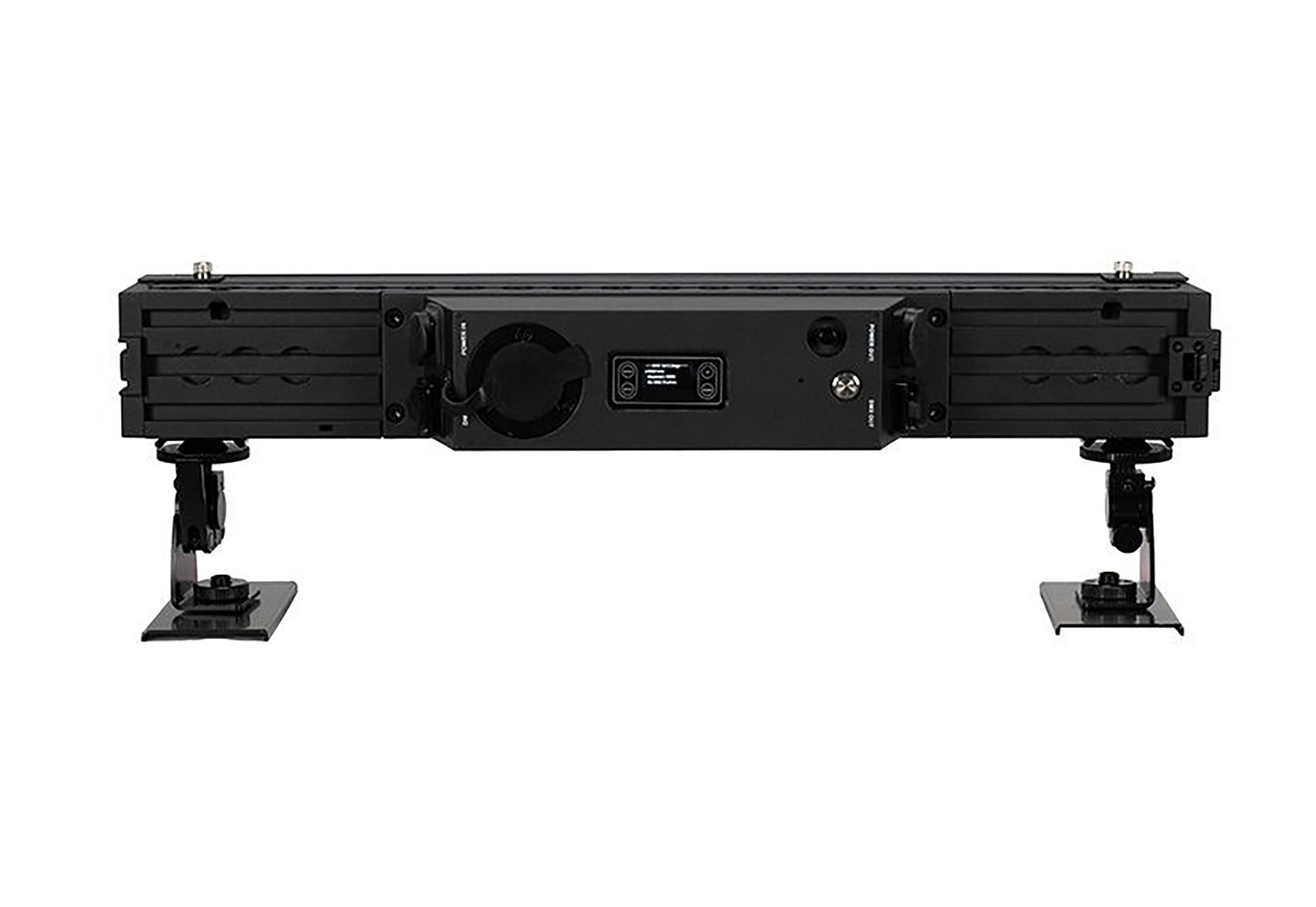

OLED Digital display

L Track system for locking accessories / rigging

Glare Shield

Diffusion Filter slot

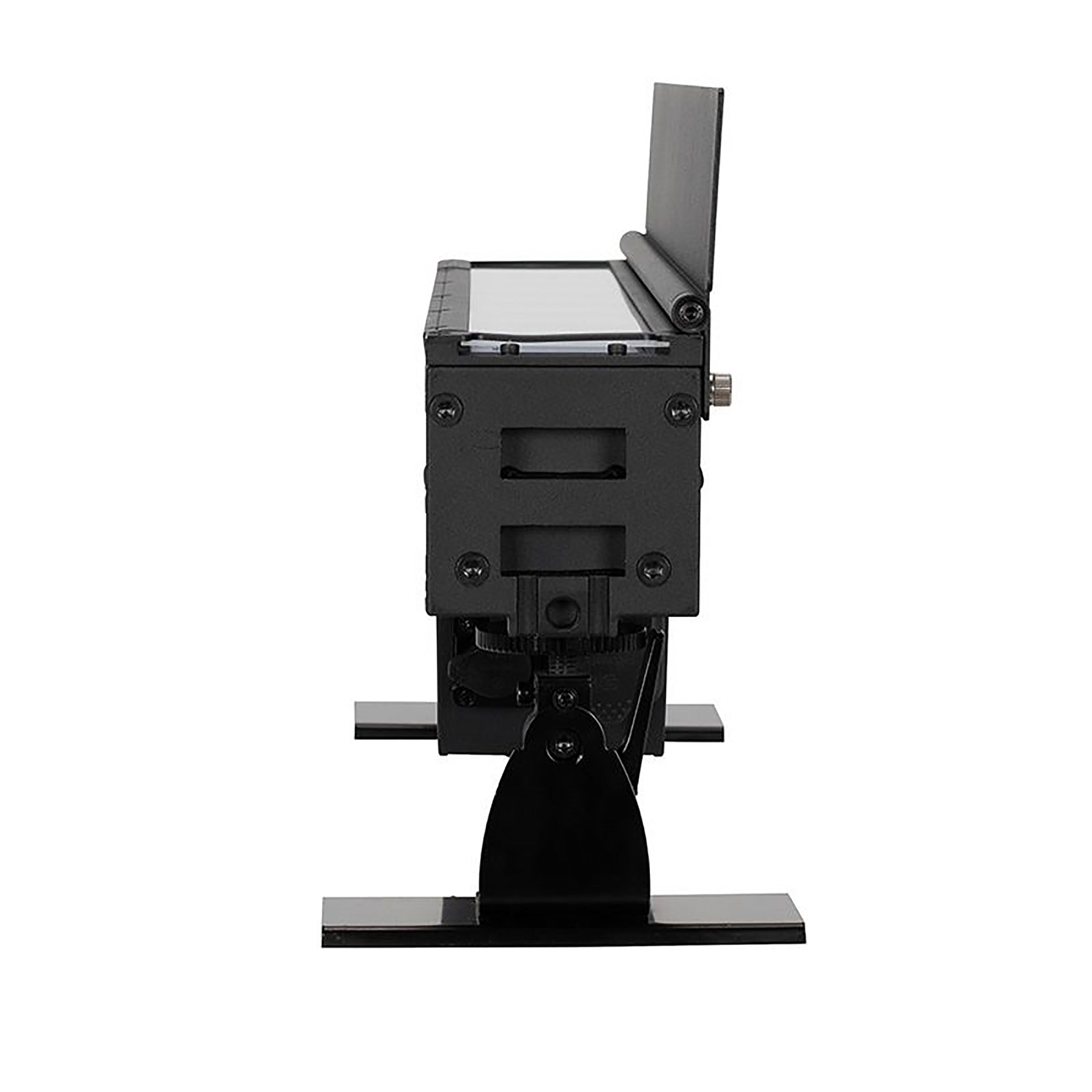

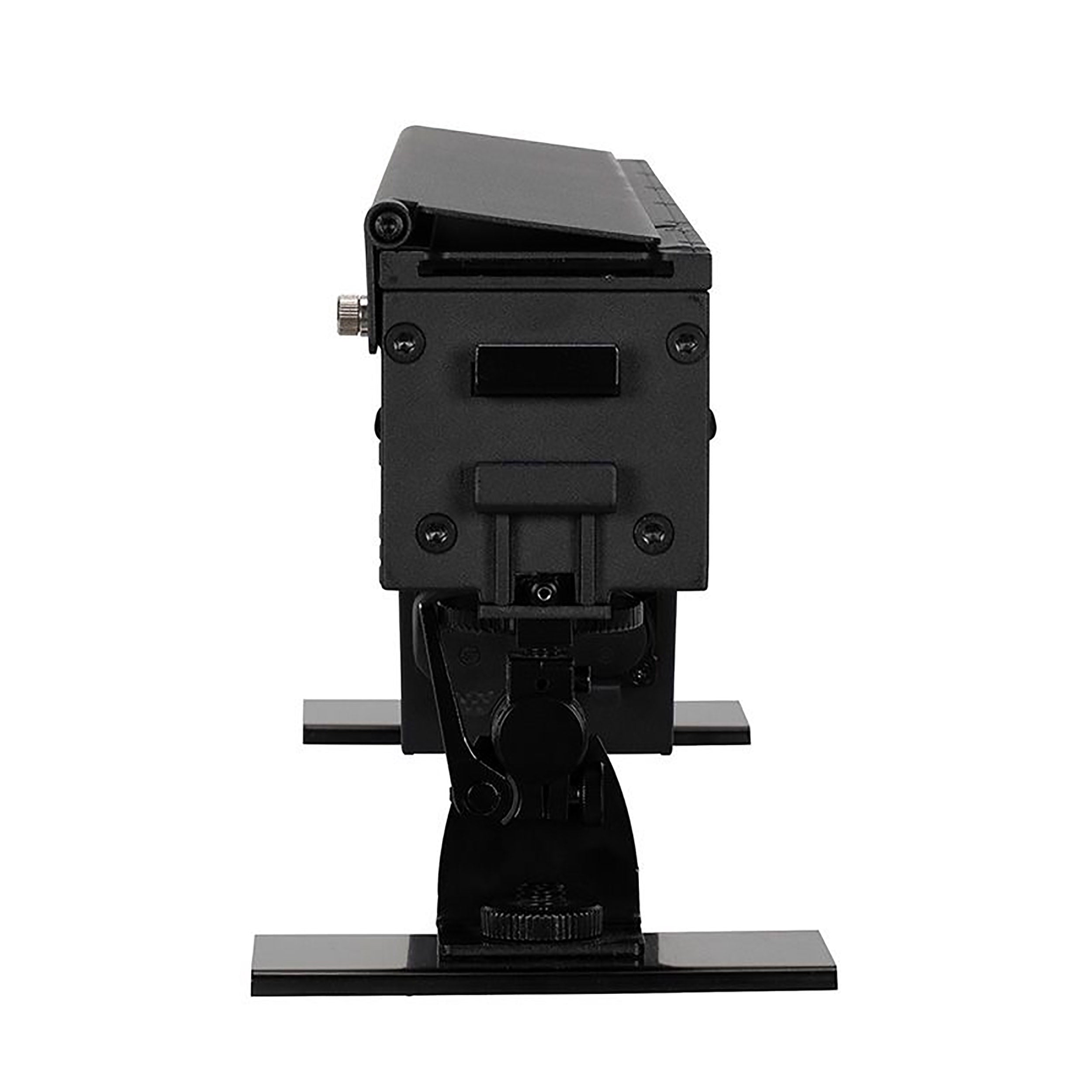

Angle adjustable feet

Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16

Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM and RDM Net Compatible

IR (Includes UCIR24 wireless remote)

(9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 48, 52 & 66 Channel modes)

On-board Manual Control Mode

Primary / Secondary Mode

Connections:

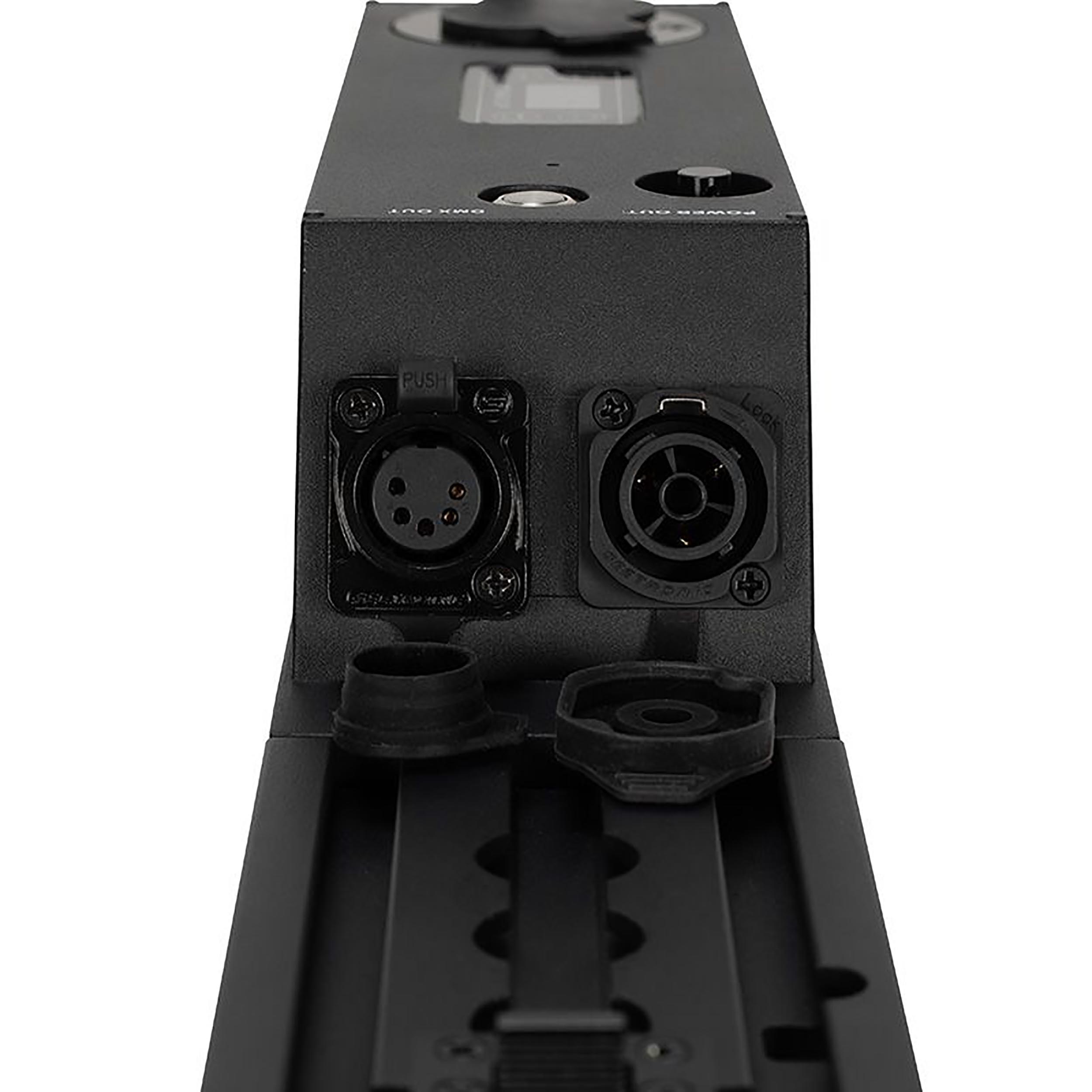

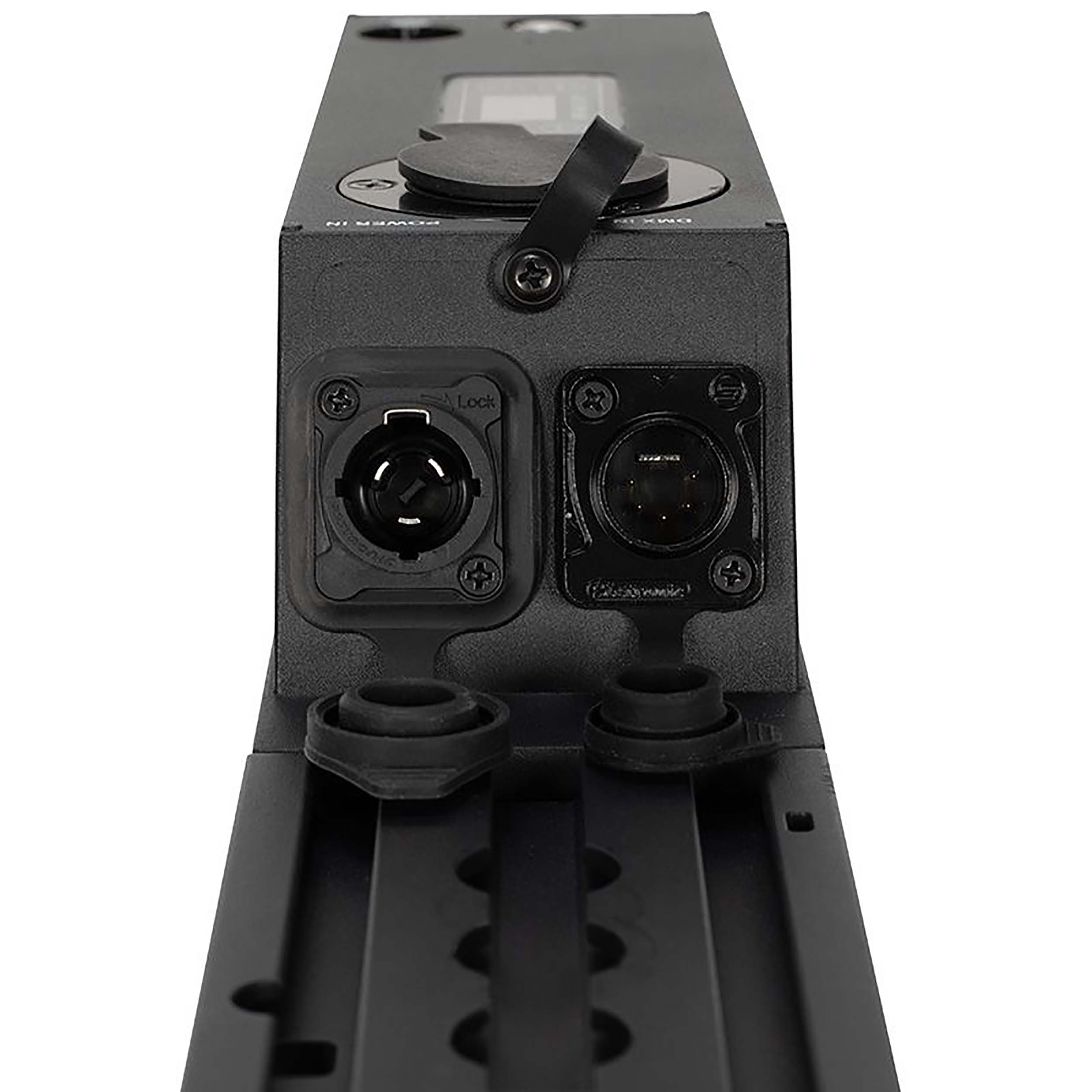

5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

Outdoor Locking Power Sockets

Battery Charging Socket

Dimensions & Weight:

Length: 3.7” (94.5mm) Width: 23.1” (586.7mm) Height: 10.6” (268.7mm)

Weight: 16.1 lbs. (7.3 kg)

Power:

AC100-240V/50Hz-60Hz Input

60W Power Consumption

Link 15 pieces @120VAC or 28 pieces @ 230VAC

Battery:

Rechargeable Lithium ion

Battery Capacity: 7,000mAh

Battery Voltage: 22.2V

Charge Time, AC Power: 5 Hours (To Full)

Charge Time, Flight Case: 5 Hours (To Full)

Up to 20 Hour Battery Operation

Battery Cycles: 500

Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

CE

cETLus (Pending)

FCC

IP65

Included Accessories:

(1) Outdoor Locking Power Cable

(1) UCIR24 Remote

(1) 20° Diffusion Filter

Optional Accessories:

Accu Stand VFB1 (Floor Base)

LTrack A2 (LTrack Adapter Only)

LTrack CA2 (LTrack Adapter with Narrow Clamp)

EPIX B816 IPCB: replacement charging base and power supply
