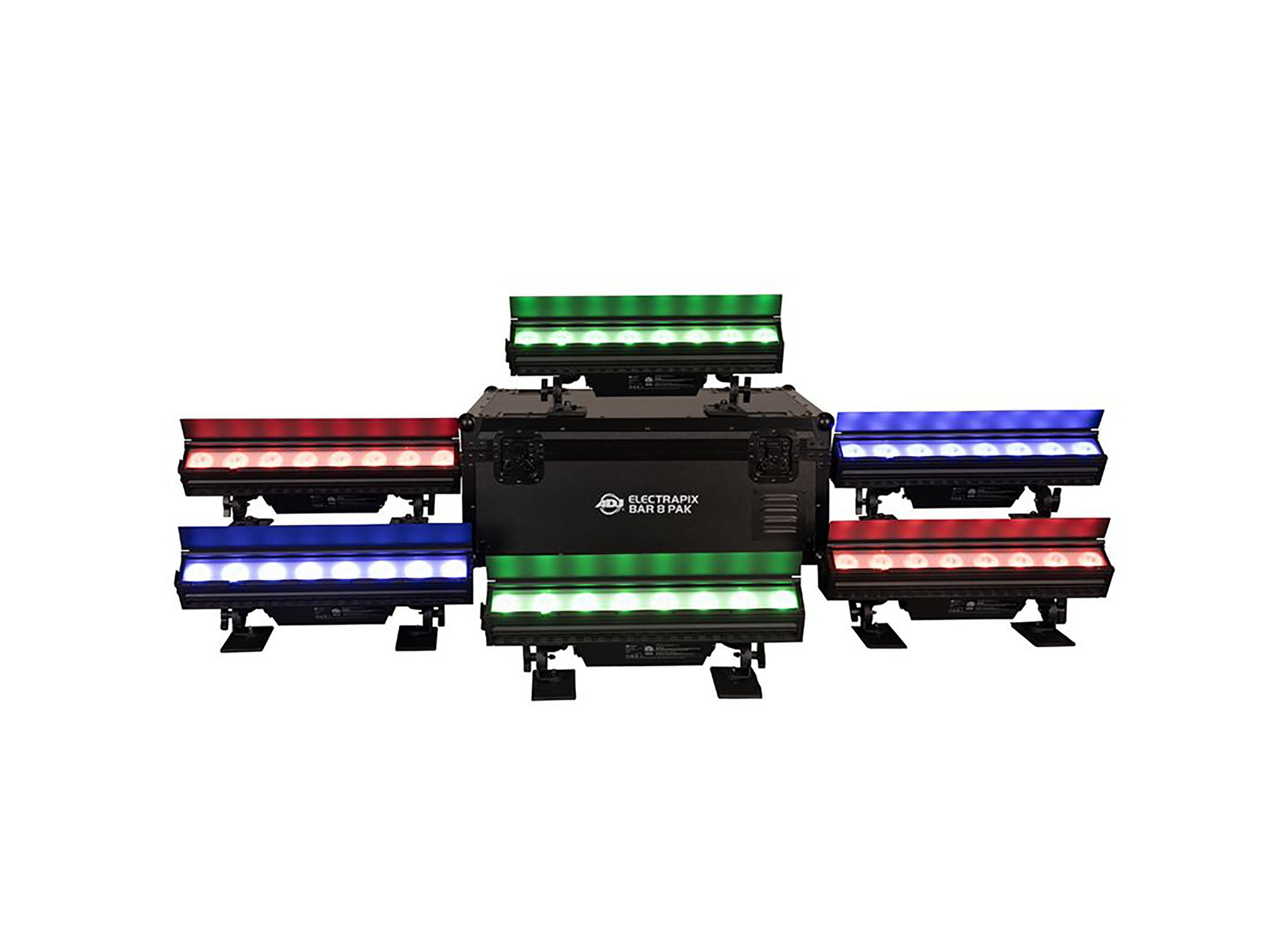

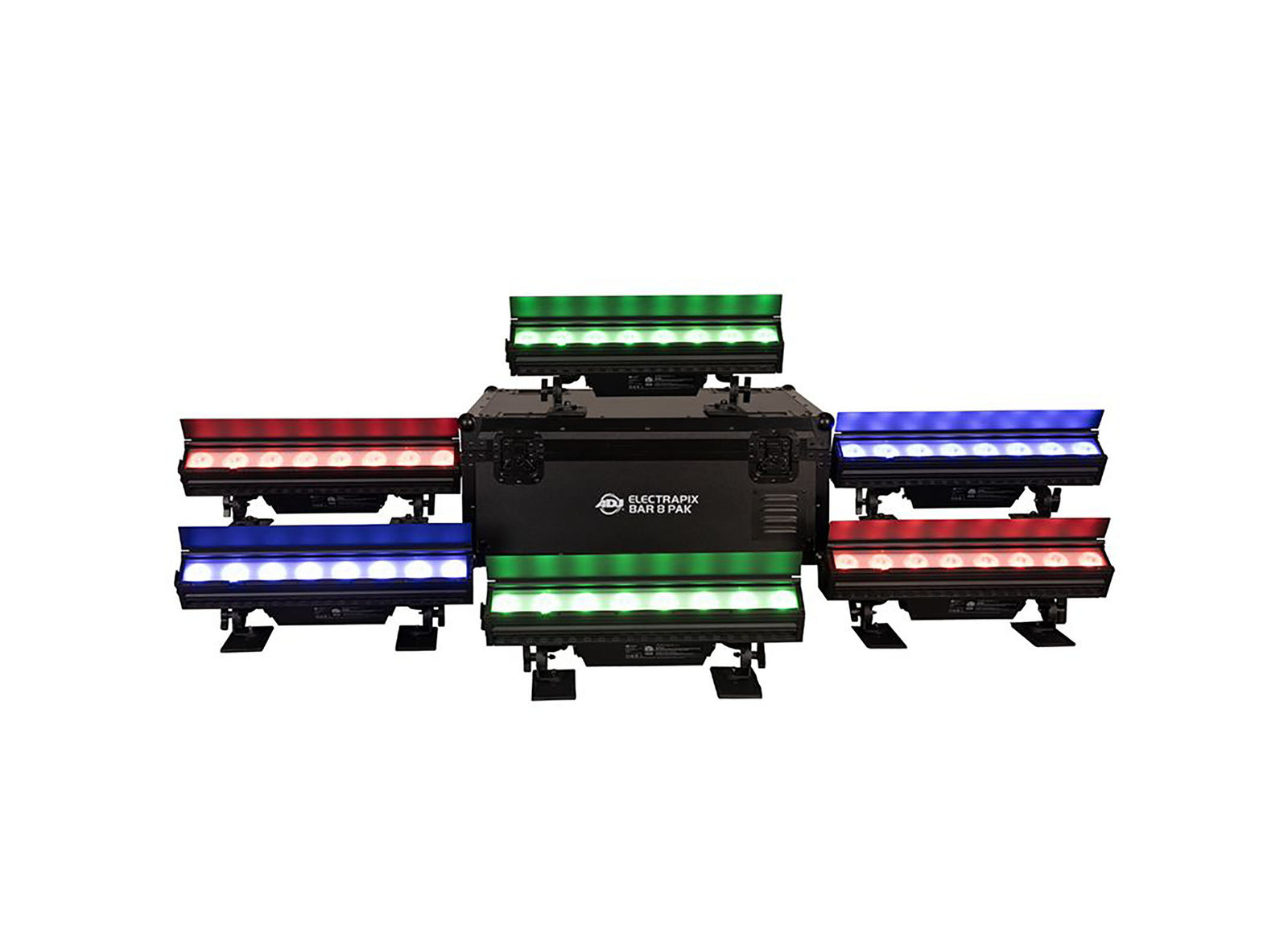

ADJ ElectraPix Bar 8 Pak, Battery-Powered Wireless DMX LED Linear Fixture

The ADJ ElectraPix Bar 8 Pak, Battery-Powered Wireless DMX LED Linear Fixture is a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This lighting package includes everything you need to elevate your lighting setup for events, performances, or any situation where vibrant and dynamic illumination is essential.

ElectraPix Bar 8 fixtures (x6):

Unleash the power of six (6) ElectraPix Bar 8 fixtures, each equipped with state-of-the-art technology including, long-life LEDs, battery-powered and wireless DMX. These lights deliver vivid and customizable colors, allowing you to create captivating light displays that suit any atmosphere. Perfect for stage productions, concerts, or any event where lighting plays a crucial role.

Charging Bases (x6):

Stay powered up and ready to shine with the included six charging bases. Effortlessly recharge your ElectraPix Bar 8 lights, ensuring they are always ready for action. The convenient design of the charging bases allows for efficient organization and easy access, making setup and teardown a breeze.

UC-IR24 Remote Control (x1):

Take command of your lighting setup with the UC-IR24 remote control. This versatile device allows you to adjust colors, brightness, and other settings from a distance, providing you with convenient control over your lighting environment.

Outdoor Locking Power Cable (x6):

Designed for durability and reliability, the outdoor locking power cables ensures a secure and weather-resistant connection.

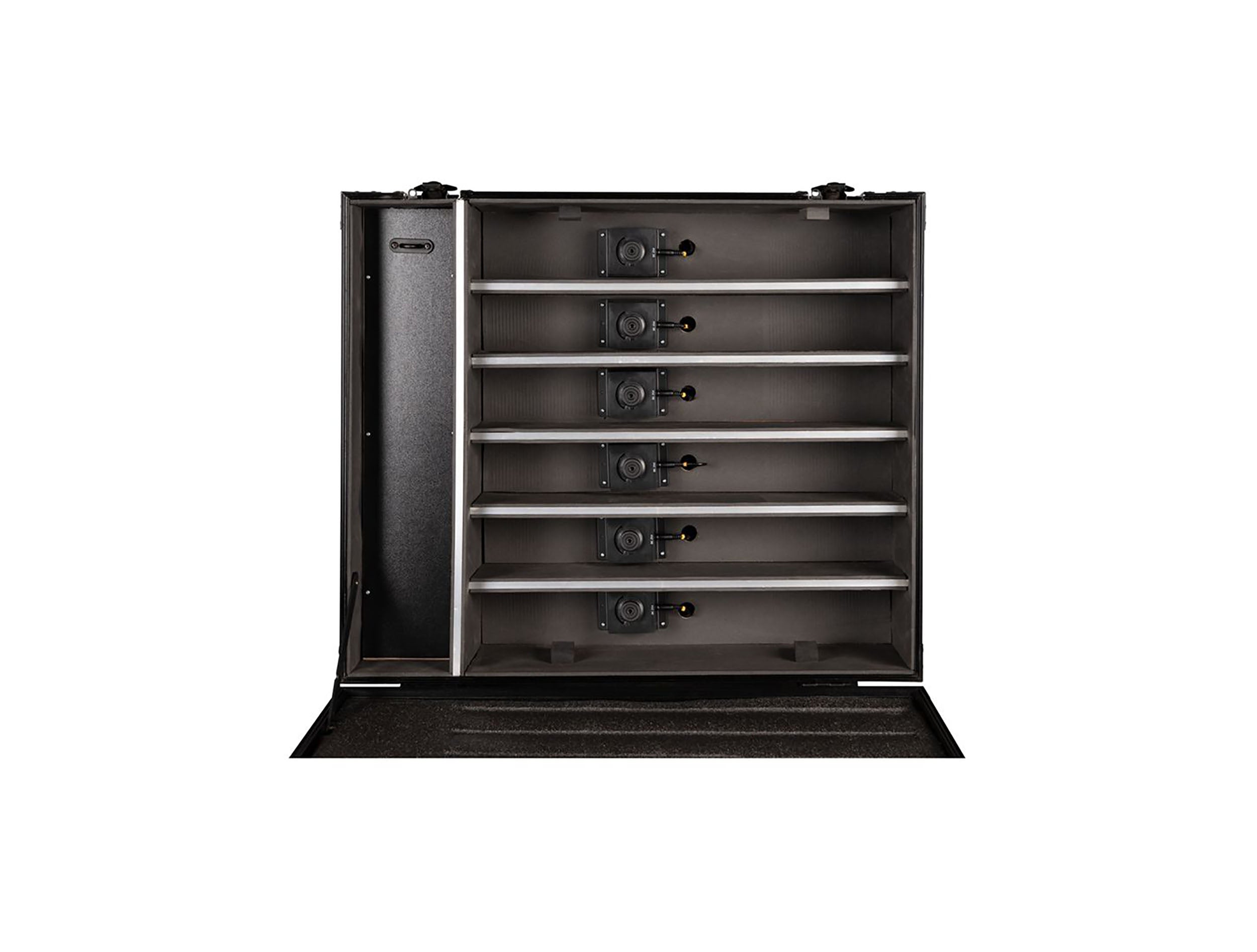

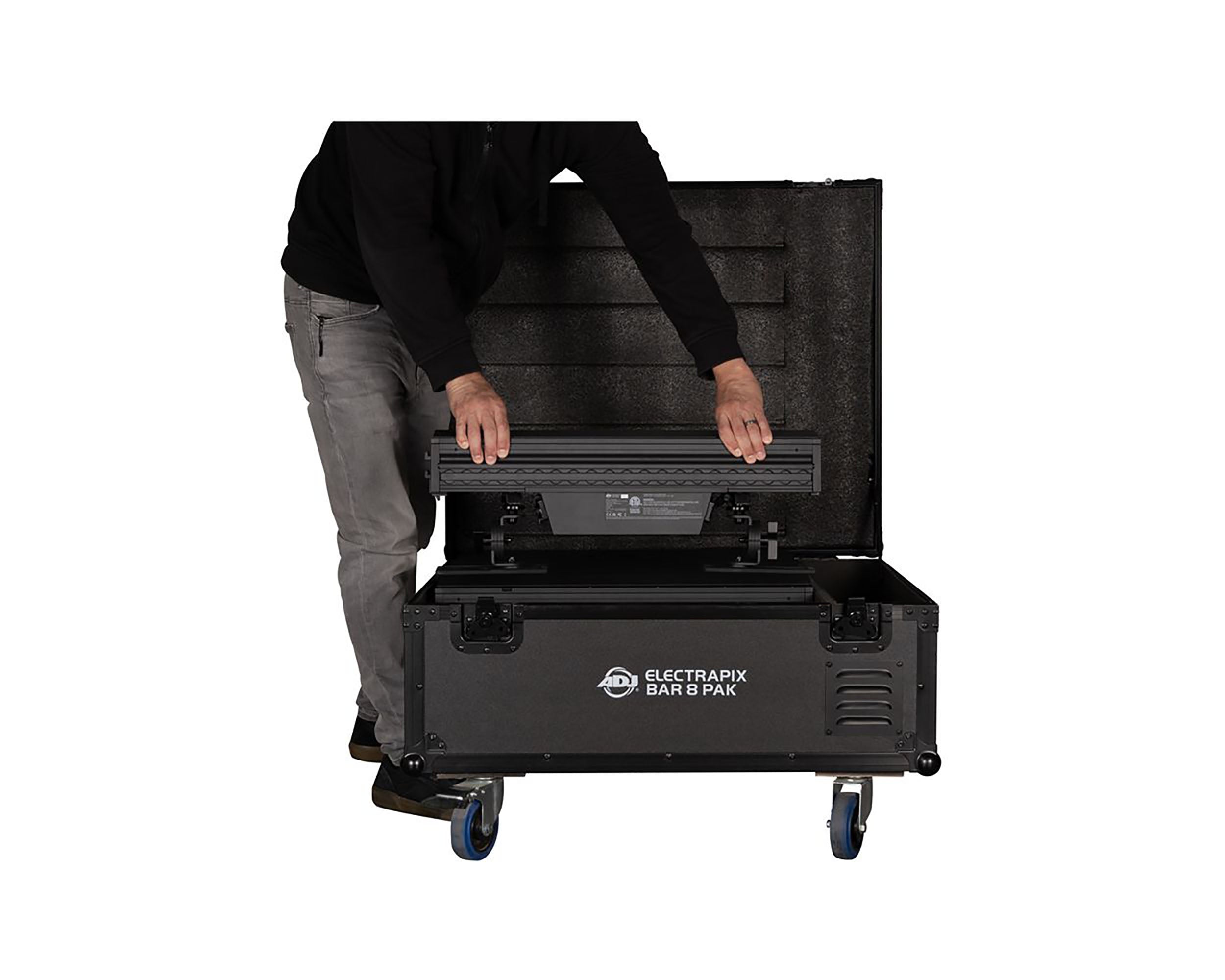

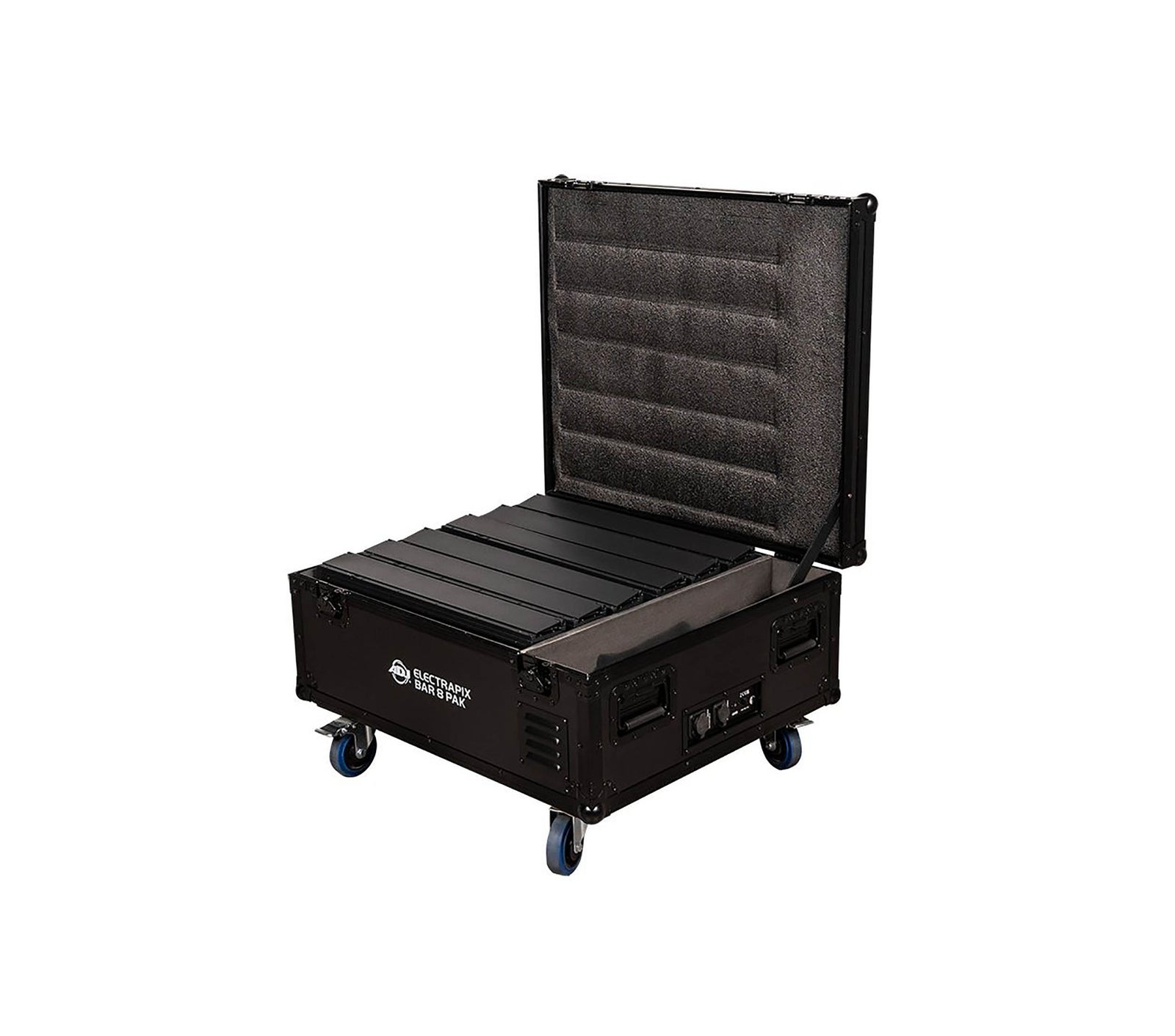

ElectraPix Bar 8 FC (Flight Case) (x1):

Safeguard your investment and transport your equipment with ease using the ElectraPix Bar 8 FC flight case. This rugged and well-designed case provides a secure and organized storage solution for your lights, charging bases, remote control, and power cable. The dimensions of the flight case (LxWxH): 31.8” x 27.42” x 17.4” (807.5x696.4x441.9mm) ensure that your lighting setup remains protected during transit.

With the ElectraPix Bar 8 Pak, you have a versatile and complete lighting solution that combines innovation, convenience, and portability, making it an ideal choice for lighting and event professionals. Illuminate your world and captivate your audience with the power of ElectraPix Bar 8.

ElectraPix Bar 8 Pak Includes:

(6) ElectraPix Bar 8 Pak (Fixtures)

(1) ElectraPix Bar 8 FC (Flight Case)

(6) ElectraPix Bar 8 IPCB (Charging bases and power supplies)

(1) UC-IR24 Wireless Infrared Controller

(6) IP65 Locking Power Cable

Product Specifications:

Power Input: AC100VAC~240VAC, 50/60Hz

IP65 Power Locking Input and Output

Max Power Consumption: 400 Watts

Power Draw: 4A @120Vac., 2A @230VAC.

Charge status indicator

14°F to 113°F (-10°C to 45°C)

Source:

(8) 20W Hex Color RGBAL+UV Foreground LED's

(32) 0.2W RGB Background LED's

50,000 Hour Average Life

Optical:

2,300K ~ 9,900K White Color Temperature Range

17° Beam Angle

45mm Lens Diameter x8

Physical:

IP65 Housing

OLED Digital display

L Track system for locking accessories / rigging

Glare Shield

Diffusion Filter slot

Angle adjustable feet

Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16

Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM and RDM Net Compatible

IR (Includes UCIR24 wireless remote)

(9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 48, 52 & 66 Channel modes)

On-board Manual Control Mode

Primary / Secondary Mode

Connections:

5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

Outdoor Locking Power Sockets

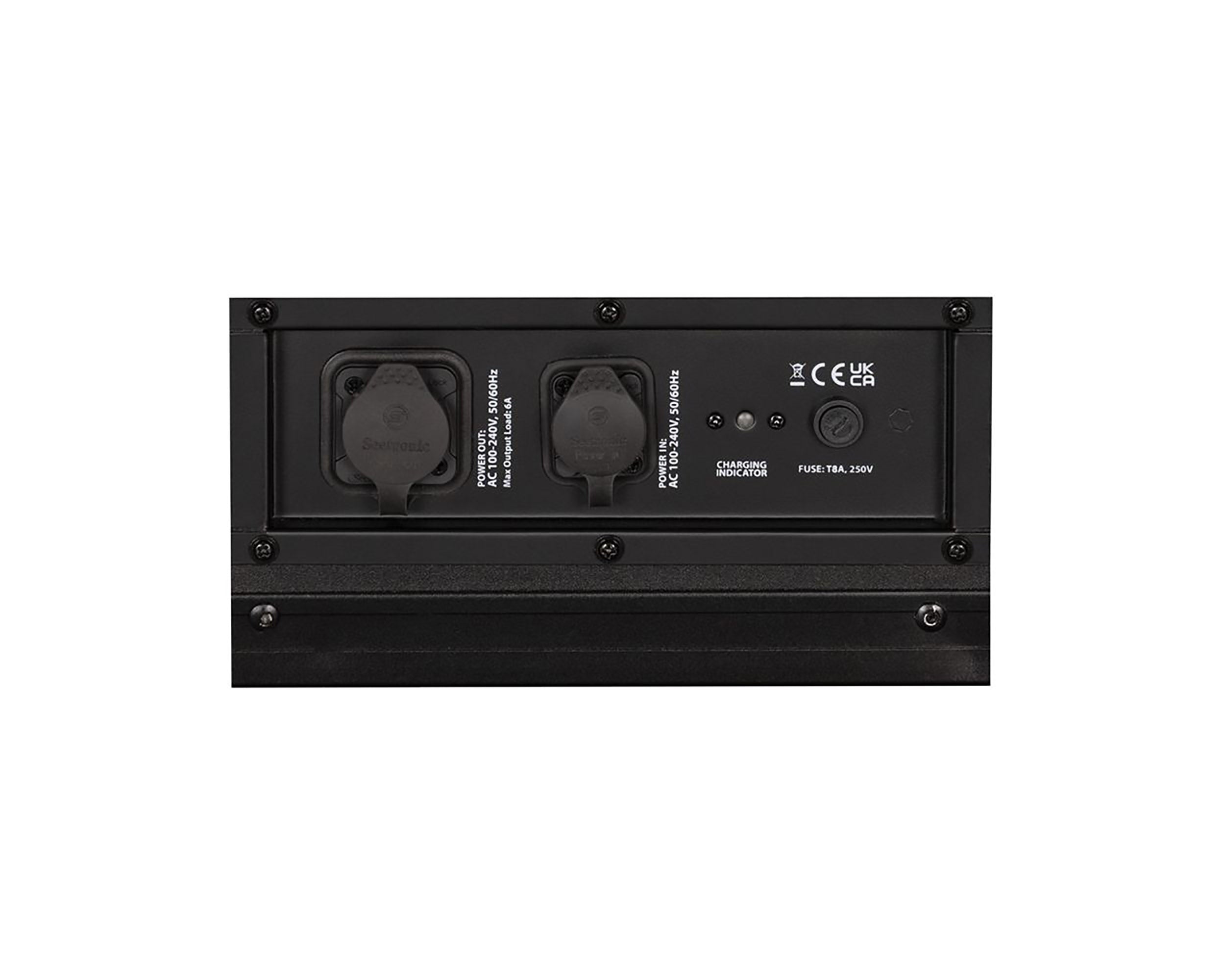

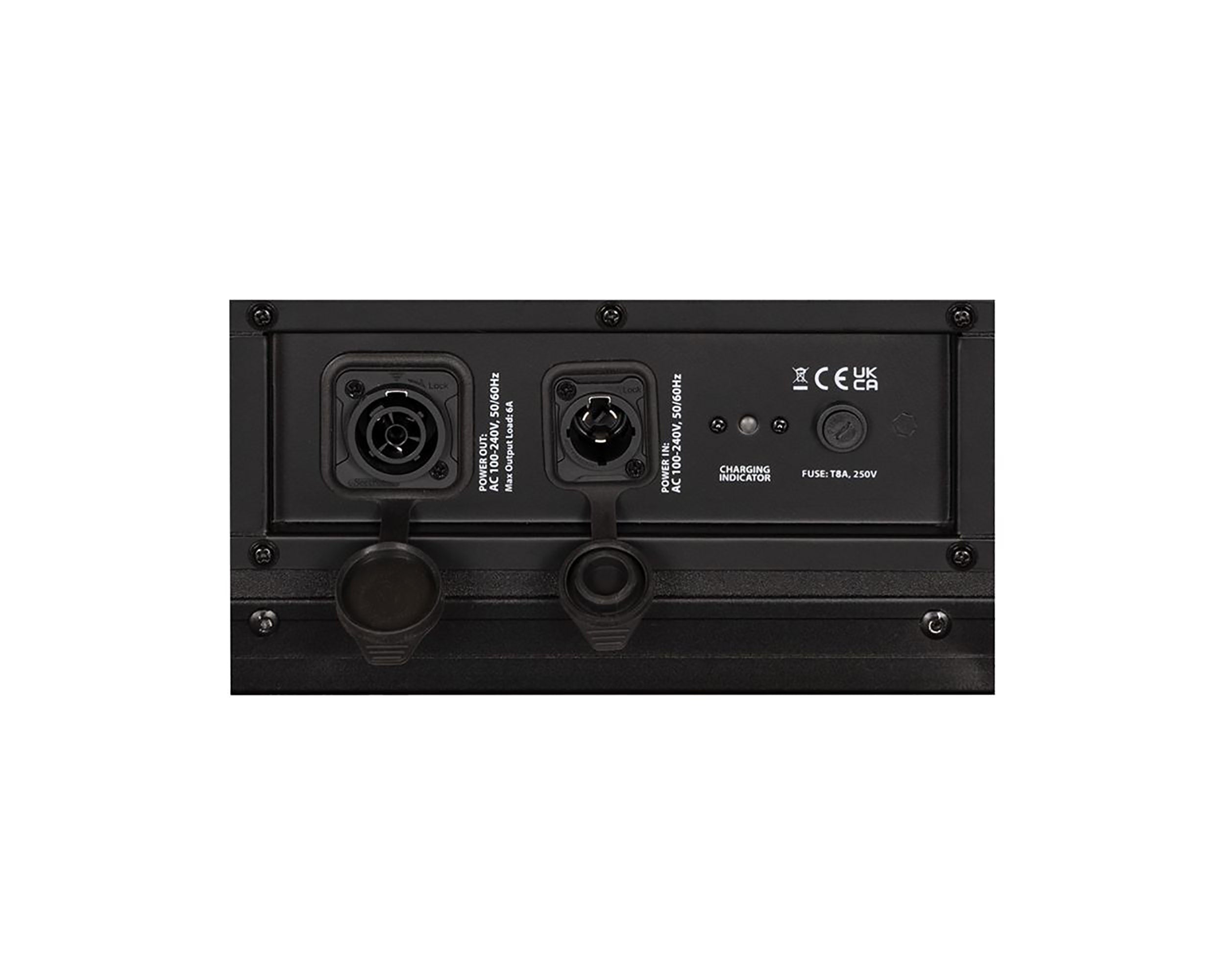

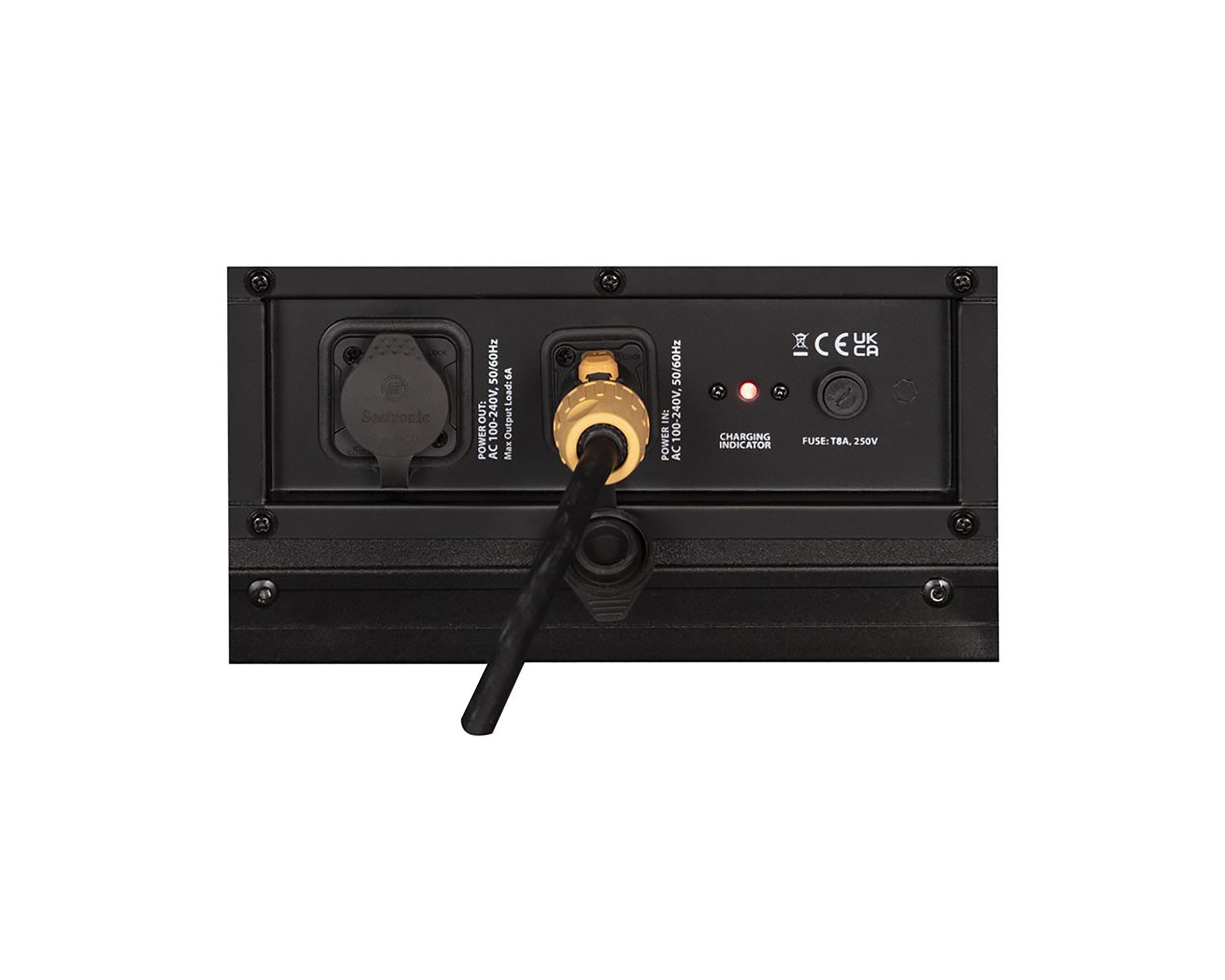

Battery Charging Socket

Dimensions & Weight:

Length: 3.72” (94.5mm) Width: 23.1” (586.7mm) Height: 10.6” (268.7mm)

Weight: 16.1 lbs. (7.3 kg)

Power:

AC100-240V/50Hz-60Hz Input

60W Power Consumption

Link 15 pieces @120VAC or 28 pieces @ 230VAC

Battery:

Rechargeable Lithium ion

Battery Capacity: 7,000mAh

Battery Voltage: 22.2V

Charge Time, AC Power: 5 Hours (To Full)

Charge Time, Flight Case: 5 Hours (To Full)

Up to 20 Hour Battery Operation

Battery Cycles: 500

Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

CE

cETLus (Control # 4002034)

FCC

IP65

Included Accessories:

(1) Outdoor Locking Power Cable

(1) UCIR24 Remote

(1) 20° Diffusion Filter

Optional Accessories:

Accu Stand VFB1 (Floor Base)

LTrack A2 (LTrack Adapter Only)

LTrack CA2 (LTrack Adapter with Narrow Clamp)

EPIX B816 IPCB: replacement charging base and power supply

ElectraPix Bar 8 Pak Dimensions / Weight (loaded case with 6 fixtures):

Length: 31.8” (807.5mm)

Width: 27.42” (696.4mm)

Vertical Height: 17.4” (441.9mm)

Loaded Weight: 174 lbs. (79 kg)
