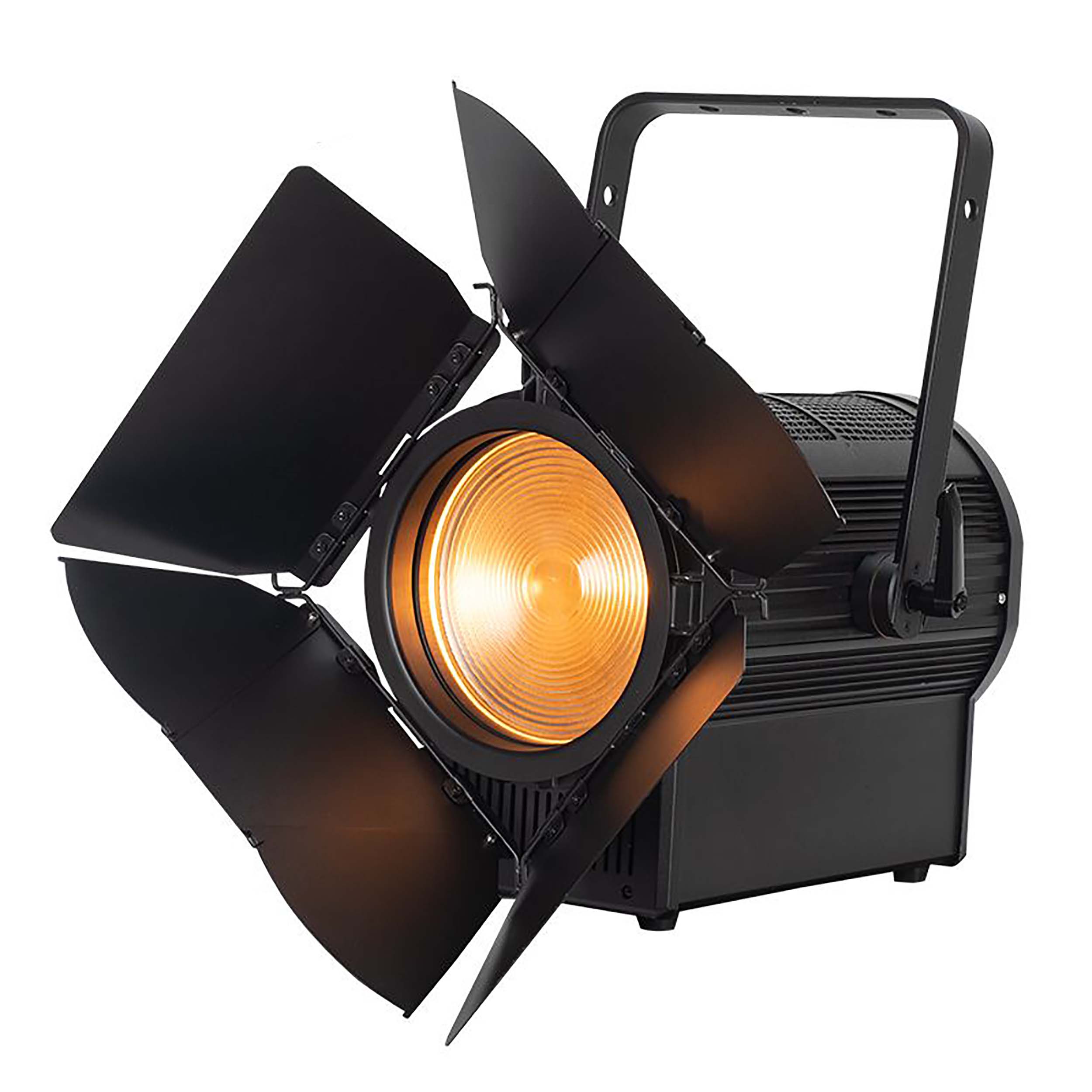

ADJ Encore FR Pro Color, Professional Grade 6-IN-1 LED Fresnel Fixture with 7-Inch Lens

The ADJ Lighting Encore FR Pro Color, Professional Grade Fresnel Fixture with 7-Inch Lens is designed for key lighting, as a fill light and as a back light. It offers a full spectrum of colors with CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K. It’s powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, cyan and lime LEDs.

The Encore FR Pro Color has a motorized zoom range of 9 ~ 37-degrees, a high CRI rating with an output of more than 11,000 Lumens. There are an abundant of on-board features such as 5 DMX control modes, 6 Dim Curves, preset color macros, and adjustable refresh rates.

The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.

Product Specifications:

Approvals / Ratings: CE | cETLus (Pending) | IP20

Source:

400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)

50,000 Hour Average LED Life

May vary depending on several factors but not limited to:

Environmental Conditions

Power/Voltage

Usage Patterns (On-Off Cycling)

Control and Dimming

Photometric Data:

9028 Total Stable Lumen Output (Full ON, Zoomed Out to Full)

9940 LUX, 923 FC @ 9.8’ (3m) (Zoomed In / Full ON)

2756 LUX, 256 FC @ 9.8’ (3m) (Zoom Out / Full ON)

Beam Angle: 9° to 37.5°

Max Field Angle: 49.8°

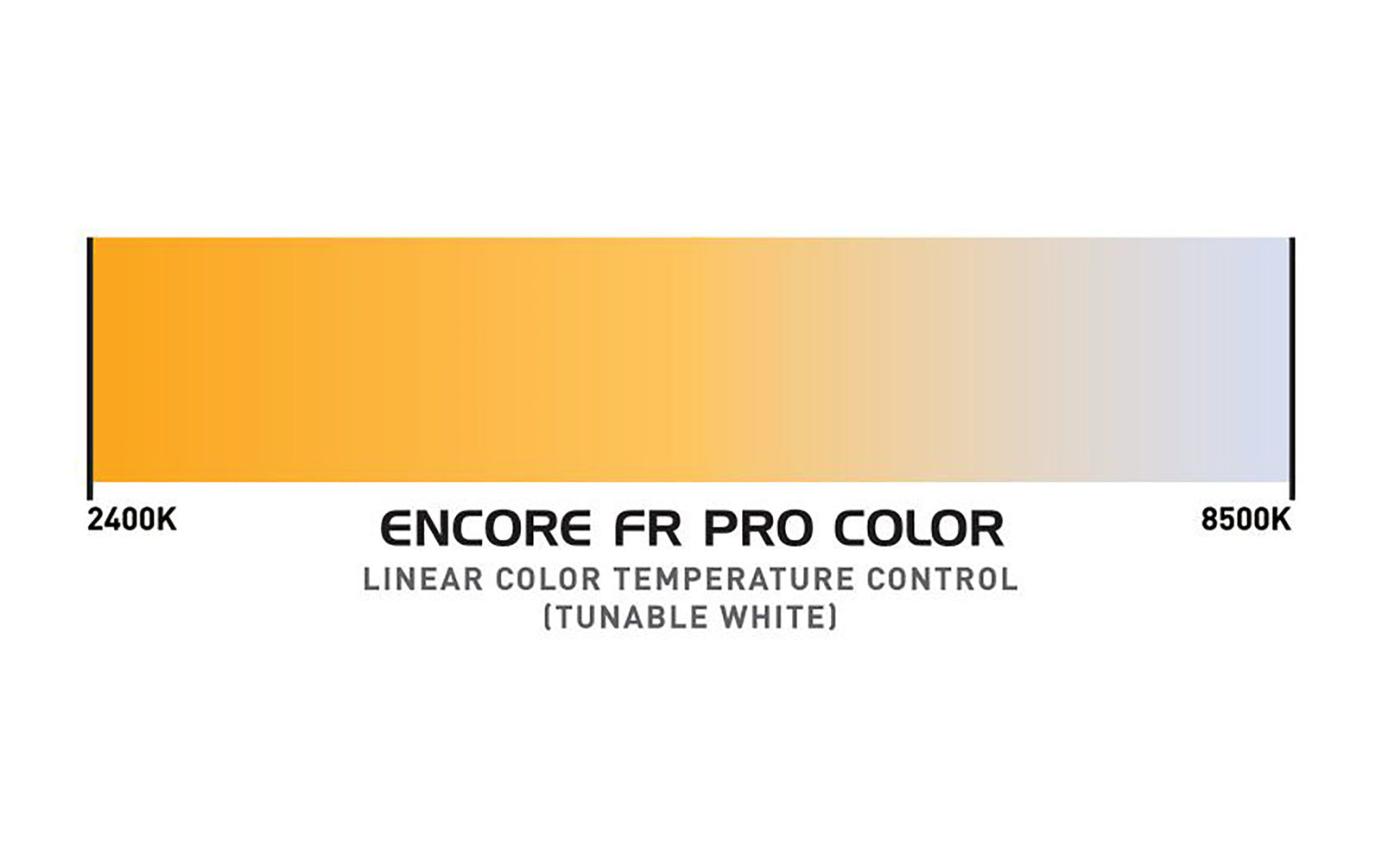

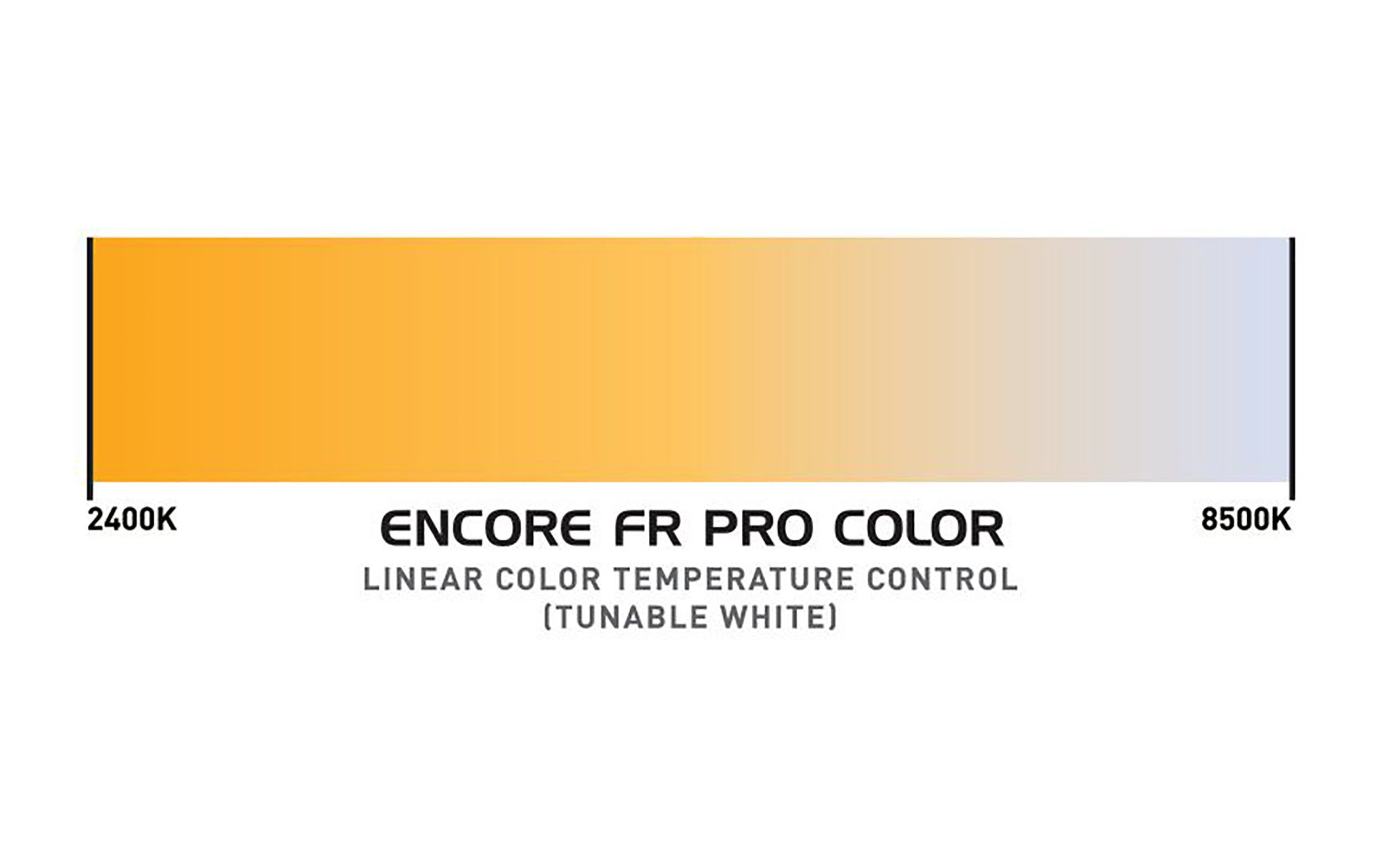

Color Temperature: Tunable, 2400K to 8500K

CRI: 97.8

Color:

Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control

Virtual Color Wheel Control

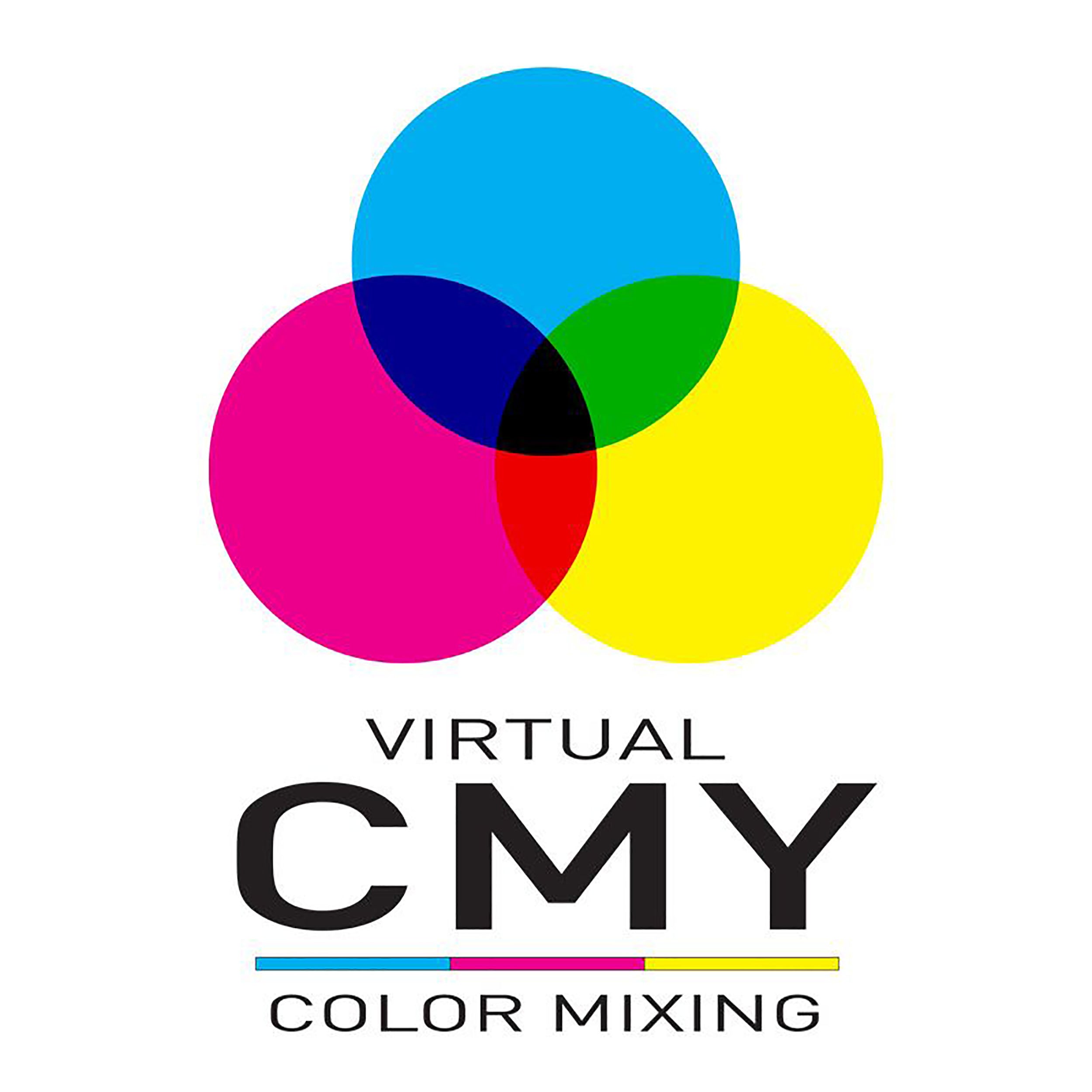

Virtual CMY Control

Effects:

Motorized Zoom

Electronic Dimmer and Strobe (1-20Hz)

Variable 16-bit Dimming Modes and Curves

Virtual CMY Color Mixing DMX Control Modes

Tunable White Color Temperature from 2400K to 8500K

62 Preset White Color Temp Macros (2400K to 8500K)

60 Preset Colors on Virtual Color Wheel

64 Preset RGBA Color Macros

Control / Connections:

Manual and DMX Controlled Dimmer and Shutter

Dimmer and Zoom Rotary Dials

(5) DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)

Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)

6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)

Dim Speed Options (0.1s to 10s)

4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)

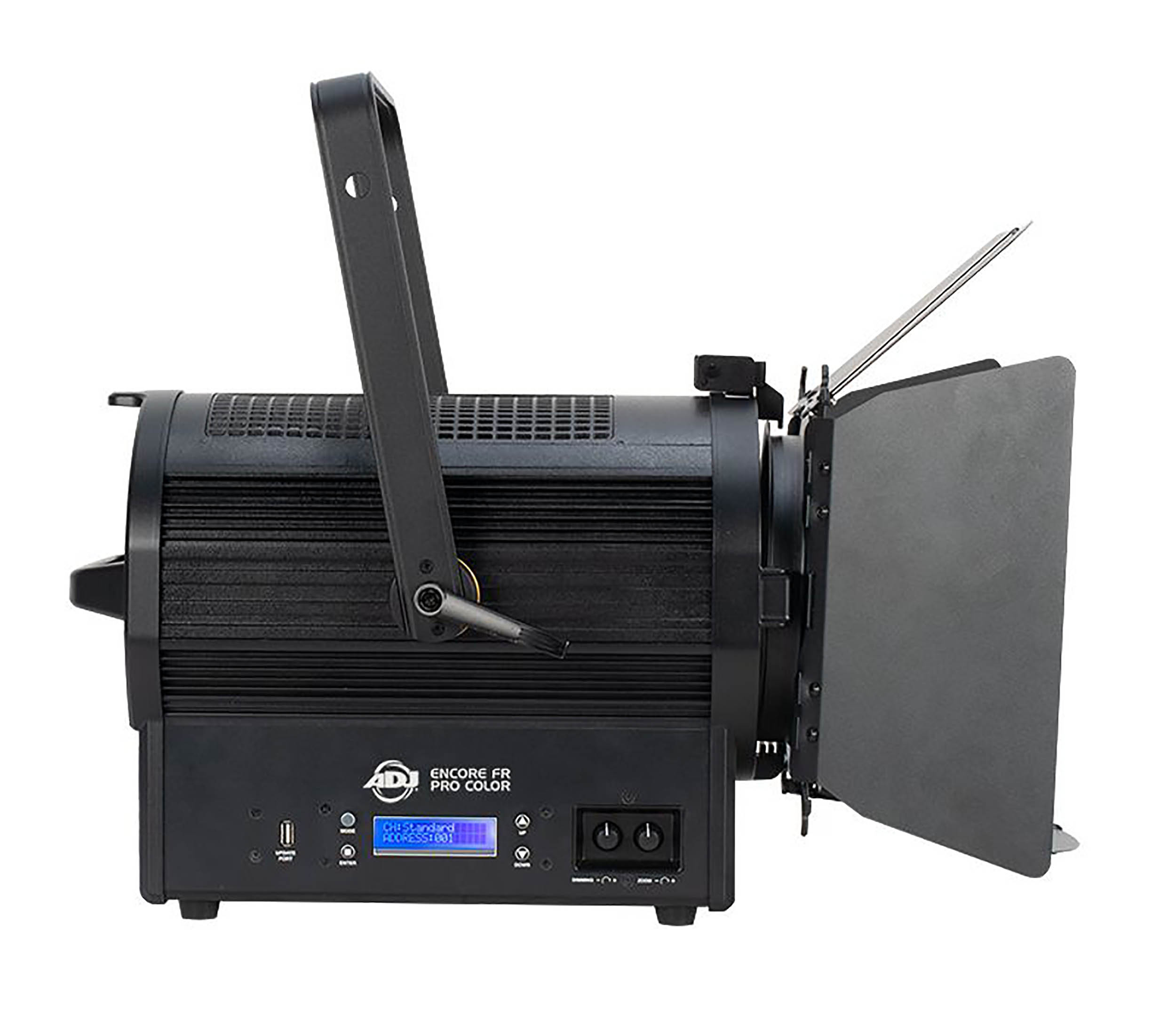

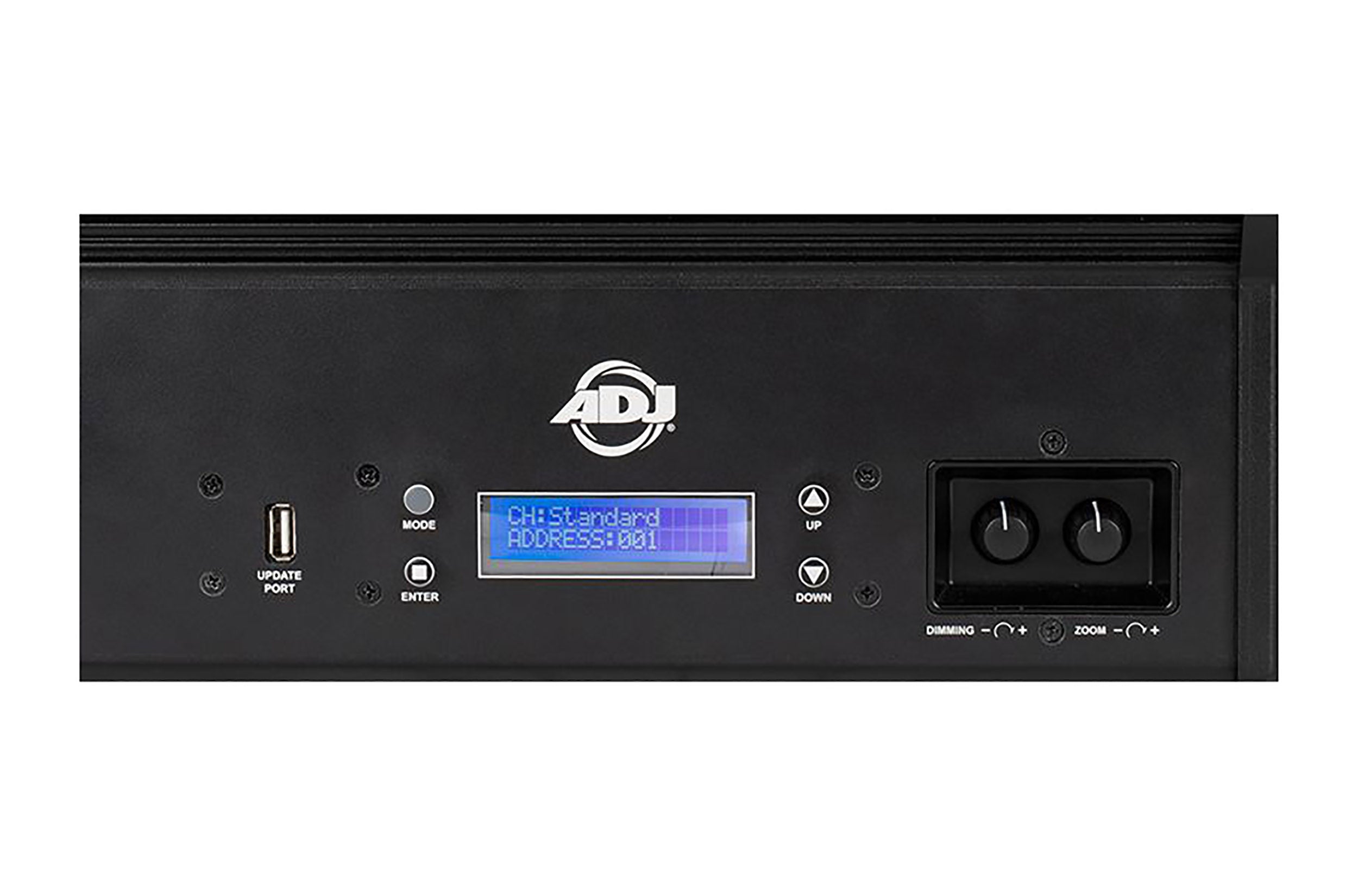

4 Button Control Panel LCD Menu Display

RDM (Remote Device Management)

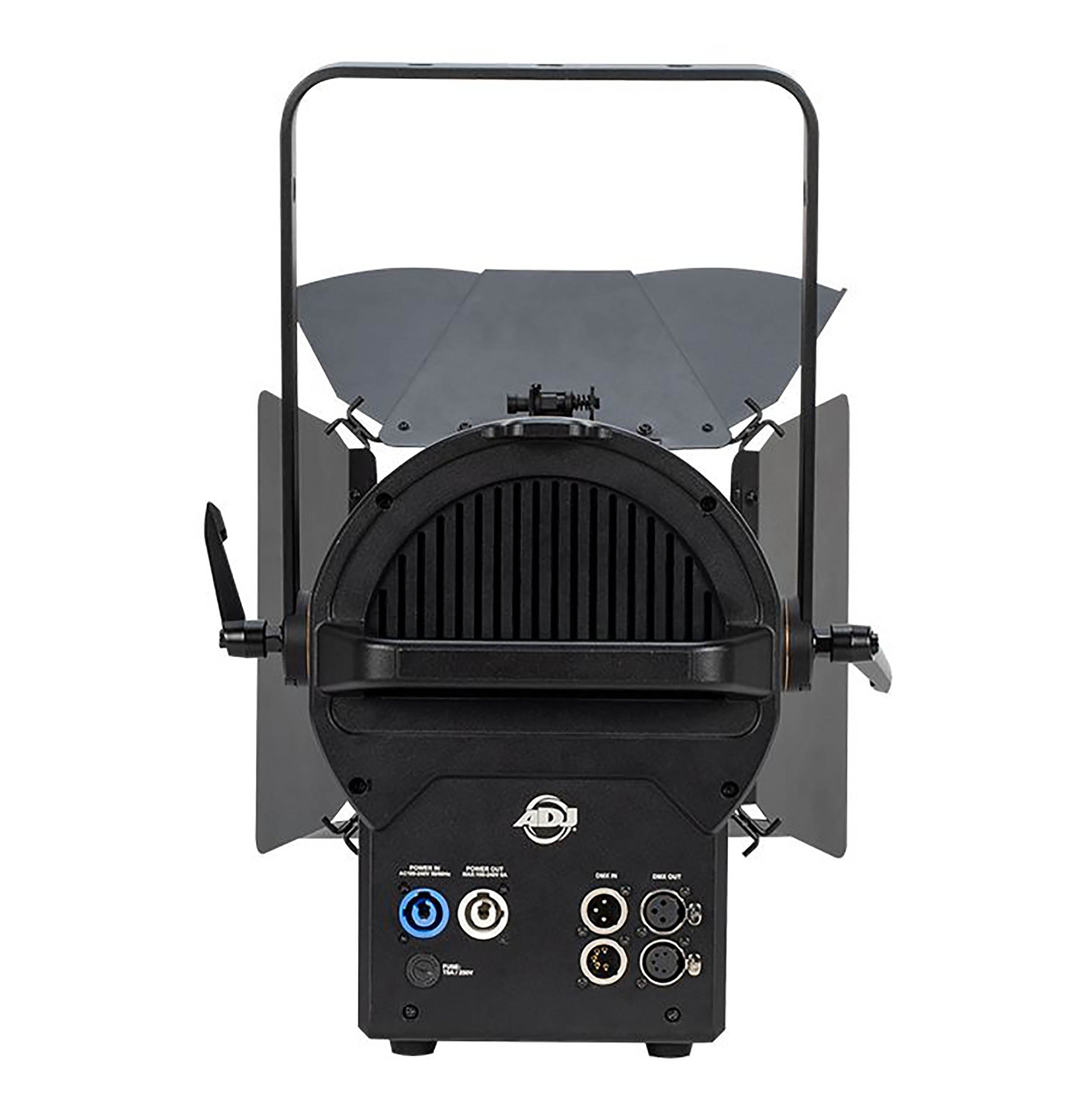

3/5pin DMX Input and Output

Locking Power Input and Output

USB Service Port

With Wired Digital Communication Network

Size / Weight:

Length: 16.6” (421.9mm)

Width: 14.18” (360.1mm)

Vertical Height: 19.29” (490mm)

Weight: 21.8 lbs. (9.9kg)

Electrical / Thermal:

AC 100-240V - 50/60Hz

420W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

Power Linking: 2Pcs @ 110V / 5Pcs @ 240V

Included Items:

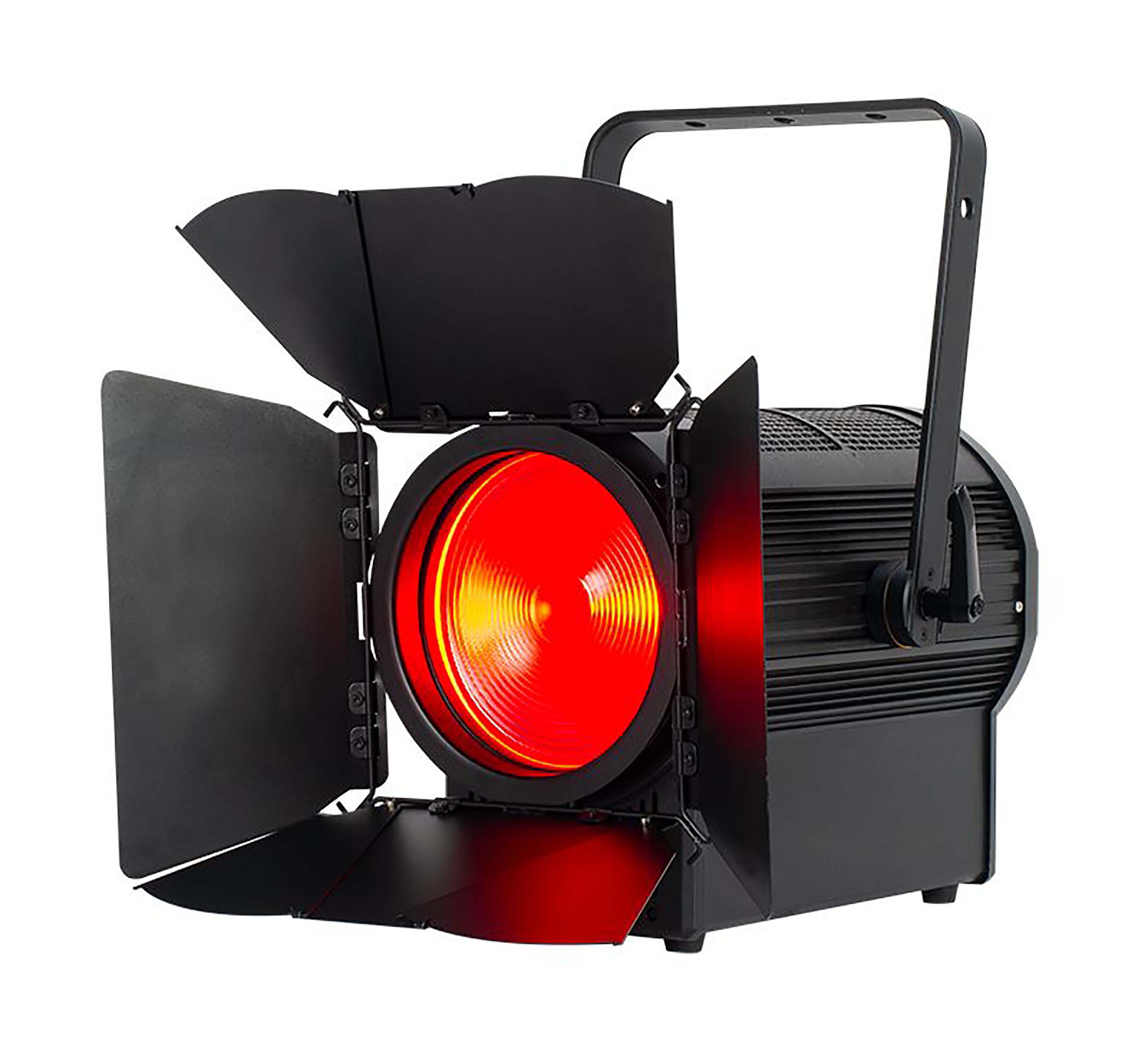

Barn Doors

Locking Power Cable

Two (2) Safety Cables
