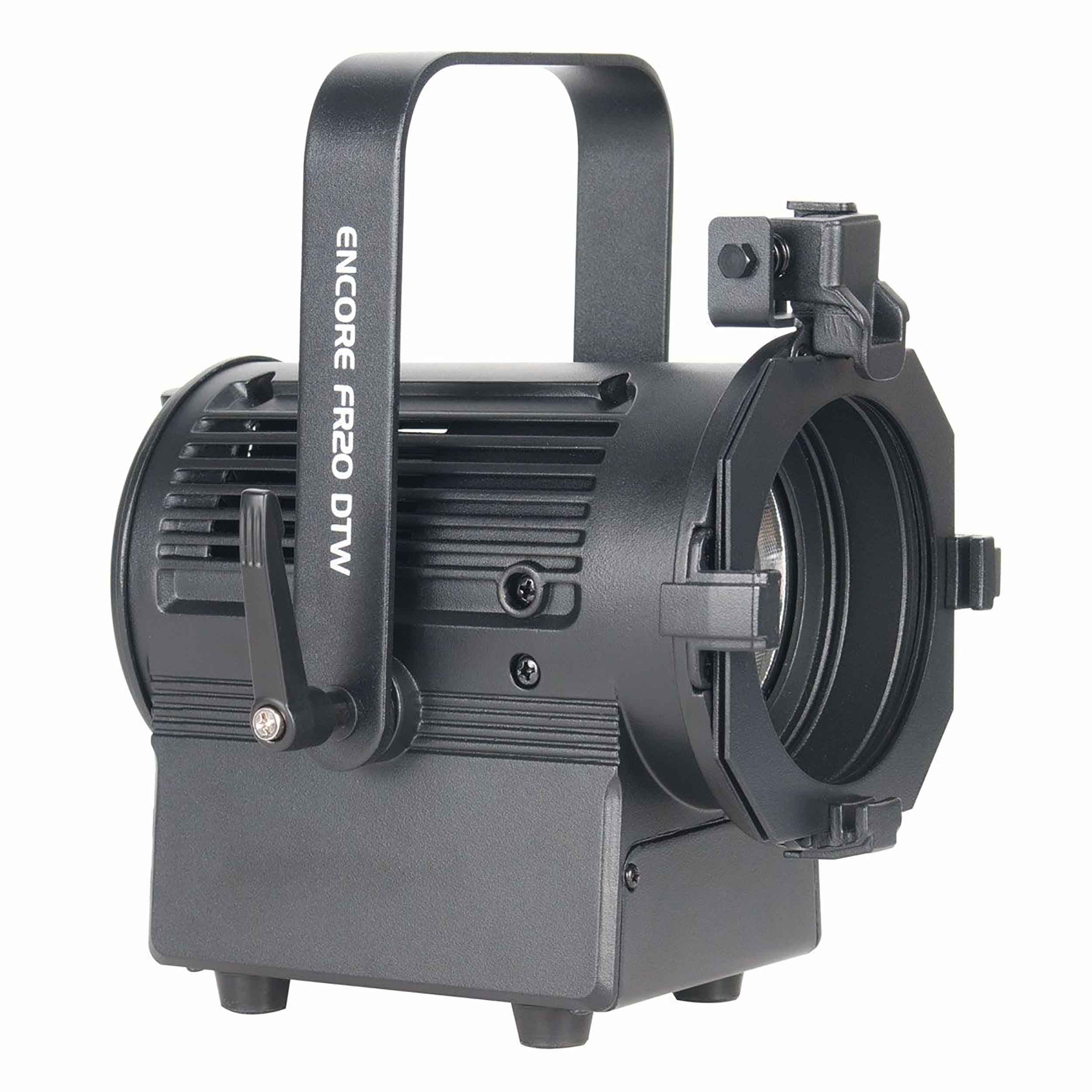

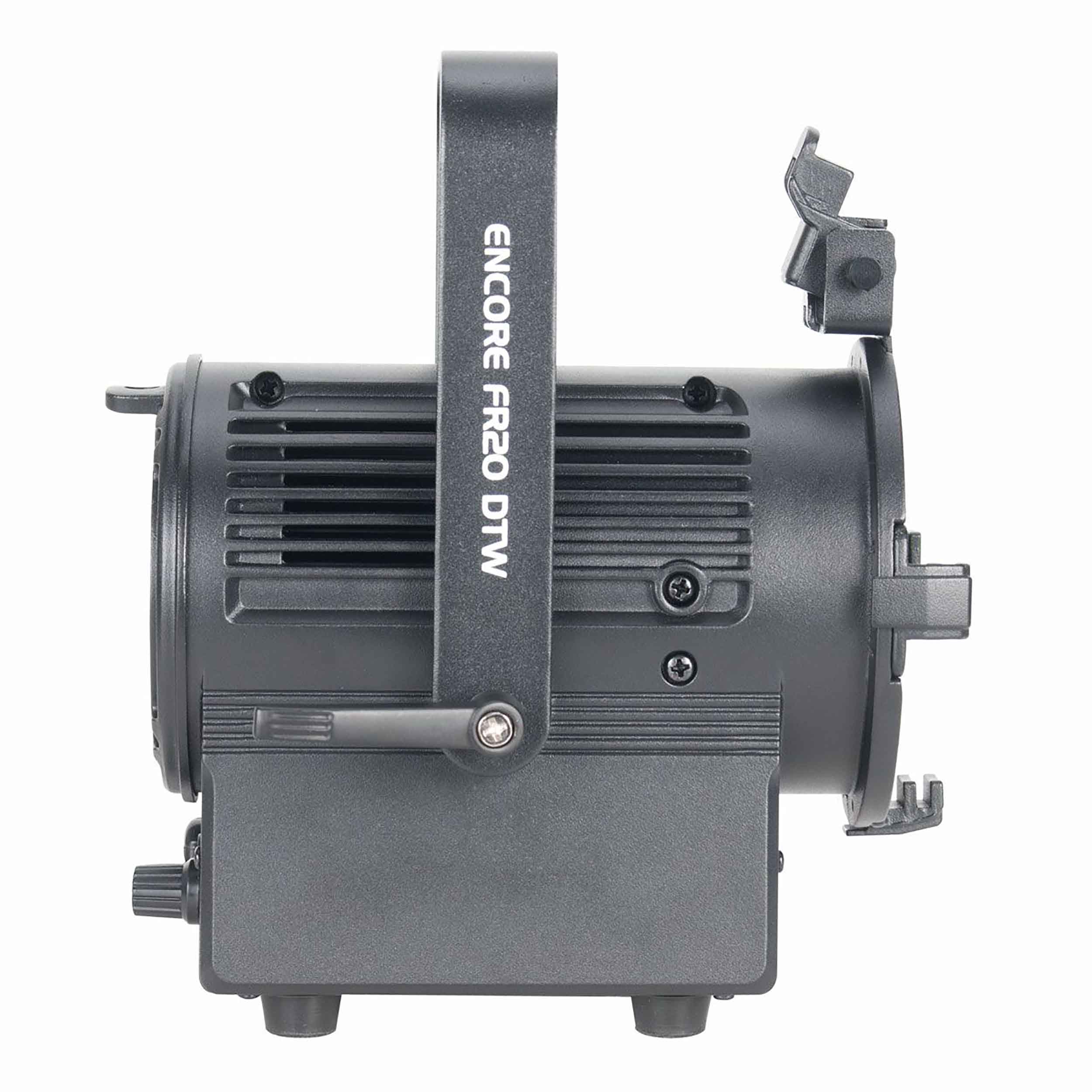

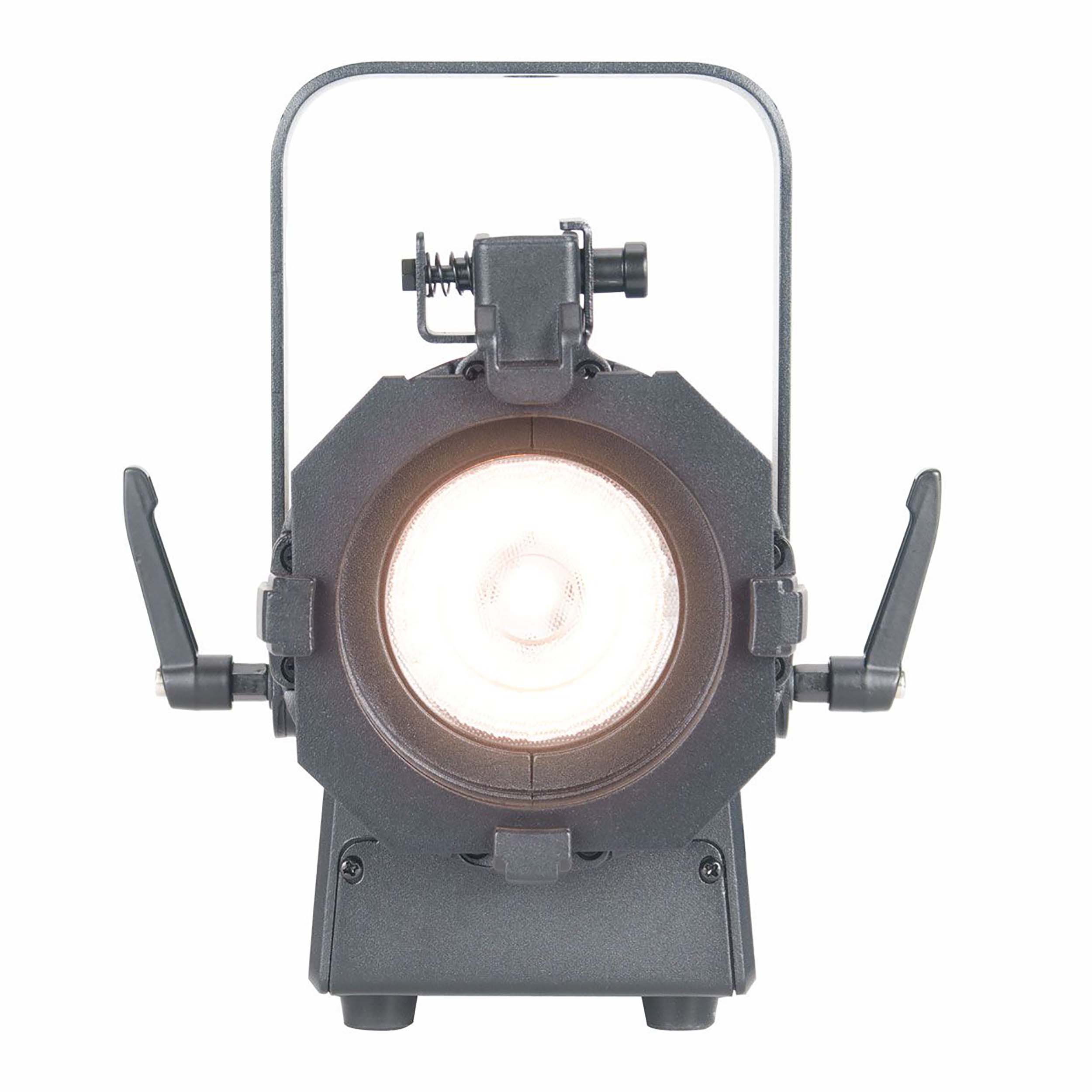

ADJ Encore FR20 DTW Compact 2" Fresnel Lens Fixture w/ 17-Watt Warm White LED Engine

The ADJ Encore FR20 DTW, Compact 2-Inch Fresnel Lens Fixture with 17-Watt Warm White LED Engine is a part of the Encore stage lighting series. It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable - compatible with ADJ dimmer packs or Lutron and Leviton wall dimmers.

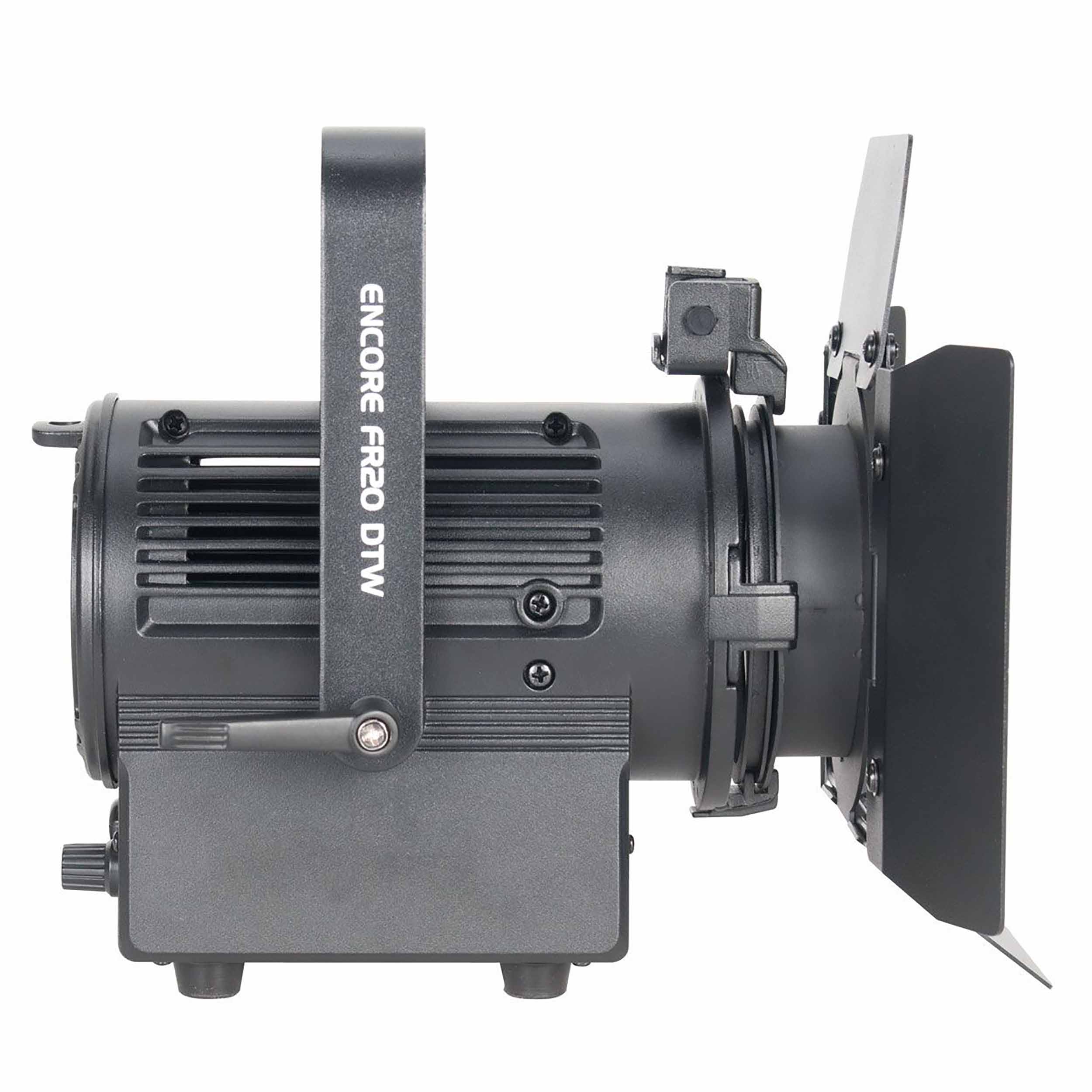

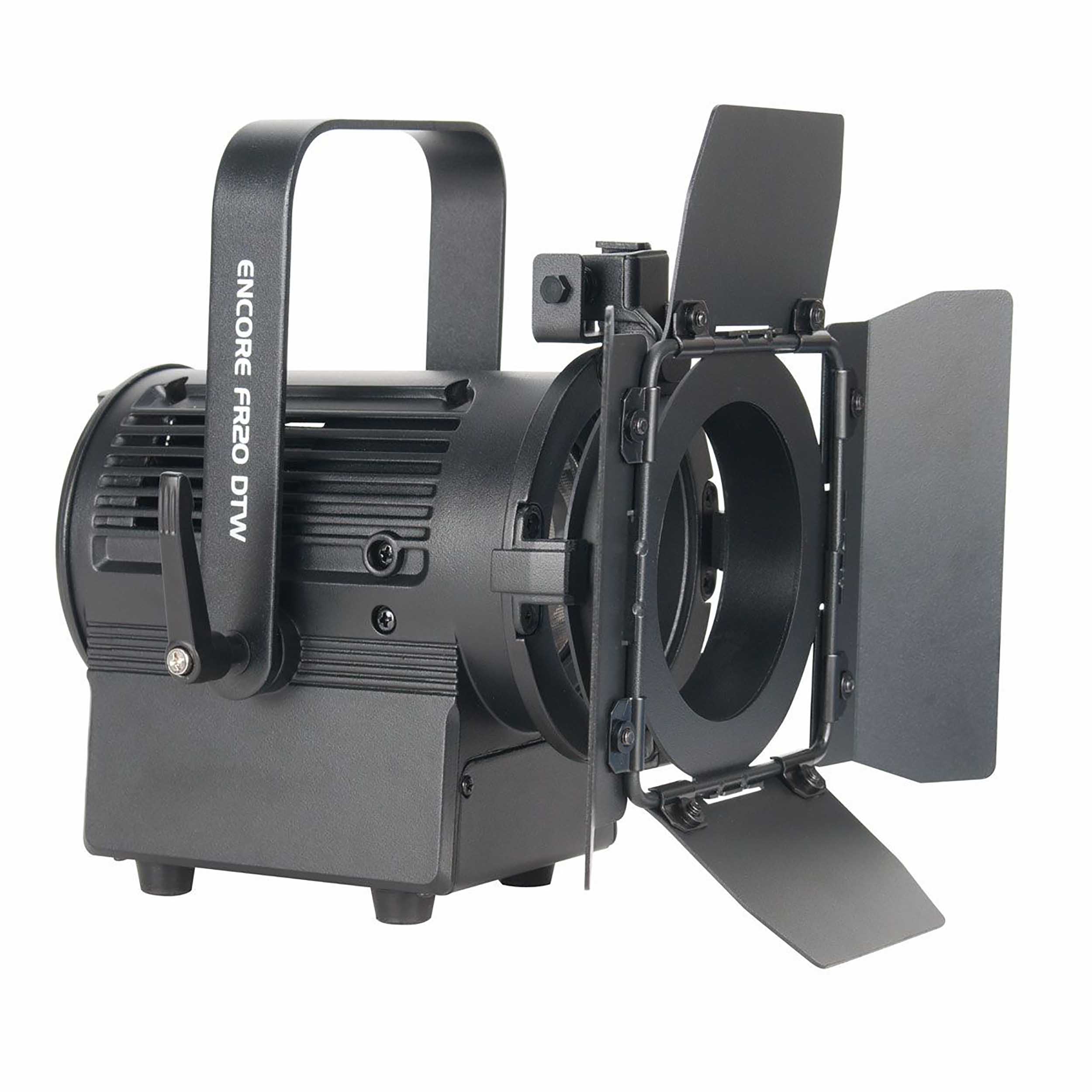

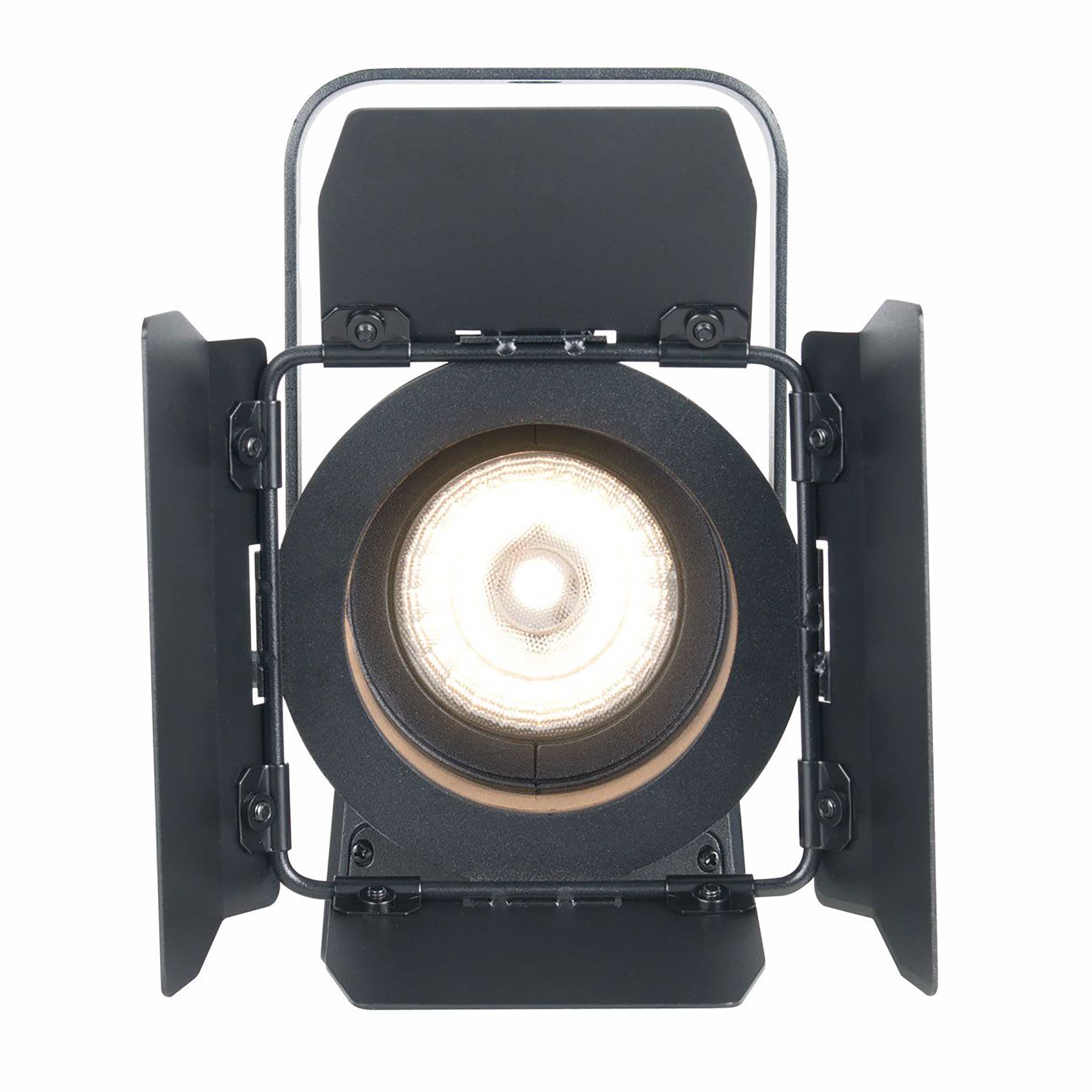

The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light, a frost filter to change the beam angle from 19-degrees to 45-degrees, gel frame to add a color gel (sold separately) and a safety cable.

Product Specifications:

17W warm white LED engine

2-inch Fresnel lens

Dim to warm feature

Trial dimmable - compatible with Lutron & Leviton wall dimmers or ADJ Dimmer Packs (DP-415R, DP-DMX20L, Uni Pak II)

Includes hanging bracket

CRI: 92

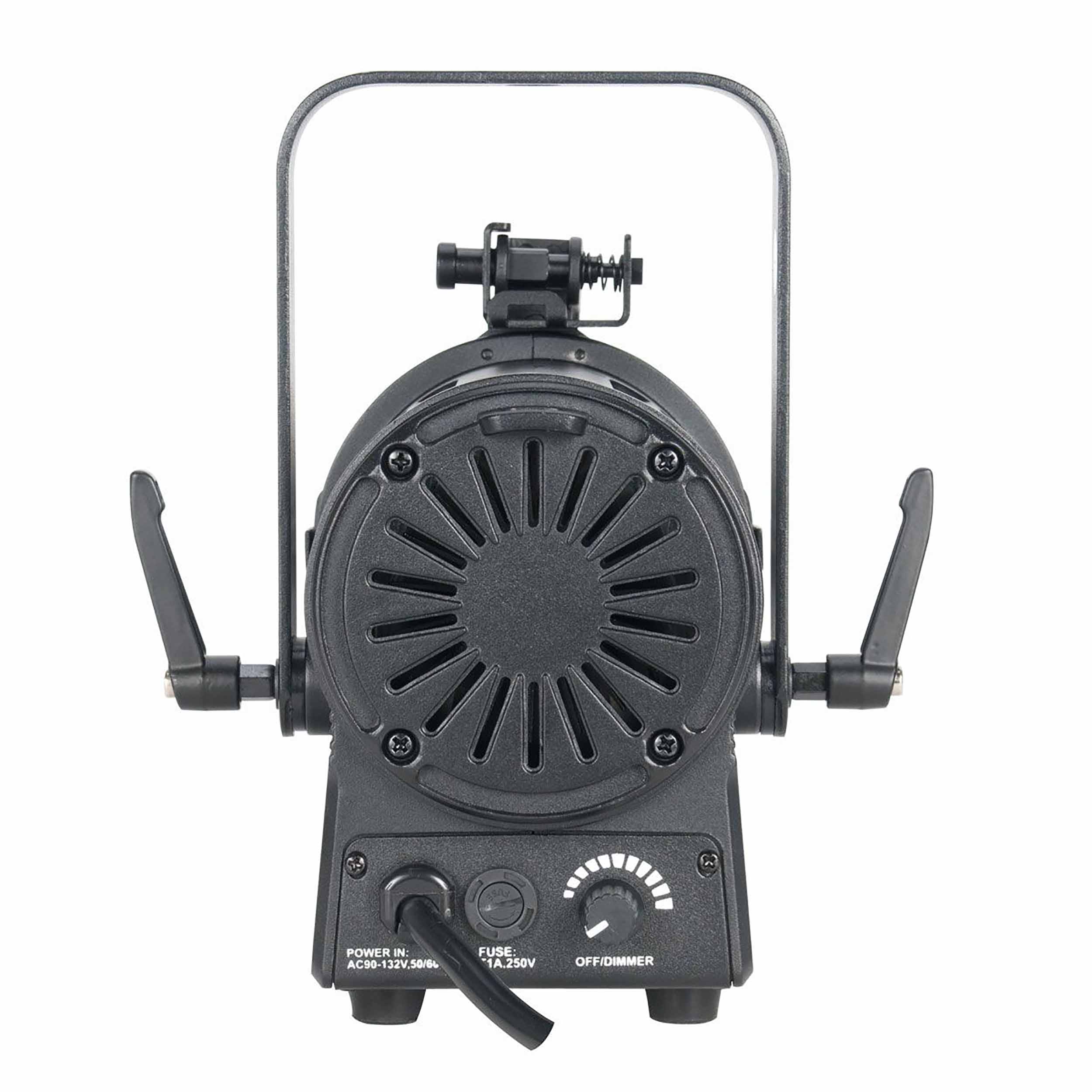

Dimming potentiometer: 0-100%

Color Temperature: 3000K

Beam angle: 19-degrees

LUX @ 3M: 600

LED Life: 50,000 hours

Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions (LxWxH): 10.25” x 5.25” x 8.25” / 259x133x210mm

Weight: 5 lbs. / 2 kg.

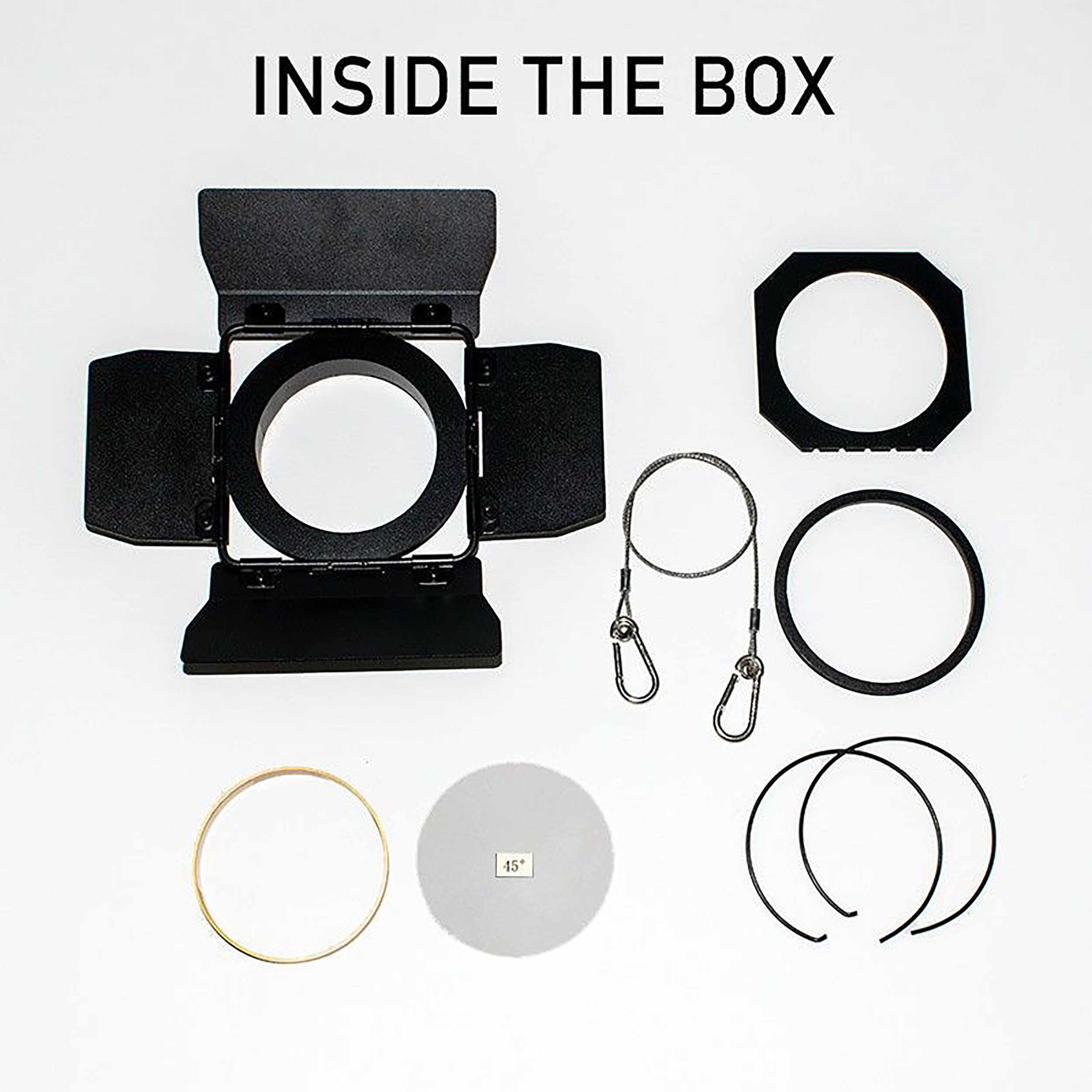

Inside The Box:

Removable Barn Doors

Safely Cable

Gel Frame (to add a color gel - sold separately)

Frost Filter to change beam angle to 45-degrees

2 Retainer Rings

Gold Snoot

Metal Spacer
