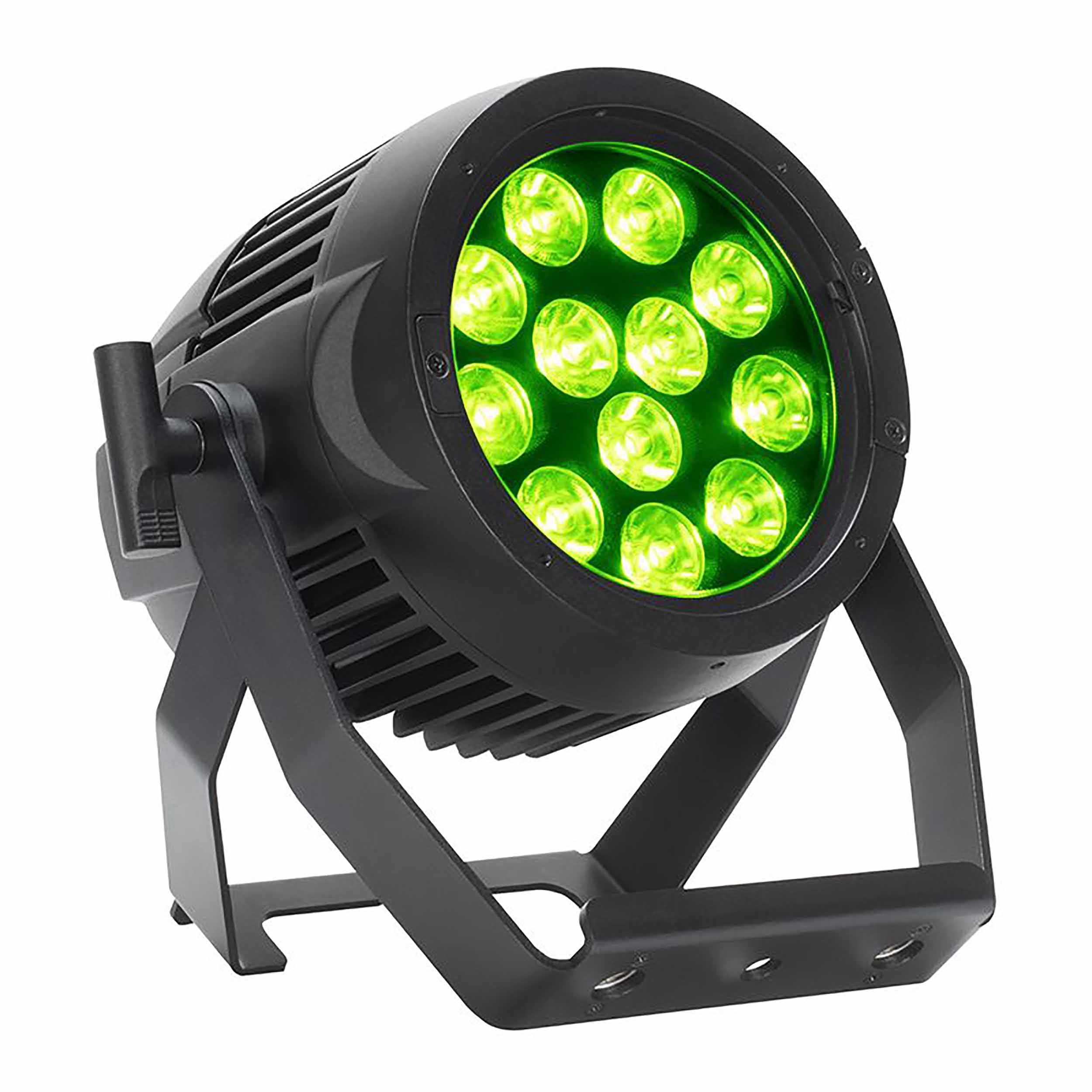

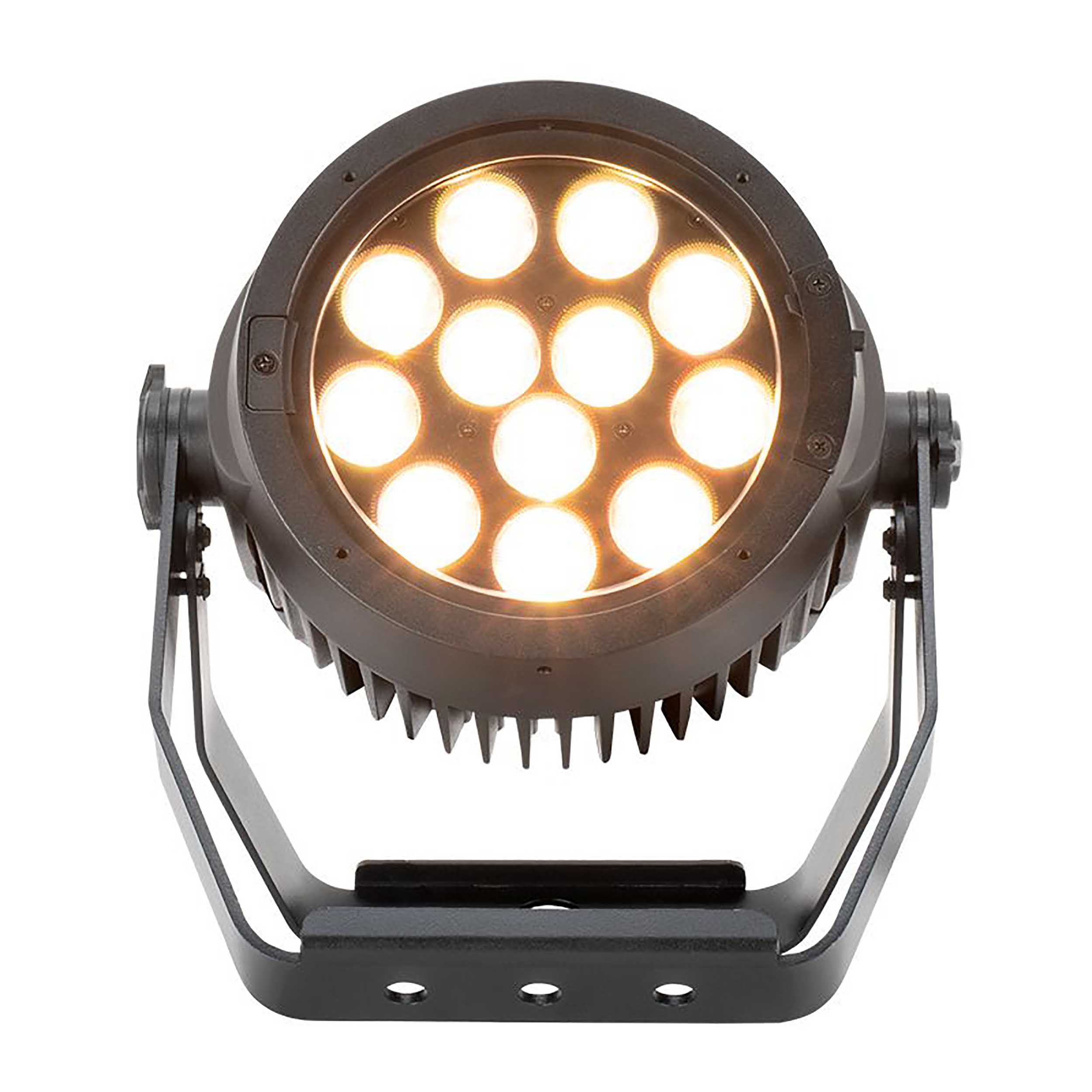

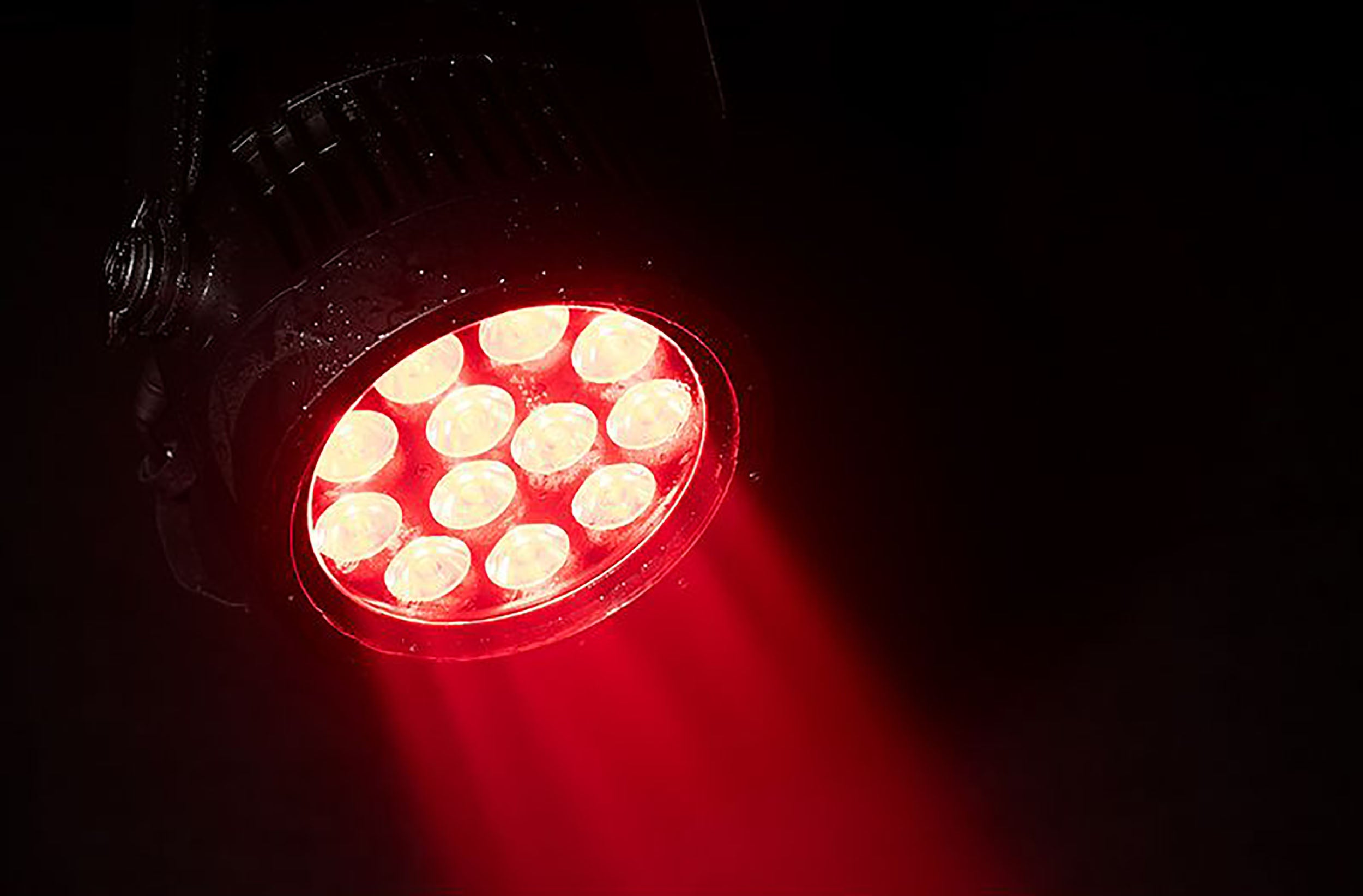

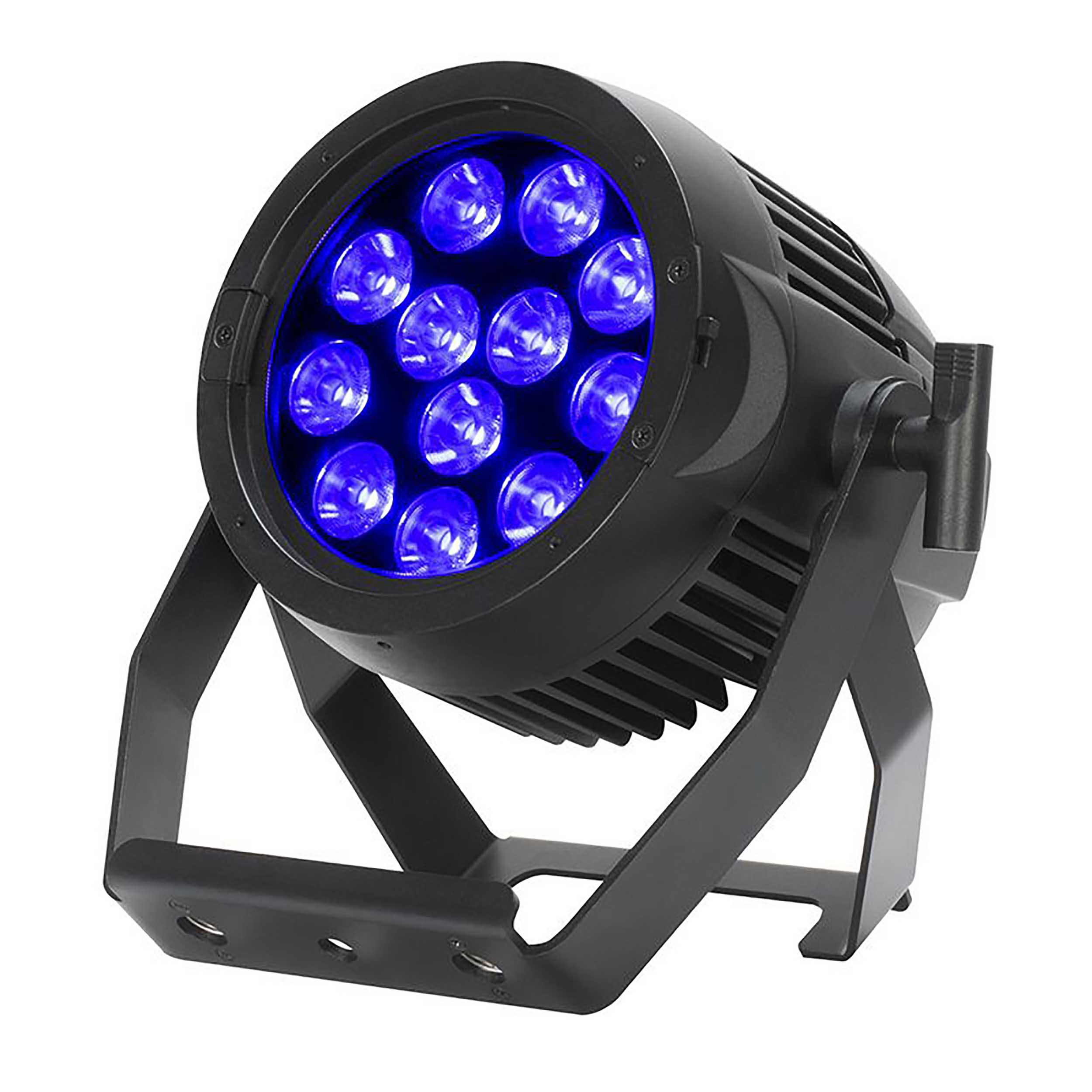

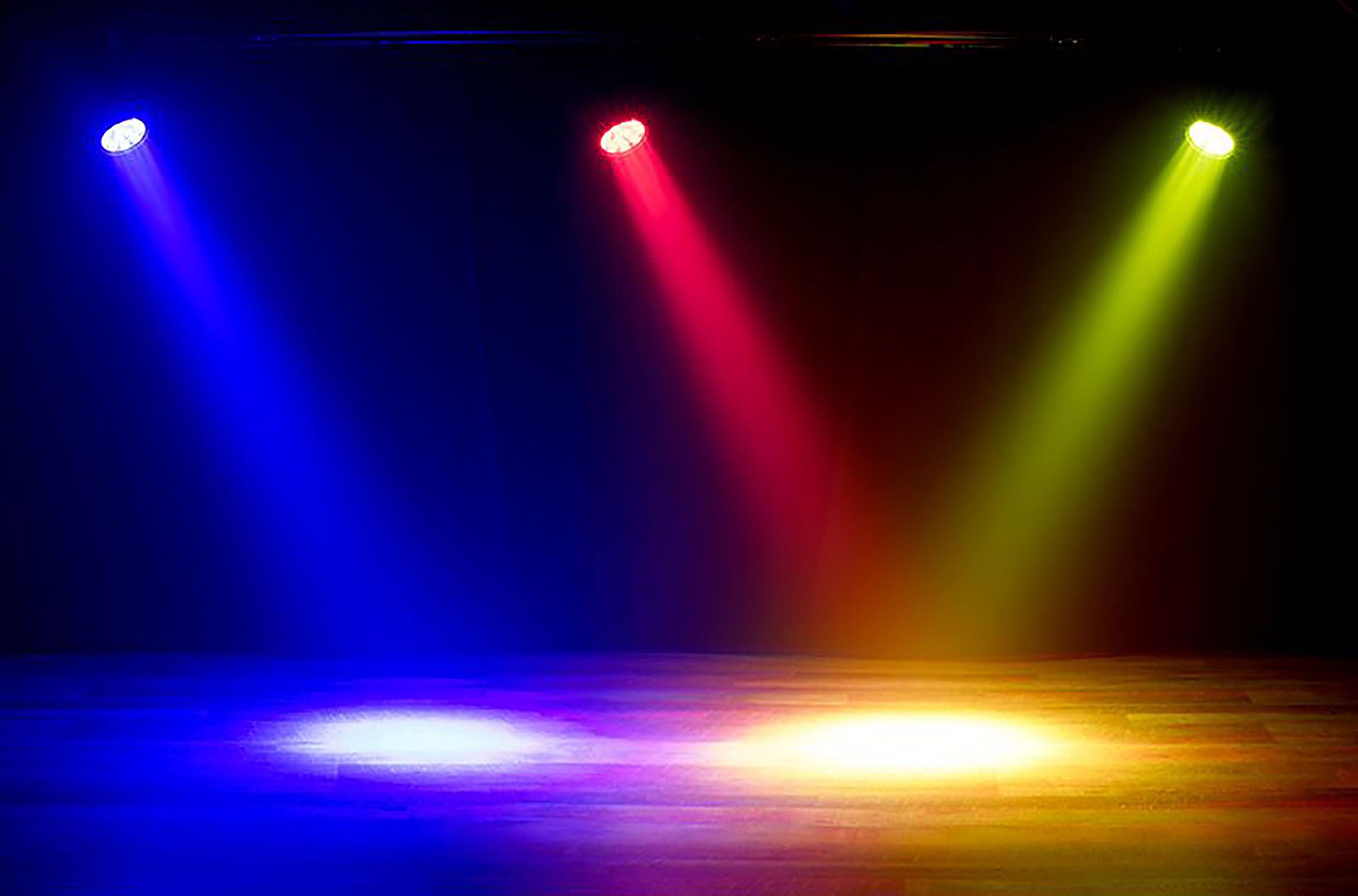

The ADJ Encore LP12IP, Heavy Duty Par with Twelve (12) 20W Quad (RGBL) LEDs and 10° Beam Angle have 10° beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.
The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K.
The Encore LP12IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

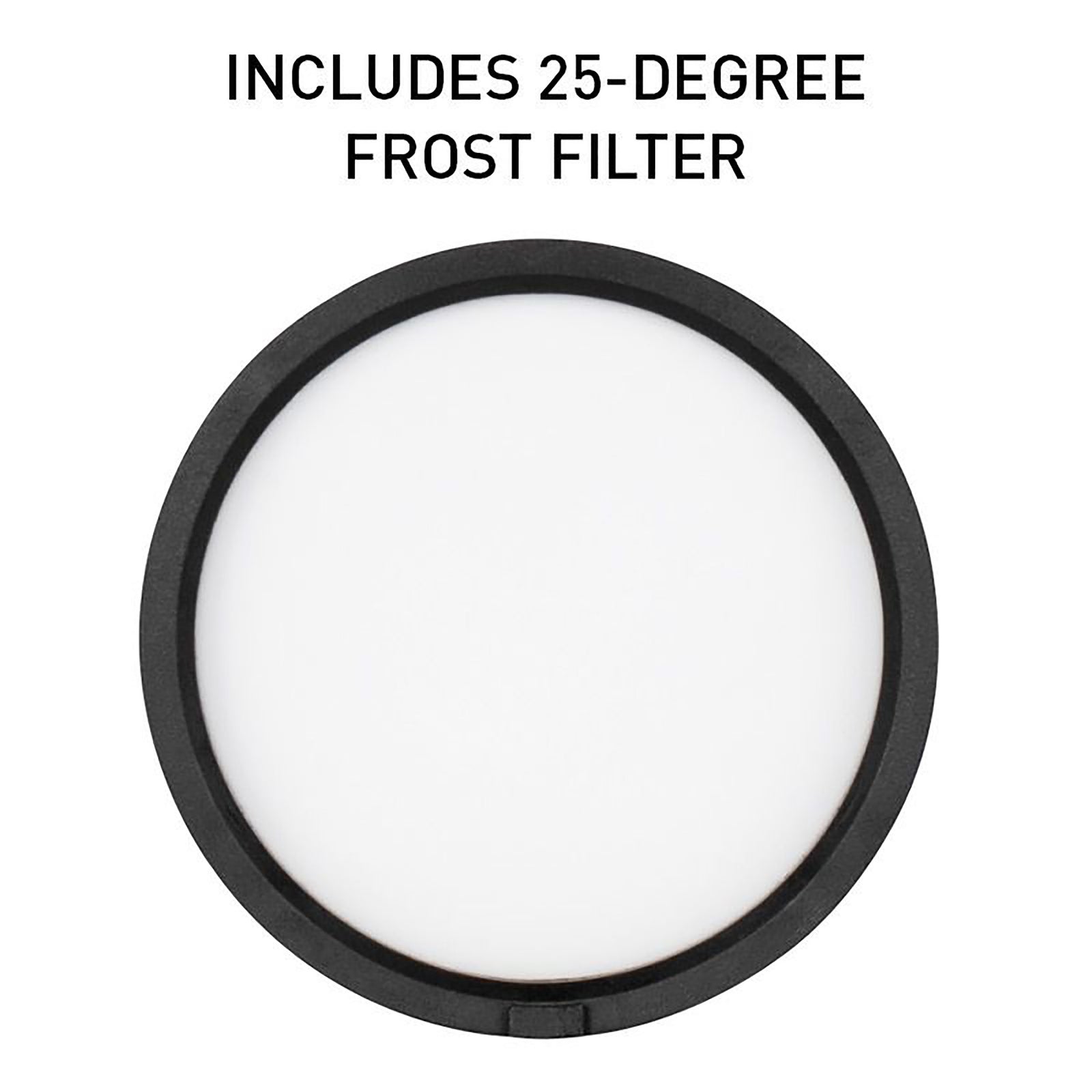

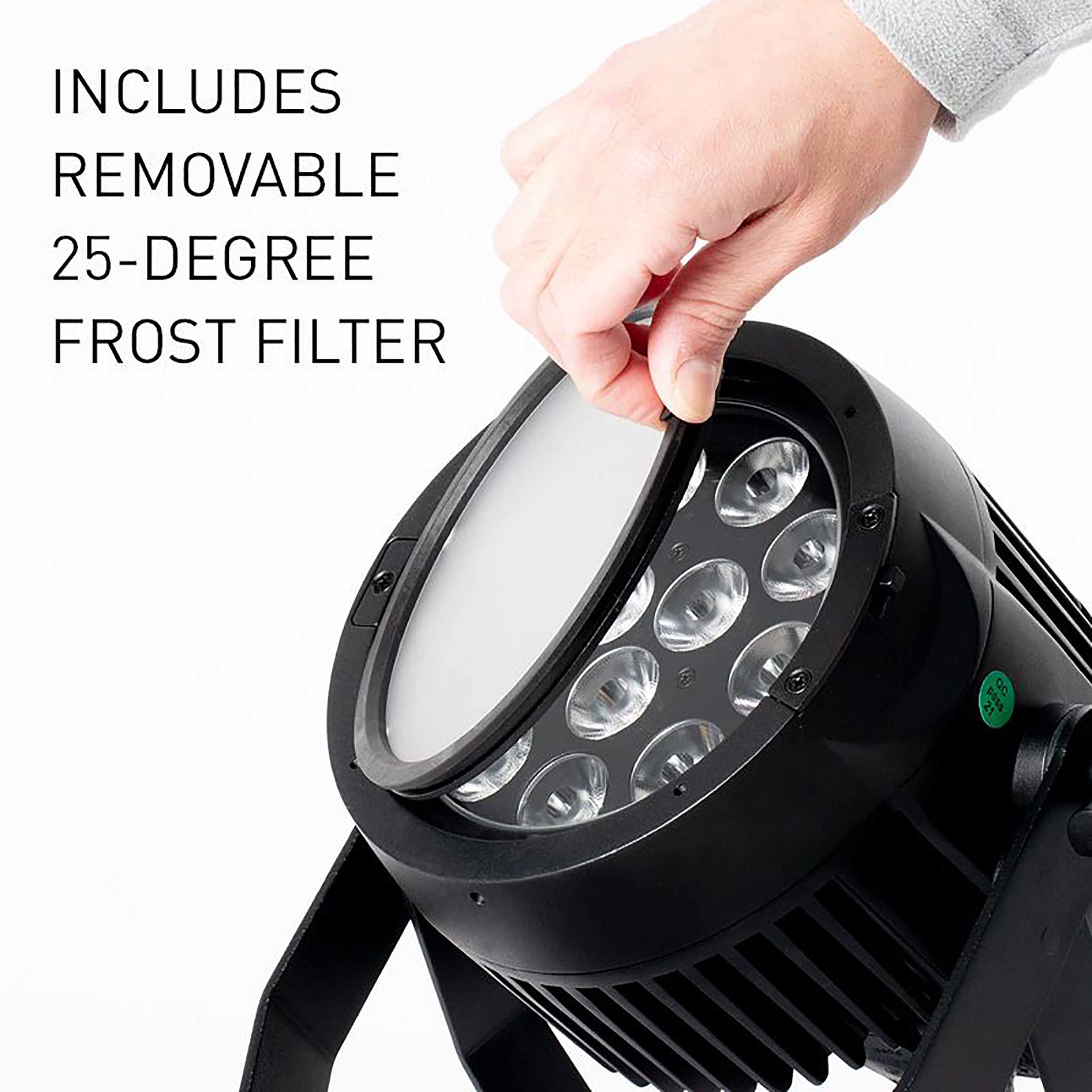

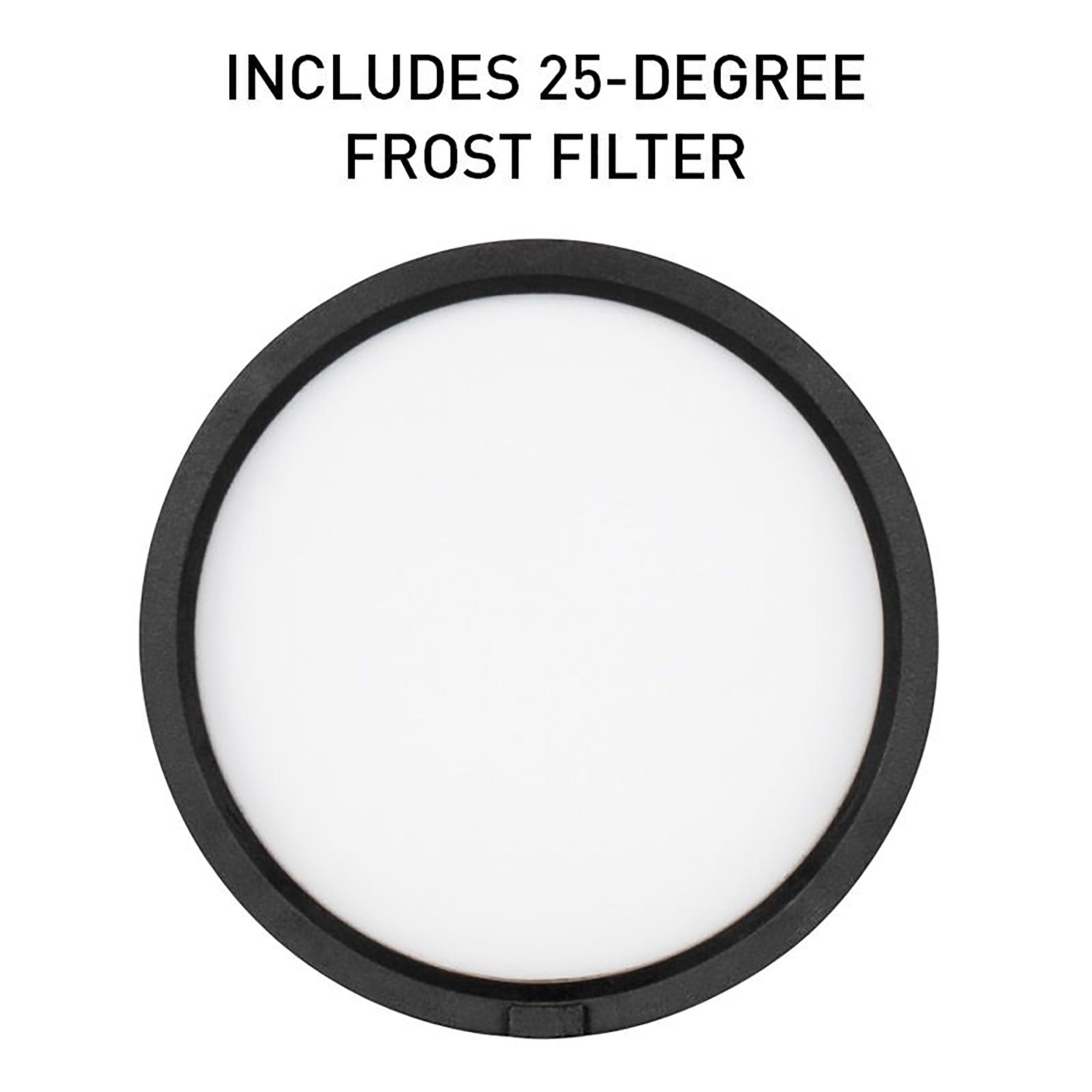

The Encore LP12IP includes a removable 25-degree frost filter. There are several additional frost filter options (sold separately) that customize the beam angle. All filter snap into the front of the fixture.
Product Specifications:
Source:
Light Source: 12 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
Photometric Data:
Beam angle: 10° (Includes removable 25° frost filter)
CRI: 84.4
CRI R9: 67.9
Lumens: 4700
Effects:
Linear Color Temperature Control (2700K to 7000K)

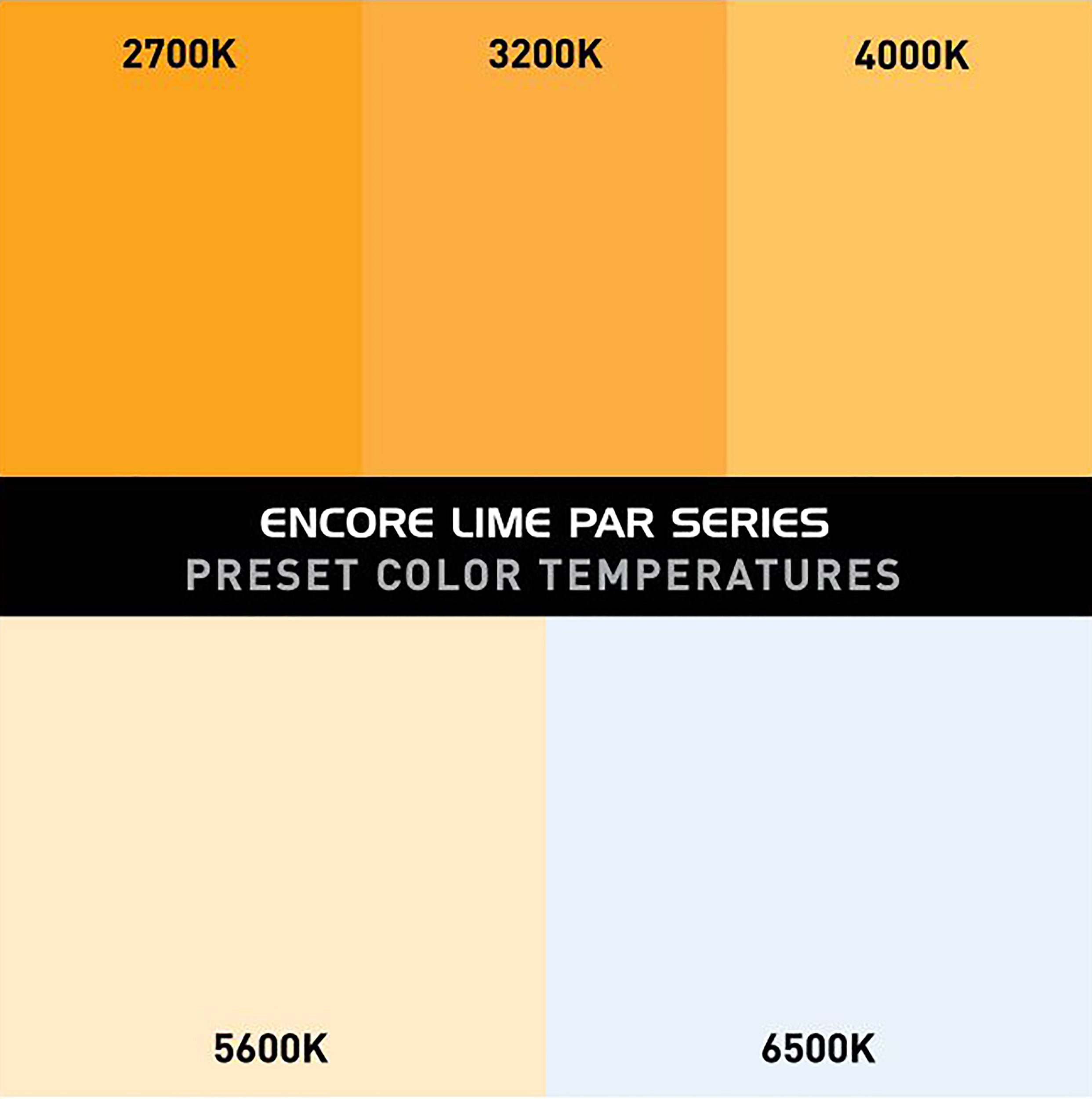

Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
Control / Connections:

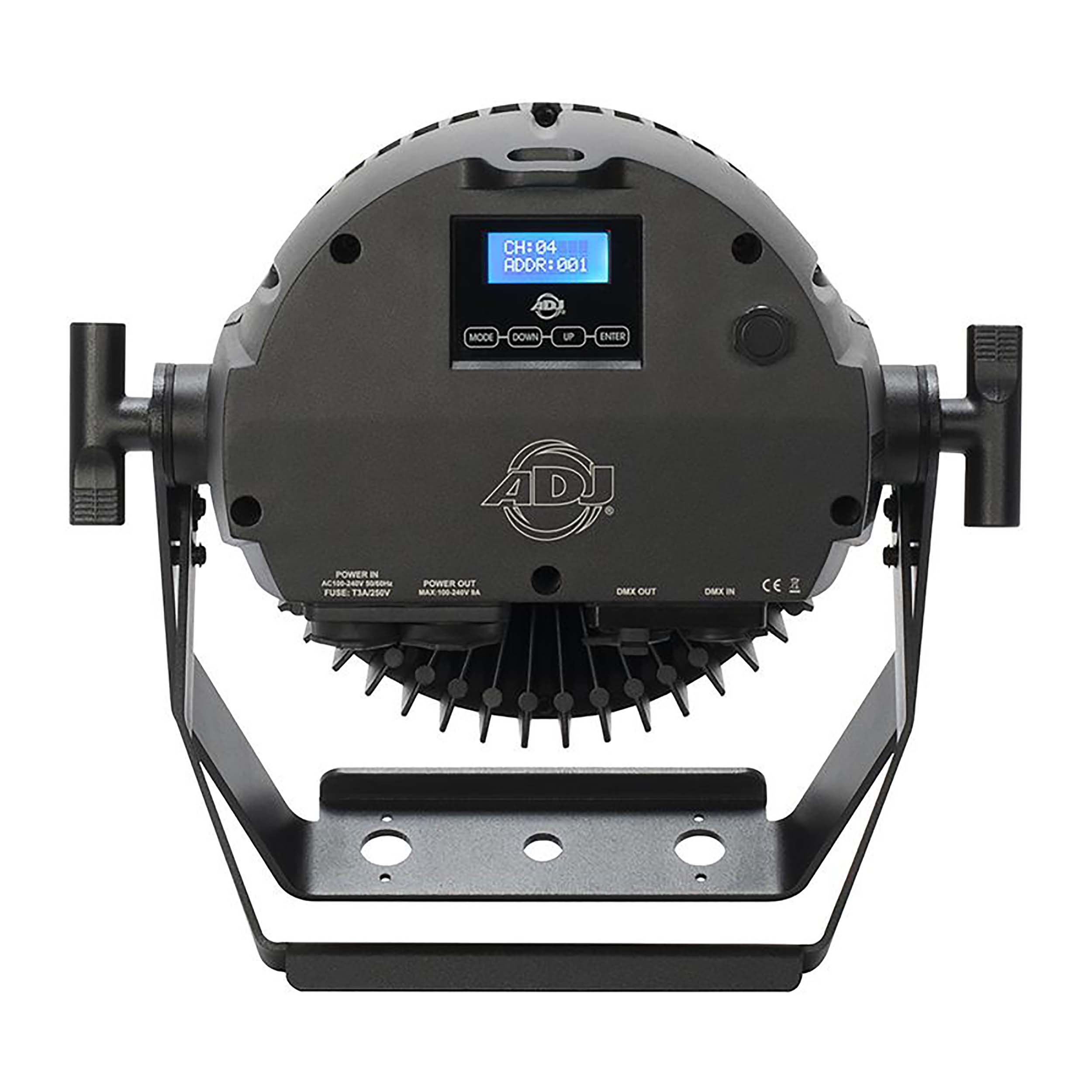

4-button, DMX digital display on rear panel
Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
6 DMX Modes: 4, 7, 8, 10, 13 & 16-channel
Quiet fan mode
Construction:
IP65 Rated: Ingress Protection against liquid, snow, dust and sand
All metal construction

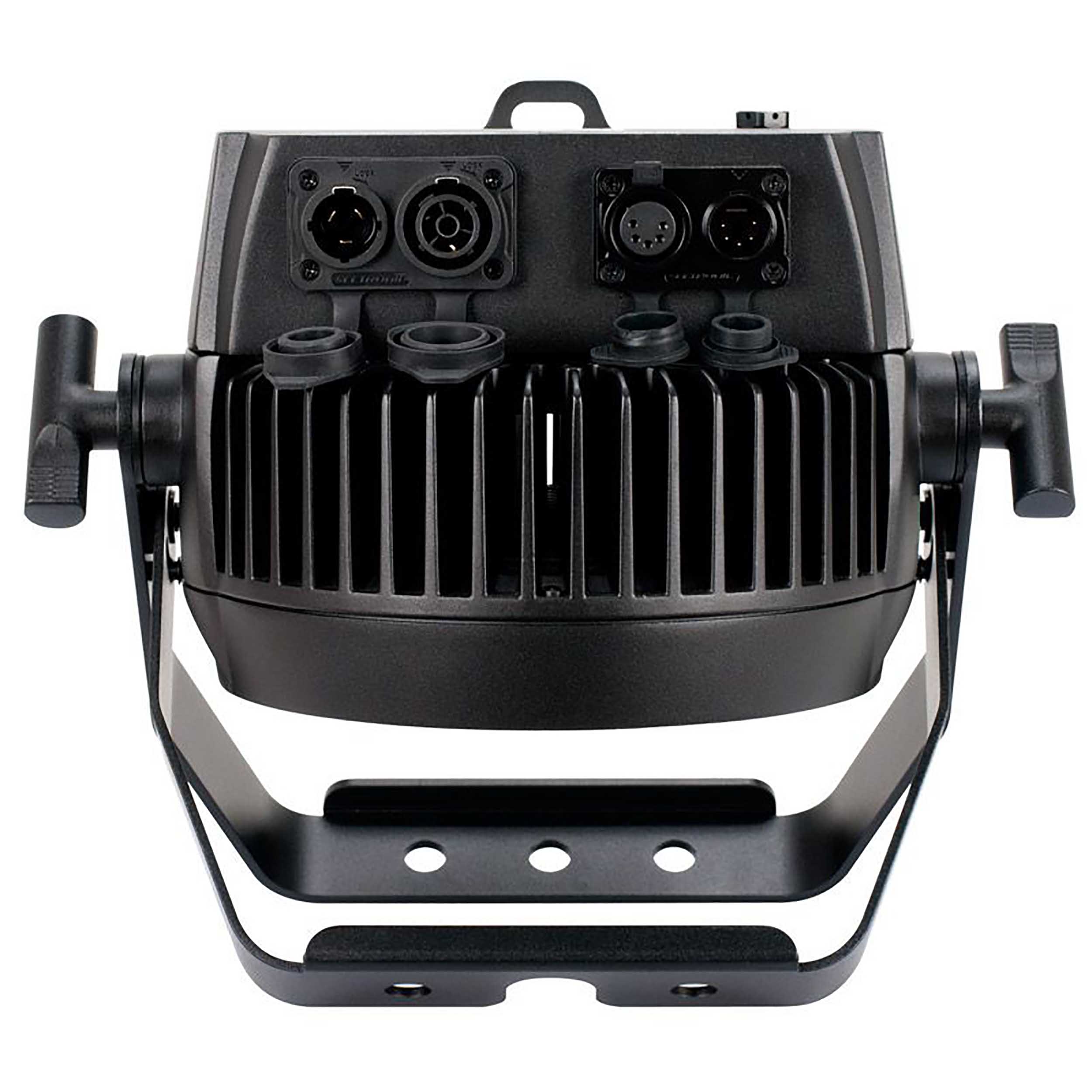

IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
Locking, outdoor IN/Out Power connectors
Data linkable via 5-pin XLR DMX connections
Scissor Yoke & safety eye
Electrical / Thermal:
Multi-voltage operation: AC 100-240V, 47/63Hz
Daisy chain: 6 @ 120V, 12 @ 220V
Max power: 192W
Dimensions (LxWxH): 7.9” x 11.8” x 11.1” / 199.5x300.0x281.2mm
Weight: 12.8 lbs. / 5.80 kg.
Approvals / Ratings:
cETLus (Control #4010765)
IP65
Included Accessories:
25° Frost Filter
Power Cord
Optional Accessories:
ELP12L100: 100° frost filter for the Encore LP12IP
ELP12L60: 60° frost filter for the Encore LP12IP
ELP12L30X60: 30x60° frost filter for the Encore LP12IP
ELP12L1X40: 1x40° frost filter for the Encore LP12IP
ELP12L20: 20° frost filter for the Encore LP12IP
Z-8050000053: 107mm Omega Bracket
ELP12IPBDA: Barn Door / Gel Frame Kit
