Description

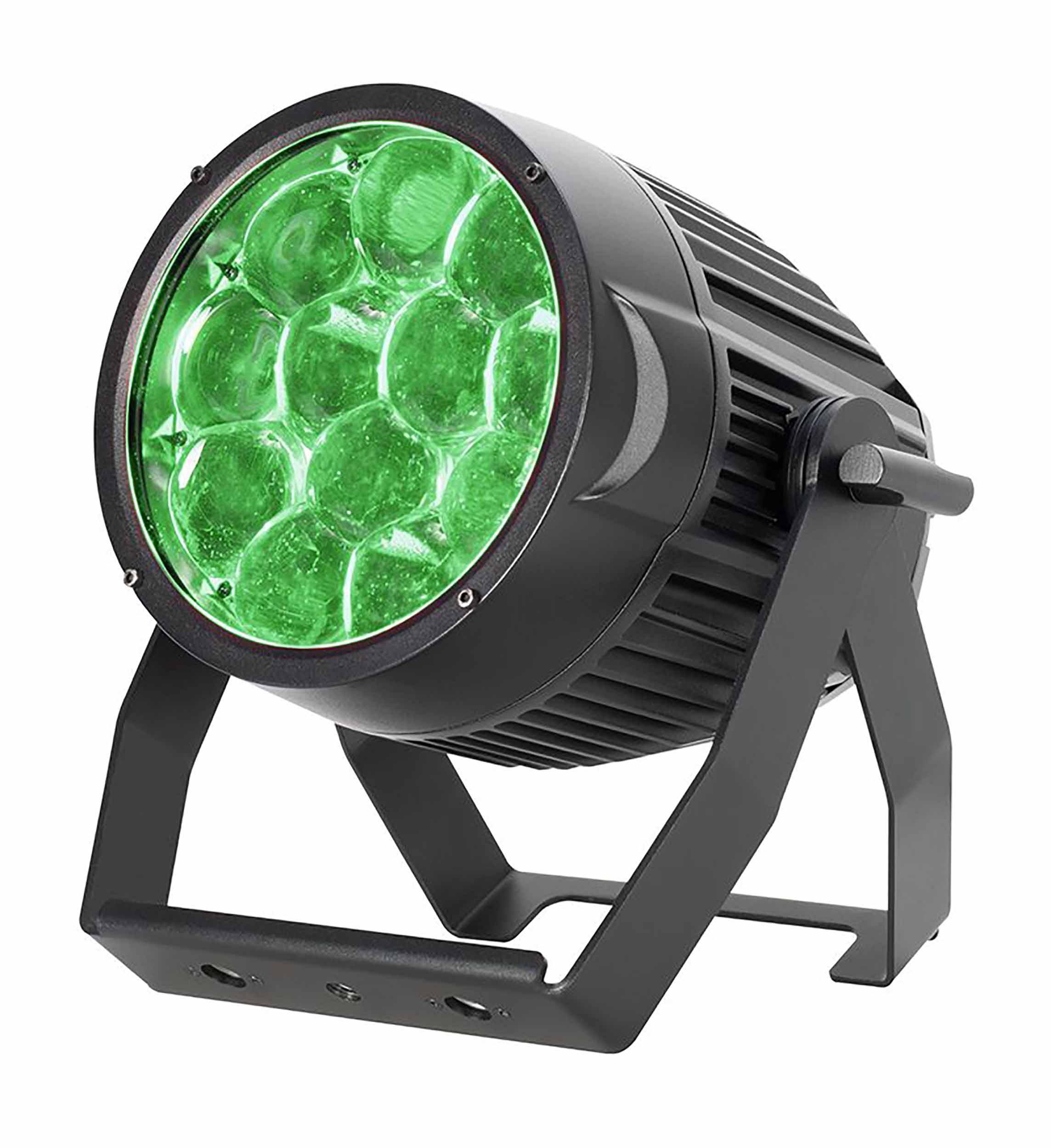

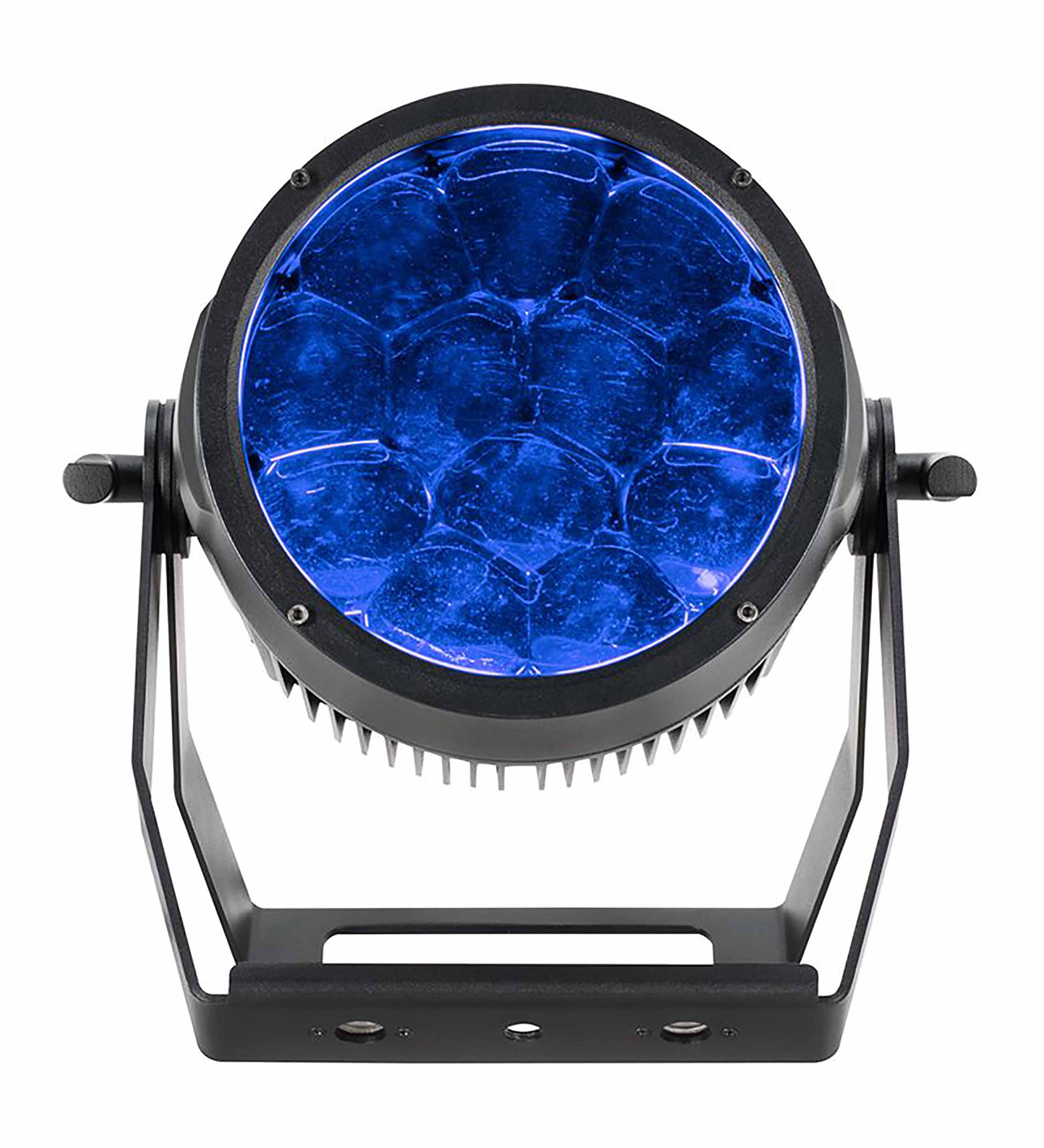

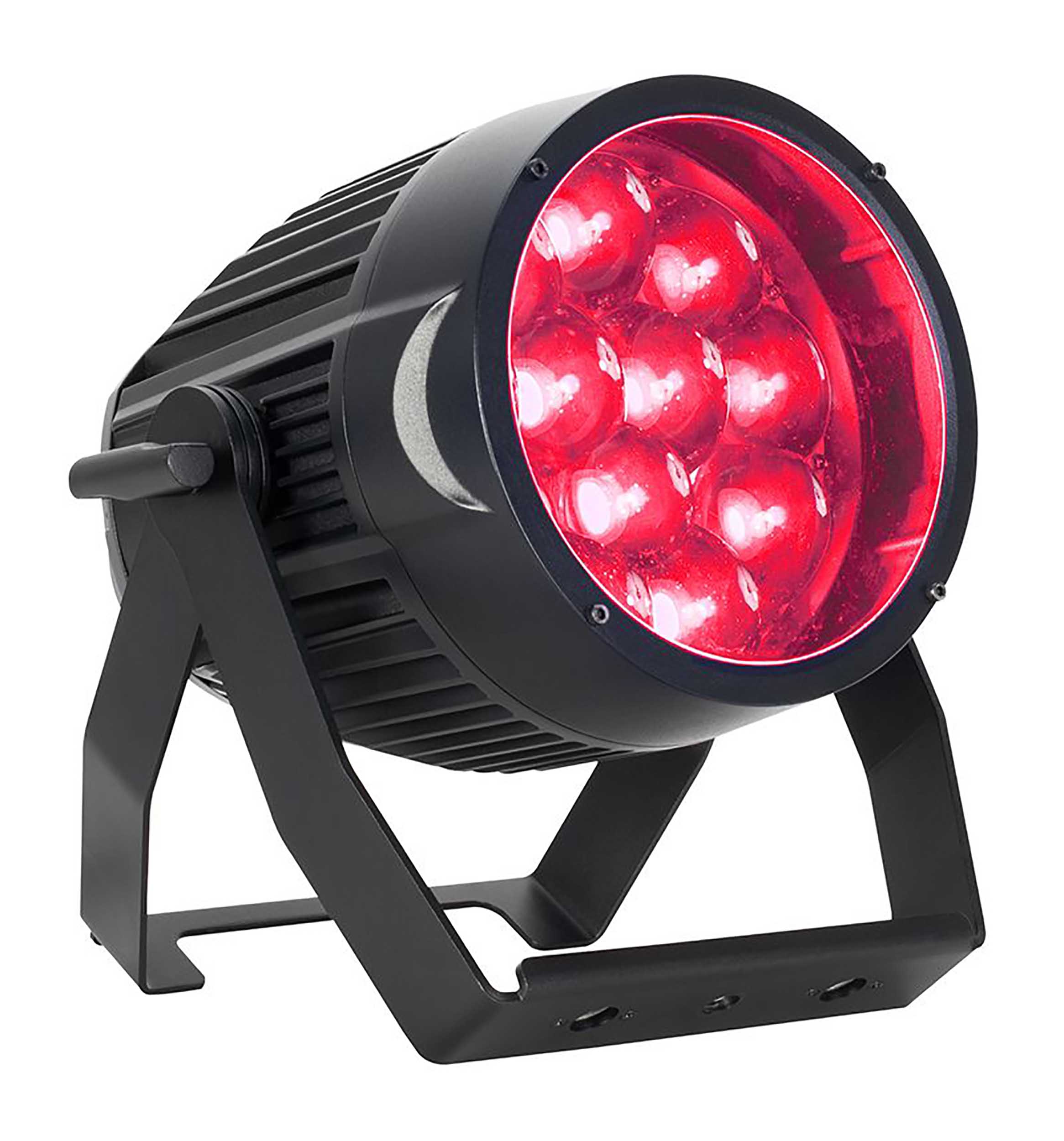

The ADJ Encore LP12Z IP, IP65-Rated Wash Fixture with Motorized Zoom and Wireless DMX is a professional LED Par wash fixture for temporary outdoor and indoor events. This IP65-rated fixture comes equipped with 12 Quad RGBL (Red, Green, Blue, and Lime) LEDs, each with a power of 20 watts, offering a massive palette of colors to choose from, including 64 built-in color macros and tunable white control.
The Encore LP12Z IP has a motorized zoom feature with a beam angle of 5° to 30° and a field angle of 9° to 50°, giving you the ability to control the lighting coverage of your event. Additionally, the fixture has tunable white color control, allowing you to choose a color temperature from 2700K to 6500K. You can also select from five preset color temperatures for a quick and easy setup.
With wireless DMX onboard, you can control the Encore LP12Z IP from a distance of up to 2500 ft. (700M) line of sight. It also supports RDM (Remote Device Management) and is compatible with a wired digital communication network. The fixture offers 6 selectable dimming modes and 4 selectable dim curves, as well as adjustable refresh rates and flicker-free operation, ensuring a smooth and seamless lighting experience.

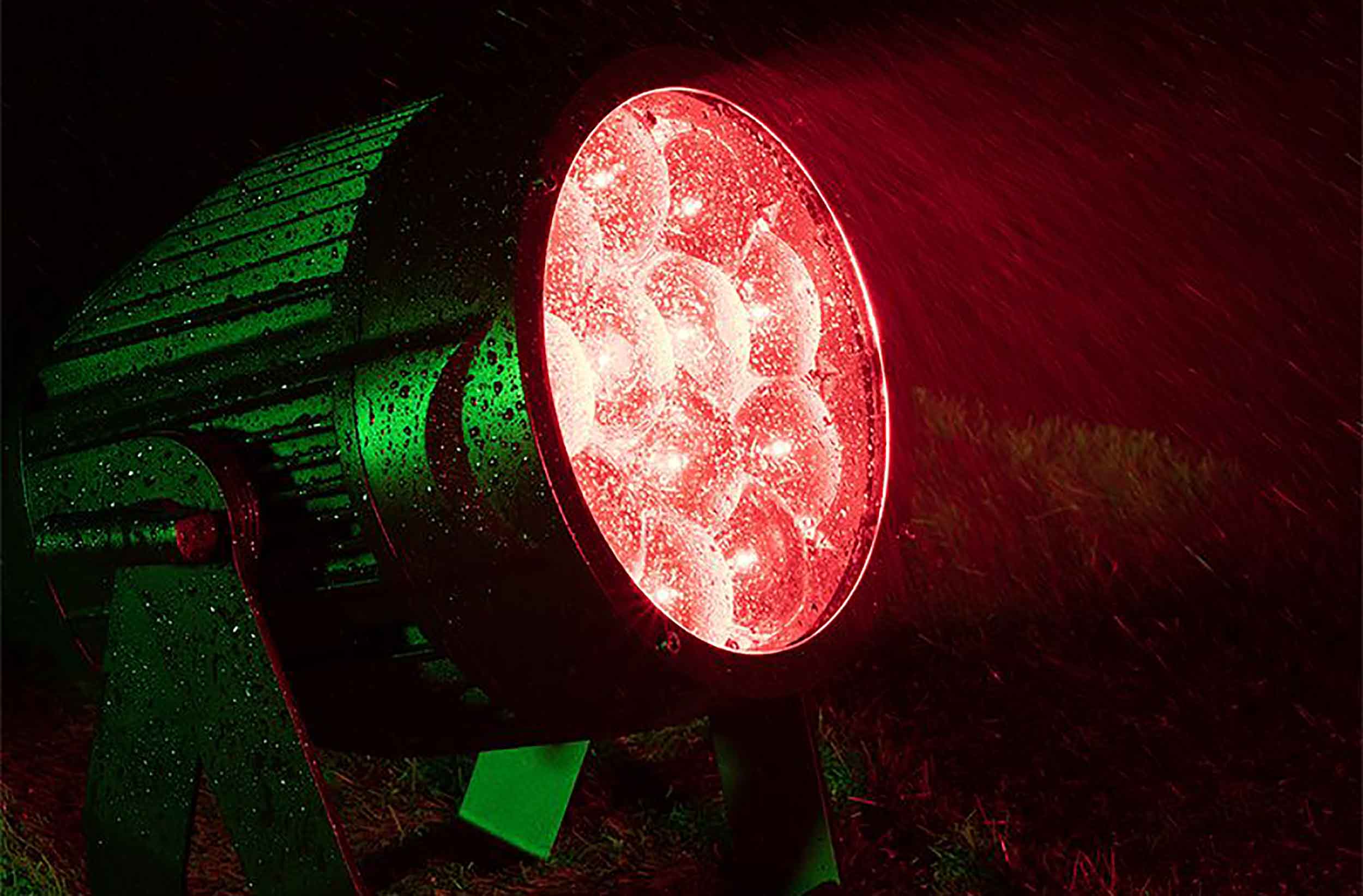

Constructed with all-metal and IP65-rated rubber covers, the Encore LP12Z IP is built to withstand the toughest outdoor conditions. The fixture also features IP65-rated 5-pin sockets and locking, outdoor in/out power connectors for added security. The IP65-rating provides Ingress Protection against liquid, snow, dust and sand. The scissor yoke and safety eye provide easy and safe mounting options.
The Encore LP12Z IP has a dimension of 8.75” x 12.45” x 14.45” (222x316x367mm) and weighs only 16.6 lbs. (7.5 kg) making it a compact and lighter weight fixtures compared to other IP65-Rated zoom pars in its class.
Overall, the ADJ Encore LP12Z IP is a very versatile wash fixture for any event, with its motorized zoom, wireless DMX control, and rugged construction, making it the ideal choice for outdoor festivals, concerts, indoor stages and other performances.
Product Specifications:
Source: Light Source: 12 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
Photometric Data:
Beam angle: 5° to 30°
Field angle: 9° to 50°
CRI: 84.4
CRI R9: 77
Lumens: 4400
Effects:
Motorized Zoom (5° to 30° Beam Angle, 9° to 50° Field Angle)

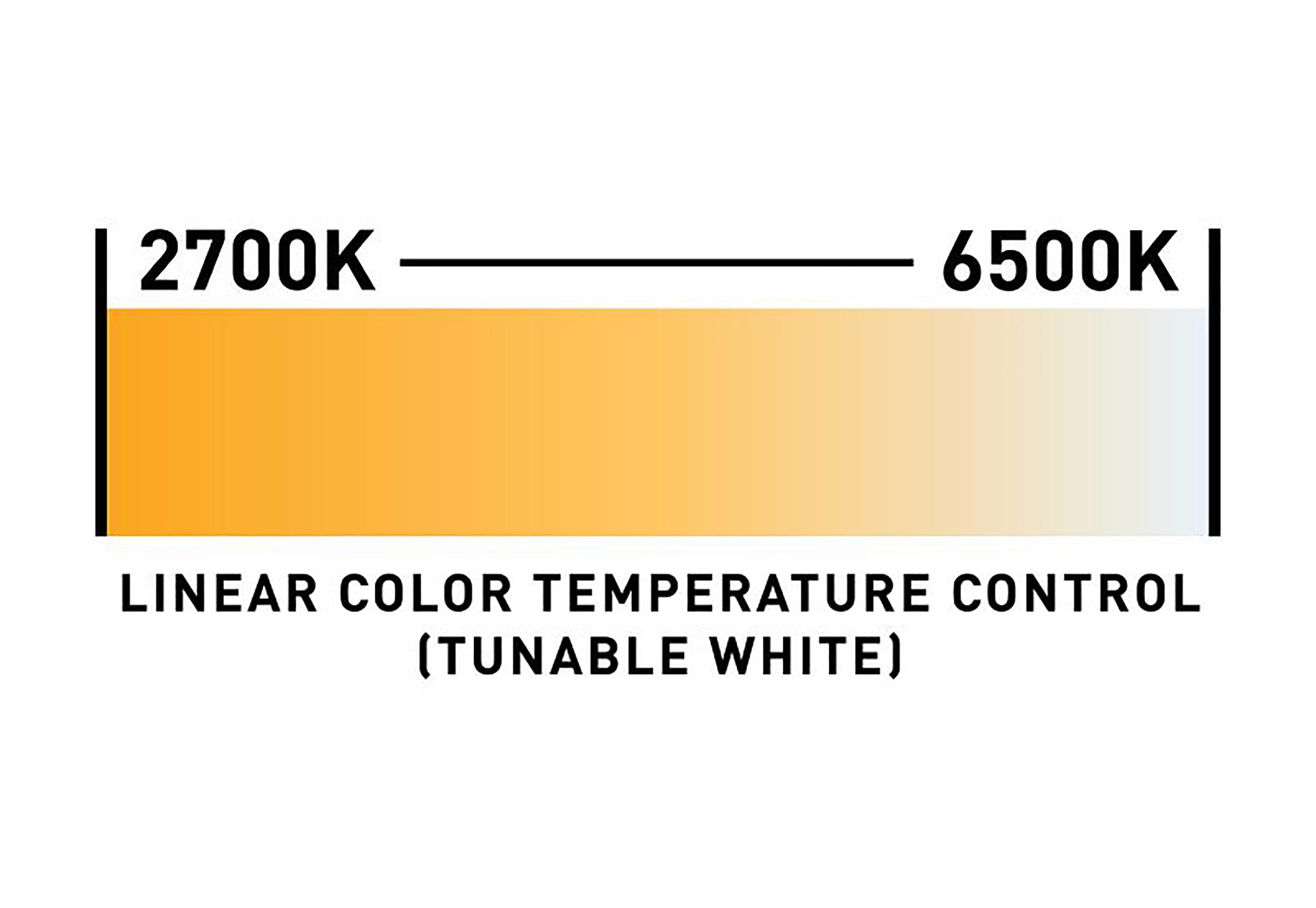

Linear Color Temperature Control (2700K to 6500K)

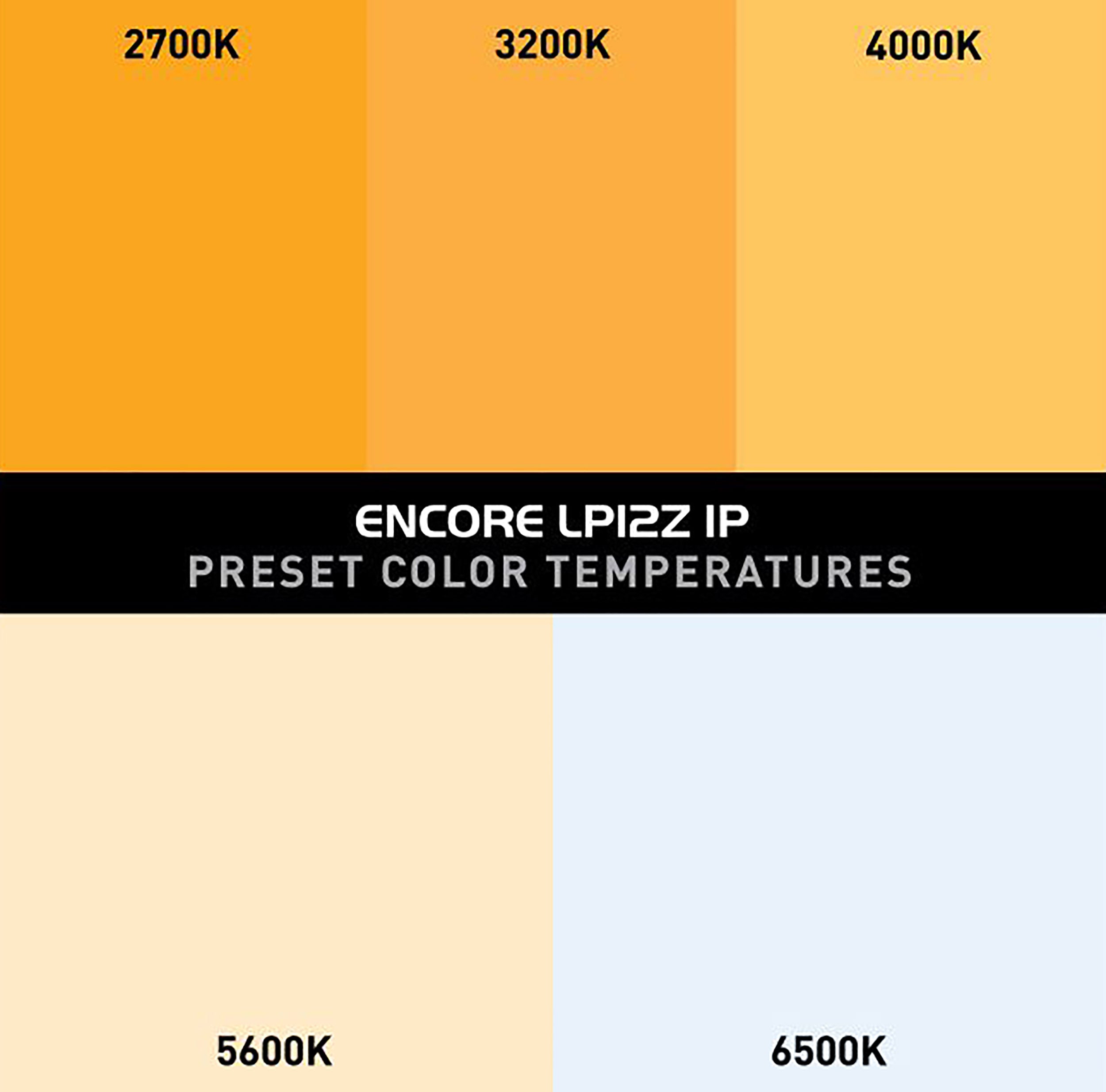

Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
Control / Connections:
4-button, DMX digital display on rear panel
Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
Wireless DMX on-board
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
6 DMX Modes: 6, 9, 10, 12, 15 & 18-channel
Quiet fan mode
Construction:
IP65 Rated: Ingress Protection against liquid, snow, dust and sand
All aluminum construction
Anti-corrosion coating: C3

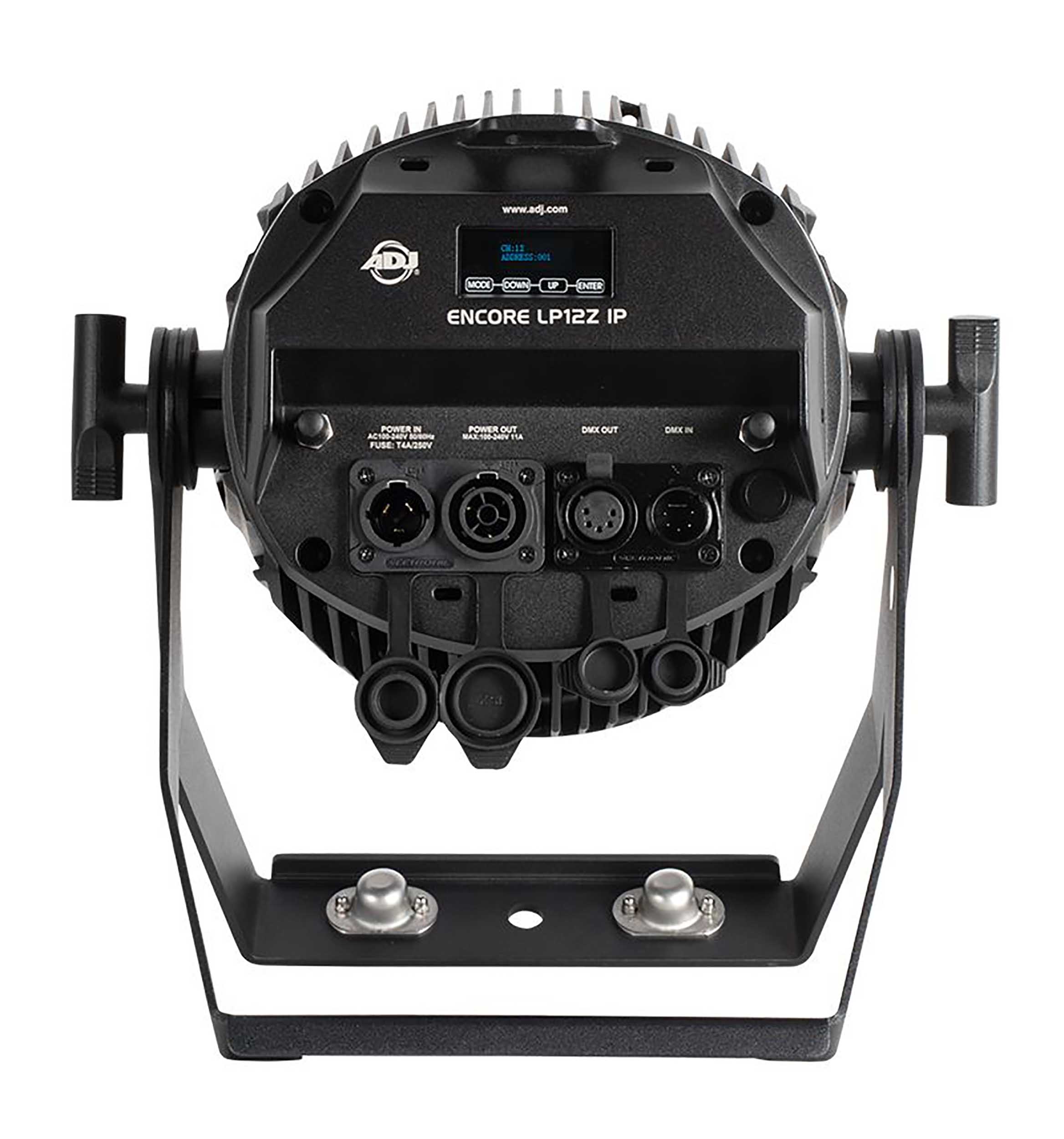

IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
Locking, outdoor In/Out Power connectors
Data linkable via 5-pin XLR DMX connections

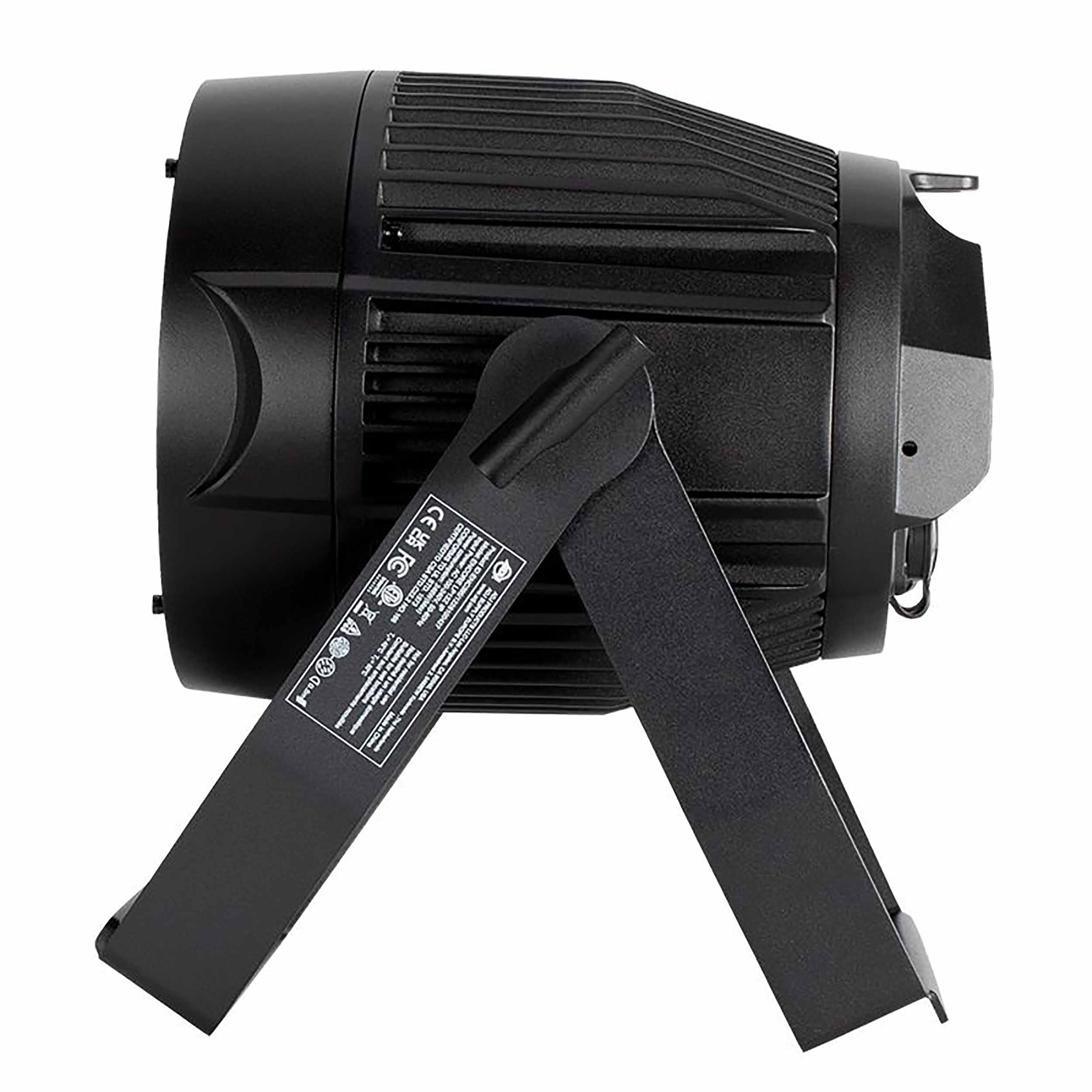

Scissor Yoke & safety eye
Electrical / Thermal:
Multi-voltage operation: AC 100-240V, 47/63Hz
Daisy chain: 6 @ 120V, 12 @ 220V
Max power: 227W
Ambient Operating Temperature Range: 14°F ~ 113°F (-10°C ~ 45°C)
Approvals / Ratings:
cETLus (Control # 4010765)
CE
FCC
UKCA
IP65
Included Accessories: Power Cord
Optional Accessories:
107mm Omega Bracket: Z-8050000053
Barn Door / Gel Frame Kit: ELP18IPBDA (ELP417)
Weight: 16.6 lbs. / 7.5 kg.
Dimensions (LxWxH): 14.6” x 12.4” x 13.6” (371x316x346mm)
