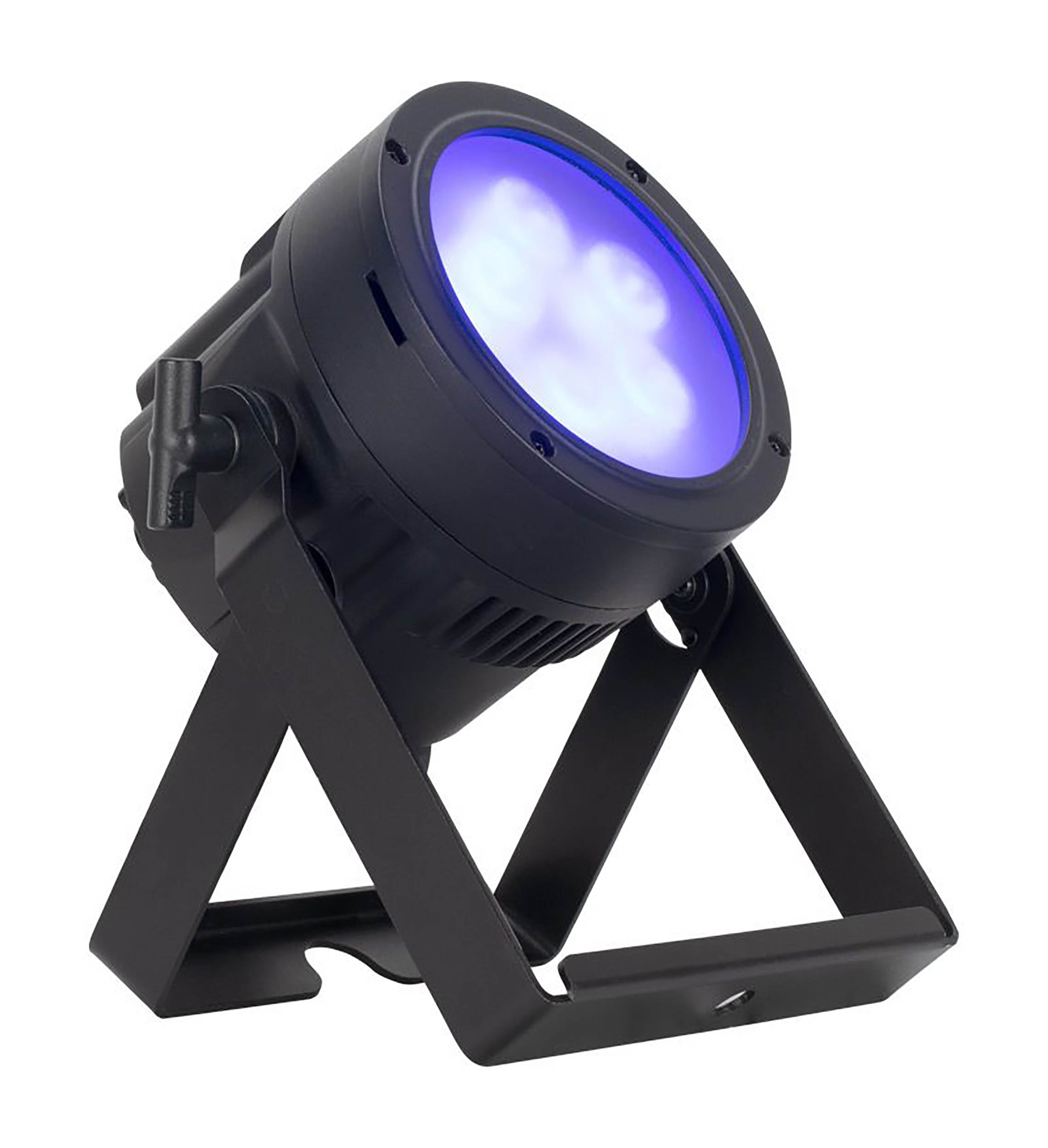

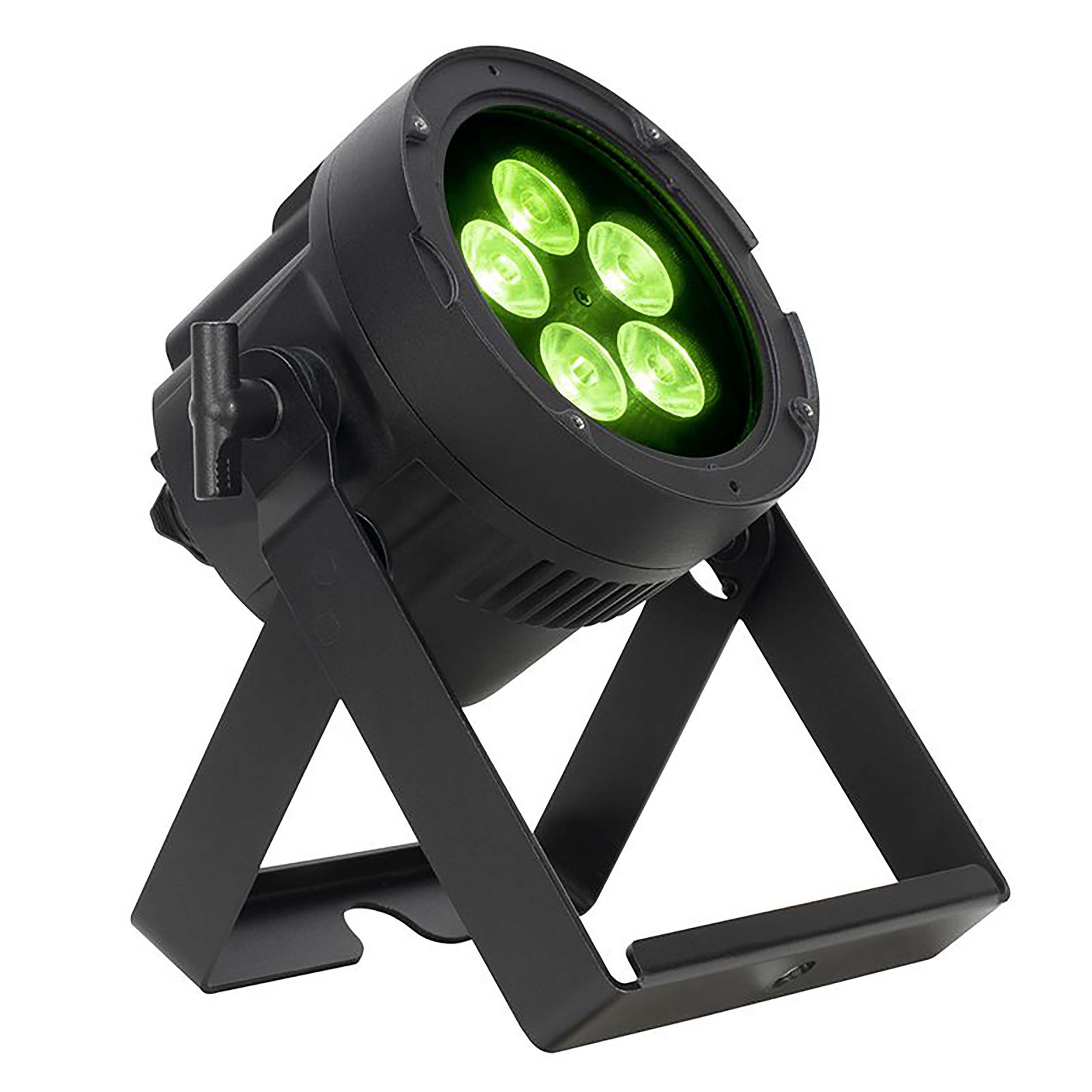

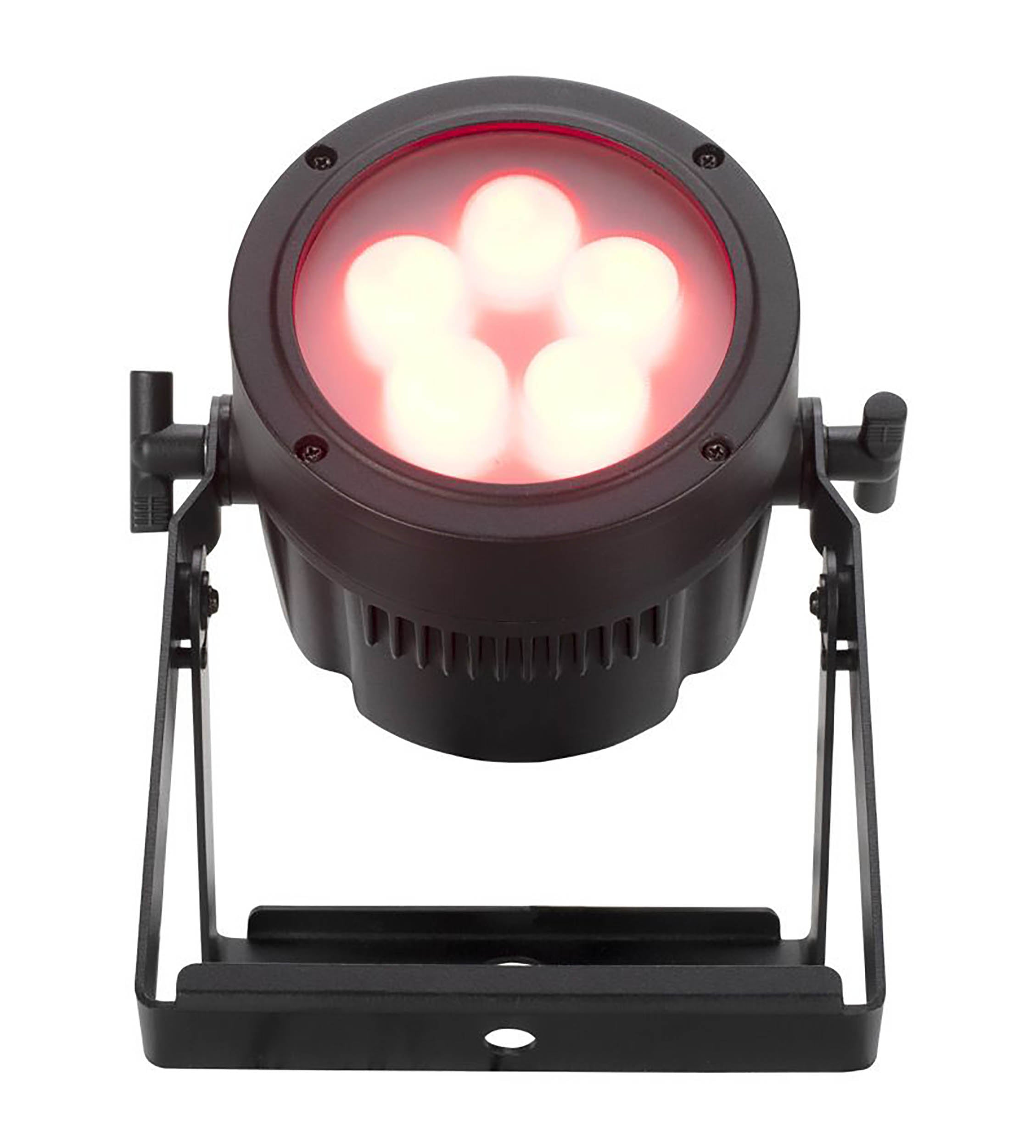

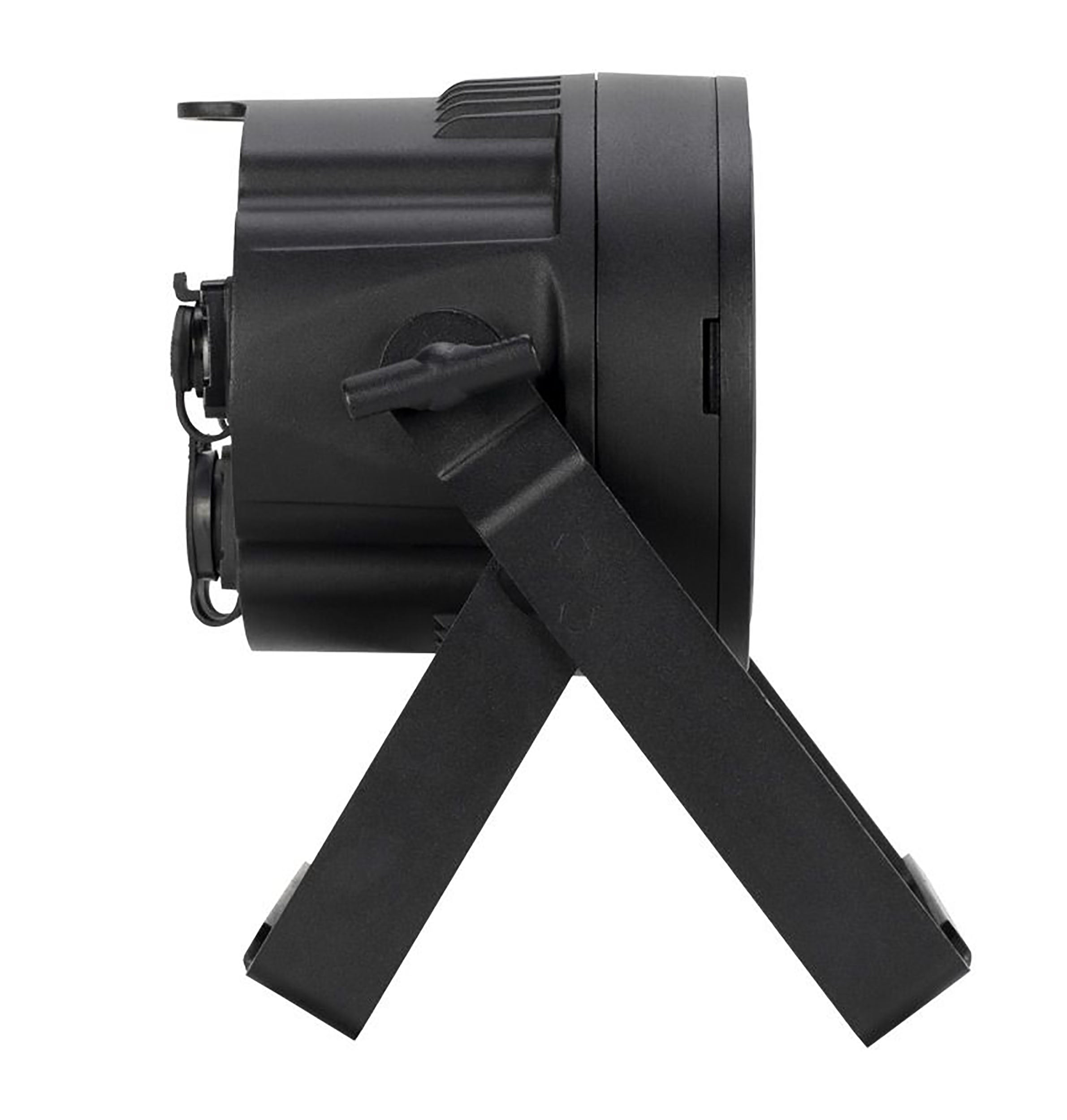

ADJ Encore LP5IP, IP65 Outdoor Rated Lighting Par with 5x20 Watt Quad LEDs

The ADJ Encore LP5IP, IP65 Outdoor Rated Lighting Par with 5x20 Watt Quad LEDs has a 10° beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust. The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K to 7000K.

The Encore LP5IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

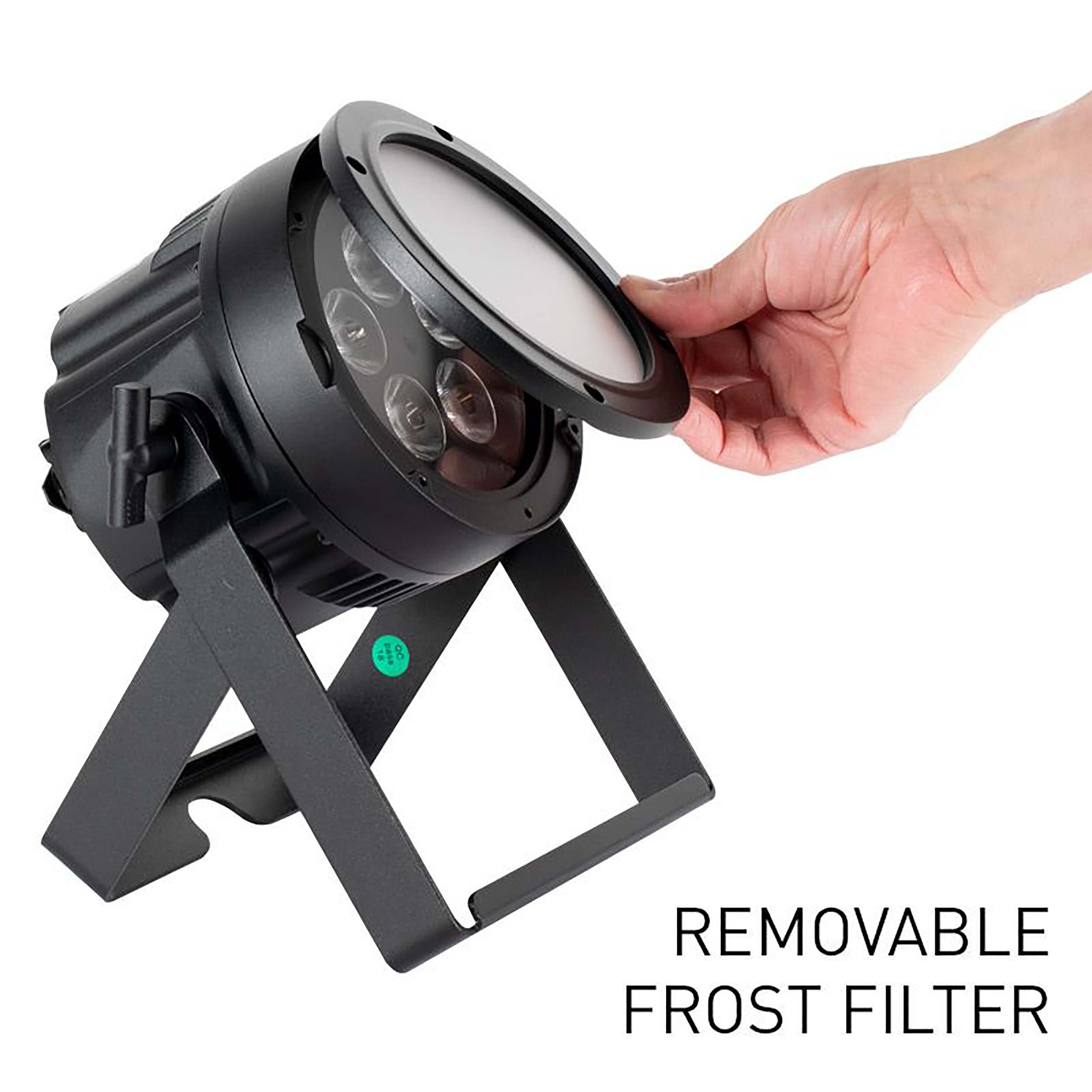

The Encore LP5IP includes a removable 25° frost filter. There are several additional frost filter options (sold separately) that customize the beam angle.

Product Specifications:

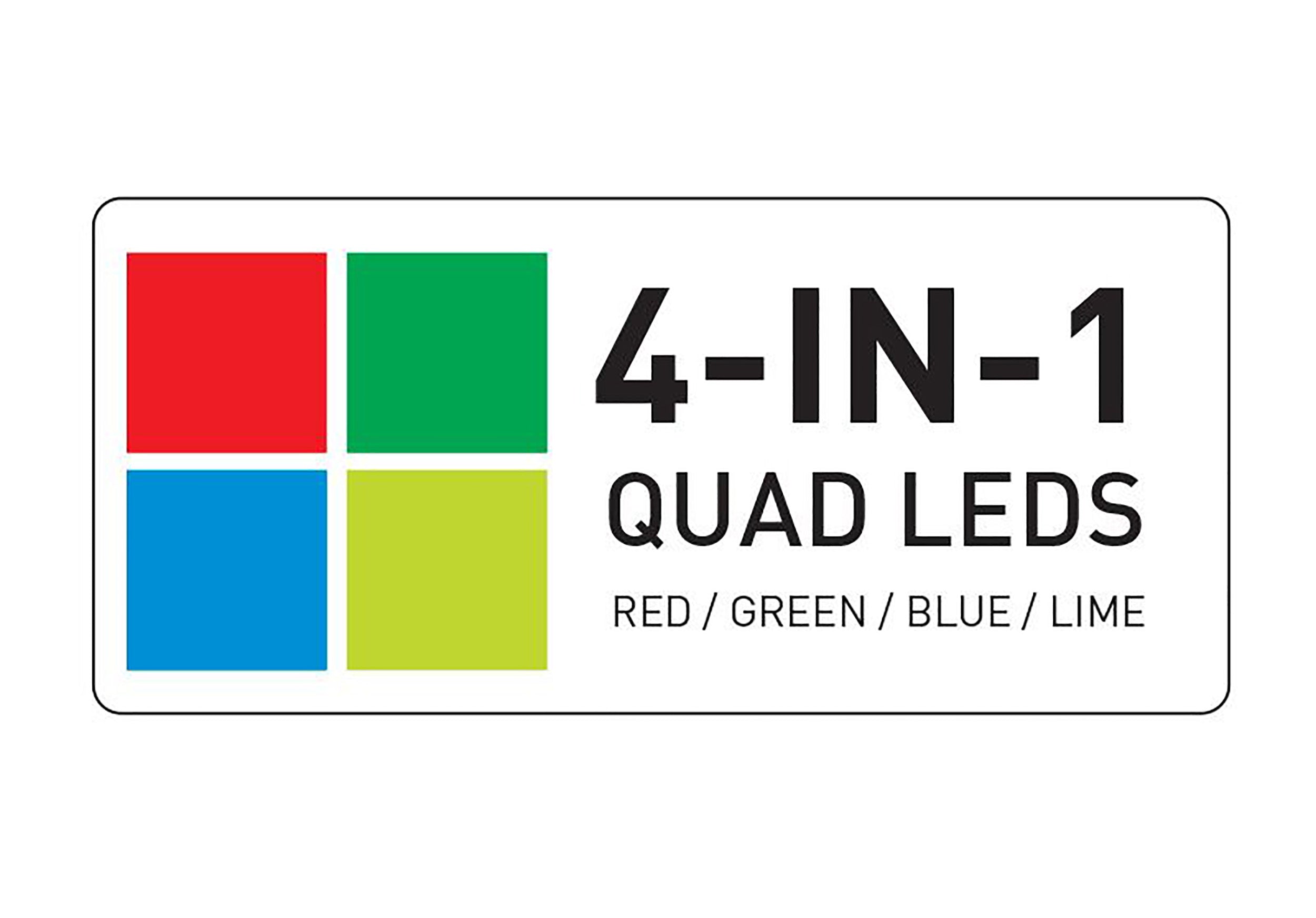

Light Source: 5 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

Photometric Data:

High CRI Data:

Beam Angle: 9.7°

Field Angle: 18.8°

CRI: 83

CRI R9: 54

Color Temperature: 6942K

Lux: 2179 @ 3M, 785 @ 5M

Lumens: 771

Full On Data:

Beam angle: 9.6°

Field Angle: 18.8°

CRI: 67

CRI R9: -98

Color Temperature: 21188K

Lux: 1766 @ 3M, 636 @ 5M

Lumens: 607

Effects:

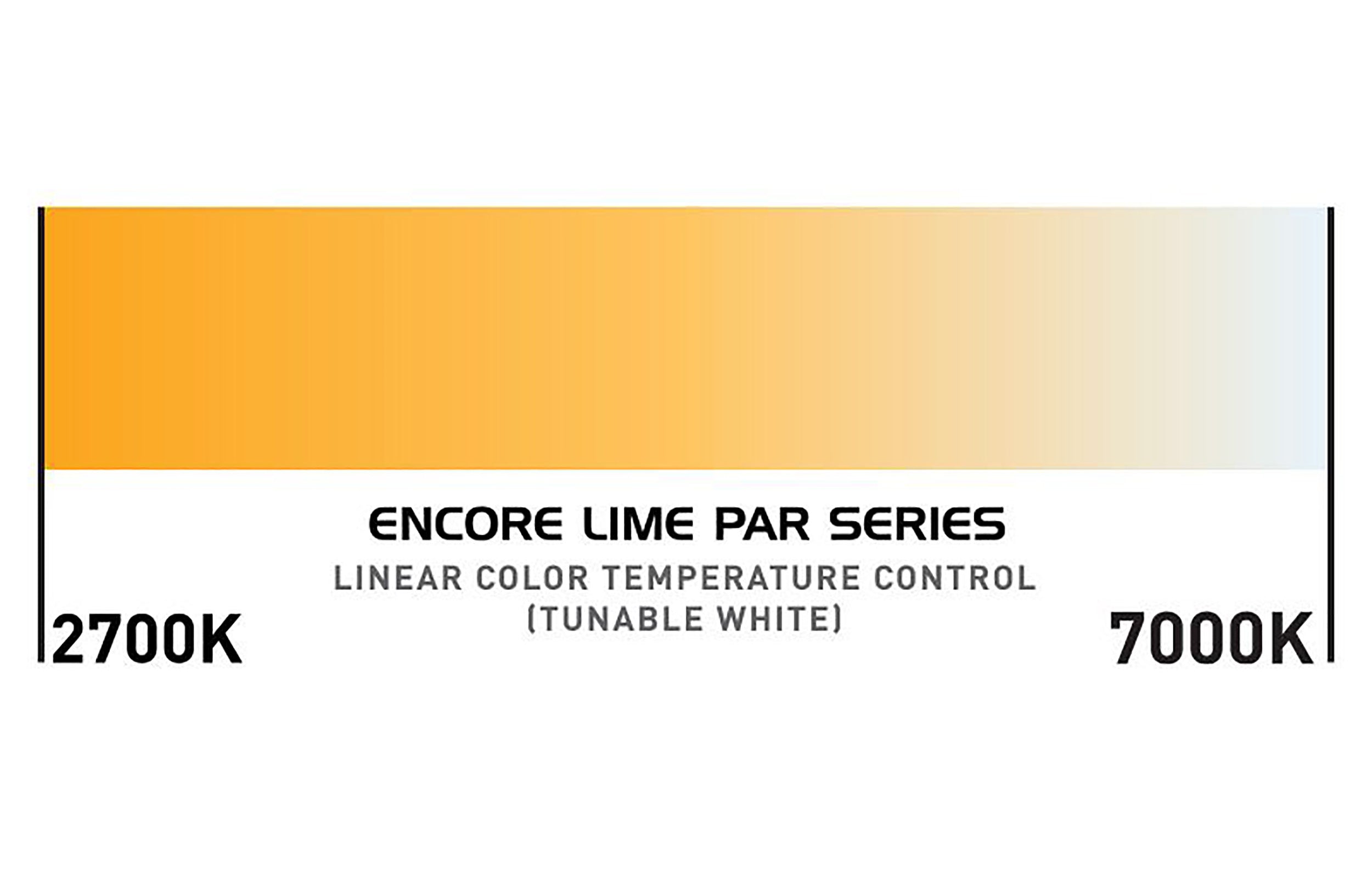

Linear Color Temperature Control (2700K to 7000K)

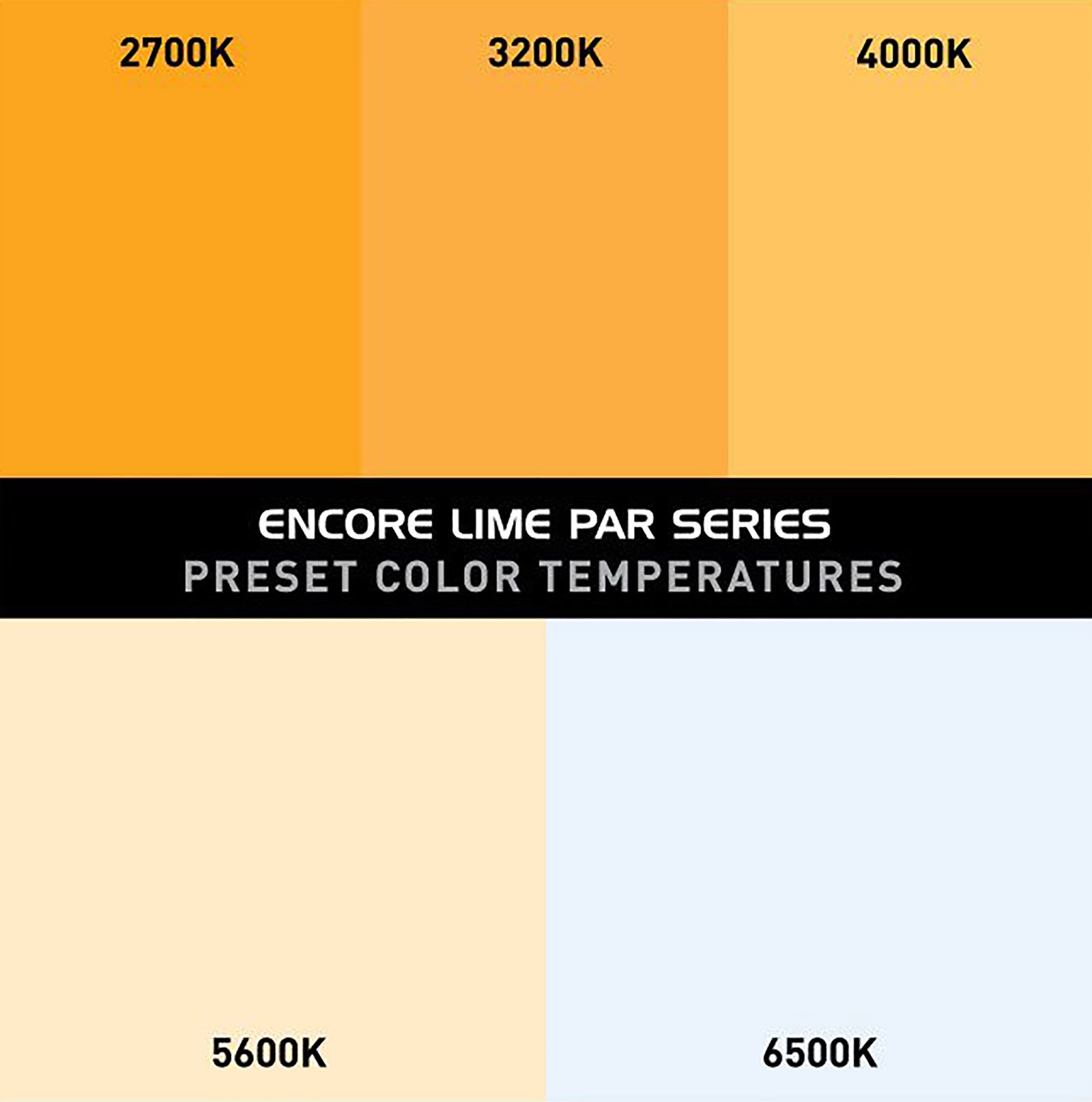

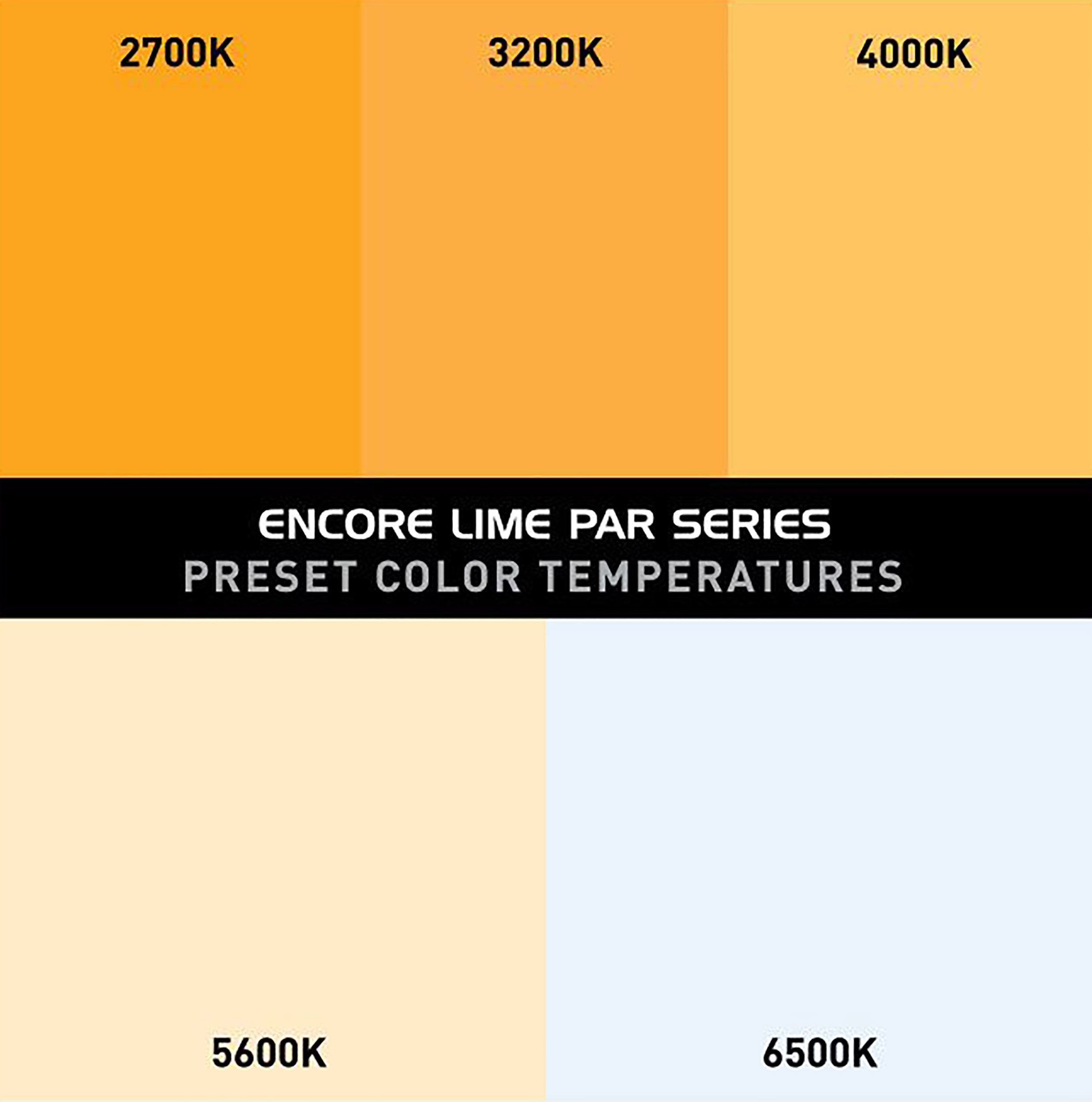

Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)

16-Bit Fine Color Control (Red, Green, Blue & Lime)

64 built-in Color Macros

Control / Connections:

4-button, DMX digital display on rear panel

Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled

Supports RDM (Remote Device Management)

With Wired Digital Communication Network

6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)

Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)

Flicker Free operation (No flickering on camera)

LED pulse and strobe effect

Quiet fan mode

Electronic Dimming: 0 - 100%

6 DMX Modes: 4, 7, 8, 10, 13, & 16-channel

Construction:

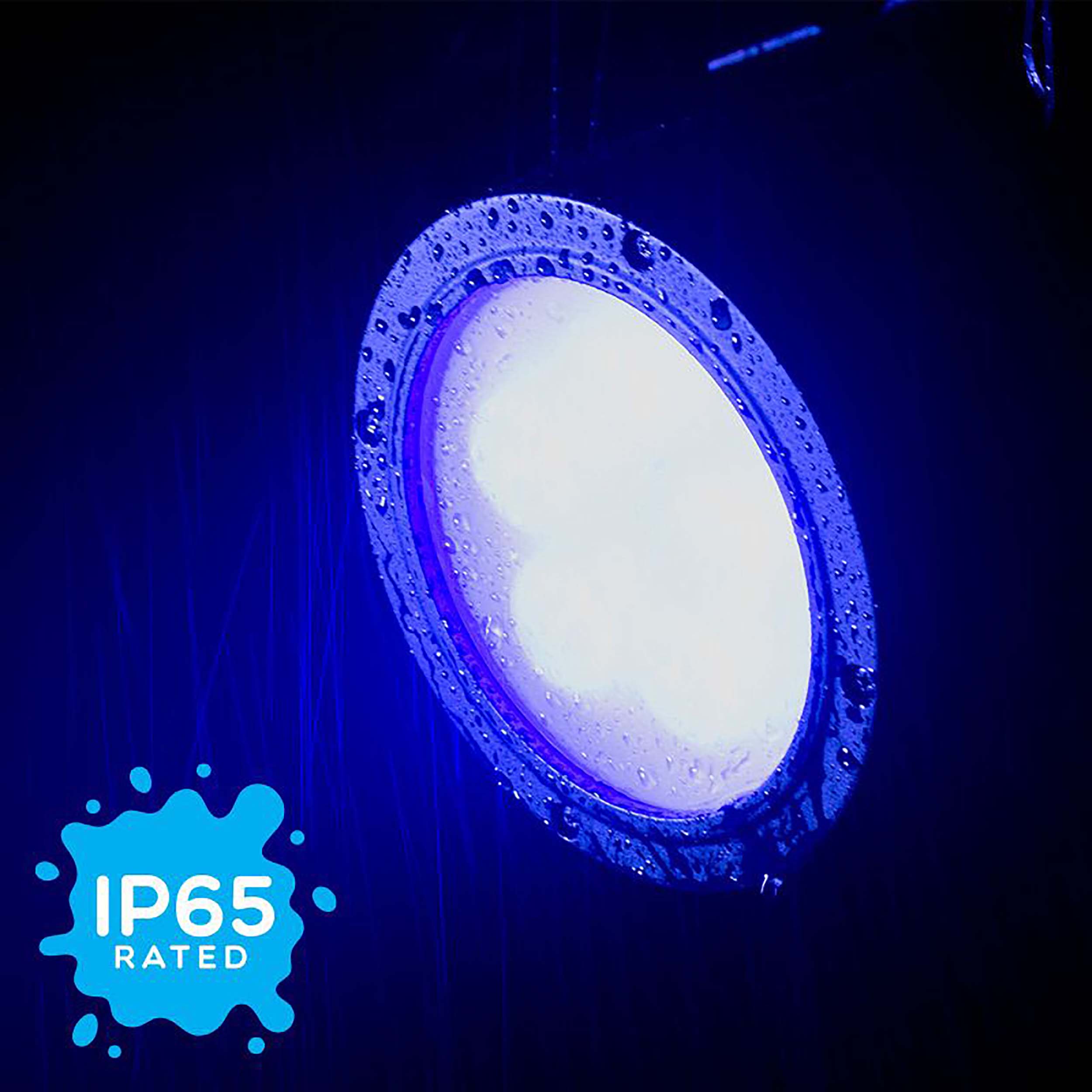

IP65 Rated: Ingress Protection against liquid, snow, dust and sand

All metal construction

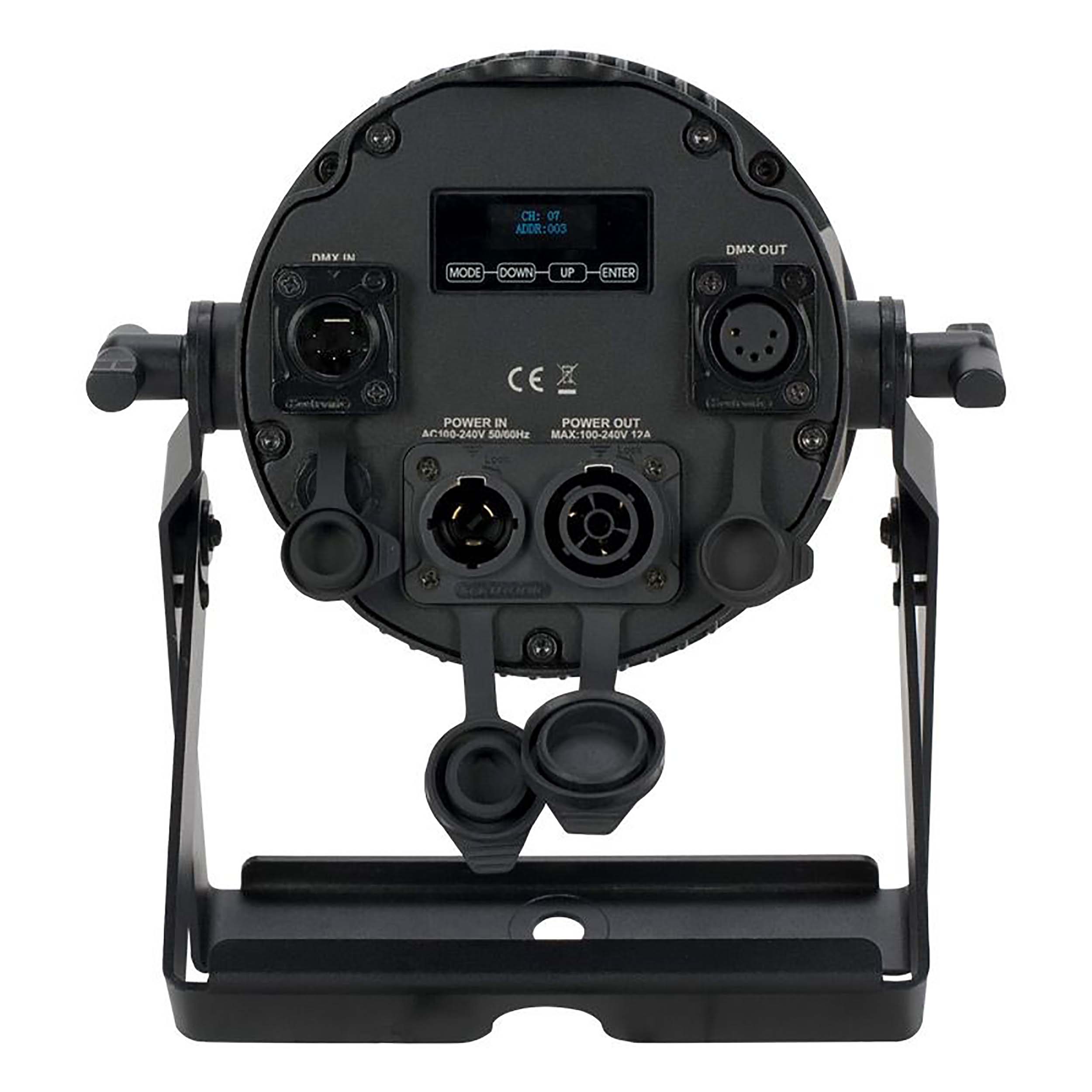

IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets

Locking, outdoor IN/Out Power connectors

Data linkable via 5-pin XLR DMX connections

Scissor Yoke & safety eye

Electrical / Thermal:

Multi-voltage operation: AC 100-240V, 47/63Hz

Daisy chain: 21 units max (110V) / 44 units max (240v)

Max power: 32W

Approvals / Ratings:

cETLus (Control #4010765)

IP65

Included Accessories:

25° Frost Filter

Power Cord

Optional Accessories:

ELP5L100: 100-degree frost filter for the Encore LP5IP

ELP5L60: 60-degree frost filter for the Encore LP5IP

ELP5L30X60: 30x60-degree frost filter for the Encore LP5IP

ELP5L1X40: 1x40-degree frost filter for the Encore LP5IP

ELP5L20: 20-degree frost filter for the Encore LP5IP

Dimensions (LxWxH): 5.9” x 8.2”x 10.1” / 150.6mm x 209.0mm x 255.0mm

Weight: 5.3 lbs. / 2.4 kgs
