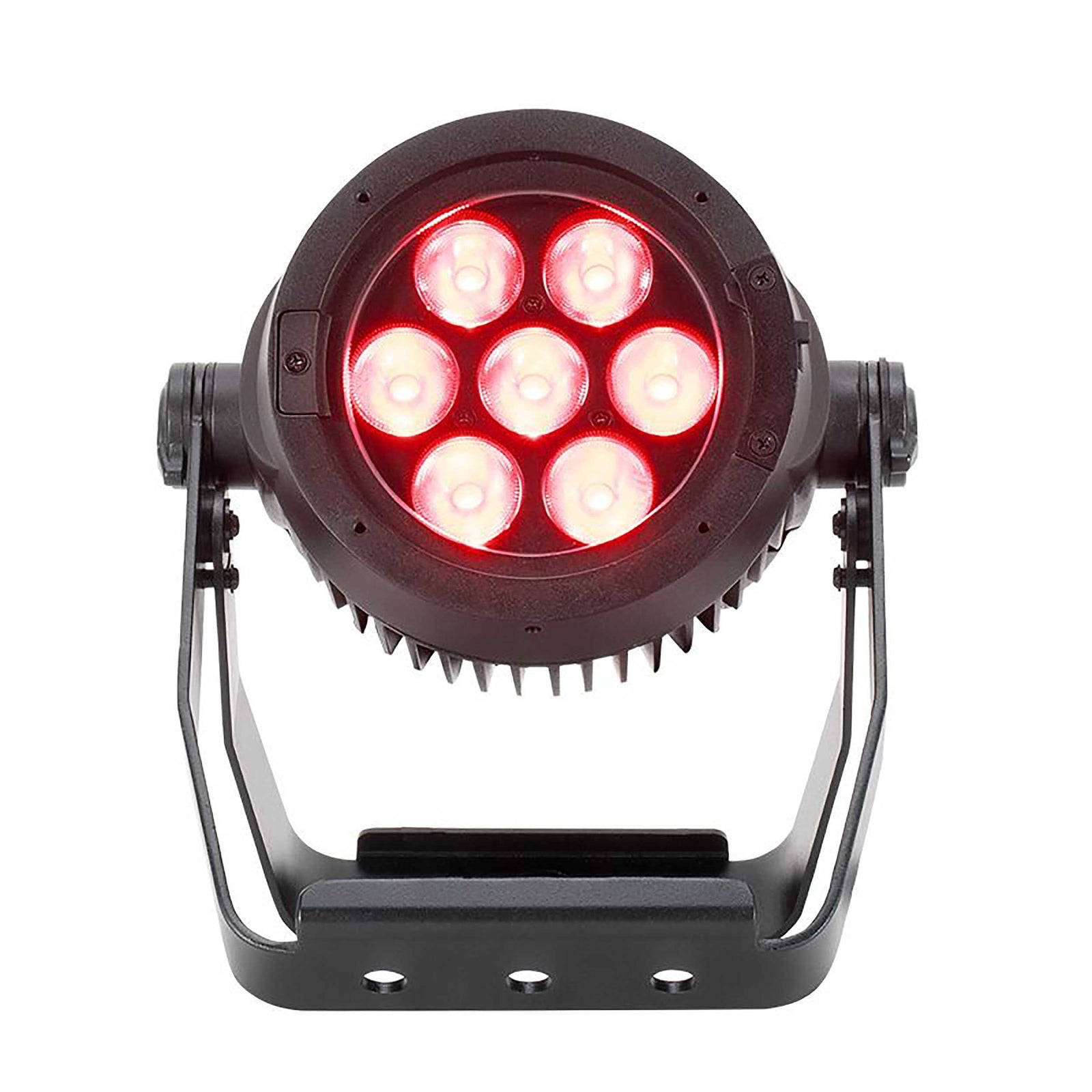

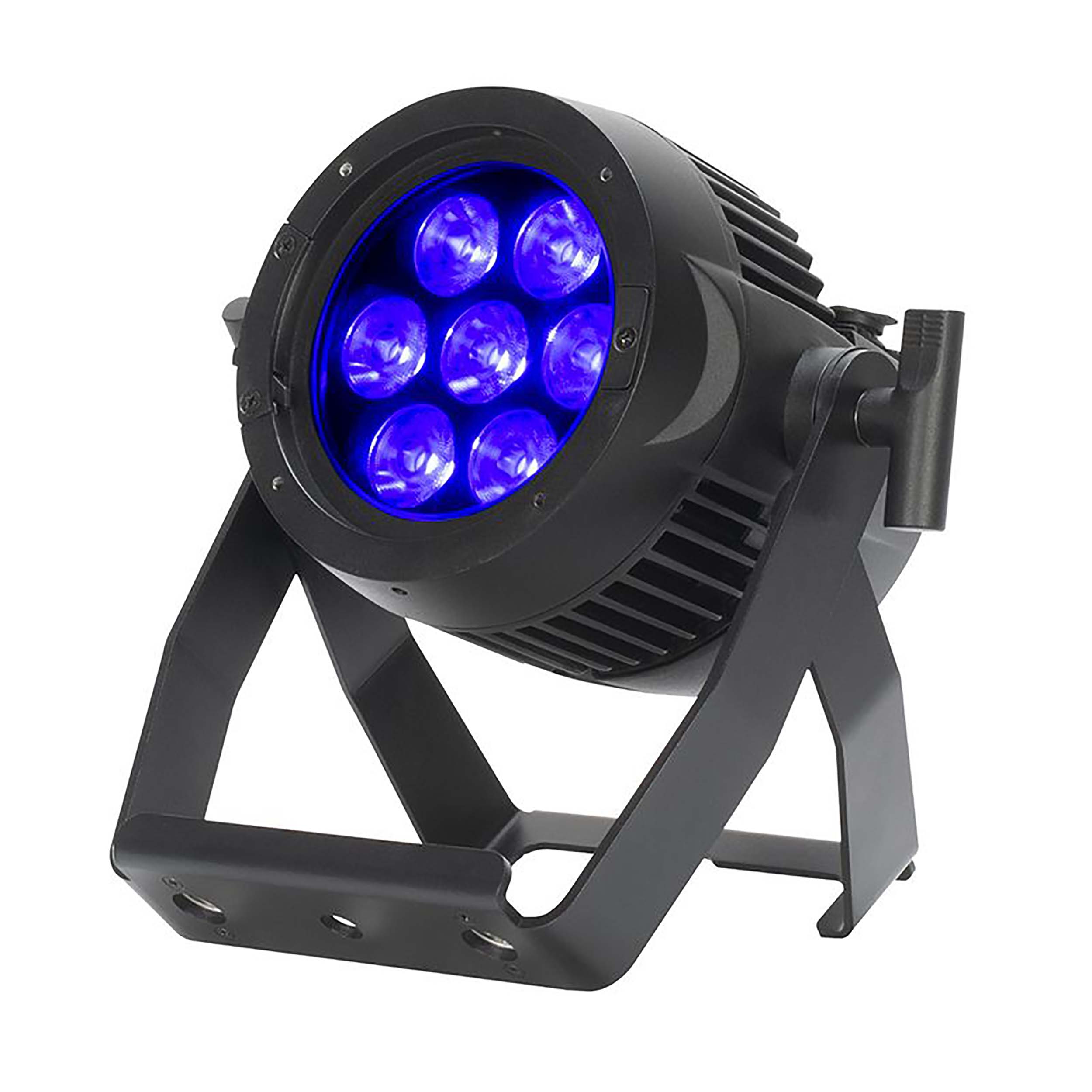

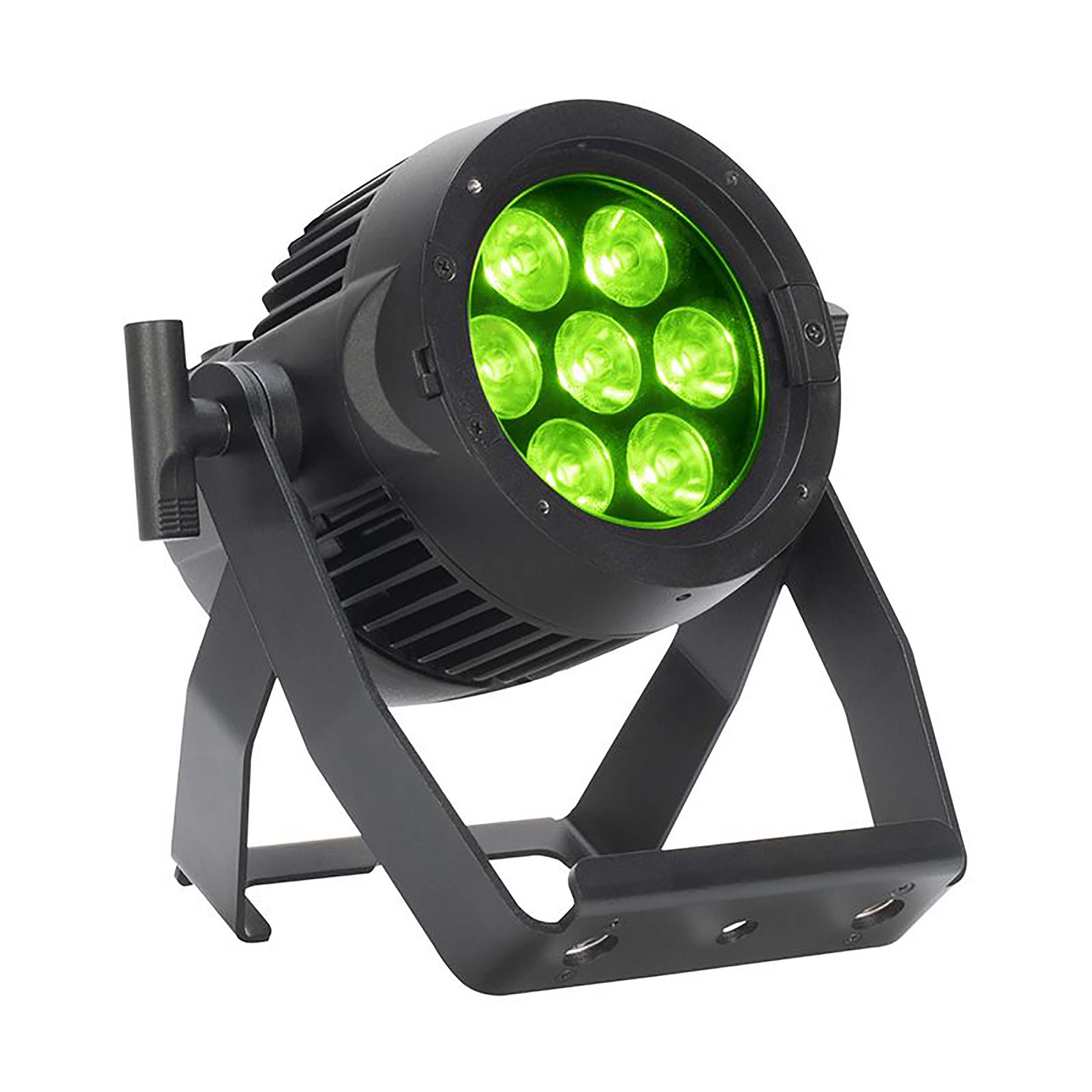

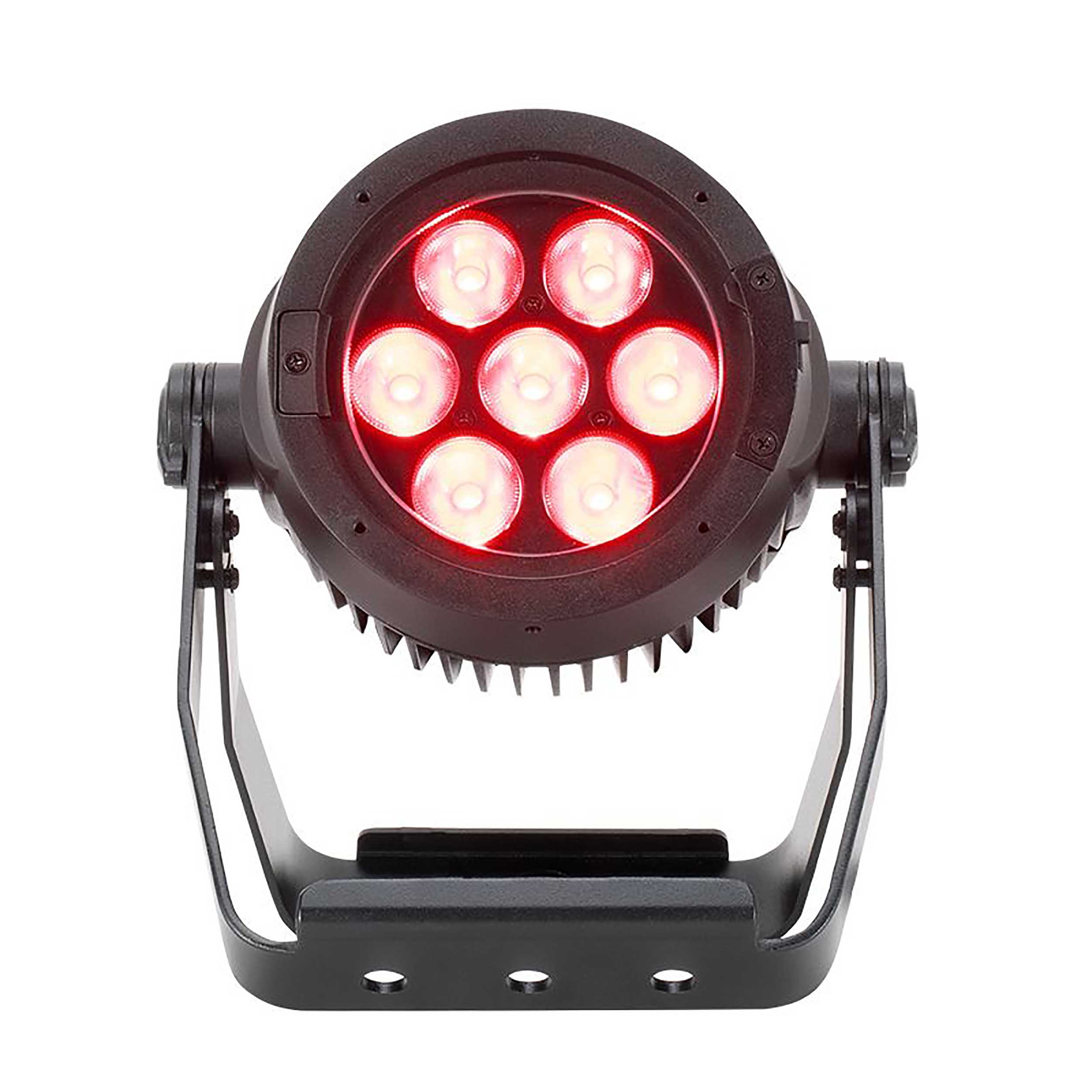

ADJ Encore LP7IP, Heavy Duty Par with Seven (7) 20W Quad LEDs (4-IN-1: RGBL), and 10° Beam Angle

The ADJ Encore LP7IP, Heavy Duty Par with Seven (7) 20W Quad LEDs (4-IN-1: RGBL), and 10° Beam Angle is offering an impressive light output and versatile design, it is part of ADJ’s Lime Par Series of LED fixtures utilizing high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or preset macros. Inclusion of the Lime LED element boosts both CRI and perceived brightness as well as filling in gaps in the color spectrum.

The LP32IP’s LEDs are arranged into 8 individually controllable sections, which can be used to create engaging ‘eye candy’ animated patterns and pixel-mapped effects. It offers a tight native beam angle of 11-degrees, which can be easily widened to 25-degrees using the included diffusion filter and magnetic filter frame. The included heavy-duty bracket can either be used to stand the fixture directly on the floor or to mount it to truss using its integrated omega clamp receivers. The bracket’s design also incorporates a sure-lock system which slots into place at 10-degree intervals, making it extremely easy to set multiple fixtures to precisely the same angle.

With a robust all metal construction and durable black powder coating, the LP32IP is designed for use in professional entertainment lighting environments. It has an IP65 rating, which means that it is sealed to prevent the ingress of liquid, snow, dust, and sand. This makes it suitable for temporary outdoor use as well as for indoor applications where the fixture may be subject to liquid spillage or come into contact with excessive dust or dirt.

Product Specifications:

Source:

Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

Photometric Data:

Beam angle: 10° (Includes 25° removable frost filter)

CRI: 84

CRI R9: 76.6

Lumens: 2500

Effects:

Linear Color Temperature Control (2700K to 7000K)

Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)

16-Bit Fine Color Control (Red, Green, Blue & Lime)

64 built-in Color Macros

Control / Connections:

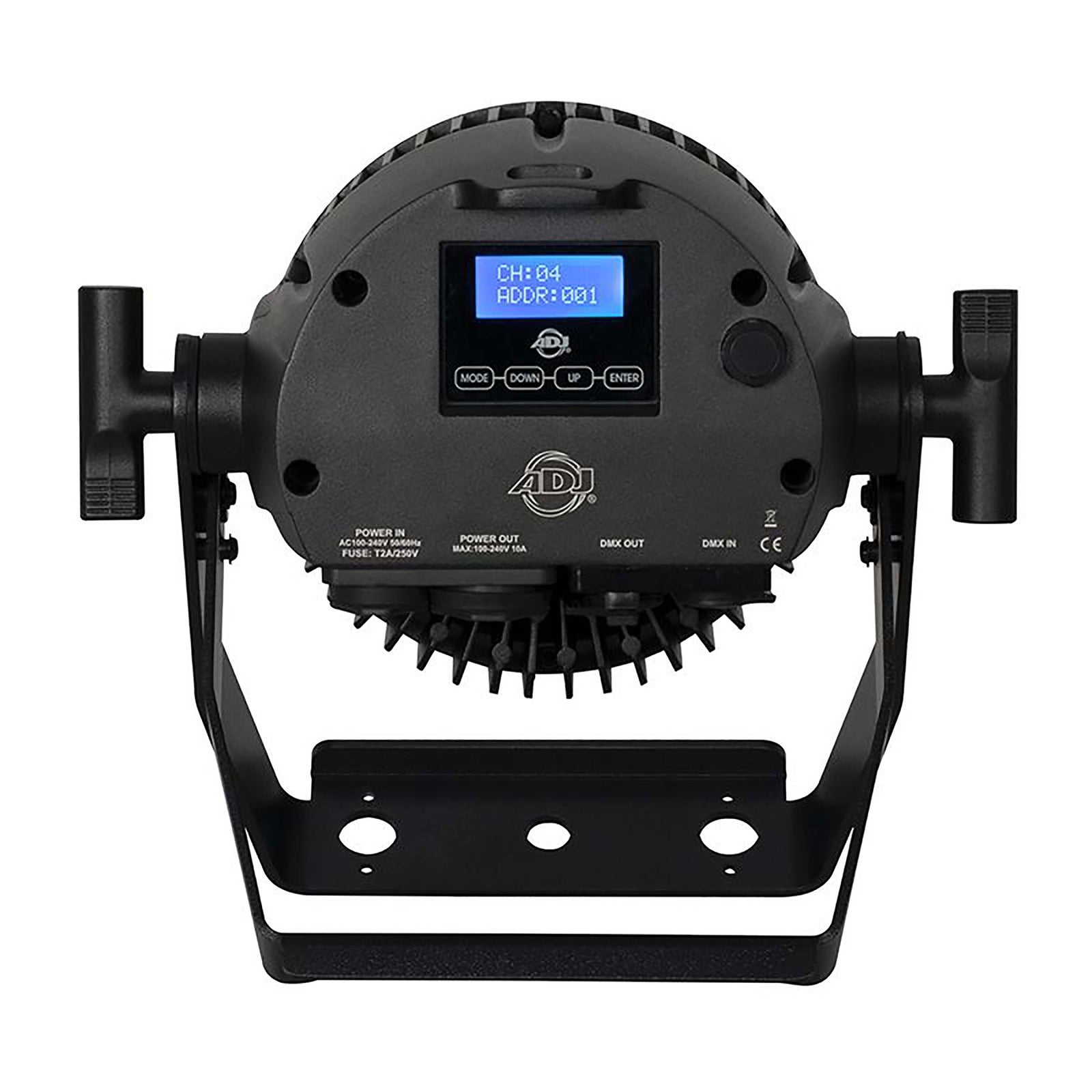

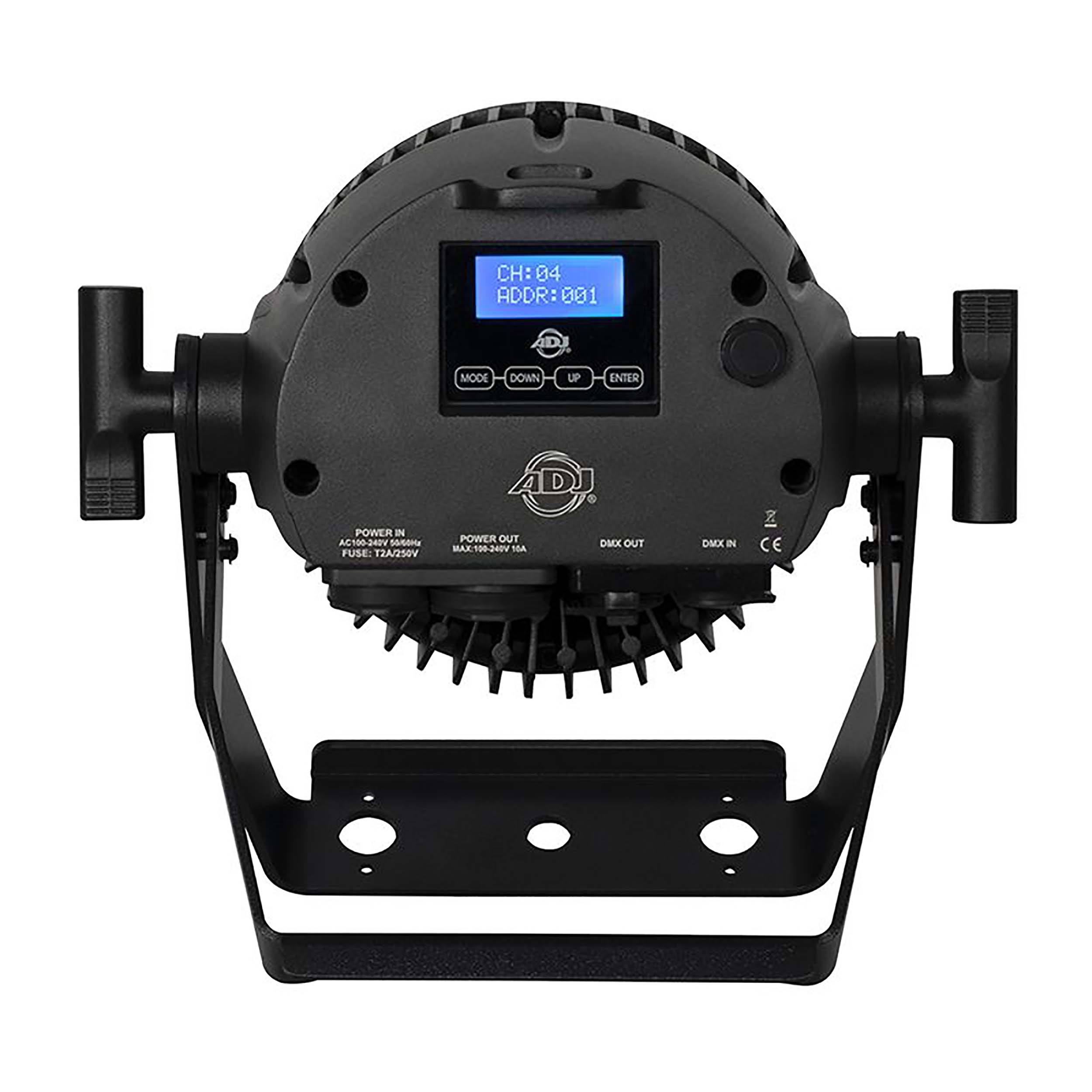

4-button, DMX digital display on rear panel

Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled

Supports RDM (Remote Device Management)

With Wired Digital Communication Network

6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)

Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)

Flicker Free operation (No flickering on camera)

LED pulse and strobe effect

Electronic Dimming: 0 - 100%

6 DMX Modes: 4, 7, 8, 10, 13 & 16-channel

Quiet fan mode

Construction:

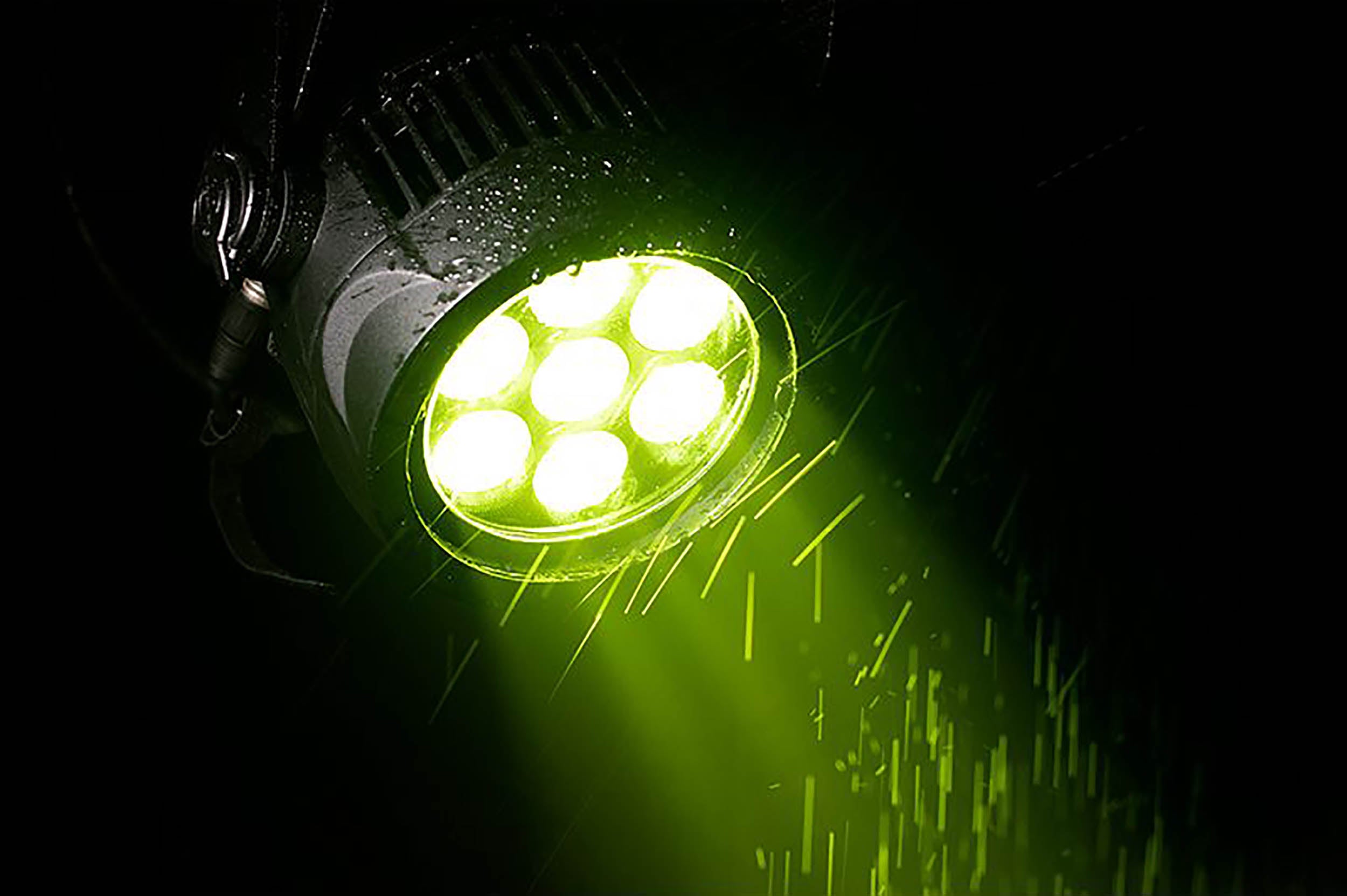

IP65 Rated: Ingress Protection against liquid, snow, dust and sand

All metal construction

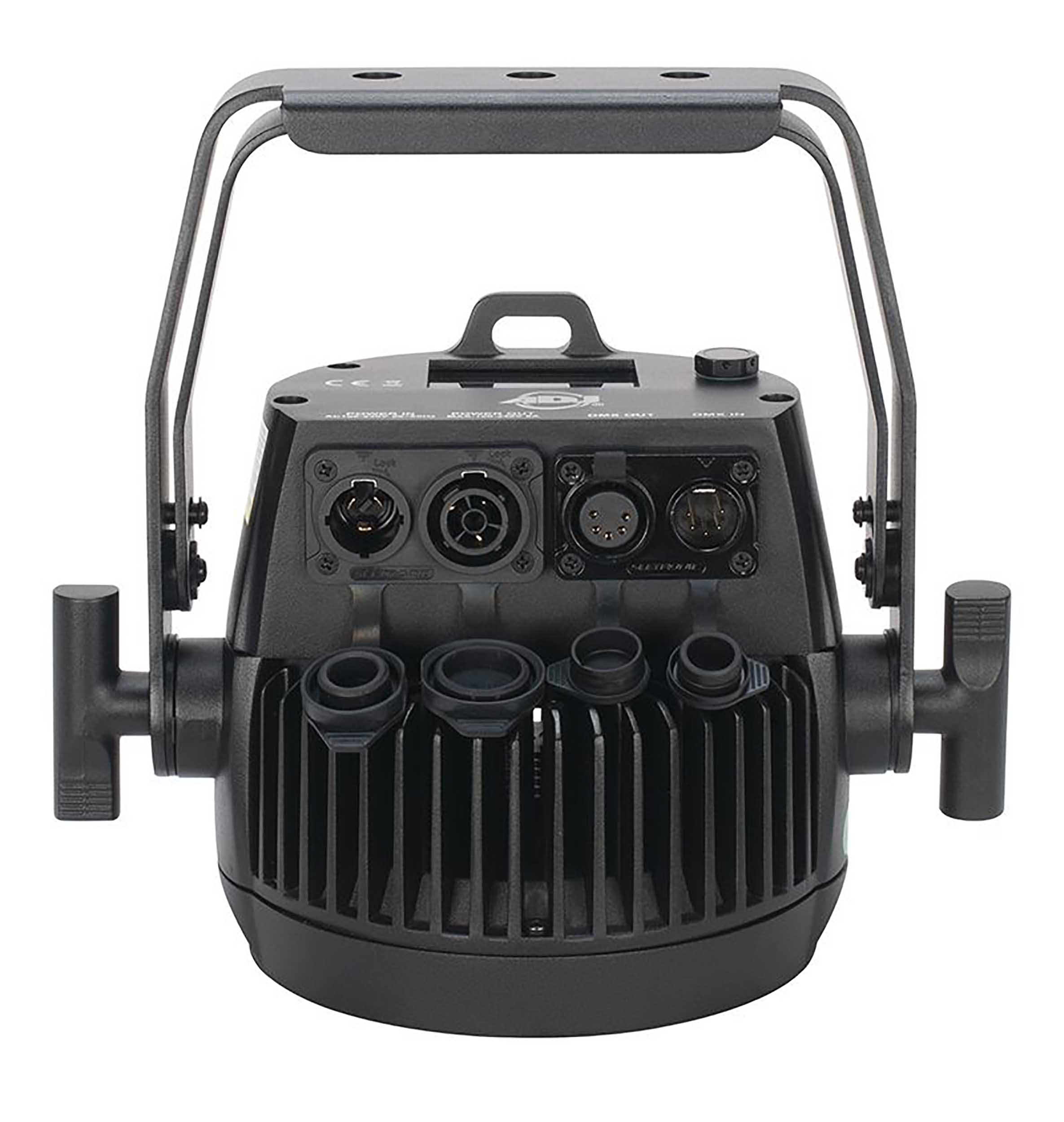

IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets

Locking, outdoor IN/Out Power connectors

Data linkable via 5-pin XLR DMX connections

Scissor Yoke & safety eye

Electrical / Thermal:

Multi-voltage operation: AC 100-240V, 47/63Hz

Daisy chain: 10 @ 120V, 20 @ 220V

Max power: 103W

Dimensions (LxWxH): 8.65” x 6.5” x 9.5” / 220x160x242mm

Weight: 7.5 lbs. / 3.45 kg.

Approvals / Ratings:

cETLus (Control # 4010765)

IP65

Included Accessories:

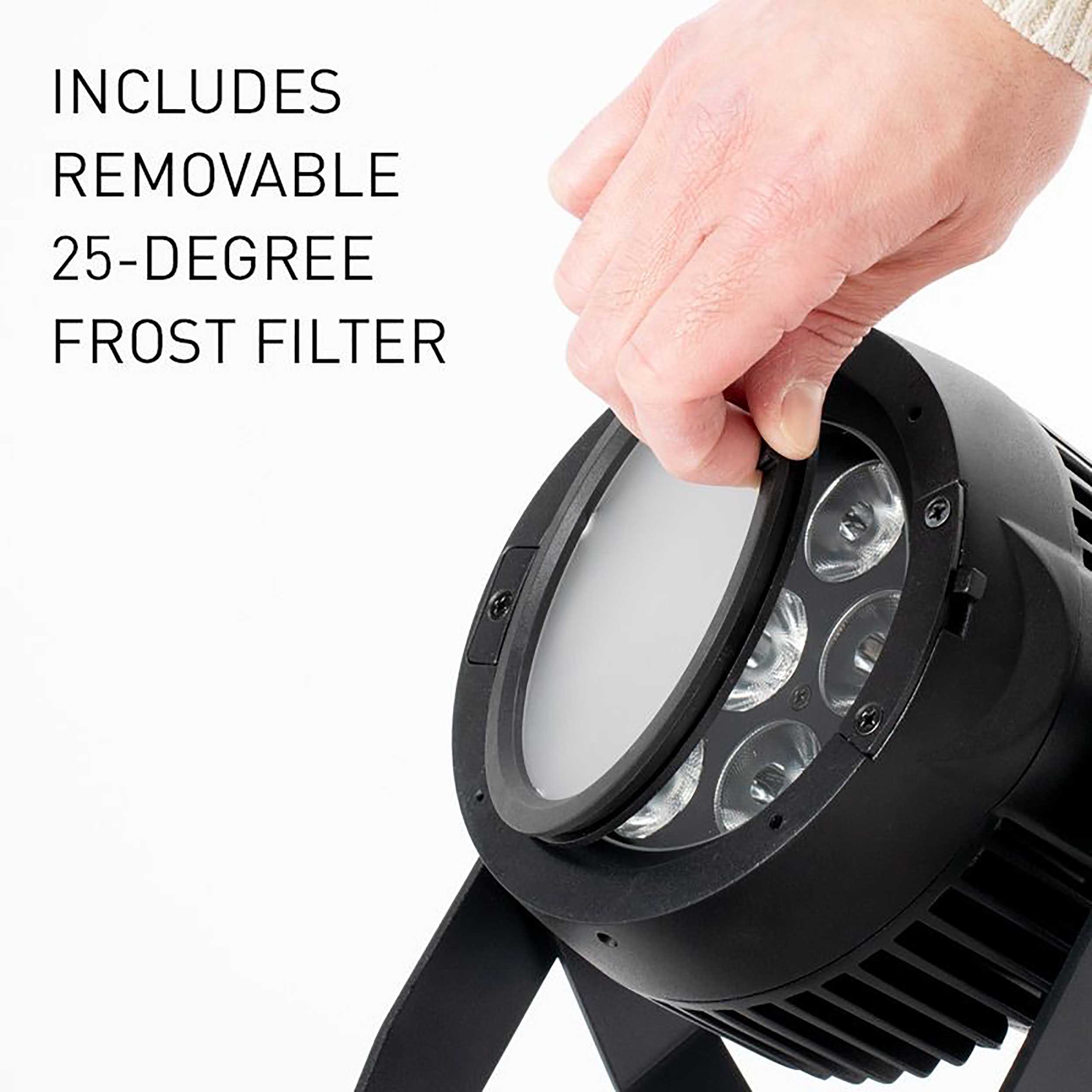

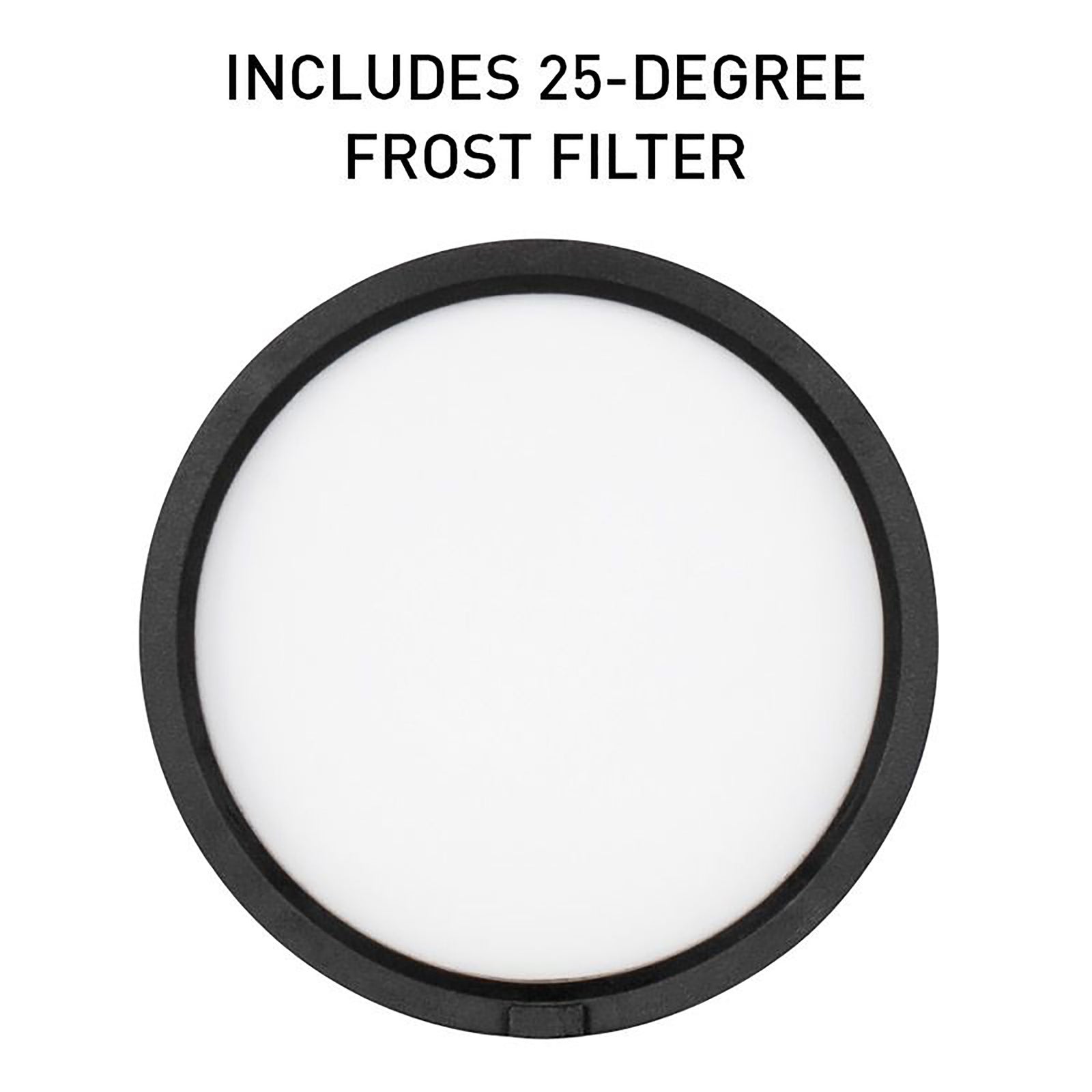

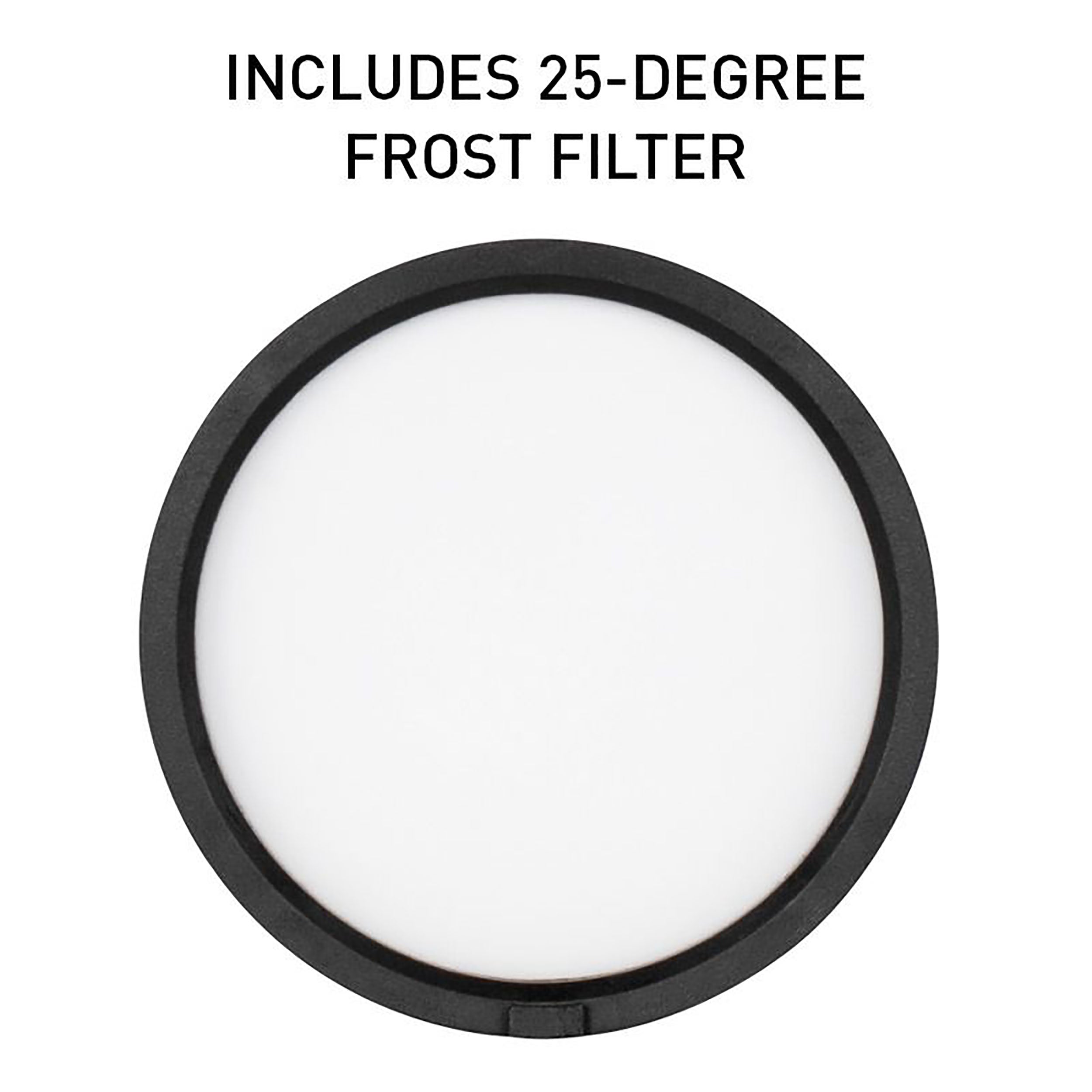

25° Frost Filter

Power Cord

Optional Accessories:

ELP7L100: 100° frost filter for the Encore LP7IP

ELP7L60: 60° frost filter for the Encore LP7IP

ELP7L30X60: 30x60° frost filter for the Encore LP7IP

ELP7L1X40: 1x40° frost filter for the Encore LP7IP

ELP7L20: 20° frost filter for the Encore LP7IP

Z-8050000053: 107mm Omega Bracket
