ADJ Encore Profile Mini WW, Warm White Ellipsoidal Luminaire (3000K) - 40 Watt

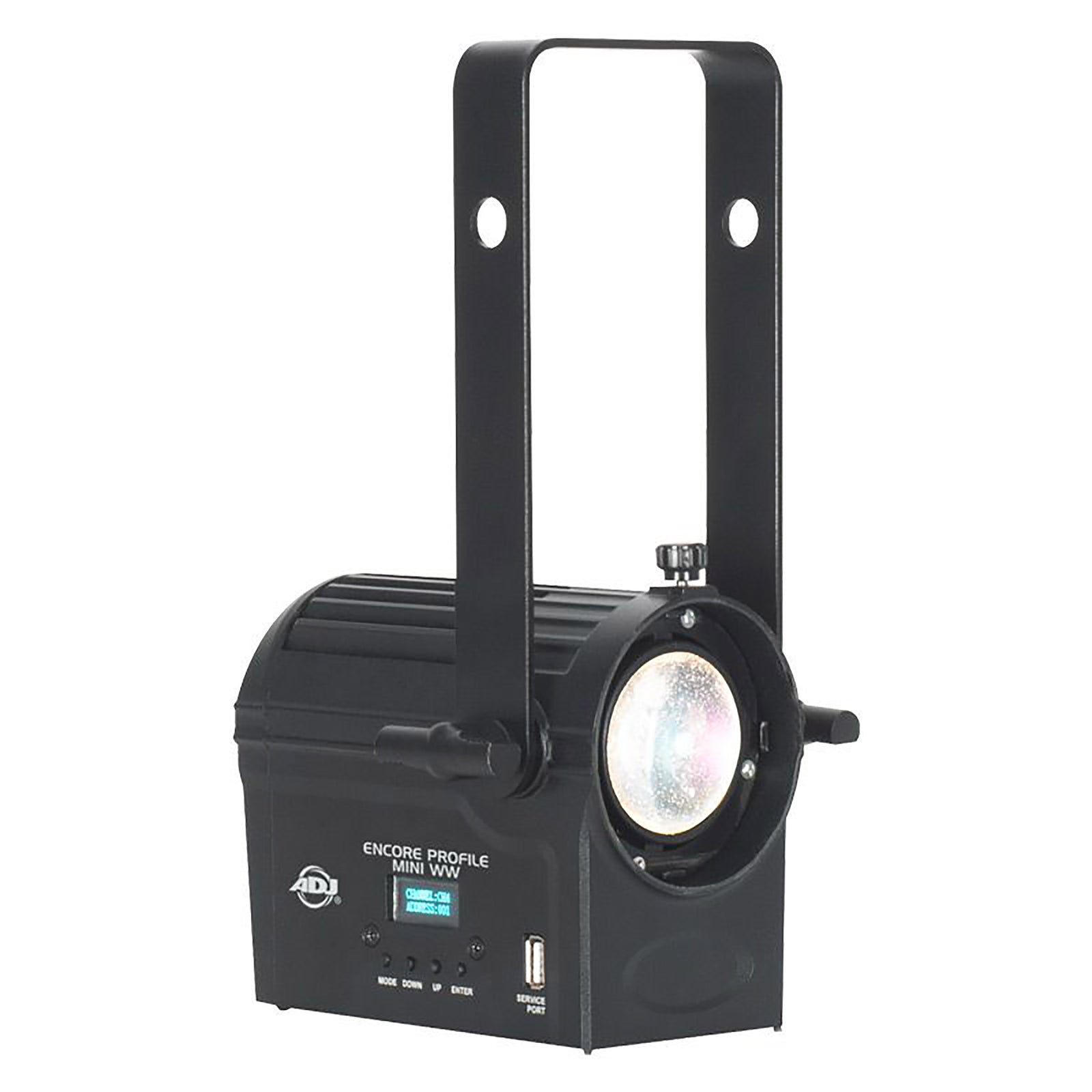

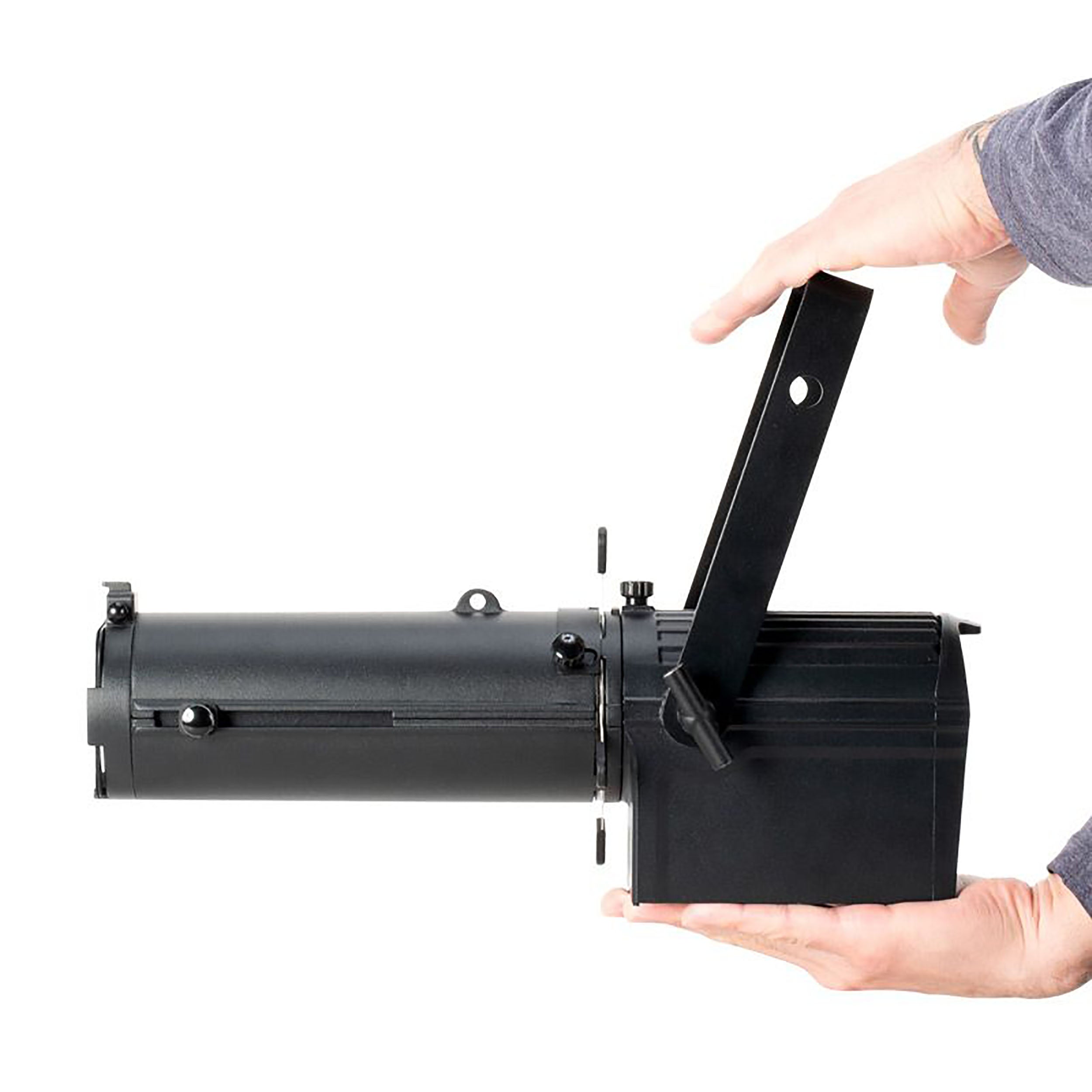

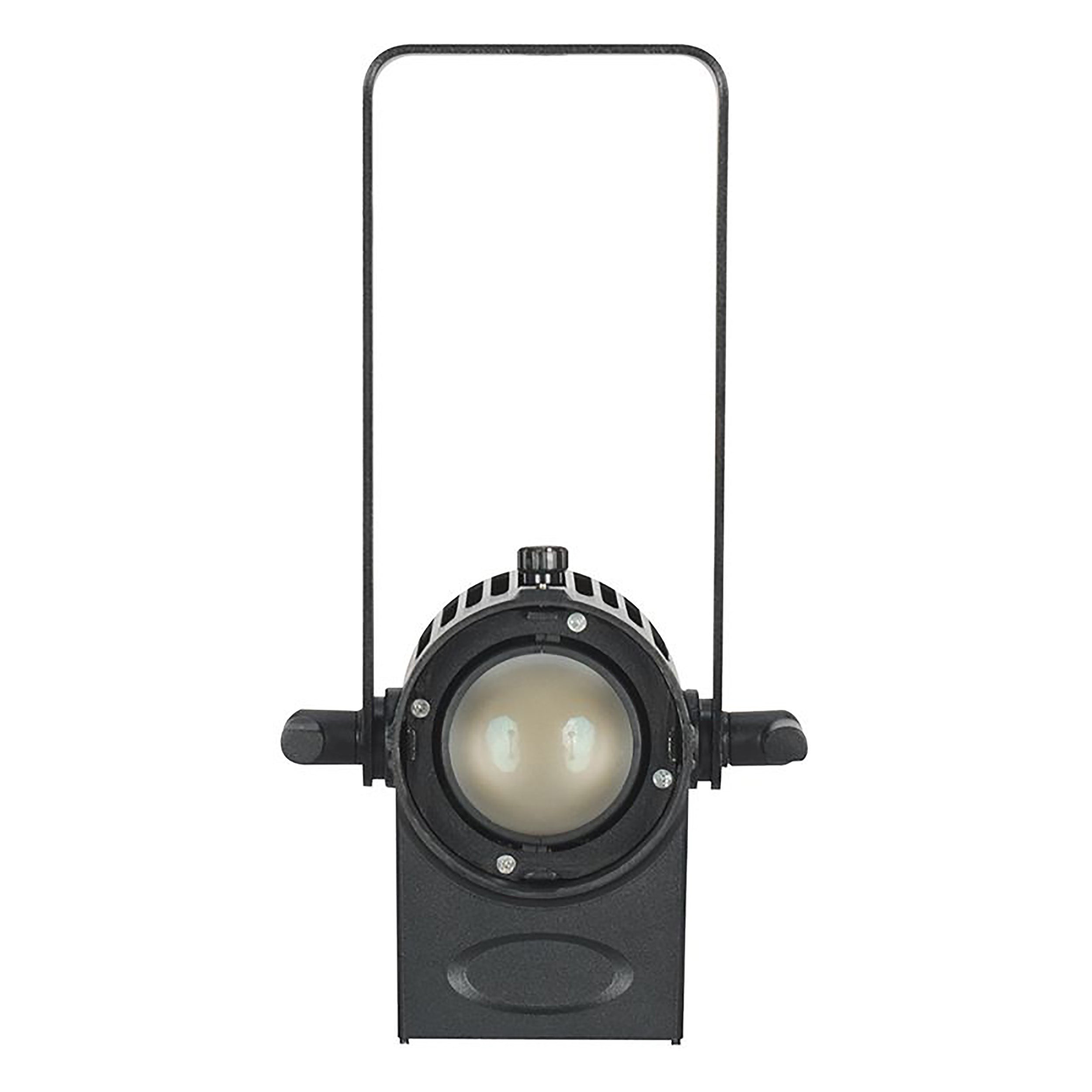

The ADJ Encore Profile Mini WW, Warm White Ellipsoidal Luminaire (3000K) - 40 Watt is designed for applications where size really matters, the ADJ Lighting Encore Profile Mini WW is a compact and versatile LED-powered ellipsoidal luminaire. It utilizes a potent 40W warm white LED engine with a 50,000-hour average life expectancy and 3000K color temperature. Its light is focused through precision-engineered optics to deliver a crystal-clear 900 Lumen output with an even field and extremely high CRI of >98.

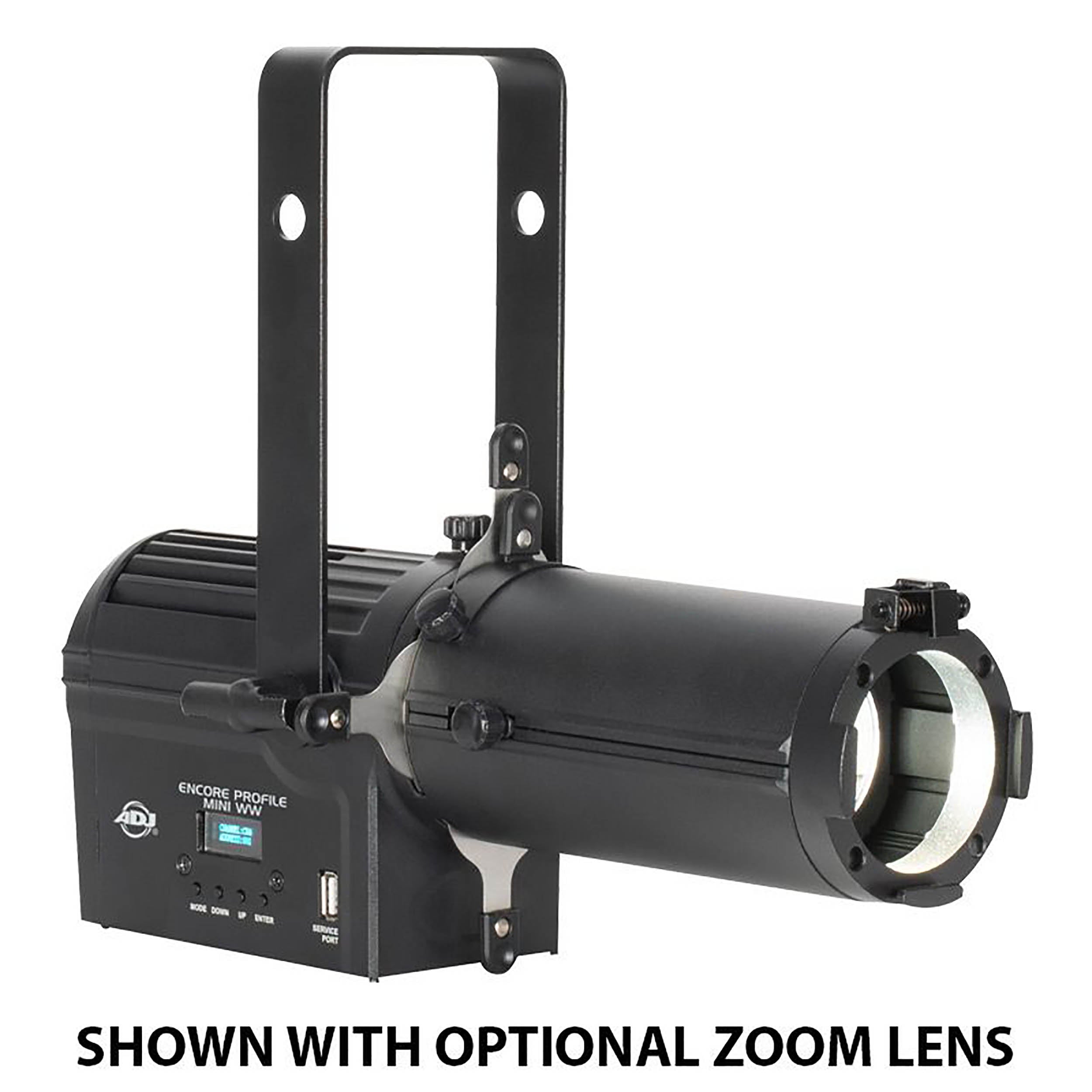

Two compatible lens options are available (sold separately), which can be used to adapt the fixture depending on the beam angle required (one of these lenses are required for the fixture to project properly). Both lenses offer manual zoom, with the EP Mini Lens 1530 option offering a variable beam angle of 15° - 30° and the EP Mini Lens 2550 version providing wider options of 25° - 50°. The fixture can also be used to project GOBO patterns and is supplied with a holder for standard “E” size GOBOs (GOBOs sold separately).

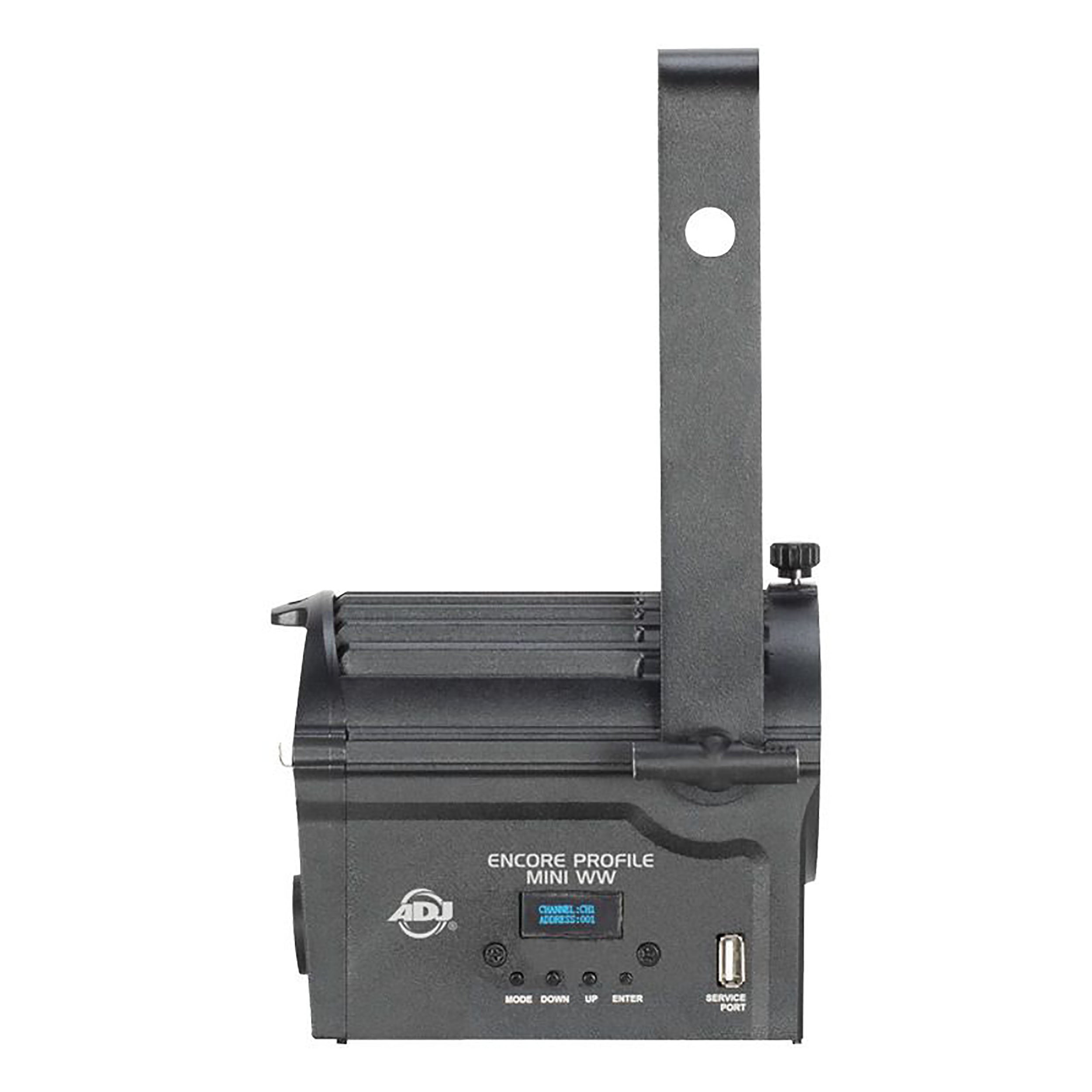

The Encore Profile Mini WW offers digital dimming with variable curves and a selection of dimming modes as well as variable speed strobing. It also supports adjustable refresh rates so that flicker can be avoided for filming applications. A convenient OLED menu display on the rear panel provides access to an intuitive menu interface for DMX addressing and configuration of the unit’s adjustable operating parameters and it is supplied with a variable angle hanging bracket that locks securely into place using a pair of large thumbs tightening screws.

Product Specifications:

Source:

40W Warm White LED Engine (One of the two lens options must be use for the fixture to work properly - See optional accessories below)

50,000 Hour Average LED Life (LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Photometric Data:

>98CRI 900 Total Lumens

3000K Color Temperature

Effects:

Electronic Strobe and Dimming

Variable Dimming Curves and Dimming Modes

Gobos:

Supports “E” Size GOBOs

Metal GOBO Dimensions: Outer Diameter 45mm, Image Diameter 31mm

Glass GOBO Dimensions: Outer Diameter 39.5mm, Image Diameter 31mm

GOBO Holder is included

GOBOs are sold separately

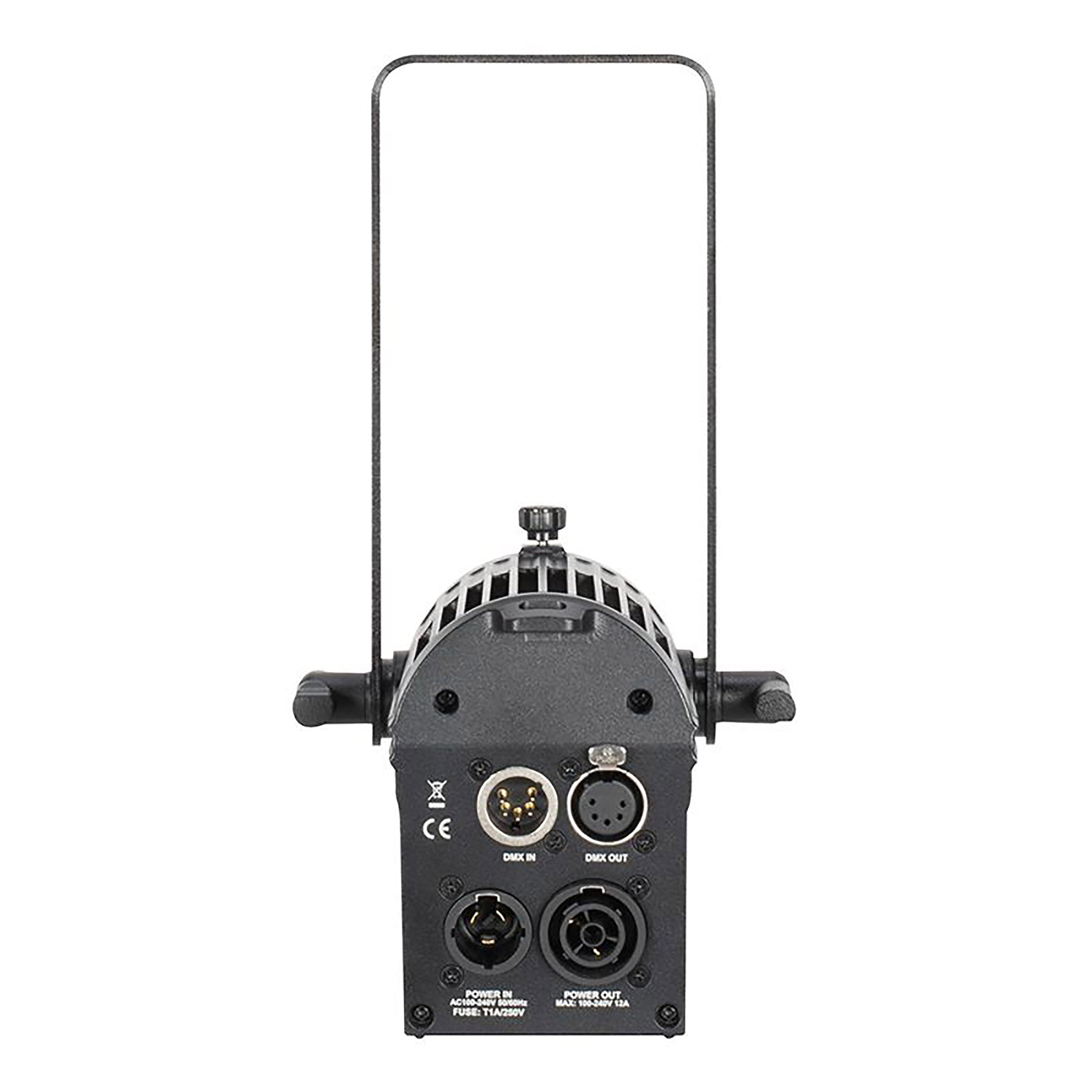

Control / Connections:

(3) DMX Channel Modes (2 / 3 / 6)

Adjustable Refresh Rates (900-1500, 25,000 Hz)

4 Button Control Panel

OLED Menu Display

Locking 5-pin XLR Connector In/Out

IP65 Locking Power In/Out

With Wired Digital Communication Network

RDM (Remote Device Management)

USB Service Port

Size / Weight:

Length: 8.8” (224mm) (NO LENS)

Width: 5.7” (144mm)

Vertical Height: 10.9” (276mm)

Weight: 4.0 lbs. (1.8 kg)

Electrical / Thermal:

Convection Cooled

AC 100-240V - 50/60Hz

45.6W Max Power Consumption @ 120V

45.7W Max Power Consumption @ 230V

Power Linking: 25pcs Max @120V / 53pcs Max @230V

Minimum and Maximum Ambient Temperatures: 14° to 113°F (-10° to 45°C)

Approvals / Ratings:

CE | cETLus (Control #4010765) | IP20

Included Items:

(1) IP65 Locking Connector to Edison Power Cable

Optional Accessories:

EP Mini Lens 1530 (15° - 30° Manual Zoom Lens)

EP Mini Lens 2550 (25° - 50° Manual Zoom Lens)

EP Mini BDA (EPL153) (Optional Barn Door Assembly)

EP Mini Fresnel Lens (EPL166)

SIP064: 1.64ft. IP65 male to female twist lock power link cable

SIP113: 3ft. IP65 male to female twist lock power link cable

SIP126: 5ft. IP65 male to female twist lock power link cable

SIP139: 10ft. IP65 male to female twist lock power link cable

SIP152: 16ft. IP65 male to female twist lock power link cable

SIP165: 25ft. IP65 male to female twist lock power link cable

SIP178: 50ft. IP65 male to female twist lock power link cable

SIP191: 100ft. IP65 male to female twist lock power link cable
