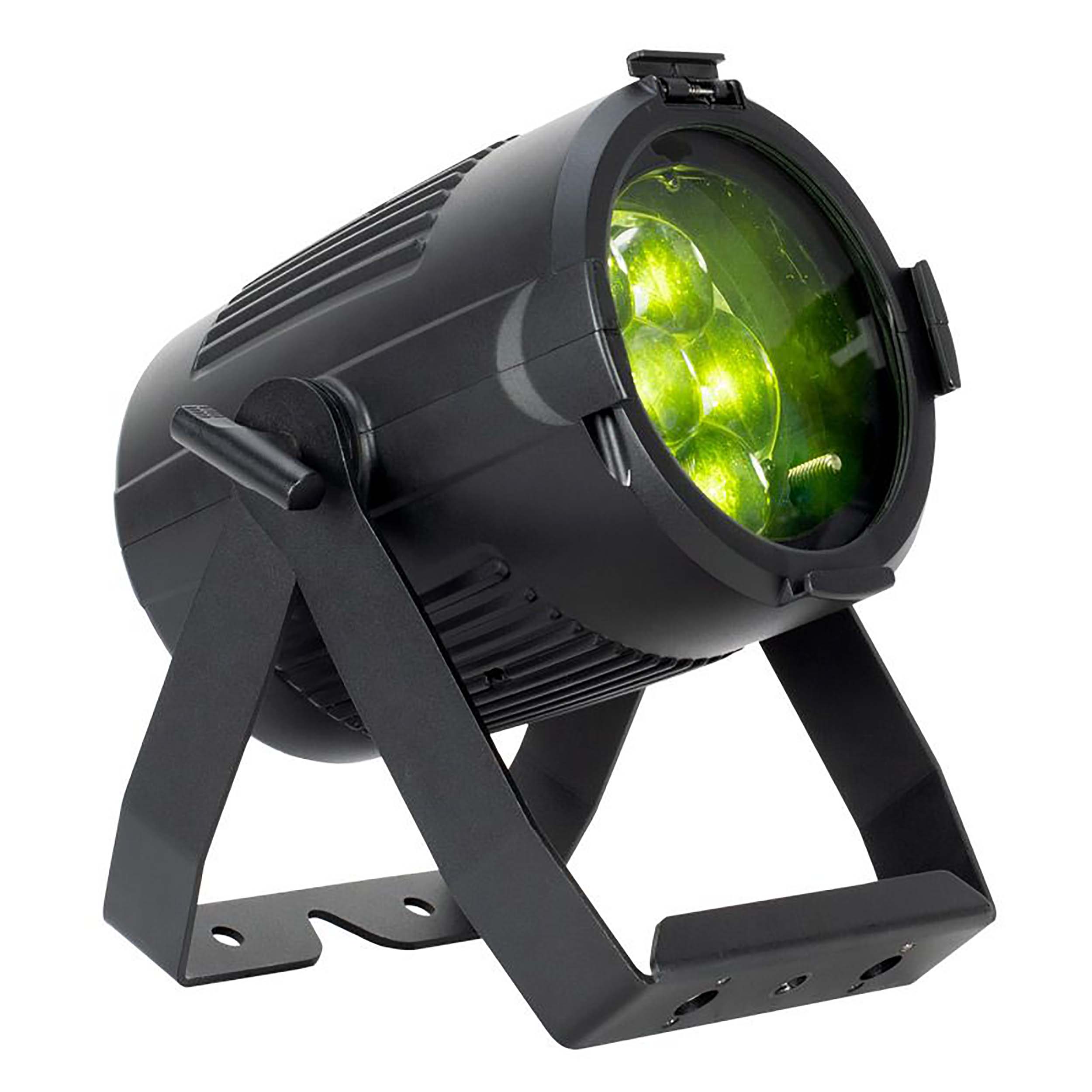

ADJ Encore Z7LP, Versatile LED Par Fixture with Motorized Zoom and Variable Beam Angle

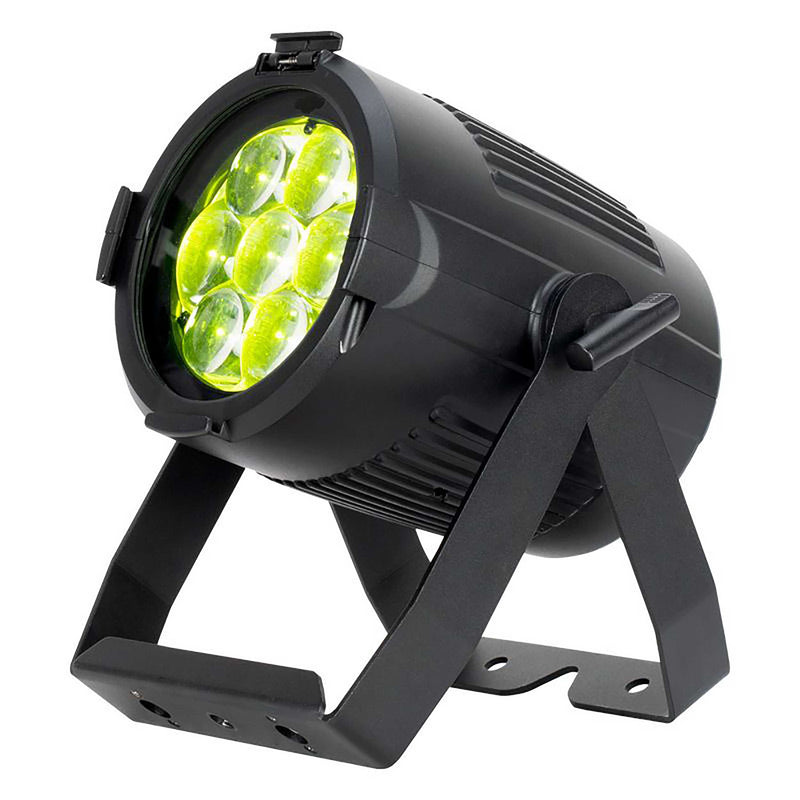

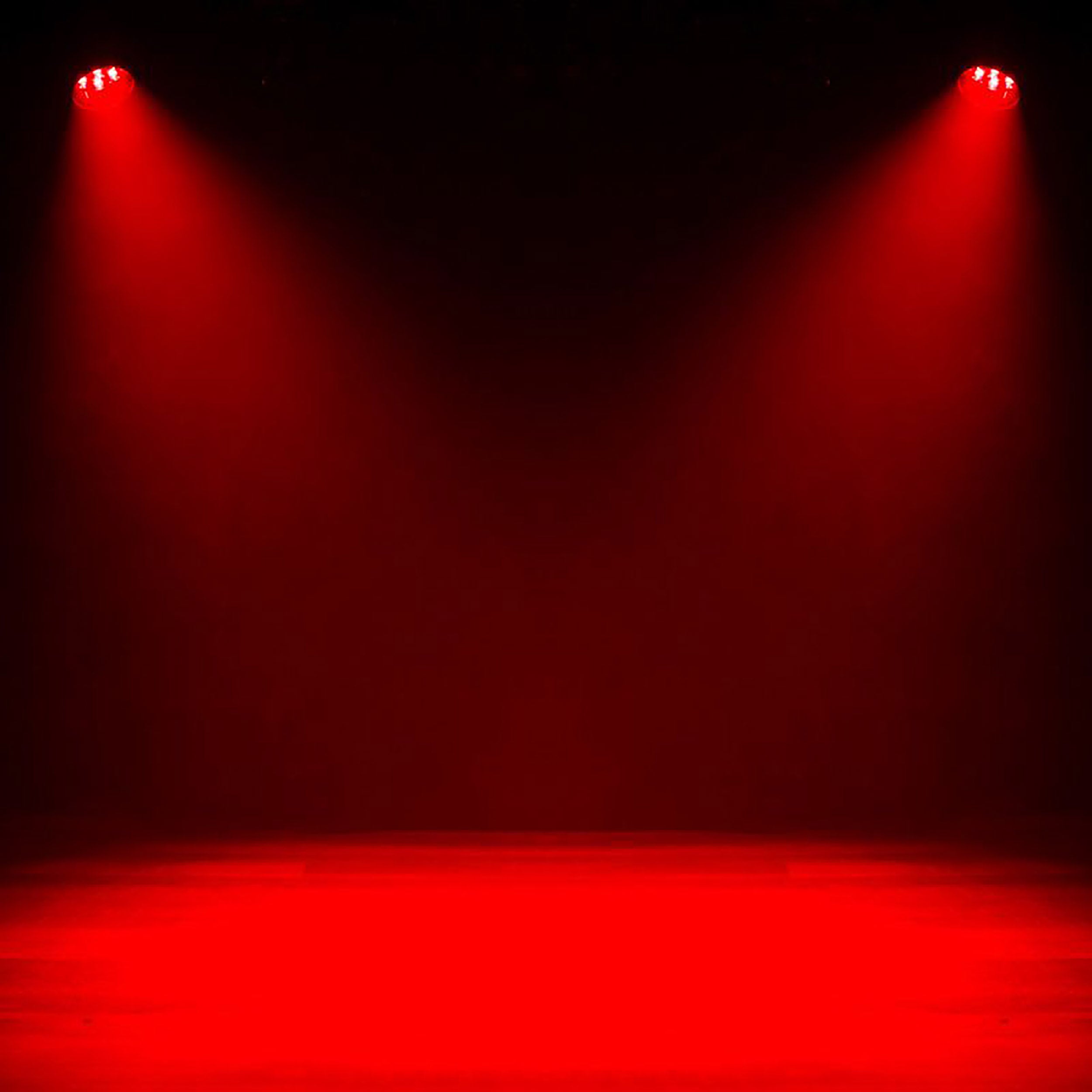

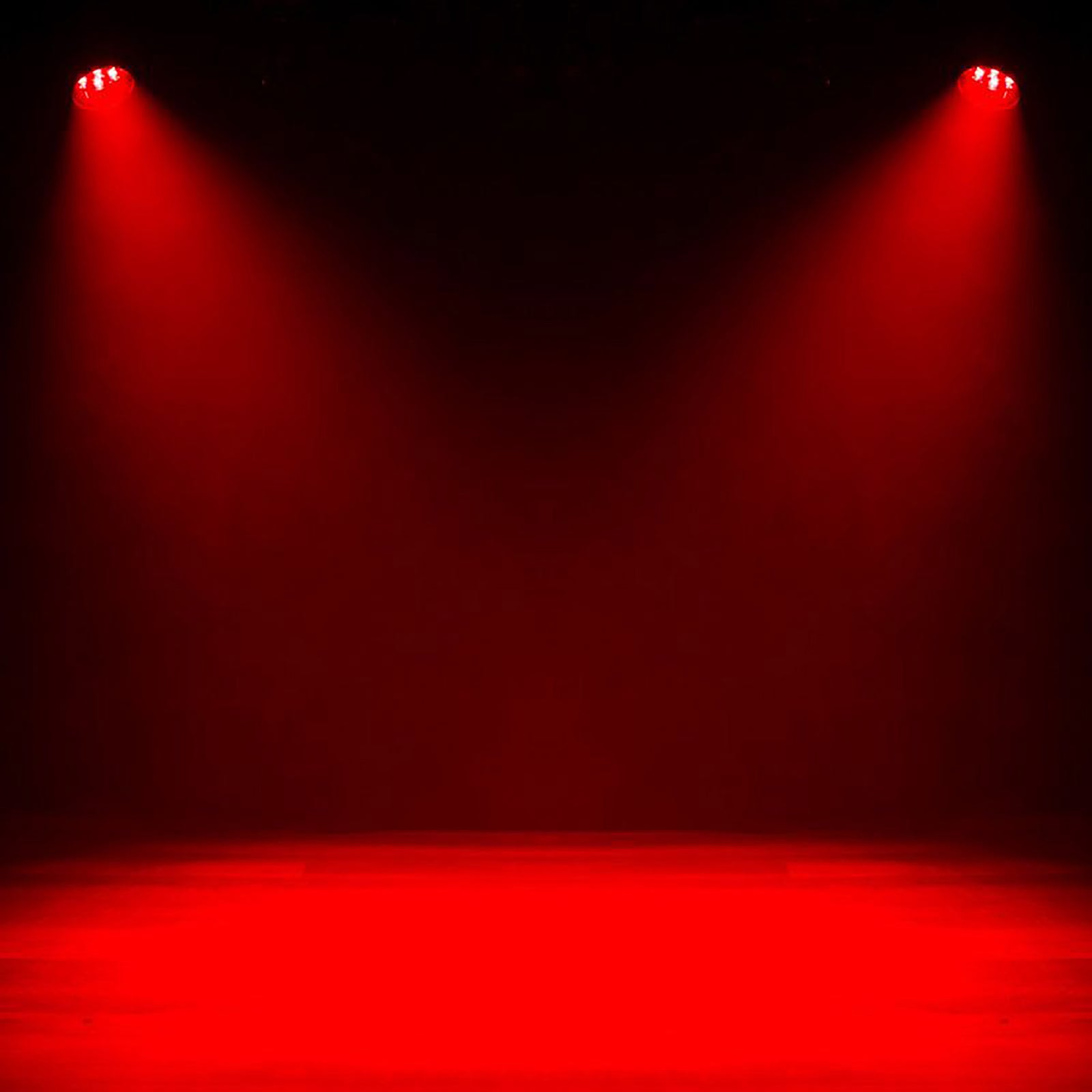

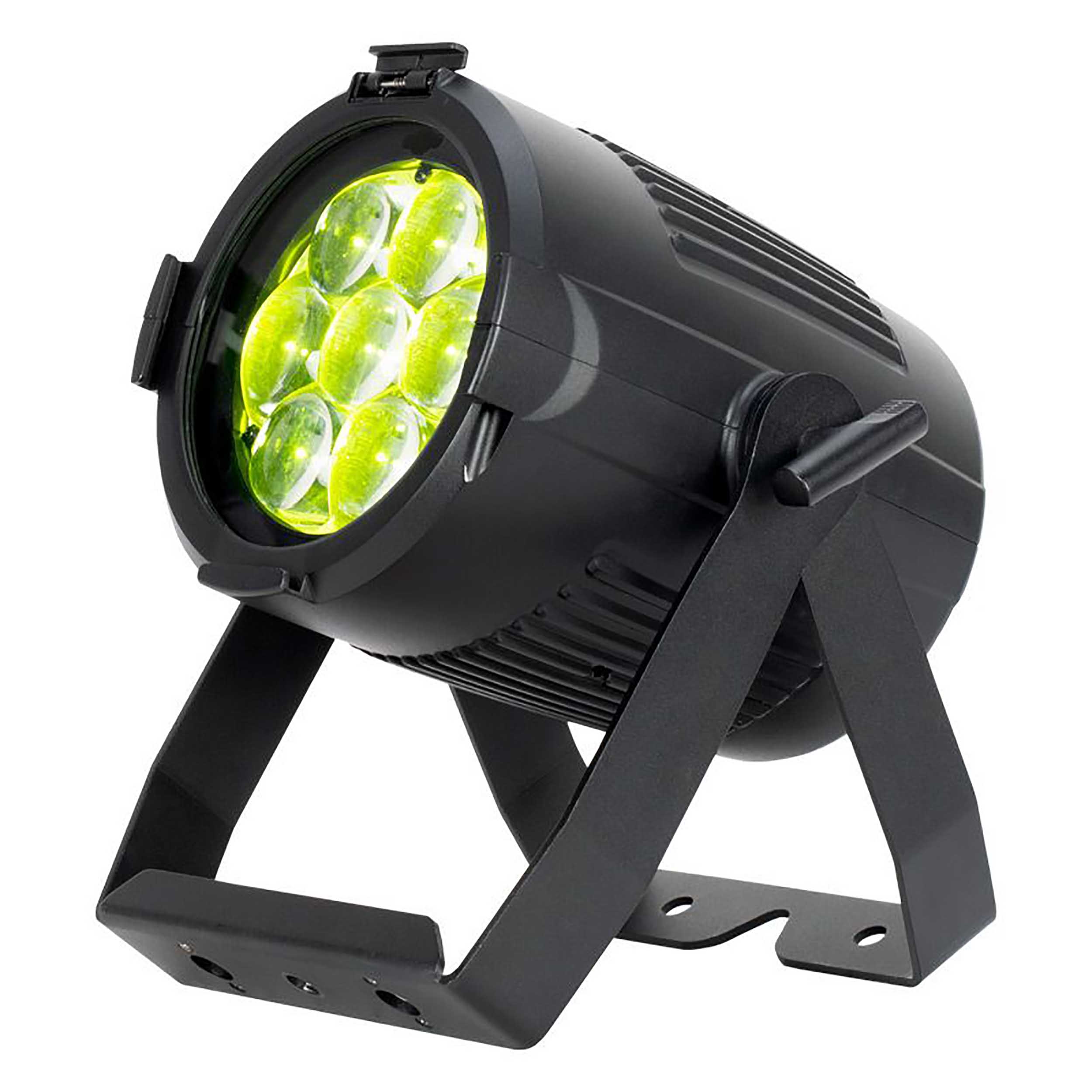

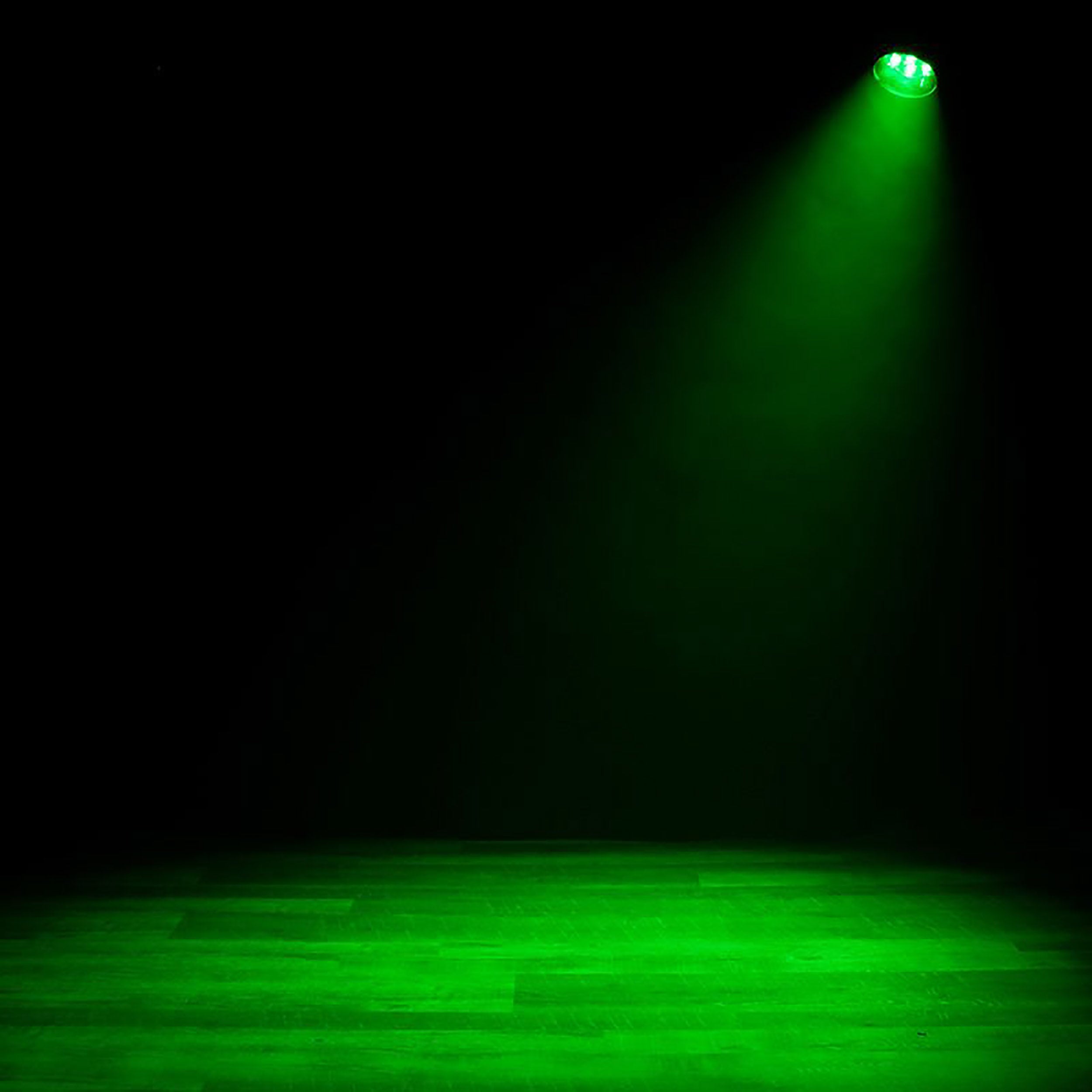

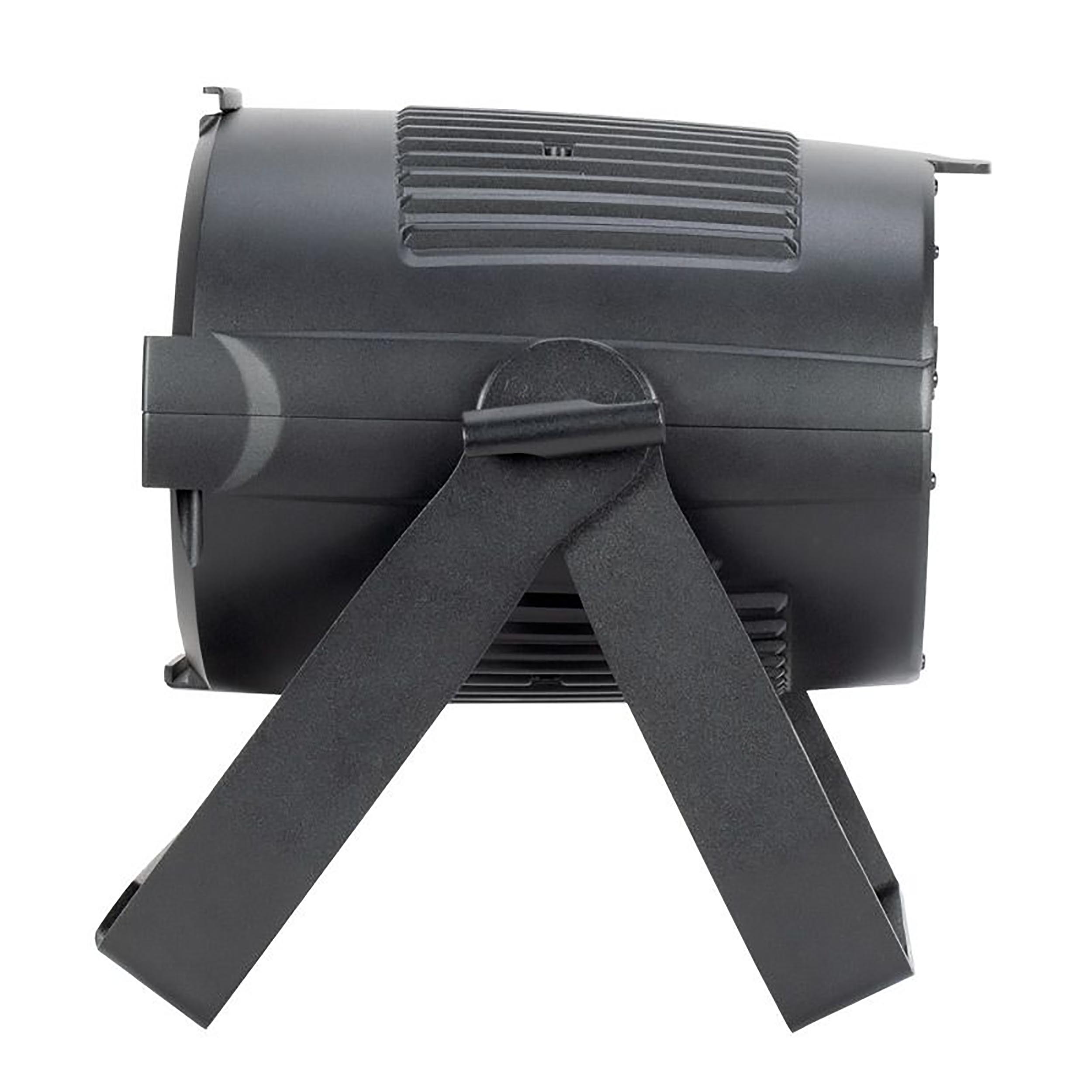

The ADJ Encore Z7LP, Versatile LED Par Fixture with Motorized Zoom and Variable Beam Angle allows the beam angle to be adjusted remotely via DMX between a concise 5-degrees and a wide 50-degrees. This means that the fixture can be easily utilized both to create a tight pool of light or broad wash, even switching between the two for different scenes of the same production. The fixture is supplied with a variable angle scissor yoke, which can be used either as a floor stand or hanging bracket, as well as a barn door accessory for directing the light output.

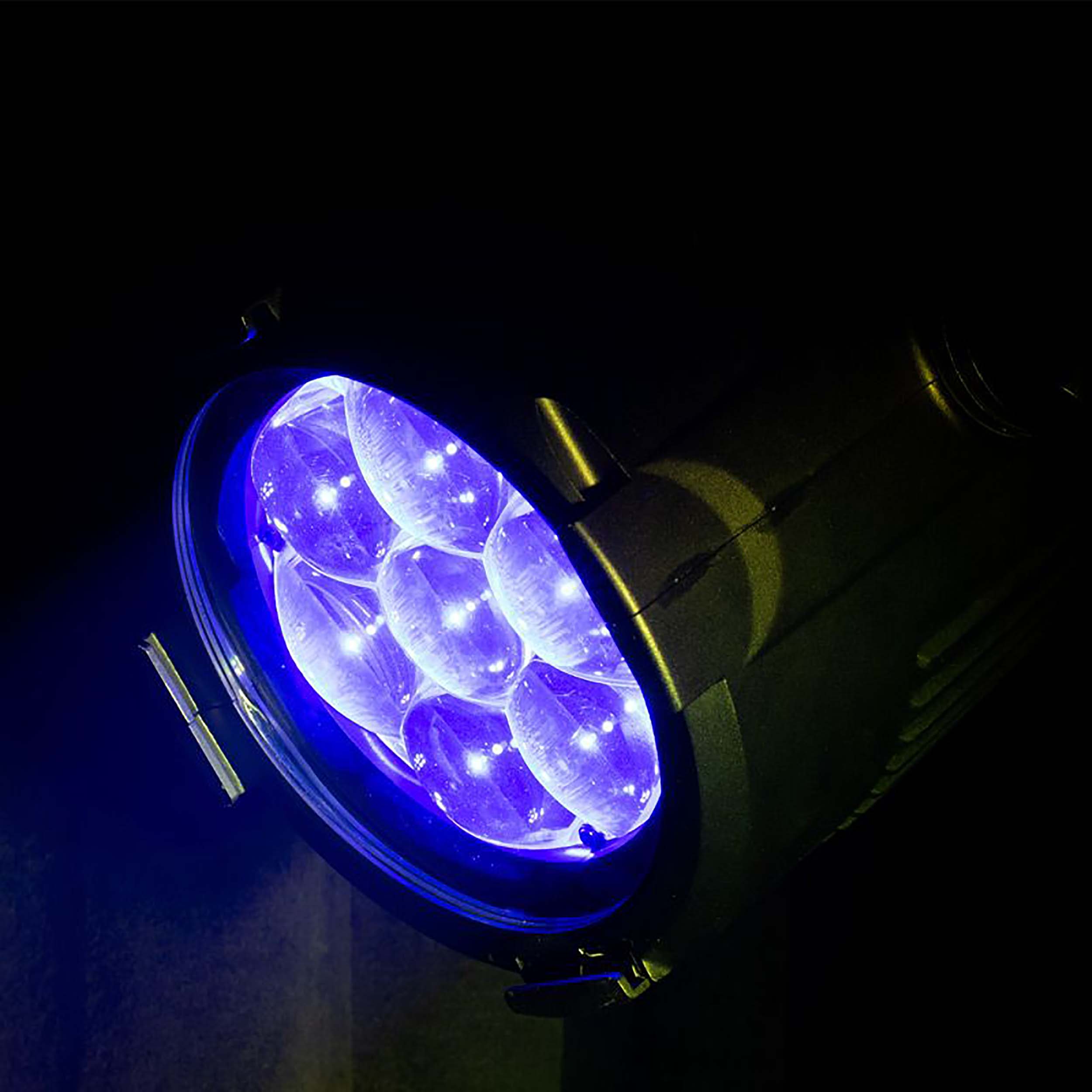

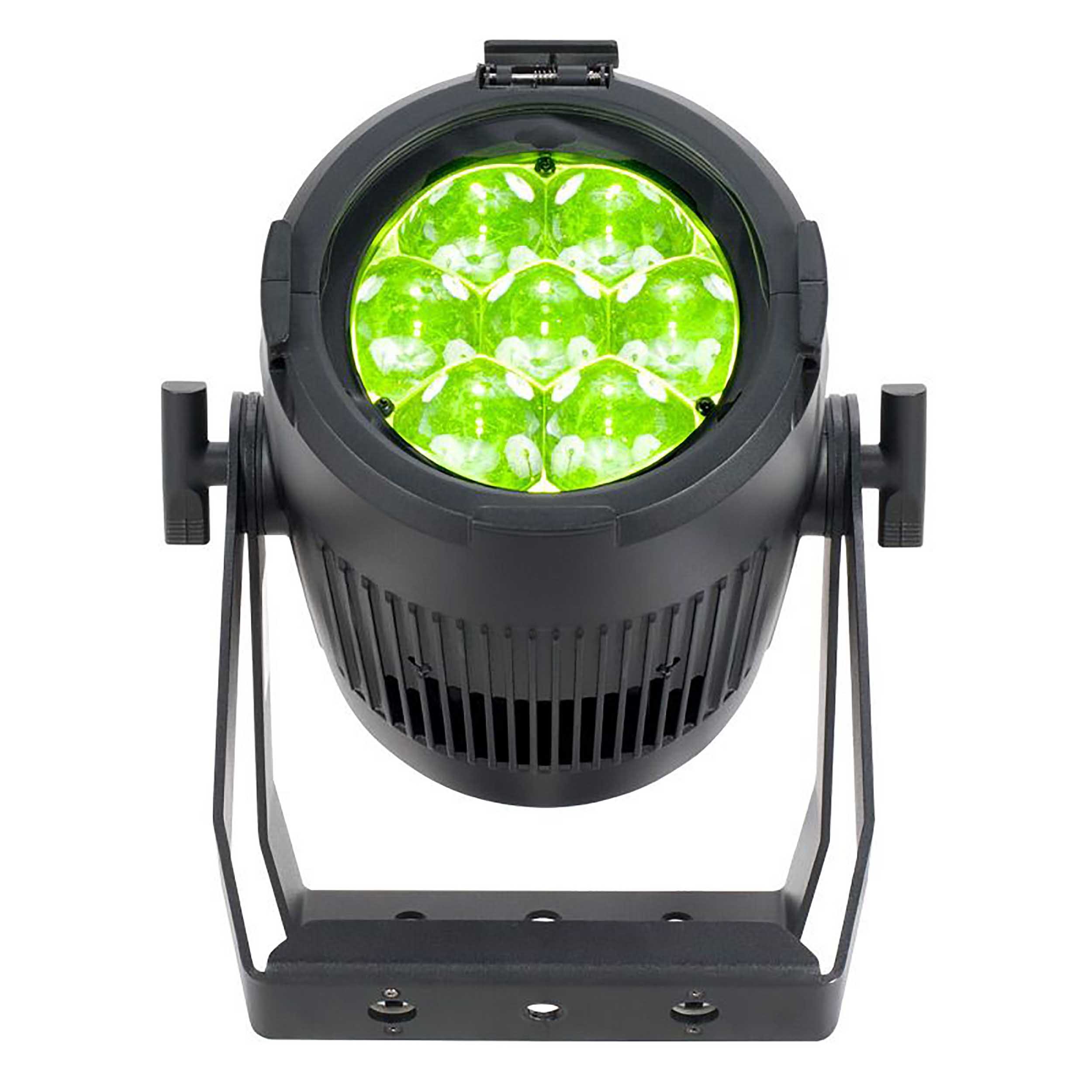

The unit's light source comprises 7 high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or one of 5 preset macros. Inclusion of the Lime LED element boosts CRI and perceived brightness as well as filling in gaps in the color spectrum. 16-Bit fine control over the four primary LED elements allows for a huge variety of color possibilities, while 64 built-in macros facilitate easy selection of popular options.

The fixture is ideal for rental houses, production companies and event professionals, as well as for installation in all kinds of performance spaces and entertainment venues.

Product Specifications:

Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

Photometric Data:

CRI: 84

CRI R9: 76.6

Lumens: 2500

Effects:

5-50 Degree Motorized Zoom

Zoom Presets (Very Narrow 6°, Narrow 10°, Medium Flood 30°, Wide Flood 40° and Very Wide Flood 50°)

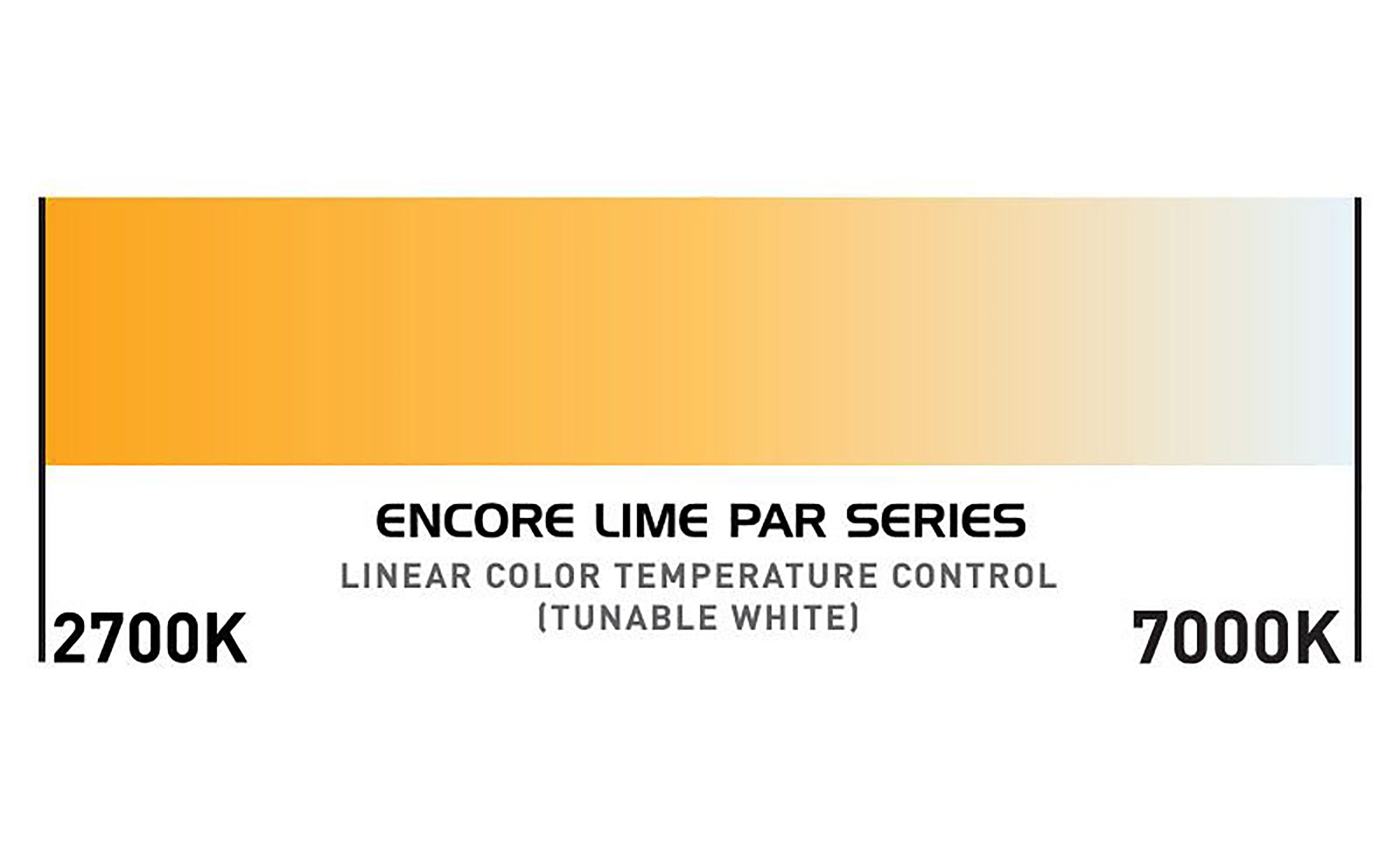

Linear Color Temperature Control (2700K to 7000K)

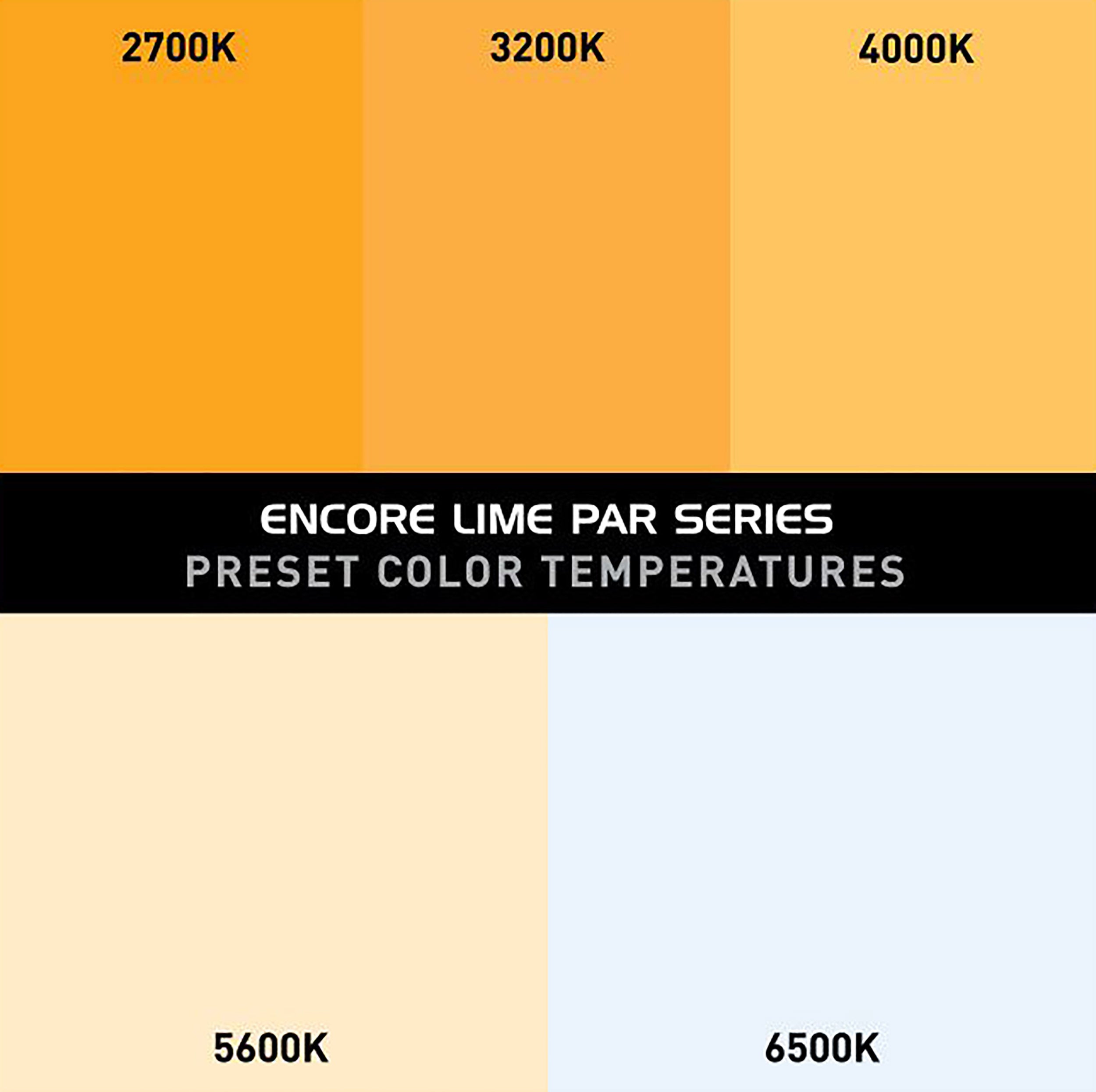

Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)

16-Bit Fine Color Control (Red, Green, Blue & Lime)

64 built-in Color Macros

Control / Connections:

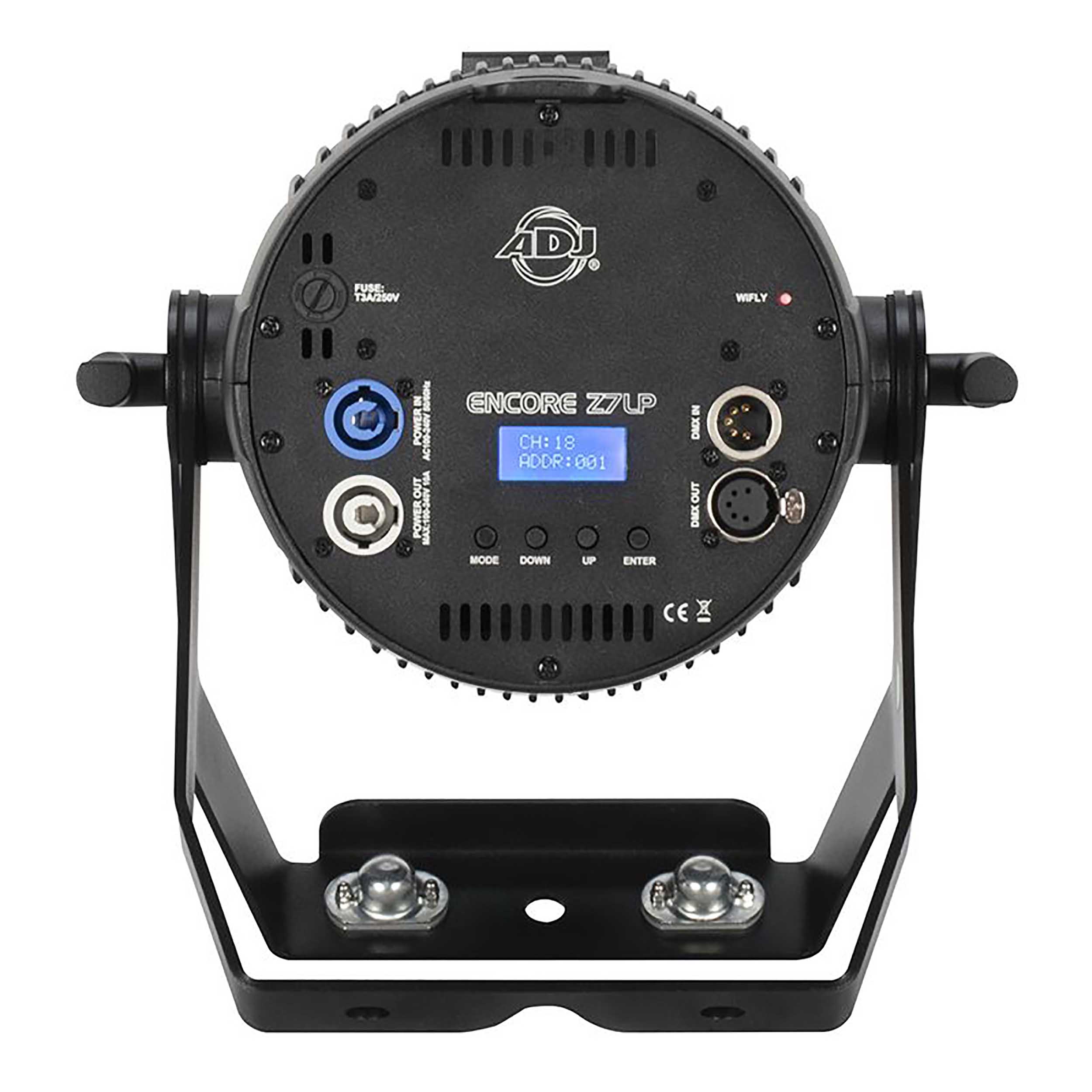

4-button, DMX digital display on rear panel

5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled

Supports RDM (Remote Device Management)

With Wired Digital Communication Network

6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)

Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)

Flicker Free operation (No flickering on camera)

LED pulse and strobe effect

Electronic Dimming: 0 - 100%

6 DMX Modes: 6, 9, 10, 12, 15 & 18-channel

Quiet fan mode

WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)

Construction:

All metal construction

Locking, In/Out Power connectors

5-pin, XLR DMX, In/Out sockets

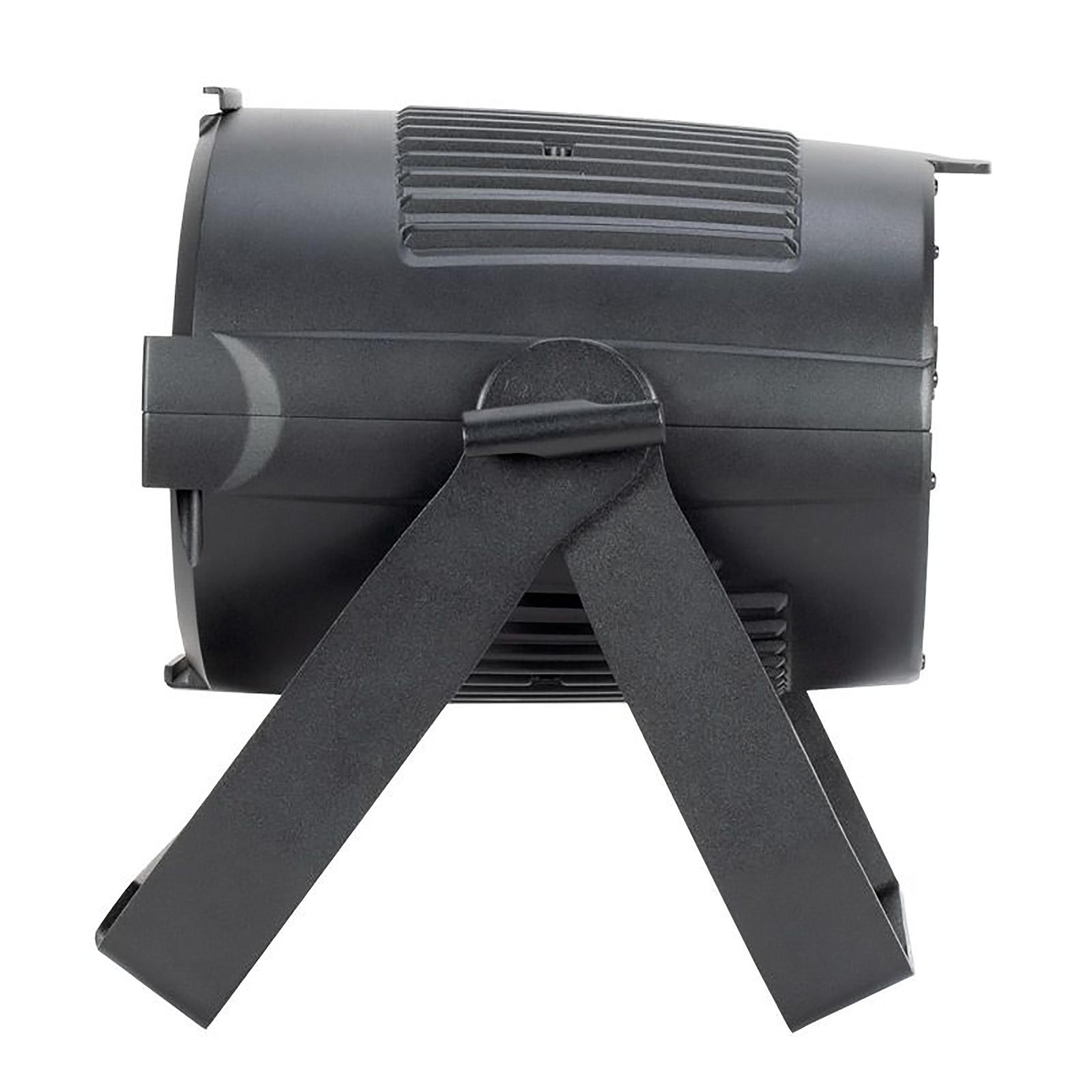

Scissor Yoke & safety eye

Electrical / Thermal:

Multi-voltage operation: AC 100-240V, 47/63Hz

Daisy chain: 10 @ 120V, 20 @ 220V

Max power: 103W

Dimensions (LxWxH): 8.3” x 11.5” x 14.8” / 211.0x292.5x376.0mm

Weight: 15 lbs. / 6.8 kg.

Approvals / Ratings:

cETLus (Pending)

IP20

Included Accessories:

Power Cord

Safety Cable

Gel Frame Assembly

Optional Accessories:

Omega Bracket: (Model: Omega 107mm, SKU: Z-8050000053)

Barn Door: (Model: ELPZ7BDA, SKU: ELP377)
