ADJ EVS3, Pixel Pitch Video Panel - 3.91mm

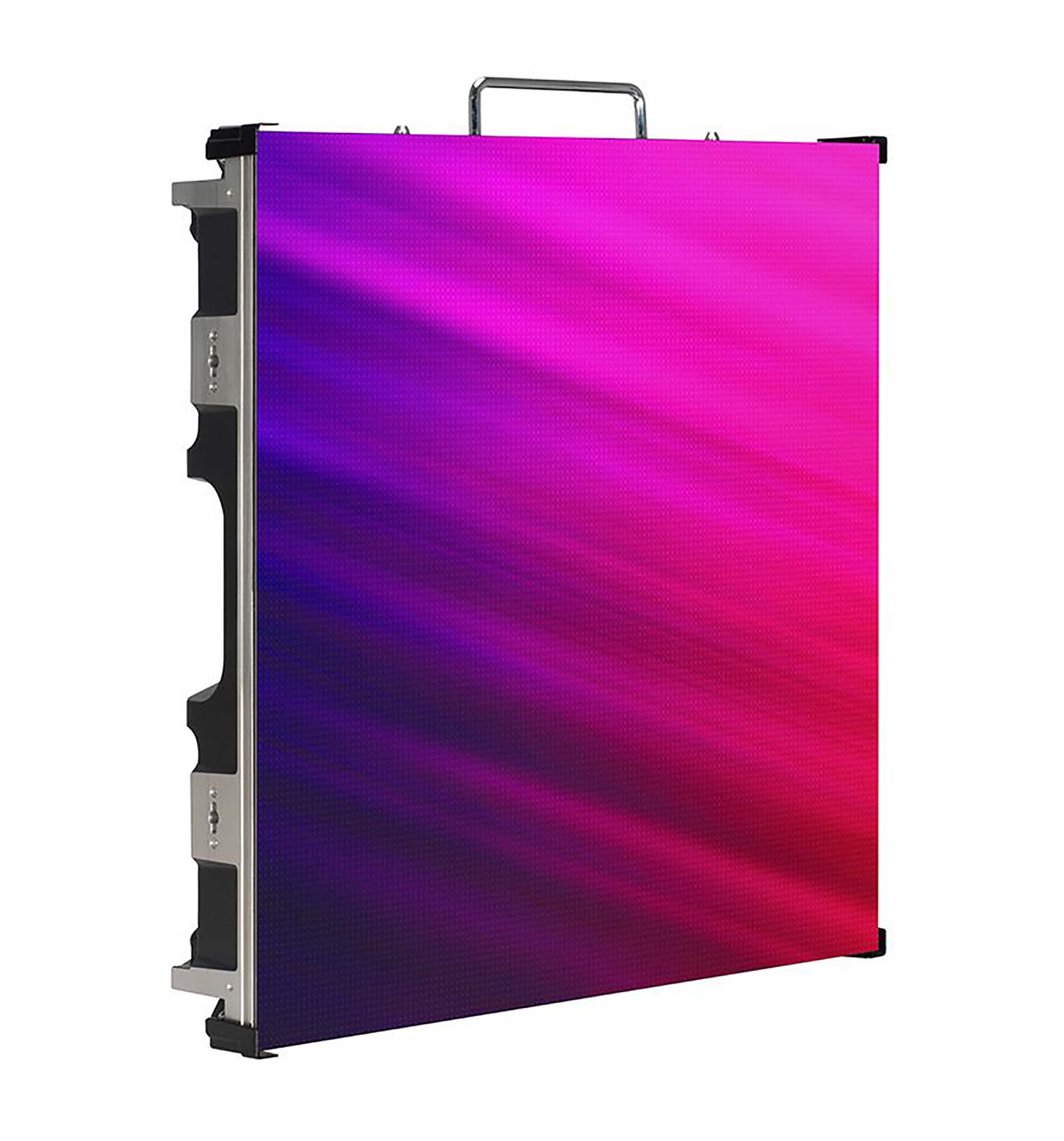

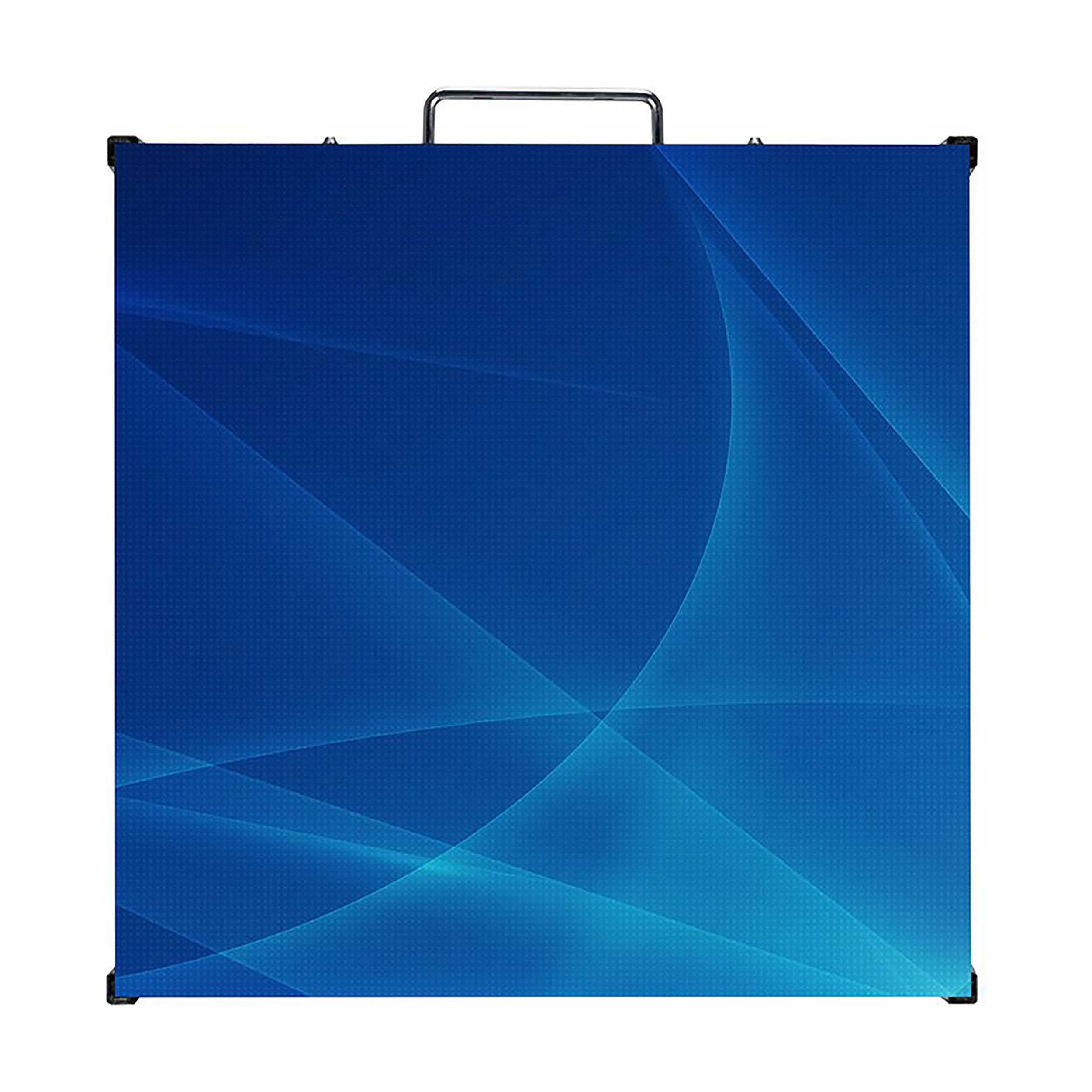

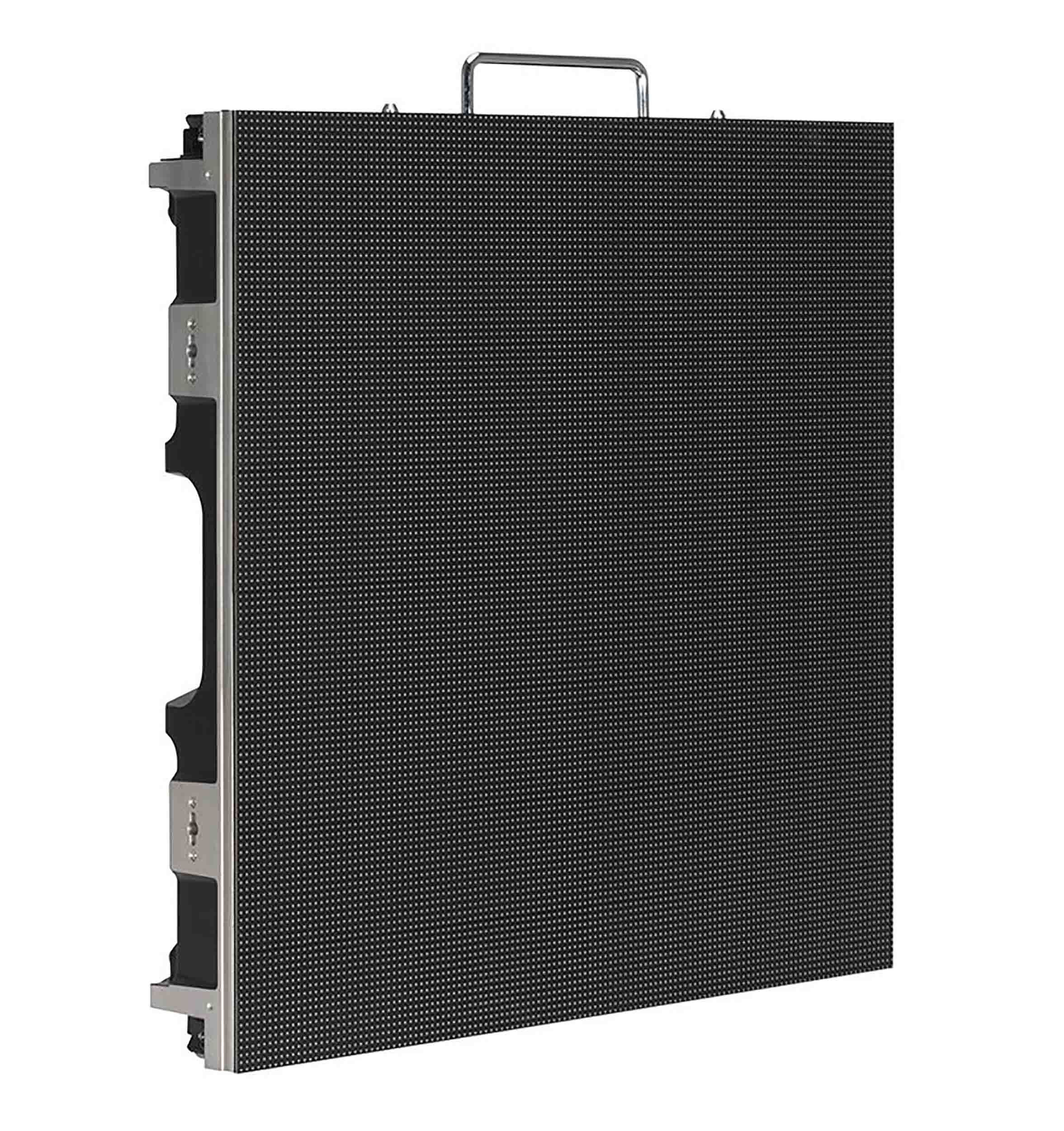

The ADJ EVS3, Pixel Pitch Video Panel-3.91mm  is a rugged LED video panel solution designed for temporary installations that demand stunning visual displays. With a pixel pitch of 3.91mm and a configuration of a 3-in-1 RGB SMD2121 LED, the EVS3 delivers crisp and vibrant images with a pixel density of 128x128, totaling an impressive 65,536 pixels per square meter.

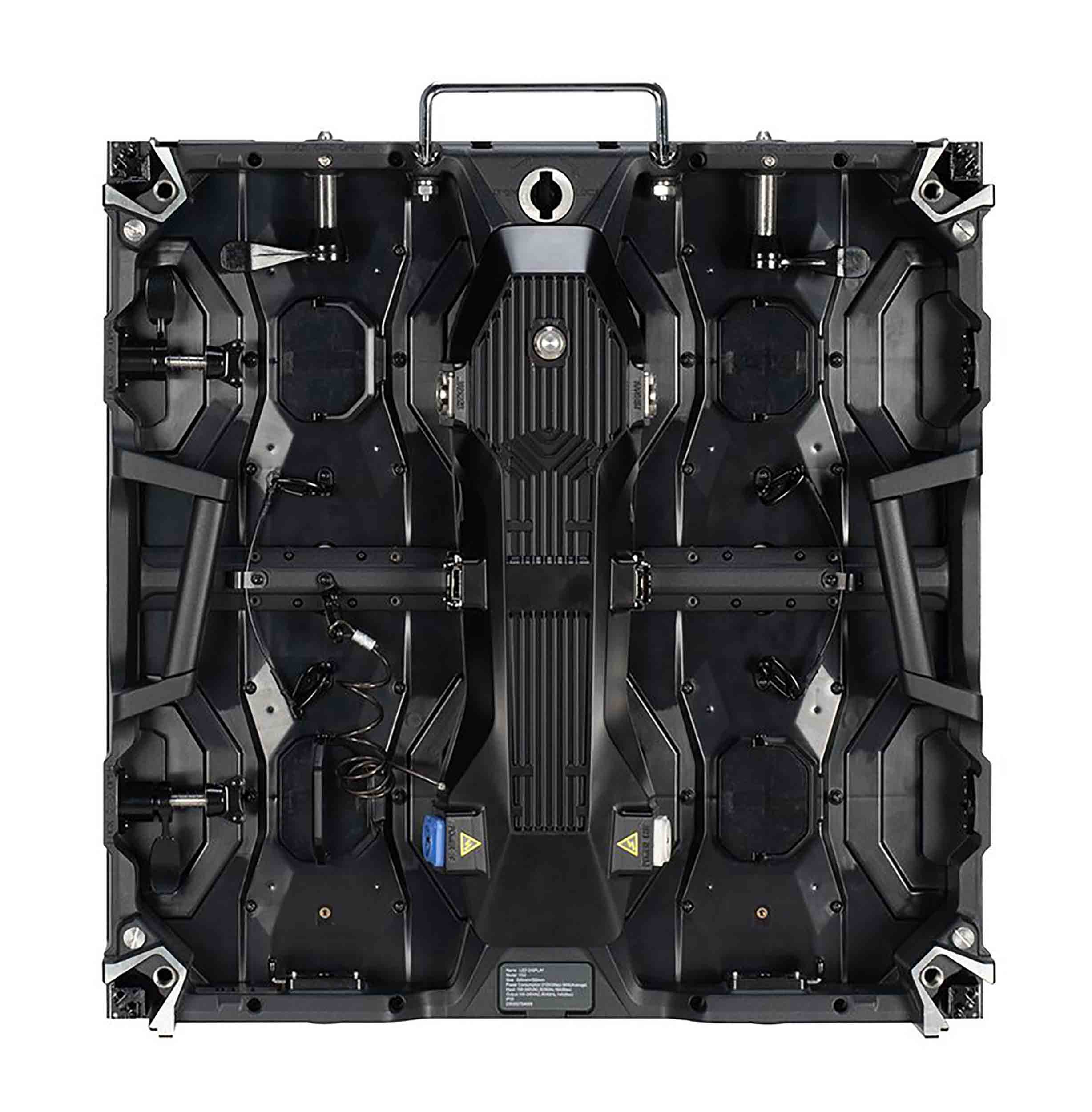

The EVS3 is built for convenience and durability, featuring front and rear serviceability with four easily replaceable video modules on each panel. Its compact size of 19.68” x 19.68” x 2.96” and lightweight construction weighing just 16.5 lbs. make it highly portable and easy to handle.

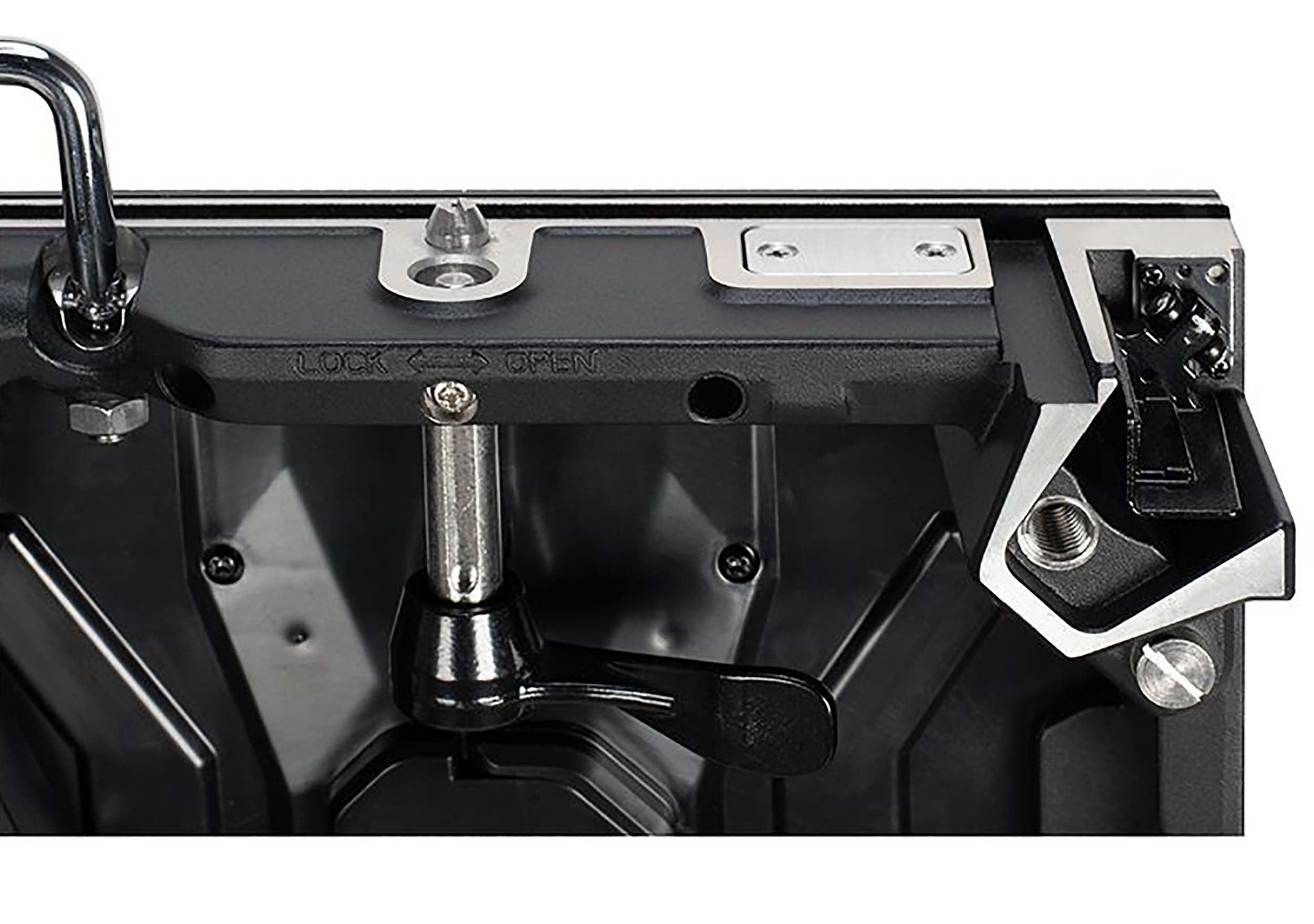

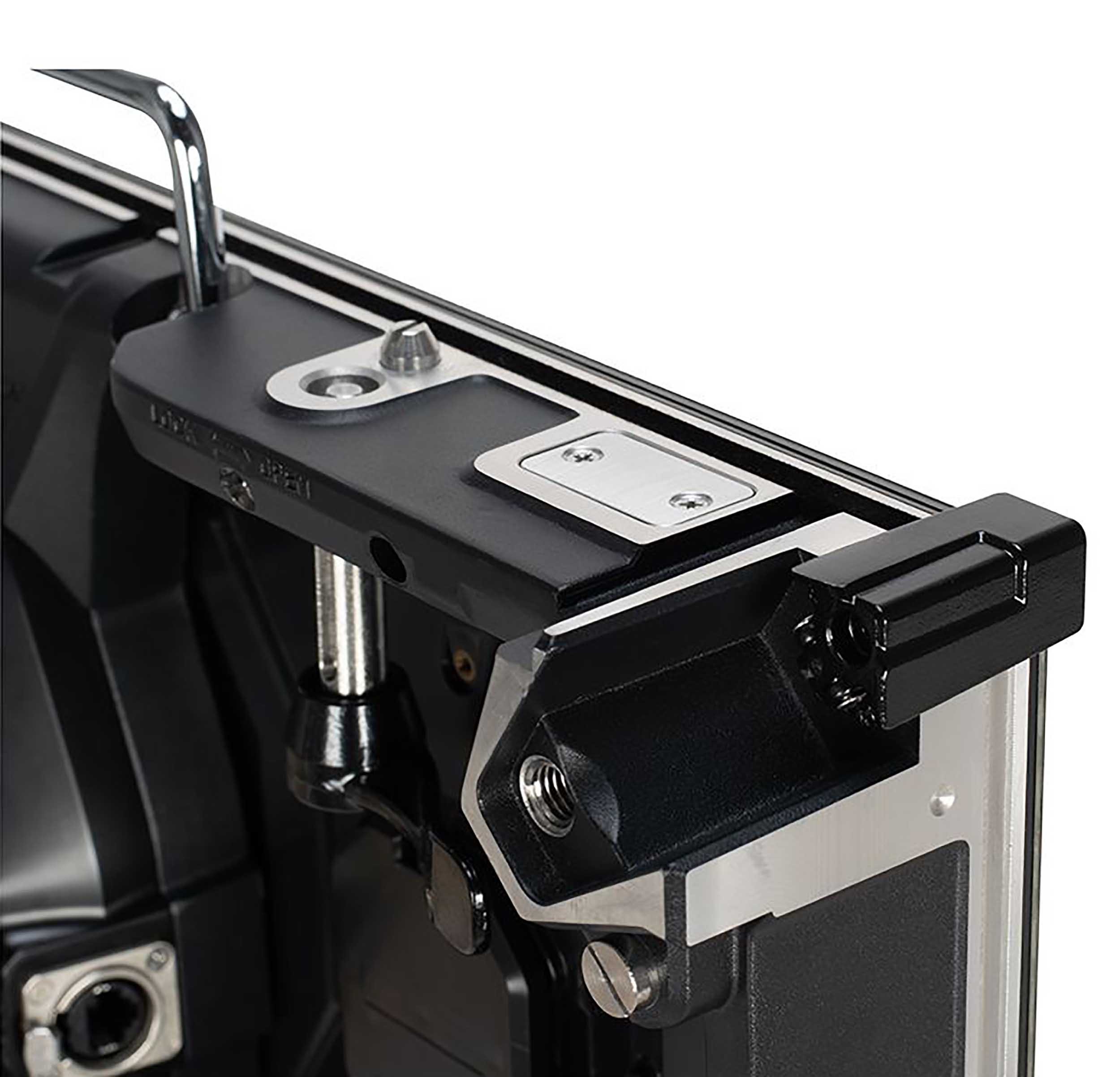

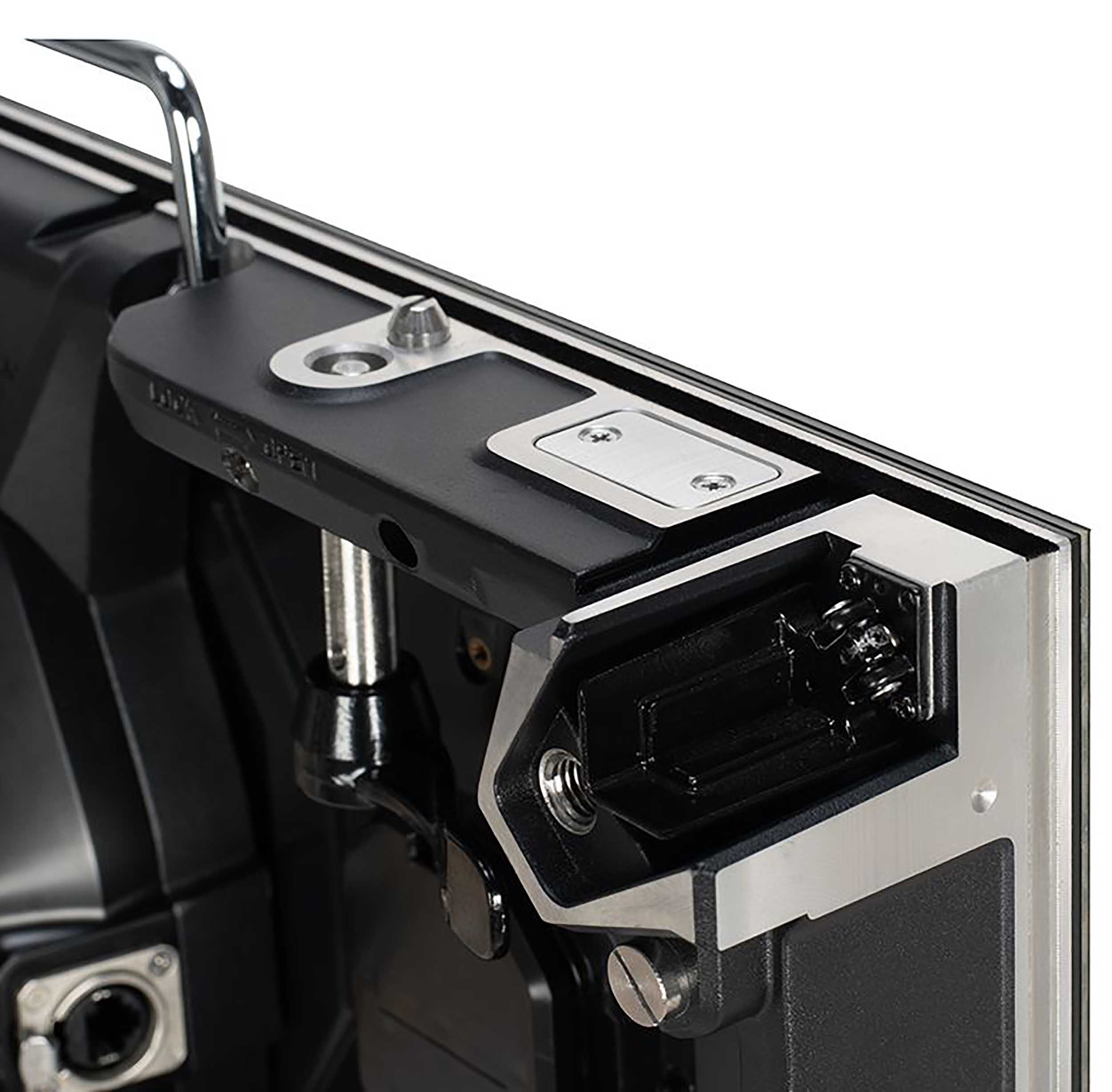

Equipped with corner protectors for added durability during transport and setup, the EVS3 ensures that your investment remains protected. Its exceptional optical ratings include a brightness of 800 NITS and a wide viewing angle of 160° horizontal and 140° vertical at 9.75 ft. The EVS3 also offers versatile control options, supporting various input modes such as Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI.

Hang up to 20 EVS3 Video Panels vertically with the VSRB1 (VS1100) Rigging Bar. For added convenience, a range of optional accessories are available, including flight cases, rigging bars, support brackets, and video processors, allowing you to customize and enhance your installation according to your specific needs.

The EVS3 is intended for temporary use only and should not be permanently installed. Elevate your visual experience to new heights with the ADJ Lighting EVS3 LED video panel.

Product Specifications:

Specifications:

Pixel Pitch: 3.91mm (0.15”)

LED Configuration: 3-in-1 SMD2121 LED

Pixel Density: 128x128; 65536 per square meter

Size: 19.68” x 19.68” x 2.96” / 500 x 500 x 75mm

Module Quantity: 4

Weight: 16.5 lbs. / 7.5kg.

Mechanical Ratings:

Surface Flatness: Gaps<0.5mm

Optical Ratings:

Brightness: 800 NITS

View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)

Gray Scale: ≥14-bit

Display Color: 256

Brightness Adjustment: 0~100% 100 Levels

Contrast ratio: 5000:1

Processing: 14-bit

Power Supply:

Operation Power: 100~240V 50-60Hz

Max. Power Consumption: 120W/per panel

Ave. Power Consumption: 48W/per panel

Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out

Control System:

Control Mode: Nova Star Synchronous System with Control via DVI

Frame Update Frequency: 50-75Hz

Scan Mode: 1/16

Refresh Rate: 3840Hz

Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance: Ethernet Cable <120m or Fiber Optic>120m

Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

Operating Life / MTBF: 50,000 Hours / 5,000 Hours

Protection Level: IP20 (Front and Back)

Out of Control Rate: <0.02%

Optional Accessories:

VSFC8 (VS8100): Flight Case - Fits 8 EVS3 Video Panels

VSRB1 (VS1100): Rigging Bar - Hang up to 20 EVS3 Video Panels vertically

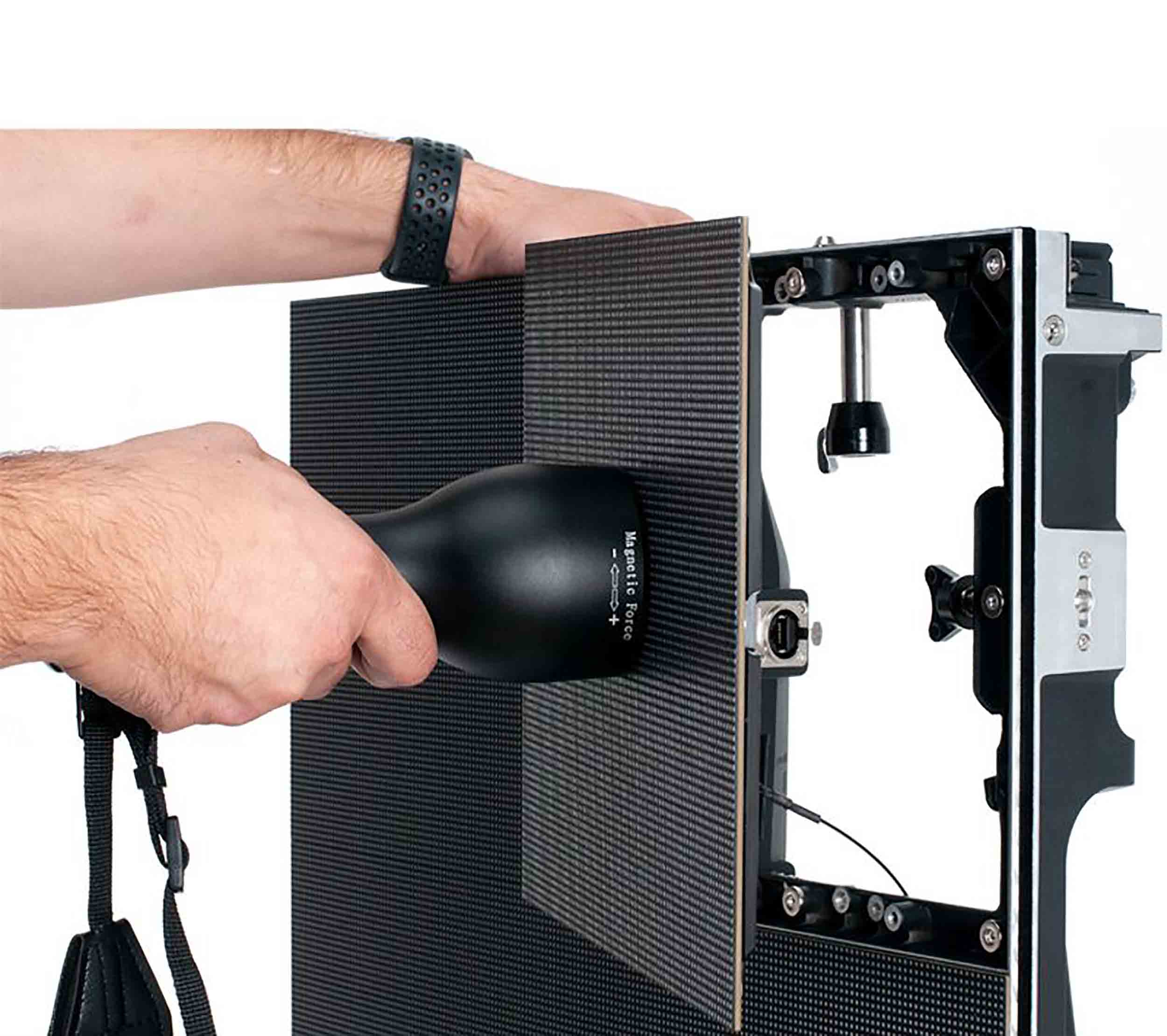

VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing.

VSRQR (VSR210): Quick Rig - Attaches and locks on to the rear of EVS3 so it can be fastened to a 2" pipe or truss

VS1RSB (VS1126): Rear Support Bracket for EVS3

VSSCSB VSS225): Single Column Support Base

VSGSB (VSG100): Ground Support Base

VSGSLT (VSG132): Ground Support Ladder Truss

VSGSCSB (VSG155): Clamp Support Bar

EVSVAC (EVSVAC): Vacuum Tool to Remove Modules

Novastar VX4S: Video Processor

Novastar MCTRL-300: Video Processor

Novastar Nova Pro HD: Video Processor

Arkaos Media Master: Video Software

Arkaos GrandVJ 2.0: Video Software

Cables:

Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)

Indoor Power Locking Link Cables

Indoor Power Locking Main Power Cables

Certifications: cETLus
