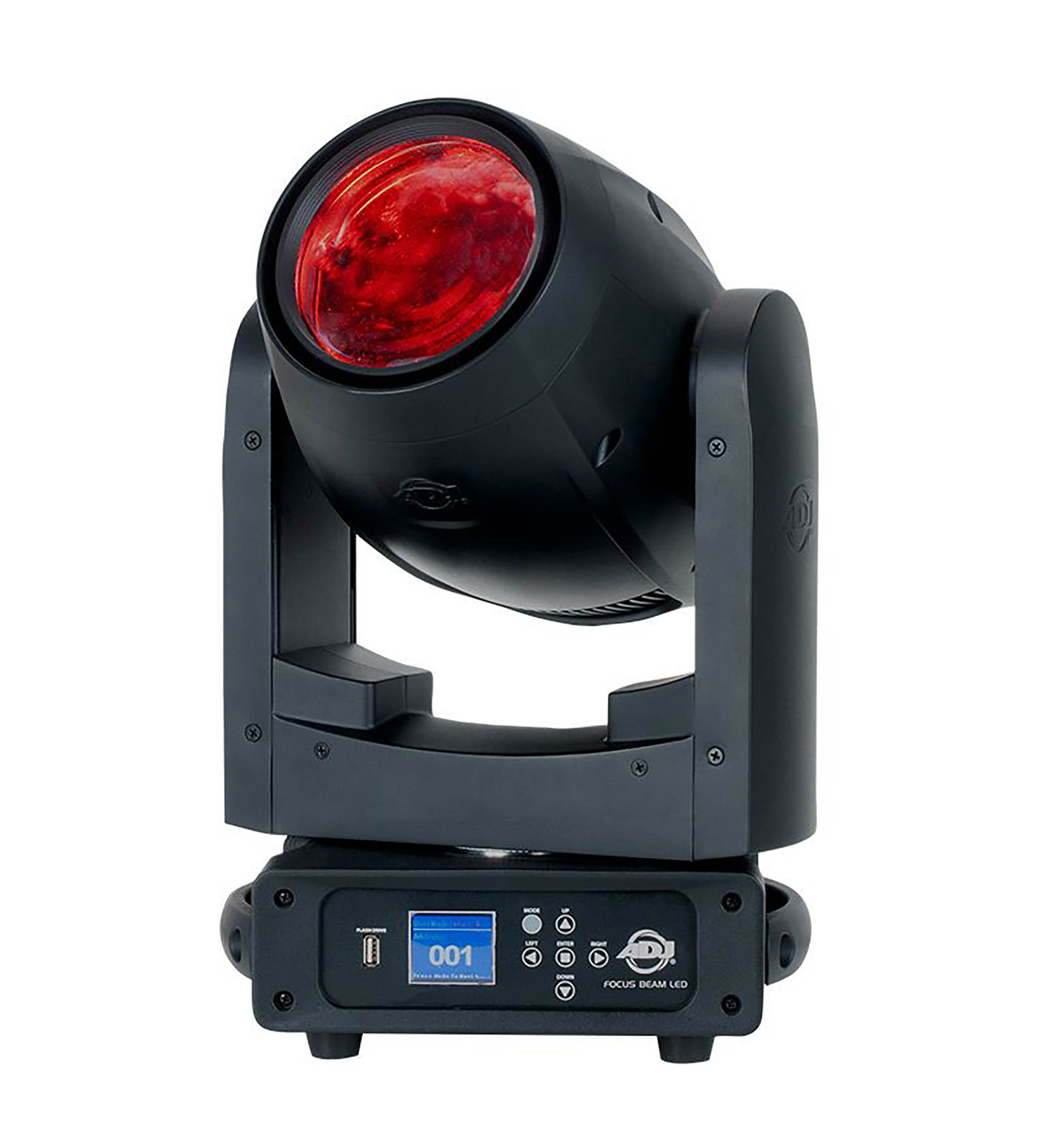

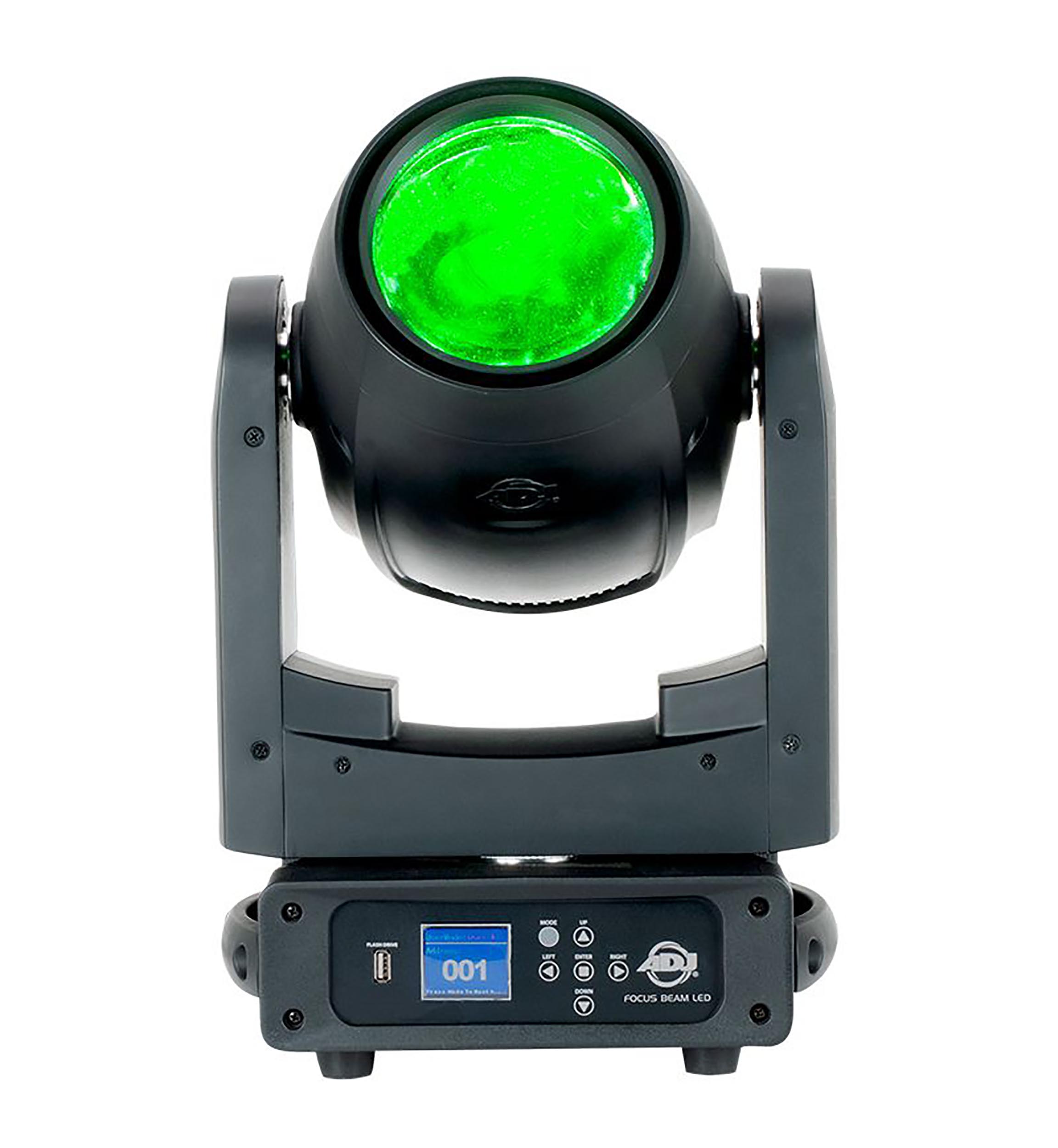

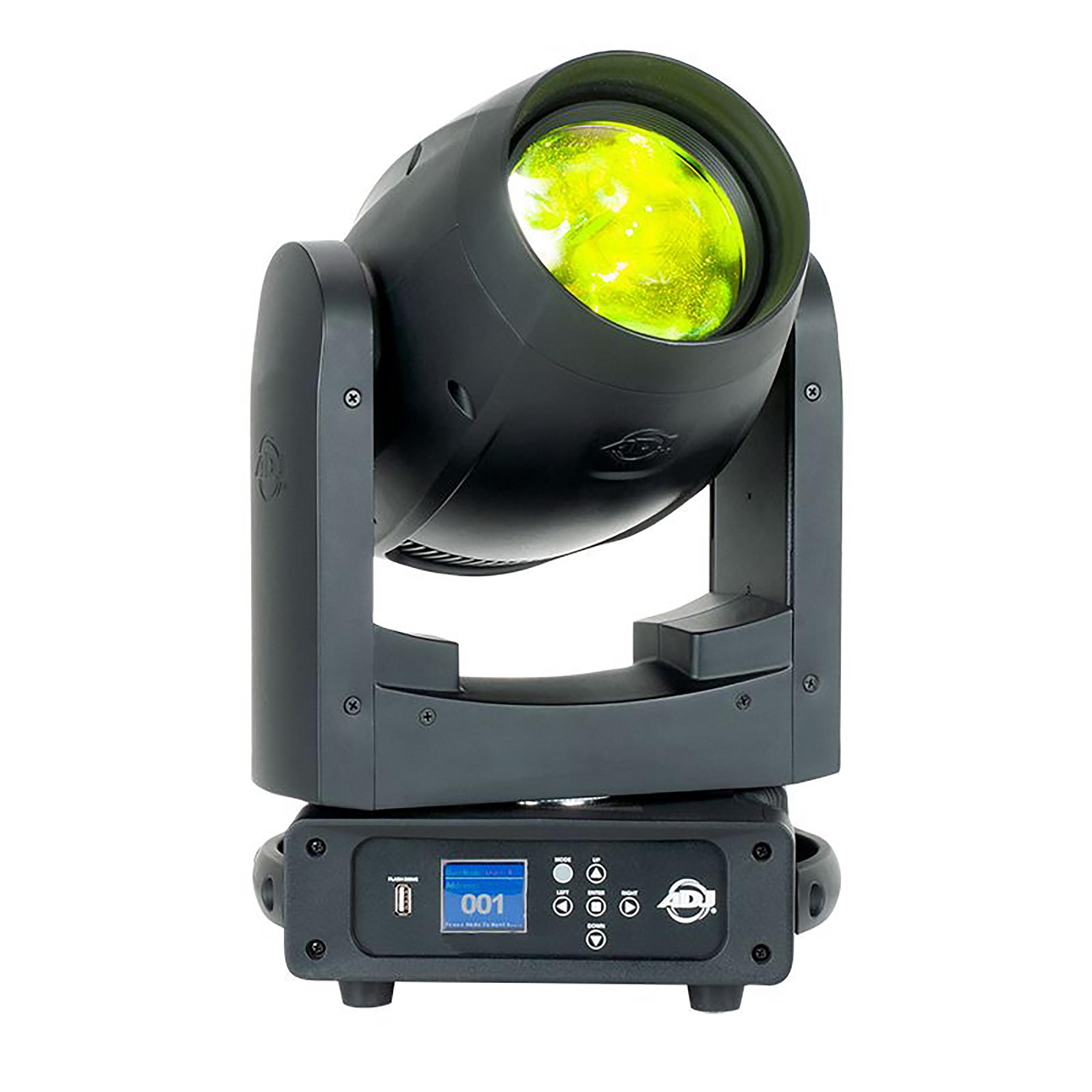

ADJ Focus Beam LED, 80W LED Beam Moving Head with Motorized Focus and Prism Wheels

The ADJ Focus Beam LED, 80W LED Beam moving head with motorized focus and prism wheels a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 2.5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.

There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.

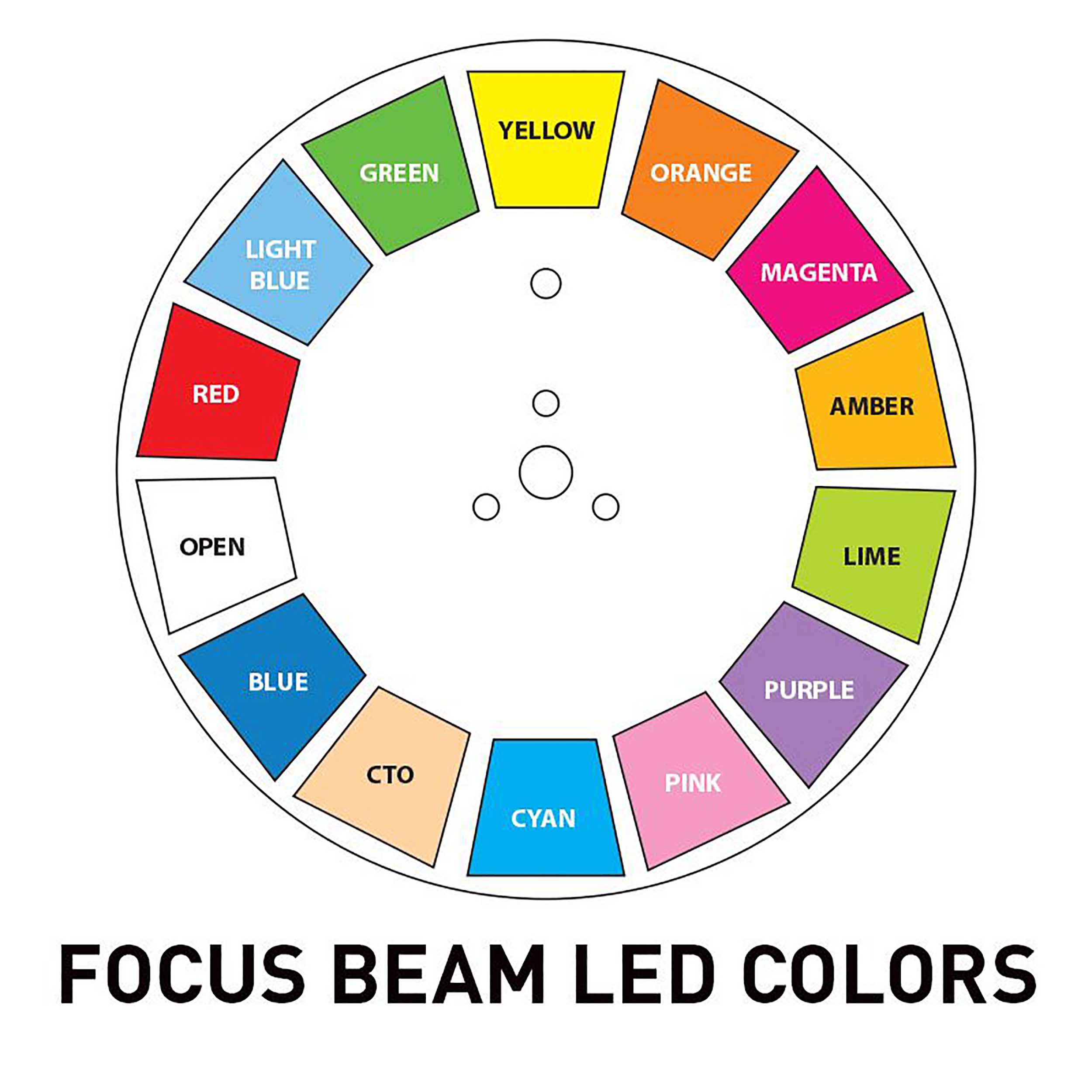

The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.

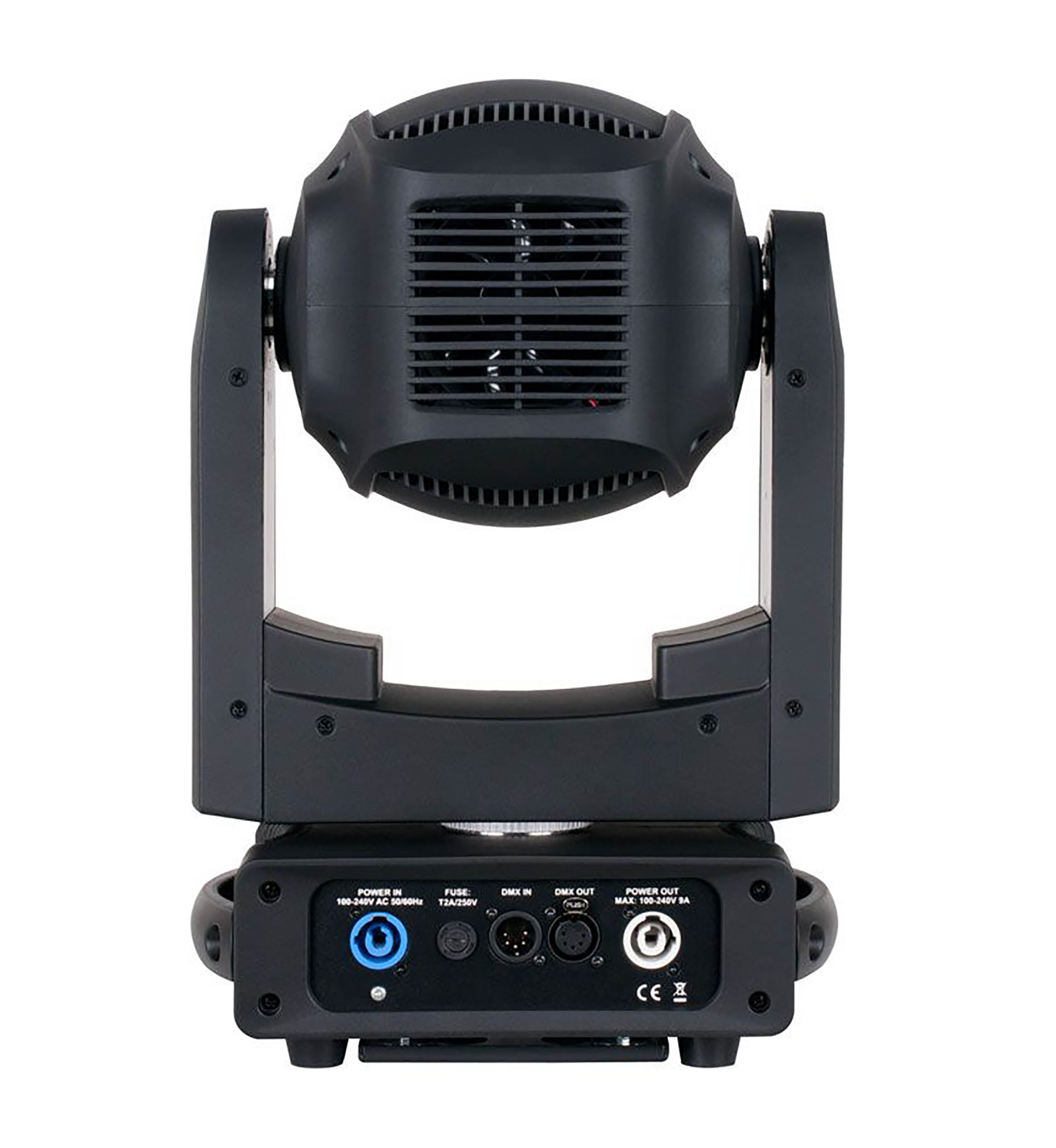

There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 5-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.

The Focus Beam LED fits in the ADJ DRC MH road case.

Product Specifications:

Light Source:

1x 80W Cool White LED Engine

2.5° Beam Angle

Color Temperature: 7400K

Color Wheel: 13 dichroic colors + white

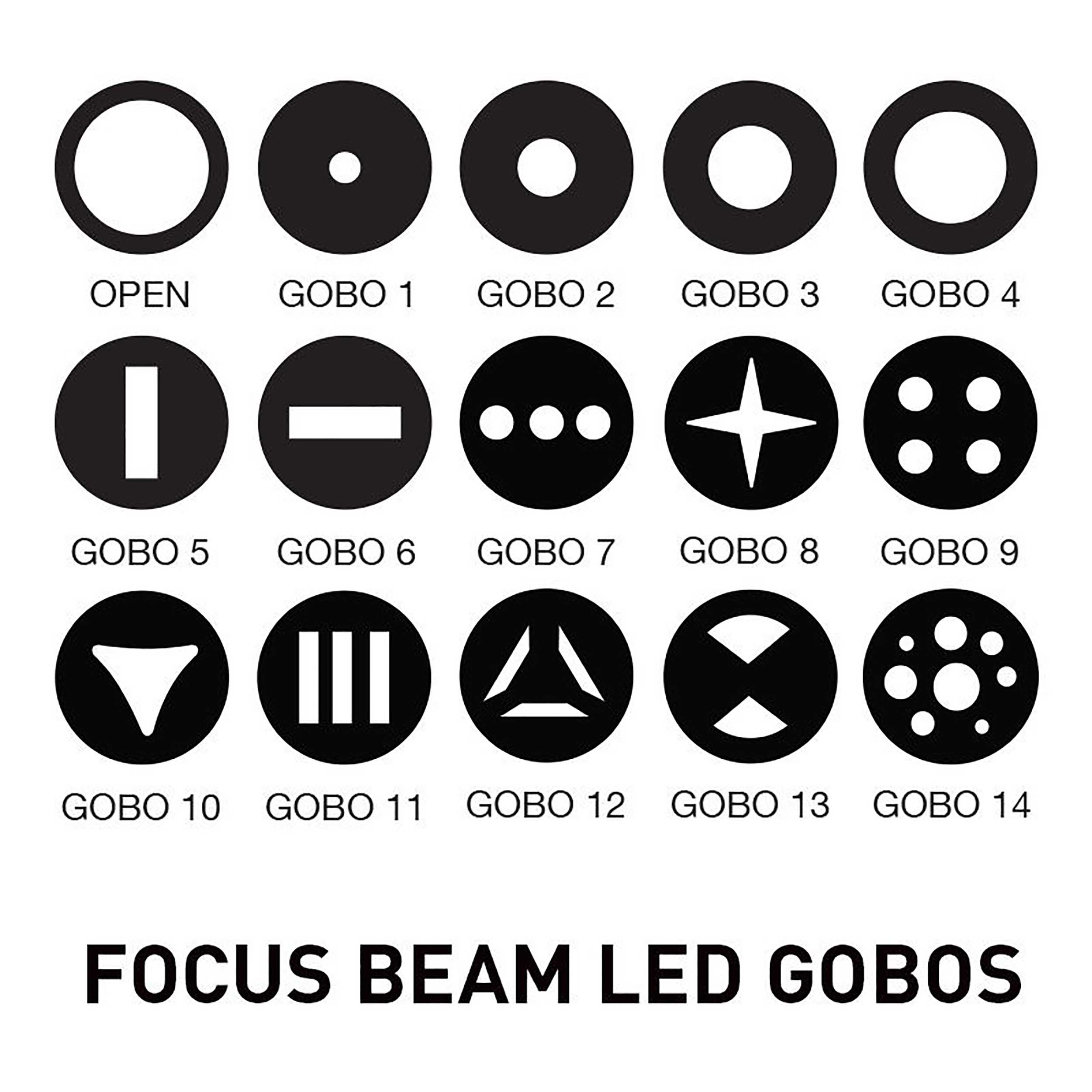

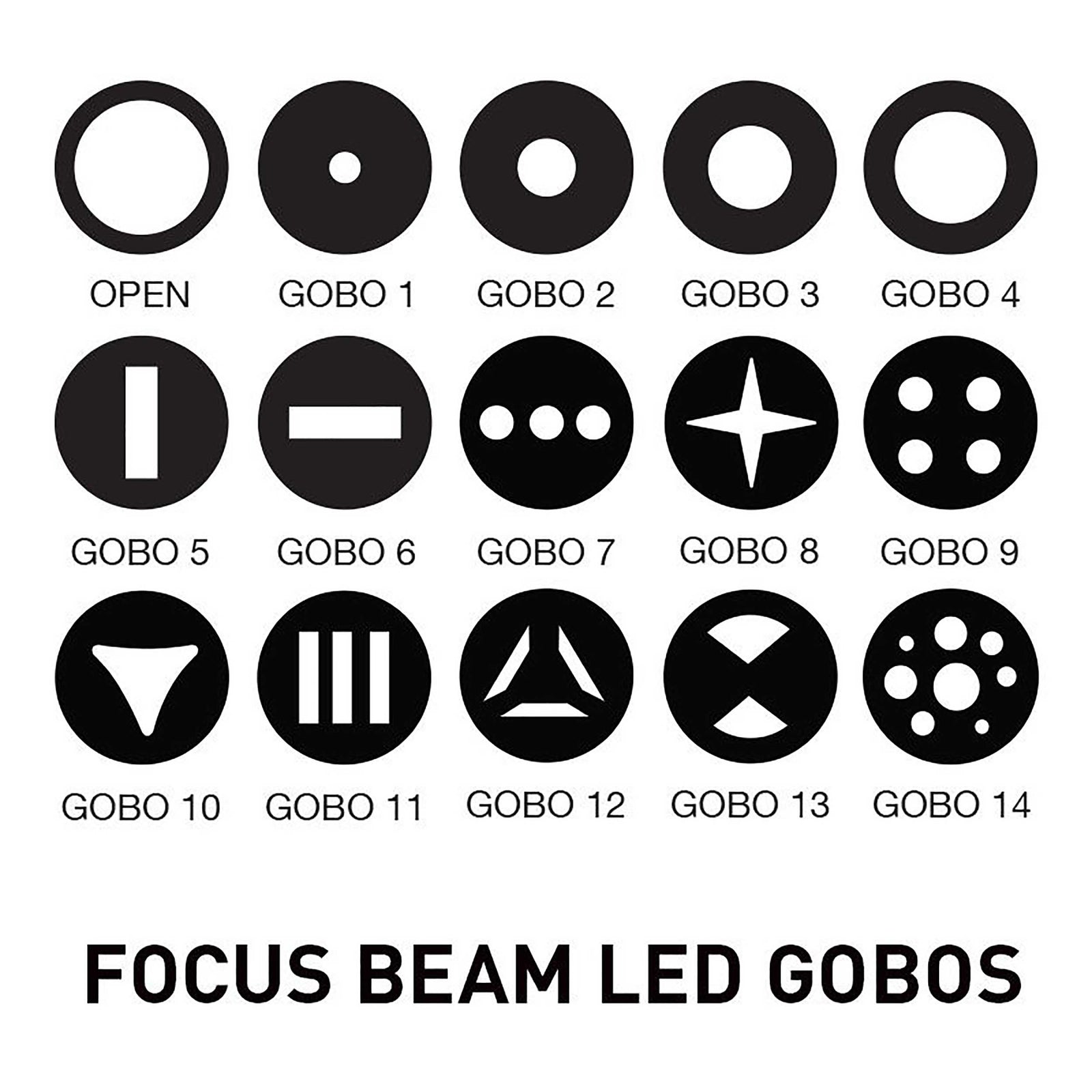

GOBO Wheel:

Metal wheel with 15 fixed GOBOs + Open

GOBO shake effect

Prism Wheel:

Prism Wheel 1: Rotatable 8-facet Circular

Prism Wheel 2: Rotatable 6-facet Linear

Prism Indexing with overlay feature

Control:

Control Modes: DMX512, RDM (Remote Device Management)

 & Stand-Alone Internal Programs

2 DMX Channel Modes: 16 & 18 channels

16-Bit Pan, Tilt & Dimmer control

Connections:

DMX Connections: 5-pin Locking XLR In & Out

Power Connections: Seetronic Locking Power In & Out

Pan/Tilt:

Pan & Pan Fine: 630 degrees

Tilt & Tilt Fine: 270 degrees

Electrical:

Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)

Maximum Power Consumption: 136W @ 120V

Daisy chain: 15 units @ 120V; 30 units @ 230V

Dimensions & Weight:

Dimensions (LxWxH):  10.96" x 7.55" x 17.61" / 278x191x447mm

Weight: 27 lbs. (12.25 kg)

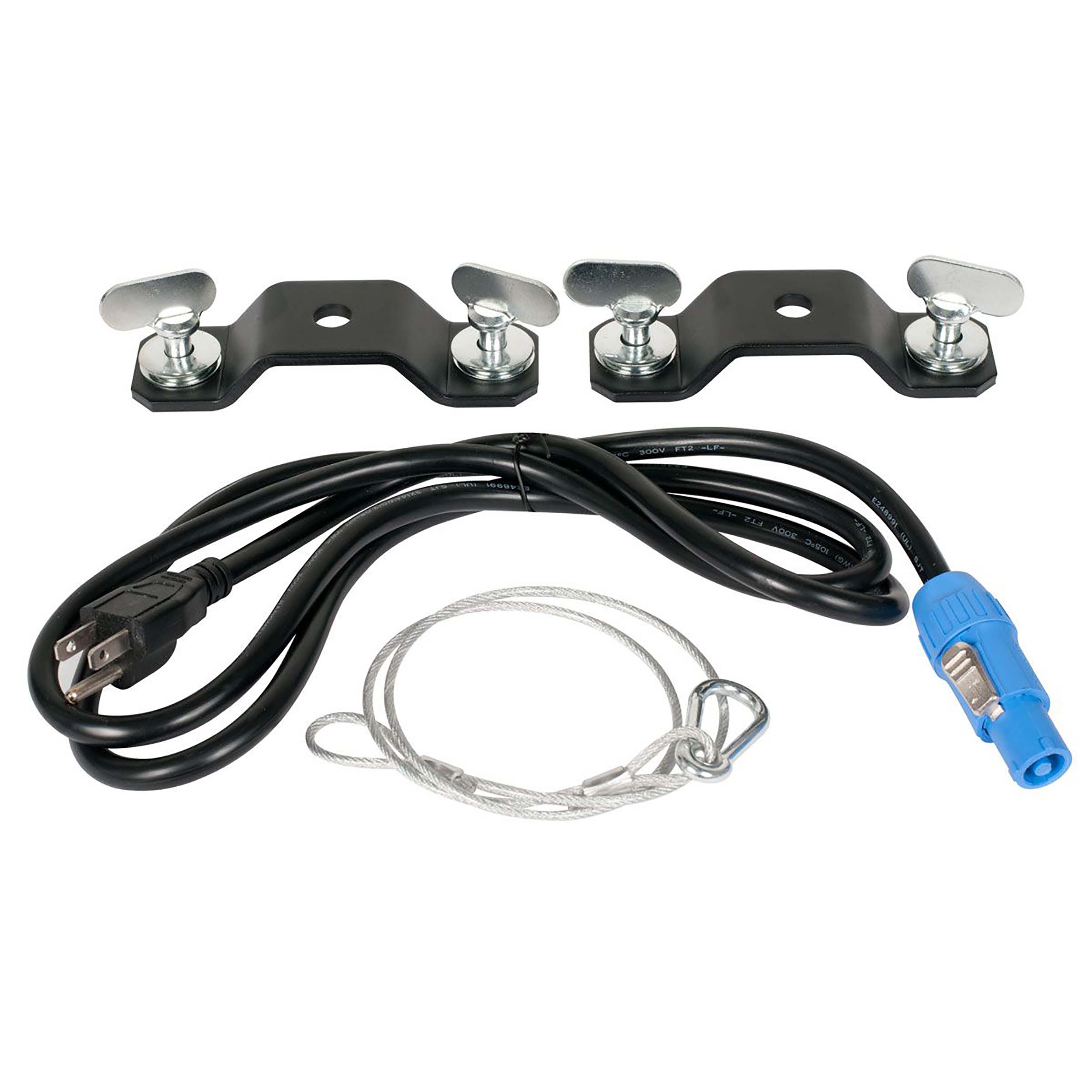

What’s Included:

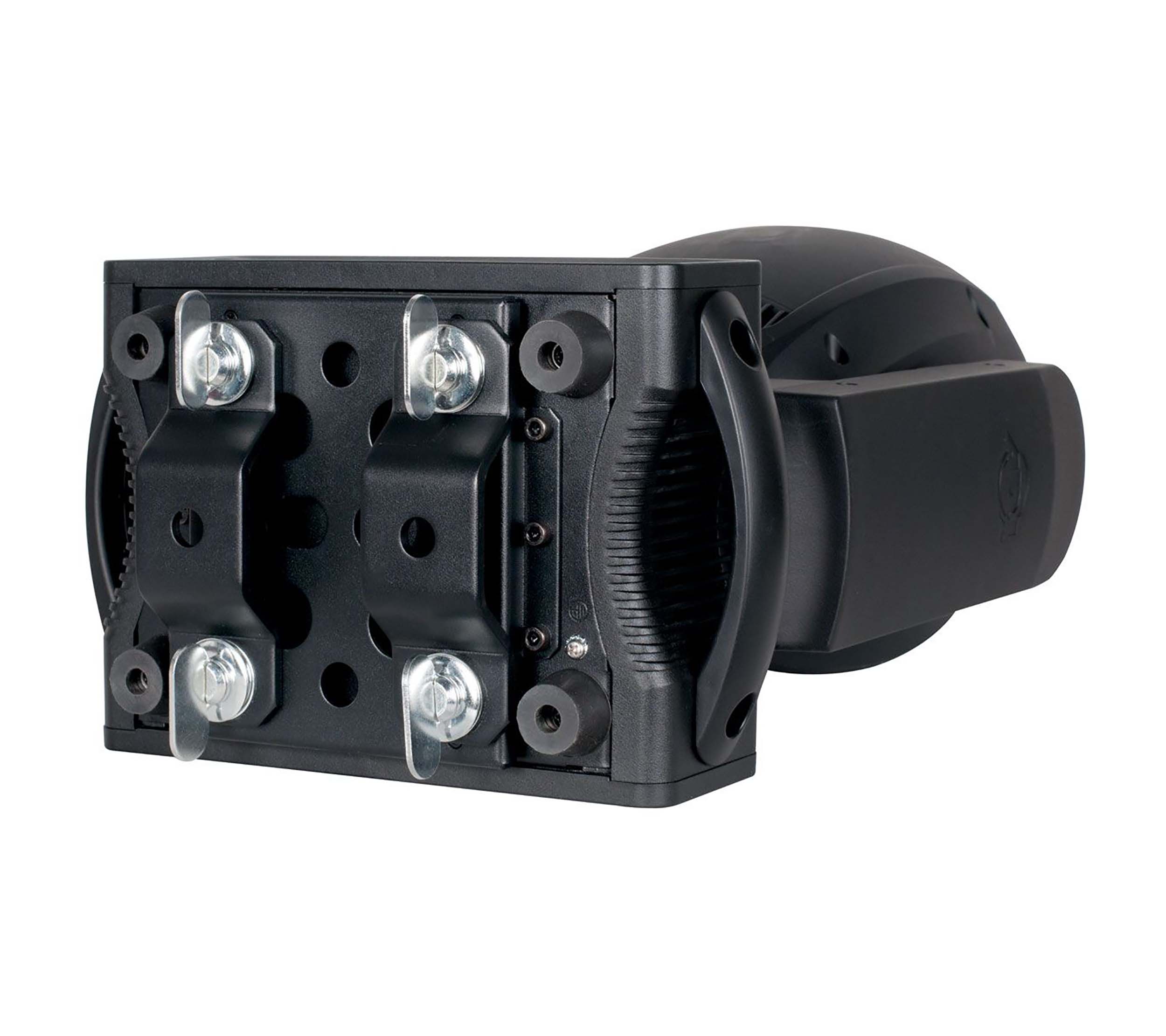

2x Omega Brackets

1x Seetronic Power Locking Power Cable

Optional Road Cases:

DRC MH: 2 Focus Beam LED fit in the DRC MH Road Case

QRC MH: 4 Focus Beam LED Pearl fit in the QRC MH Road Case
