Description

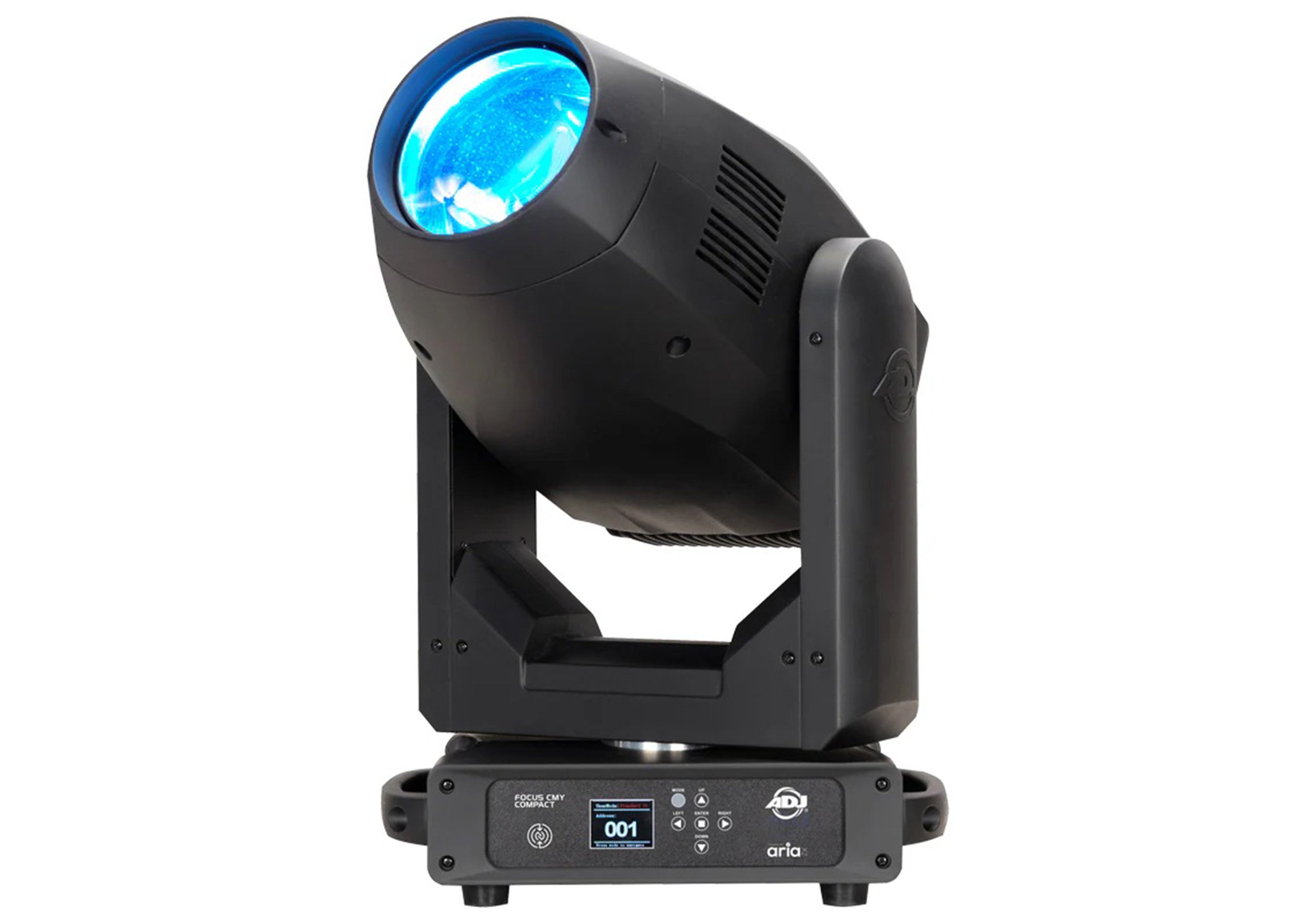

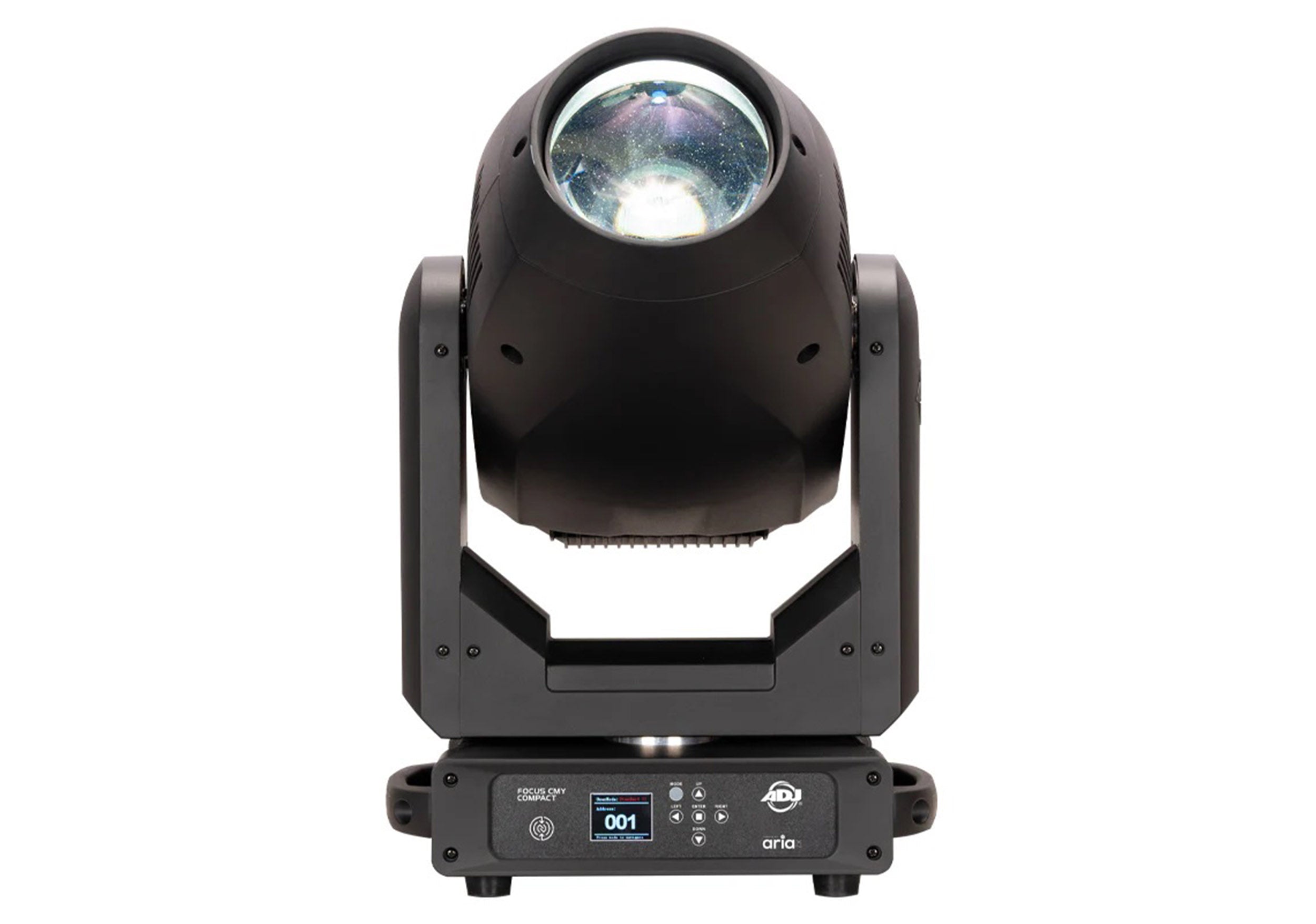

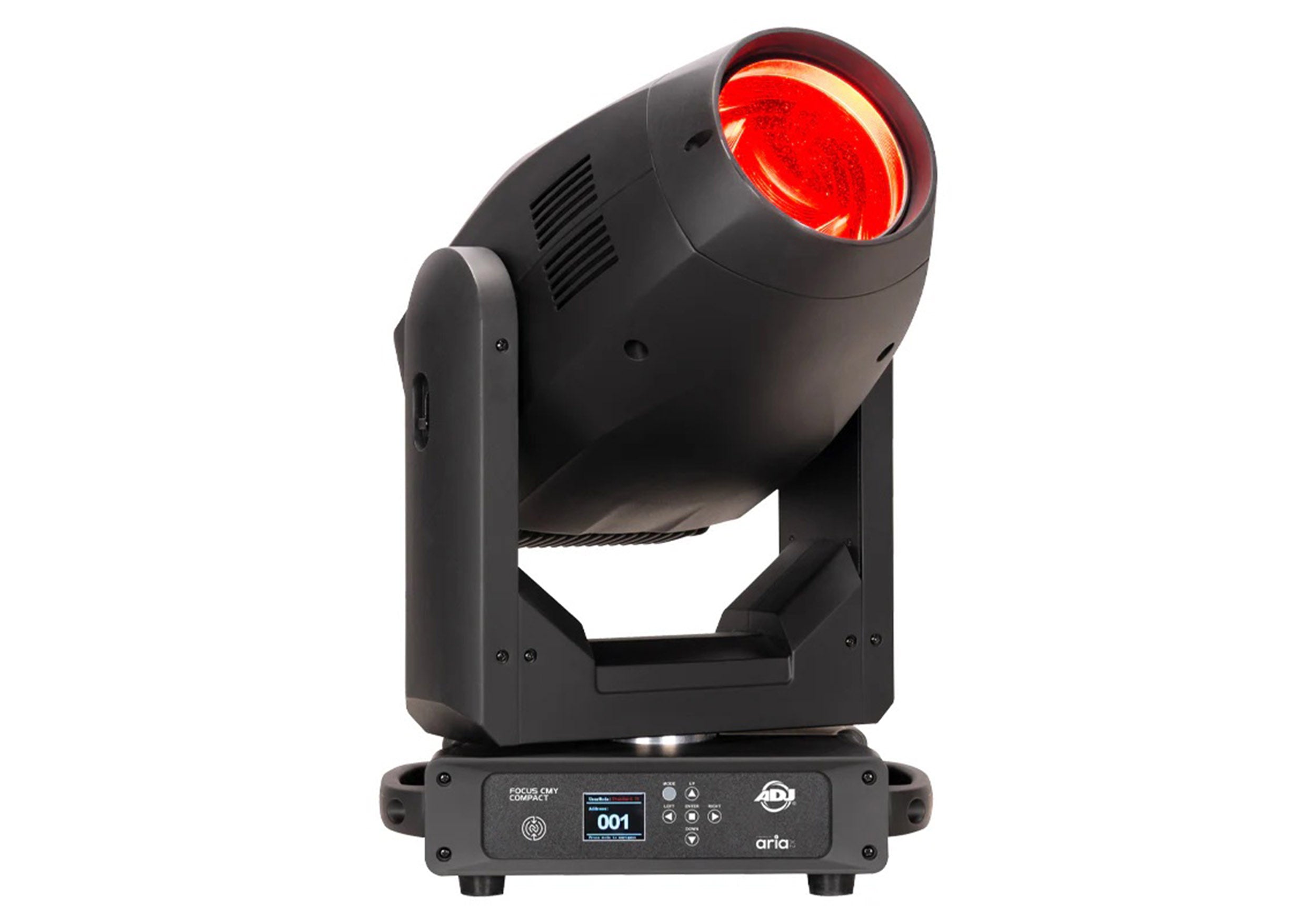

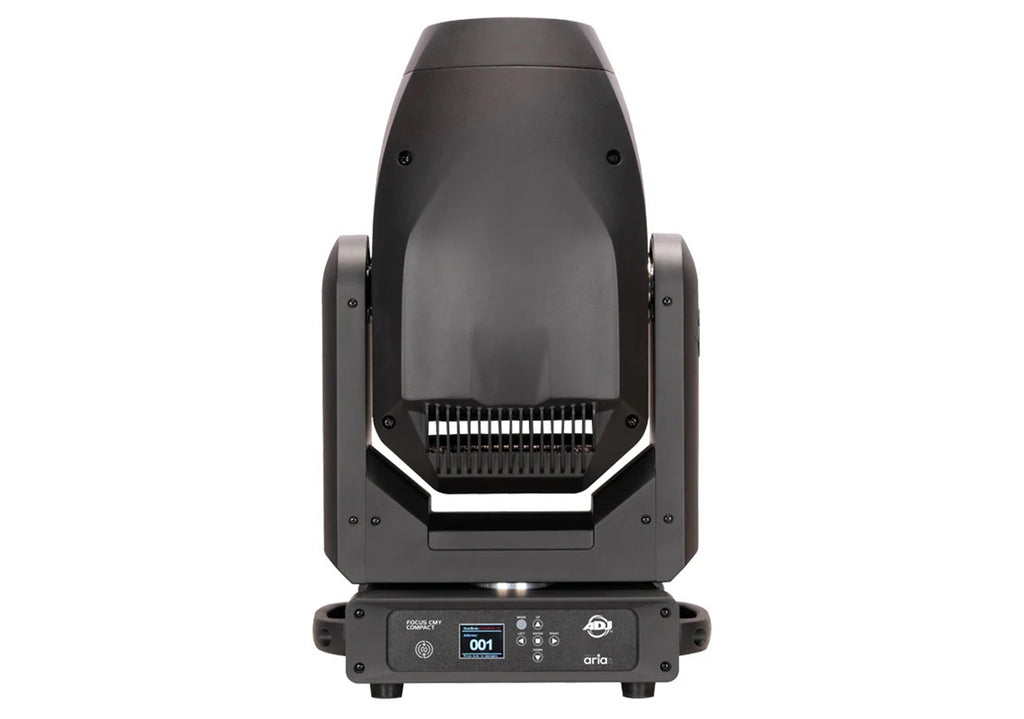

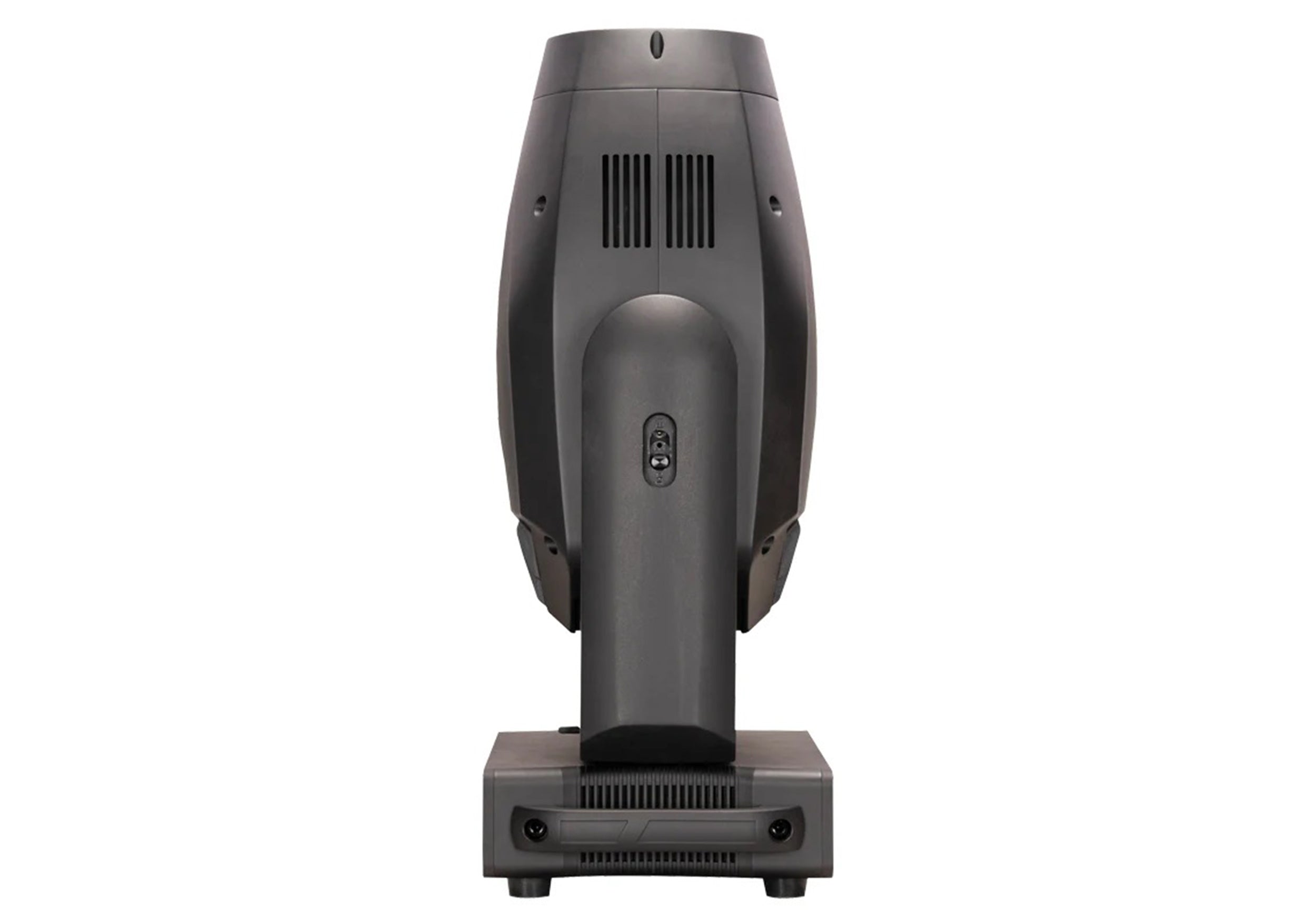

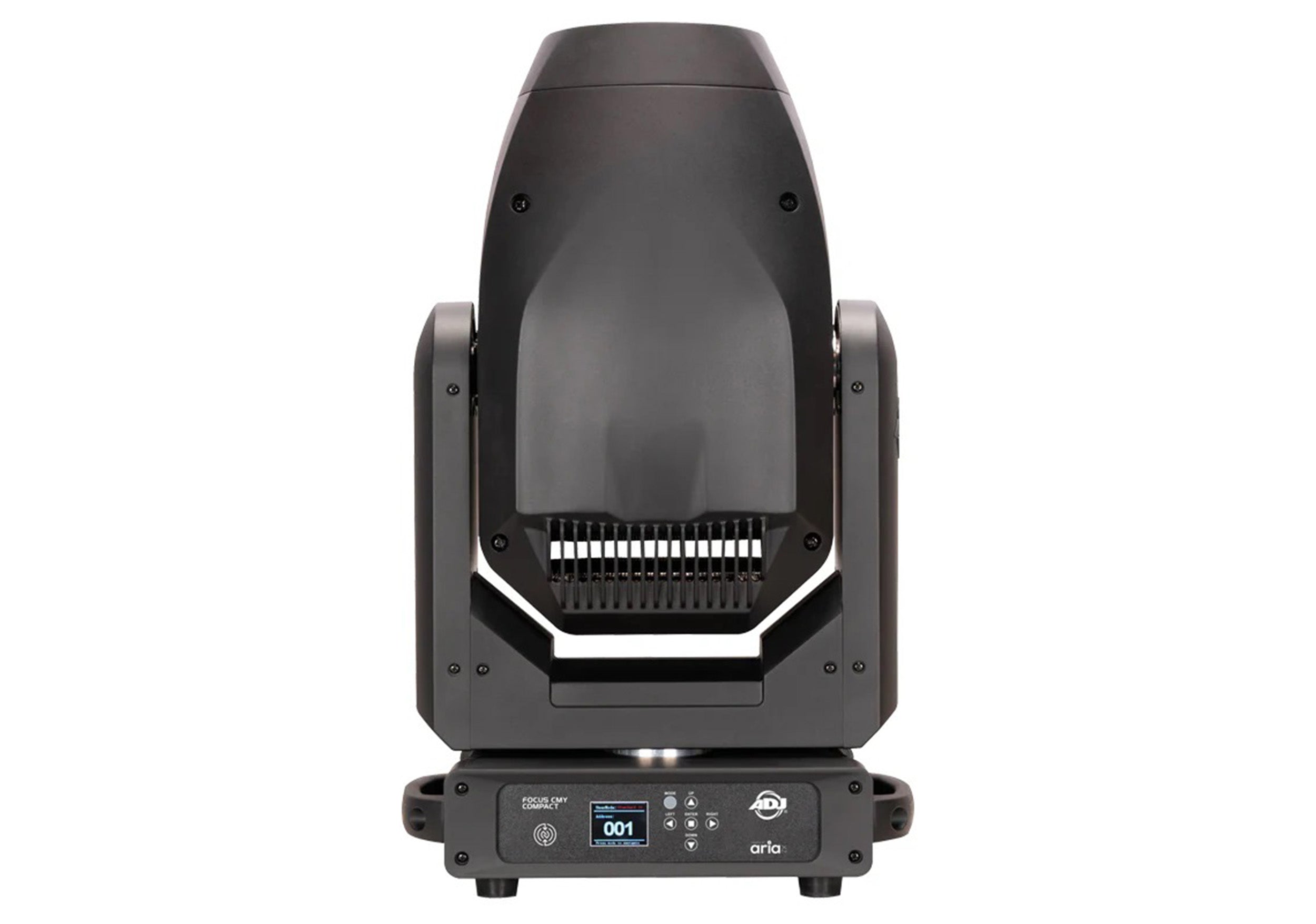

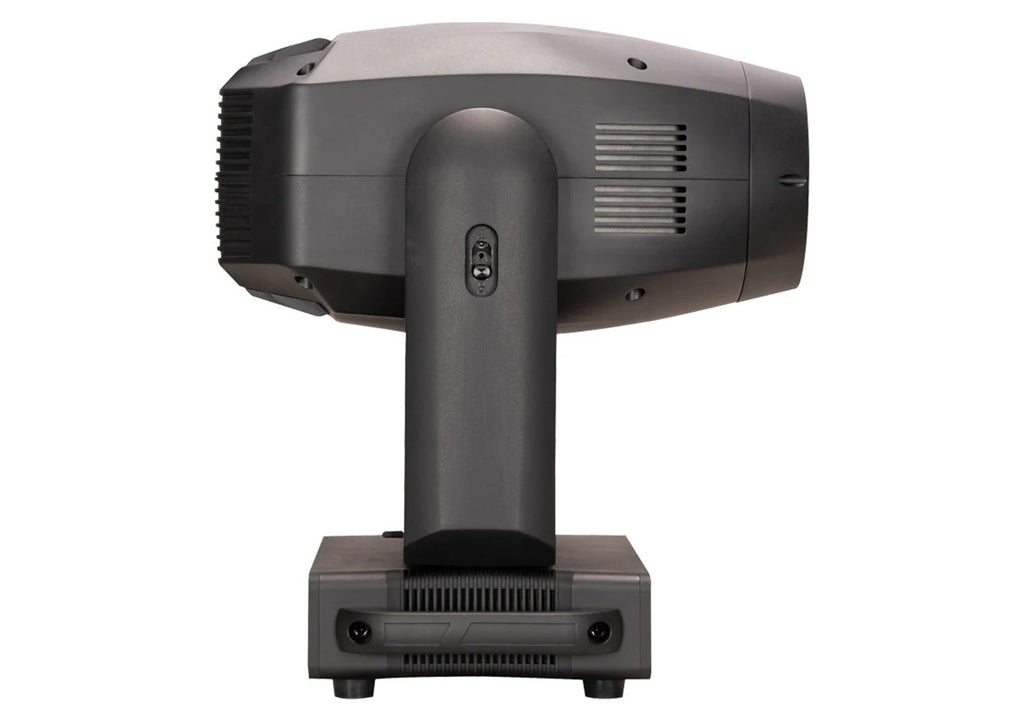

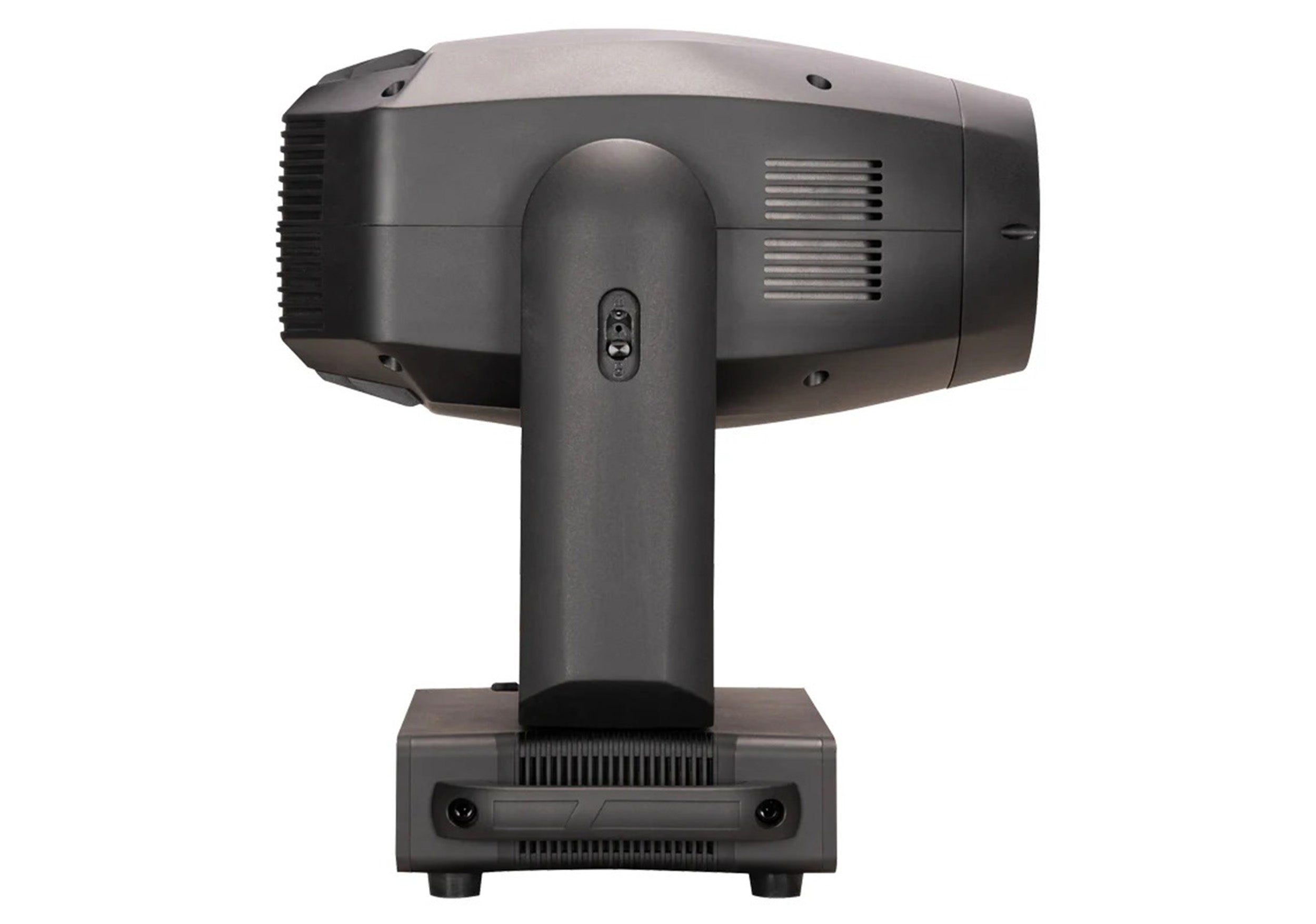

The ADJ Focus CMY Compact delivers best-in-class power and versatility in a remarkably compact moving head fixture, capable of functioning seamlessly as a beam, spot, or wash. Driven by a high-output 400-watt LED engine, it produces up to 14,500 lumens while maintaining an efficient and portable design that weighs under 45 lbs. (20 kg). With a wide motorized zoom range of 3° to 52° and precise motorized focus, the Focus CMY Compact adapts easily to concert stages, theaters, corporate events, and houses of worship where flexibility and performance are essential.
Creative potential is expanded through an extensive array of beam-shaping and color tools. Full CMY color mixing is paired with variable CTO (3200K–8500K) and a color wheel featuring seven dichroic filters, including a High CRI option for accurate color rendering. Two GOBO wheels-one with eight rotating, indexable glass patterns and another with ten static designs-enable dynamic texture projection, while dual rotating prisms (6-facet circular and 6-facet linear) and two frost filters (light and heavy) allow everything from sharp aerial effects to smooth, even washes.
Built for modern professional workflows, the Focus CMY Compact supports DMX, RDM, Art-Net, and sACN, and integrates ADJ’s Aria X2 wireless control system for cable-free DMX, setup, and monitoring. Additional features such as NFC configuration, a 6-button touch control interface, and a full-color reversible LCD display ensure fast and intuitive operation. Combining high output, advanced control, and a robust yet lightweight chassis, the Focus CMY Compact sets a new standard for portable hybrid LED moving head fixtures.
Product Specifications:
Light Source
Light Engine: 400 W LED
Color Temperature: 6900 K (±350 K)
LED Life: 20,000 hours (average)
Photometric Data
Total Output: 14,500 lumens
CRI: 64 (80 or 90 with optional HCRI filter)
Optical and Effects
Prisms: 6-facet circular rotating prism, 6-facet linear rotating prism
Frost: Light frost, heavy frost
Zoom: Motorized, 3°–52°
Focus: Motorized
Dimming / Strobe: Electronic dimming, strobe 1–20 Hz
Color System
Color Mixing: Full CMY
CTO: Variable 3200 K–8500 K
Color Wheel: 7 dichroic colors (slot 7 includes High CRI filter)
Gobos
Gobo Wheels: 2
Wheel 1: 8 rotating glass gobos (interchangeable, indexable)
Wheel 2: 10 static glass gobos
Control and Connectivity
DMX Modes: 3 (Basic / Standard / Extended)
Protocols: DMX, RDM, sACN, ArtNet
Wireless: Aria X2 Wireless Management System

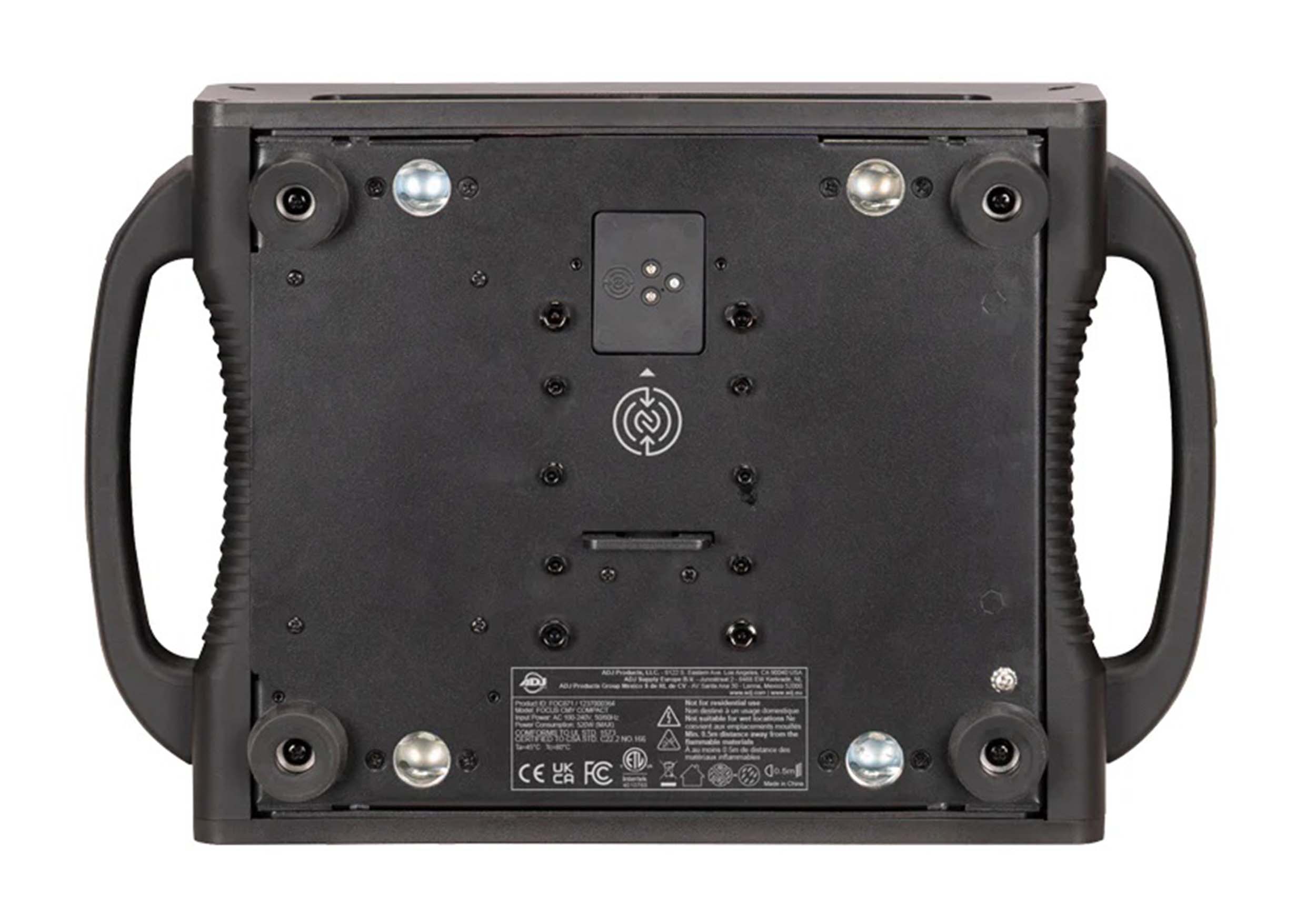

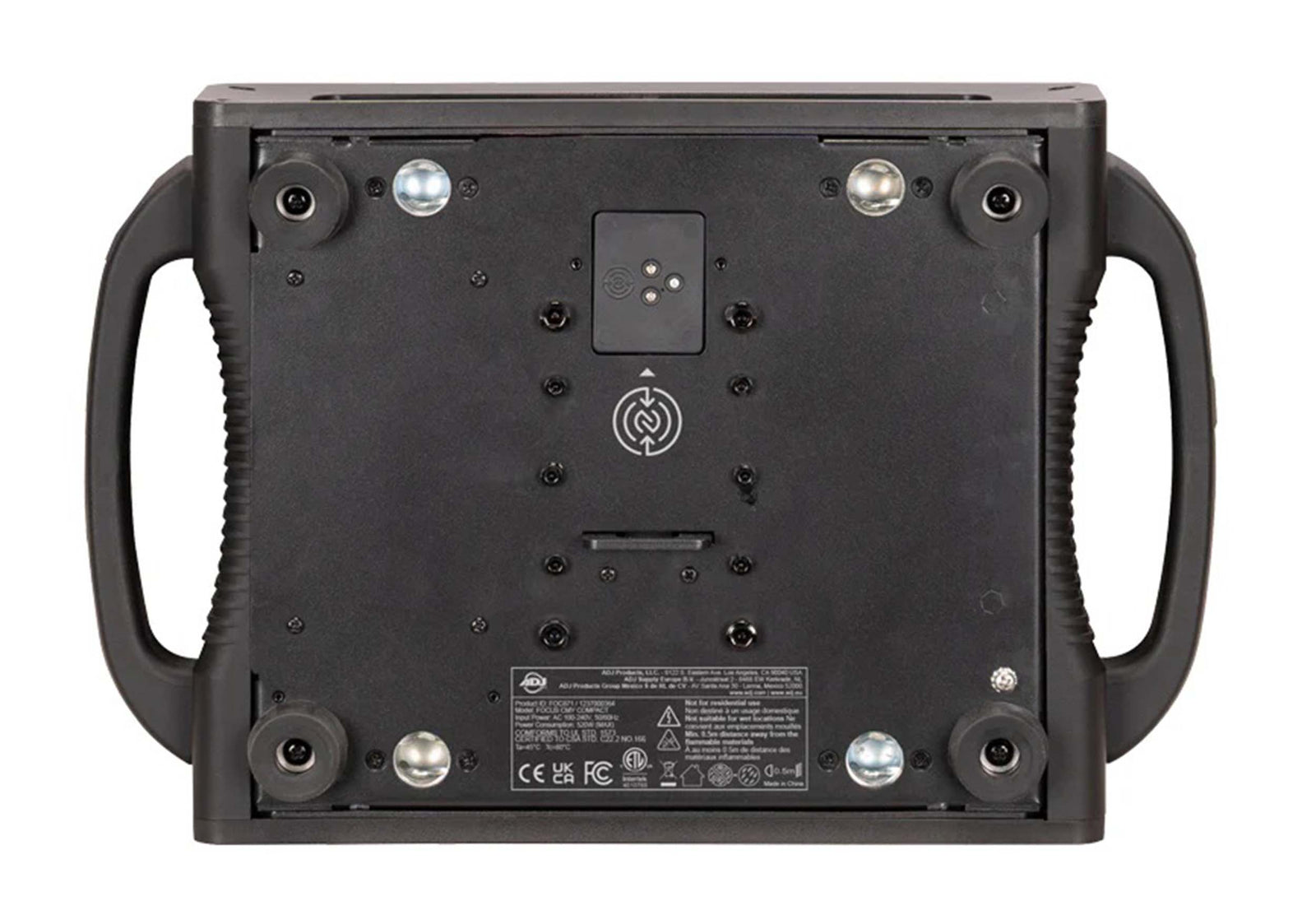

Additional Systems: NFC
Control Panel: 6-button touch panel
Display: Full-color 180° reversible LCD
Movement Resolution: Adjustable 8-bit / 16-bit
Network Ports: RJ45 In/Thru
DMX Connections: 3-pin and 5-pin XLR In/Out

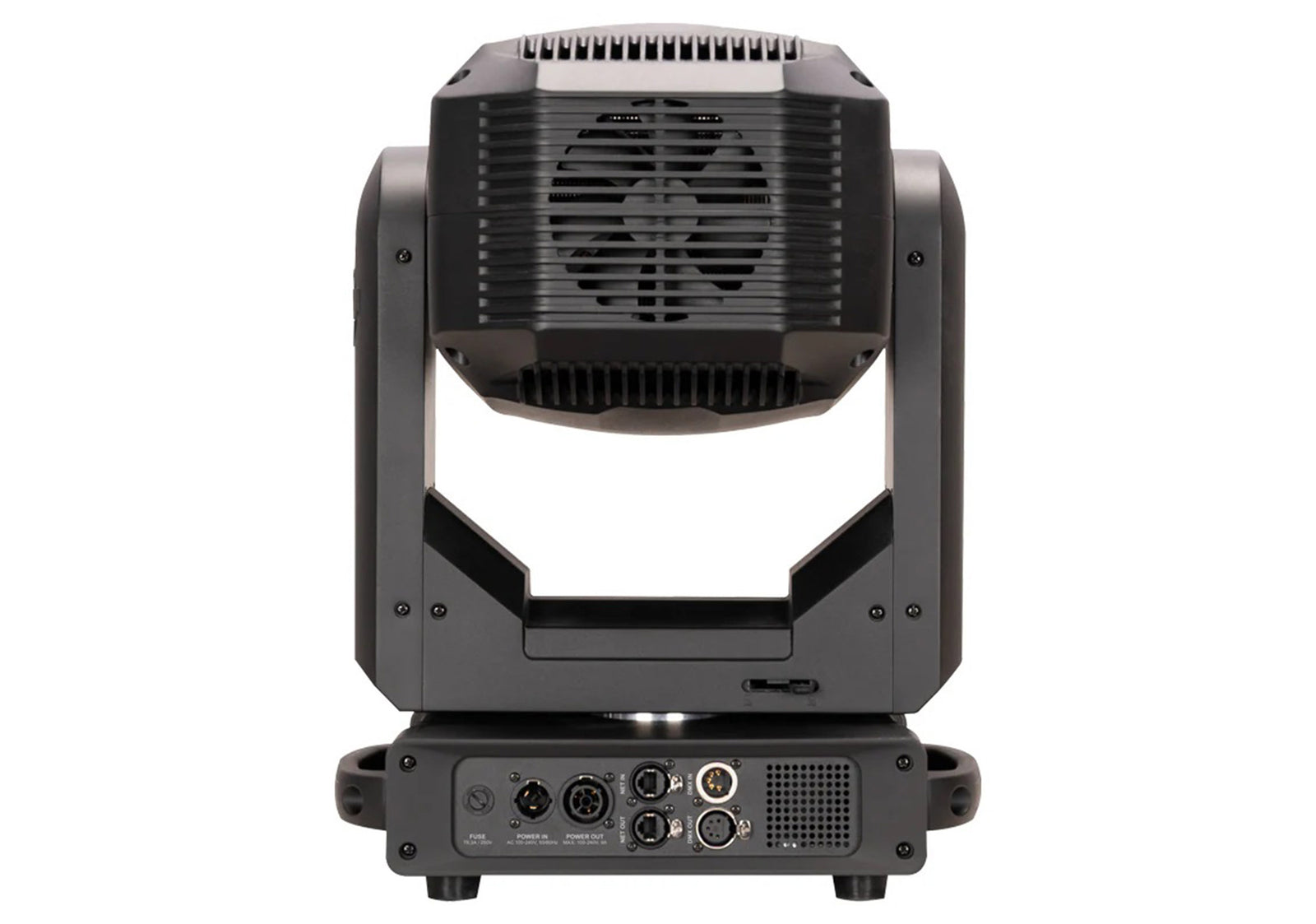

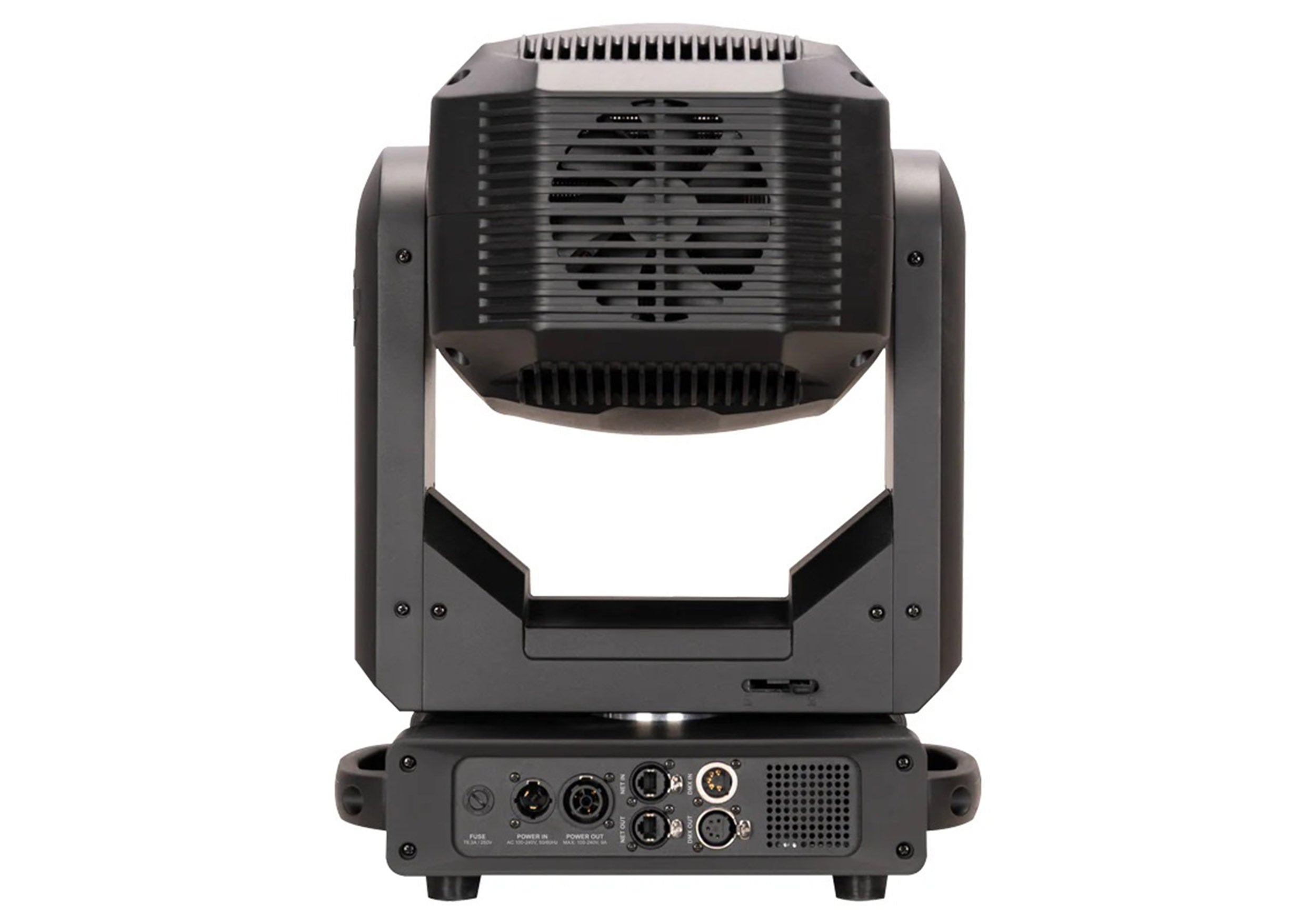

Power Connections: IP65 locking power In/Out
Communication: Wired digital communication network
Pan / Tilt
Pan: 540° / 630°
Tilt: 270°
Locks: Pan and tilt locks
Electrical and Thermal
Power Input: AC 100–240 V, 50/60 Hz
Max Power Consumption: 450 W @ 220 V
Ambient Operating Temperature: -25 °C to 45 °C (-13 °F to 113 °F)
Product Weight: 44.5 lbs / 20.2 kg
Product Dimensions (L × W × H): 14.2" × 9.3" × 23.5"
