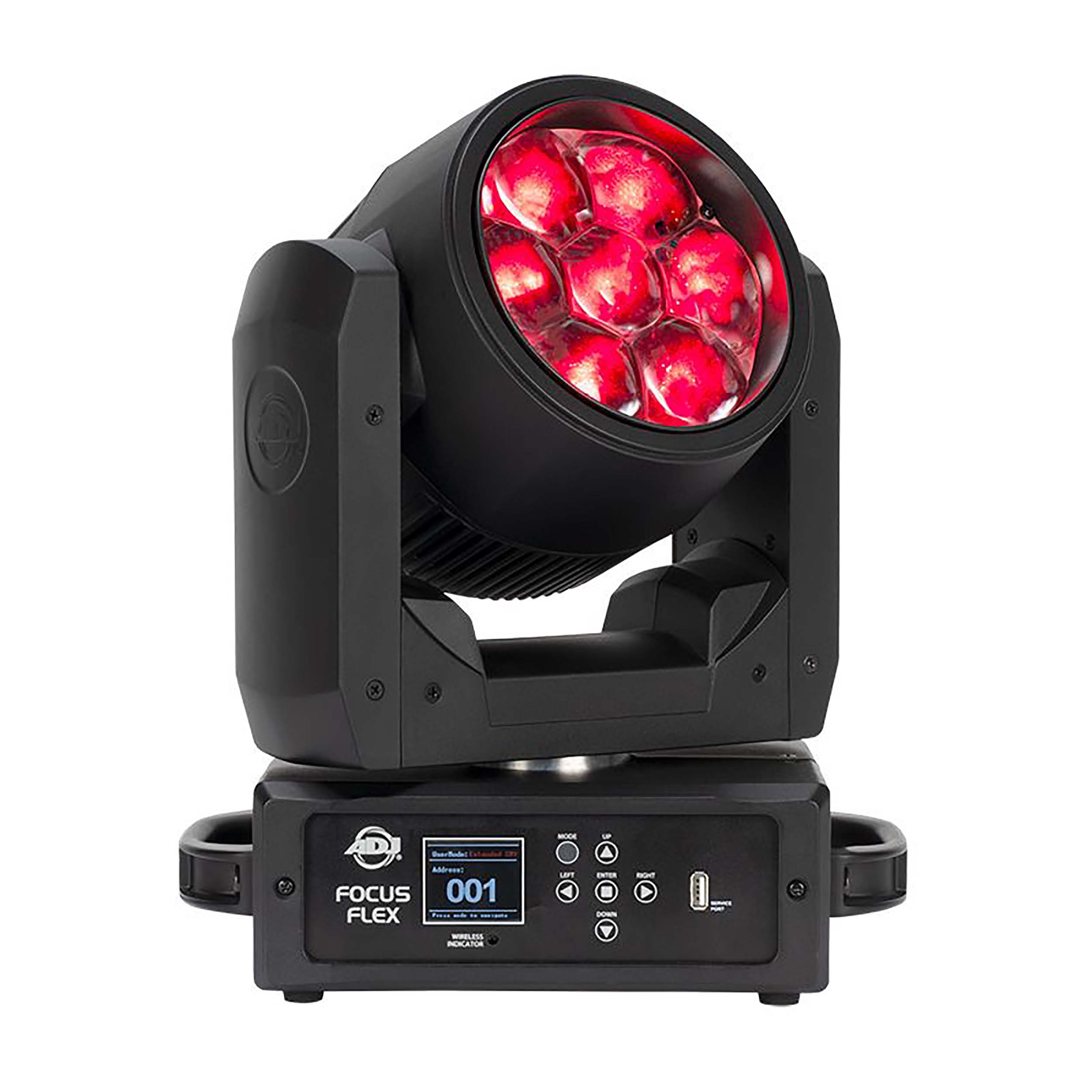

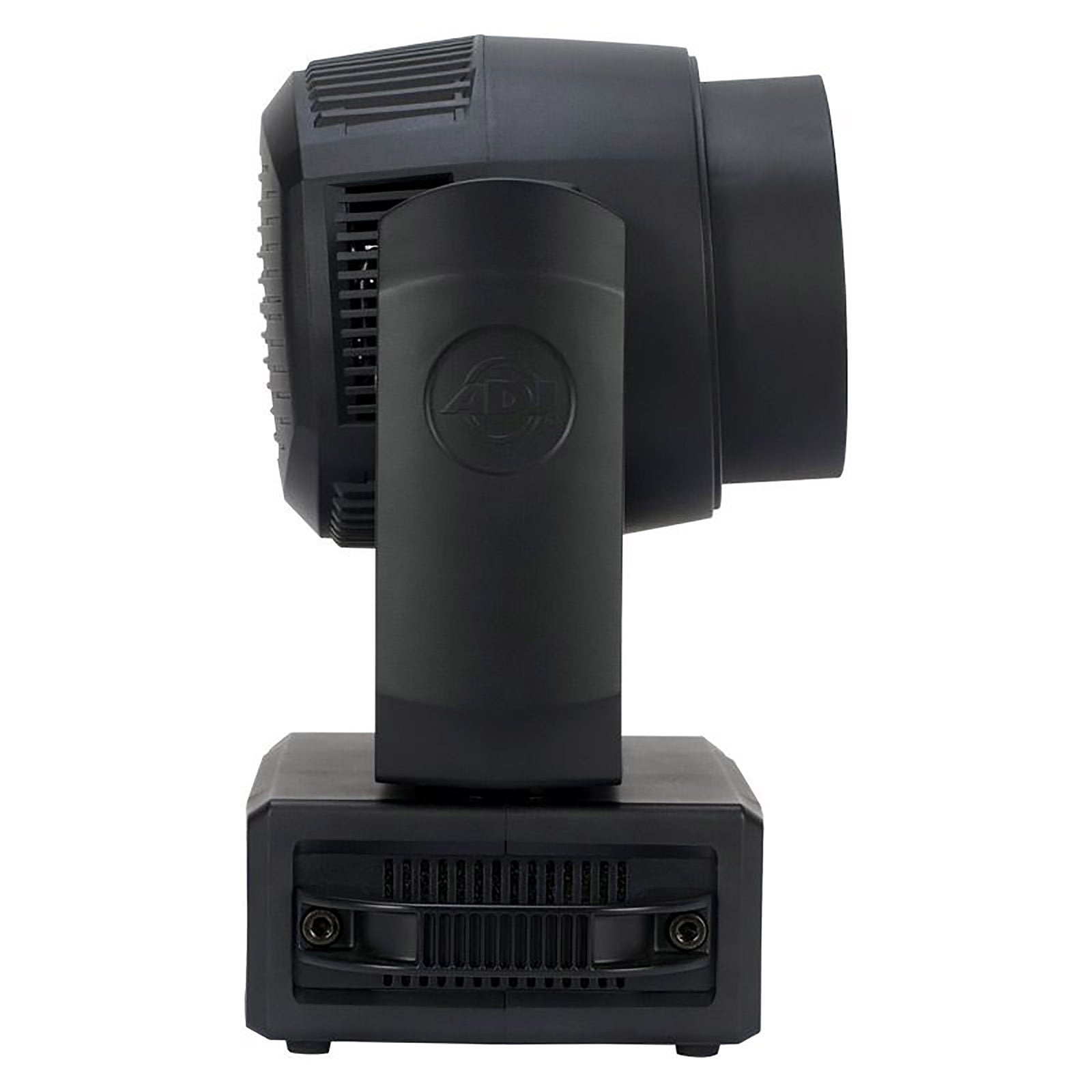

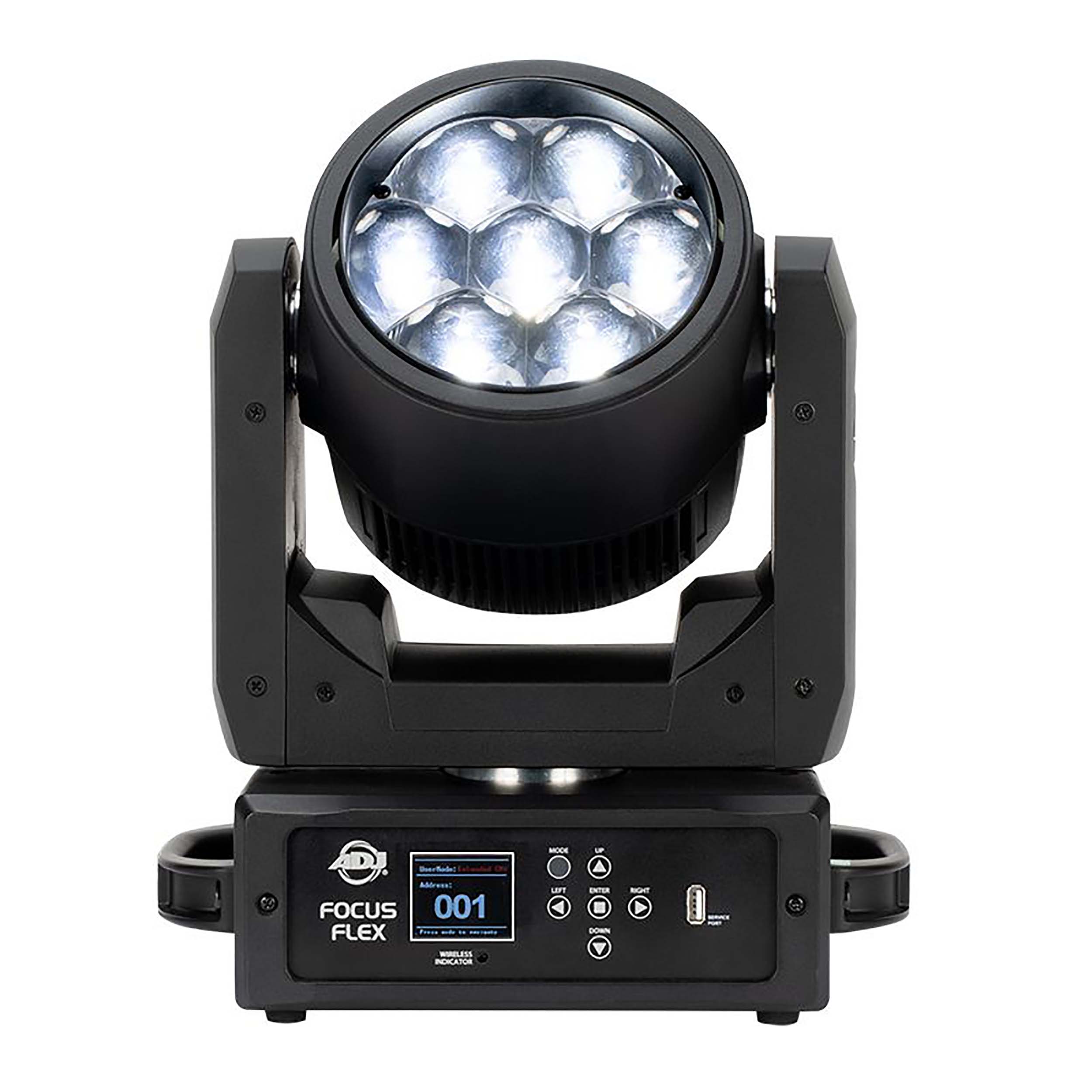

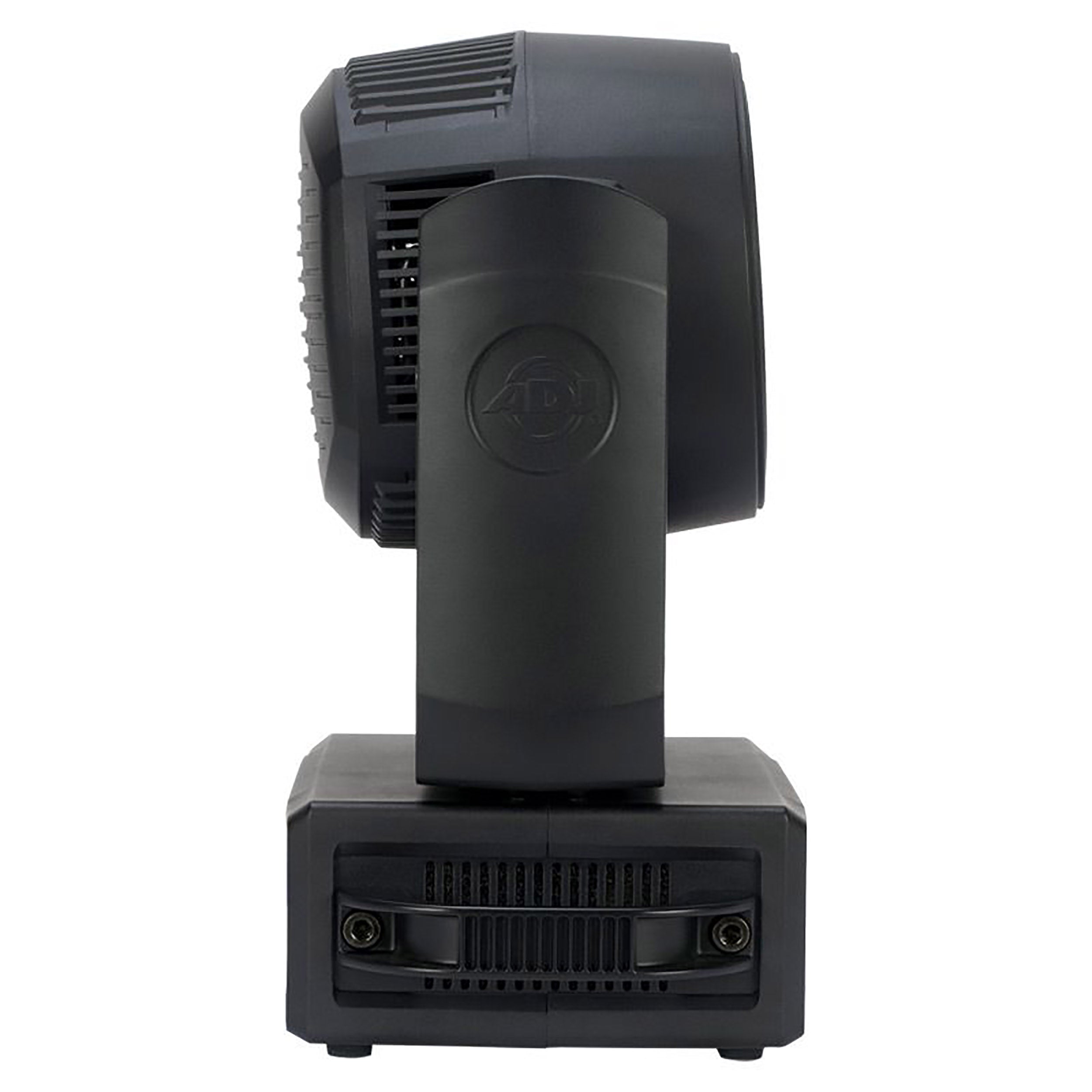

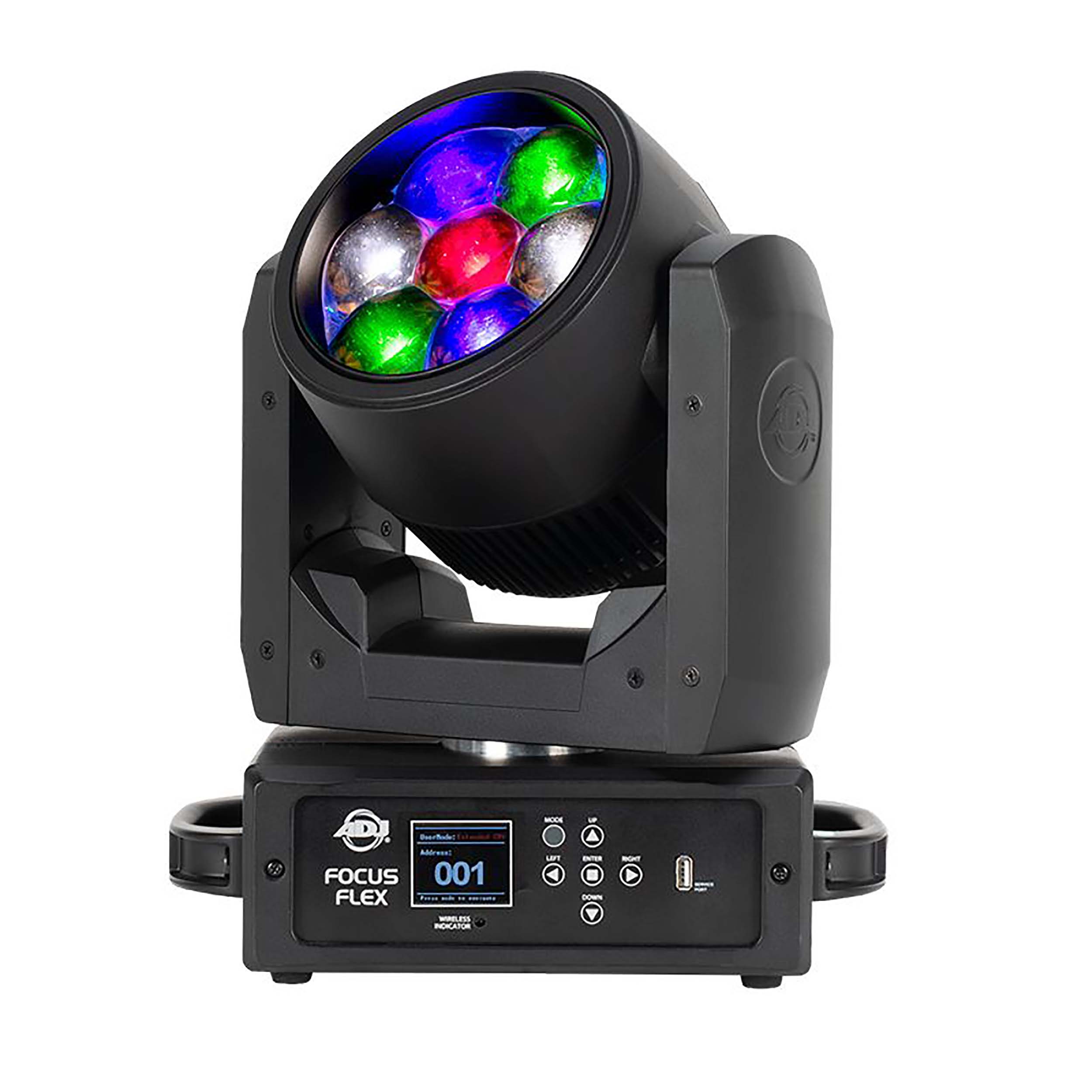

ADJ Focus Flex, Color Mixing LED Moving Head RGBW - 40 Watt

The ADJ Focus Flex, Color Mixing LED Moving Head - RGBW is capable of creating wash, beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential, it is ideal for event production and rental applications as well as for permanent installation in concert halls, theatres, nightclubs and churches.

The fixture is powered by an array of seven potent 40-Watt 4-in-1 RGBW color mixing LEDs, each of which can be controlled independently. Through mixing the intensity of the primary LED colors, a huge gamut of output colors can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode, which allows control alongside native CMY color mixing fixtures using hardware/software CMY color picker/pallet tools. It also offers Virtual Foreground and Background Color Wheel control as well as white light output with variable color temperature of between 2700K to 10,000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile, through controlling the seven LEDs independently, the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex are color calibrated to ensure uniform output of fixtures from different batches.

Motorized zoom allows the field angle of the Focus Flex to be altered remotely between a wide 57-degrees and narrow 6-degrees, which allows it to be used for creating both broad washes and concise beams. It’s extremely quick motor movement allows for the creation of stunning high-impact aerial effects, while 16-bit fine motor control ensures precise positioning.

A flexible fixture, the Focus Flex offers a range of DMX mode options [7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels], appropriate to different applications, as well as a variety of customizable options, including selectable LED refresh rate and dimming modes. These are accessed through a color LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases.

Product Specifications:

Light Source:

7 x 40-Watt RGBW LEDs (50,000 hr.)

CRI: 78.7

15,140 lux / 4 beam @ 16' (5m)

378 lux / 35° beam @ 16' (5m)

Lumens: 3240 (Zoomed Out, Full On)

Colors:

Virtual CMY DMX Control Modes

Virtual Foreground and Background Color Wheel Control

Built-In Color Macros

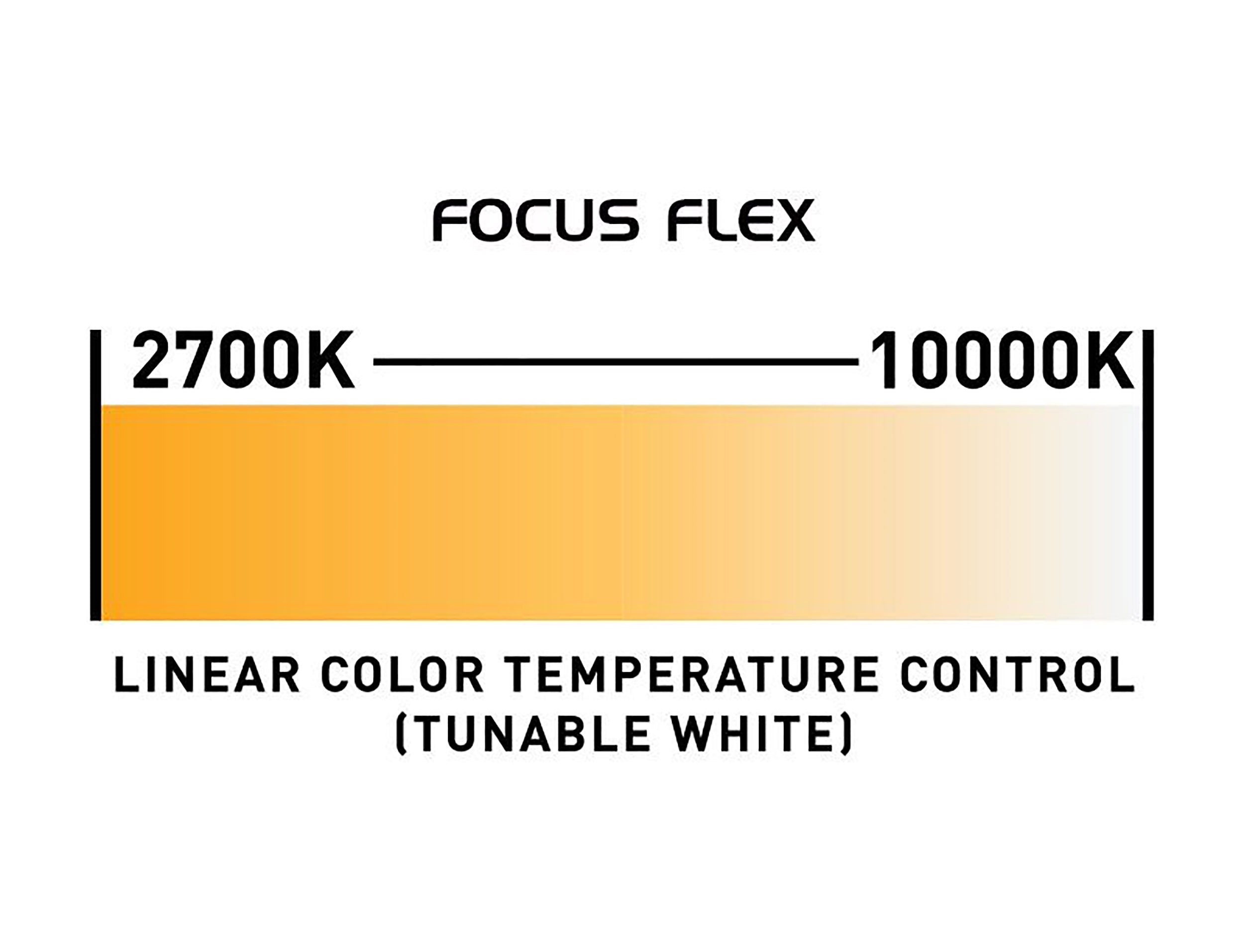

2700k ~ 10,000 Liner White Color Control

Color Temperature Presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000 and 10,000K

Control:

7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels

Color LCD display with 6-button function menu

Control Mode: DMX512 or internal programs

Built-In Effect Pixel Programs with Speed and Fade Control

Various strobe speeds

USB firmware update port

With Wired Digital Communication Network

RDM (Remote Device Management)

WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)

Pan/Tilt:

Pan: 540/630 degrees

Tilt: 265 degrees

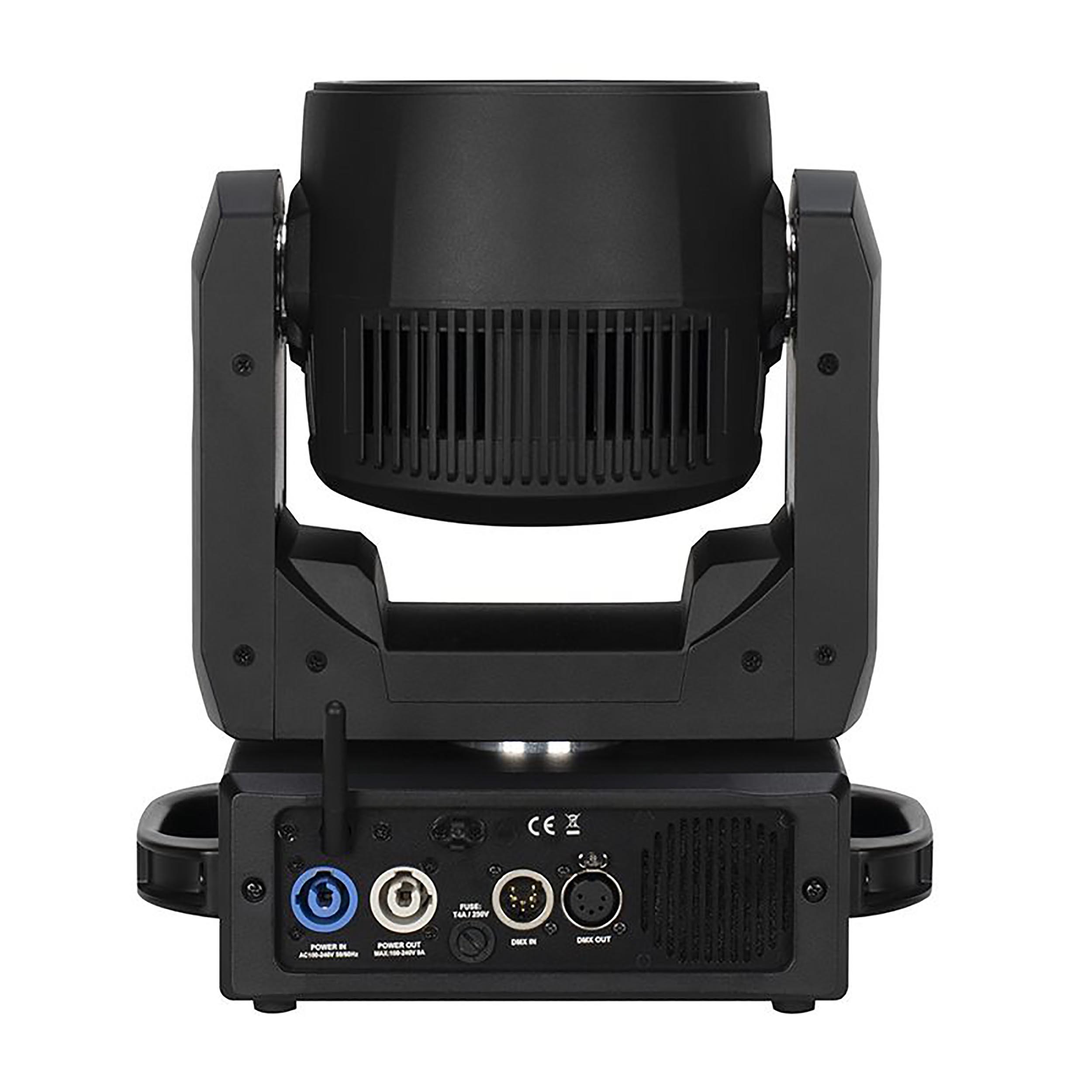

Connections:

DMX Connections: 5-pin XLR In/Out

Power Connections: Indoor Locking Power In/Out

Electrical:

Multi-voltage operation: 90-240V, 47/63Hz

Max power consumption: 340W @120v

What’s Included:

Omega Brackets

1.83M locking power cable

Optional Road Cases:

DRC MH: 2 Focus Flex fit in the DRC MH Road Case

QRC MH: 4 Focus Flex fit in the QRC MH Road Case

Approvals / Rating:

cETL Approved / CE Certified

IP20

Dimensions (LxWxH): 7.0"L x 11.5"W x 12.9" H (179x292x329mm)

Weight: 15.5lbs (7kg)
