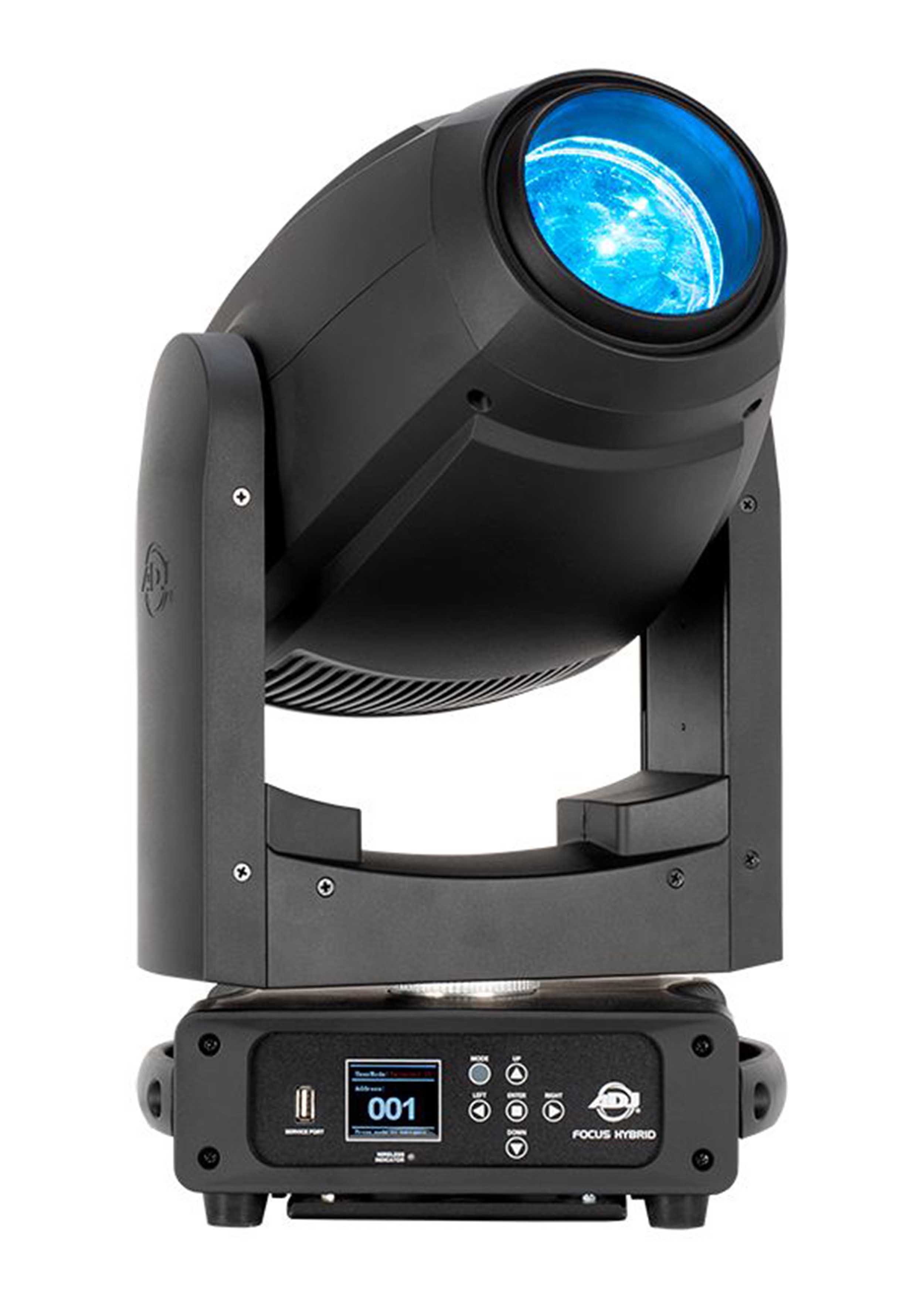

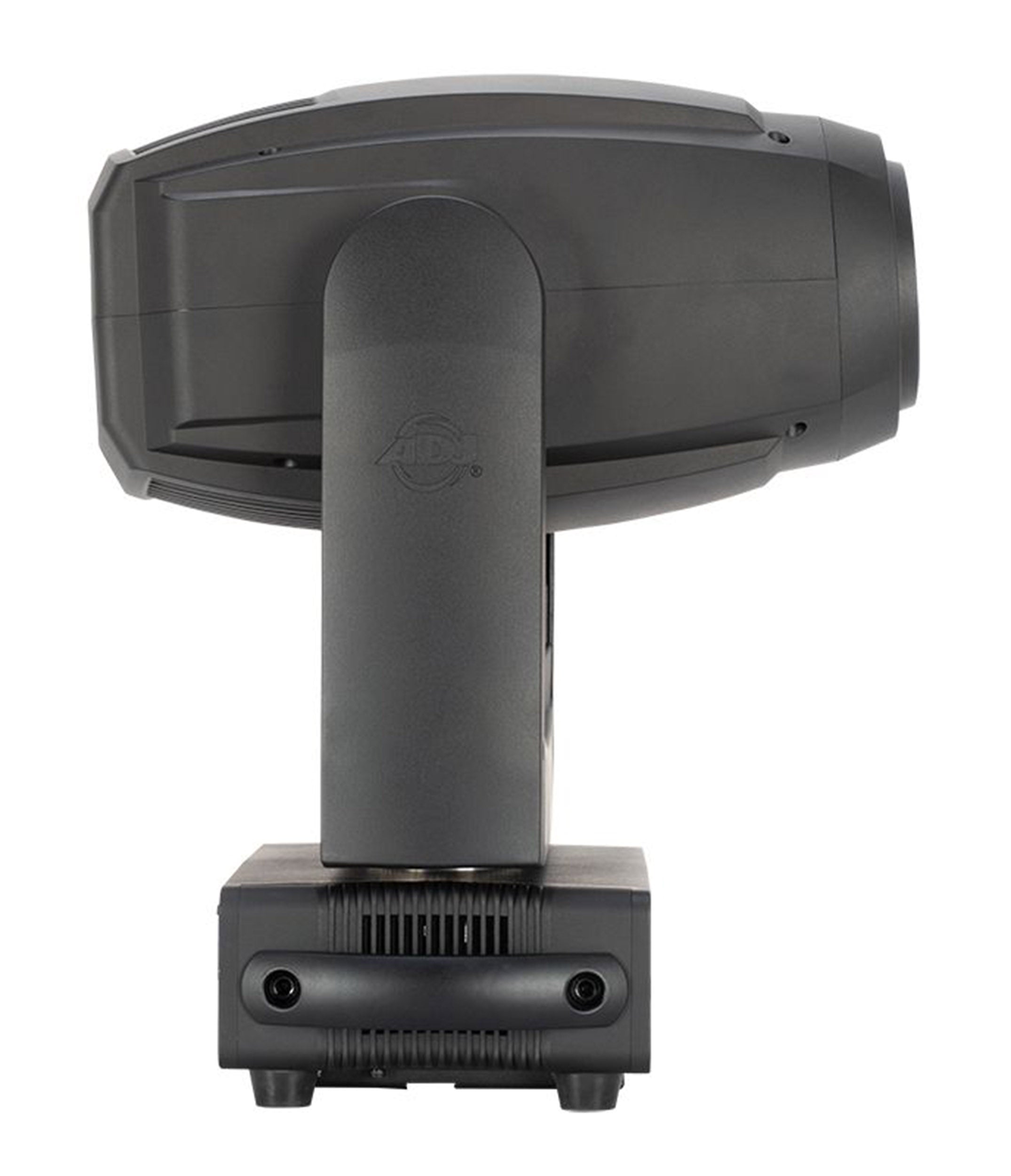

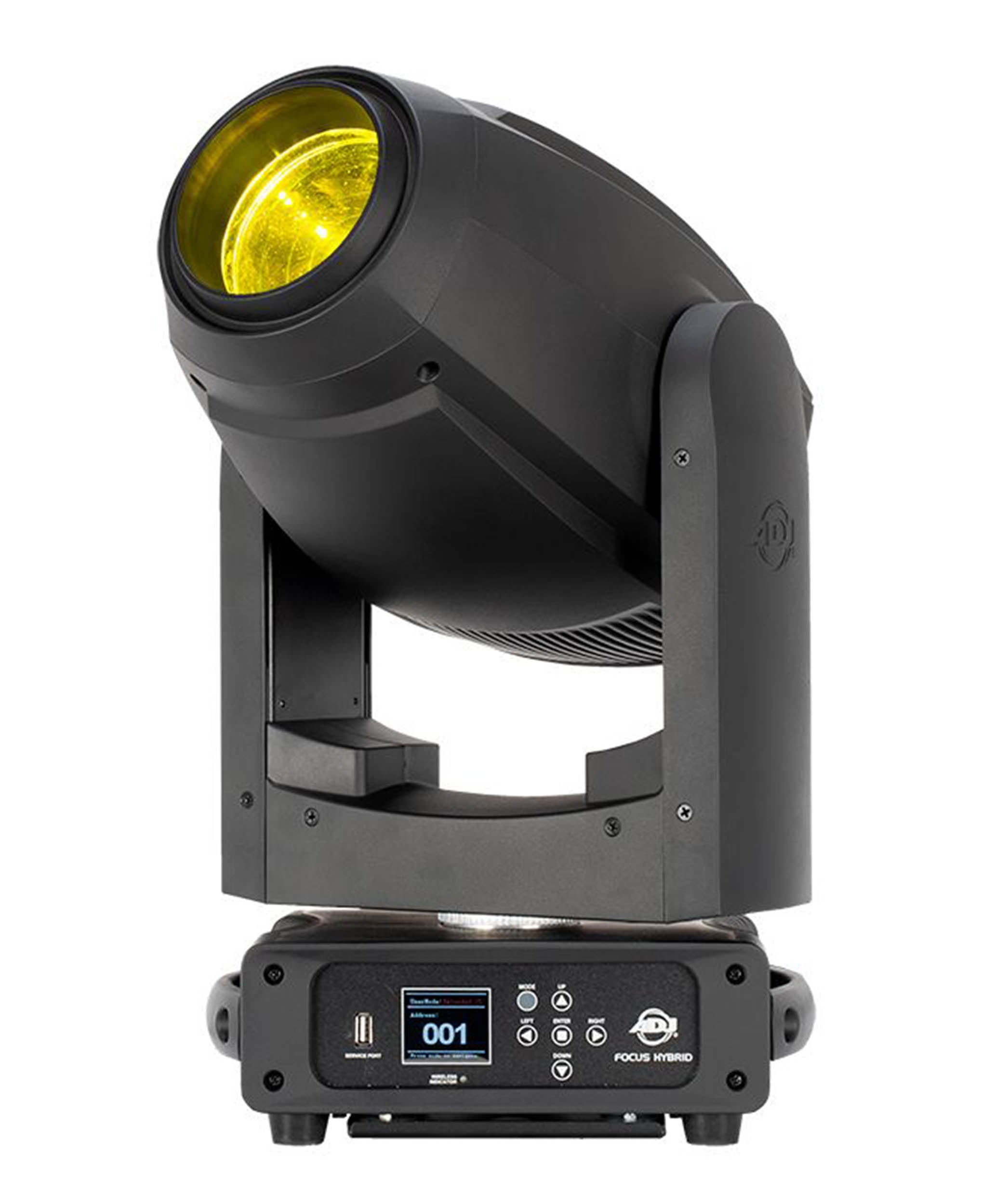

ADJ Focus Hybrid, LED Moving Head Lighting Fixture - 200 Watt

The ADJ Focus Hybrid, LED Moving Head Lighting Fixture is a versatile fixture which can function interchangeably as a spot, wash or beam luminaire. It features an efficient 200W cool white (7,500K) LED engine which has an average life expectancy of 50,000 hours and generates an output of 4,100 lumens. This light is focused through a precision-engineered optical system and a variety of beam-shaping elements to generate a flexible output which can be used to create aerial effects, surface pattern projections or color washes.

The Focus Hybrid offers a beam angle variable between an intense 2-degrees and a significantly wider 24-degrees, with motorized zoom providing quick and precise changes between beam angle settings. In addition, motorized focus can be used to ensure pattern projections are sharp at variable beam angles and projection distances, while a frost filter can be used to further widen the beam angle and soften the beam edge to achieve a wash output. A Heavy Frost filter is fitted as default, but this can be replaced to suit the needs of specific applications and a Medium Filter is also supplied together with the fixture as standard.

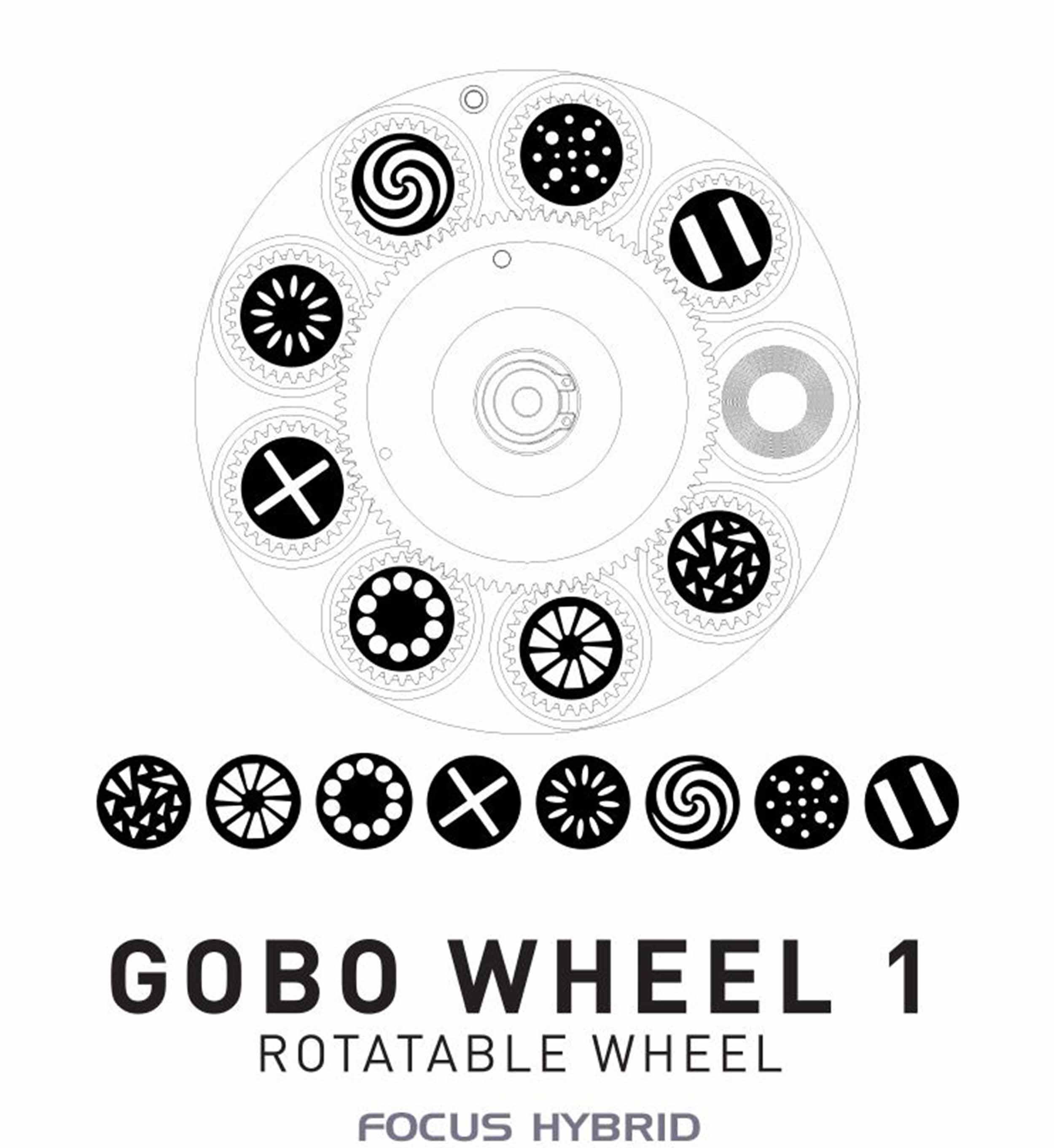

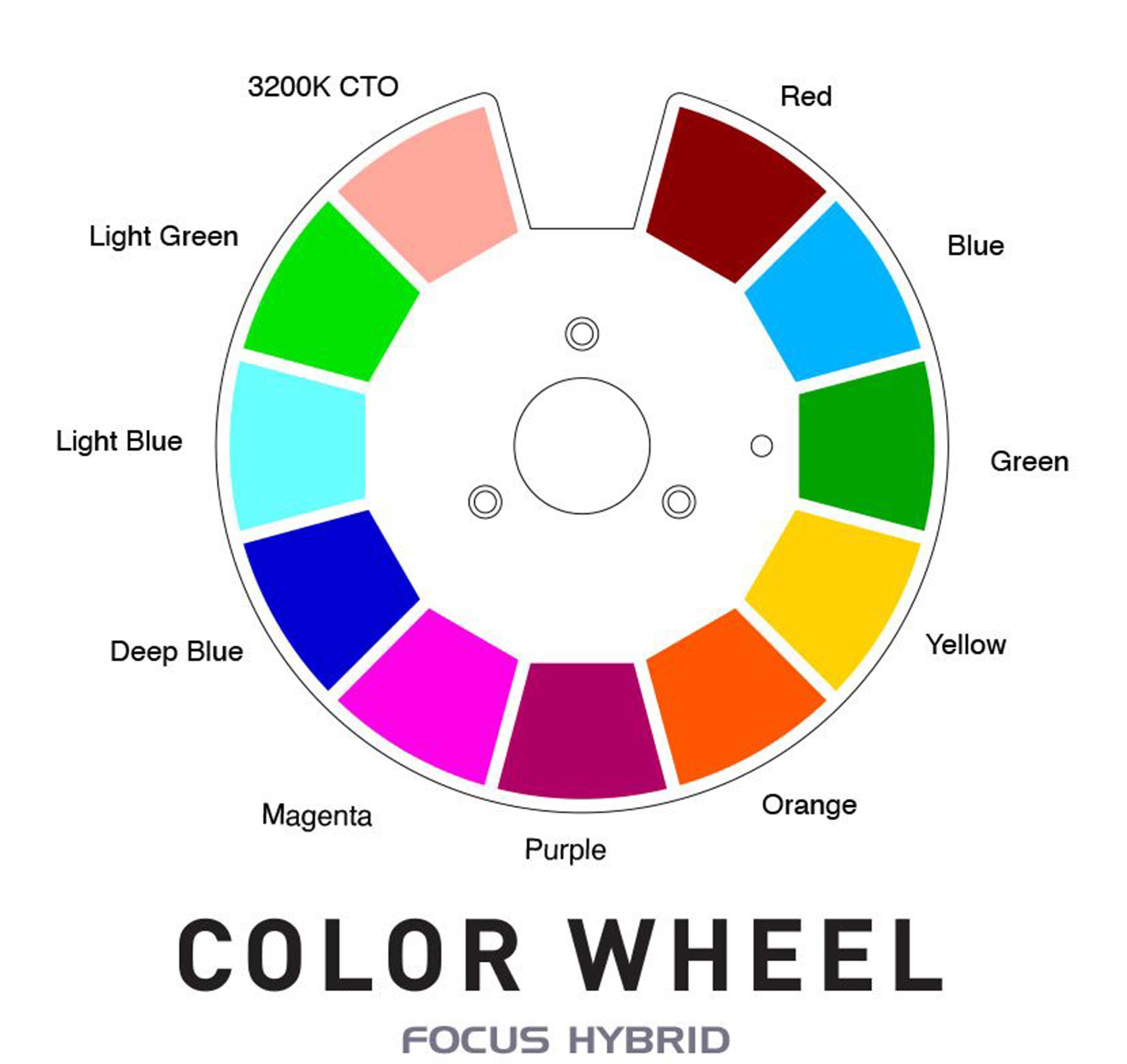

A dedicated wheel offers a choice between 11 dichroic color options (plus open), including a 3200K CTO filter for achieving a warm white output. The fixture also boasts two independent GOBO wheels, one featuring 7 slots for interchangeable indexed rotating GOBO patterns and the other featuring 15 static stamped metal GOBOs (including four beam reducers). Two rotating prism options are also provided – 8-facet circular and 6-facet linear for creating multibeam surface textures and dynamic mid-air effects. Considering its impressive output and feature set, the Focus Hybrid is a compact fixture which weighs in at a very manageable 31 lbs. (14.1kg).

Product Specifications:

Source:

200W LED Engine

50,000 Hour Average LED Life

Photometric Data:

4,100 Total Lumens

7,500K, >70CRI

57,433 LUX 5,336 FC @16.4’ (5m) (3.1° Beam)

1,293 LUX 120 FC @16.4’ (5m) (23.8° Beam)

Effects:

8-Facet Circular & 6-Facet Linear Rotating Prisms

Prism Layering

Replaceable Frost Filter (Heavy Frost Default)

Motorized Zoom (2° to 24°)

Motorized Focus

Electronic Dimming & Strobe (1-20Hz)

Color: Color Wheel with 11 dichroic colors, includes 3200 CTO Filter

Gobos:

(2) Gobo Wheels

#1 - (7) Interchangeable Rotating-Indexing Gobos

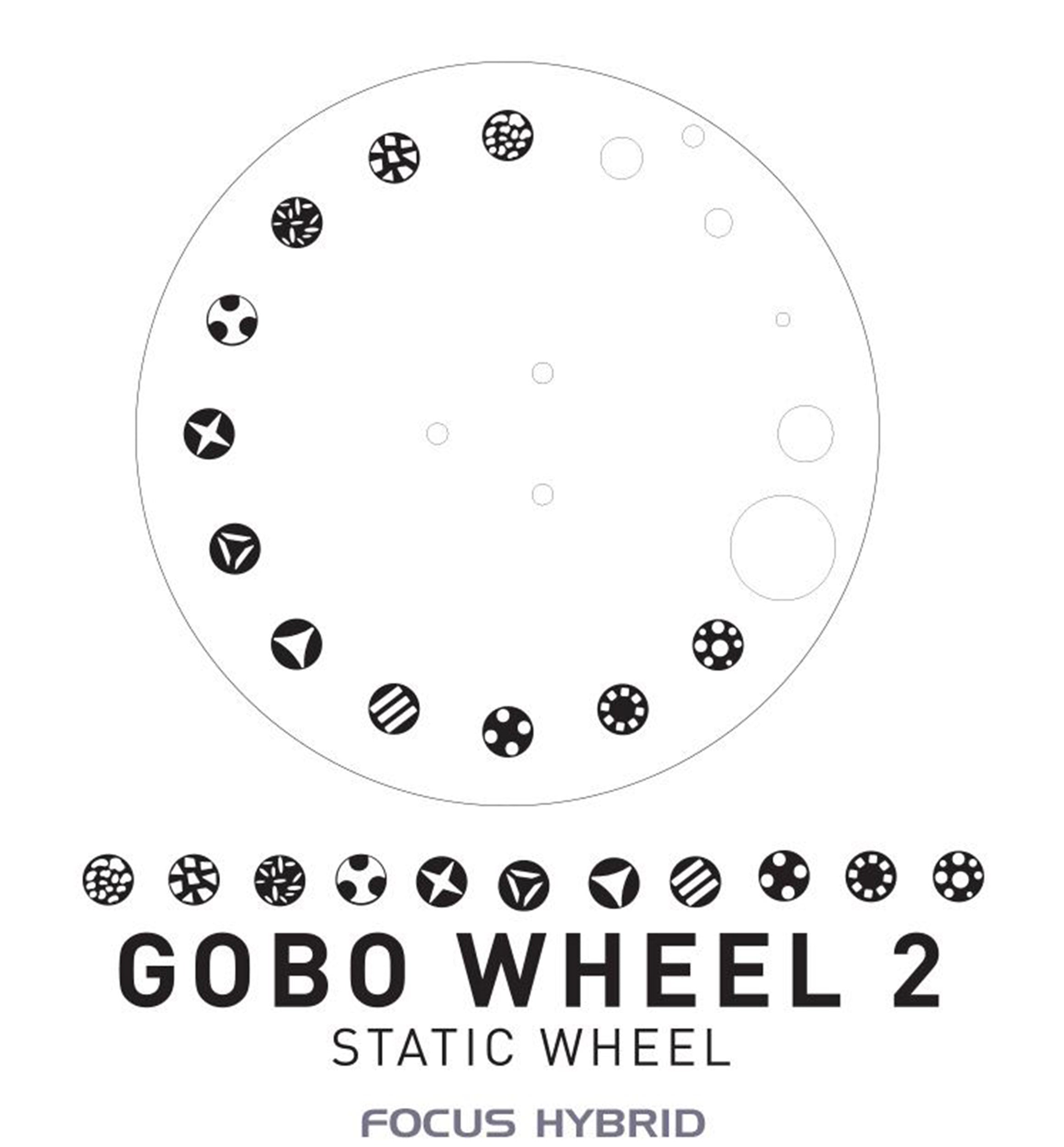

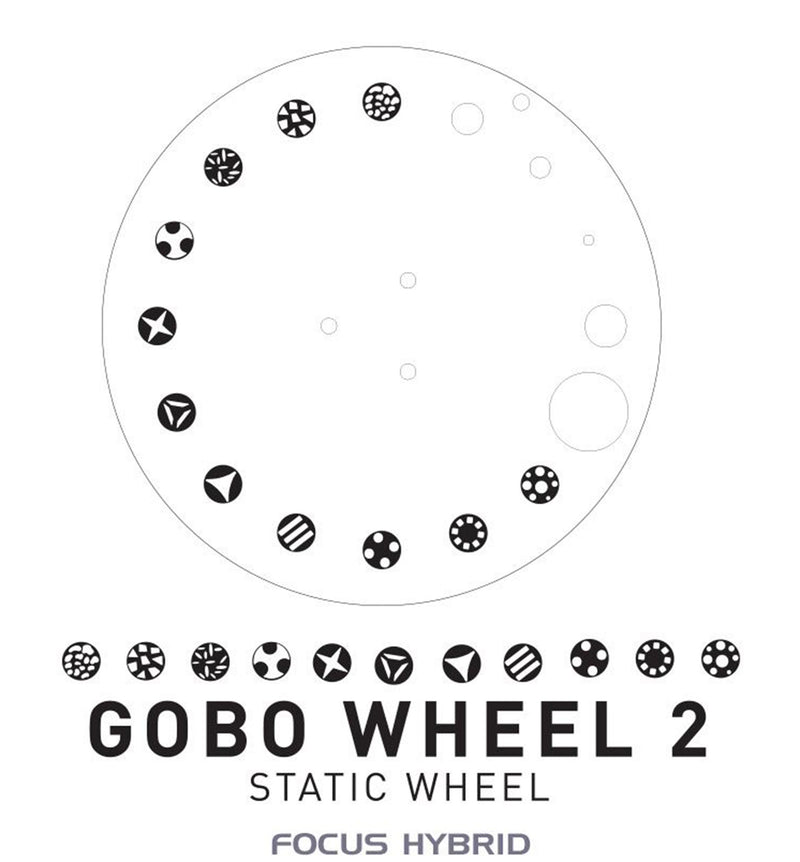

#2 - (15) Static-Stamped Gobos

Control / Connections:

(3) DMX Channel Modes (19 / 23 / 25)

WiFLY EXR Wireless DMX Built-in (2500 ft. 700M line of sight)

RDM (Remote Device Management)

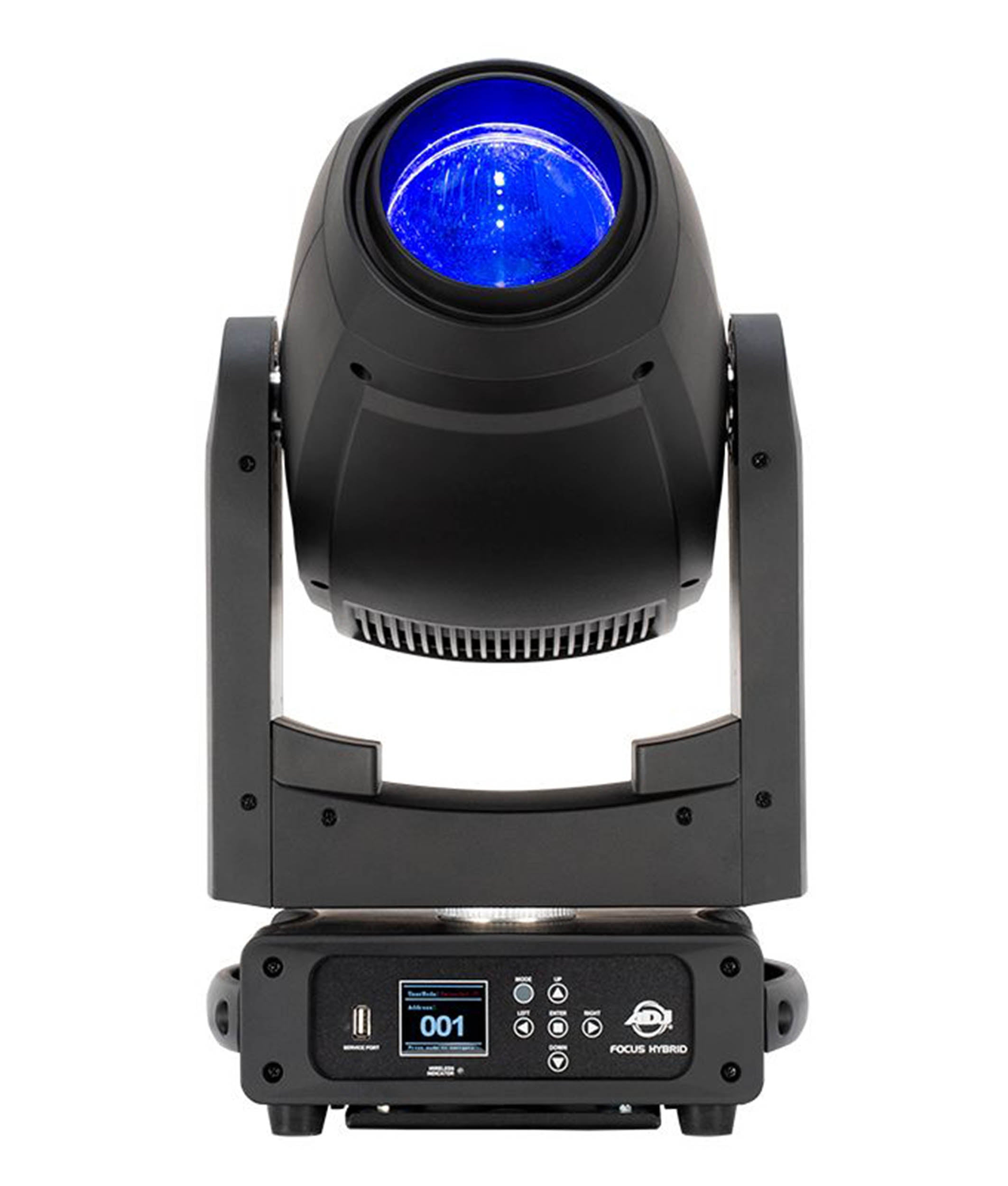

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

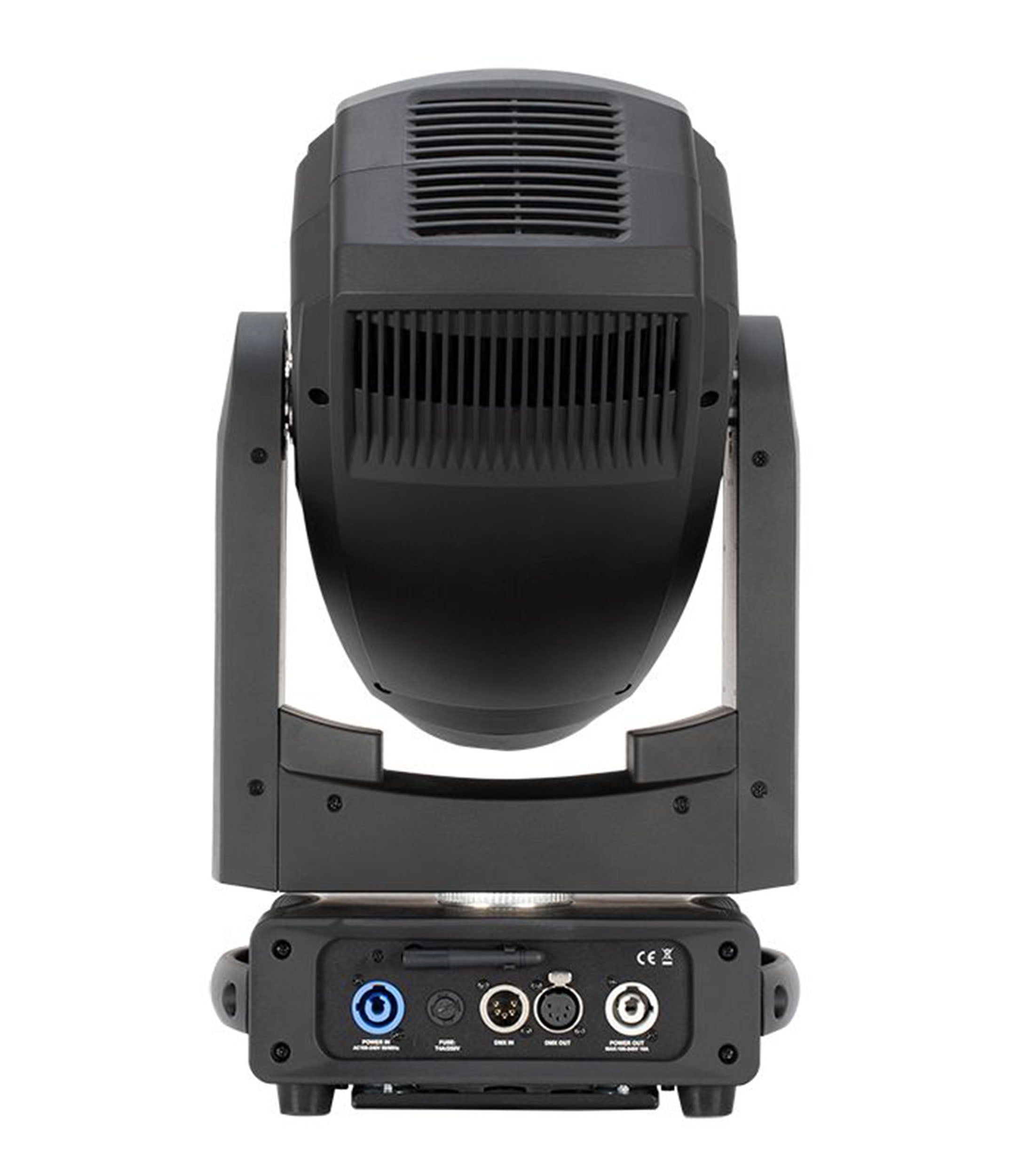

5 pin XLR DMX in/Out

Locking In/Thru power connections

Antenna on rear for WiFLY EXR Wireless DMX connection

With Wired Digital Communication Network

Pan / Tilt:

Pan: 540-degrees

Tilt: 270-degrees

Size / Weight:

Length: 13.8" (351mm)

Width: 11.0" (279mm)

Vertical Height: 20.9" (530mm)

Weight: 31 lbs. (14.10kg)

Electrical / Thermal:

AC 100-240V - 50/60Hz

Max Power Consumption: 335W

Max ambient temperature: -13°F to 113°F (-25°C to 45°C)

Max housing temperature: 136°F (58°C)

Daisy chain power up to 2 units @ 120V or 6 units @ 240V

Technical Data:

DB Rating @ 3ft.: 43.2dB

BTU: 0.32

BTU/H: 1,142.35

Approvals / Ratings:

CE | ETL (Pending)

IP20

Included Accessories:

(1) Power cable

(2) Omega brackets

(1) Medium frost filter
