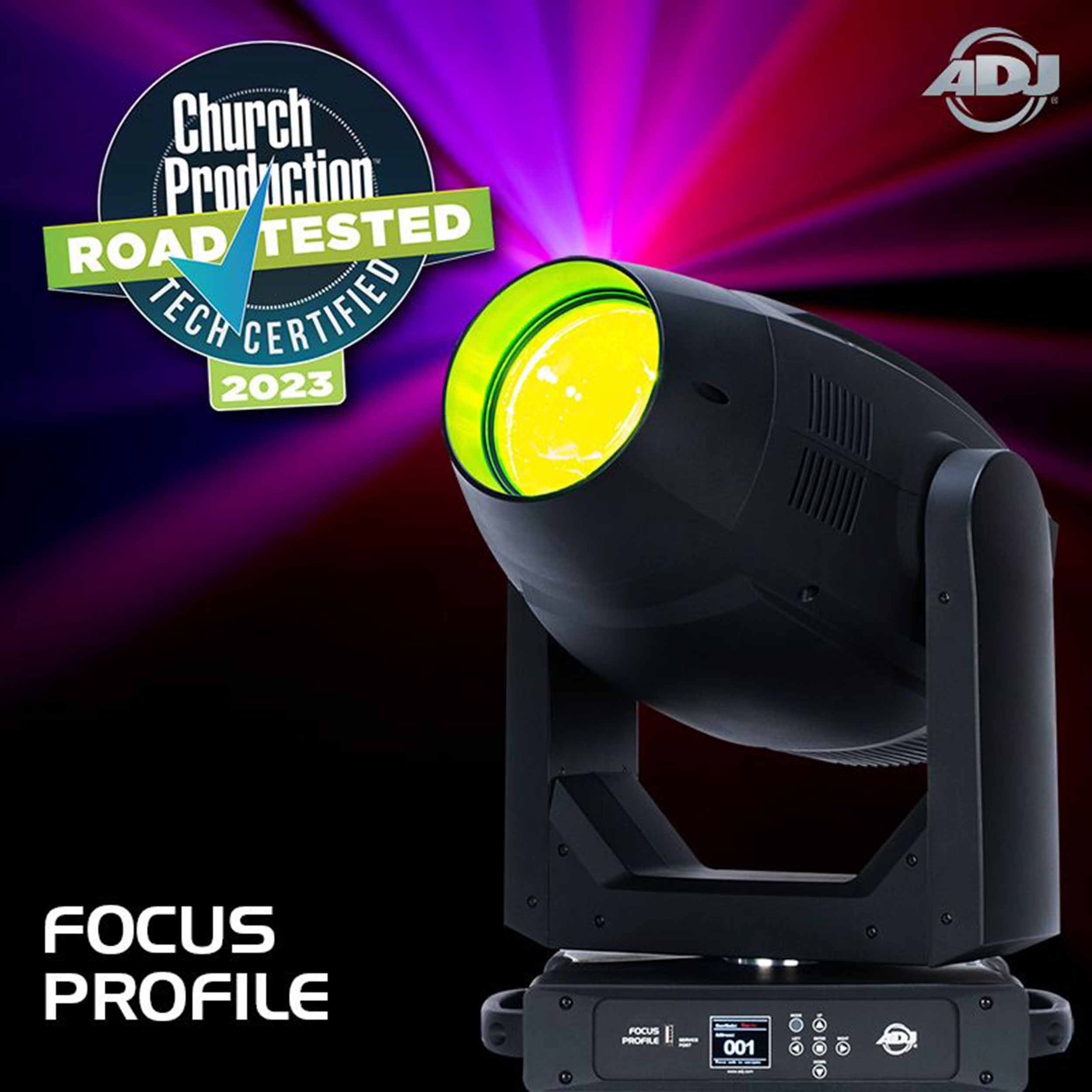

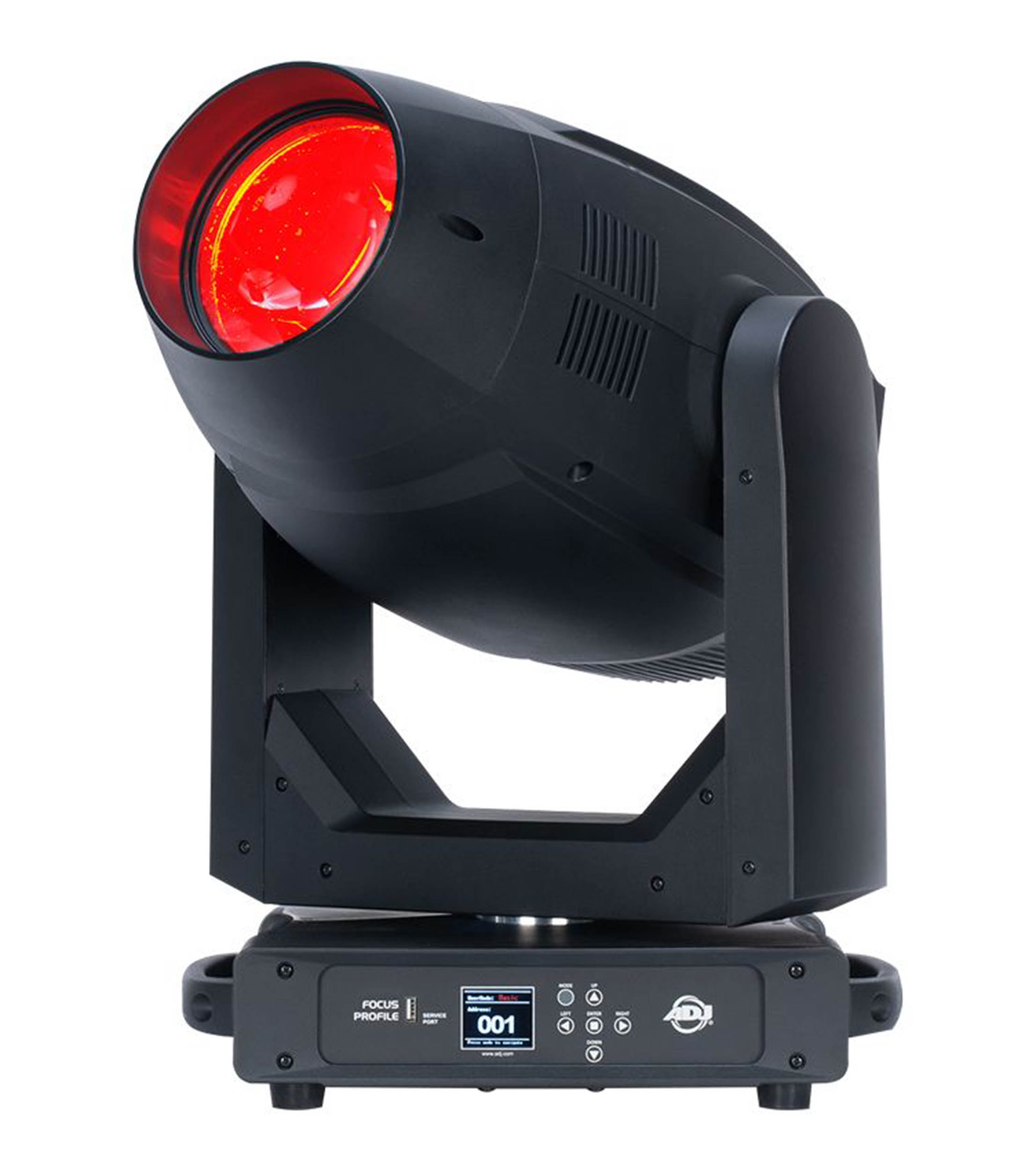

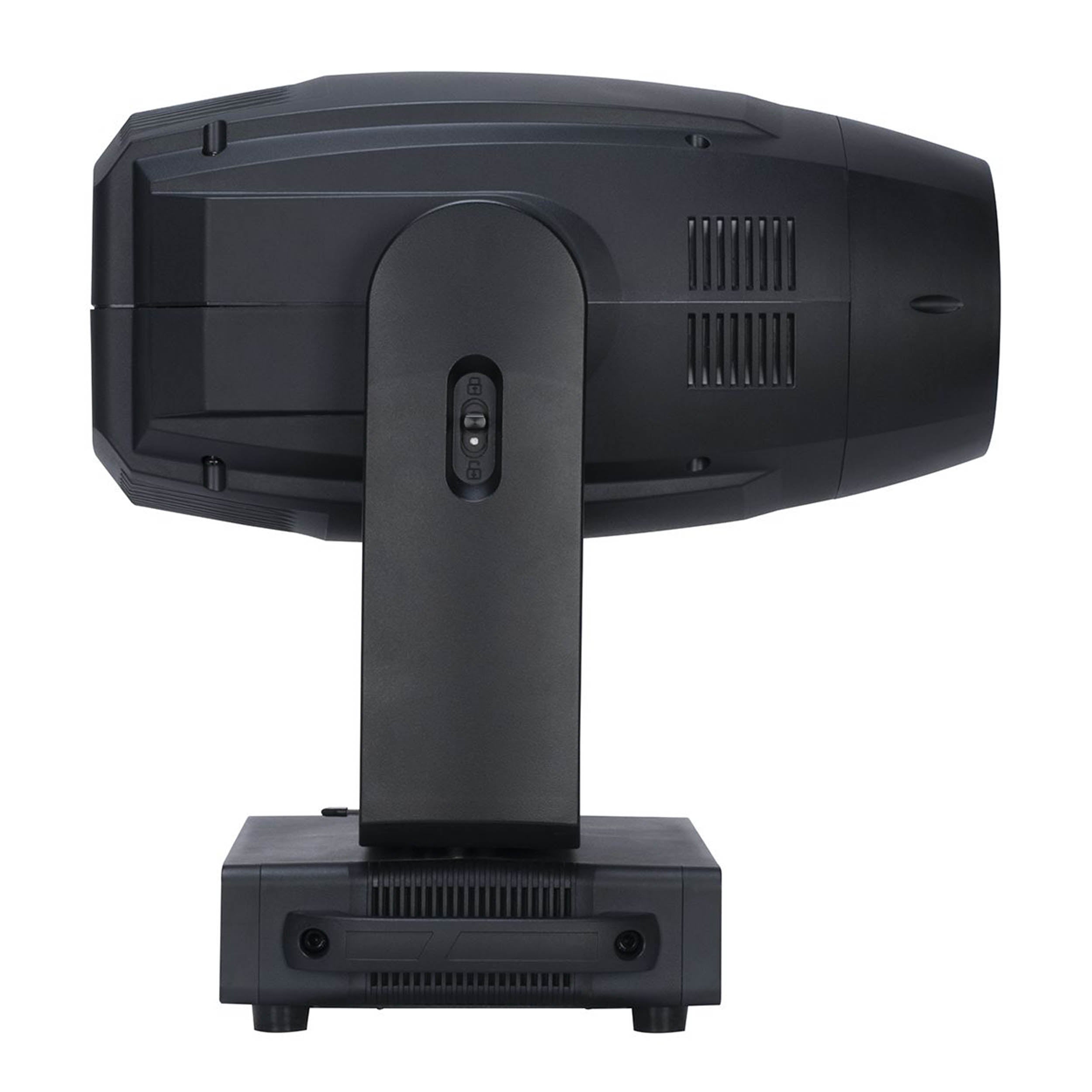

ADJ Focus Profile, Feature-Packed Moving Head Profile Fixture with Framing Shutters - 400 Watt

The ADJ Focus Profile, Feature-Packed Moving Head Profile Fixture with Framing Shutters - 400 Watt is the brightest and most feature-rich Focus Series fixture to date, the Focus Profile is a professional caliber automated profile luminaire designed for theatrical, concert touring and event production applications. It features a potent 400W LED engine, with a native color temperature of 6,700K and a CRI in excess of 70, coupled with an exhaustive collection of beam-shaping tools. These include four, independently controllable, rotating framing shutter blades, which can be used to precisely shape the light output. The unit offers full CMY color mixing together with variable CTO color temperature control (2700K to 6700K) and an additional color wheel loaded with 6 dichroic filters comprised of four primaries together with CTB and CRI filters. Two separate GOBO wheels feature 7 replaceable, indexed-rotating GOBOs, and 8 static GOBOs, respectively, while two bi-directional rotating prisms (3-facet and 4-facet) allow for the creation of a wide variety of aerial effects. Motorized focus, iris and zoom (7 – 45°) together with a replaceable (medium) frost filter and an animation wheel complete the lineup of features offered by this powerful and versatile luminaire.

Product Specifications:

Source

400W LED Engine

20,000 Hour Average LED Life

Photometric Data

20,000 Total Lumens

6,700K, >70CRI (without CRI Filter)

6,200K >87CRI (with CRI Filter)

44,330 LUX 4,118 FC @16.4’ (5m) (7.32° Beam)

1,767 LUX 164 FC @16.4’ (5m) (45° Beam)

Effects

4 Rotating Framing Shutters, +/-60°, plus shape rotation

3-Facet Circular & 4-Facet Linear Rotating Prisms

Replaceable Medium Frost Filter

Animation Wheel

Motorized Zoom (7~45-degrees)

Motorized Focus

Motorized Iris

Electronic Dimming & Strobe (1-20Hz)

Color

Full CMY color mixing

Variable CTO (2700K to 6700K)

Colors Wheel with 6 dichroic colors

Gobos

(2) Gobo Wheels

#1 - (7) Rotating Glass Gobos (Interchangeable and Indexable)

#2 - (8) Static Glass Gobos

Control / Connections

(3) DMX Channel Modes (36 / 40 / 51)

RDM (Remote Device Management)

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

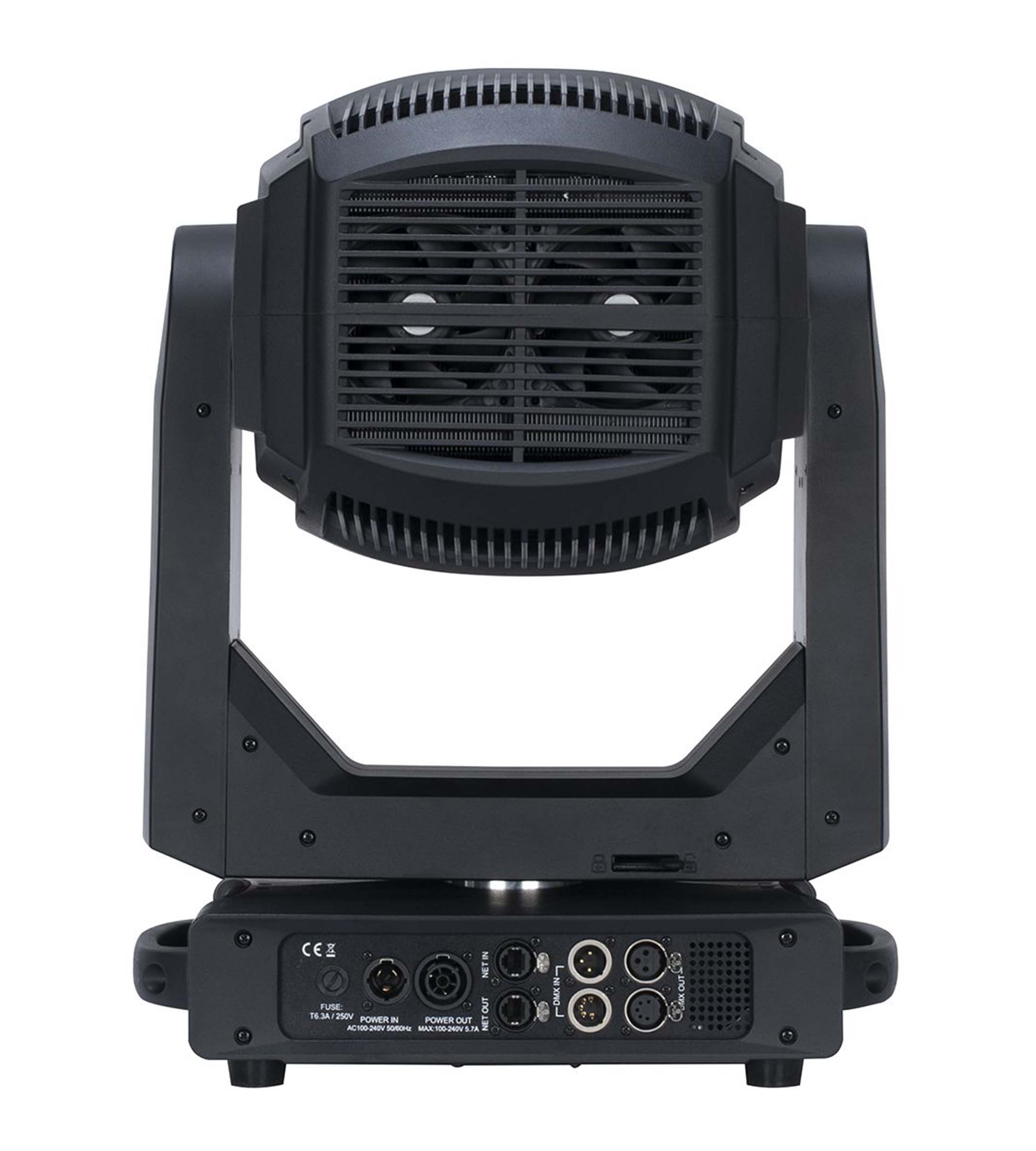

3 & 5 pin XLR DMX in/Out

RJ45 Ethernet in/Out (Art-NET)

Locking In/Out power connections

With Wired Digital Communication Network

Pan / Tilt

Pan: 540-degrees

Tilt: 270-degrees

Pan & Tilt Locks

Size / Weight

Length: 15.7" (400mm)

Width: 10.2" (259mm)

Vertical Height: 26.1” (664mm)

Weight: 61.2 lbs. (27.75kg)

Electrical / Thermal

AC 100-240V - 50/60Hz

Max Power Consumption: 560W

Max ambient temperature: -13°F to 113°F (-25°C to 45°C)

Max housing temperature: 136°F (58°C)

Technical Data

DB Rating @ 3ft.: 49dB

BTU: 0.53

BTU/H: 1,909.60

Approvals / Ratings

CE | ETL (Control #4010765)

IP20

Included Accessories

(1) Power cable

(2) Omega brackets

(1) Heavy frost filter (JMJ03)
